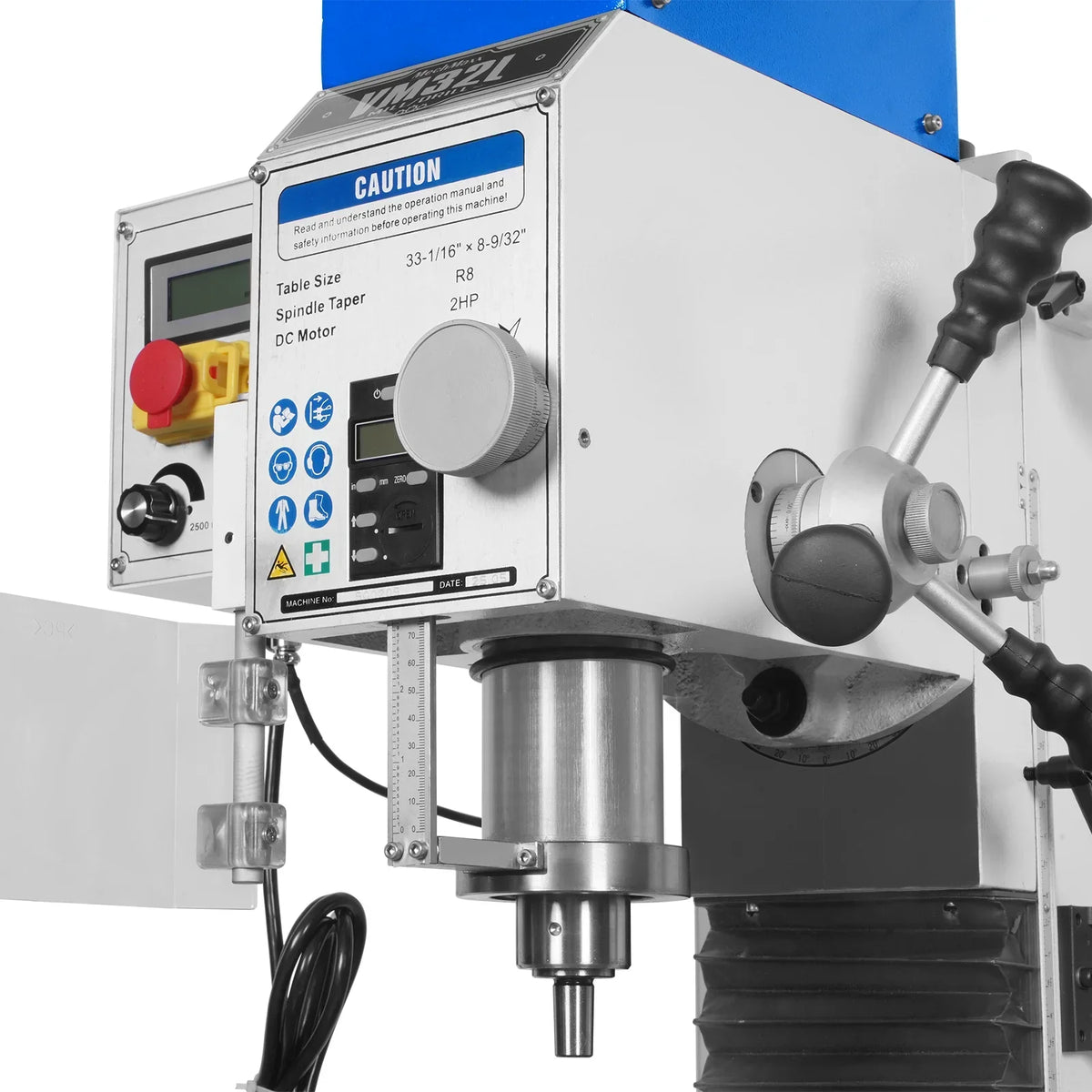

Spindle Specifications
Spindle Taper
R8

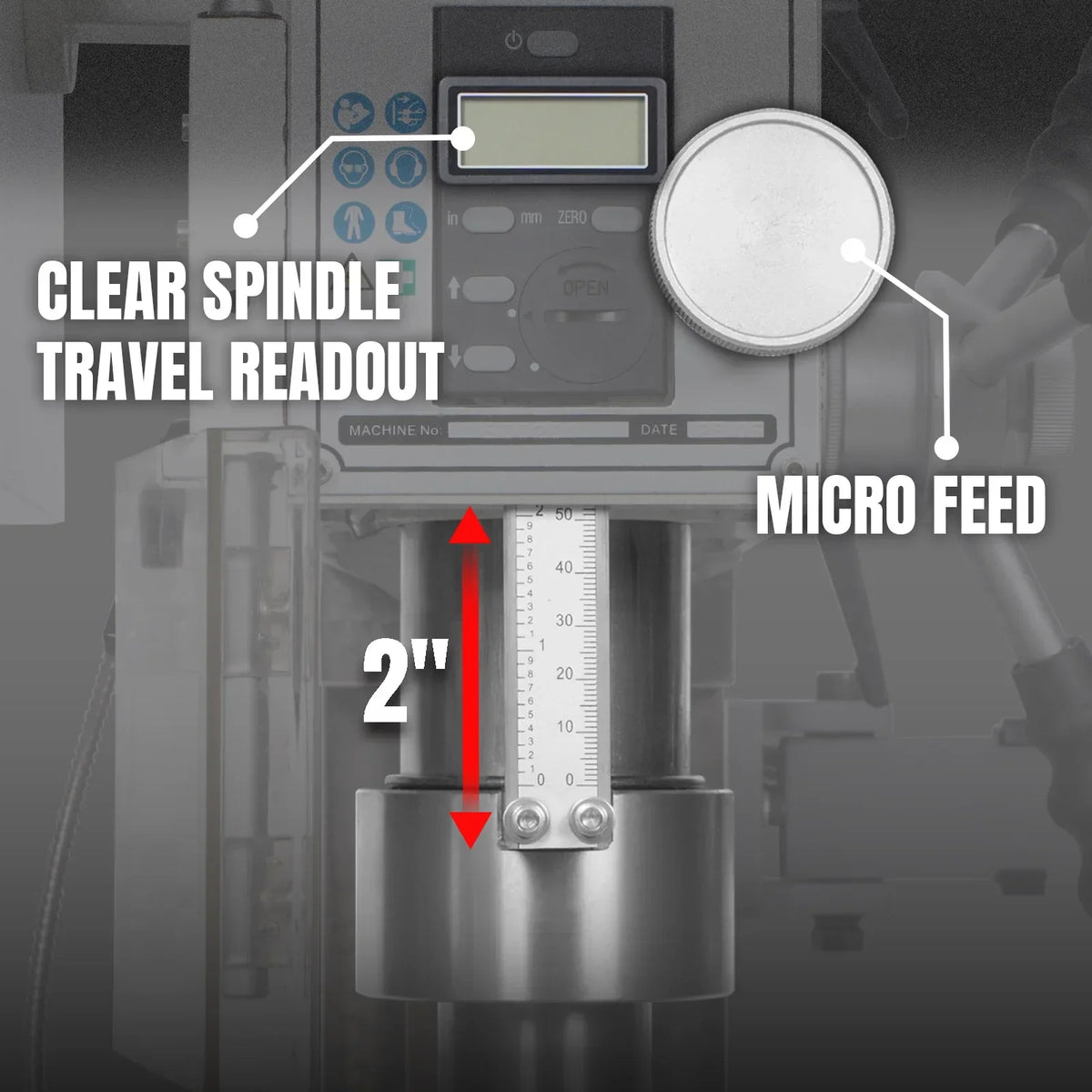

Spindle Travel
2"(50mm)
Quill Diameter
Ø2-3/4''(70mm)
Spindle Speed Range
0-2500RPM
Number of Speed Steps
Variable
Drawbar Thread Size
7/16"-20''

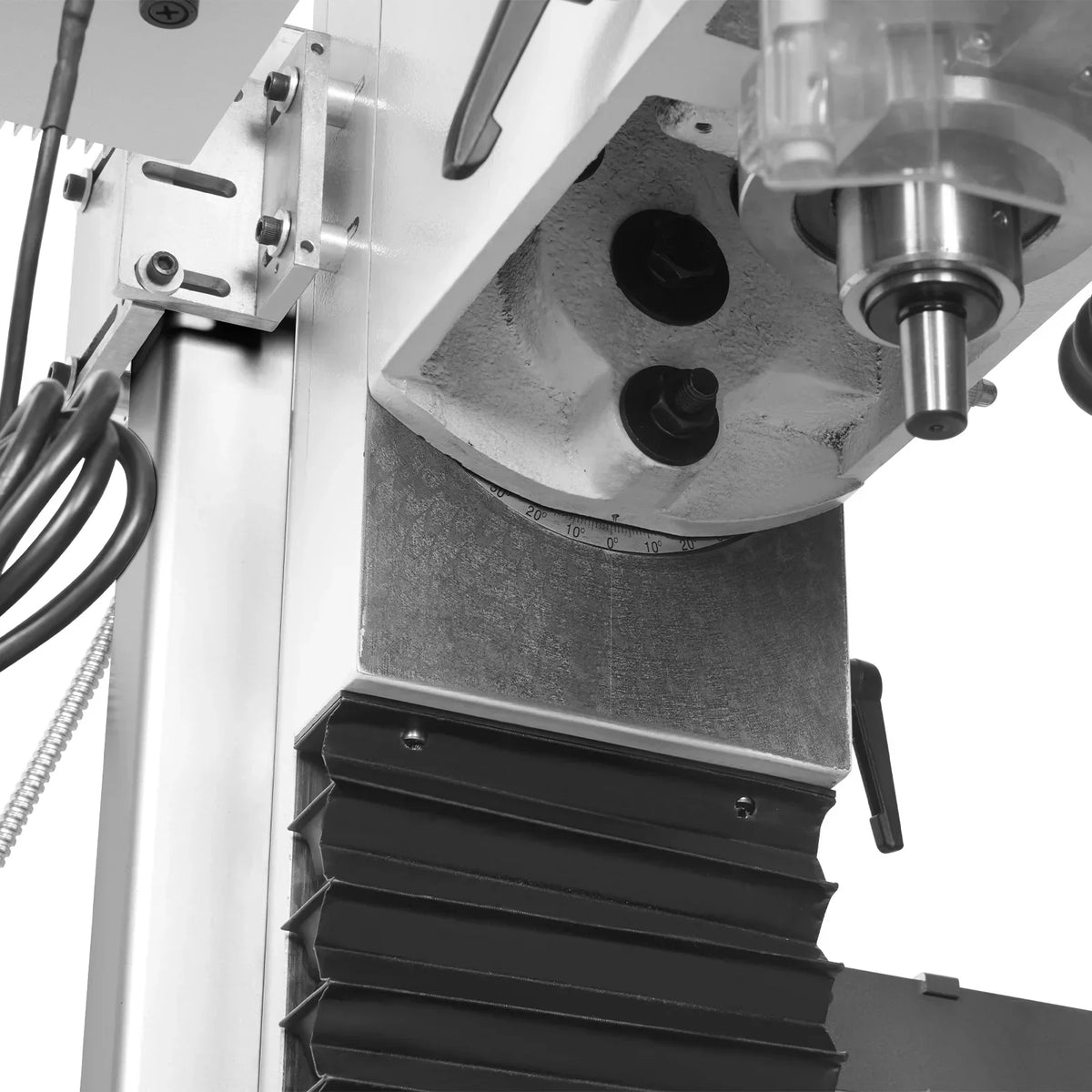

Head Tilt Angle
±90°
Spindle to Table Distance
18-1/2"(470mm)
Spindle to Column Distance
8-1/4"(210mm)

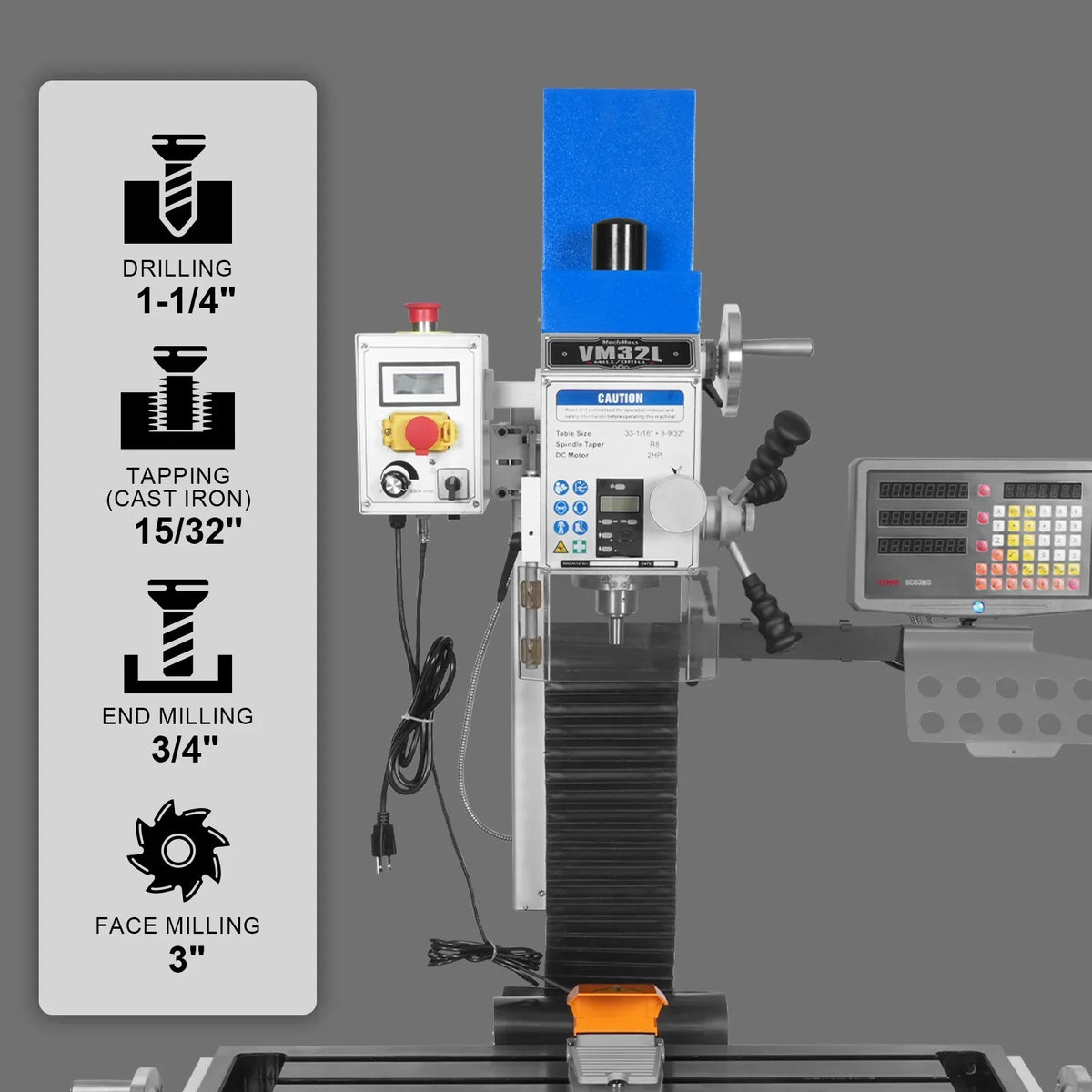

Cutting Capacity
Drilling Capacity
1-1/4"(32mm)
End Milling Capacity
3/4"(20mm)
Face Milling Capacity
3''(76mm)

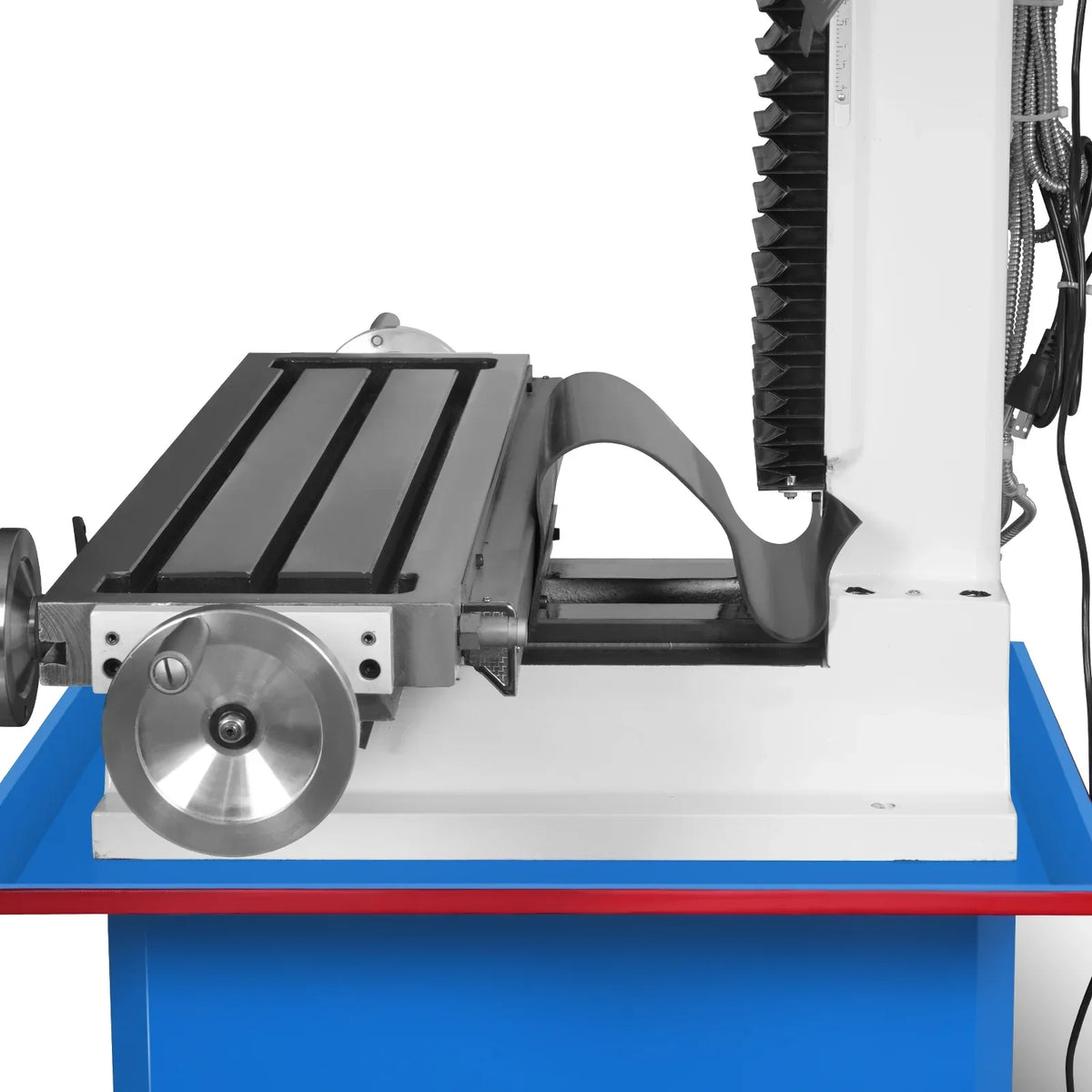

Table & Travel
Table Size
8-1/4"x33''(210x840mm)
T-Slot Size / No. / Centers
3 X 9/16''(14mm)
X-Axis Travel
22-7/8''(580mm)
Y-Axis Travel
8-21/32''(220mm)
Z-Axis Travel
18-1/2''(470mm)
Construction & Drive
Column Type

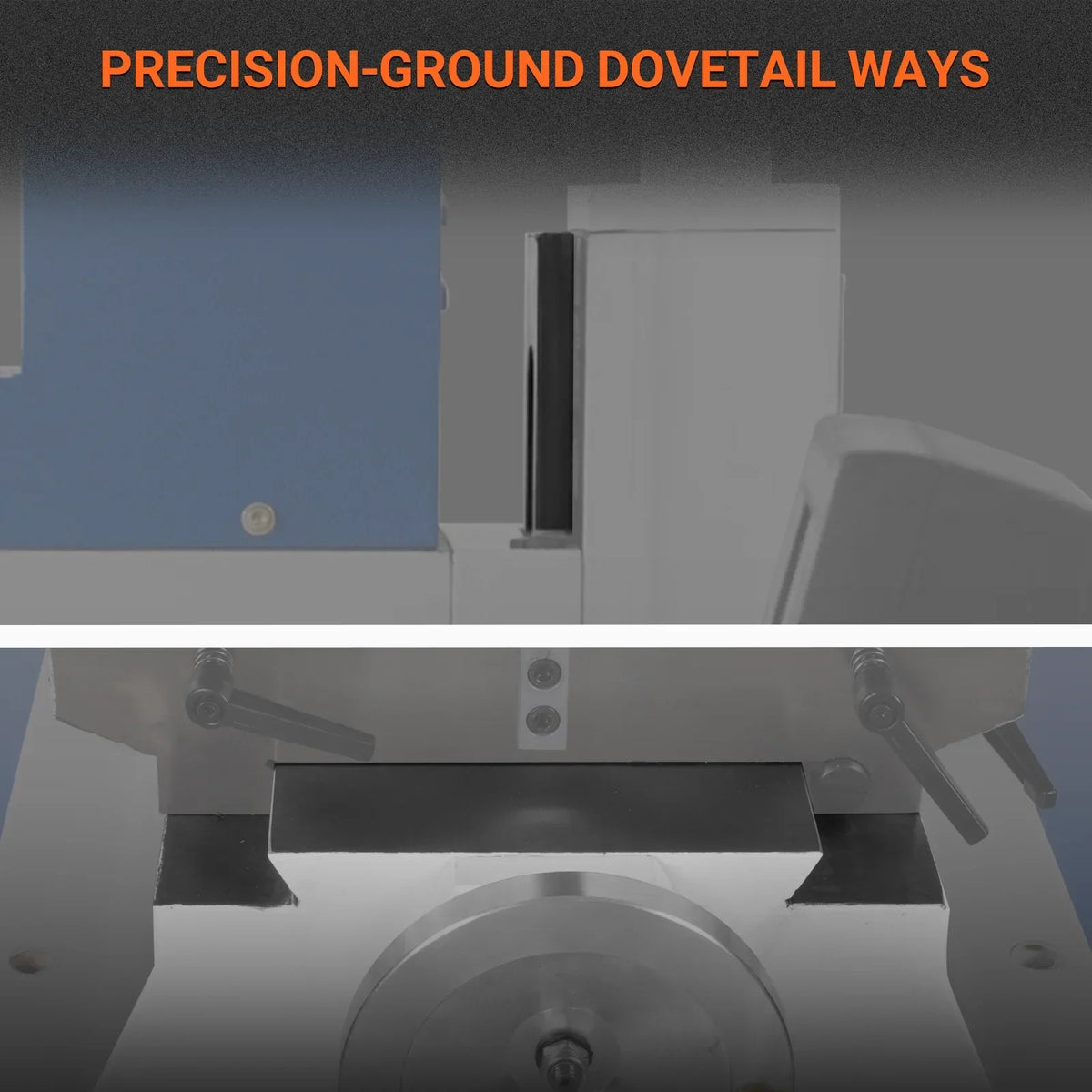

Square Column，Dovetail Slide
Drive Type
Belt

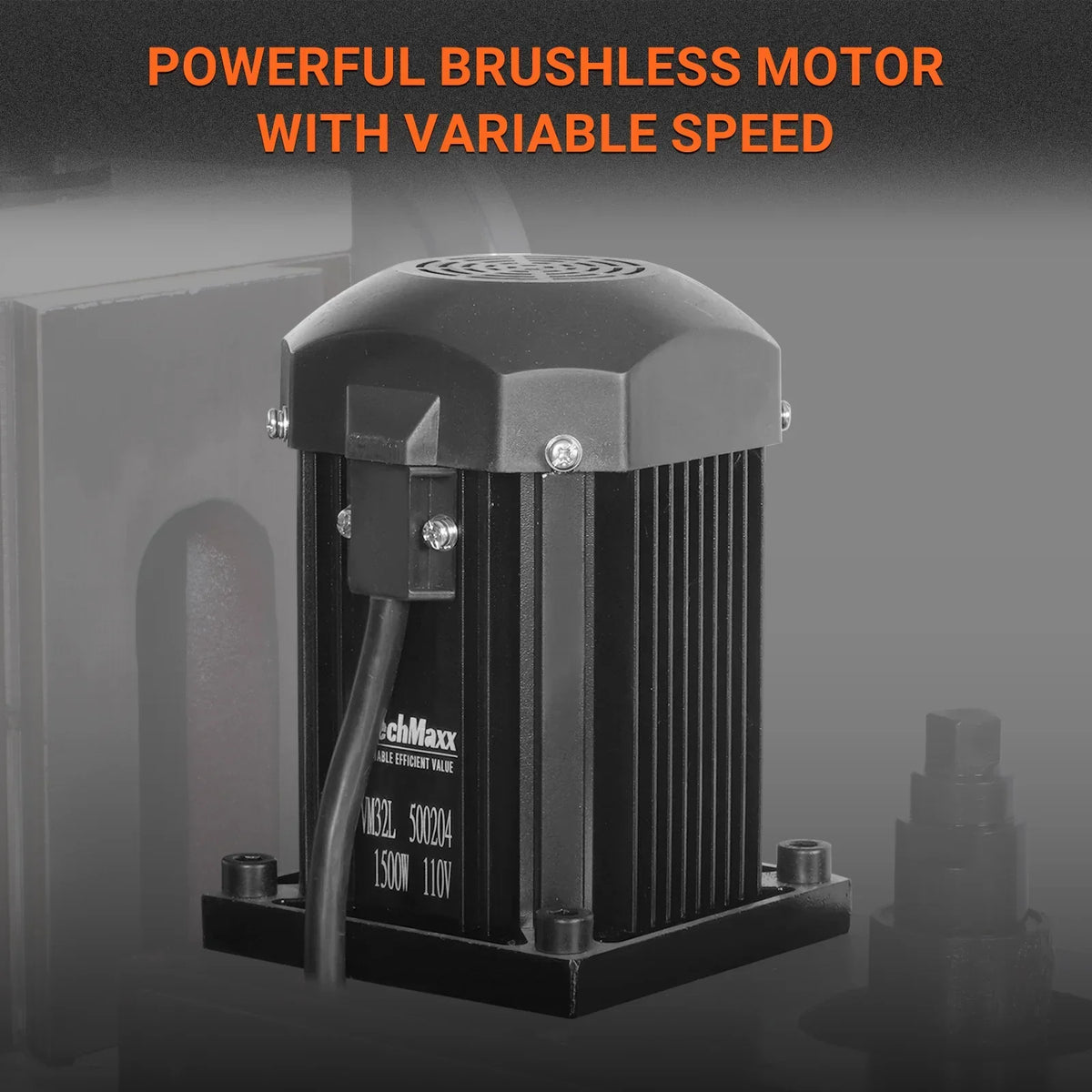

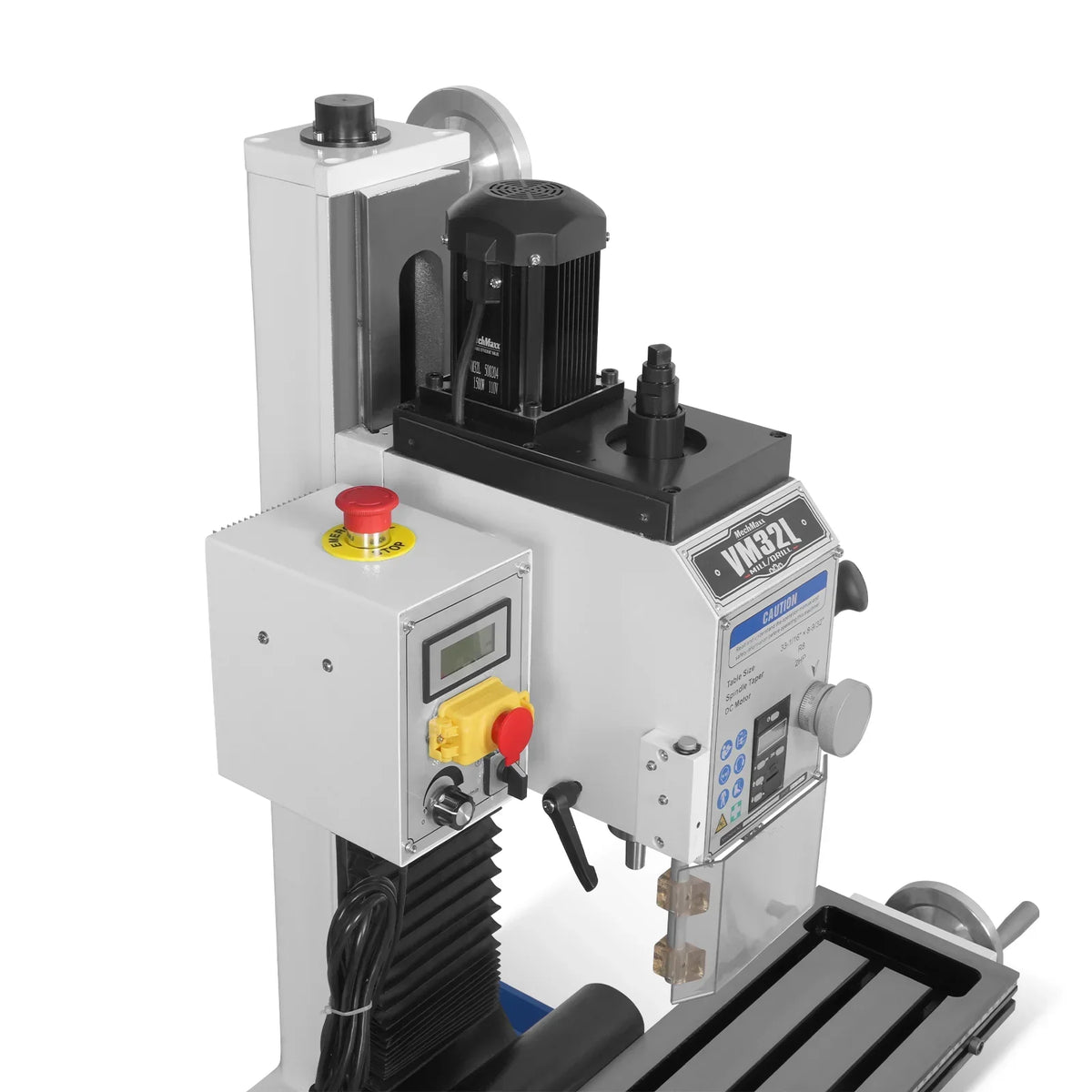

Motor Power
2HP 110V Single-Phase Brushless
Motor Type
DCBrushless
Electrical & Setup
Net / Gross Weight
462/528lbs(210/240KG)
Overall Dimensions
45''x28''x47''(1130X710X1190mm)
Base Size
21''x15''(535X380mm)
Shipping Dimensions
44''x29''x46''(1100X730X1160mm)
