Rated Capacity
75 Tons

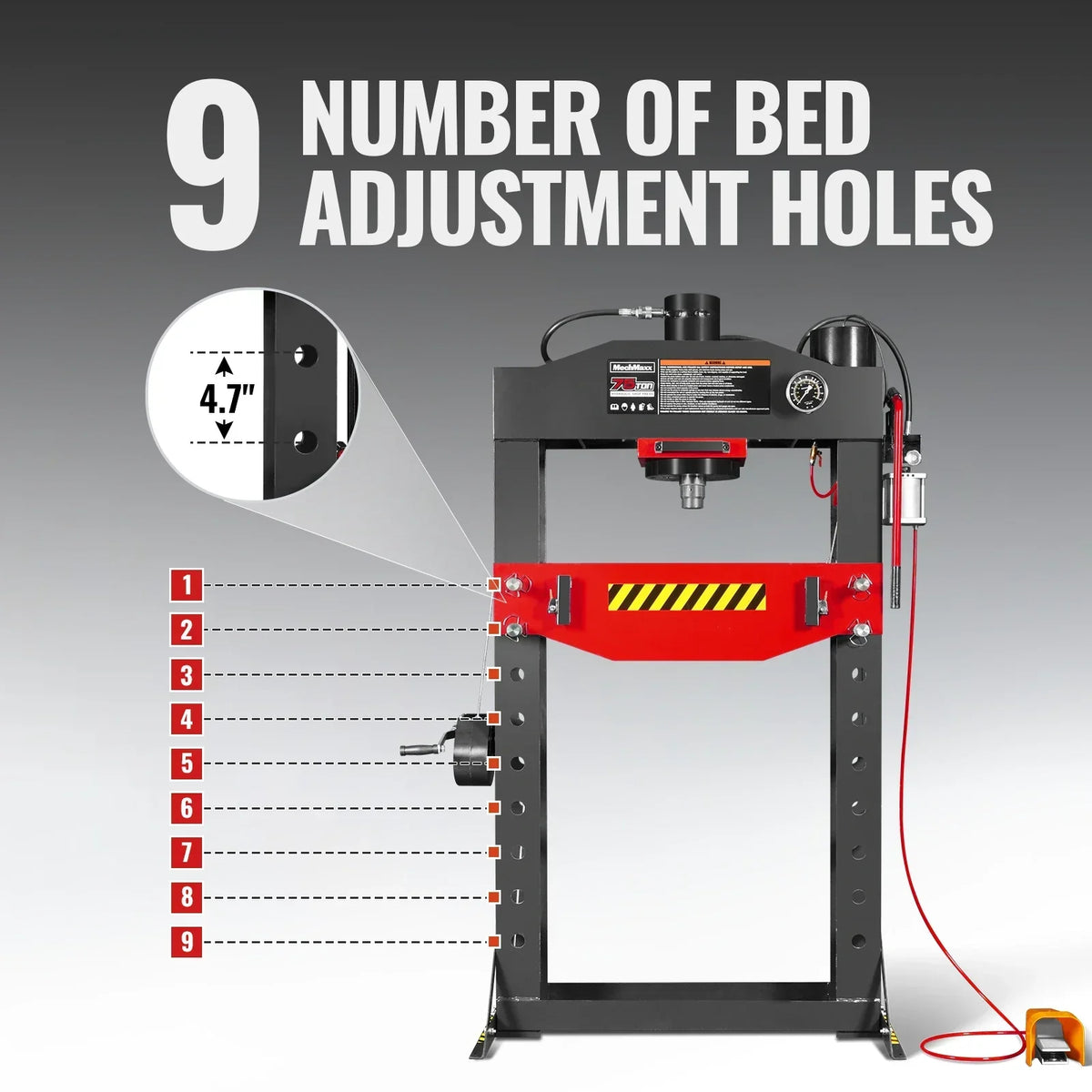

Number of Bed Adjustment Holes
9

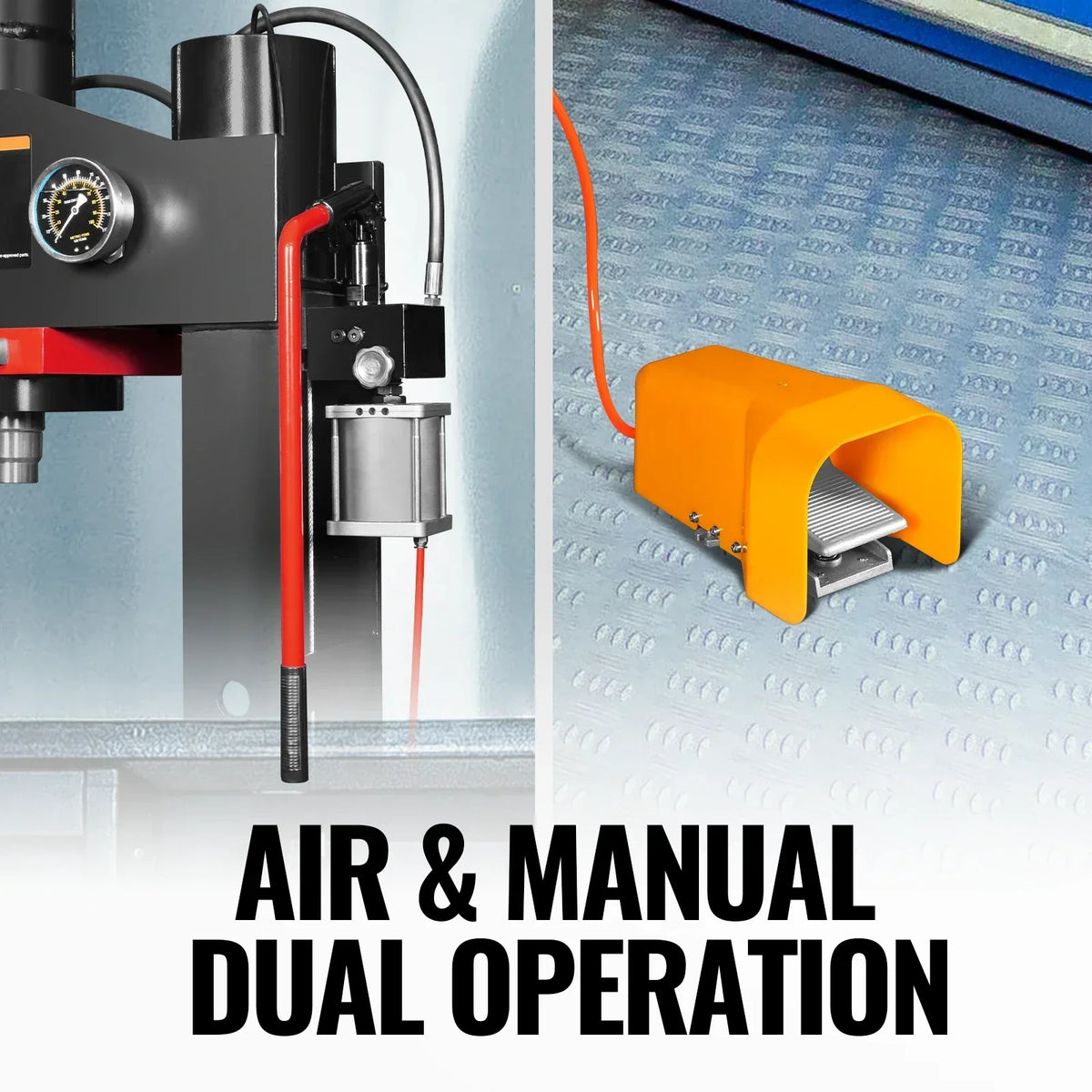

Operation Type
Air & Manual Dual Operation
Bed Adjustment Hole Spacing
4.7 in
Air Pressure
110-125 PSI

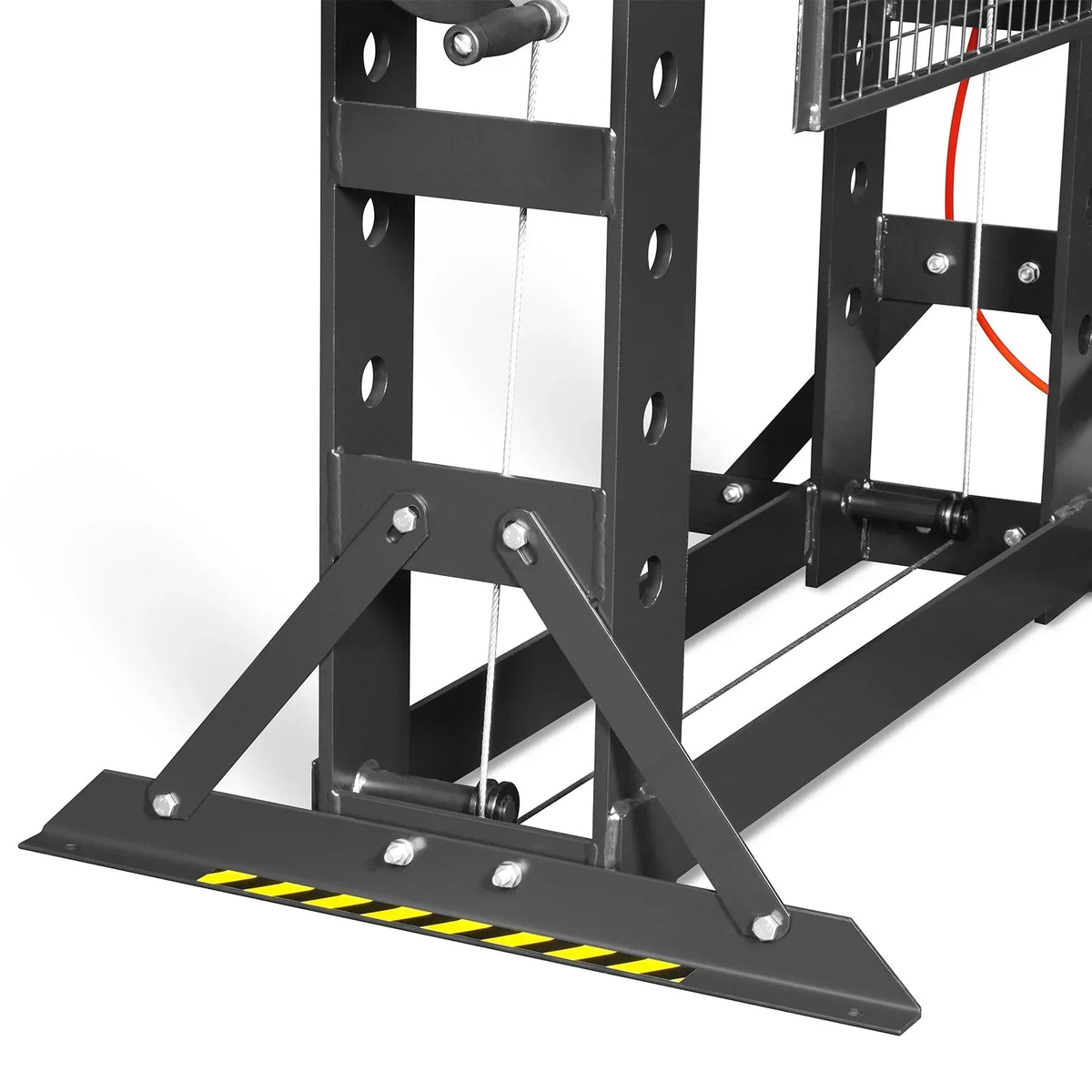

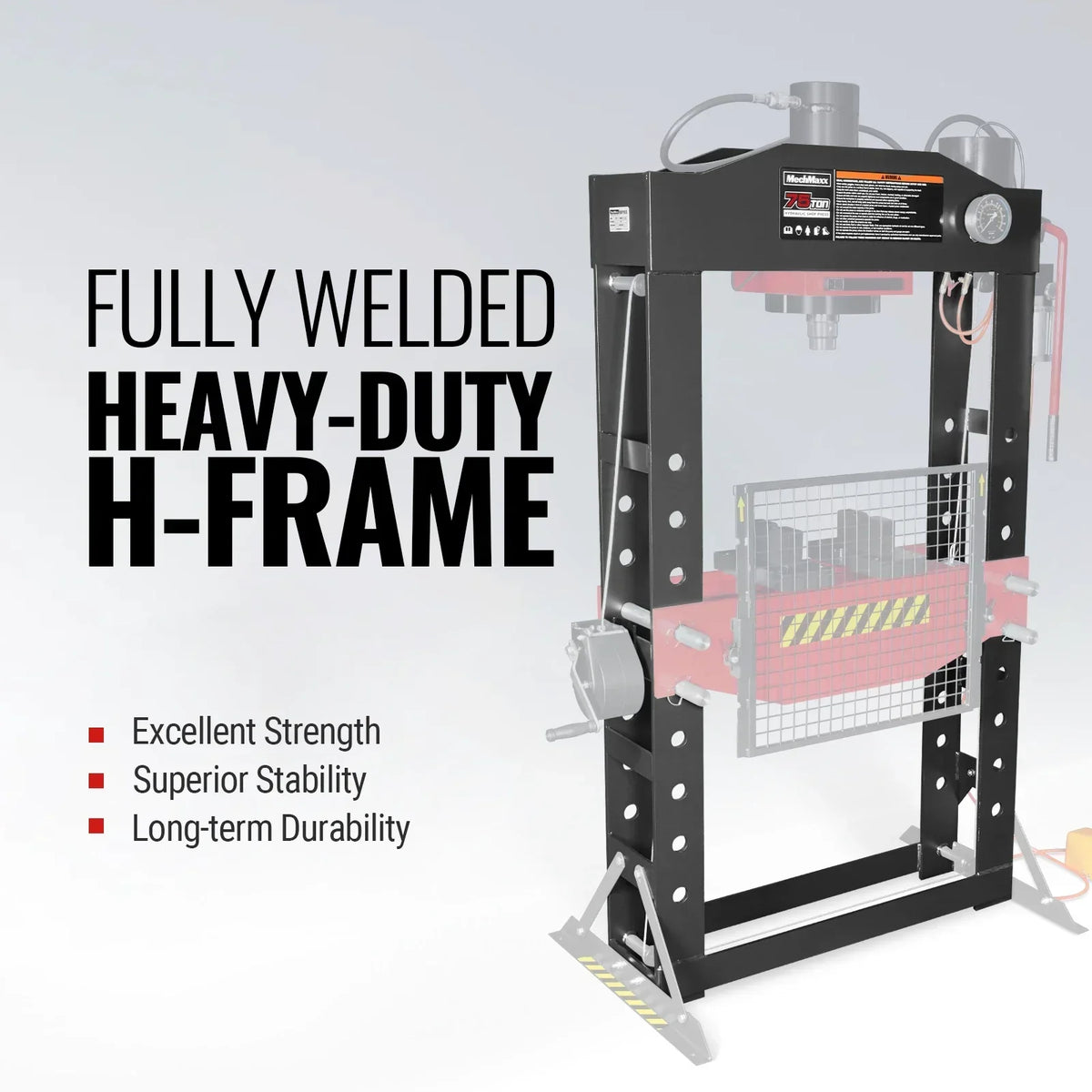

Frame Construction
Fully Welded Heavy-Duty H-Frame
Ram Stroke
9.8 in

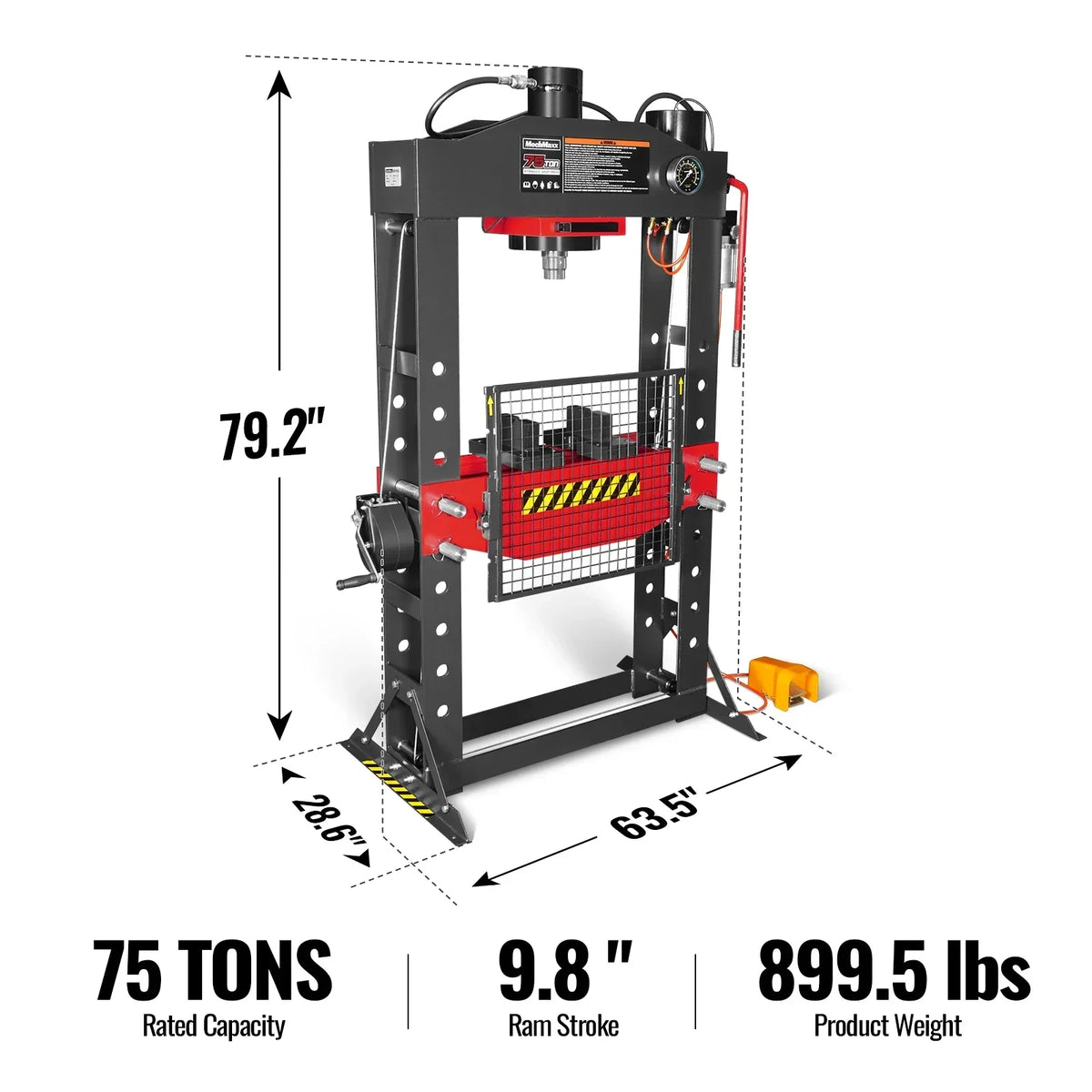

Assembled Size (H x D x W)
79.2 x 28.6 x 63.5 in

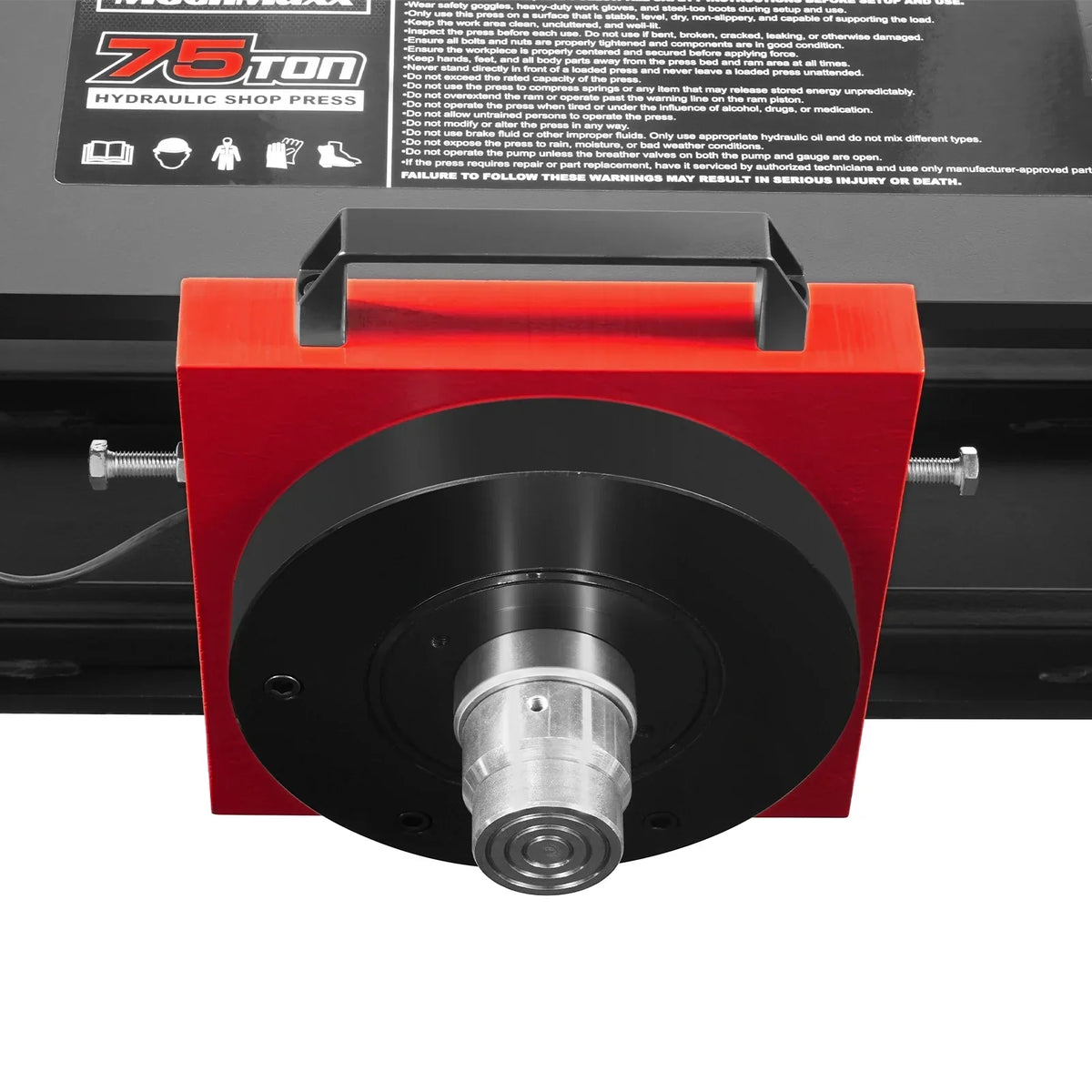

Ram Diameter
3 in
Internal Frame Width
31.5 in
Cylinder Bore
5 in

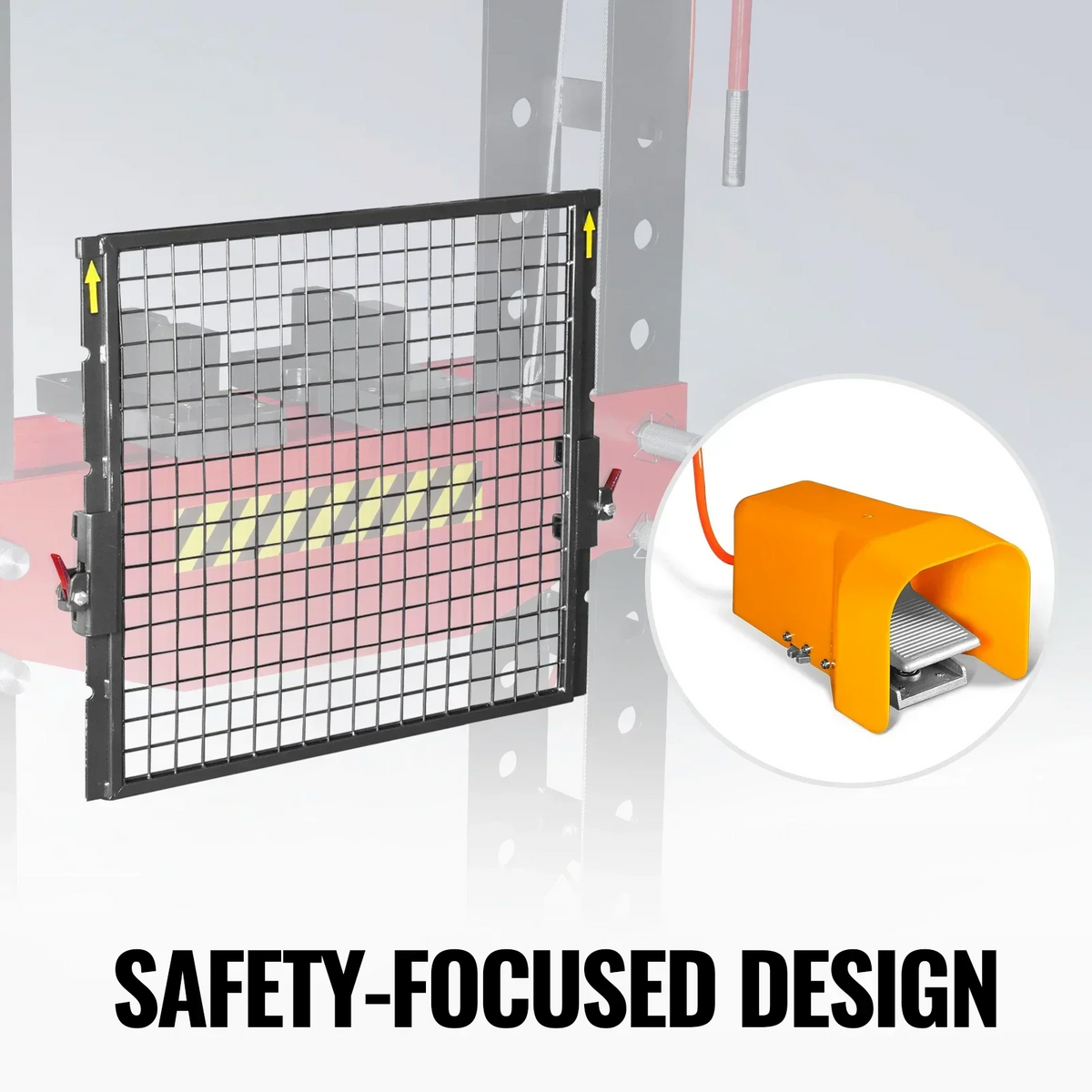

Protective Grid Guard Size
27 x 24 in

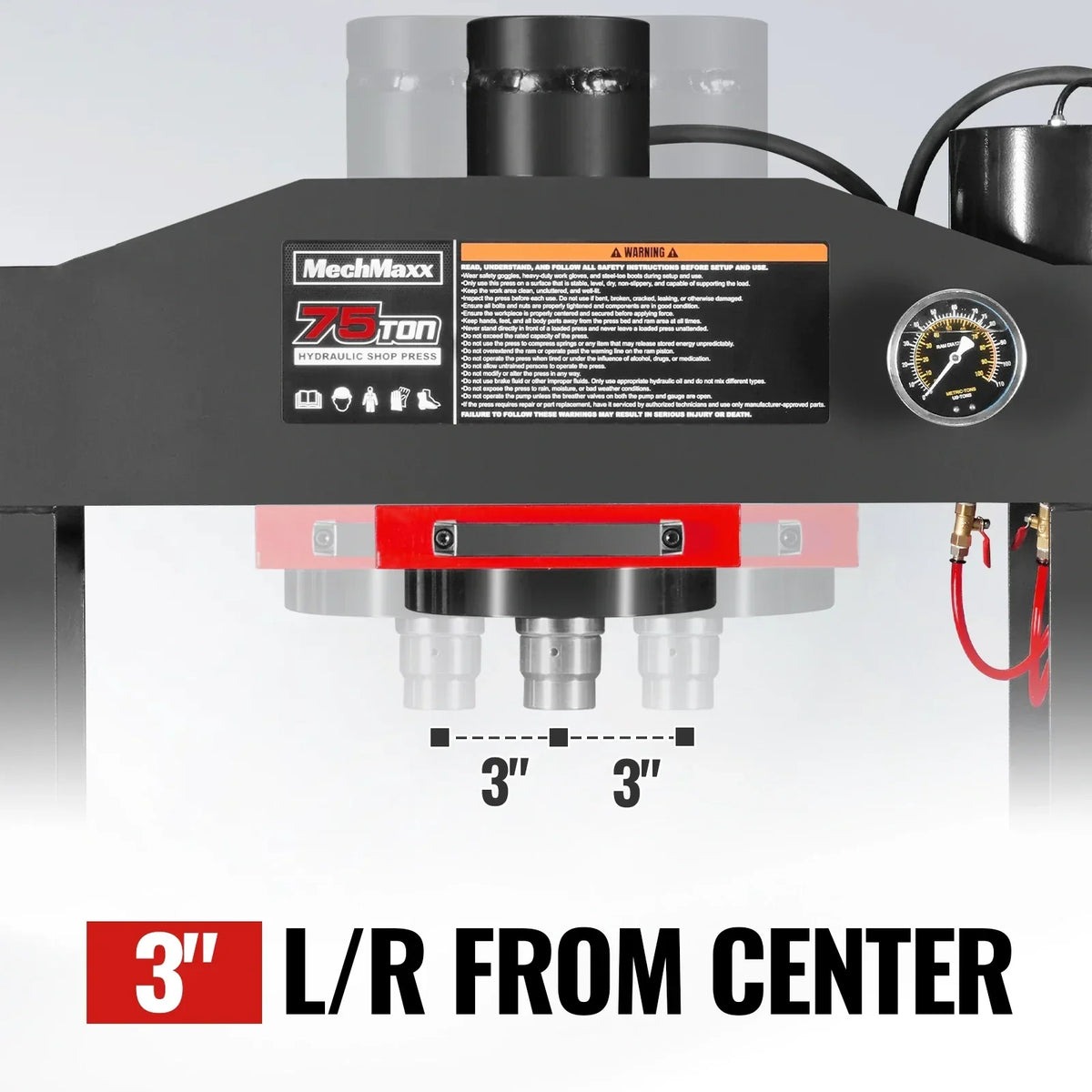

Ram Range of Movement
3 in Left / Right from Center
Recommended Hydraulic Oil
AW32 Hydraulic Oil
Bed Depth
9.5 in
Recommended Oil Capacity
1.29 Gallons
Bed Height
10.2 in

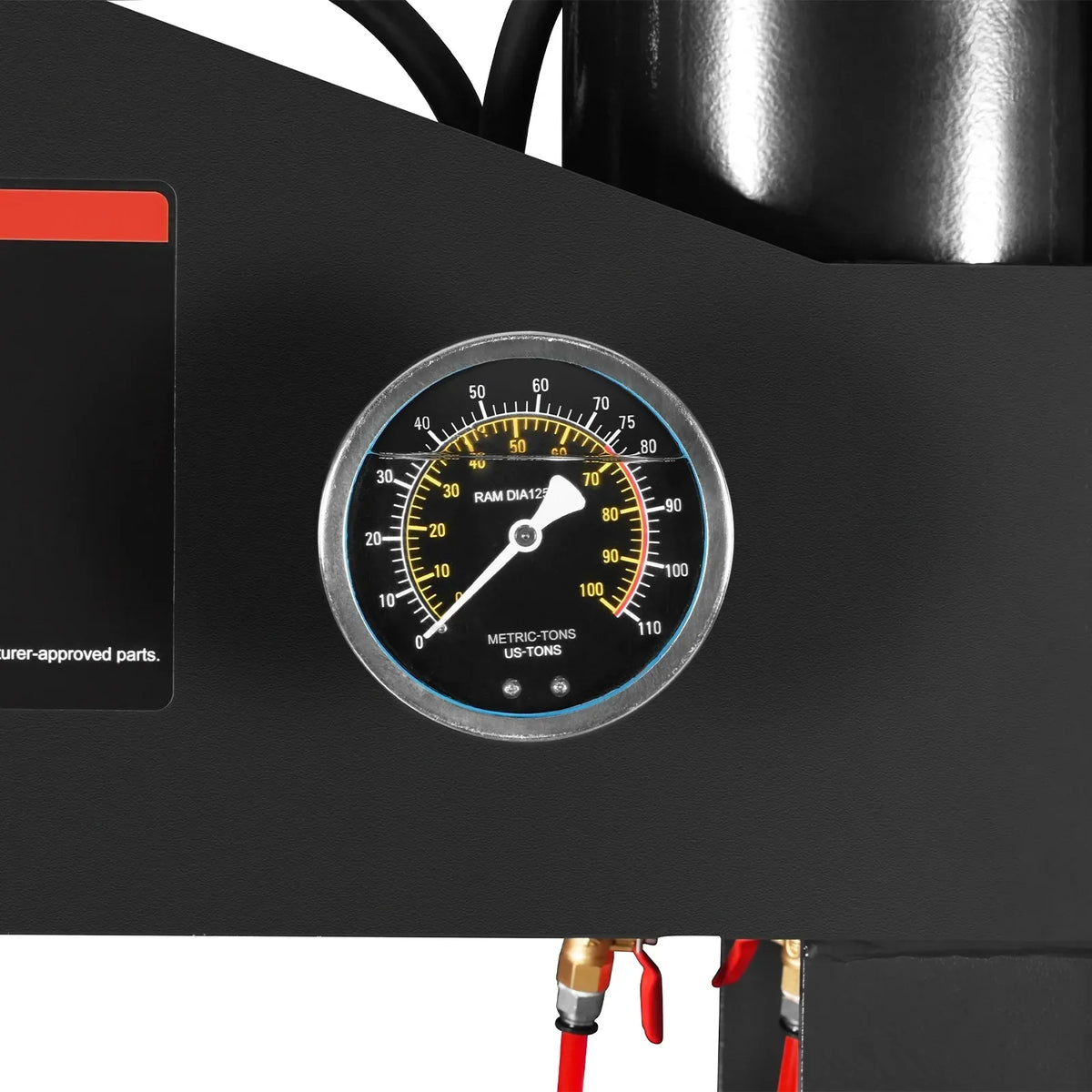

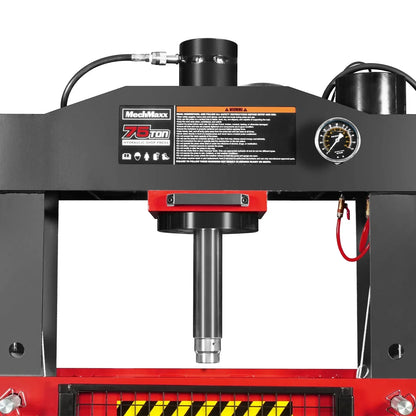

Gauge Type
4 in Oil-Filled Pressure Gauge
Minimum Ram to Bed
6.7 in

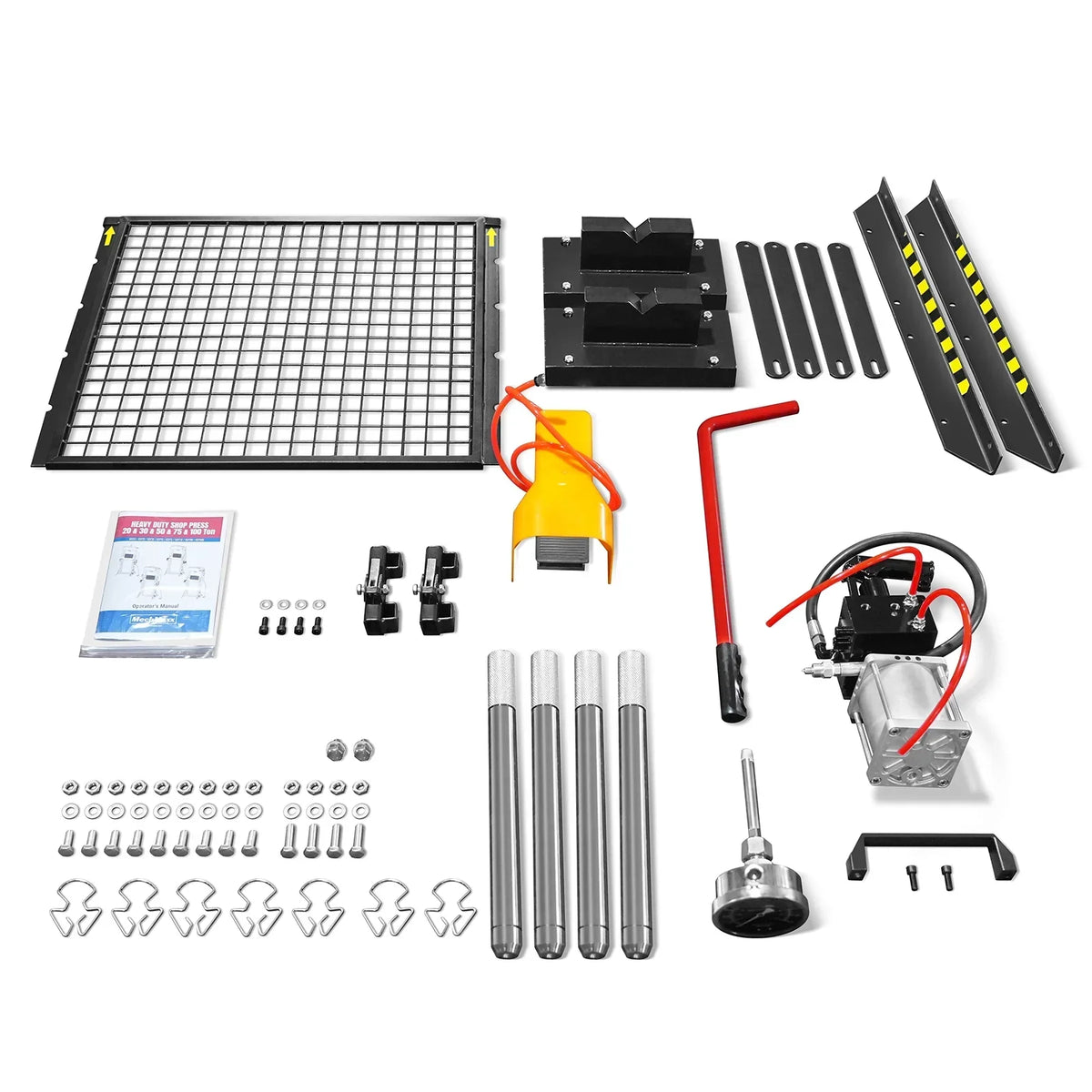

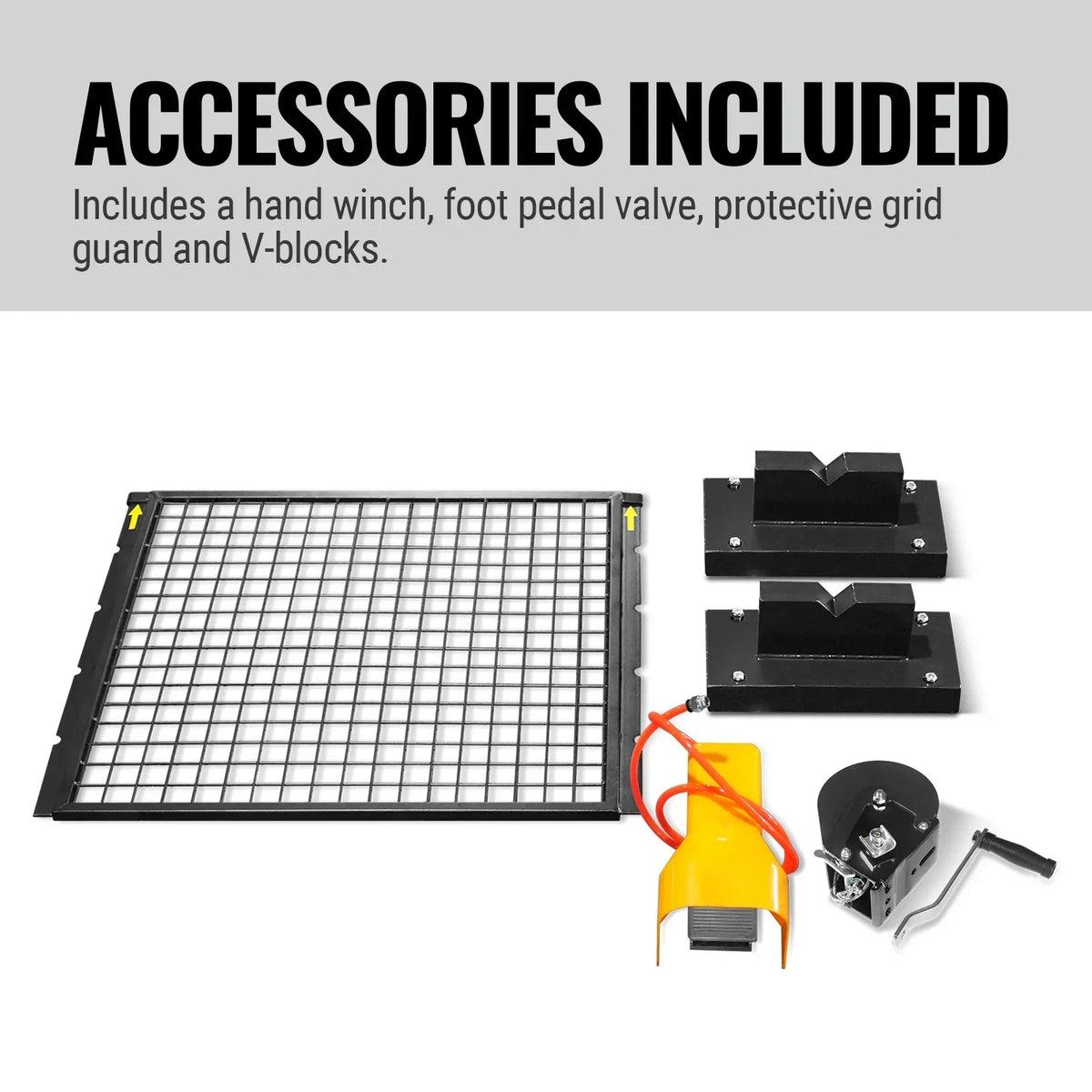

Included Accessories

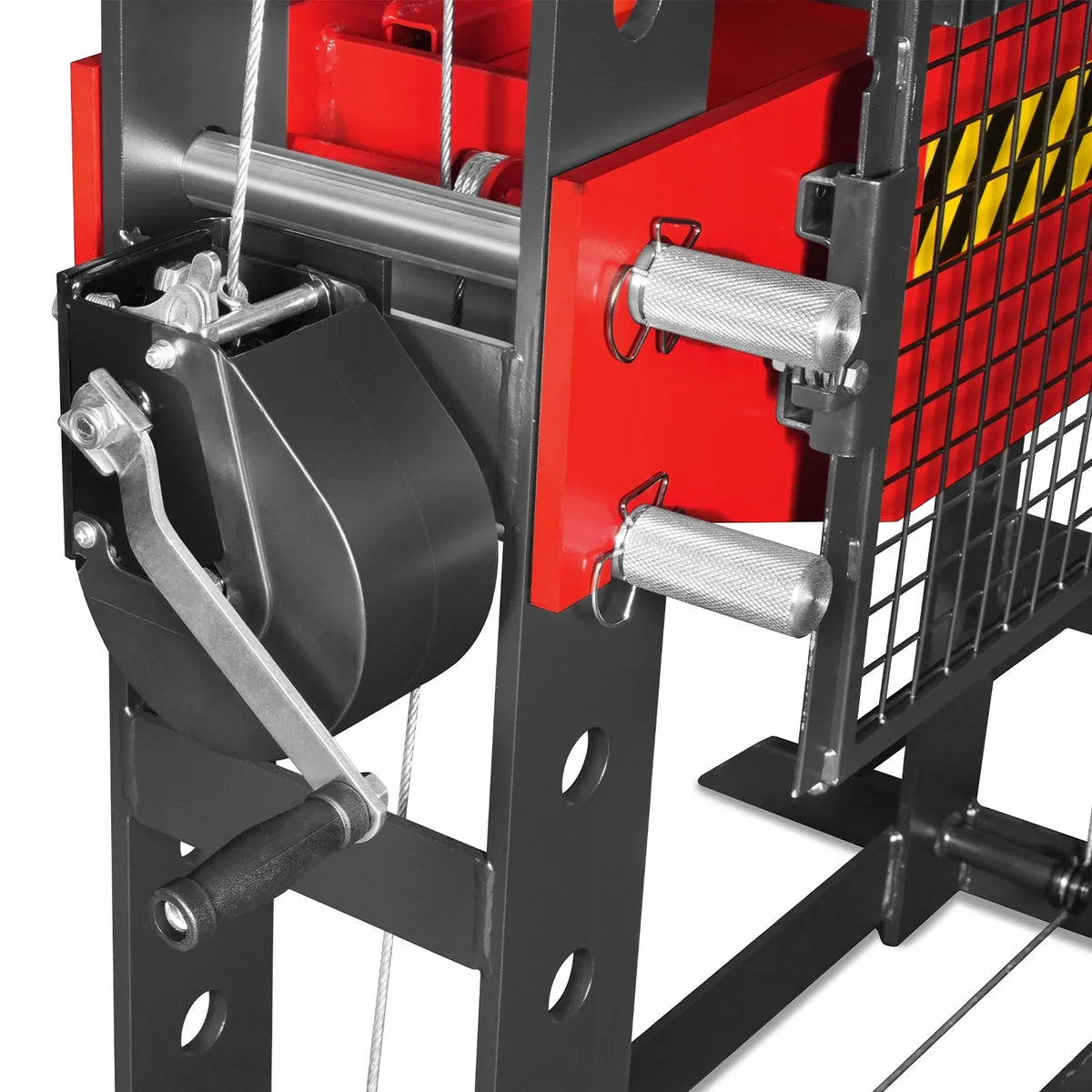

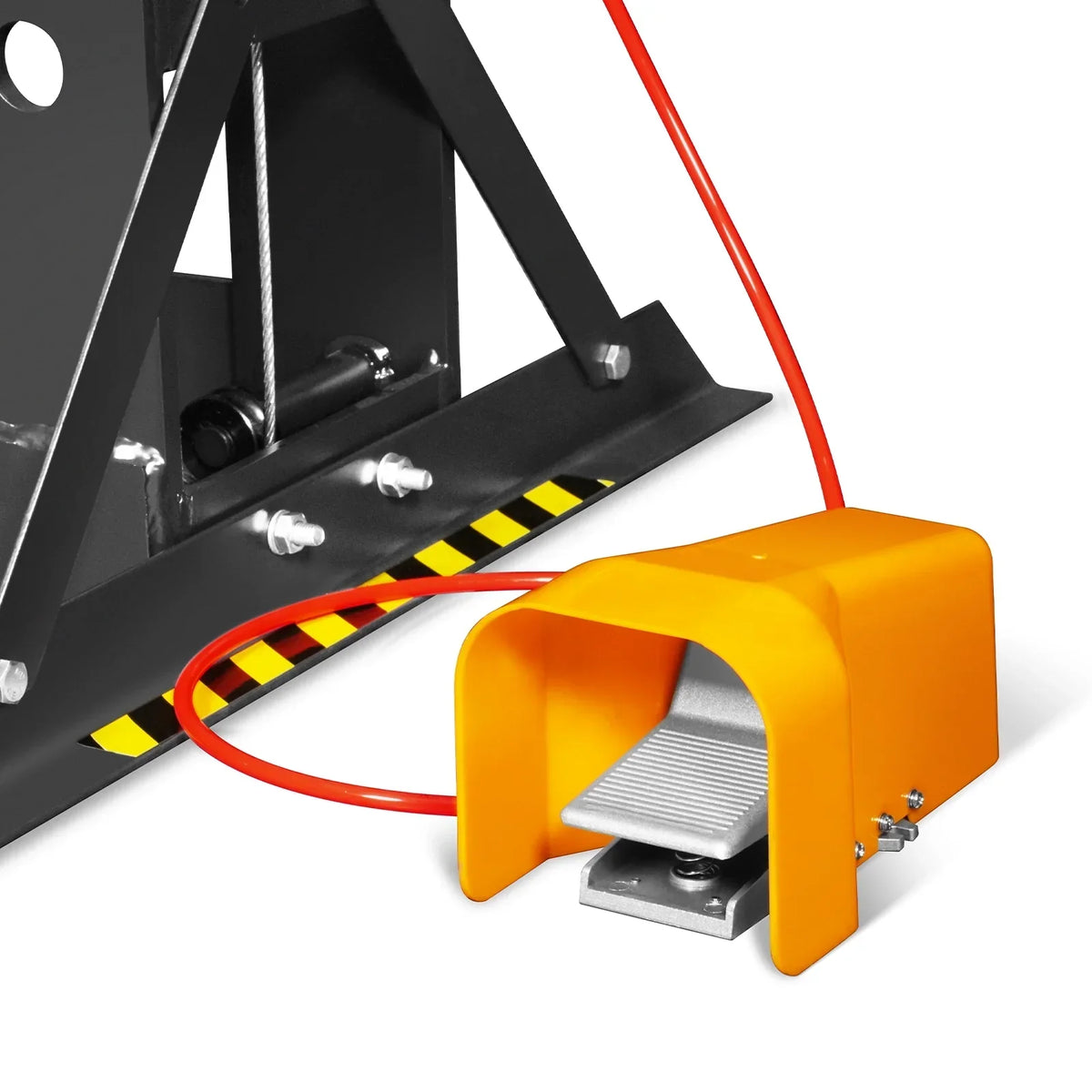

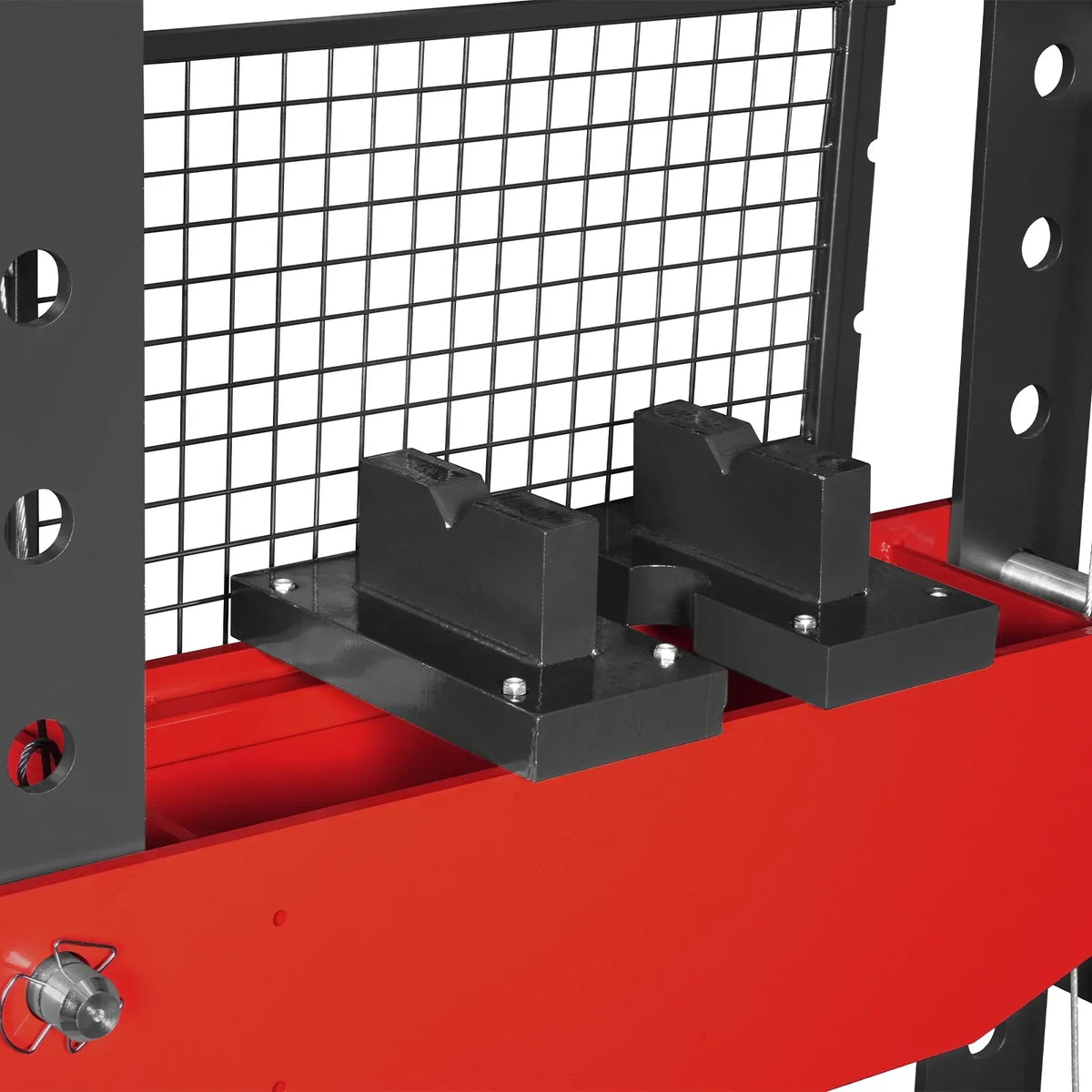

Protective Grid Guard, Hand Winch, Foot Pedal Valve, V-Blocks
Maximum Ram to Bed
39.4 in
Packing Size (LxWxH)
81.5 x 42.9 x 16.1 in
Ram Retraction
Spring
Weight (N.W/G.W.)
899.5 lbs / 1003.1 lbs
