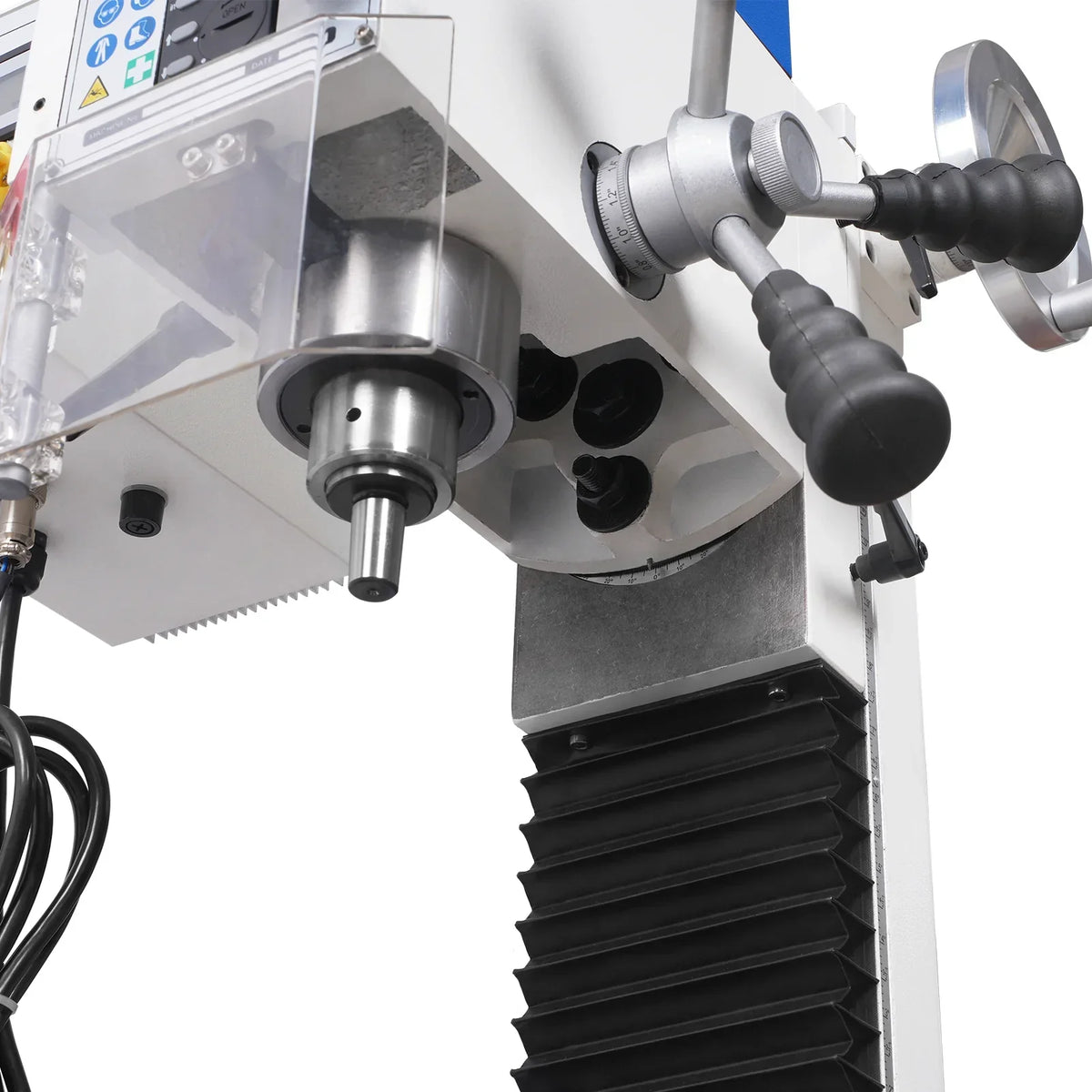

Spindle Specifications
Spindle Taper
R8

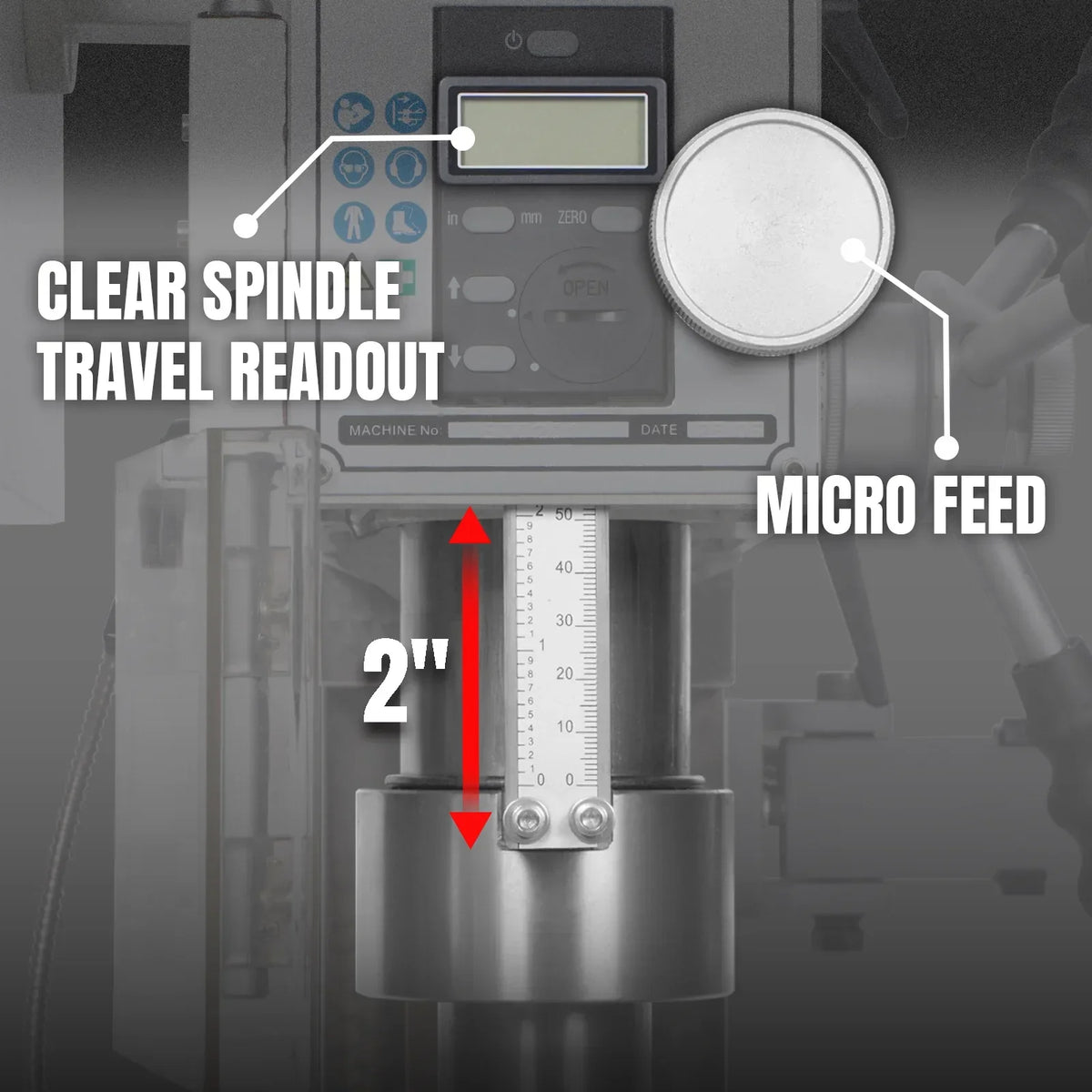

Spindle Travel
2"(50mm)
Quill Diameter
Ø2-3/8''(60mm)
Spindle Speed Range
0-2500RPM
Number of Speed Steps
Variable
Drawbar Thread Size
7/16"-20''
Head Tilt Angle
±90°
Spindle to Table Distance
14-1/2"(370mm)
Spindle to Column Distance
7-1/2"(190mm)

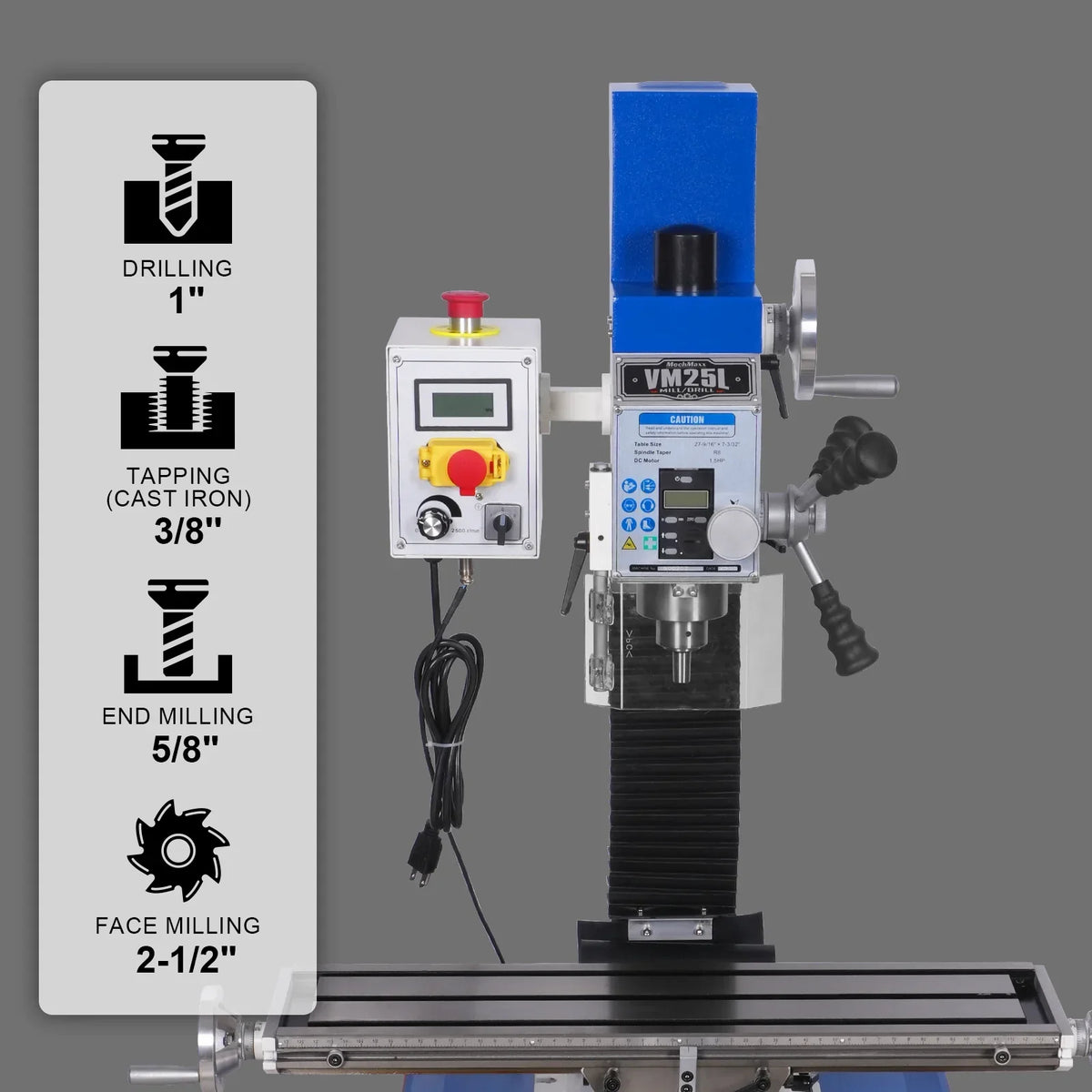

Cutting Capacity
Drilling Capacity
1''(25mm)
End Milling Capacity
5/8"(16mm)

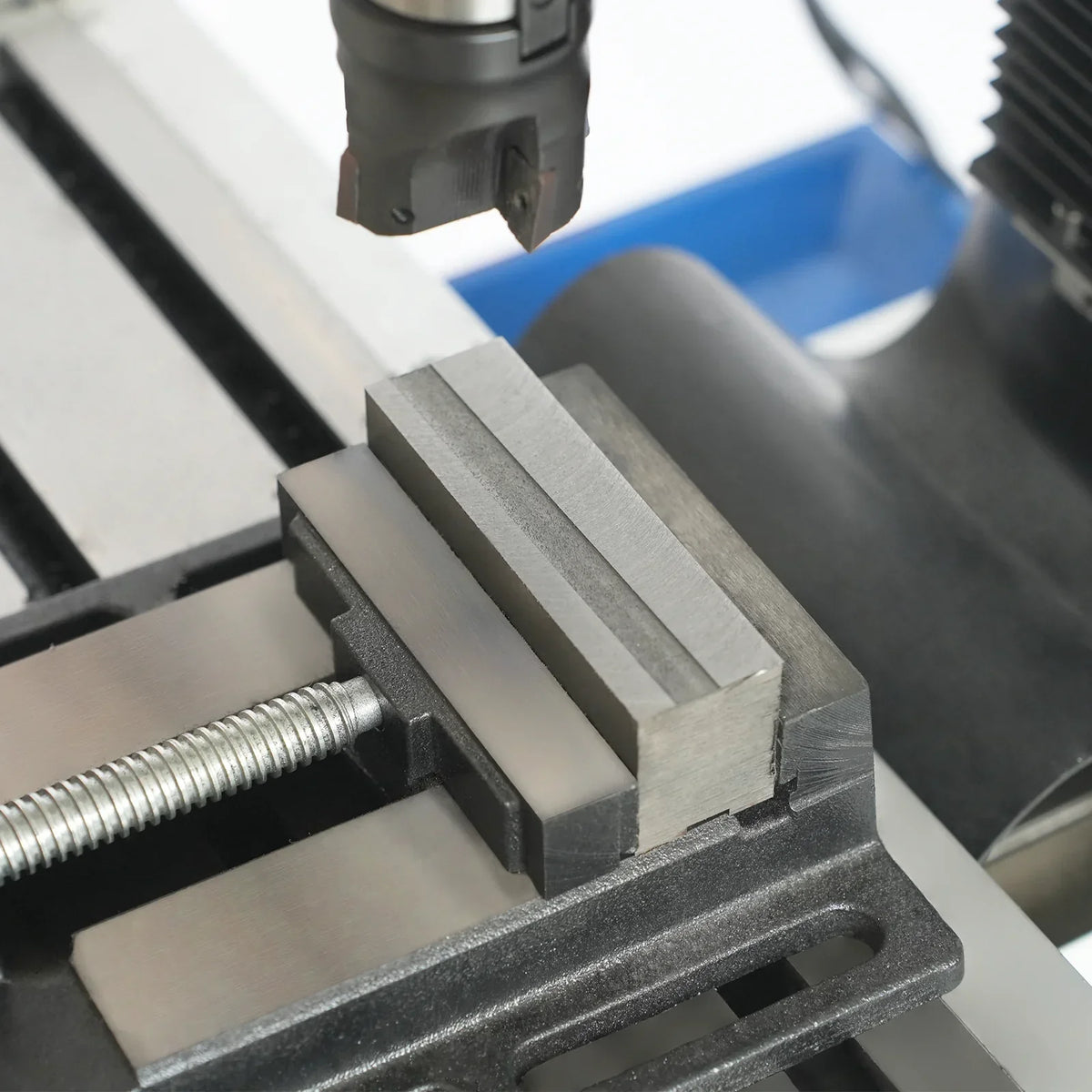

Face Milling Capacity
2-1/2"(63mm)

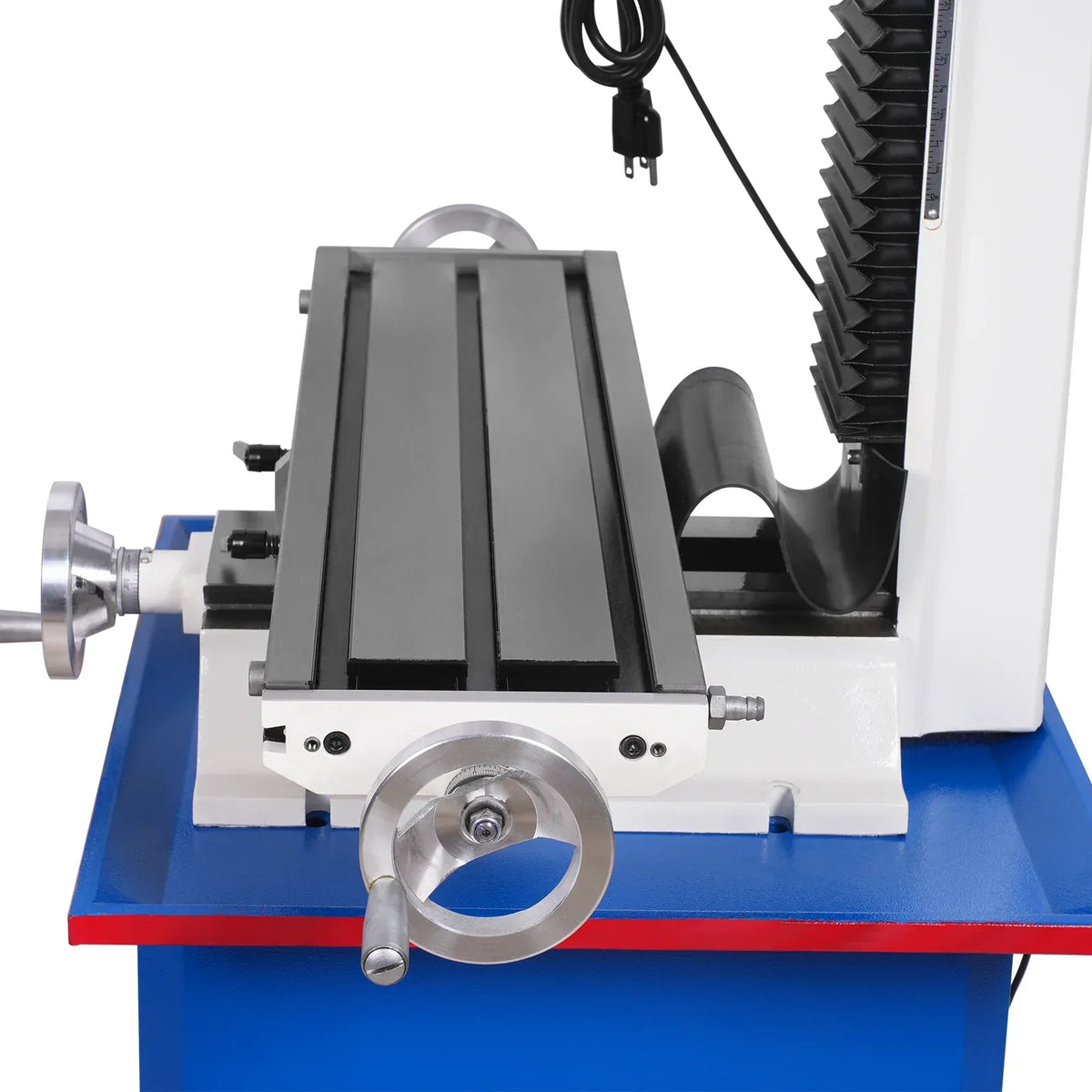

Table & Travel
Table Size
7''x27-1/2"(180x700mm)
T-Slot Size / No. / Centers
3 X 1/2''(12mm)

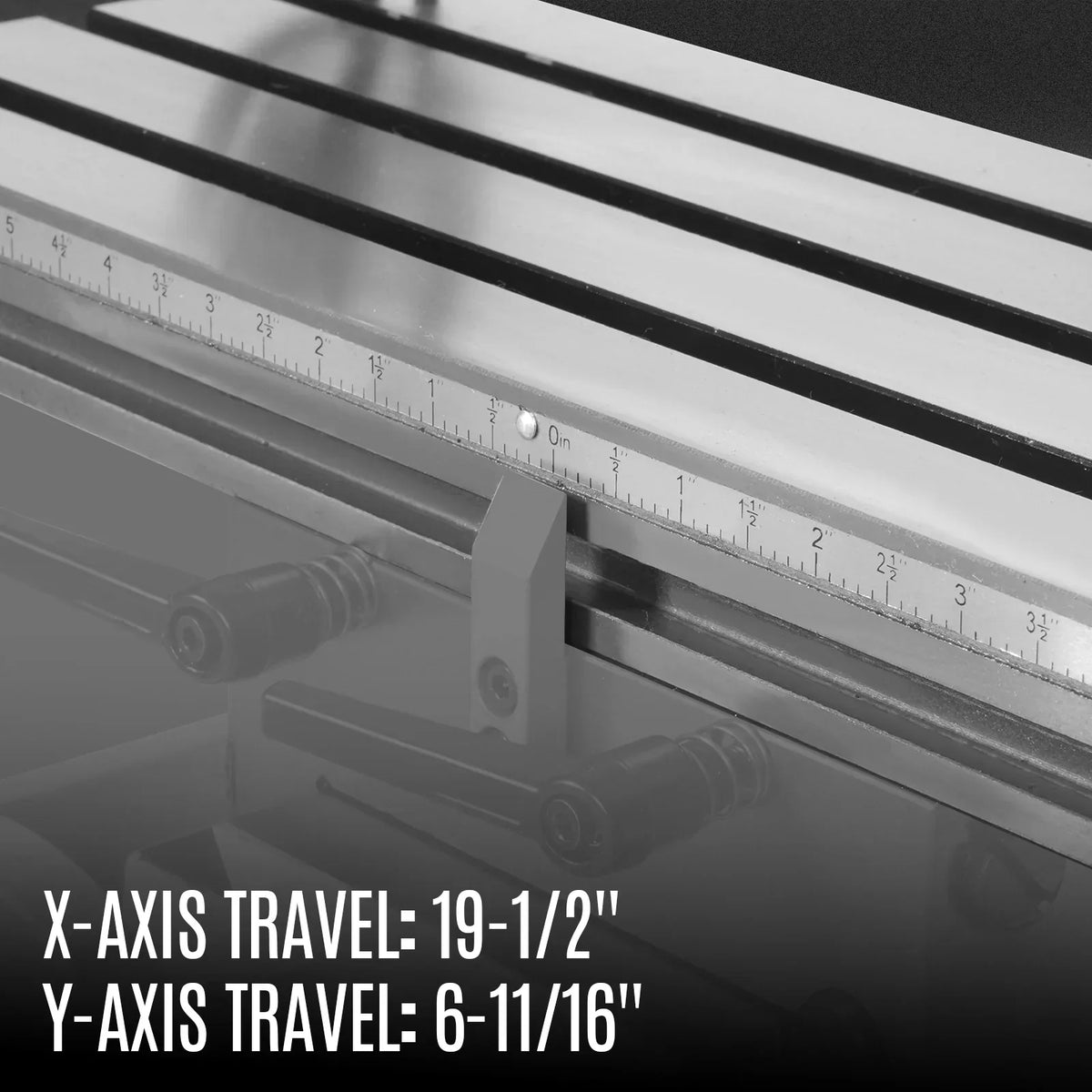

X-Axis Travel
19-1/2''(495mm)
Y-Axis Travel
6-11/16''(170mm)
Z-Axis Travel
12-5/8''(320mm)
Construction & Drive
Column Type

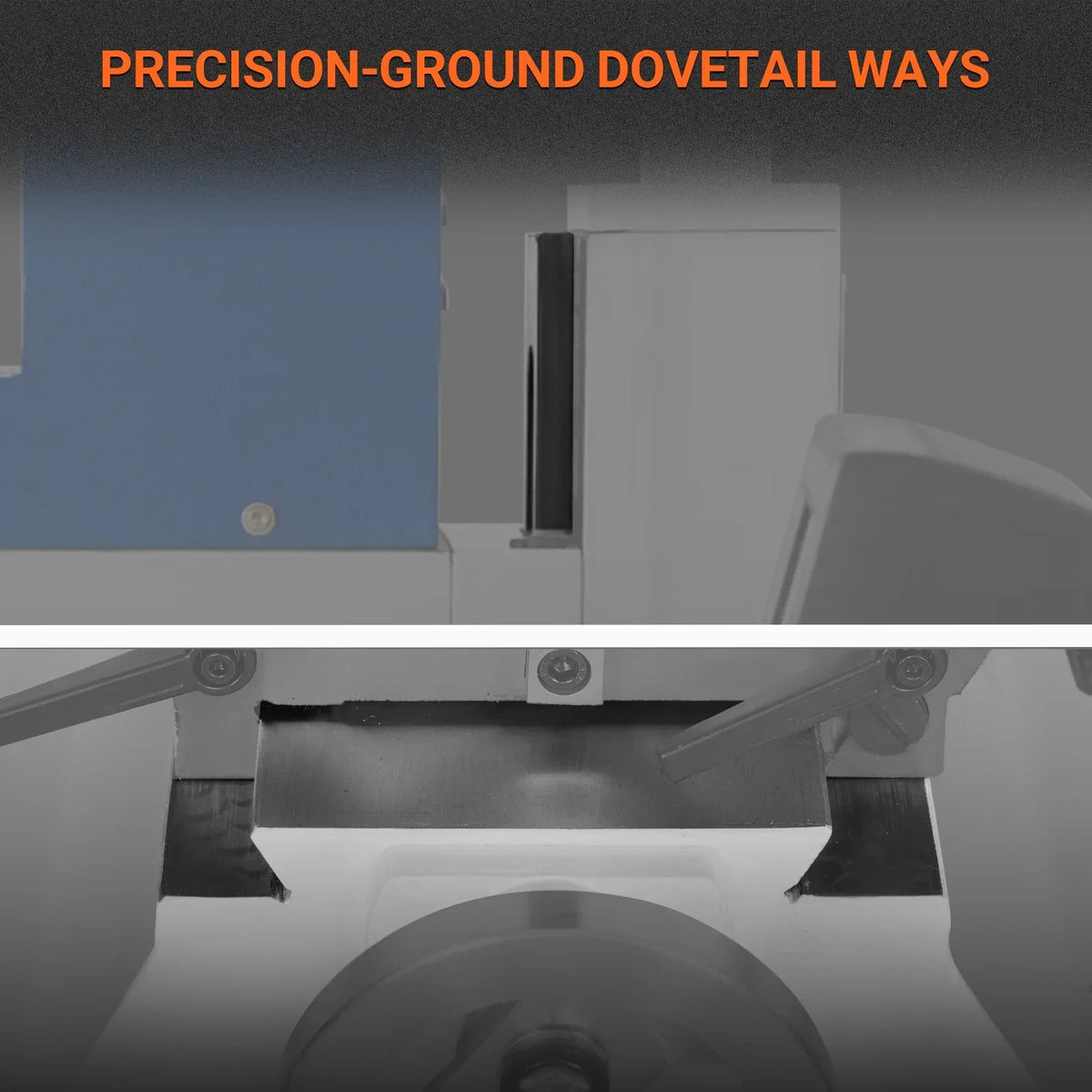

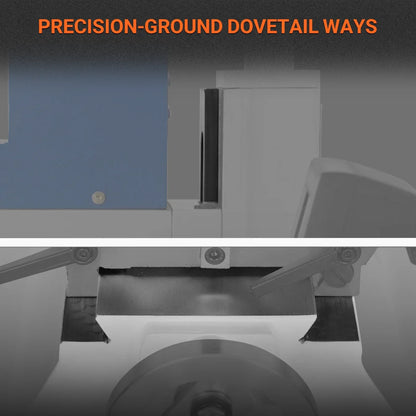

Square Column，Dovetail Slide
Drive Type
Belt

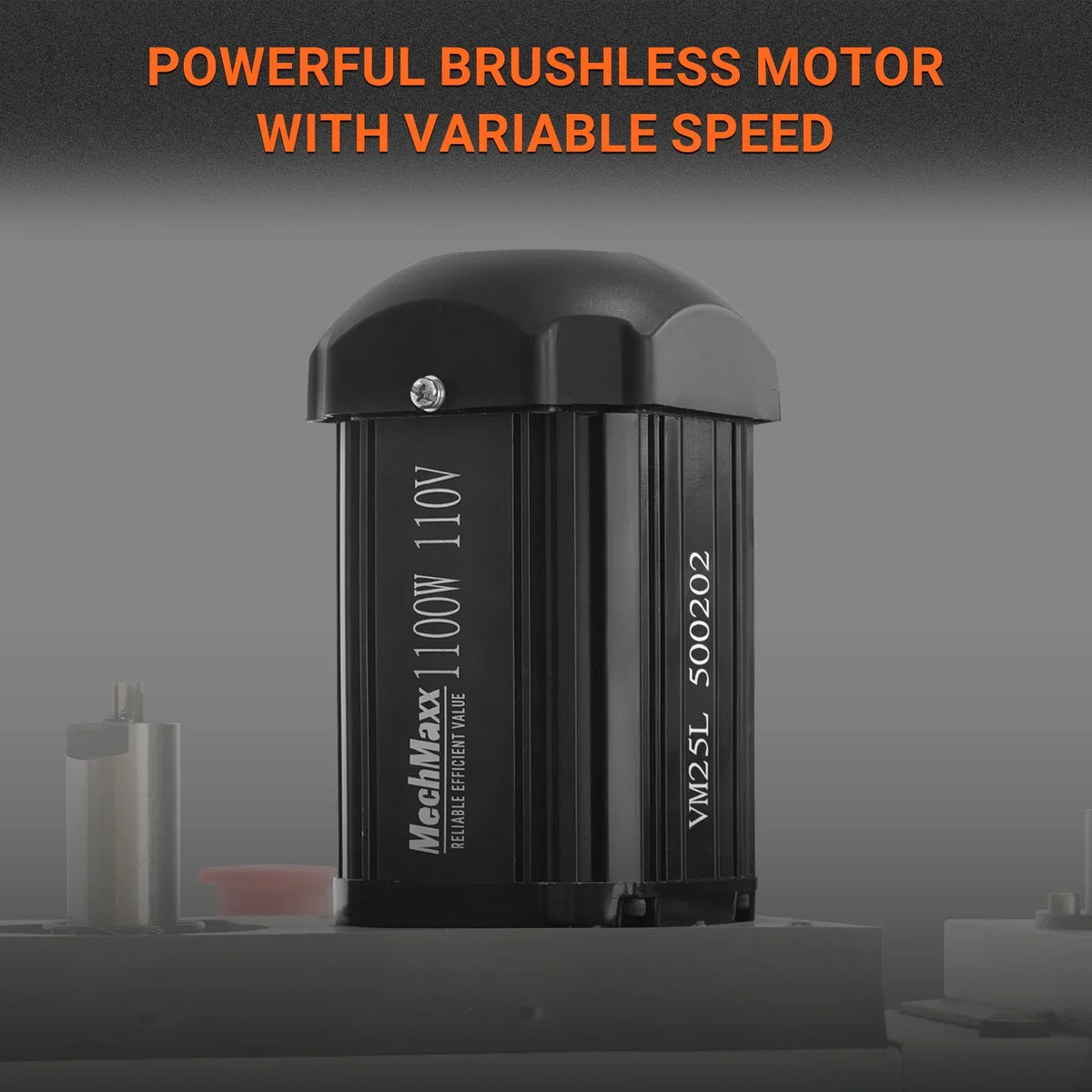

Motor Power
1.5HP 110V Single-Phase Brushless
Motor Type
DCBrushless
Electrical & Setup
Net / Gross Weight
260/286lbs(118/130KG)
Overall Dimensions
36''x22''x37''(922X549X935mm)
Base Size
14''x11''(340X275mm)
Shipping Dimensions
28''x29''x37''(710X730X920mm)
