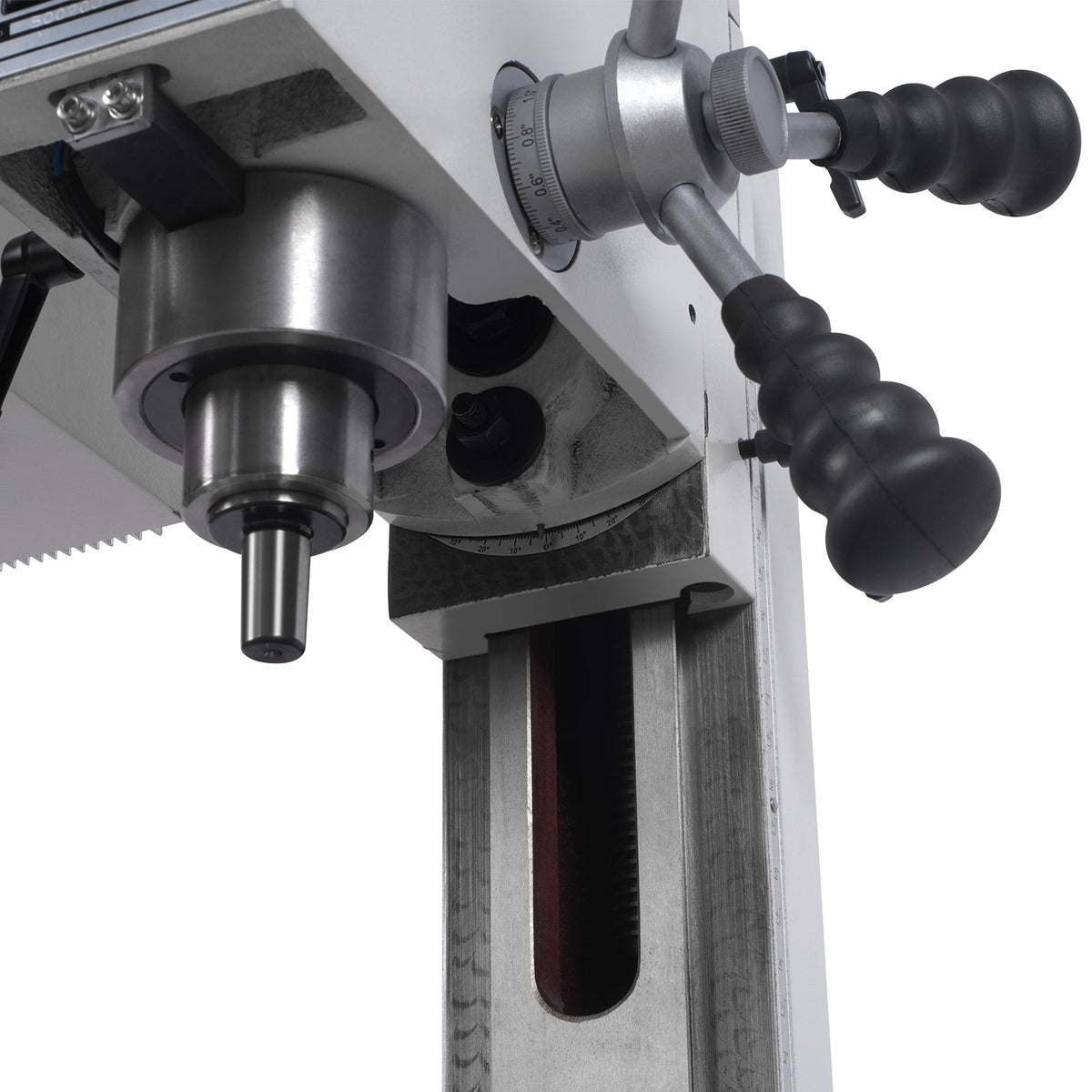

Spindle Specifications
Spindle Taper
R8

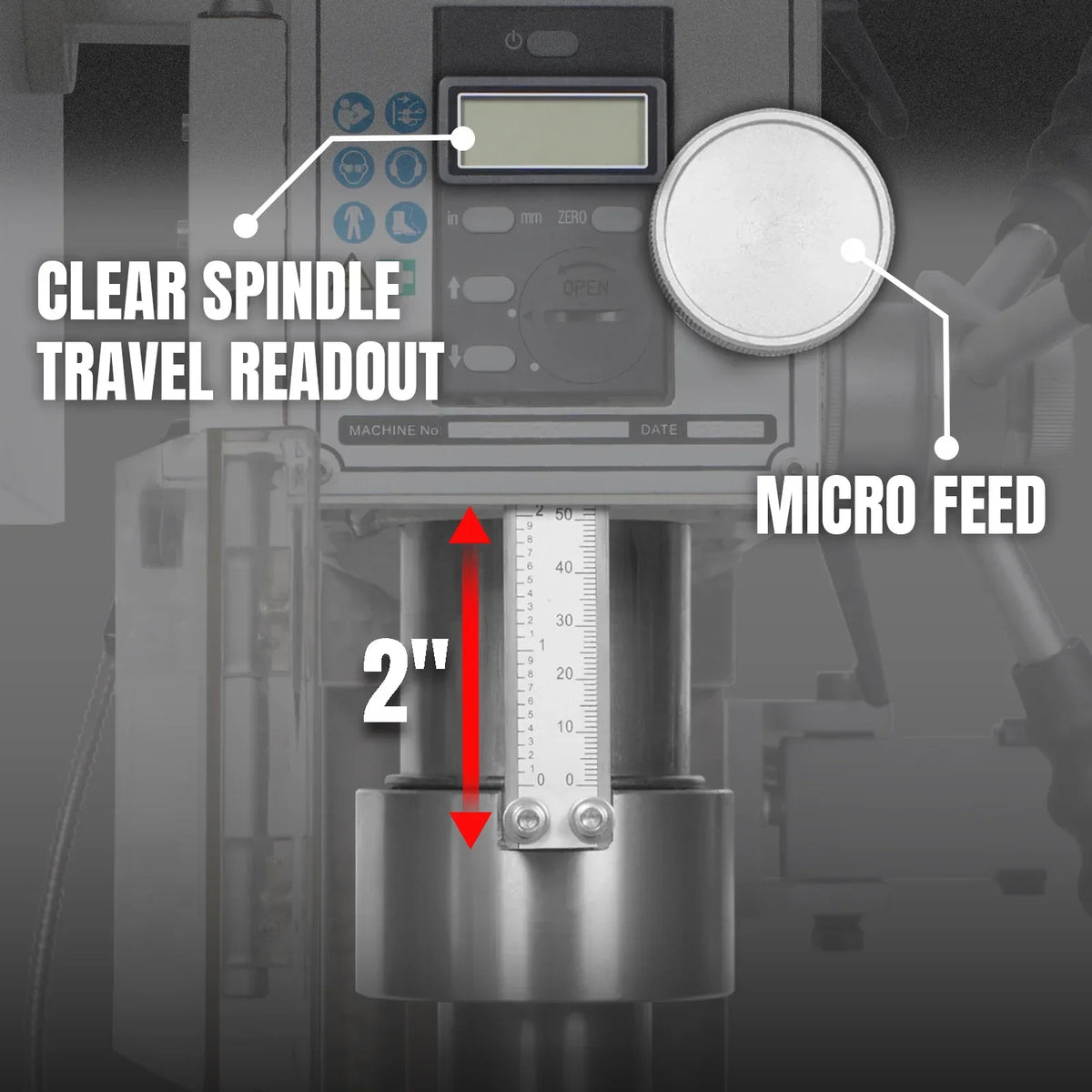

Spindle Travel
2"(50mm)
Quill Diameter
Ø2-3/8''(60mm)
Spindle Speed Range
0-2500RPM
Number of Speed Steps
Variable
Drawbar Thread Size
7/16"-20''
Head Tilt Angle
±90°
Spindle to Table Distance
10-7/8"(275mm)
Spindle to Column Distance
6-5/8"(170mm)

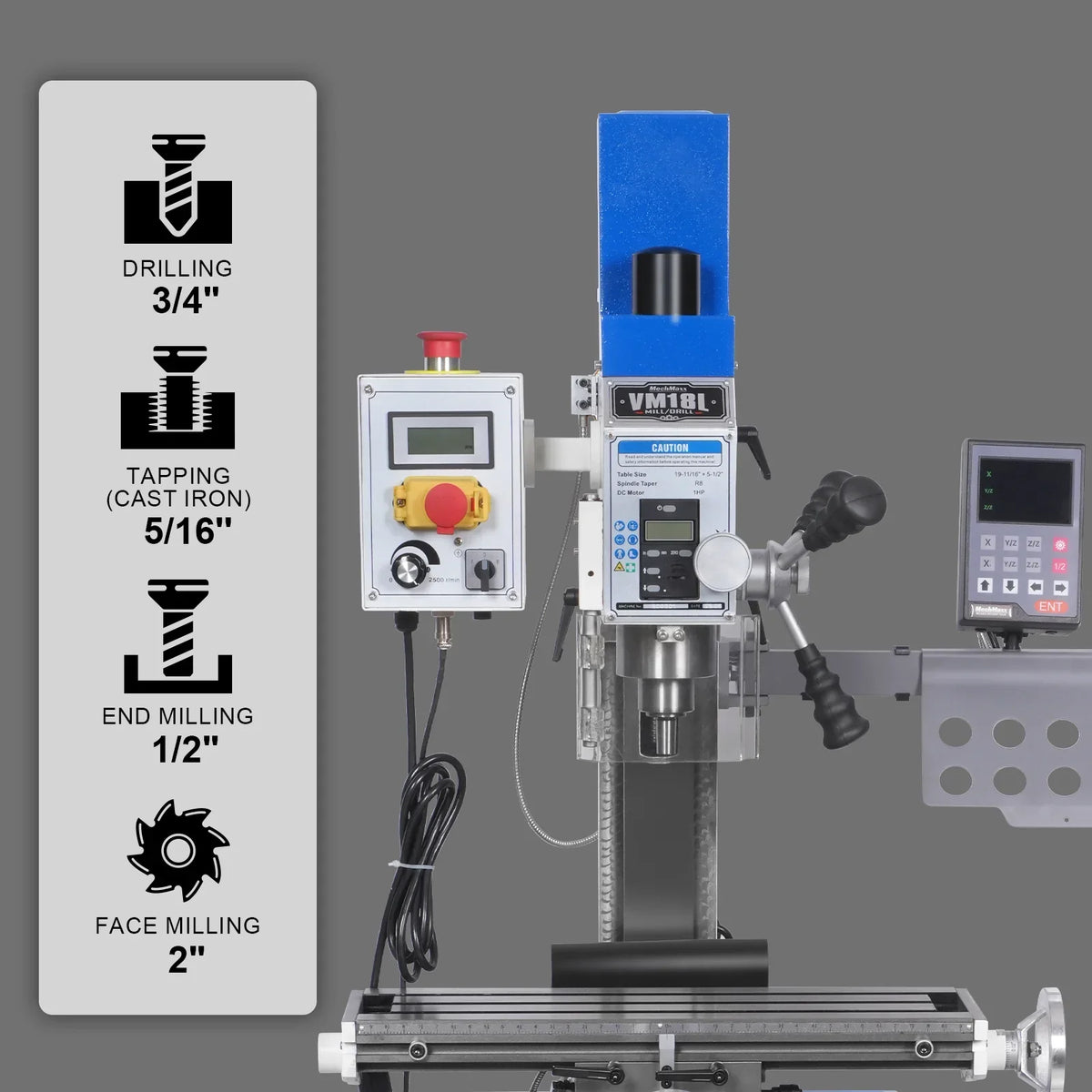

Cutting Capacity
Drilling Capacity
3/4"(18 mm)
End Milling Capacity
1/2"(12mm)
Face Milling Capacity
2"(50mm)

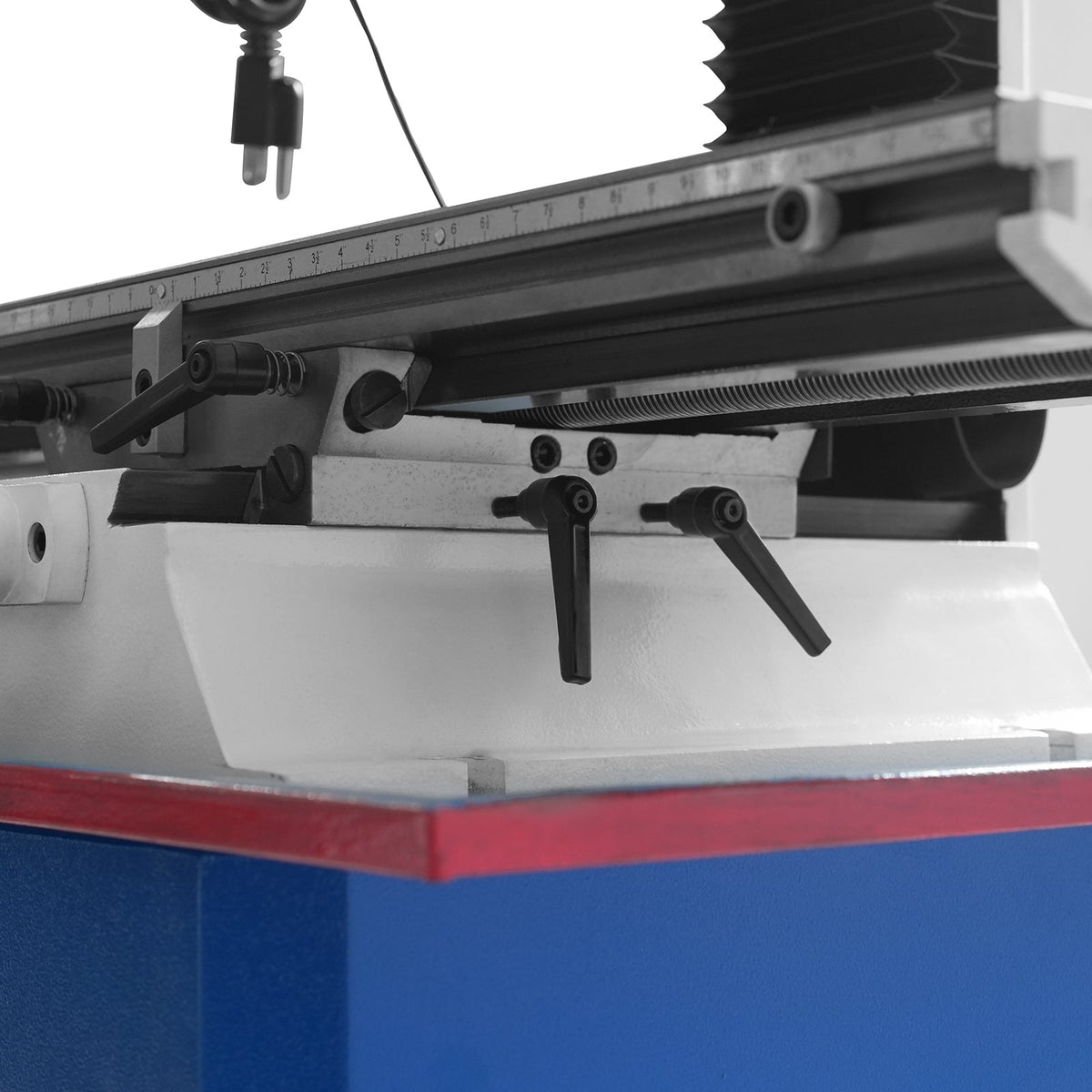

Table & Travel
Table Size
5-1/2"x19-5/8"(140x500mm)
T-Slot Size / No. / Centers
3 X 3/8''(10mm)
X-Axis Travel
8-5/8''(220mm)
Y-Axis Travel
5-5/16''(135mm)
Z-Axis Travel
10-27/32''(275mm)
Construction & Drive
Column Type

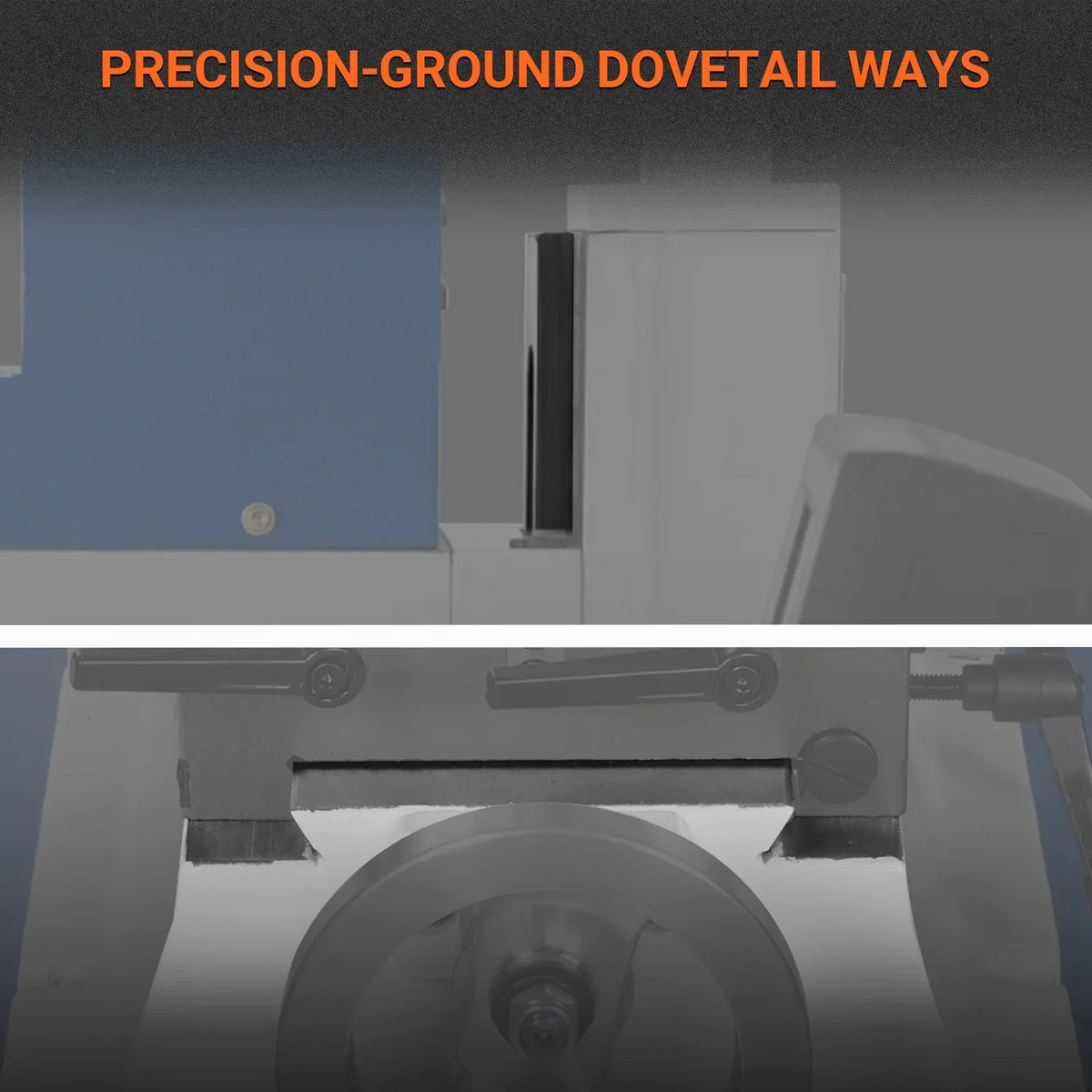

Square Column，Dovetail Slide
Drive Type
Belt

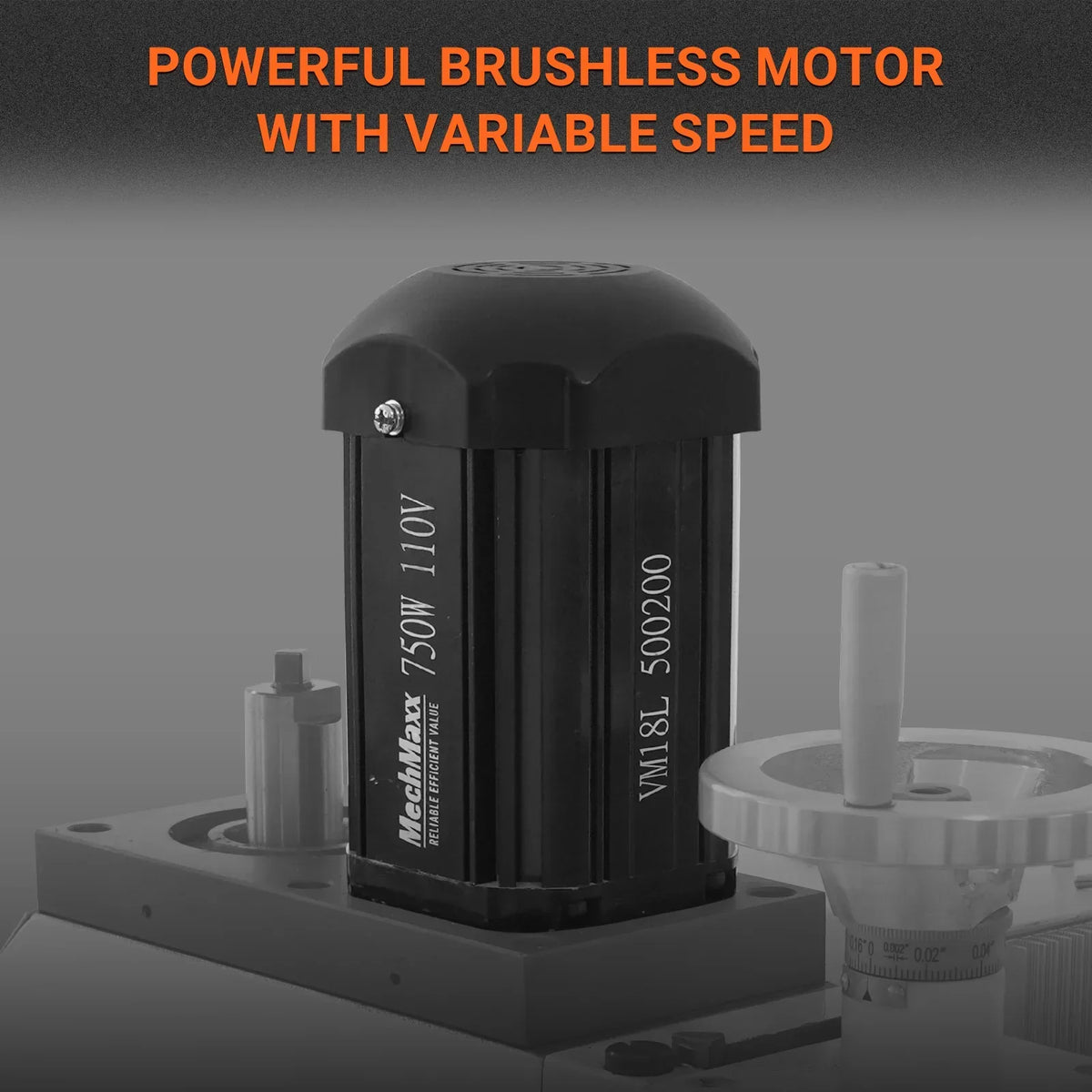

Motor Power
1HP 110V 1PH Brushless
Motor Type
DCBrushless
Electrical & Setup
Net / Gross Weight
180/203lbs(82/92.5KG)
Overall Dimensions
20''x19''x31''(506X476X788mm)
Base Size
11''x9'' (280x220mm)
Shipping Dimensions
24''x22''x34''(610X560X860mm)
