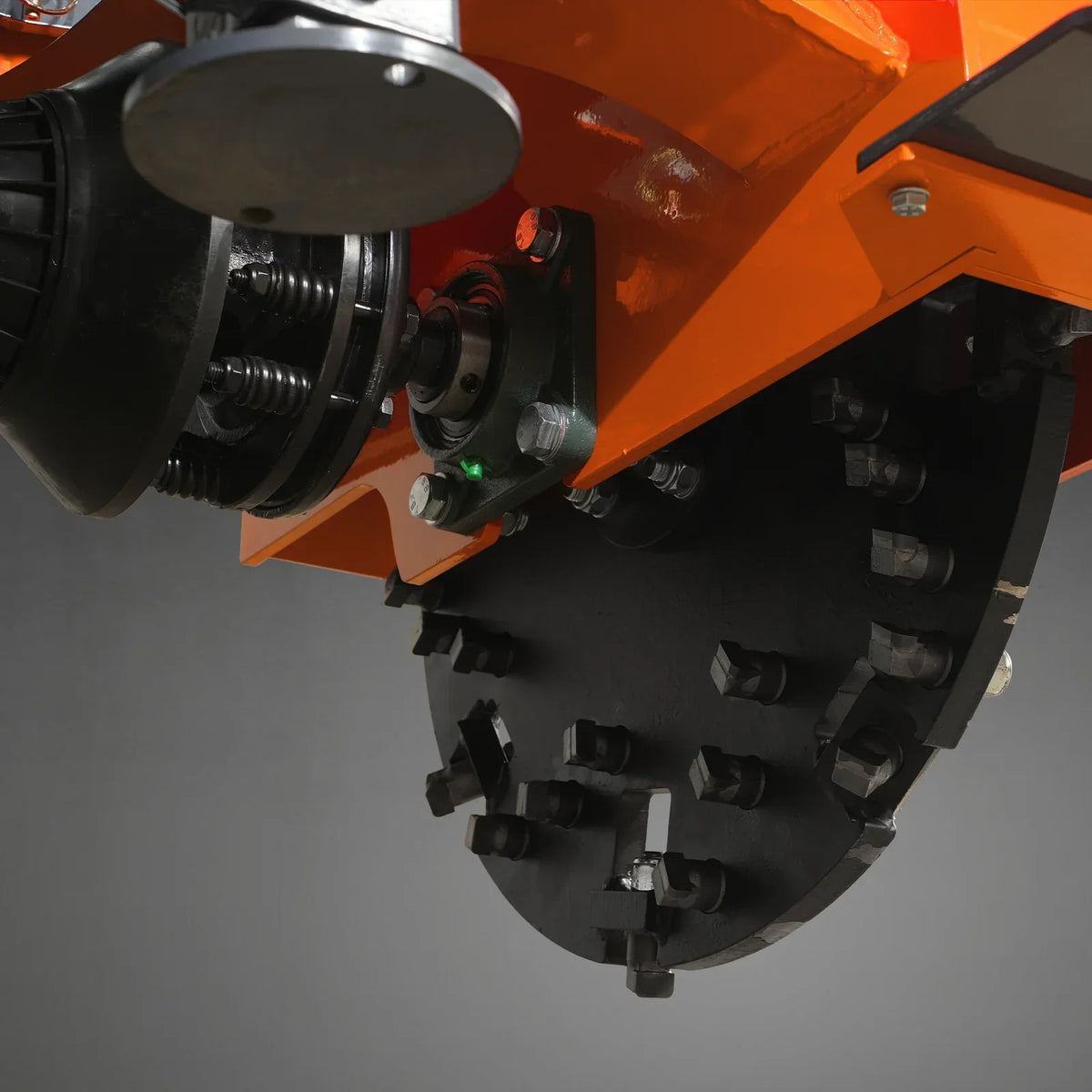

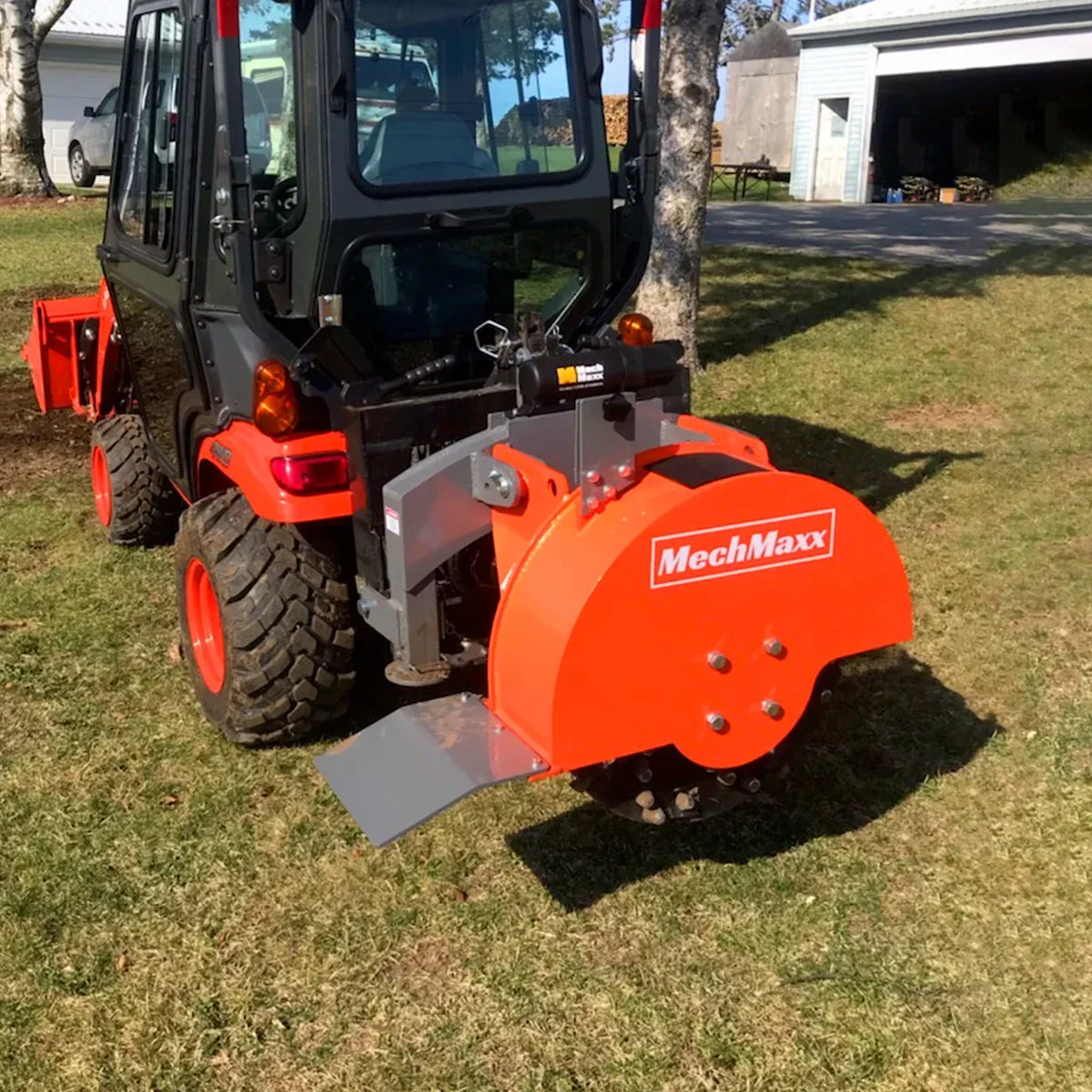

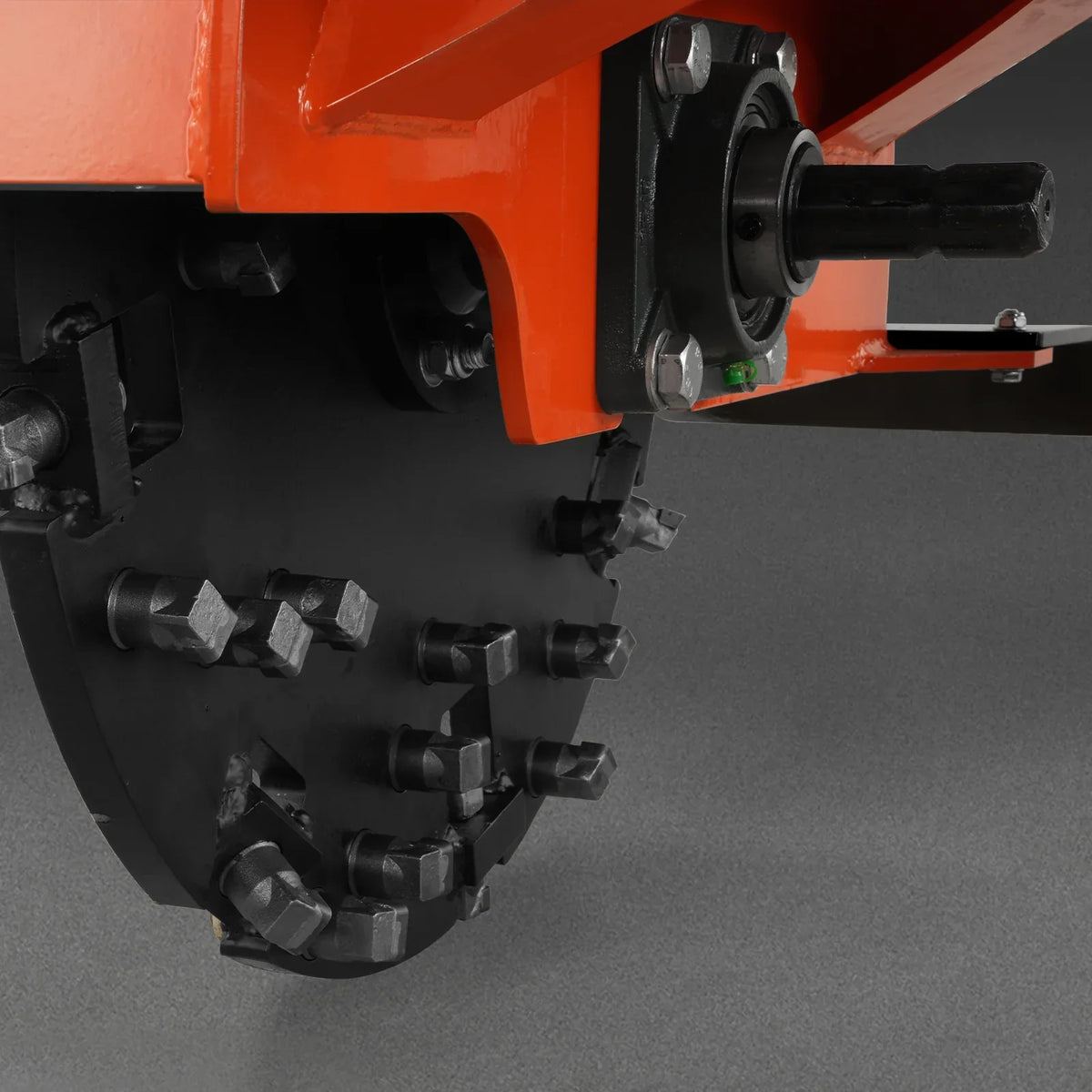

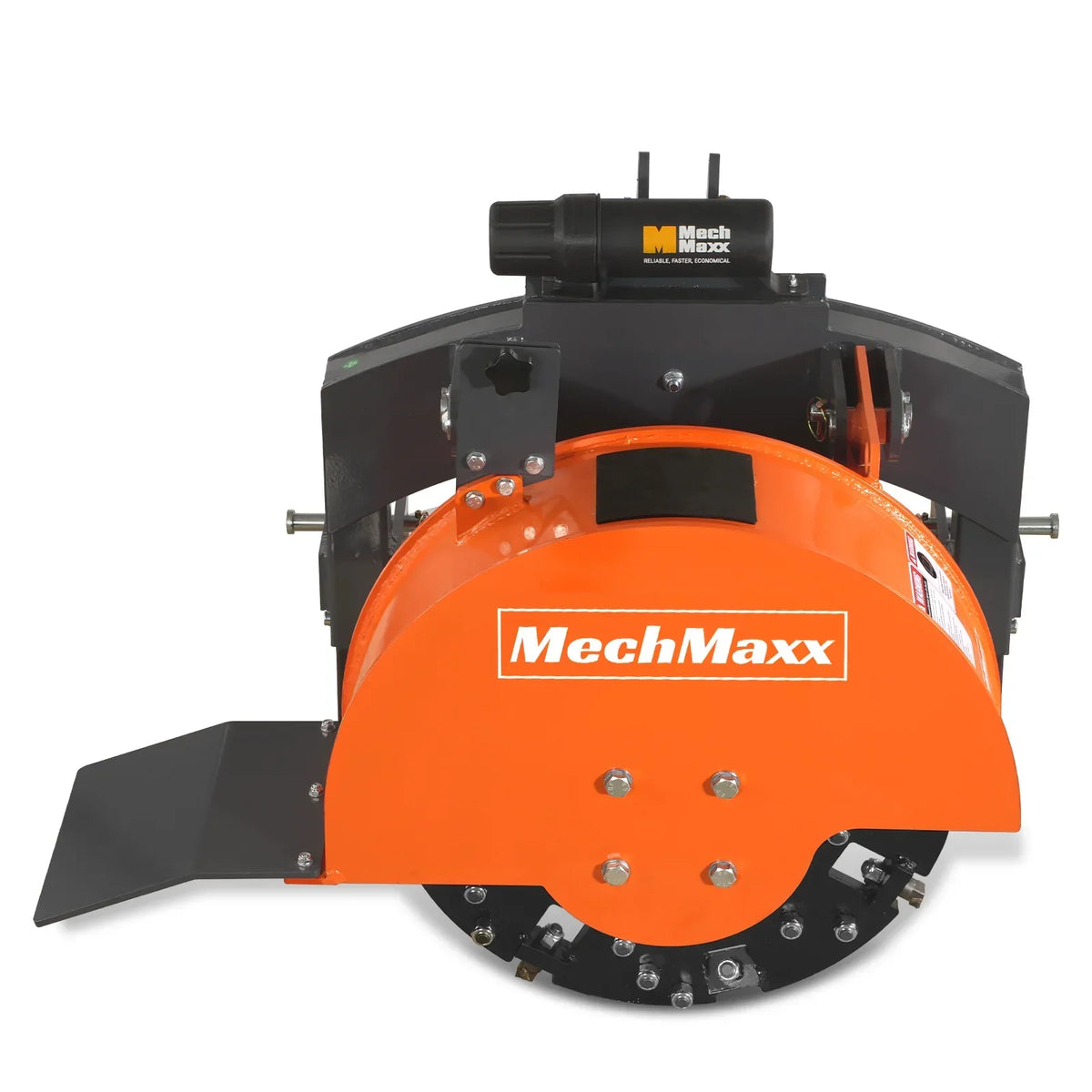

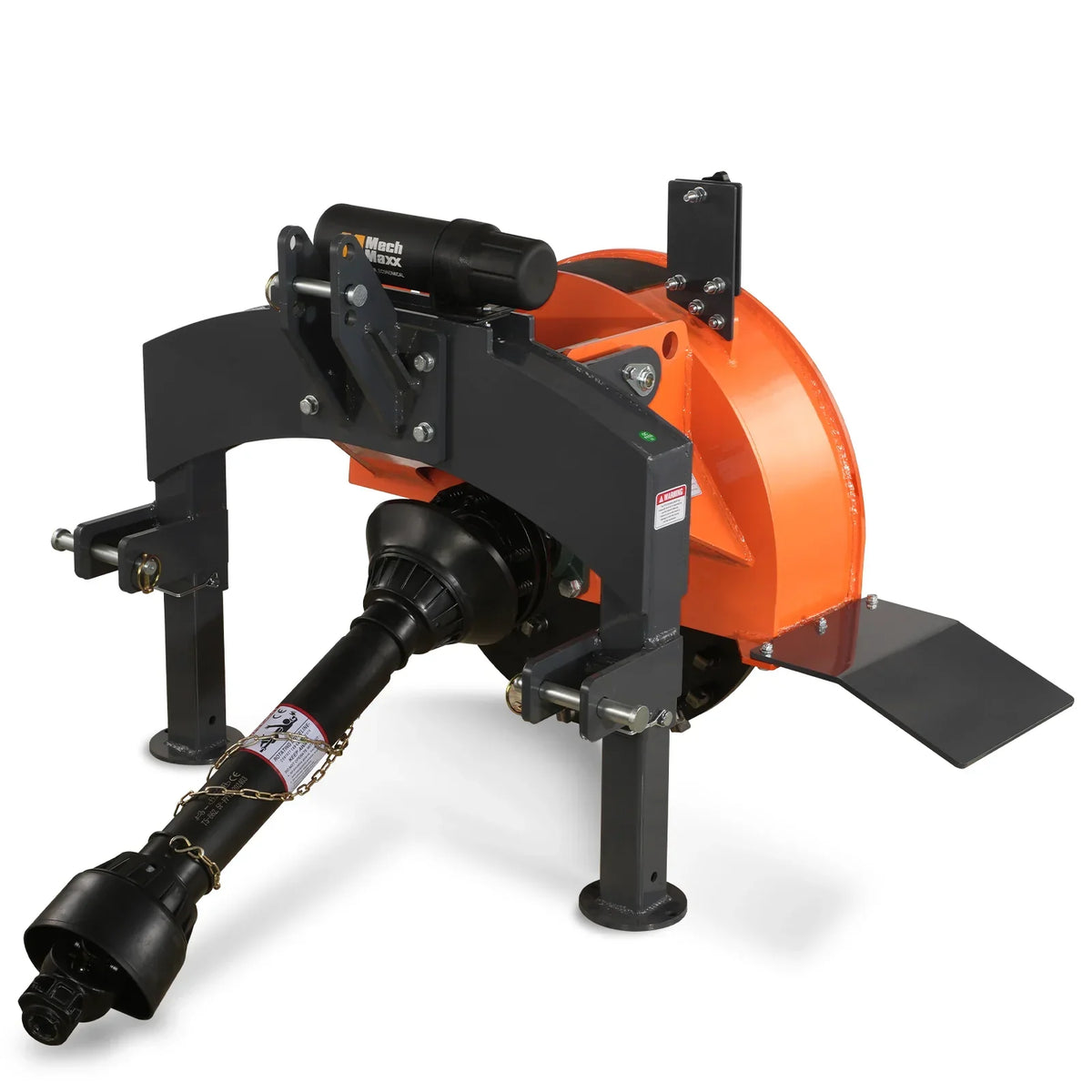

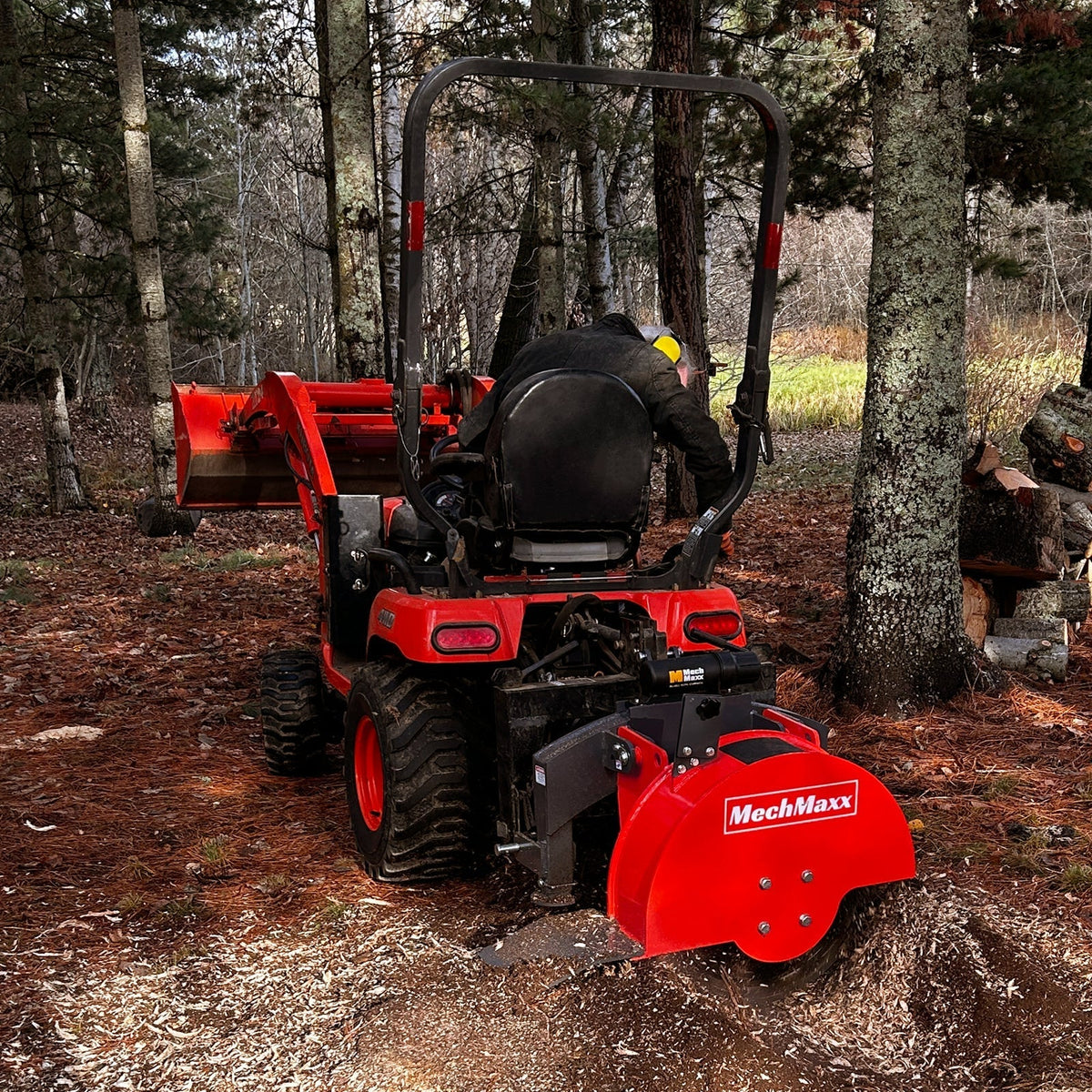

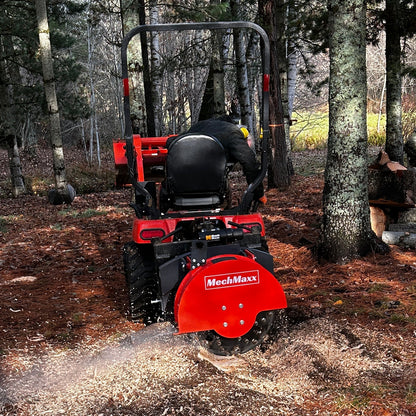

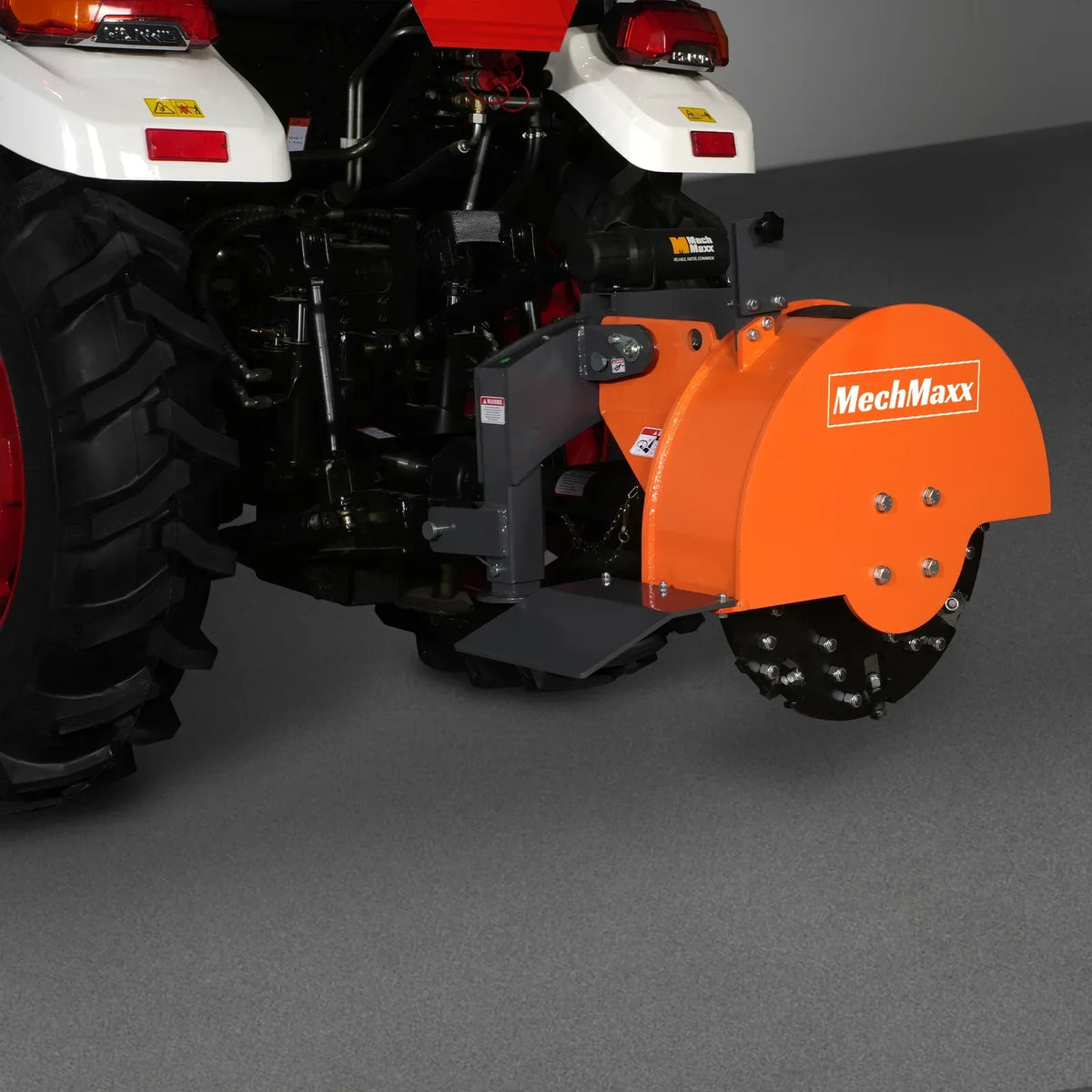

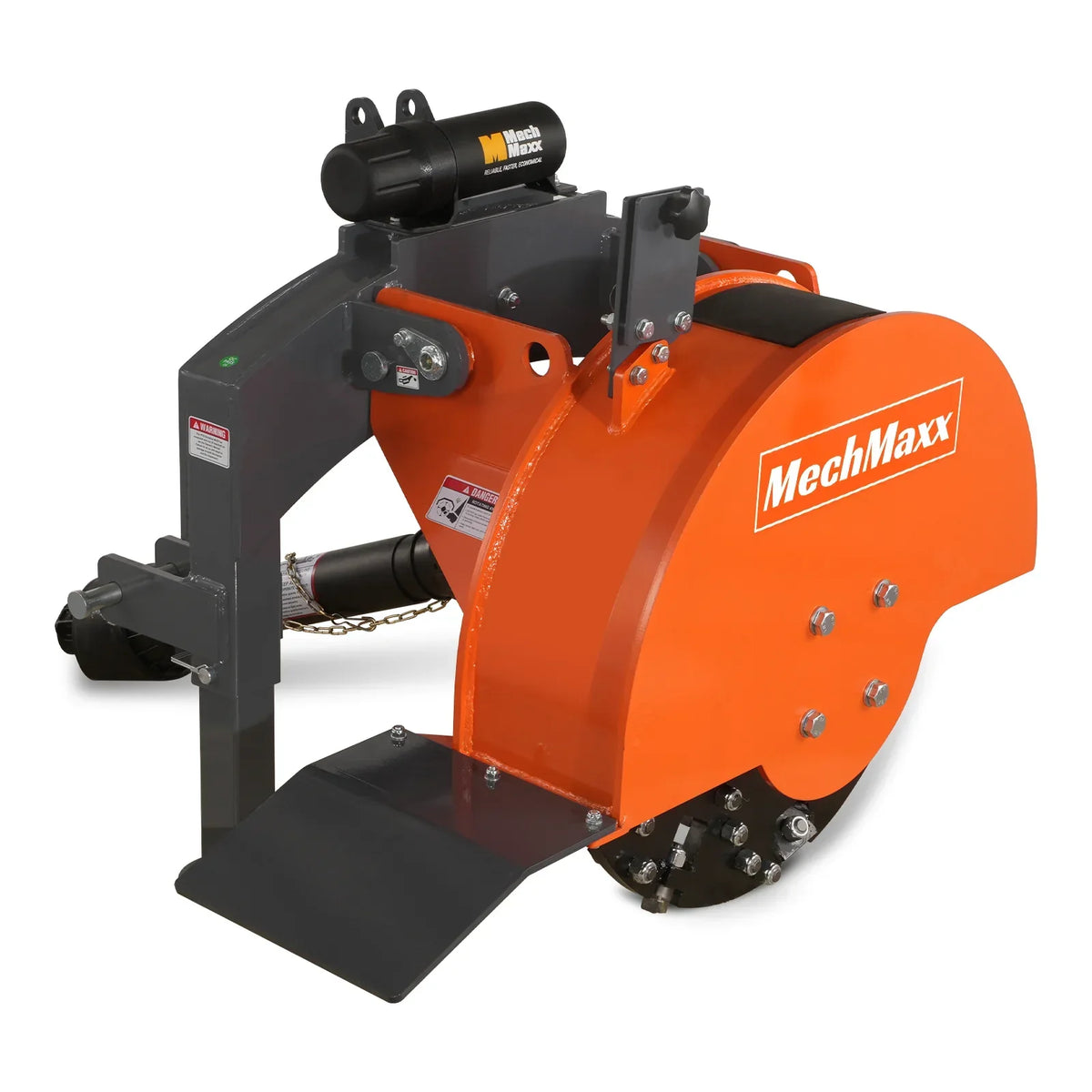

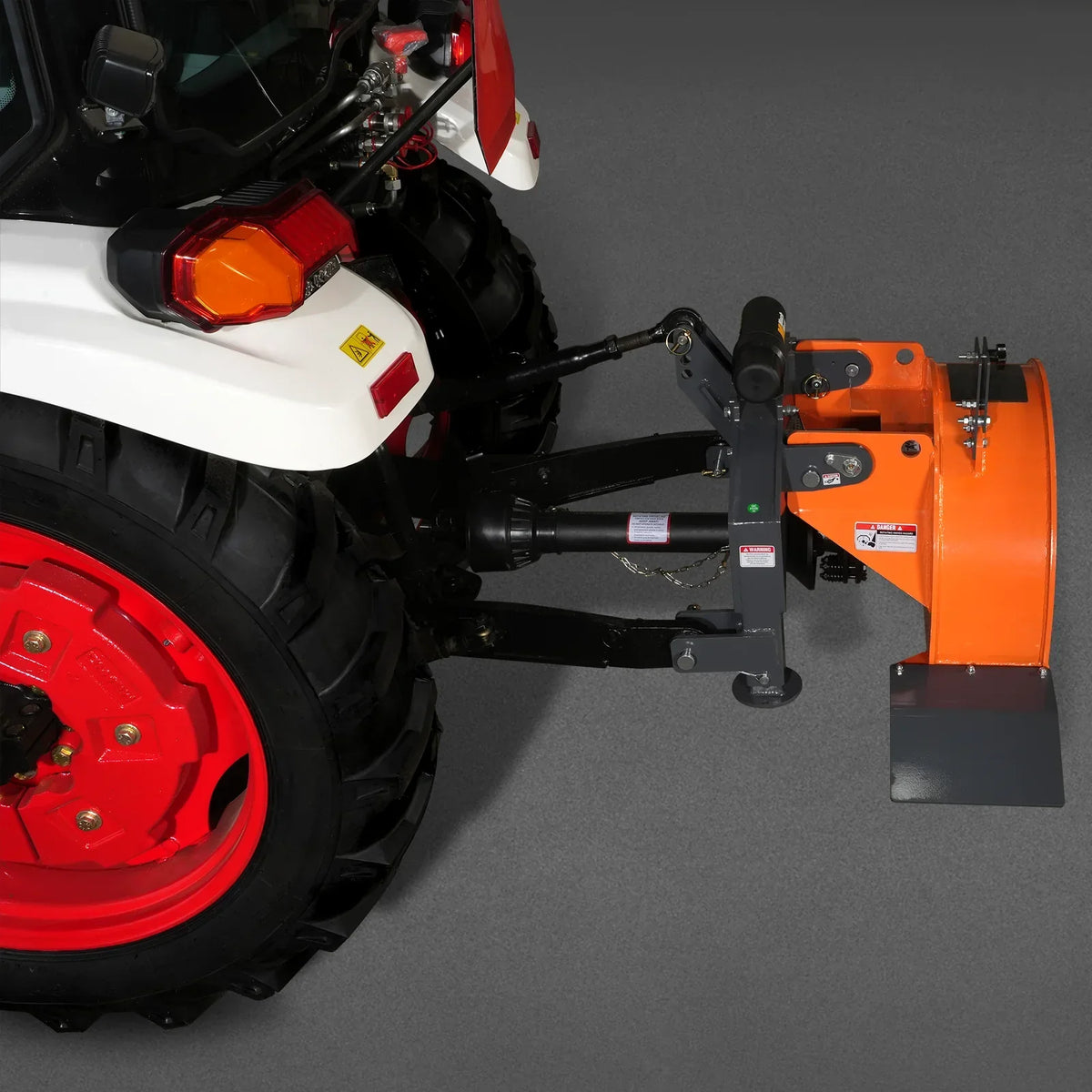

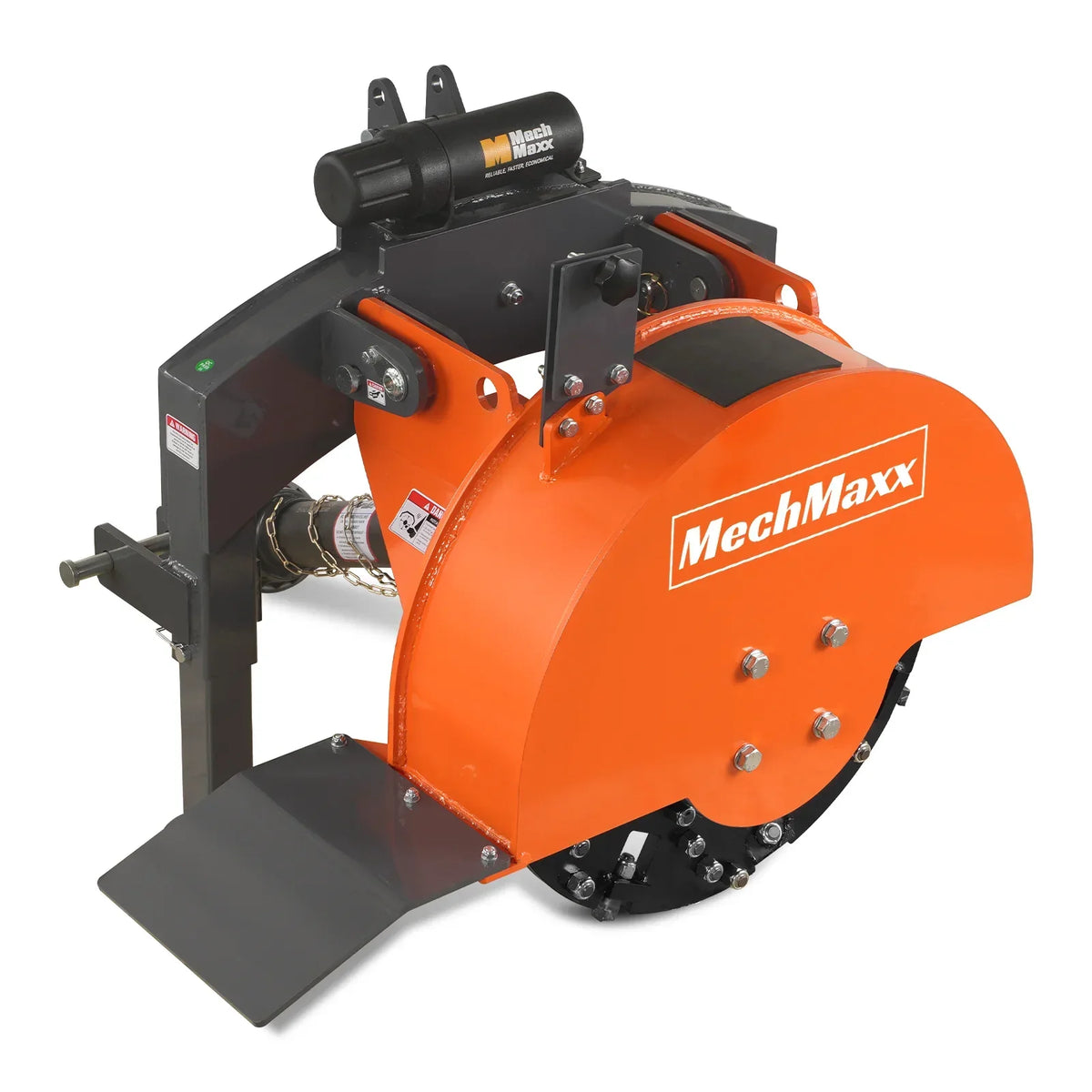

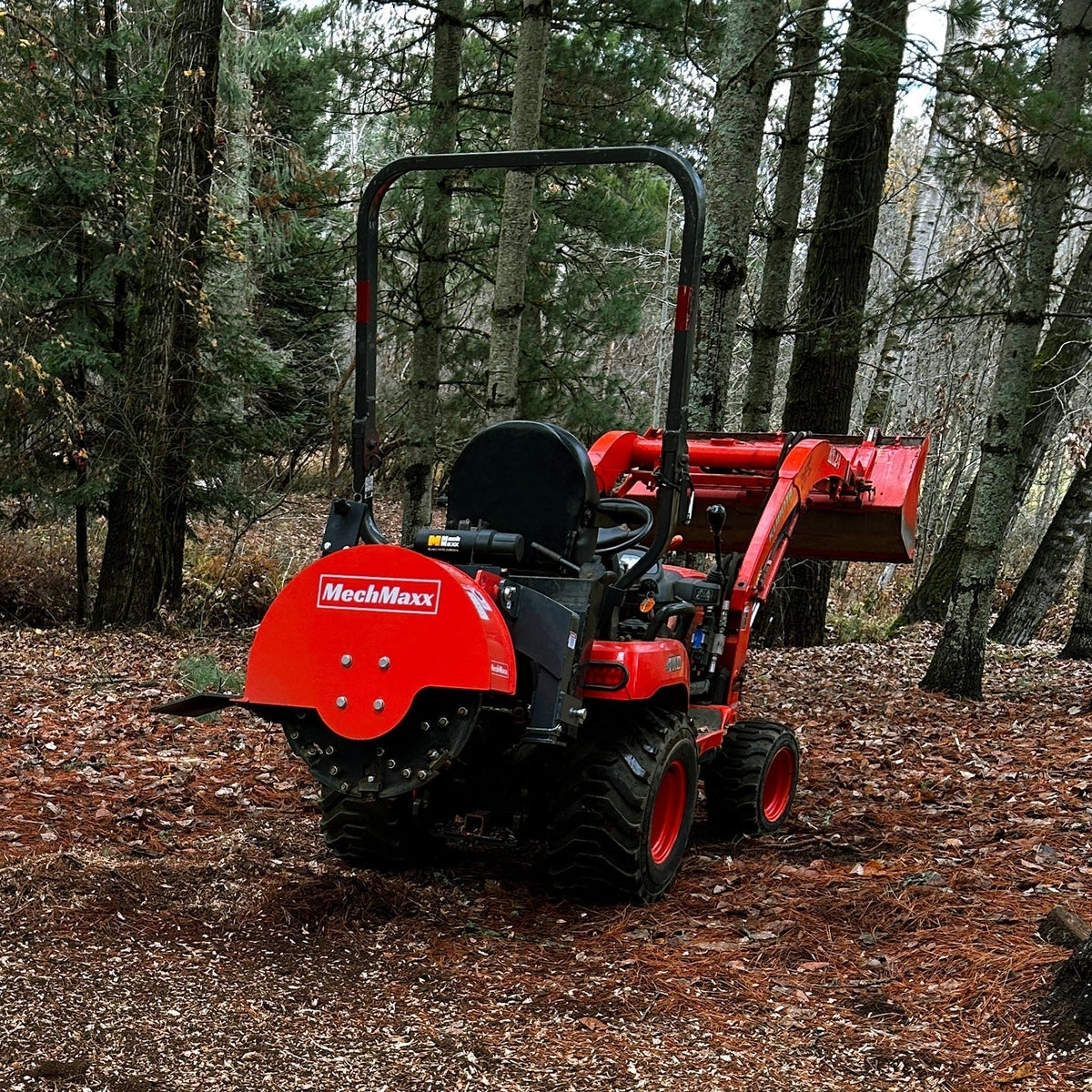

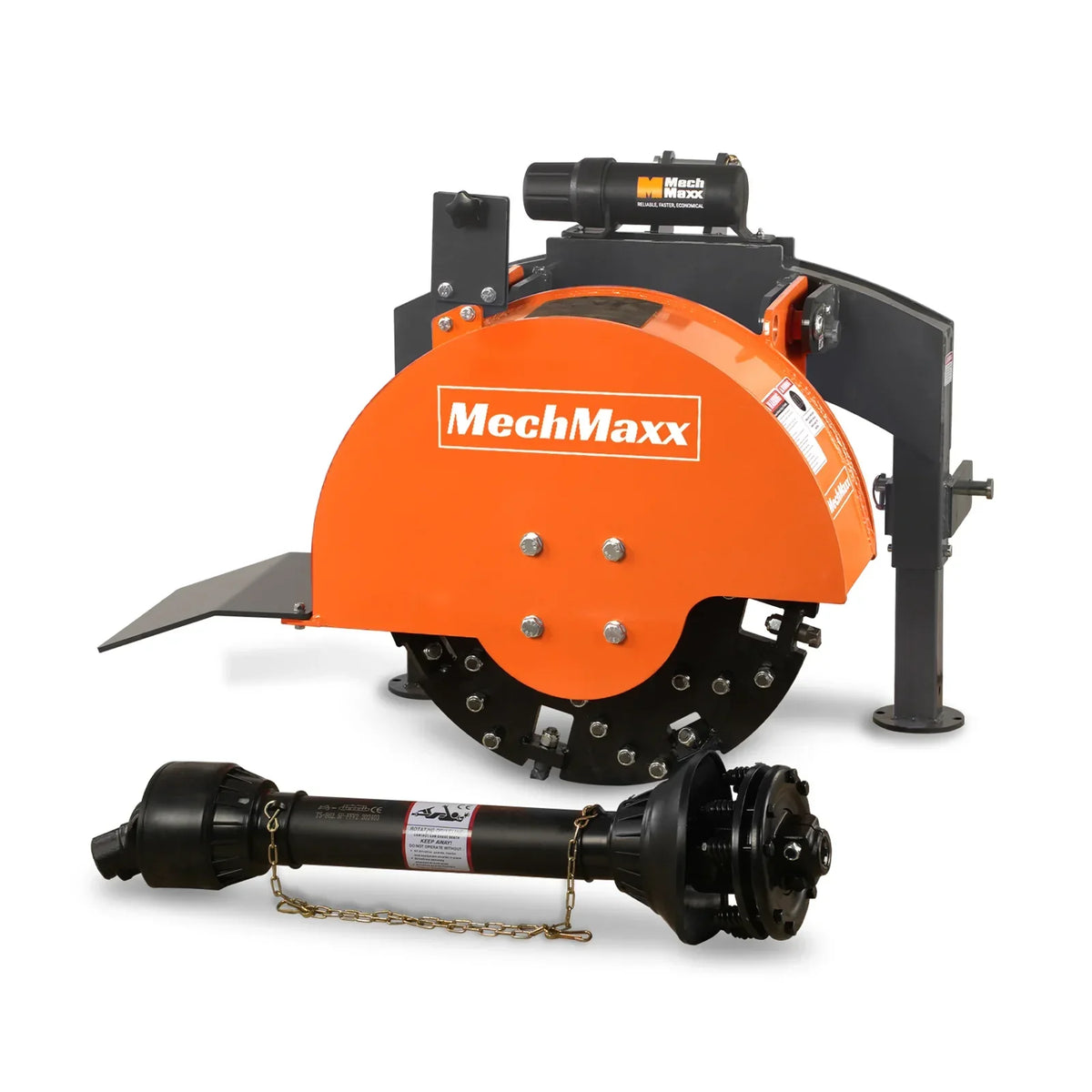

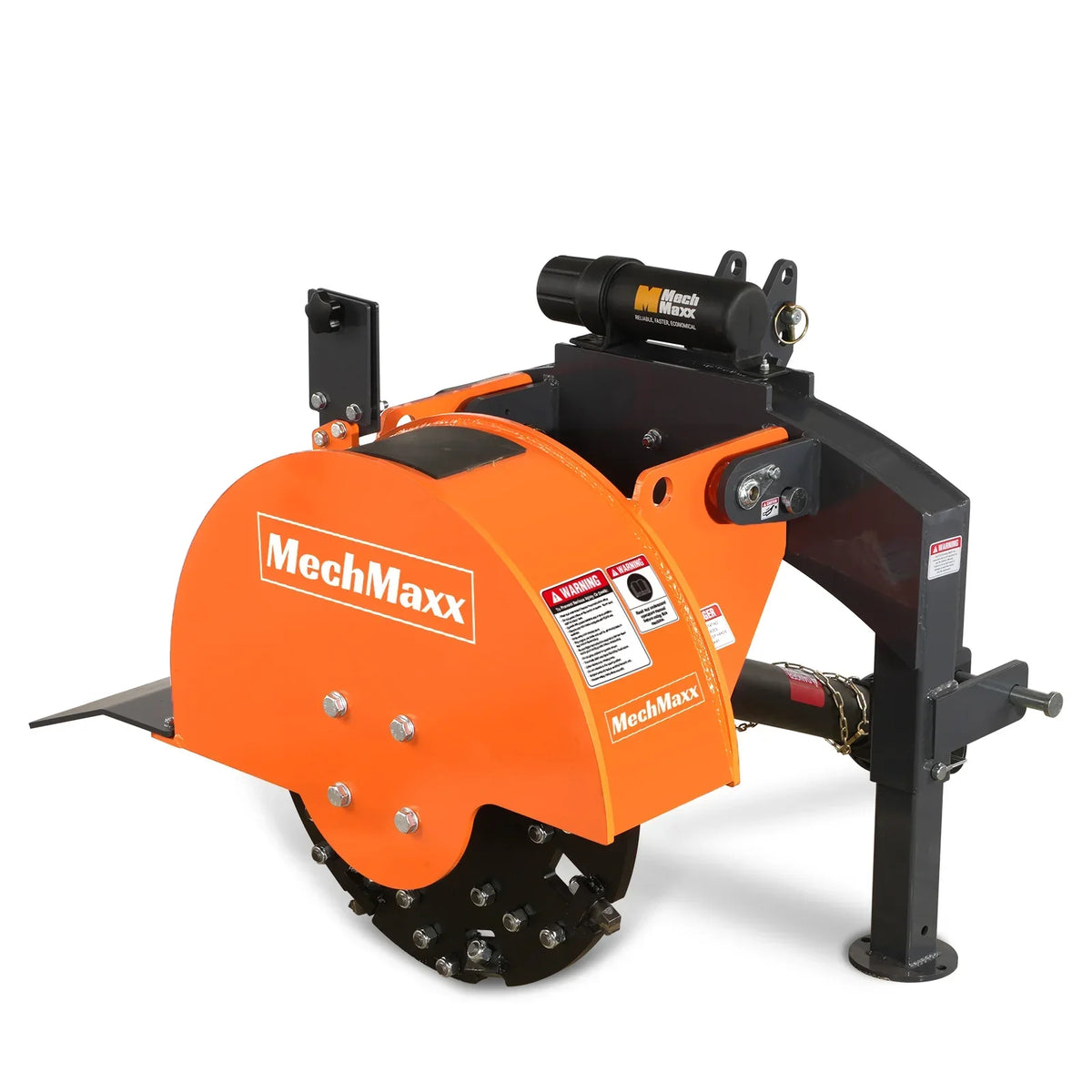

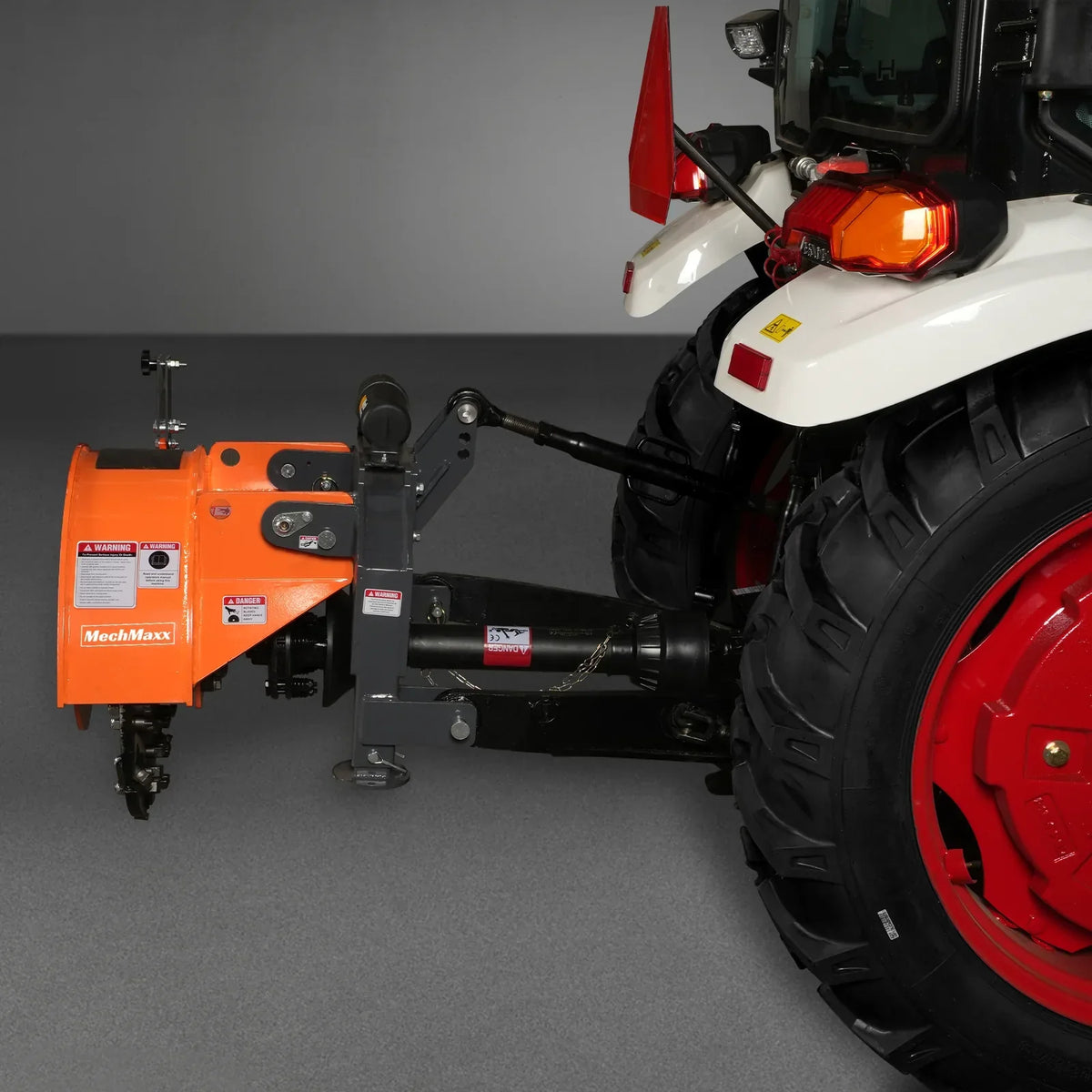

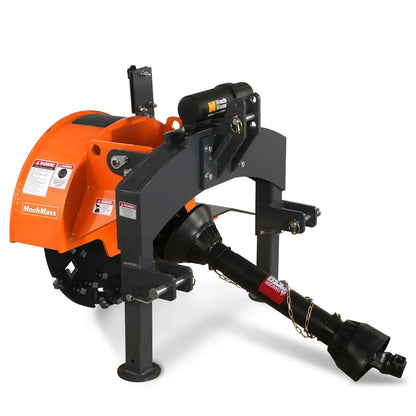

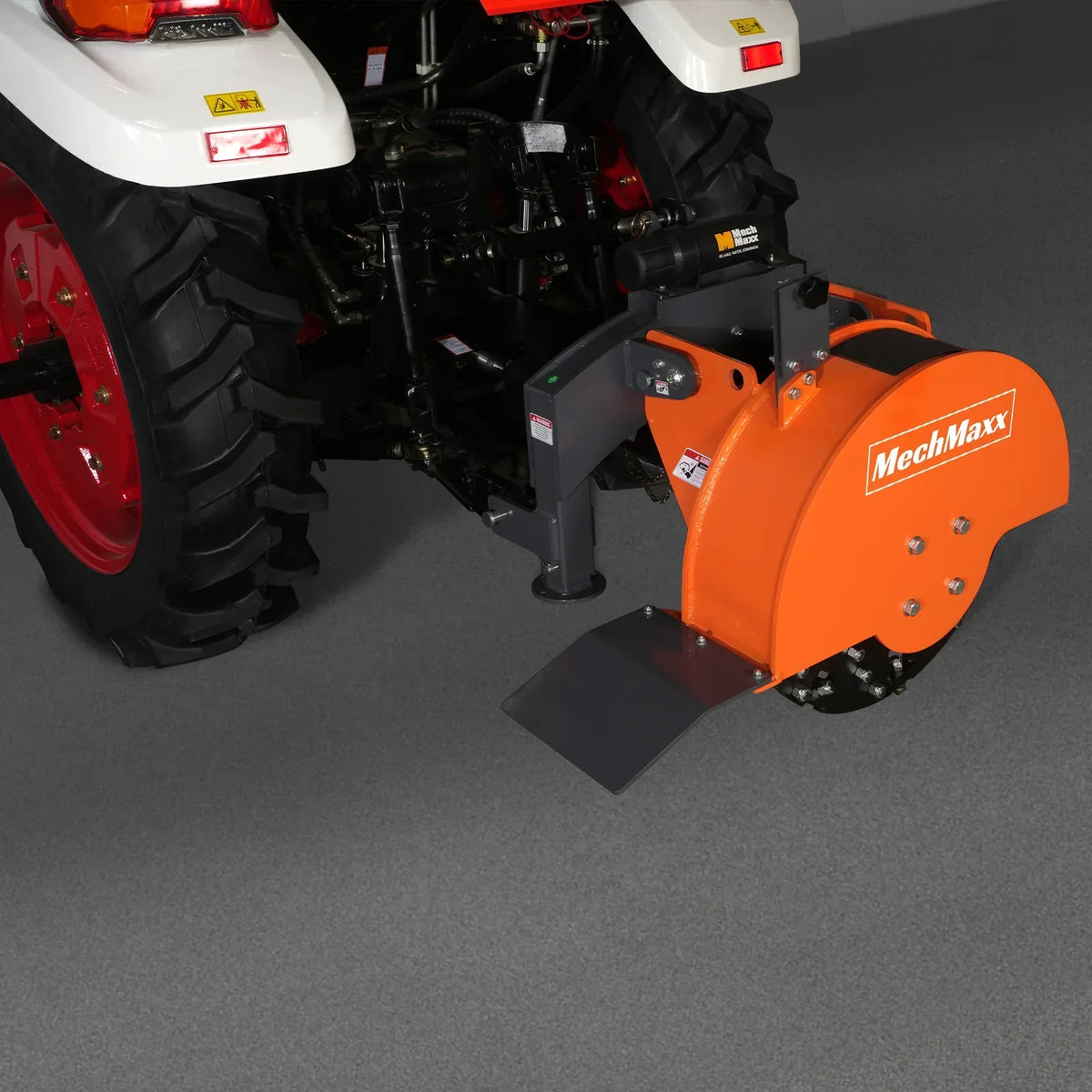

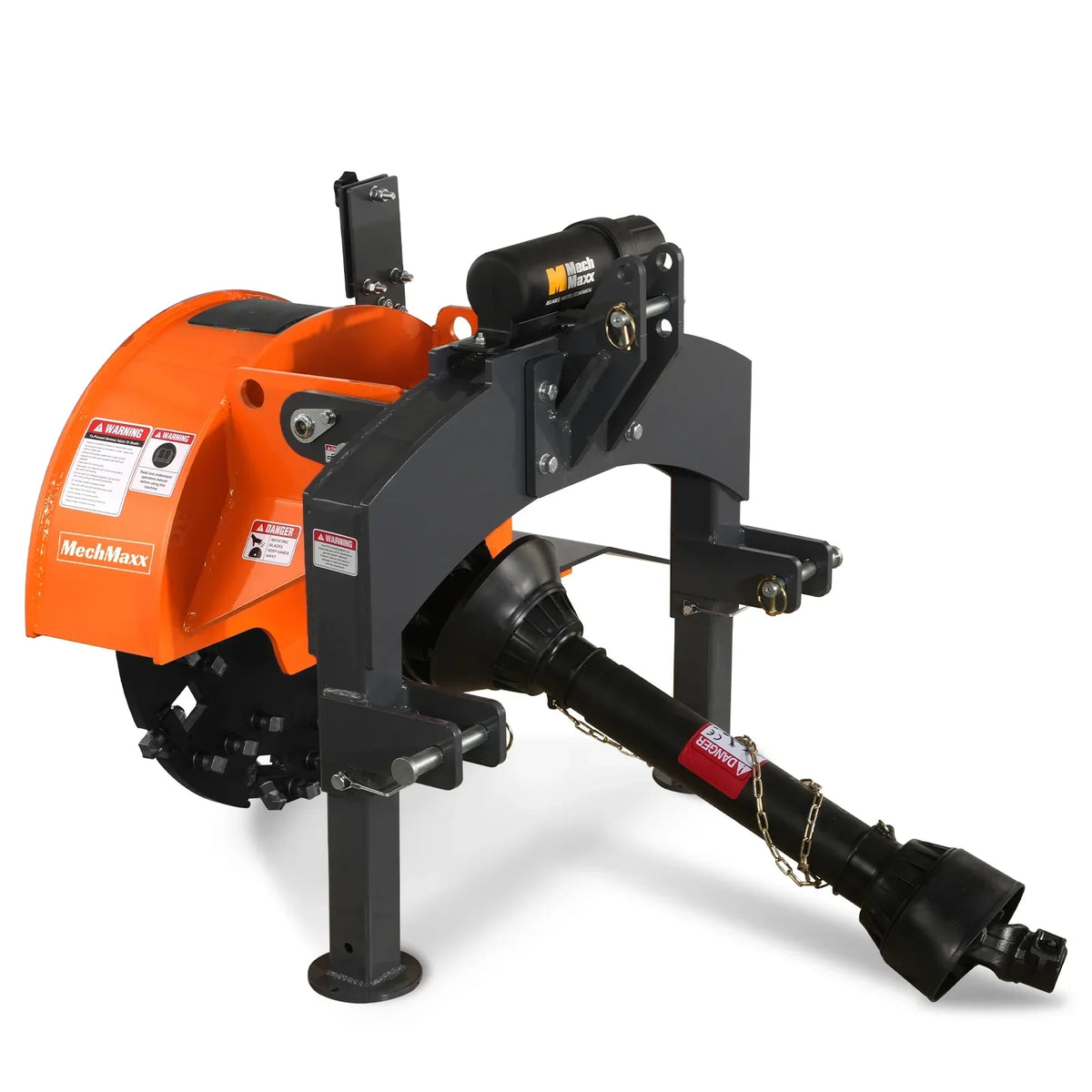

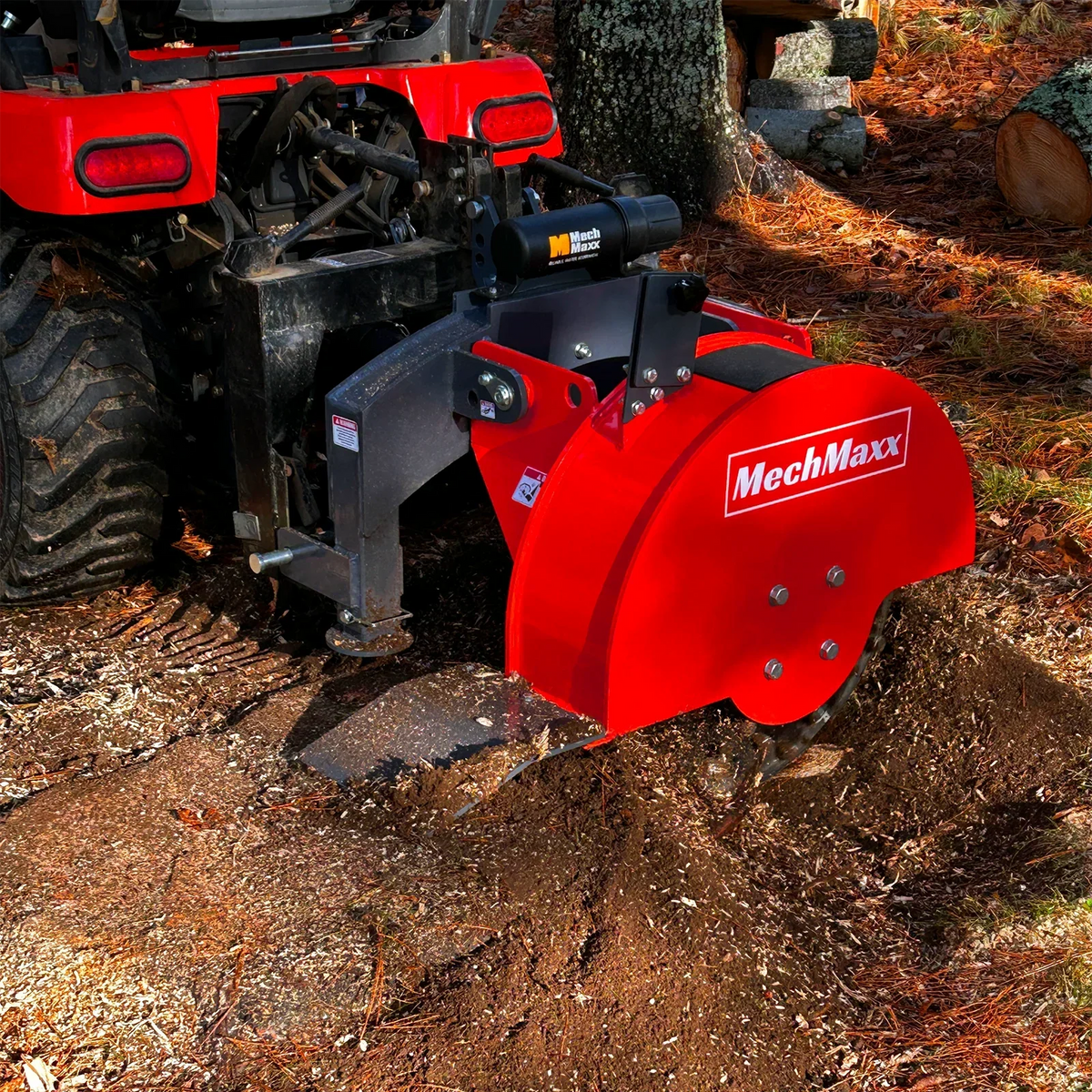

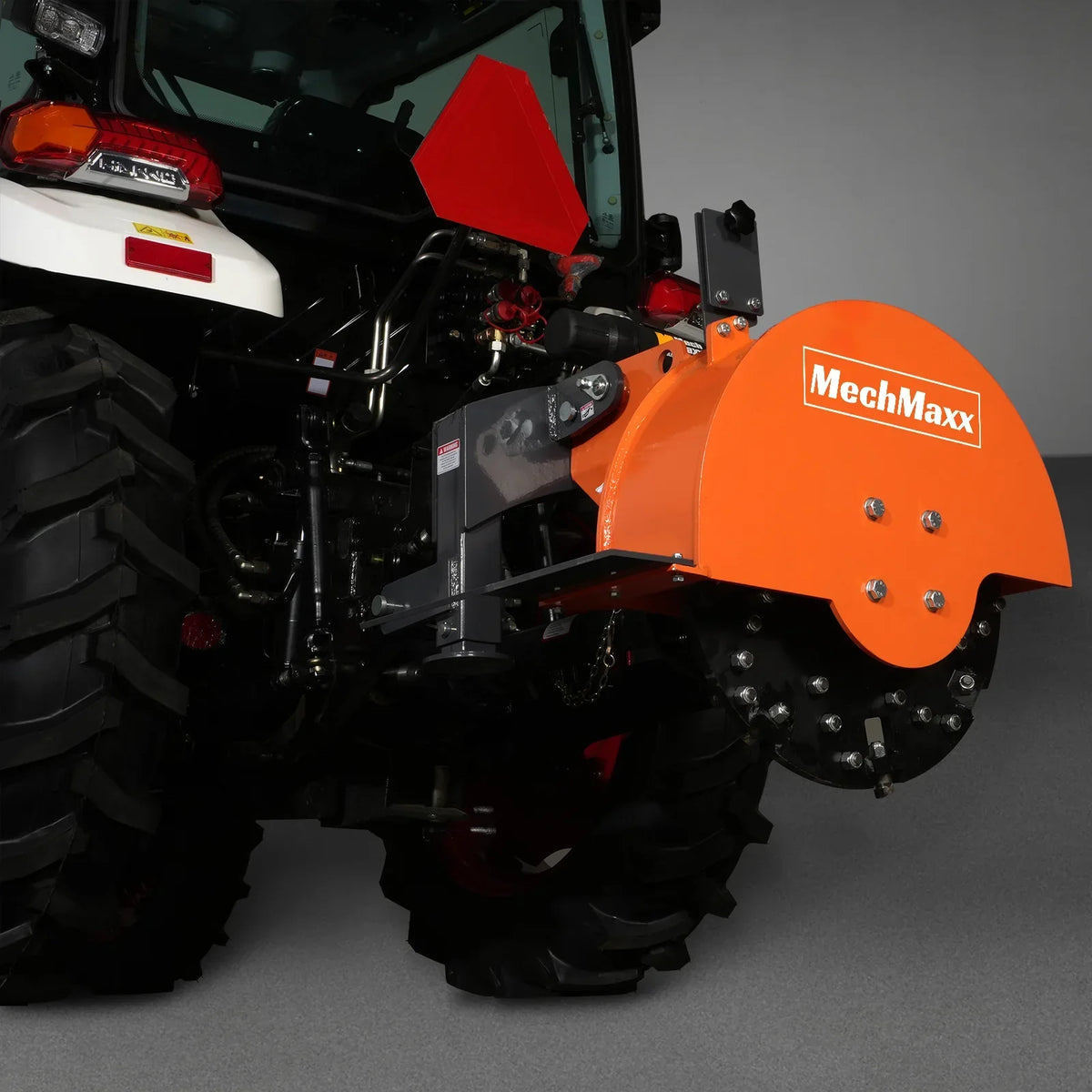

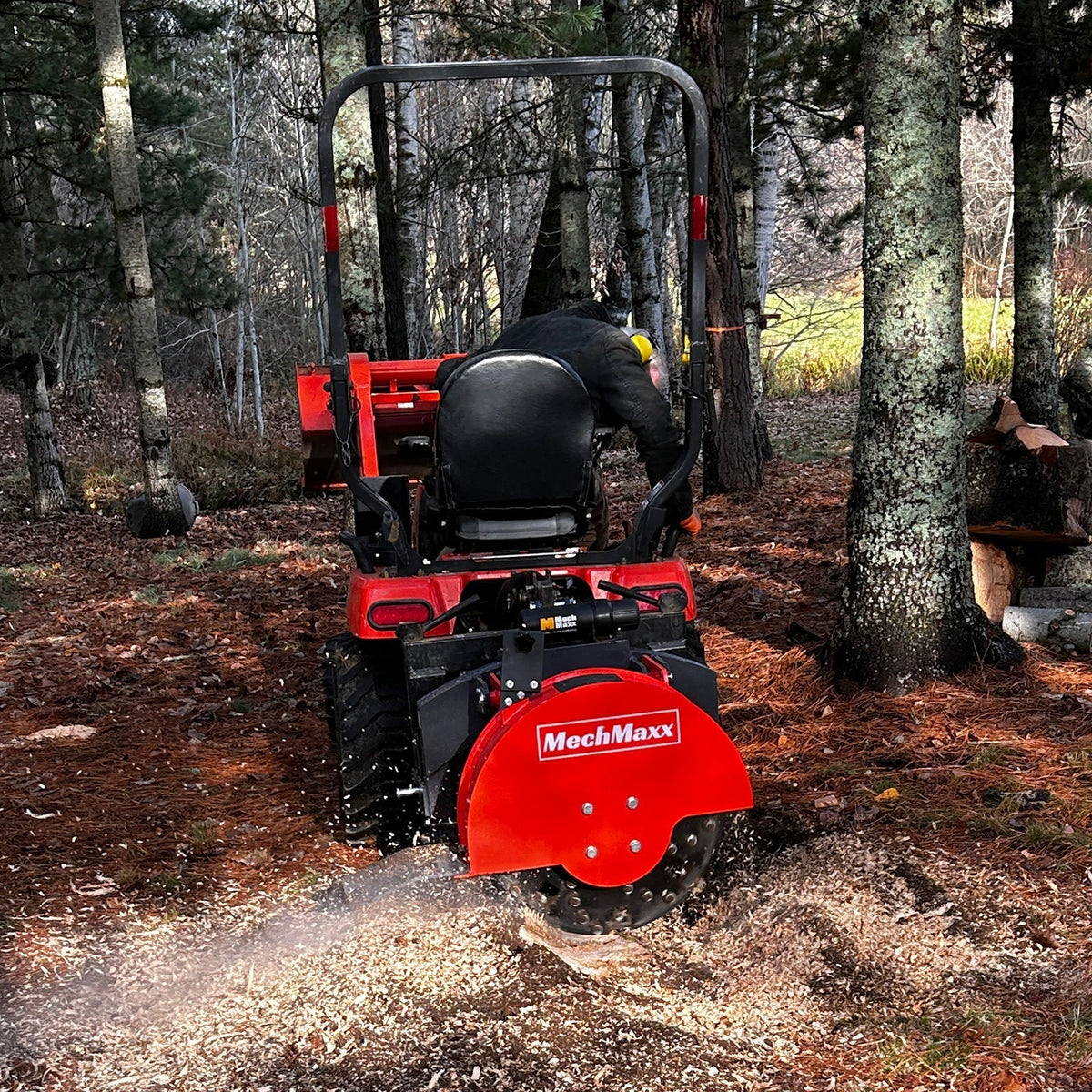

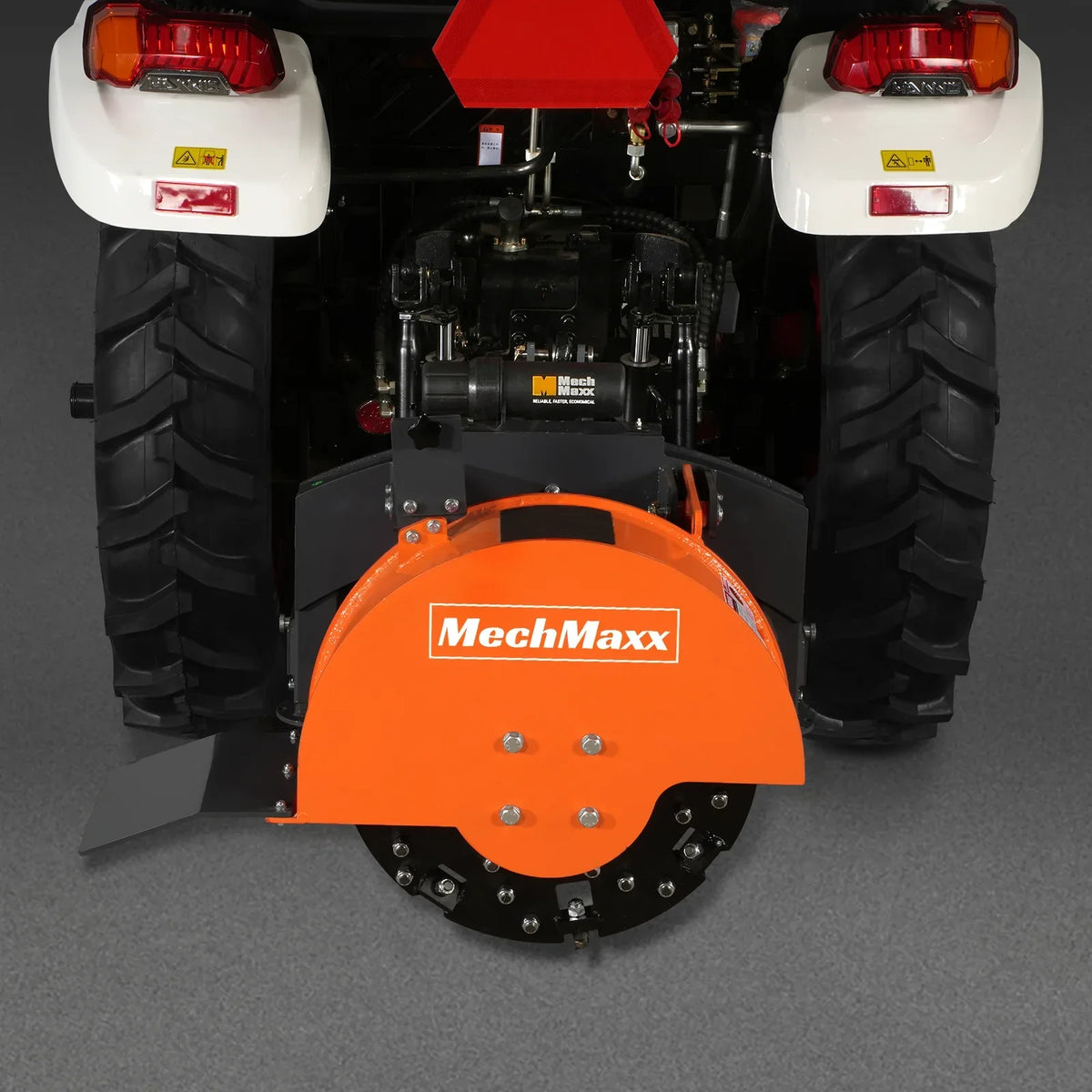

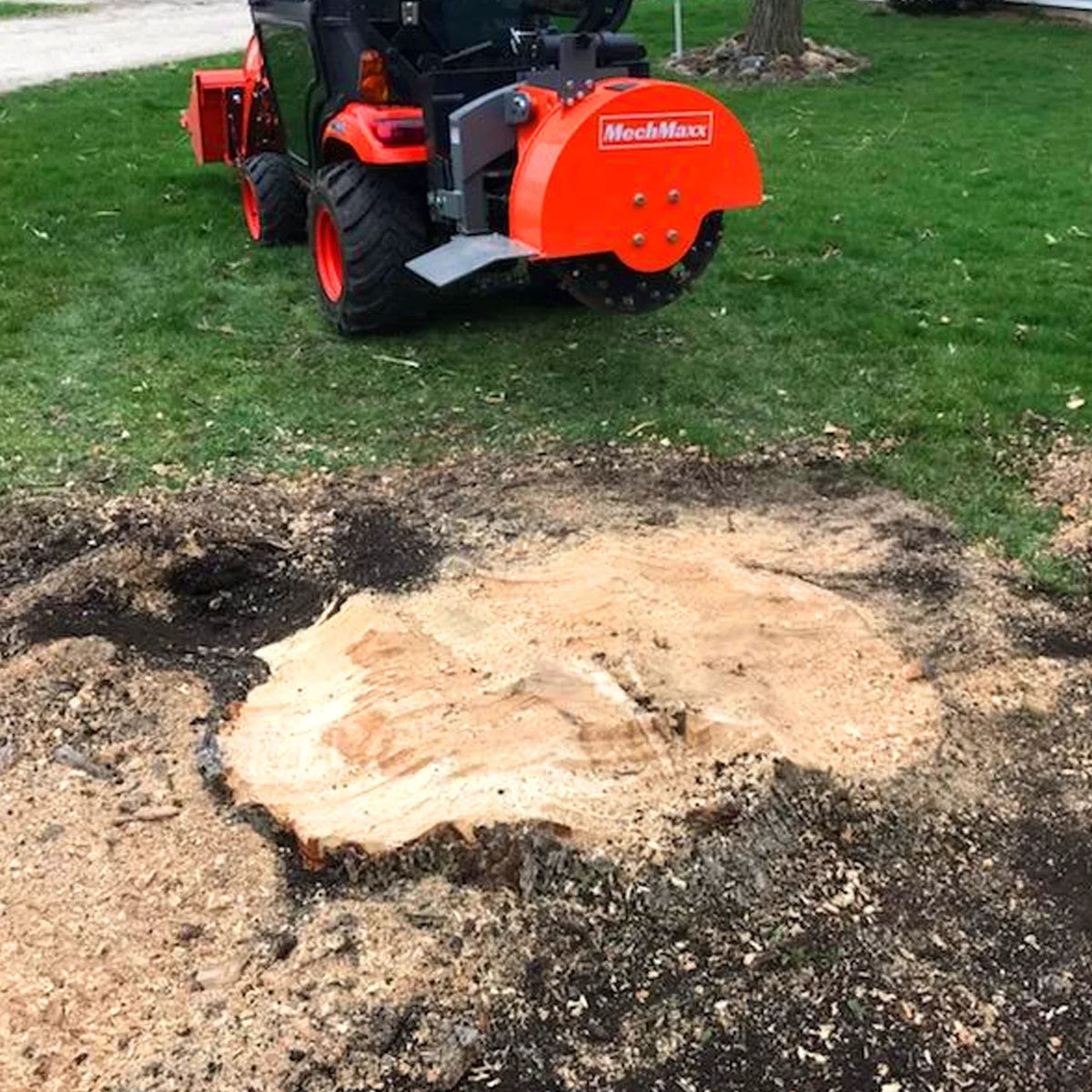

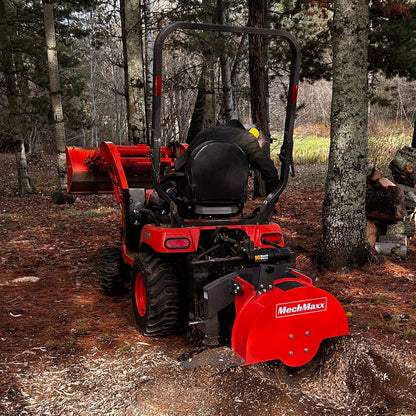

3-Point PTO Stump Grinder
Flywheel Diameter
24 in
Mounting
3 Point Hitch Cat. 1 (Quick Attach Compatible)
Flywheel Thickness
3/4 in
PTO Input
540 RPM

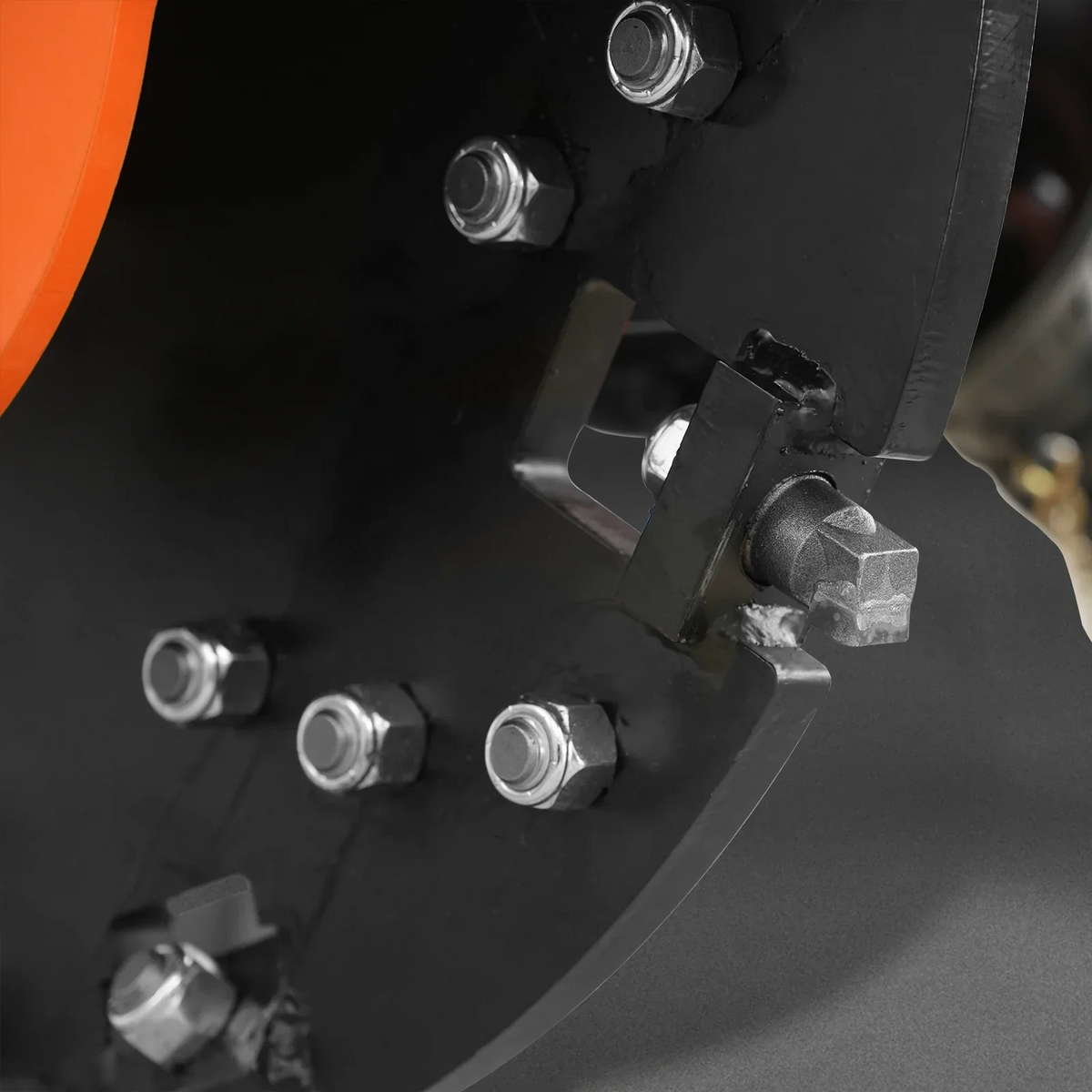

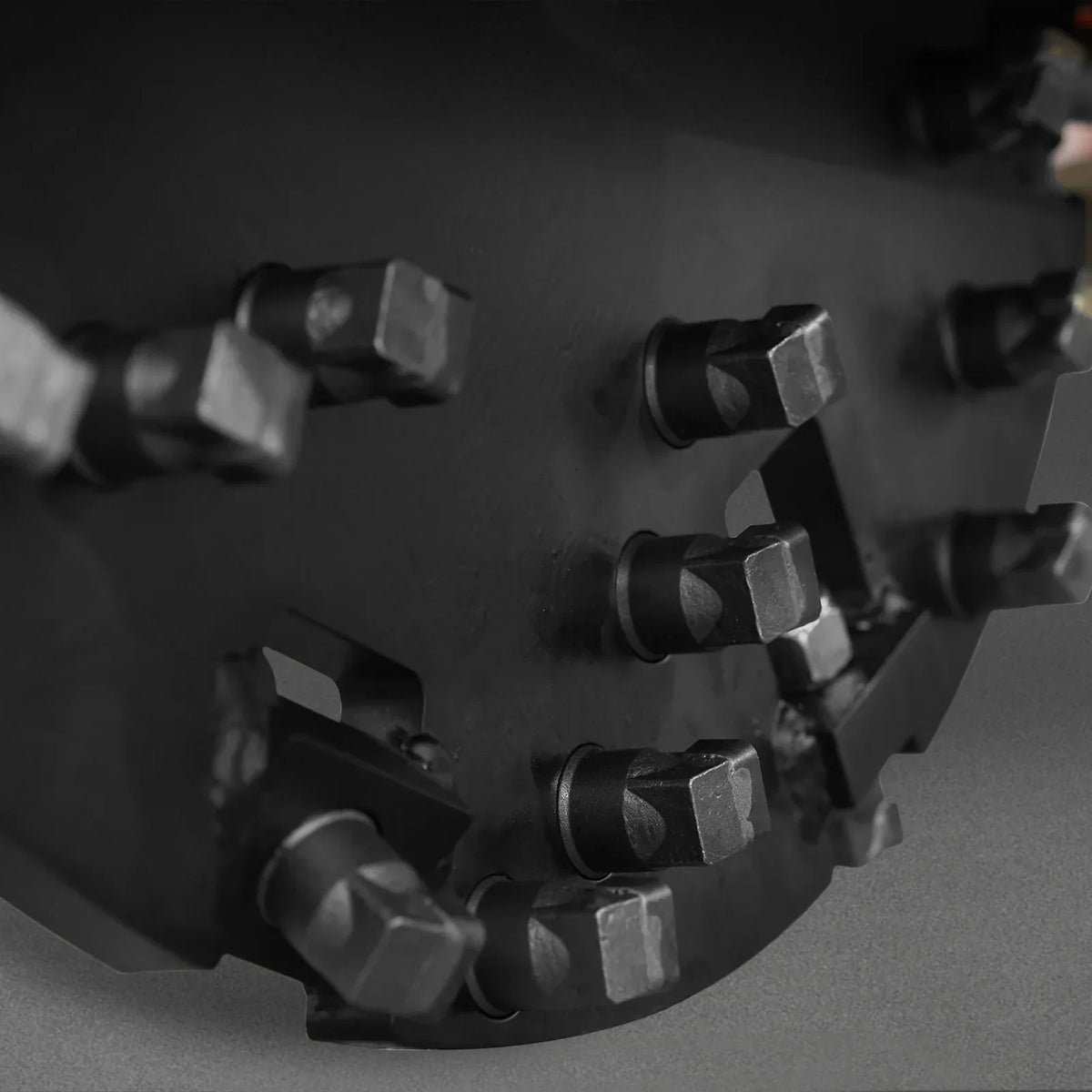

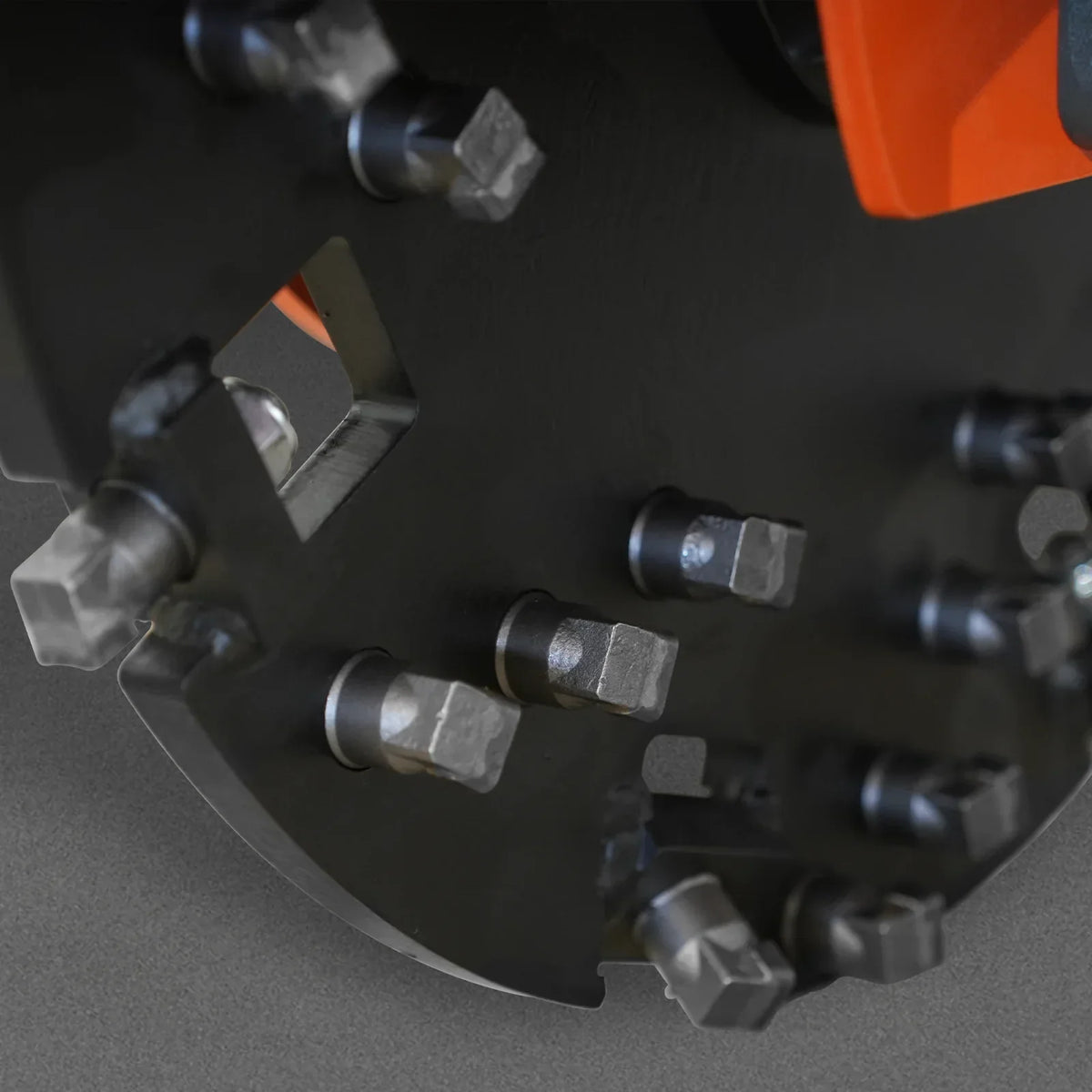

Carbid Tip
34 PCS
Max. Torque
1200 N·m
Carbid Tip Material
YG11C
PTO Shaft Weight
44 LBS
Tip Holder Material
42CrMo
Dimensions
29 × 37 × 38 in
PTO HP Required
15–45 HP
Packing
Iron Frame + Carton
PTO Shaft (Included Shipping)
1-3/8” 6 Spline Tractor and Implement Ends PTO Driveline Shaft with Slip Clutch
Weight (N.W/G.W.)
450/563 LBS
Friction Torque Limiter (Slip Clutch)
Included

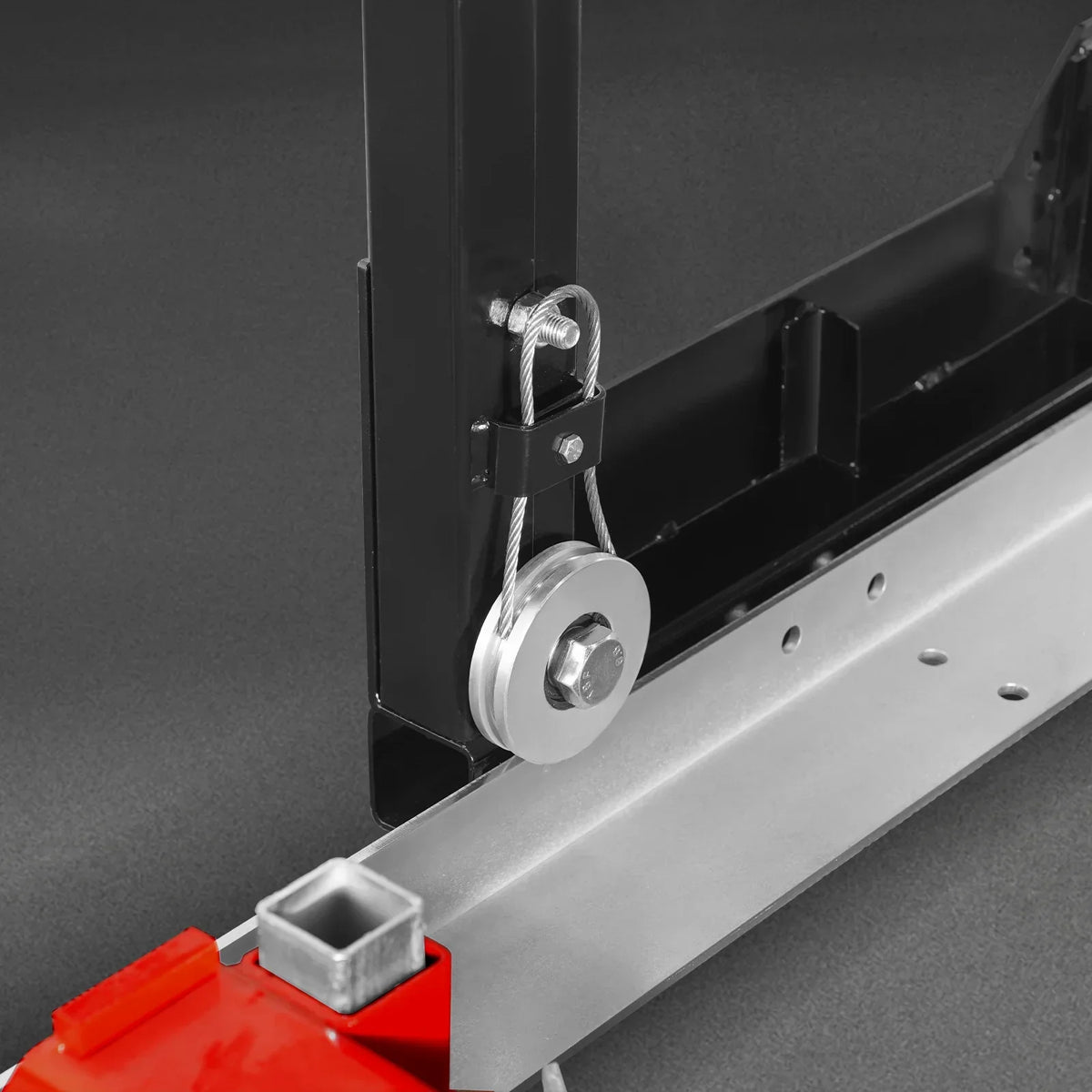

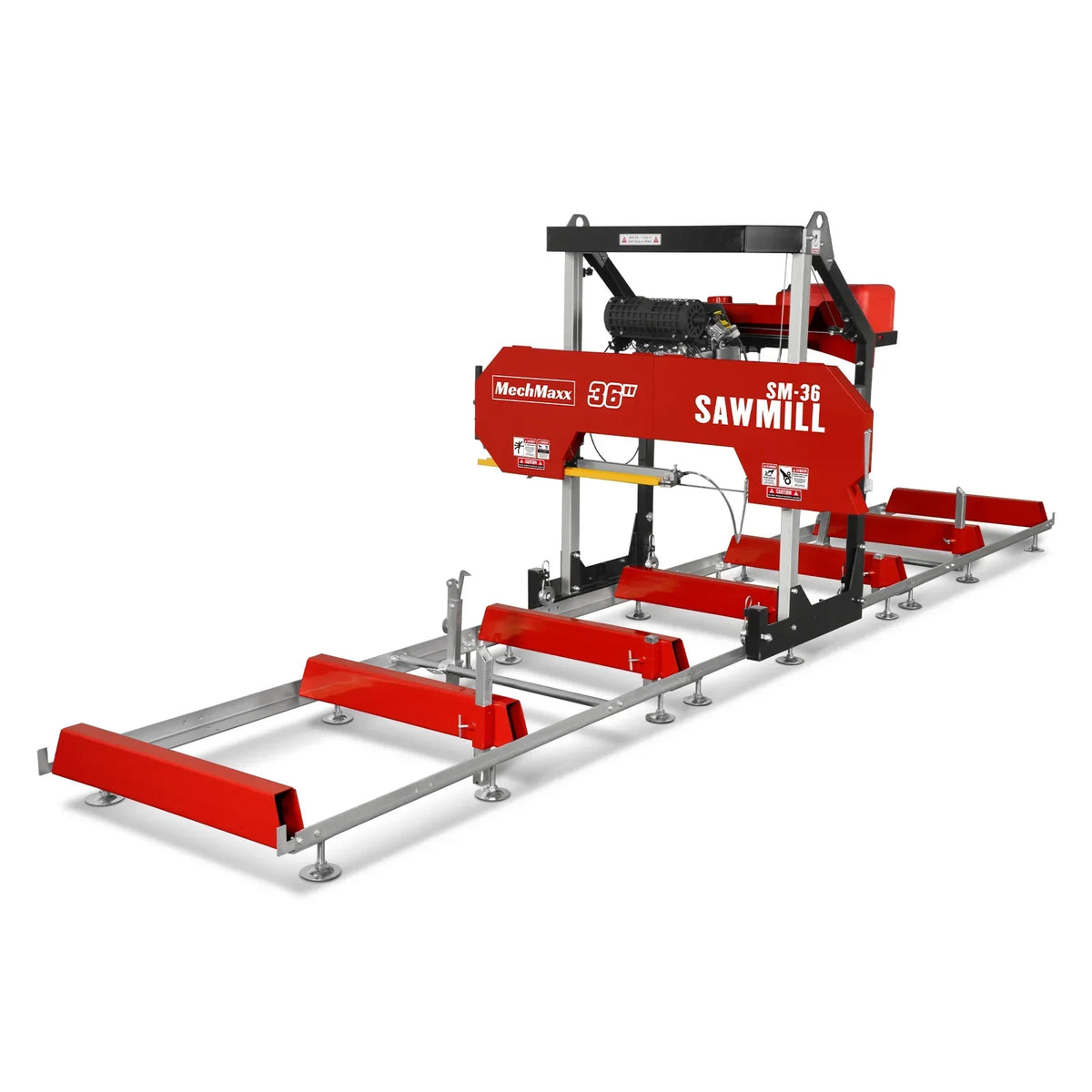

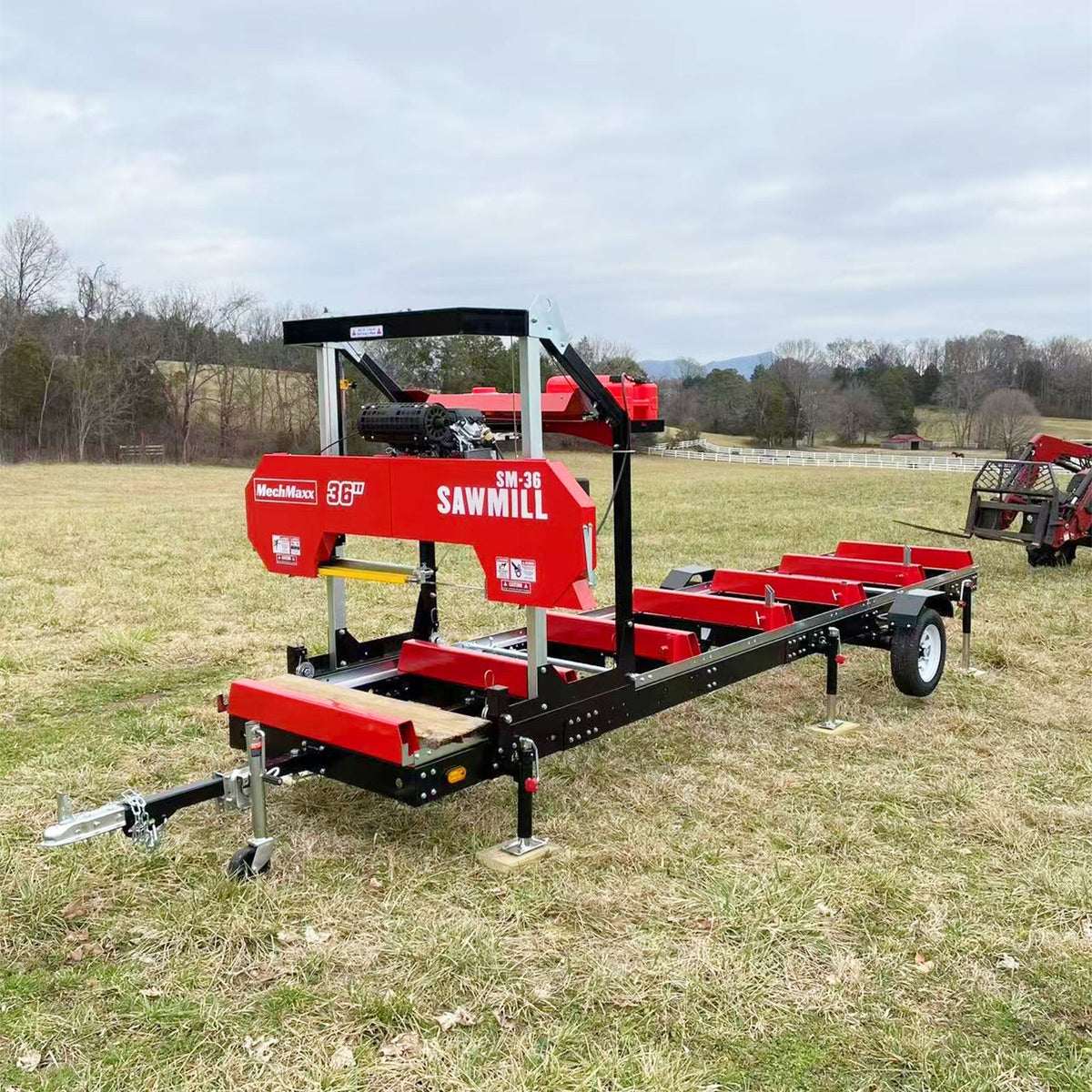

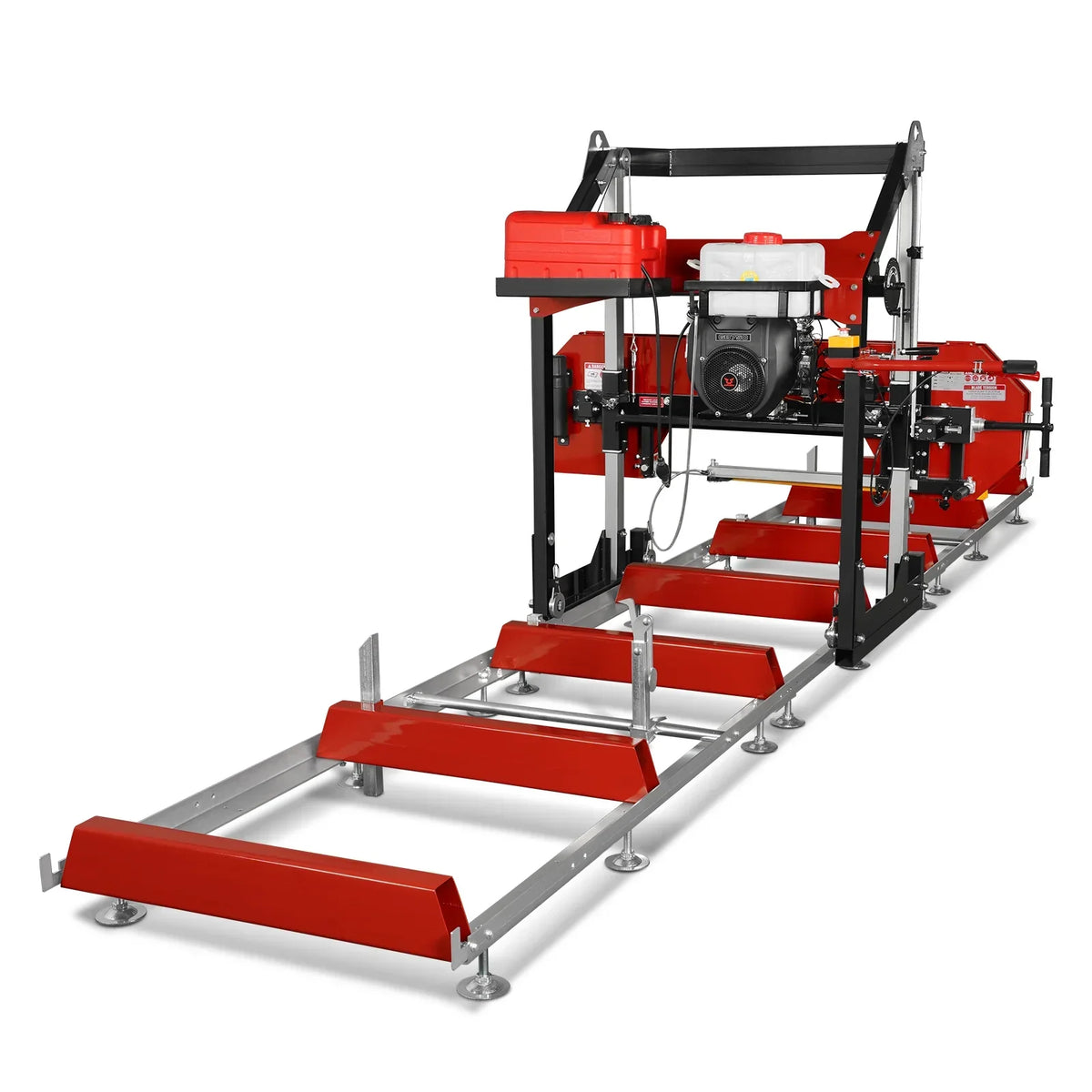

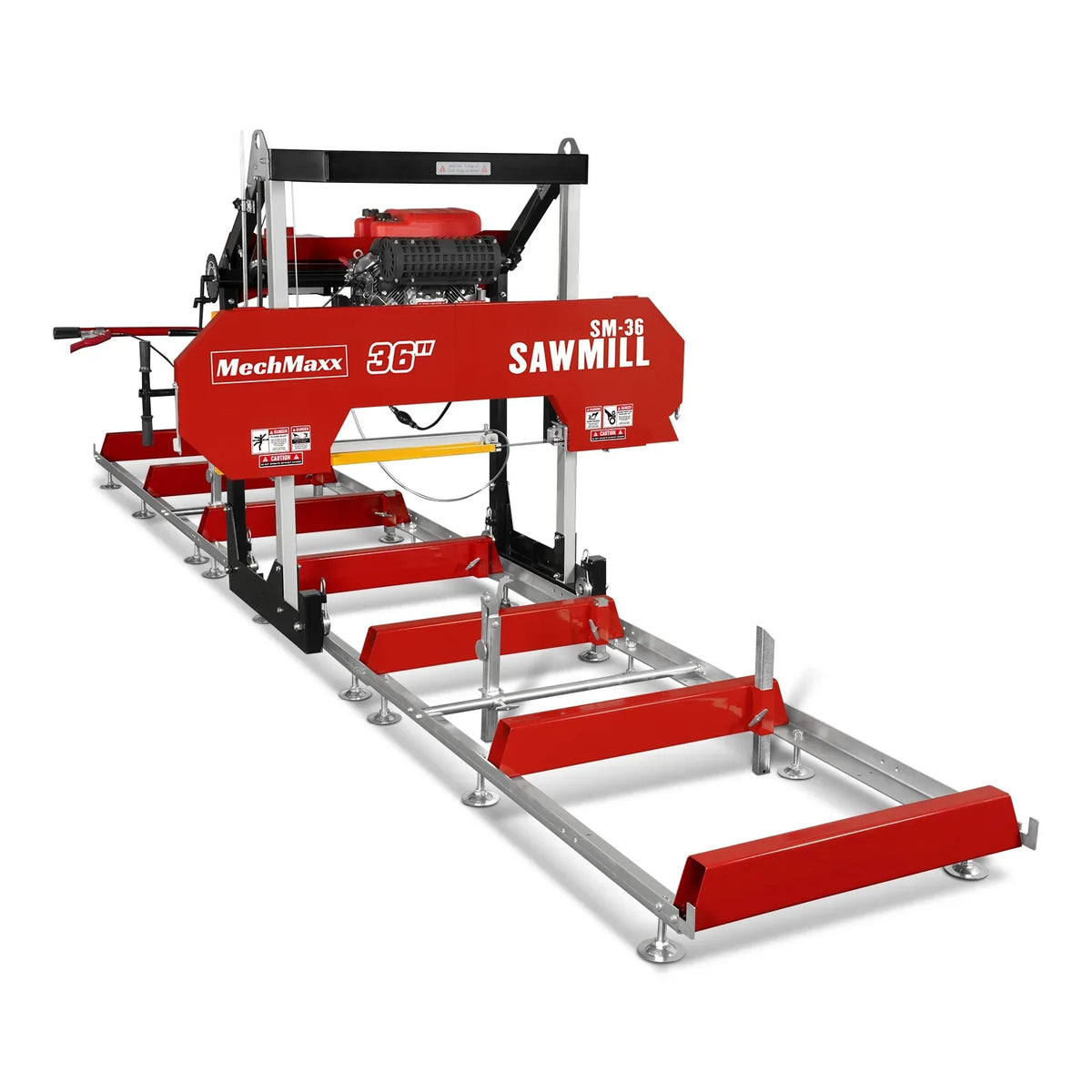

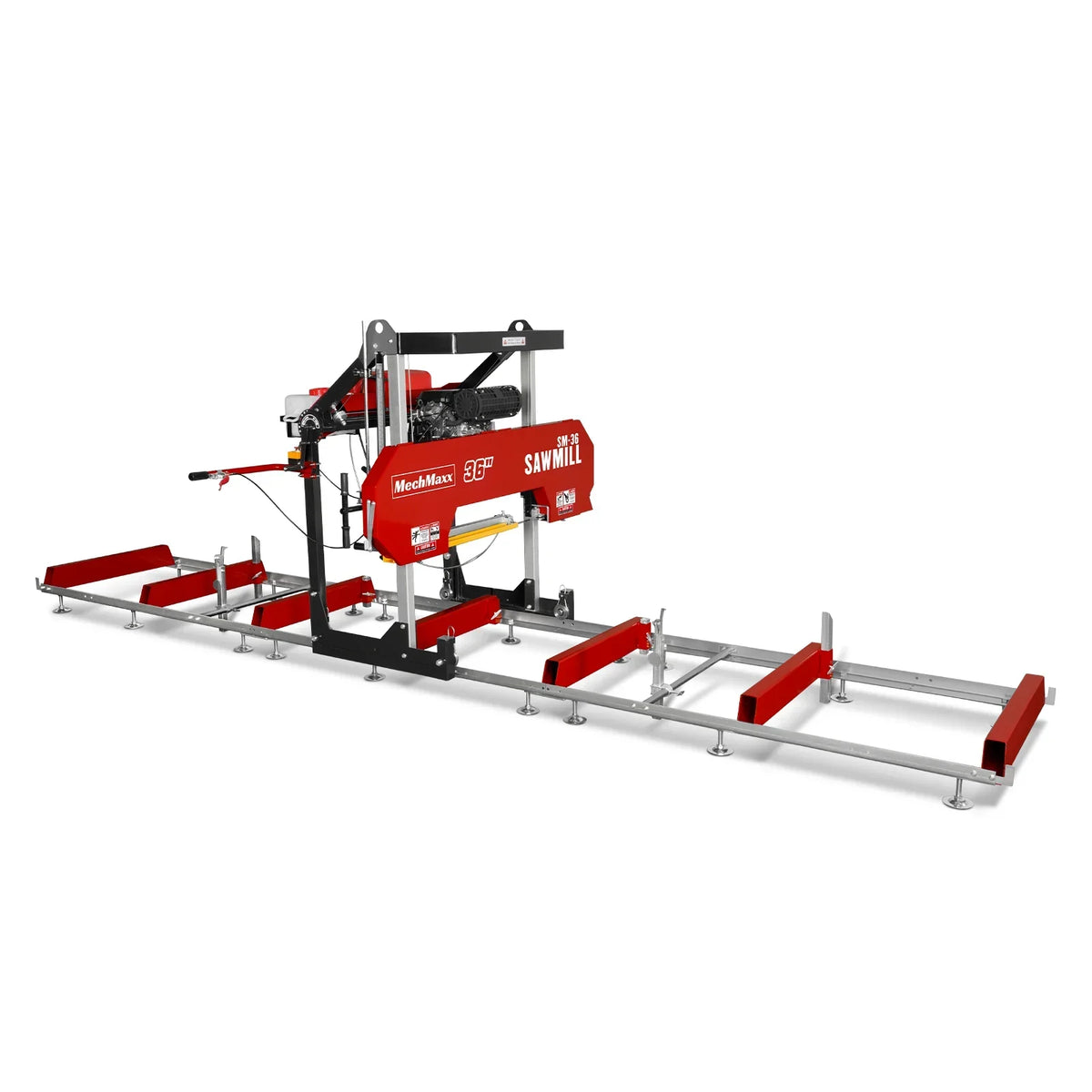

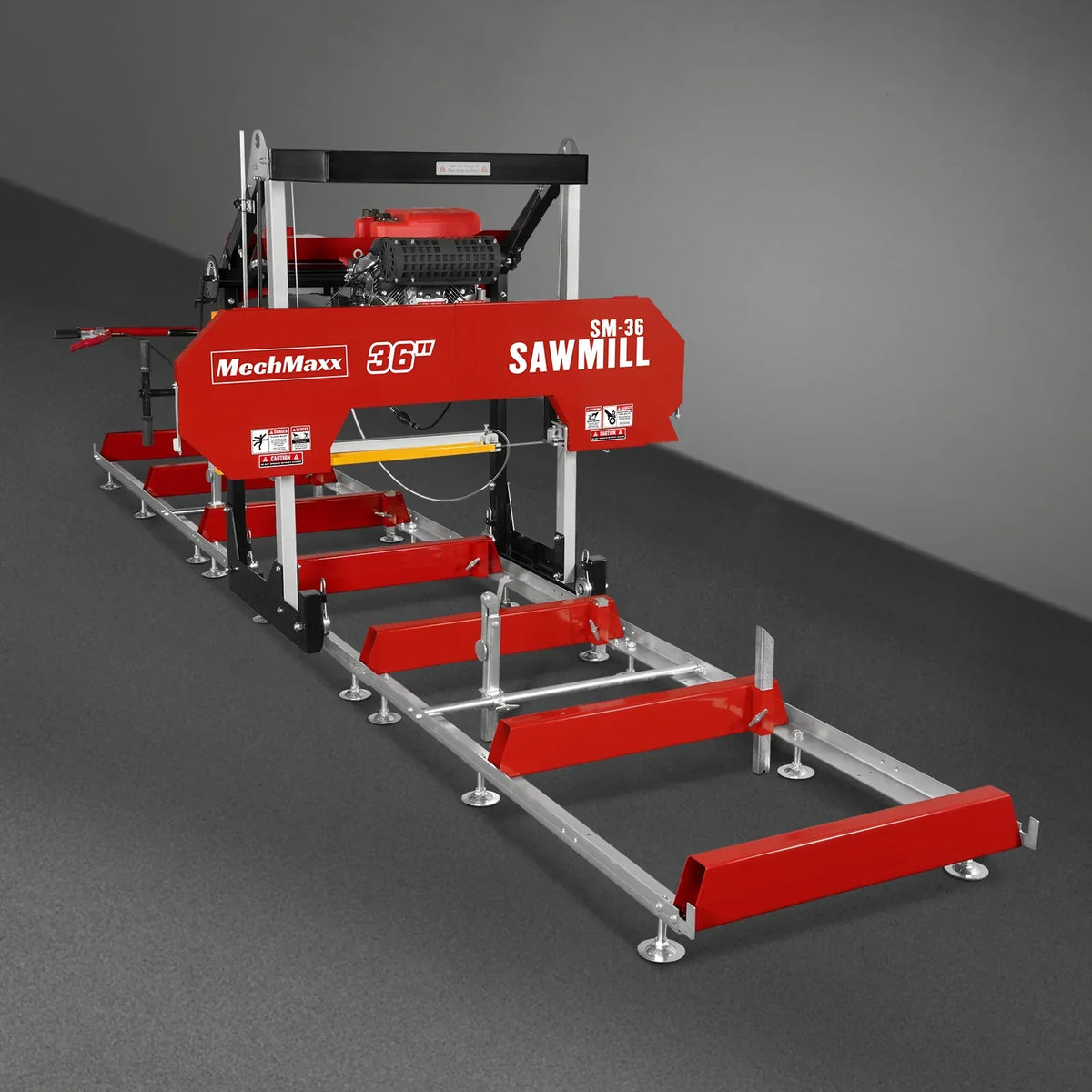

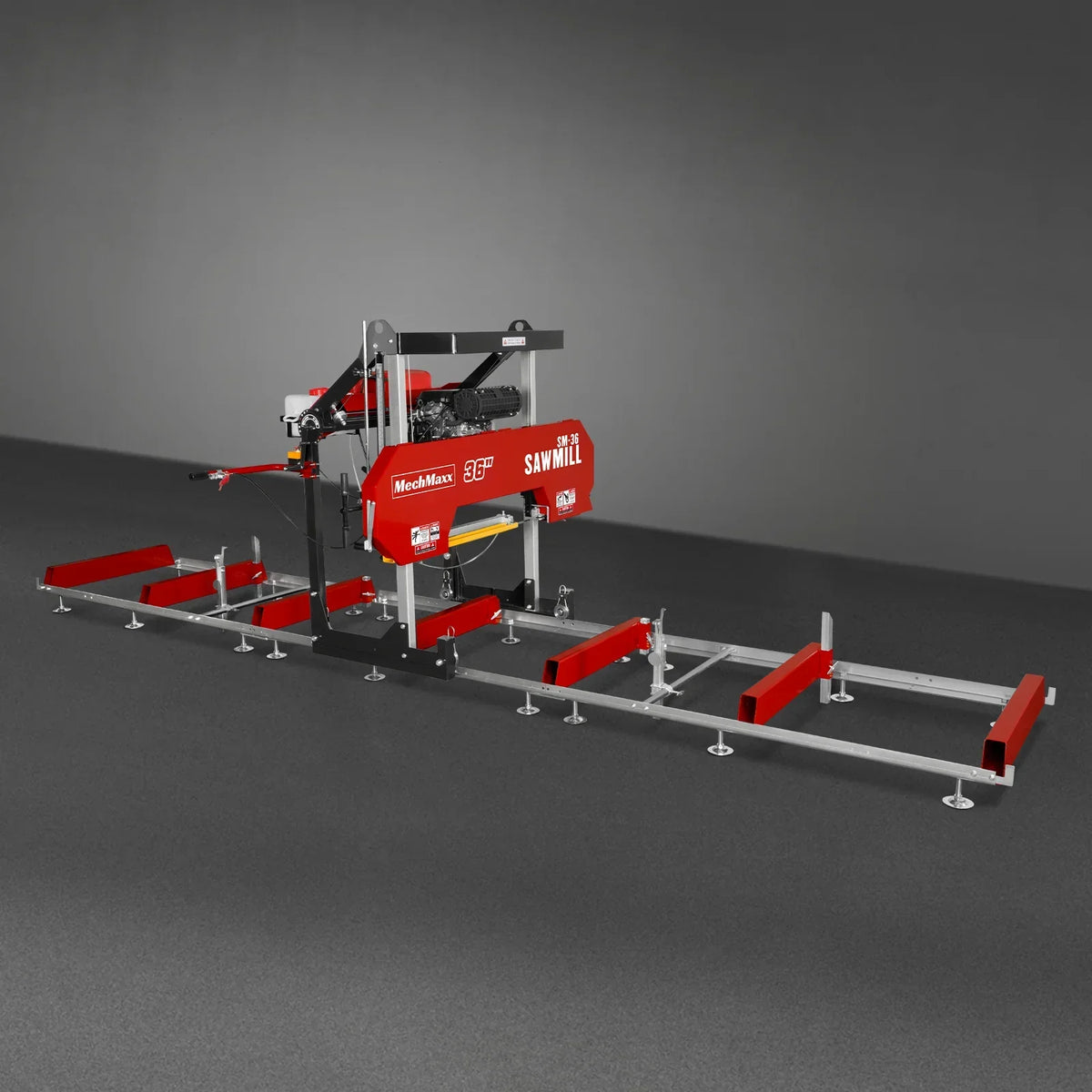

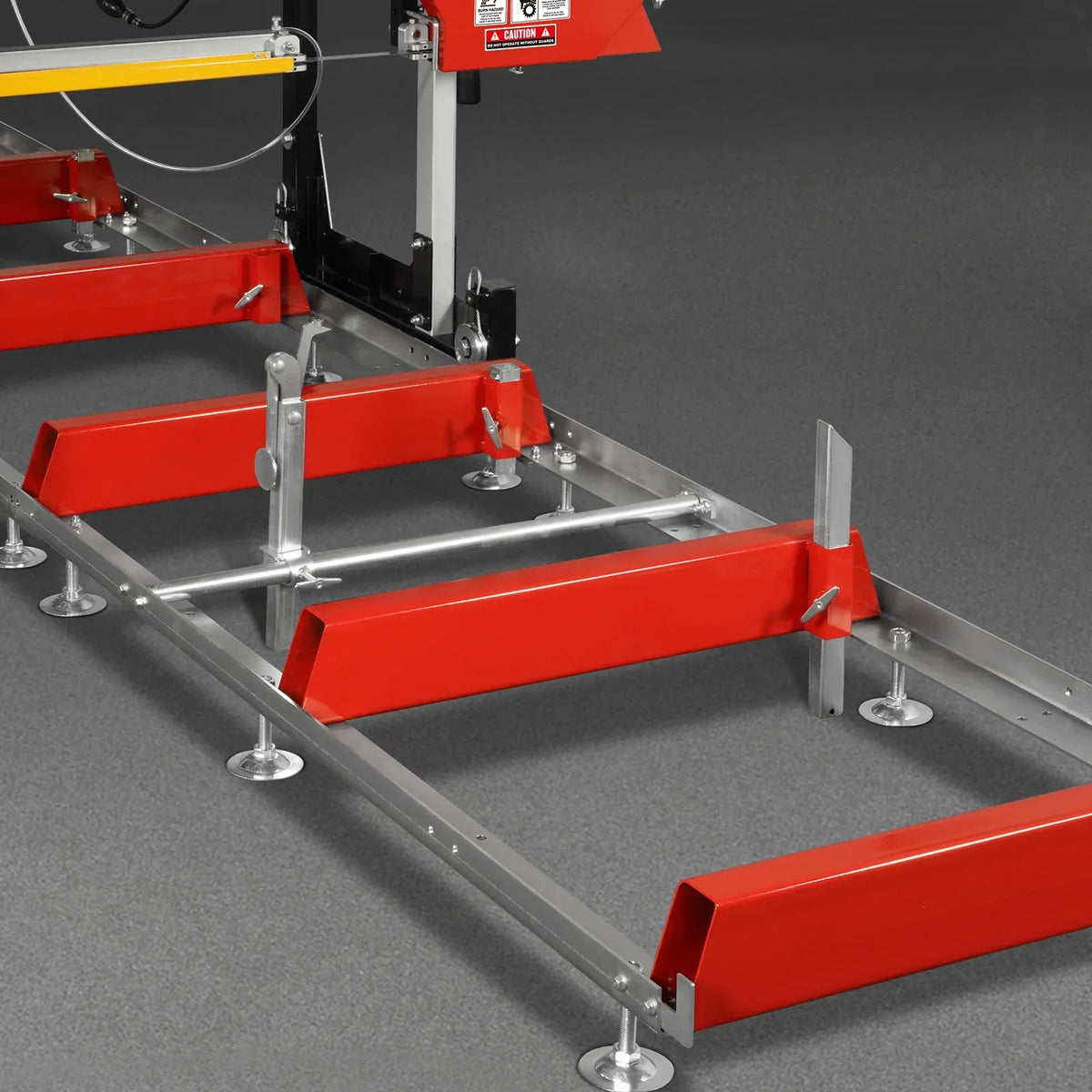

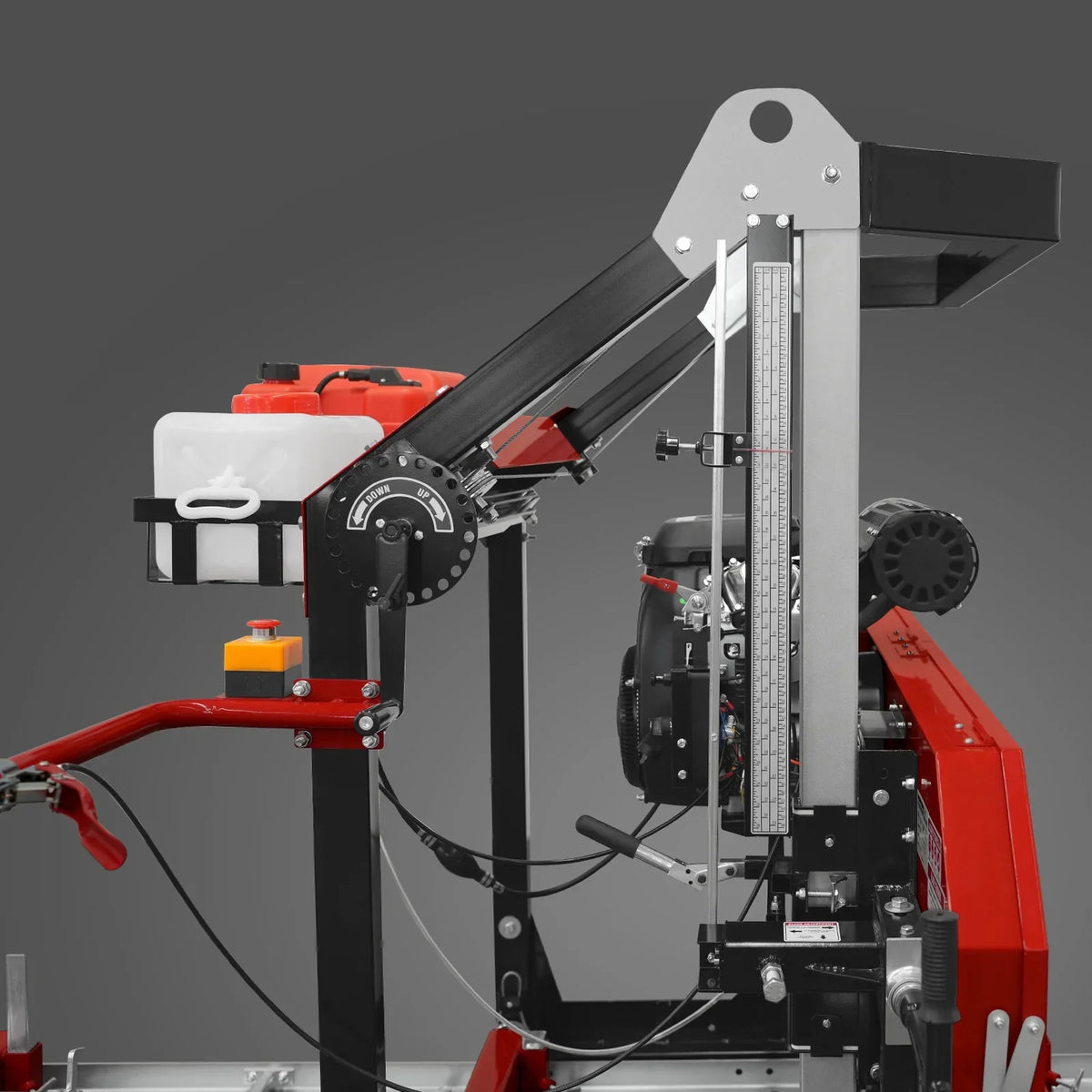

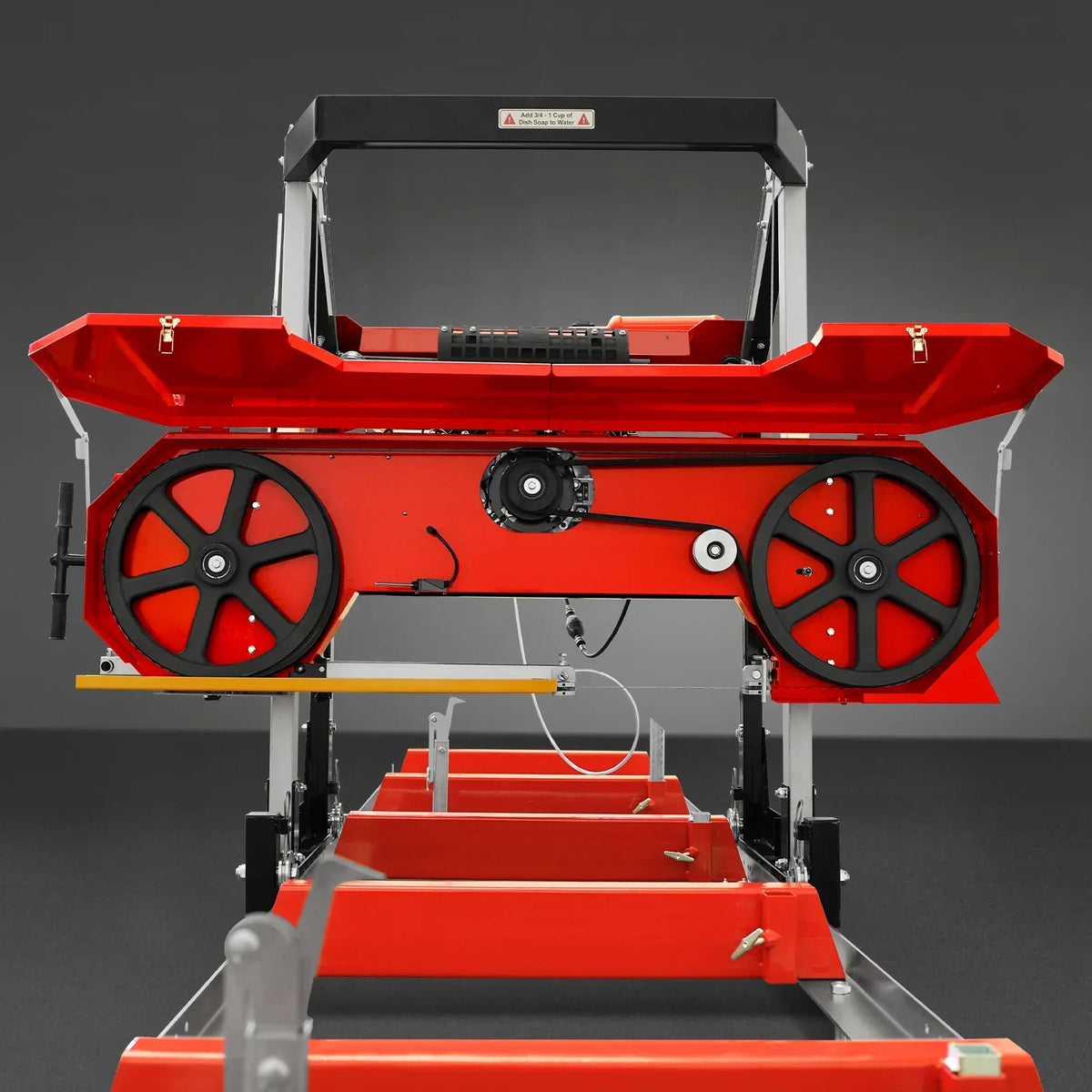

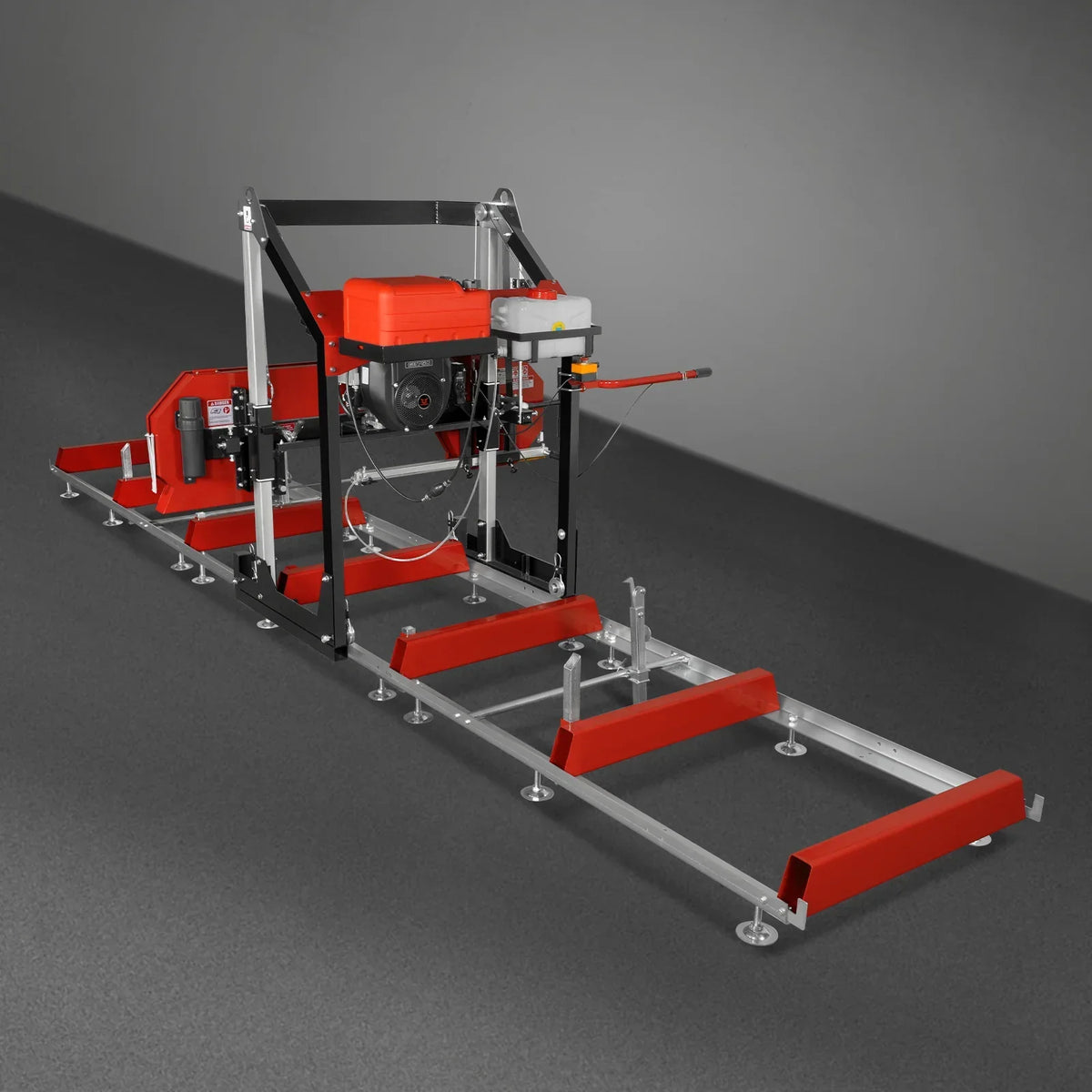

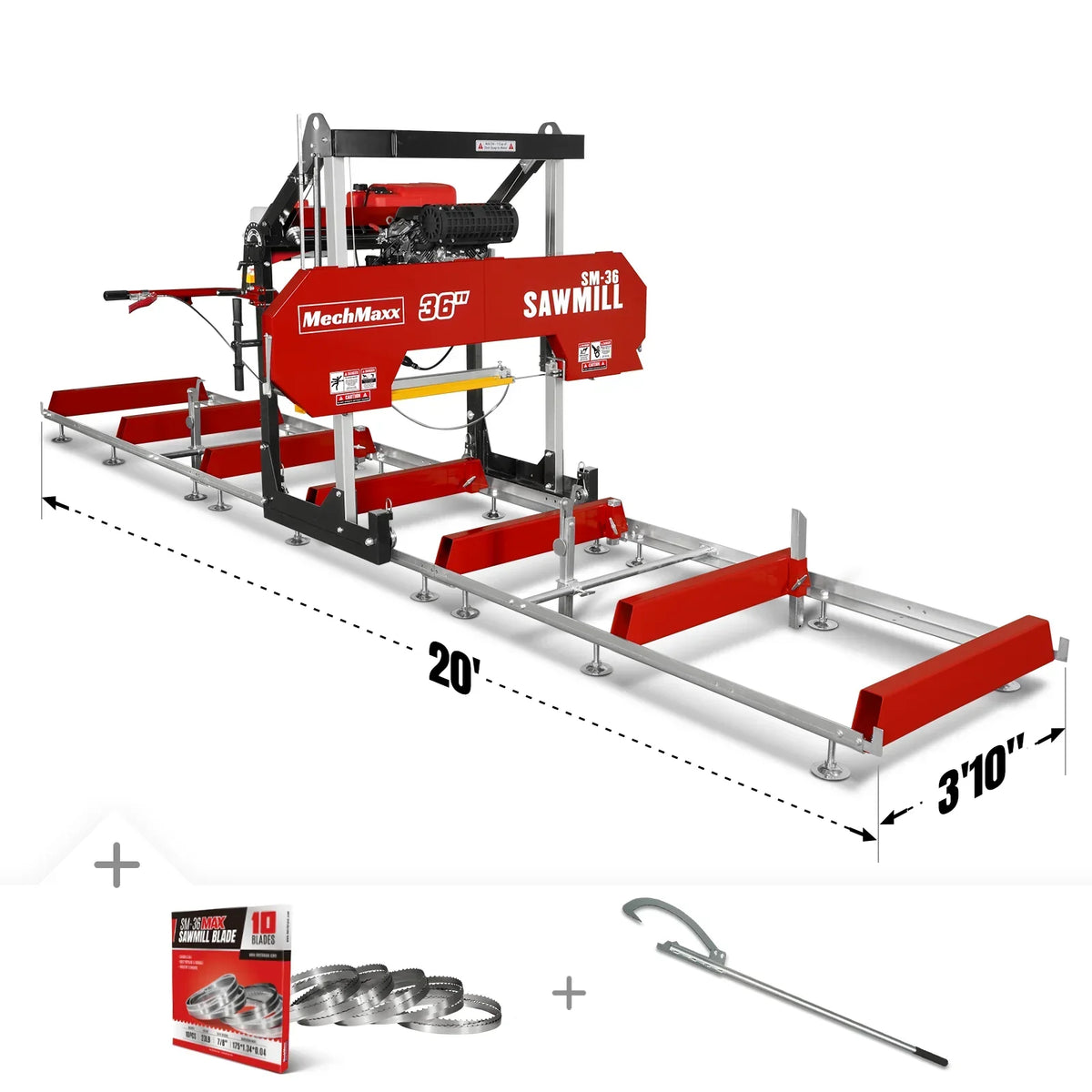

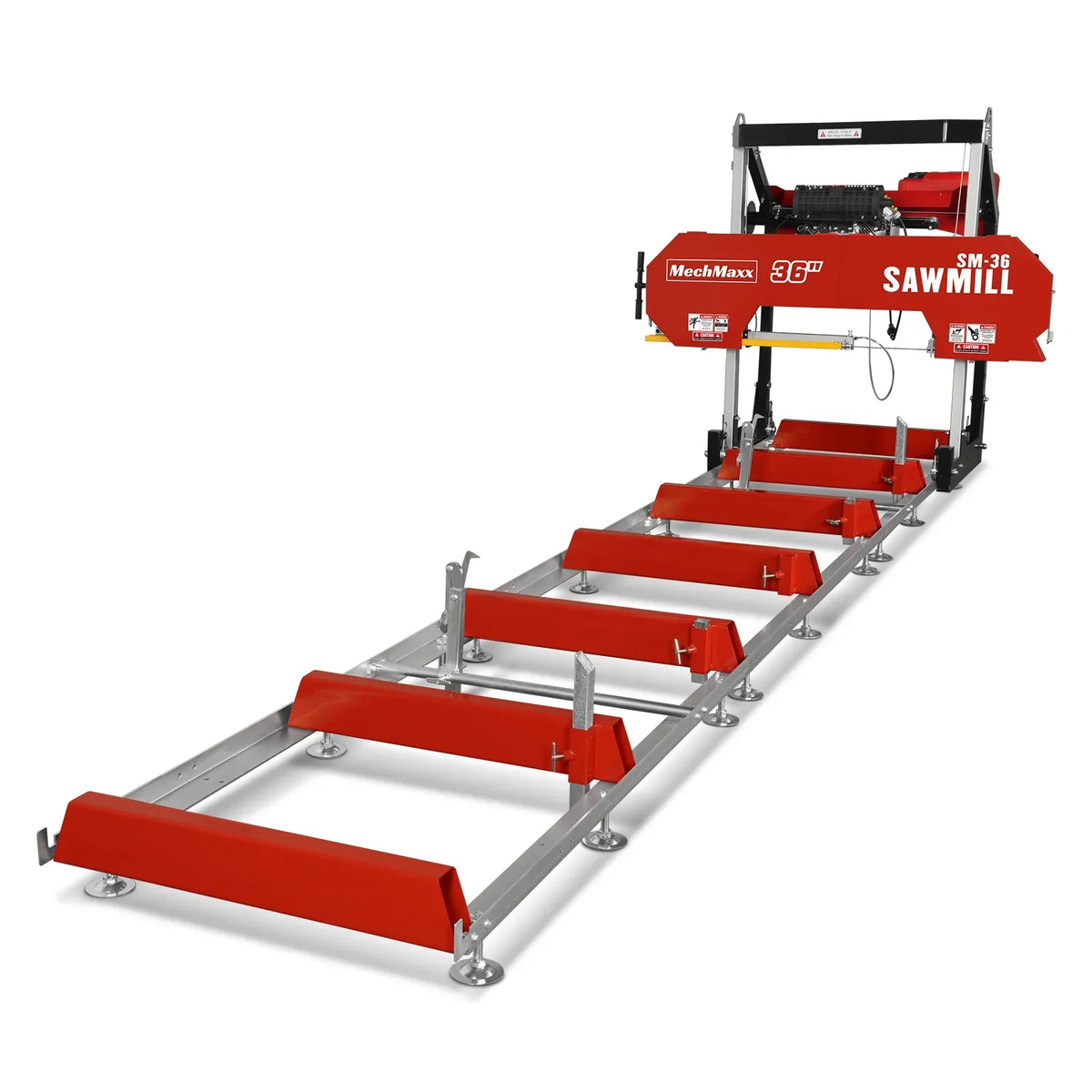

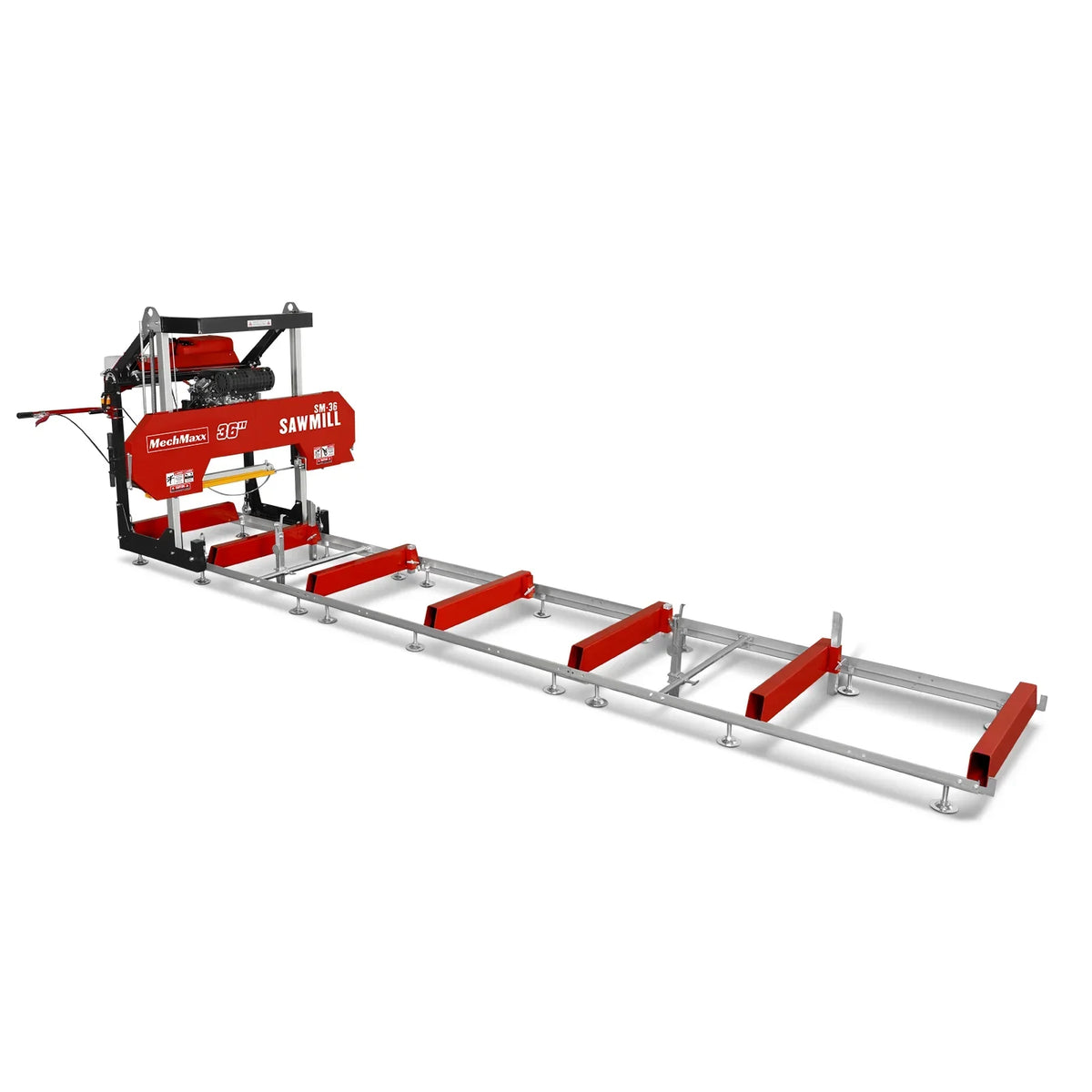

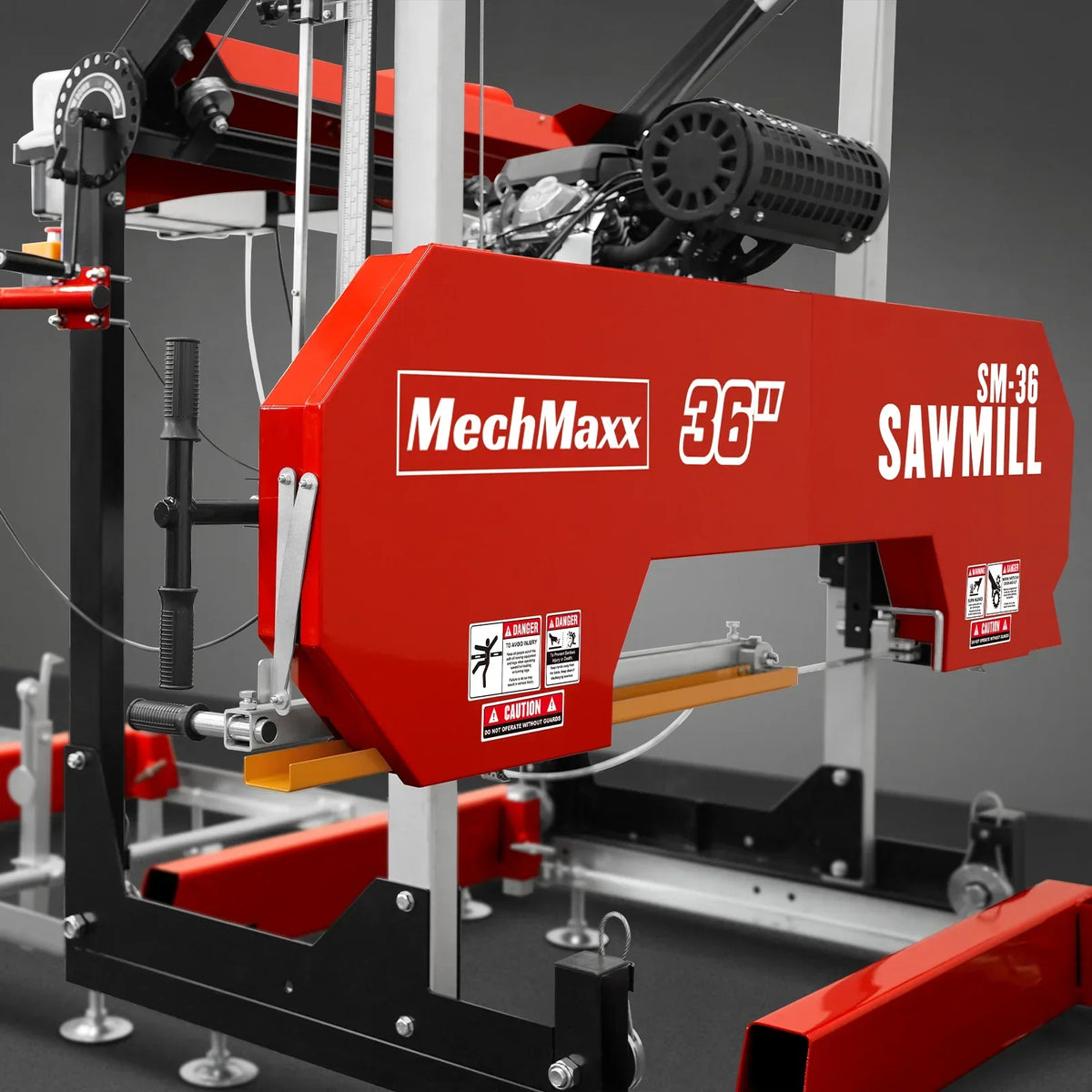

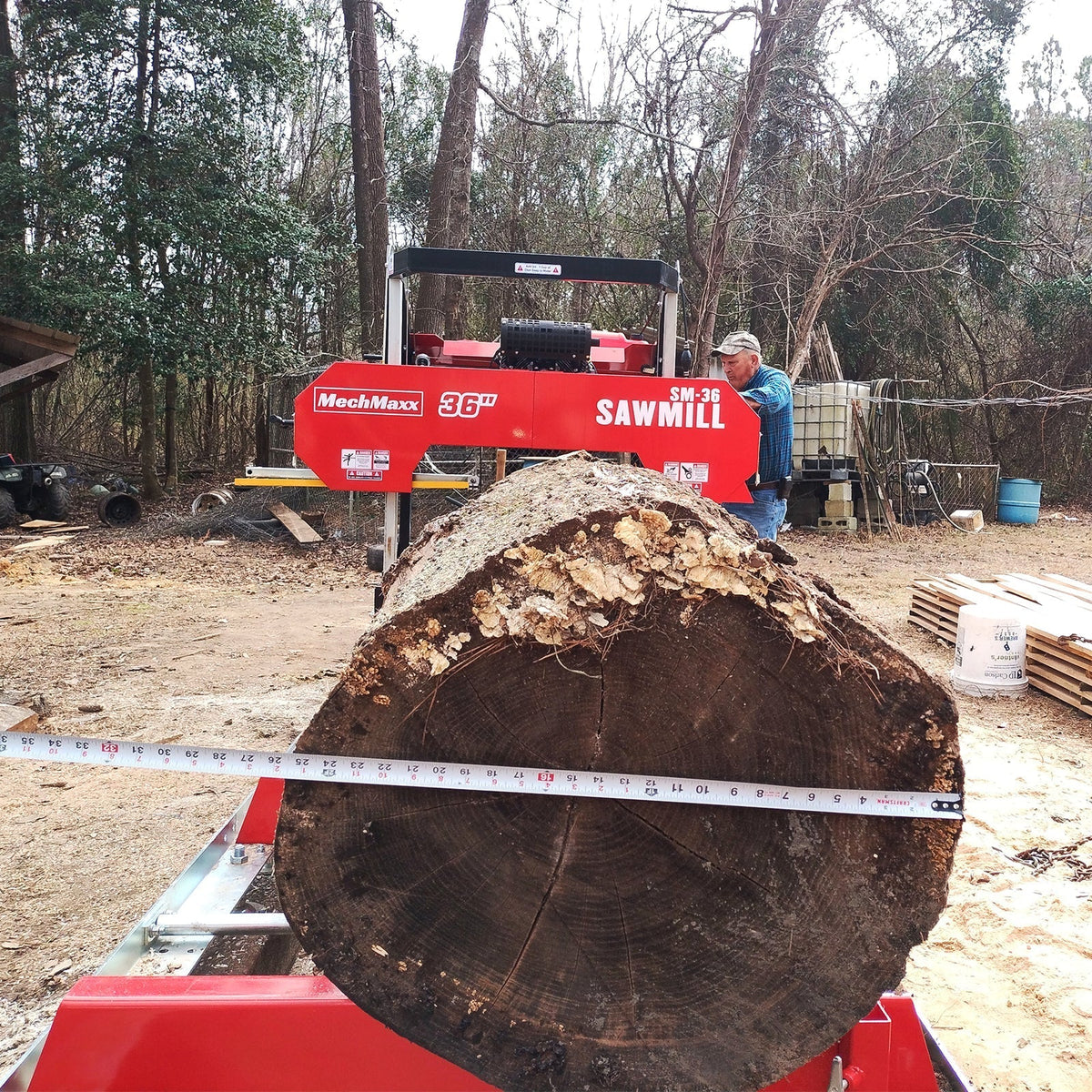

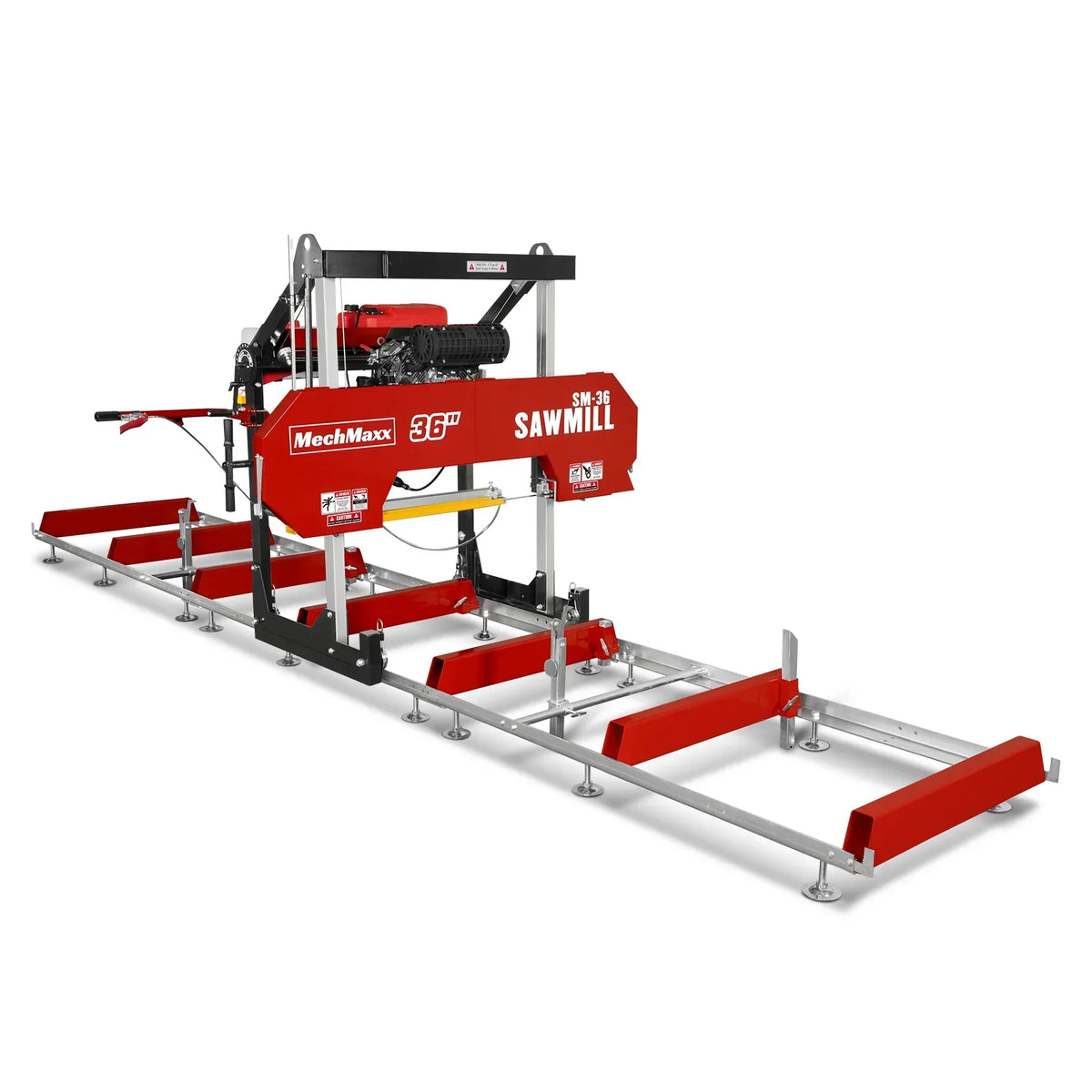

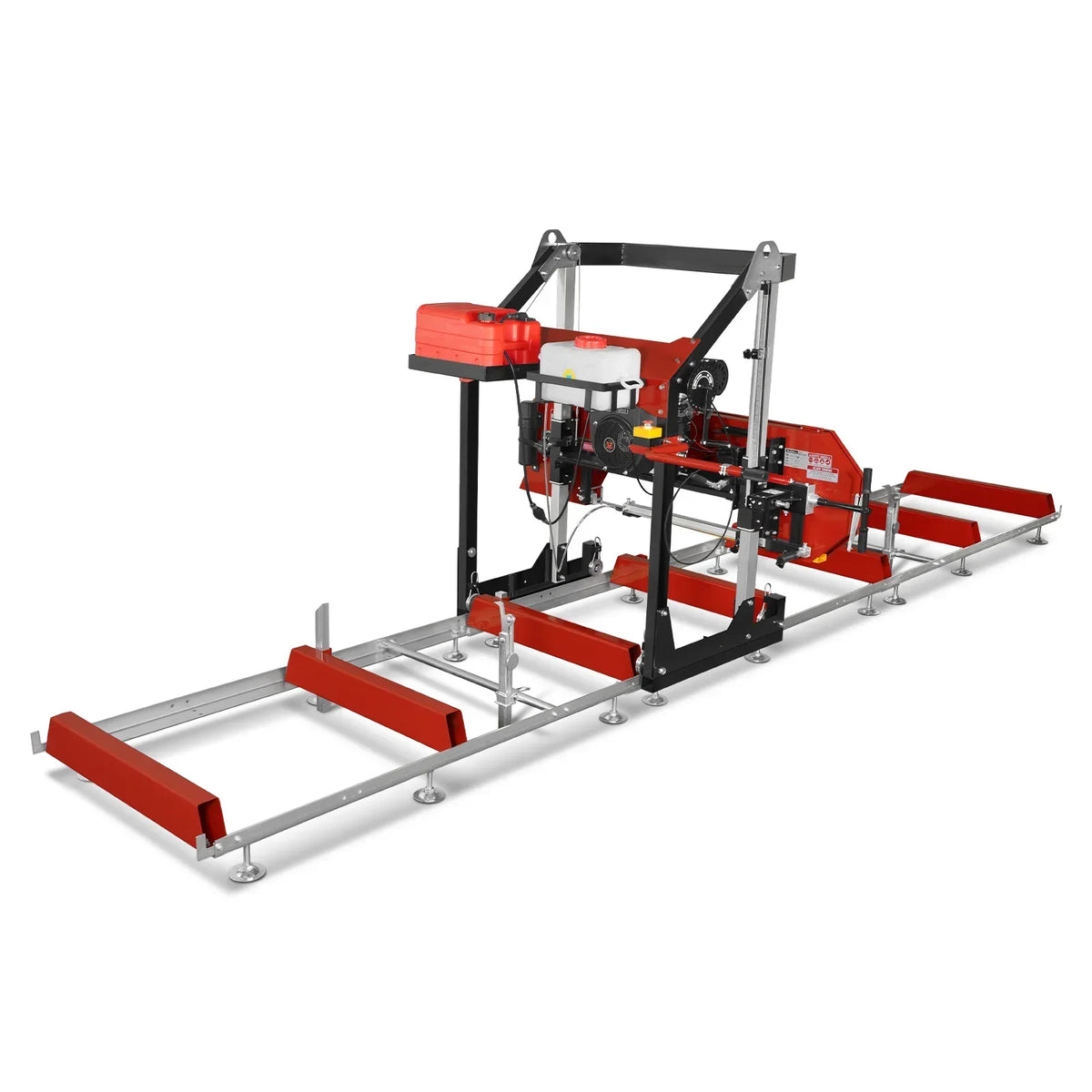

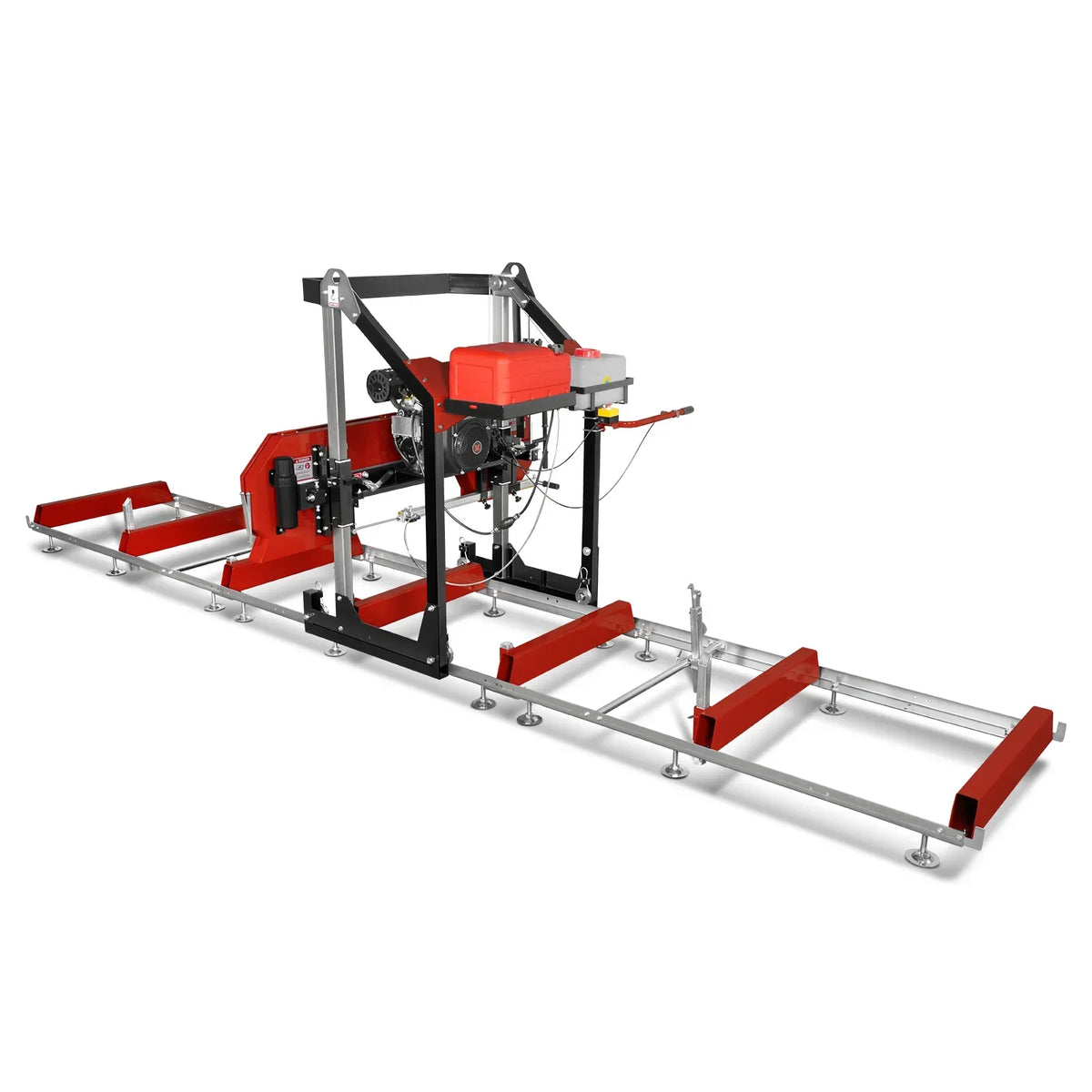

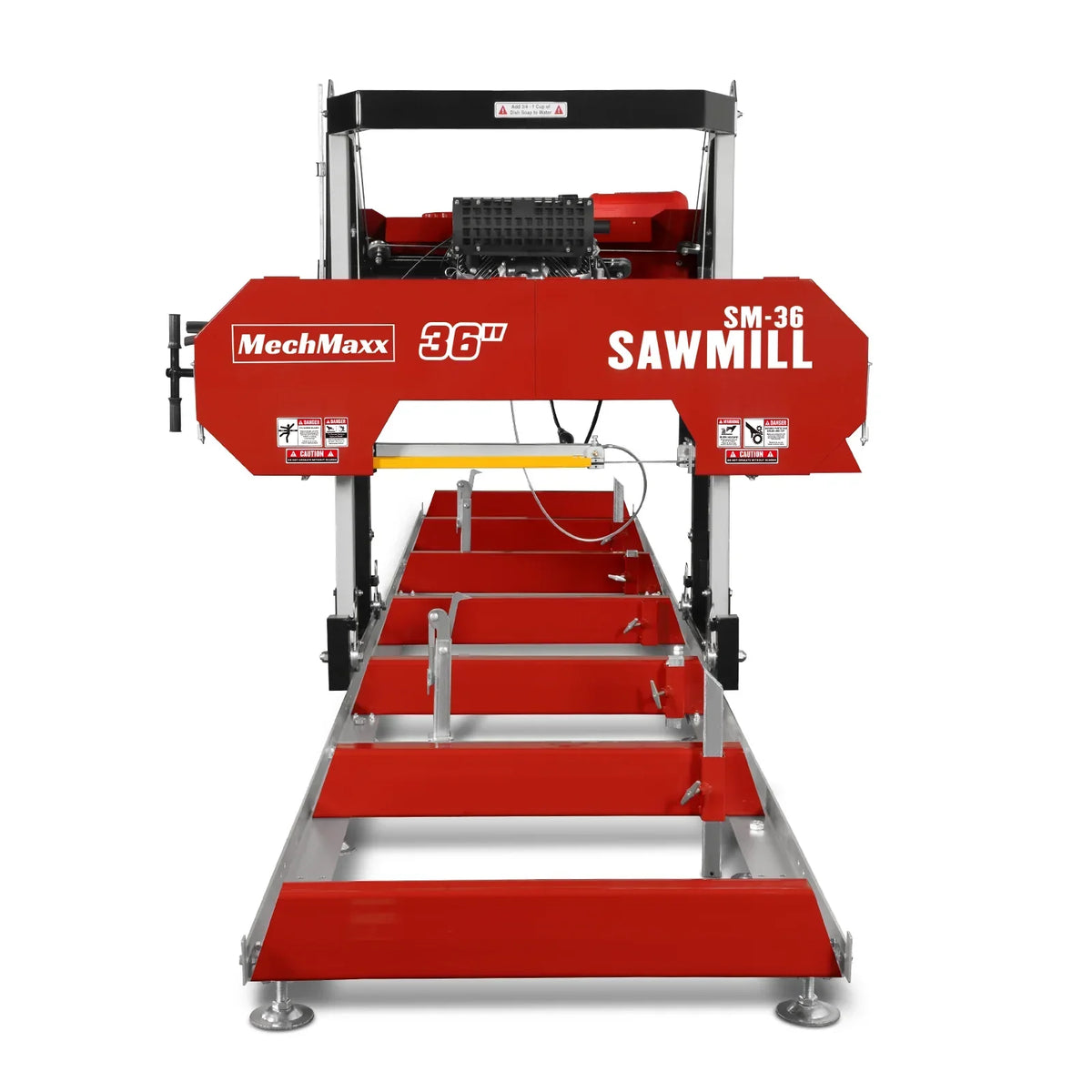

36" MAX Portable Sawmill

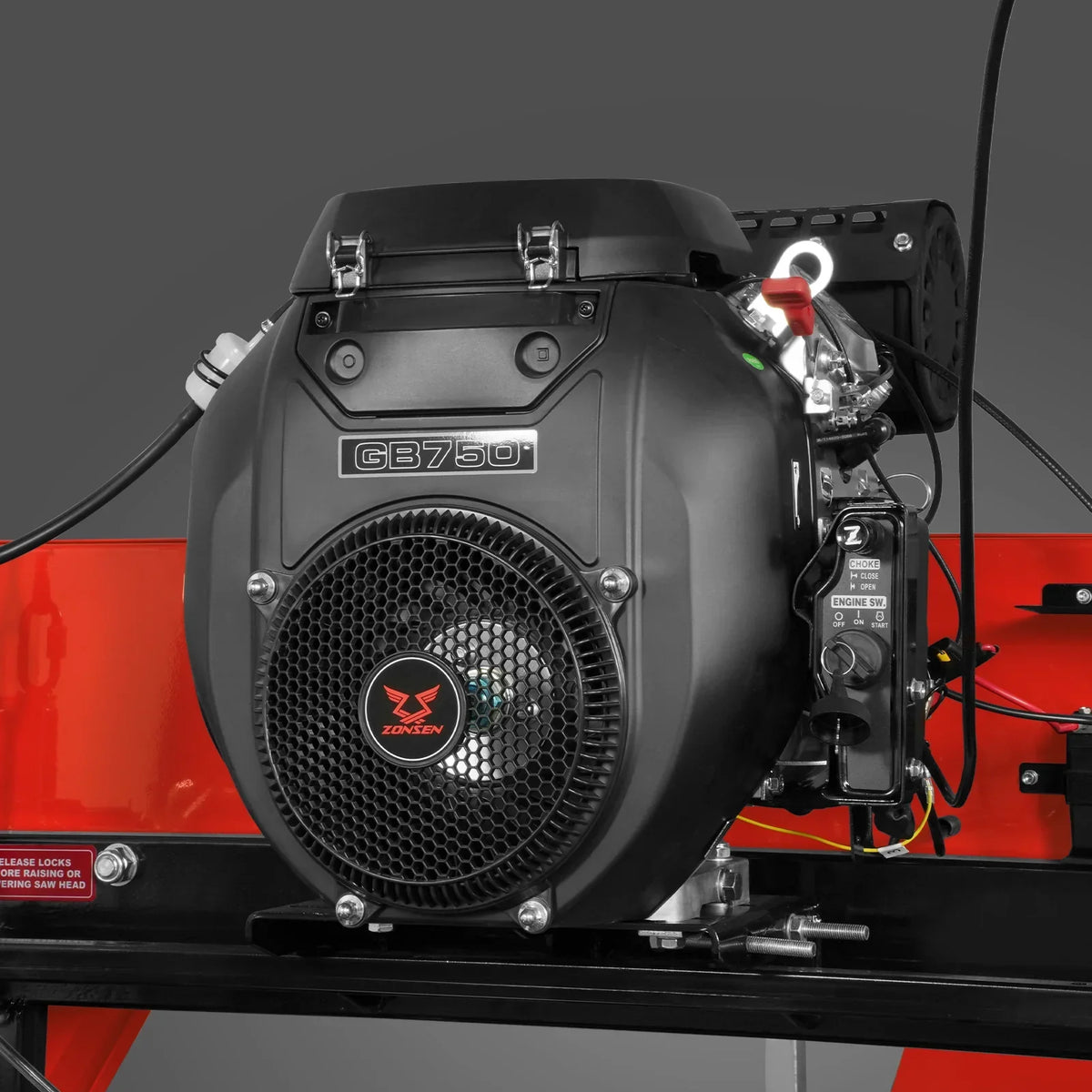

Engine
ZONSEN GB750
Lubricant Tank Size
4 gal
Engine Type
Dual Cylinder ( 90° V Type ), 4 Stroke, Forced Air Cooling

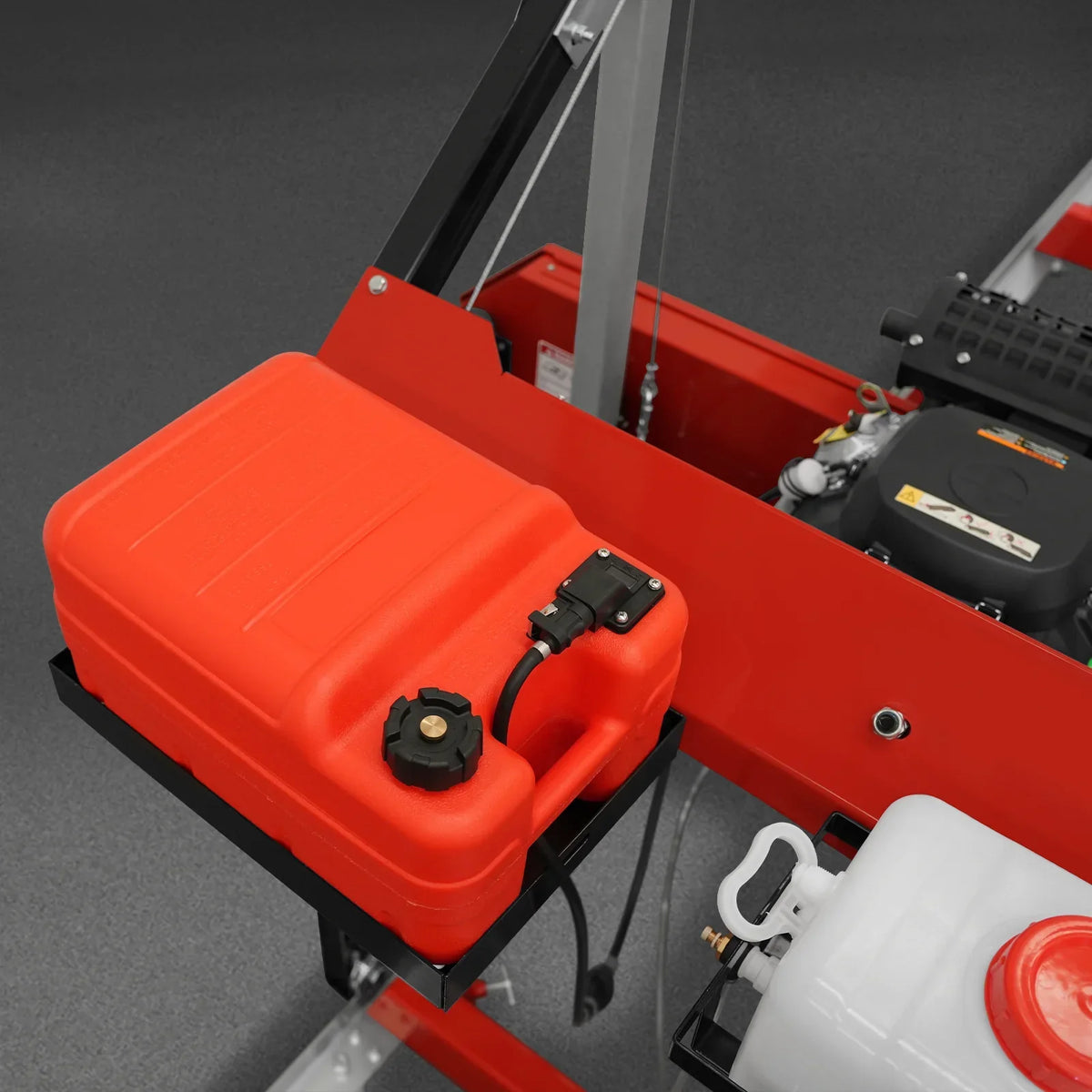

Fuel Tank Size
6.3 gal
Engine Displacement
750 cc
Track Width
3 ft 10 in
Horsepower
25 HP
Track Length
20 ft
Start
E-Start
Track Extension Length
6 ft 6 in
Log Diameter
36 in
Levelling Feet
18
Max Live Edge Width
36 in
Log Rests
2 Long and 2 Short Rests
Standard Cutting Length
16 ft 2 in
Log Clamps
2 x Quick Lock
Max Board Thickness
7 in
Track Bunks
3 X 6 in
Blade Engagement System
Centrifugal Clutch

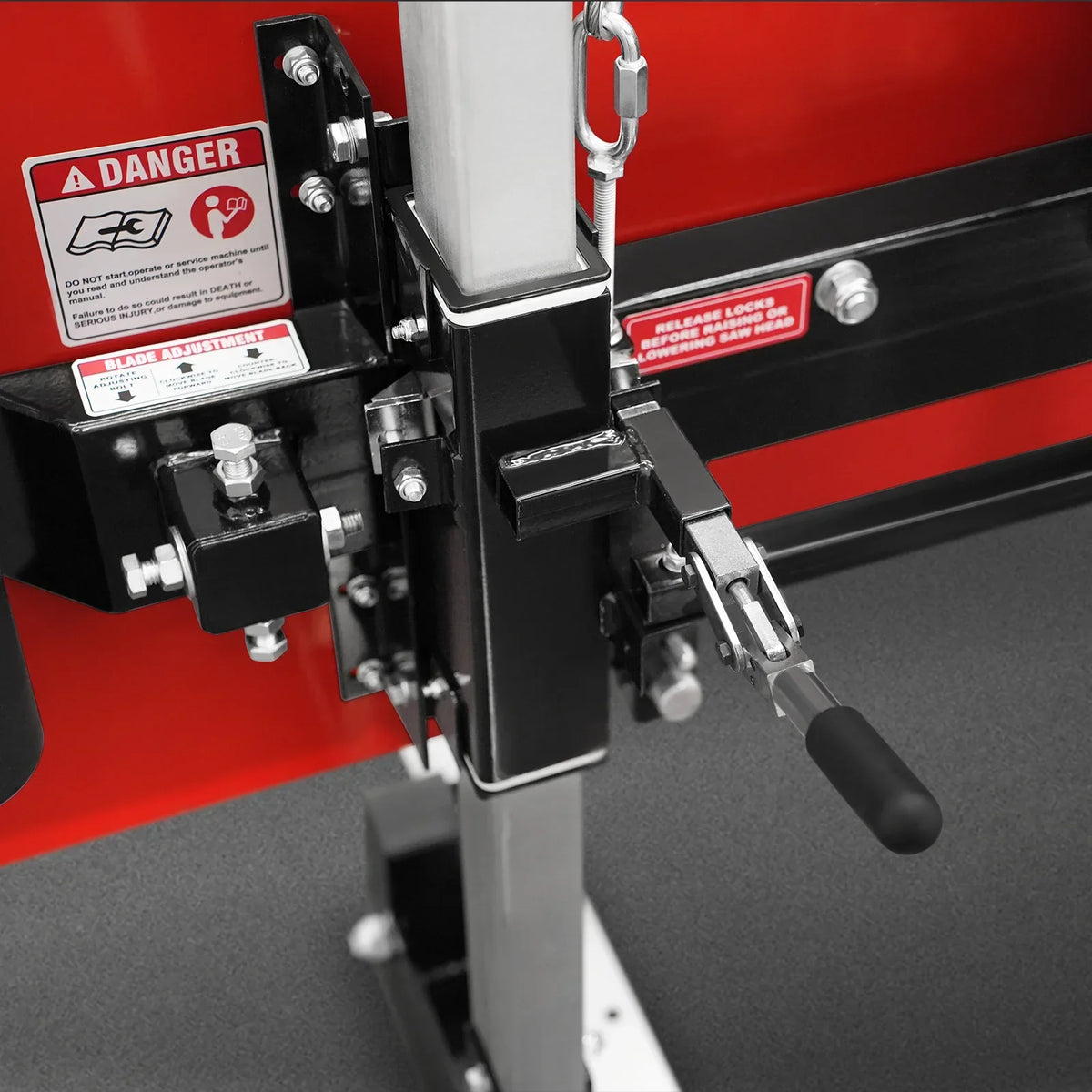

4 Post Head Design
Yes

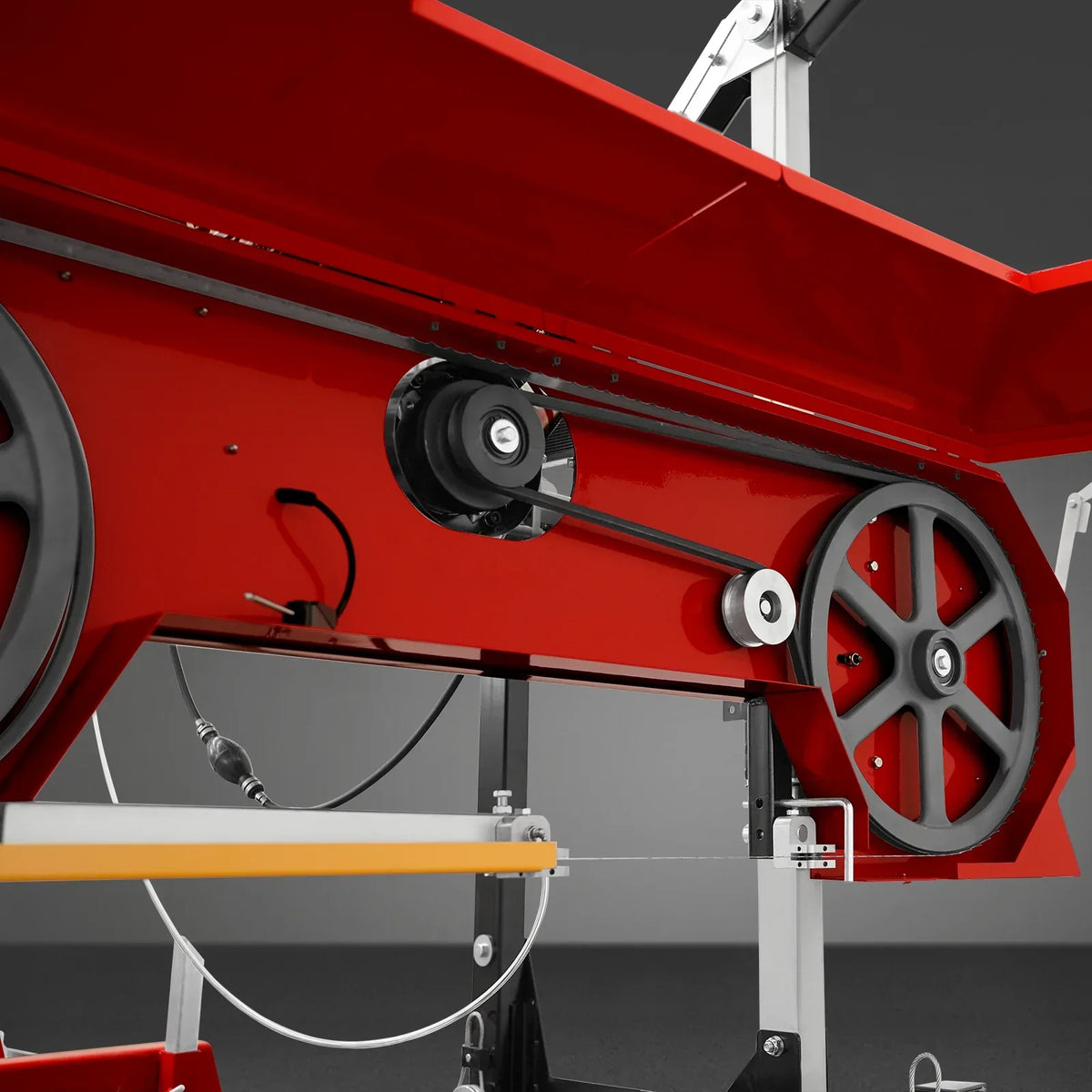

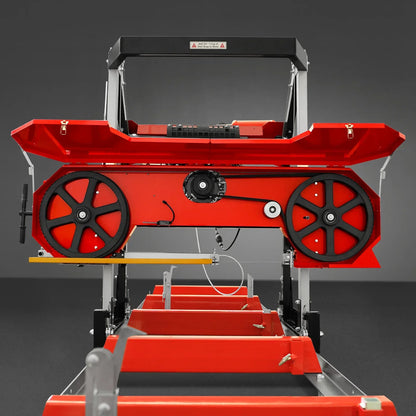

Cast Iron Bandwheel Diameter
19 in
Finish
Powder Coat Paint Galvanized Steel
Blade Wheel Engagement
Belt Drive
Sawmill Warranty
2 Years

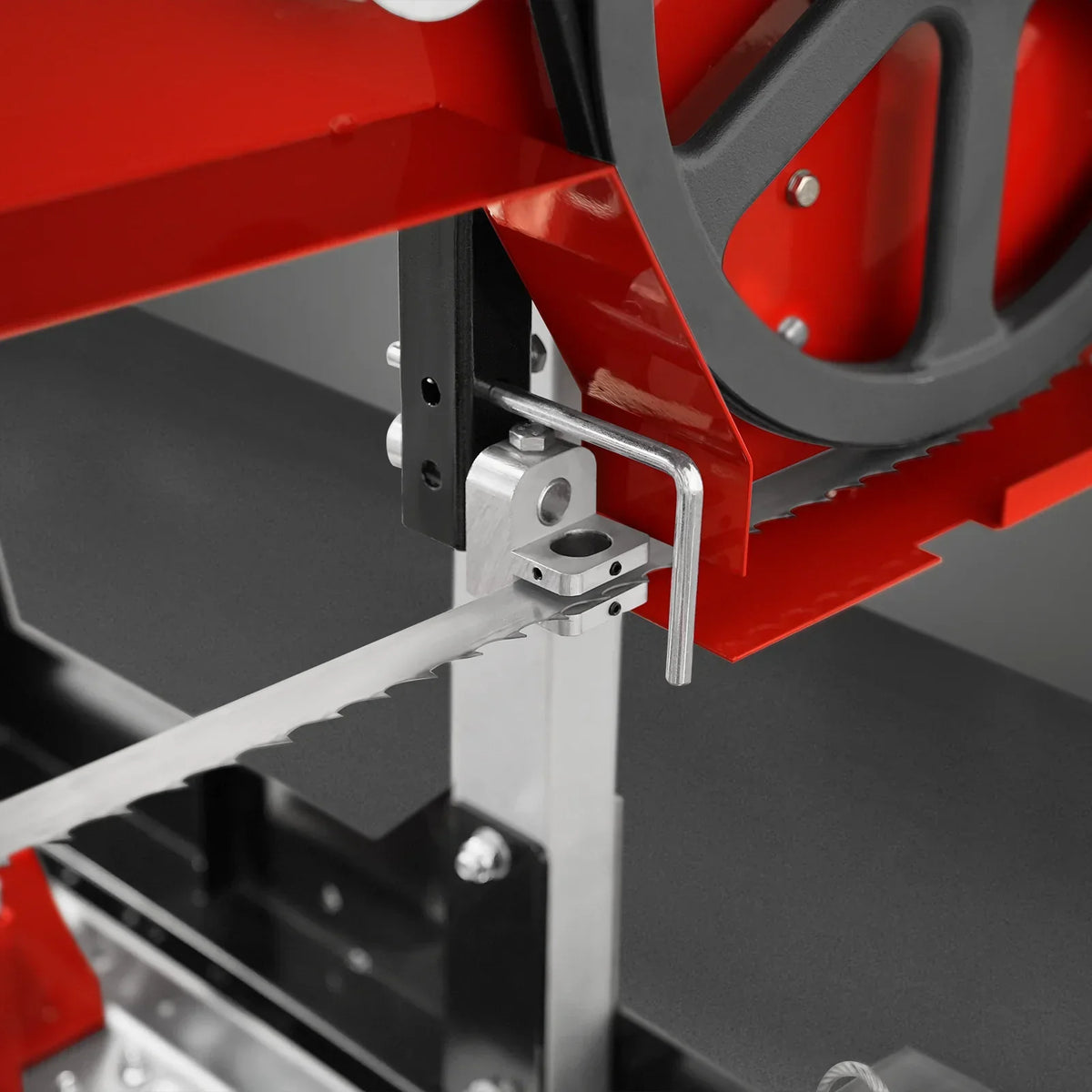

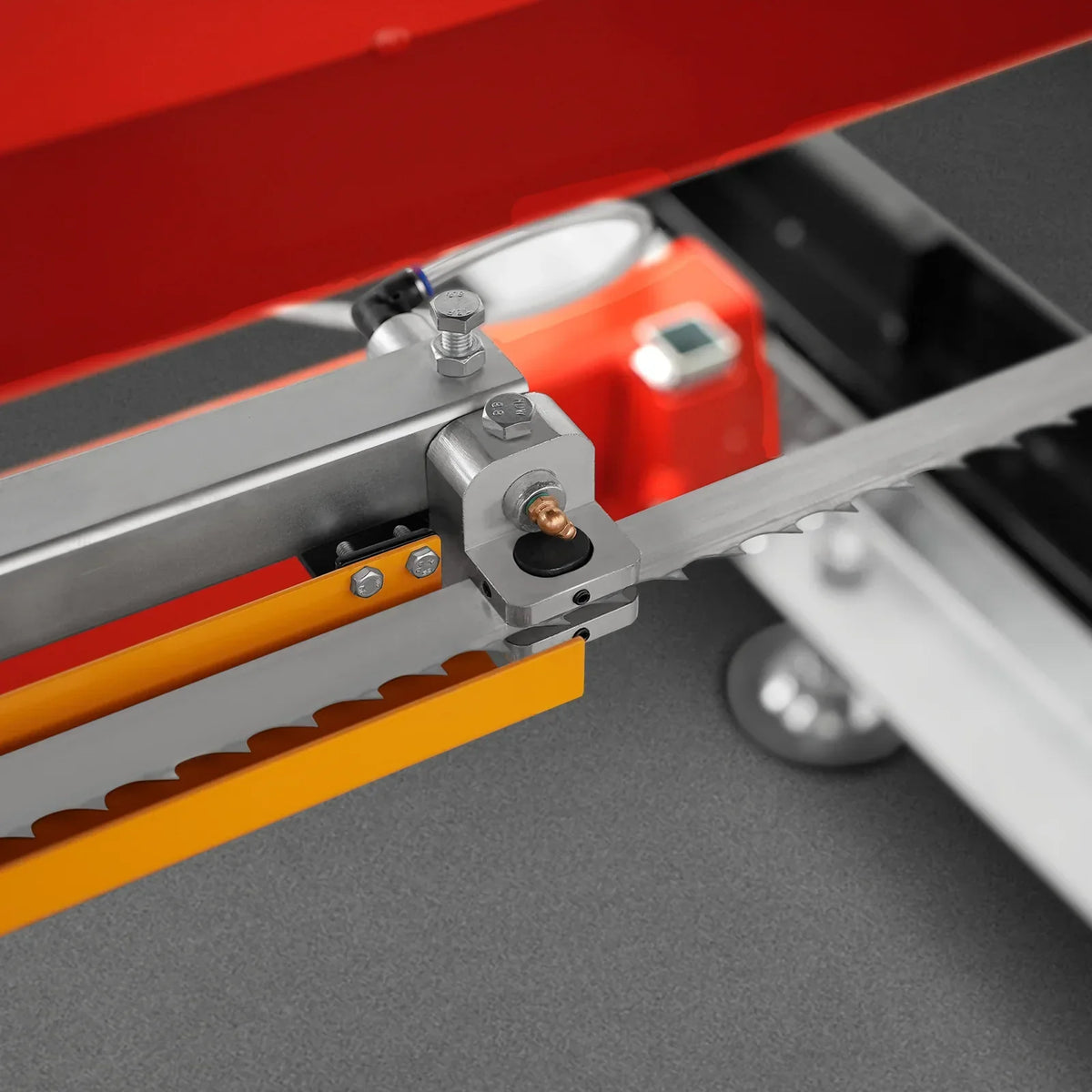

Blade Guide
By Roller
Engine Warranty
2 Years

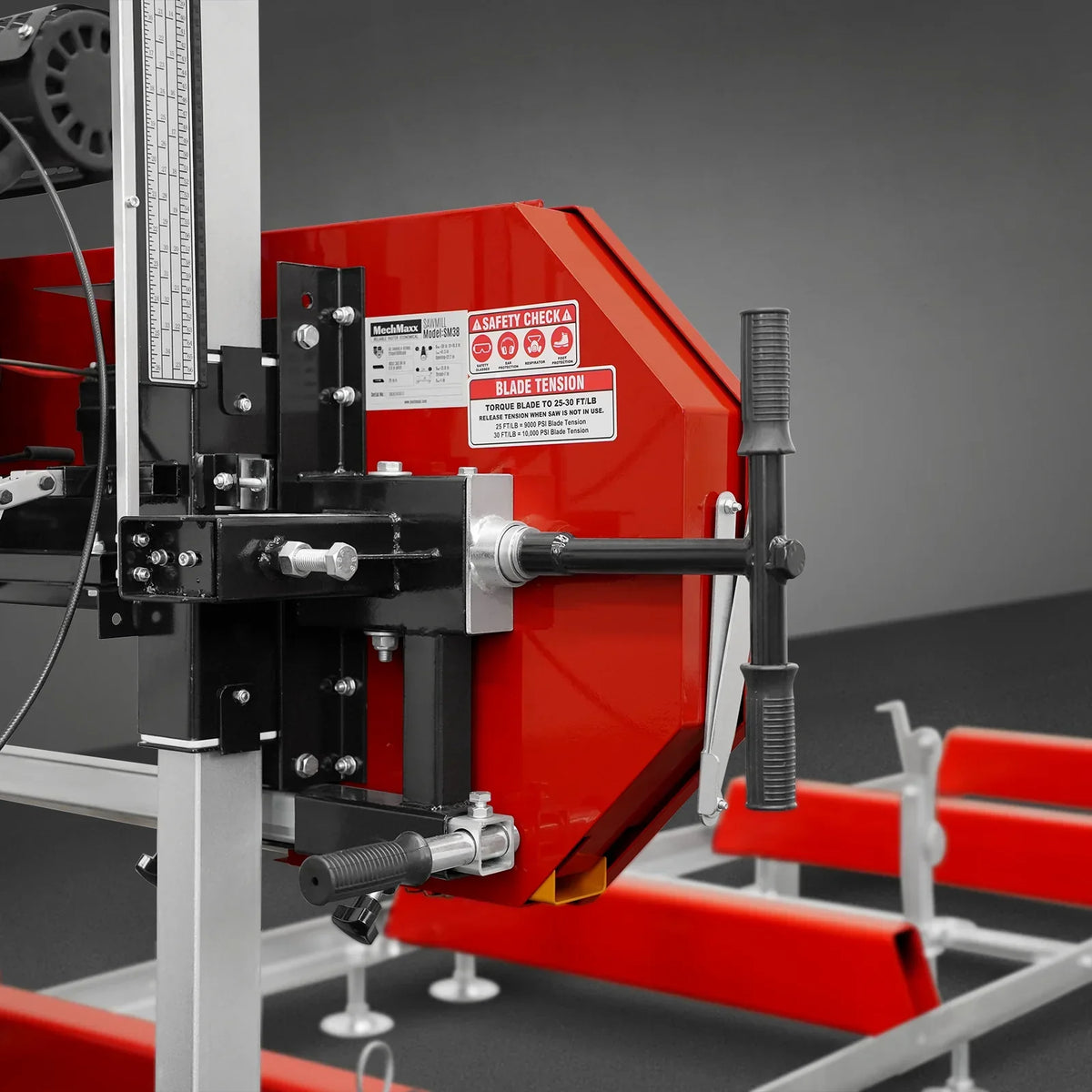

Blade Tension
By Adjustable Lever
Package Method
Wood
Blade Size
175 x 1.3 in
Packing Size
90 x 28.5 x 34 in
Blade Pitch
7/8 in
Weight(N.W./G.W.)
1115/1239 lbs
Blade Lubrication
Water Lube - Manual Valve

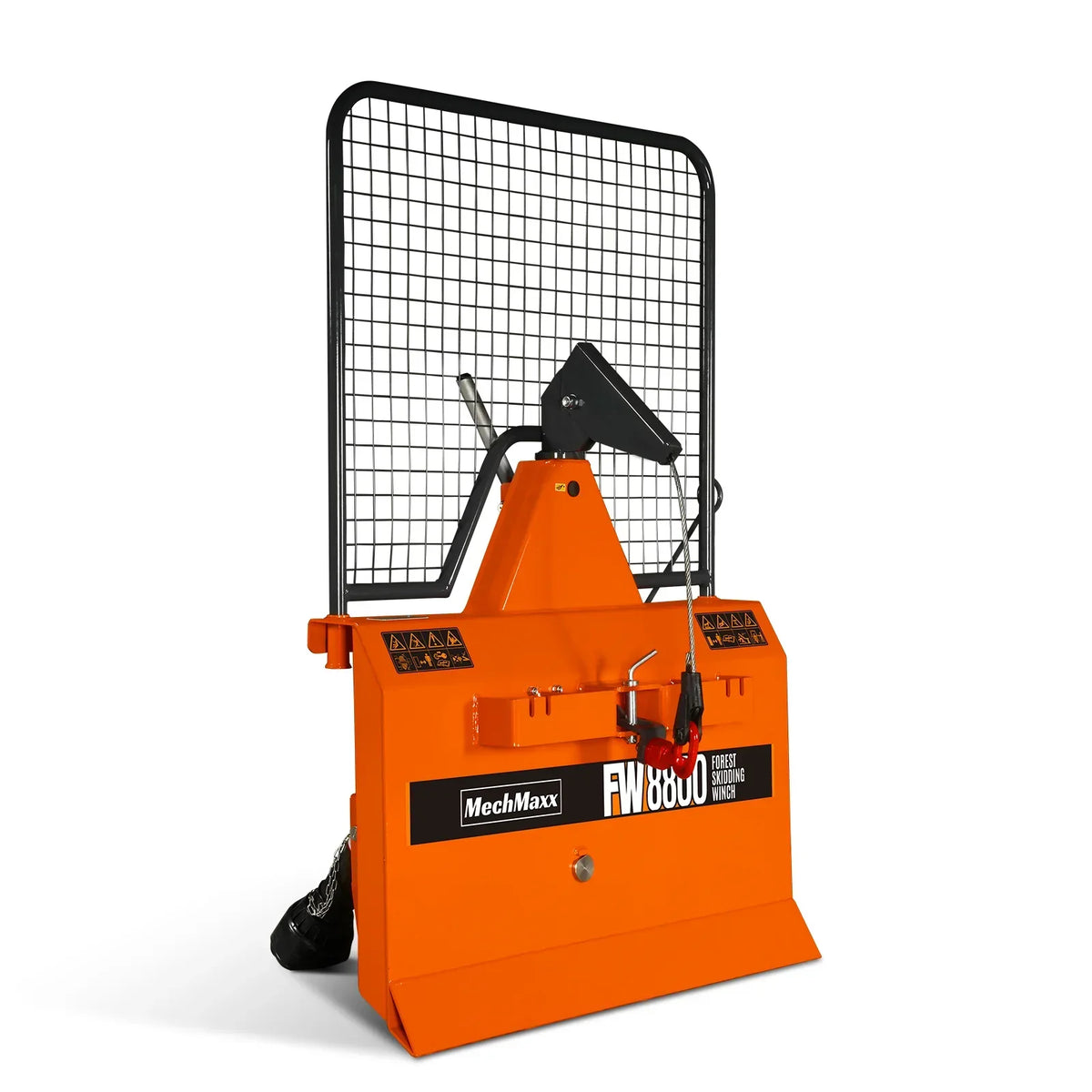

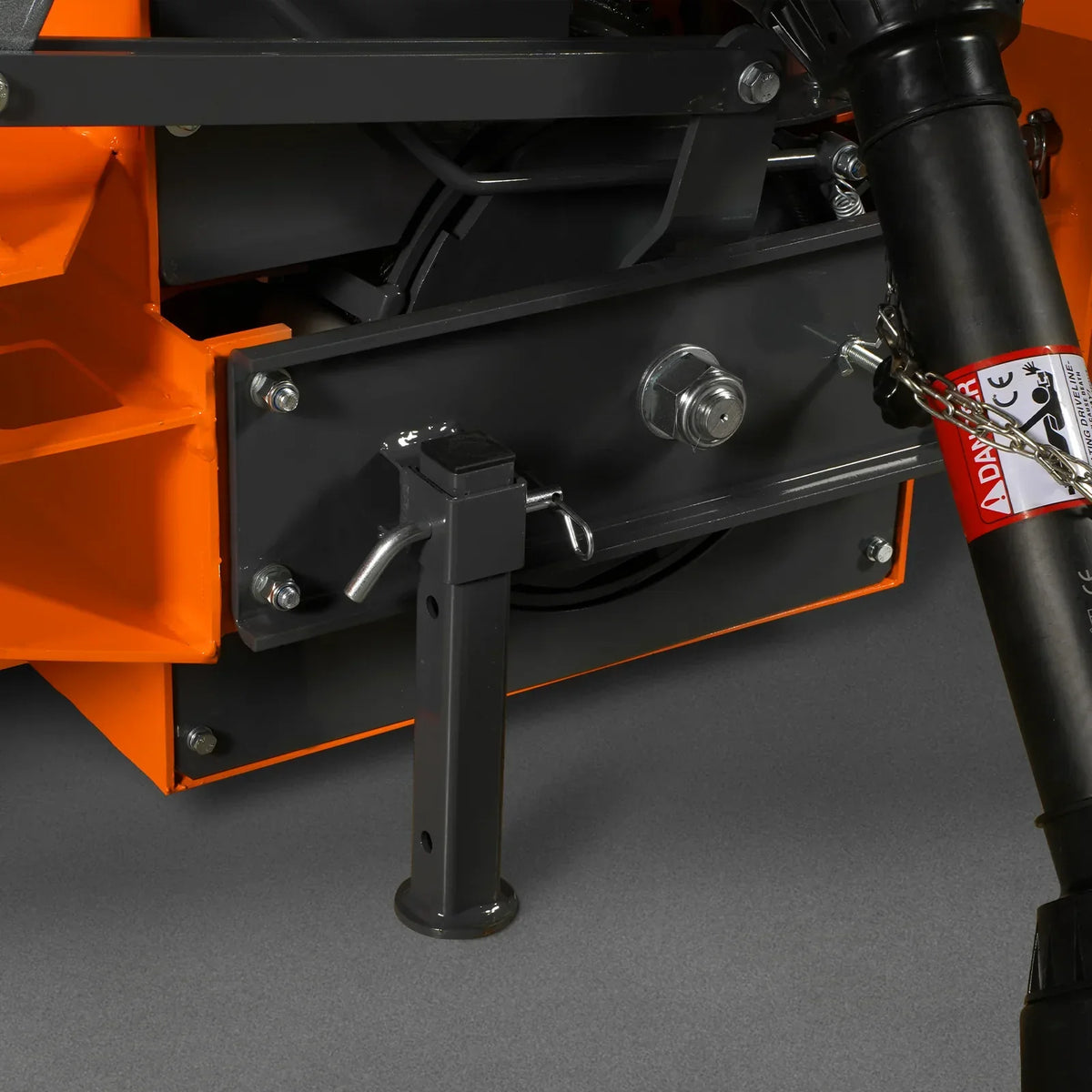

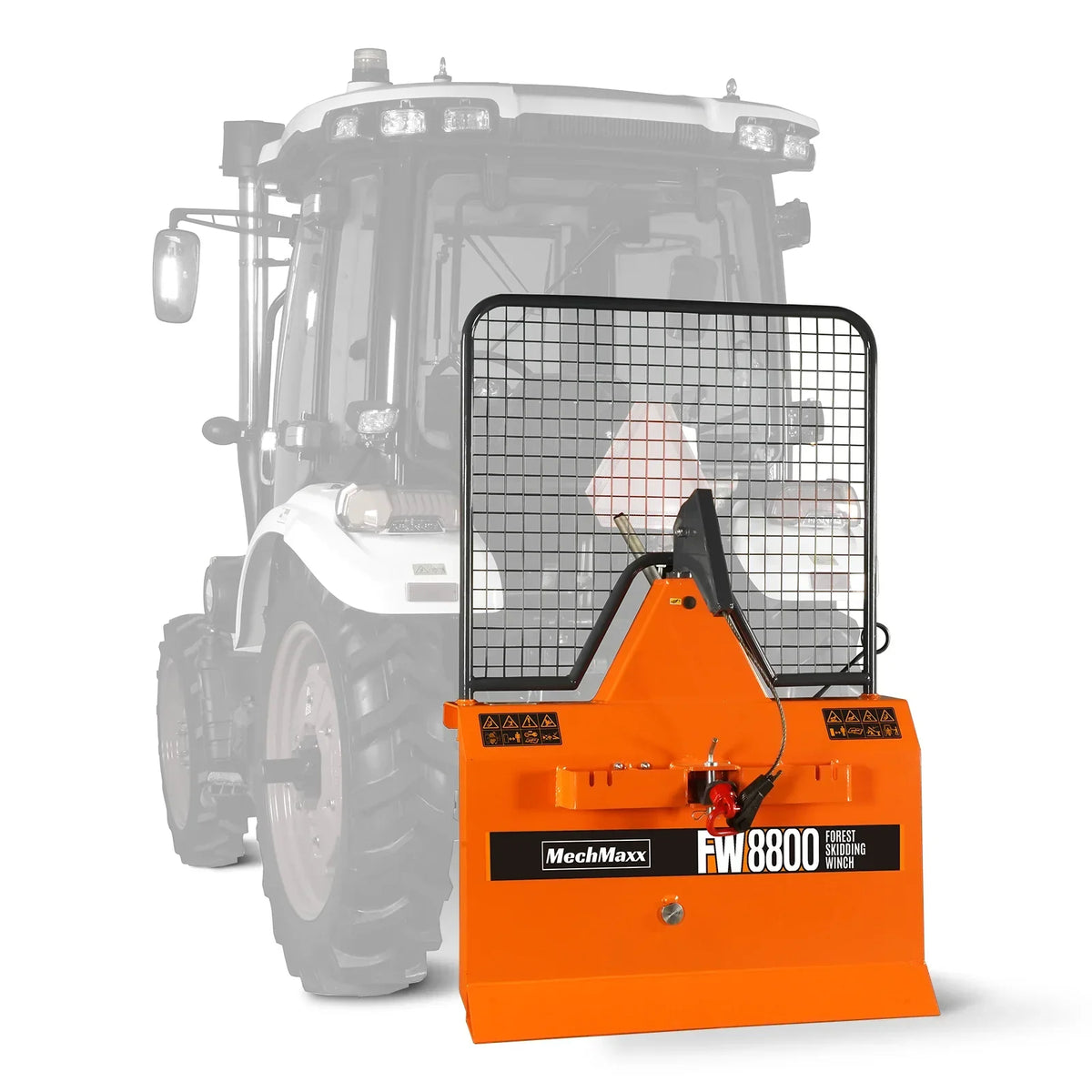

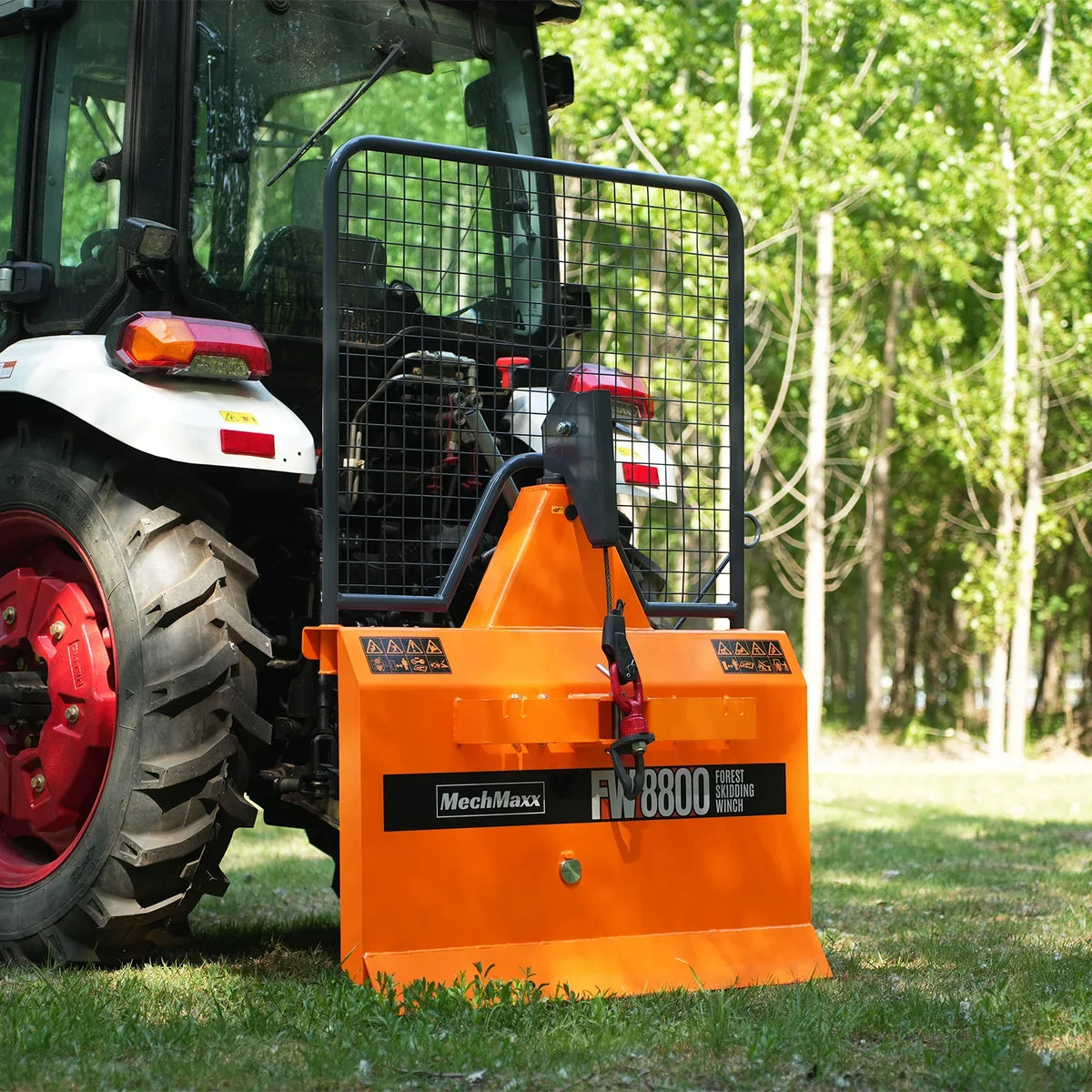

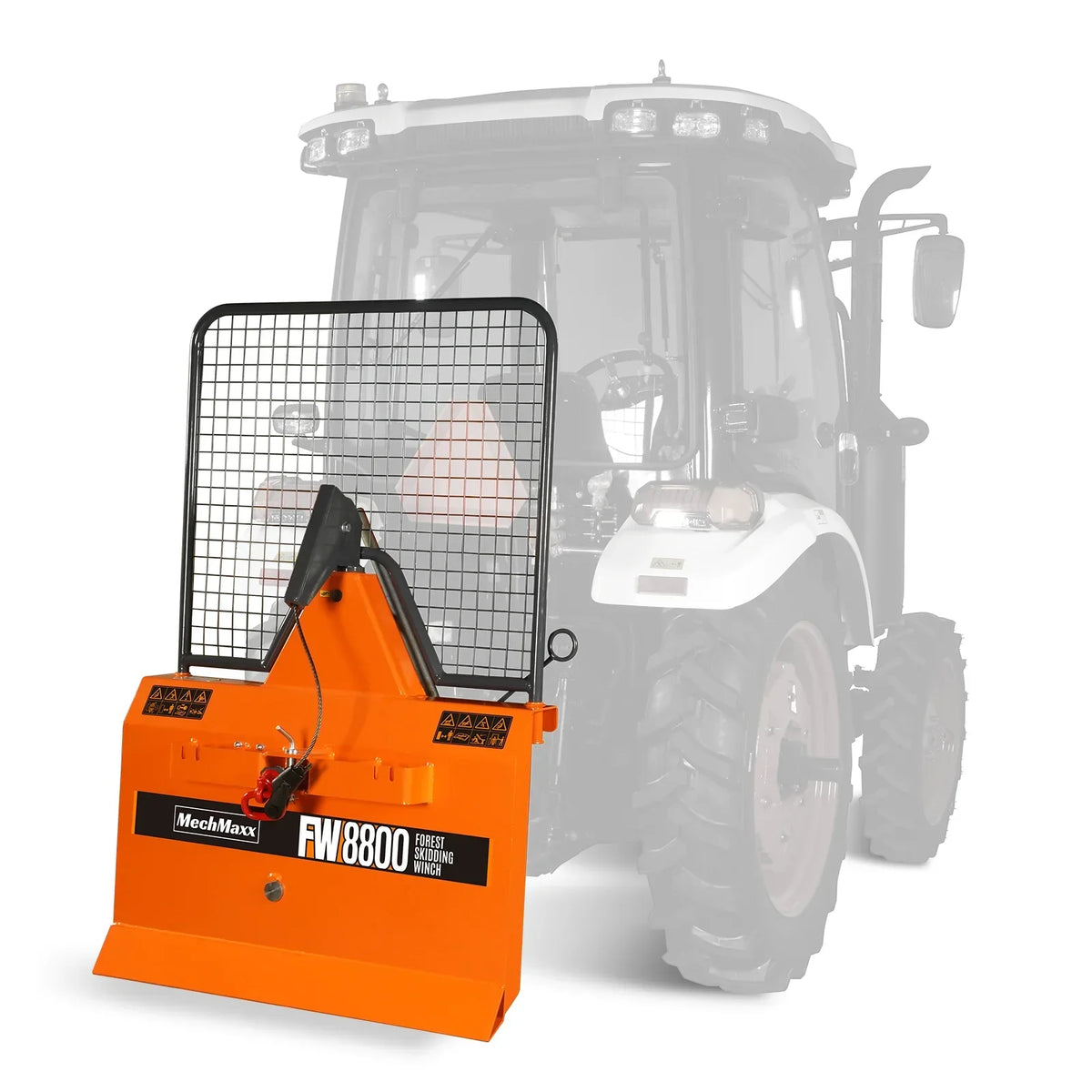

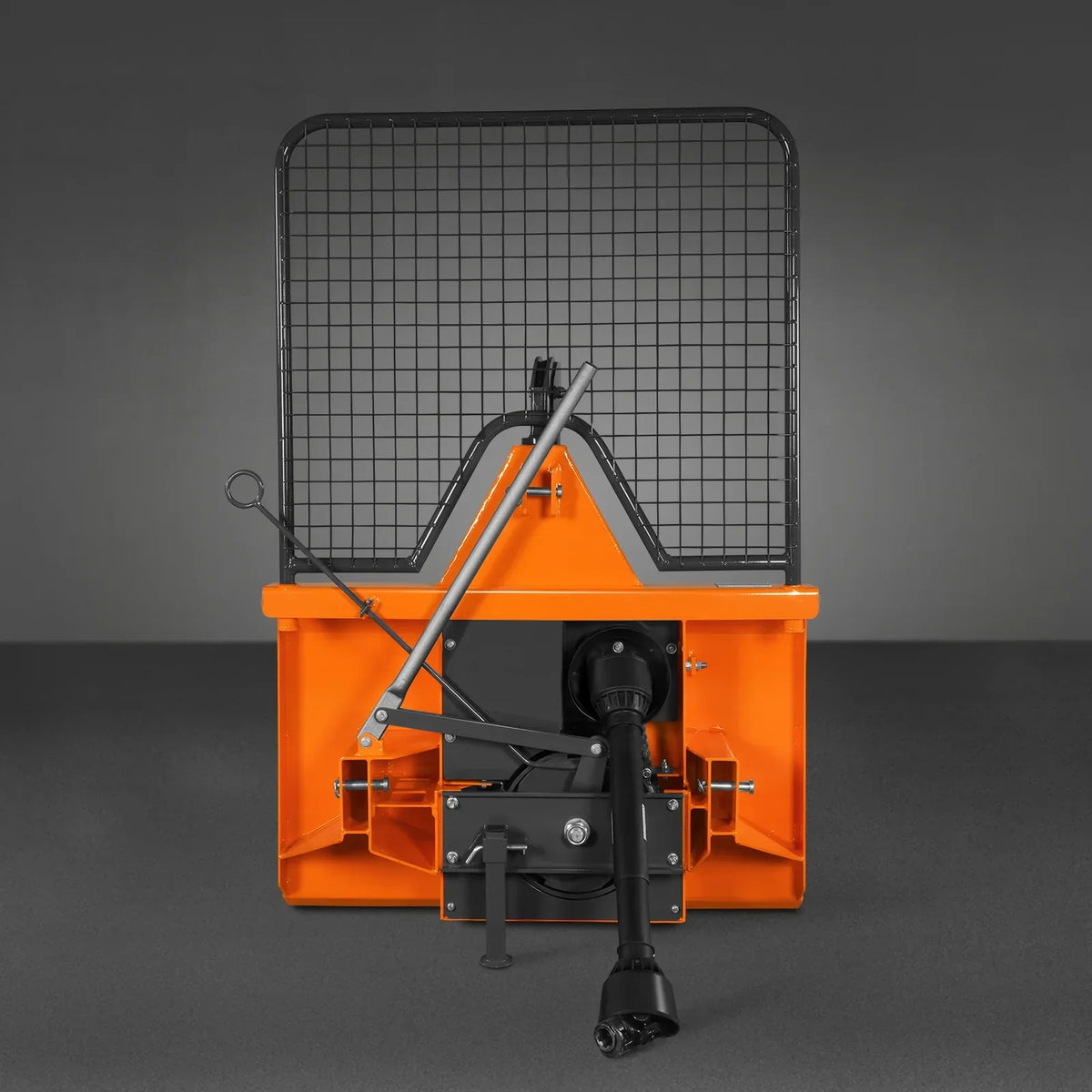

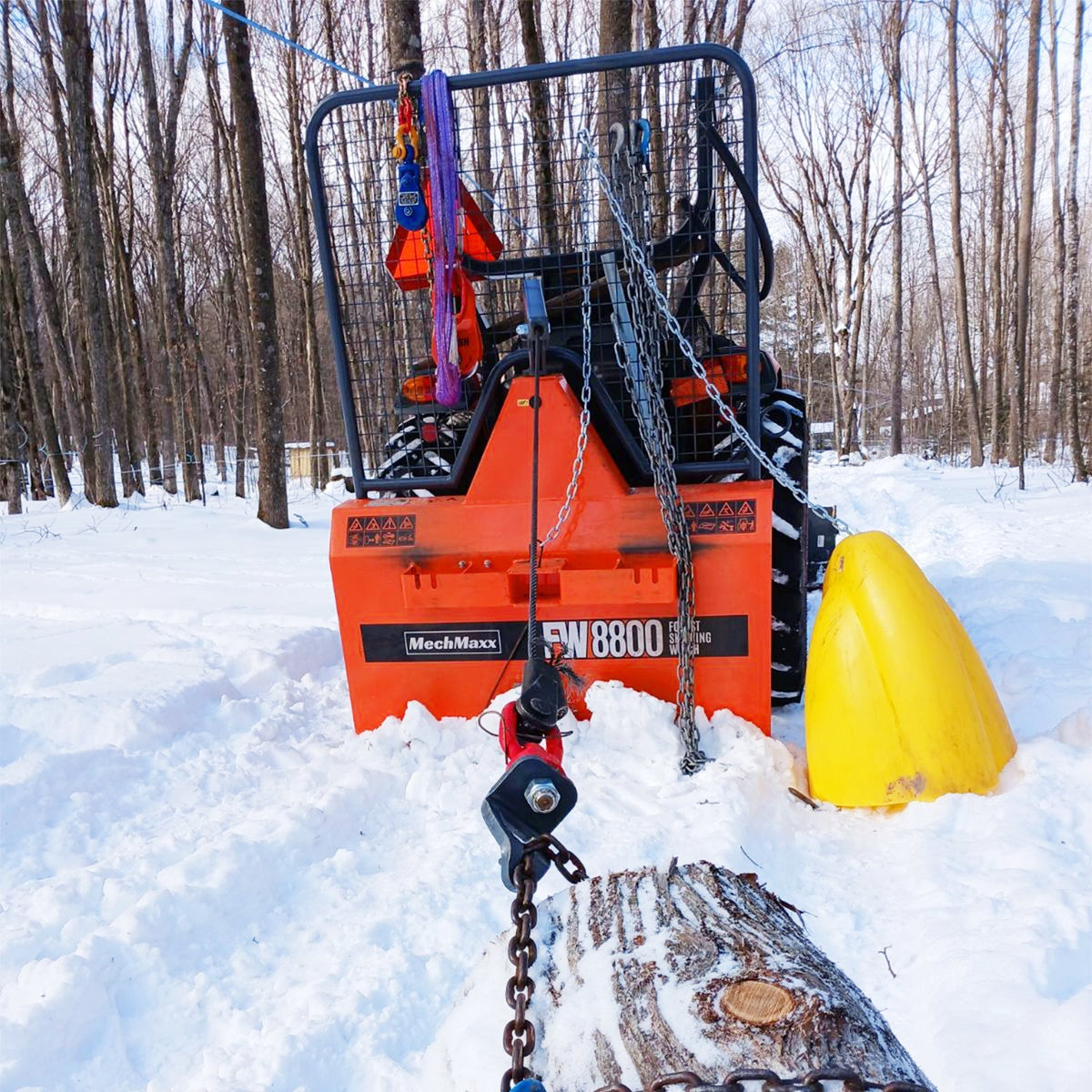

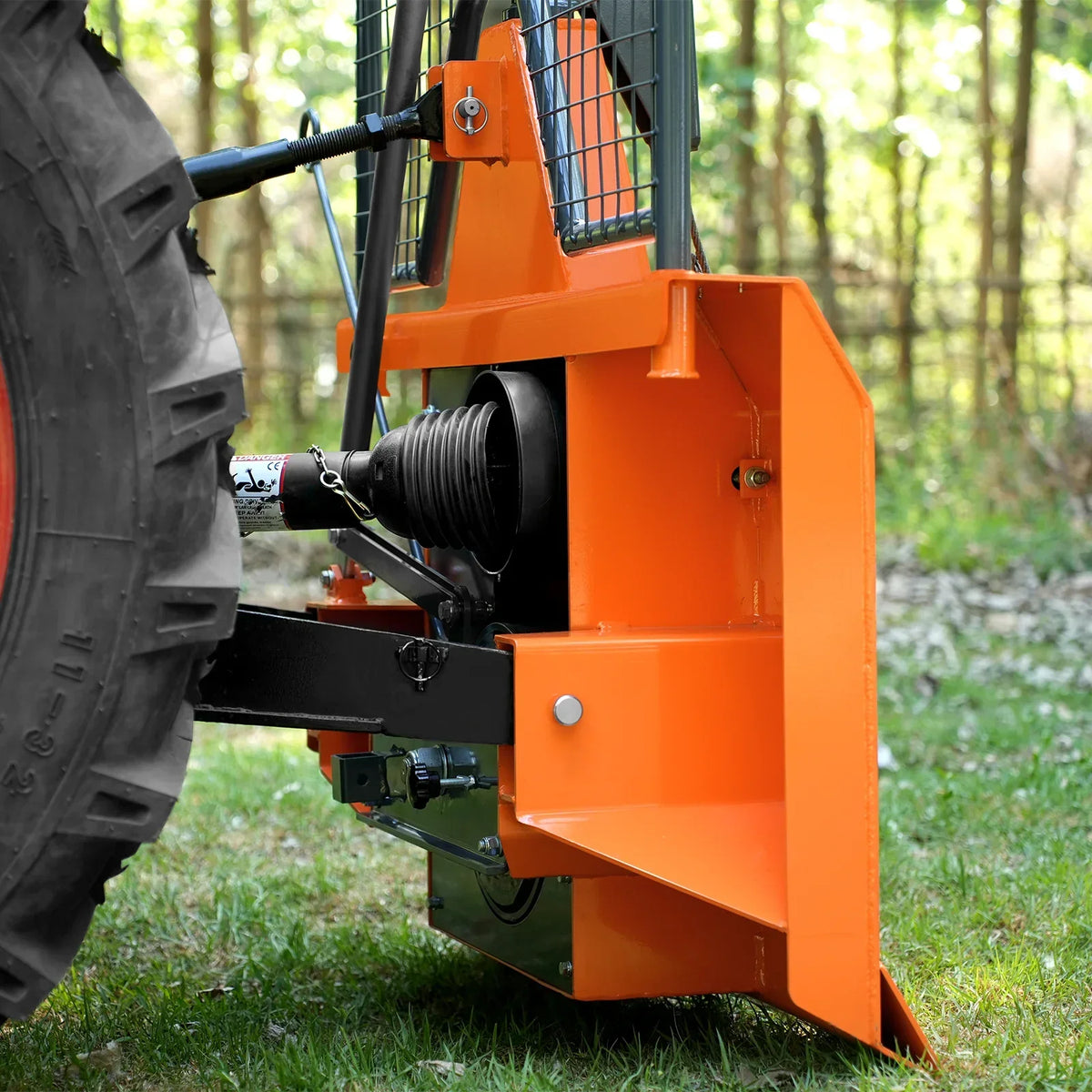

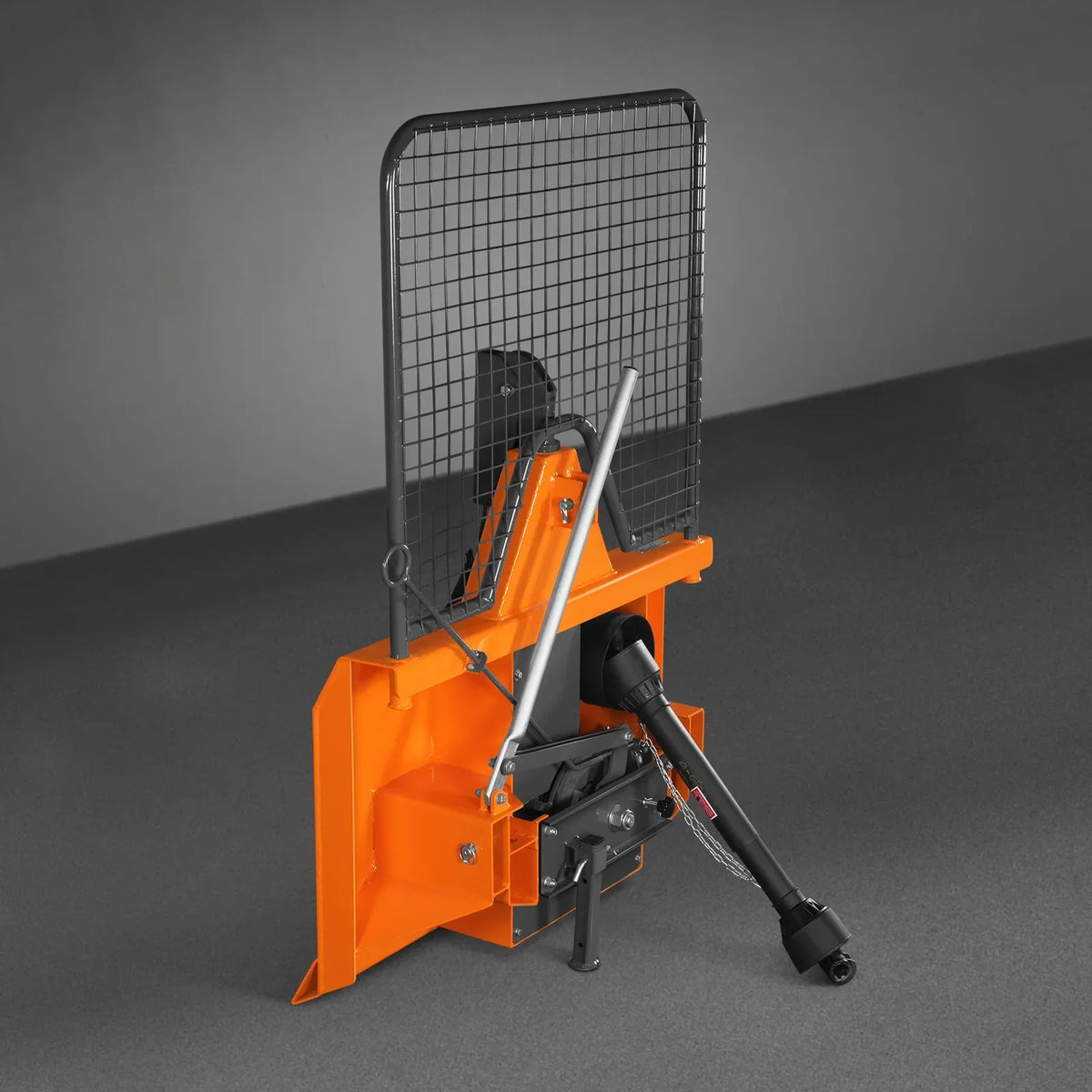

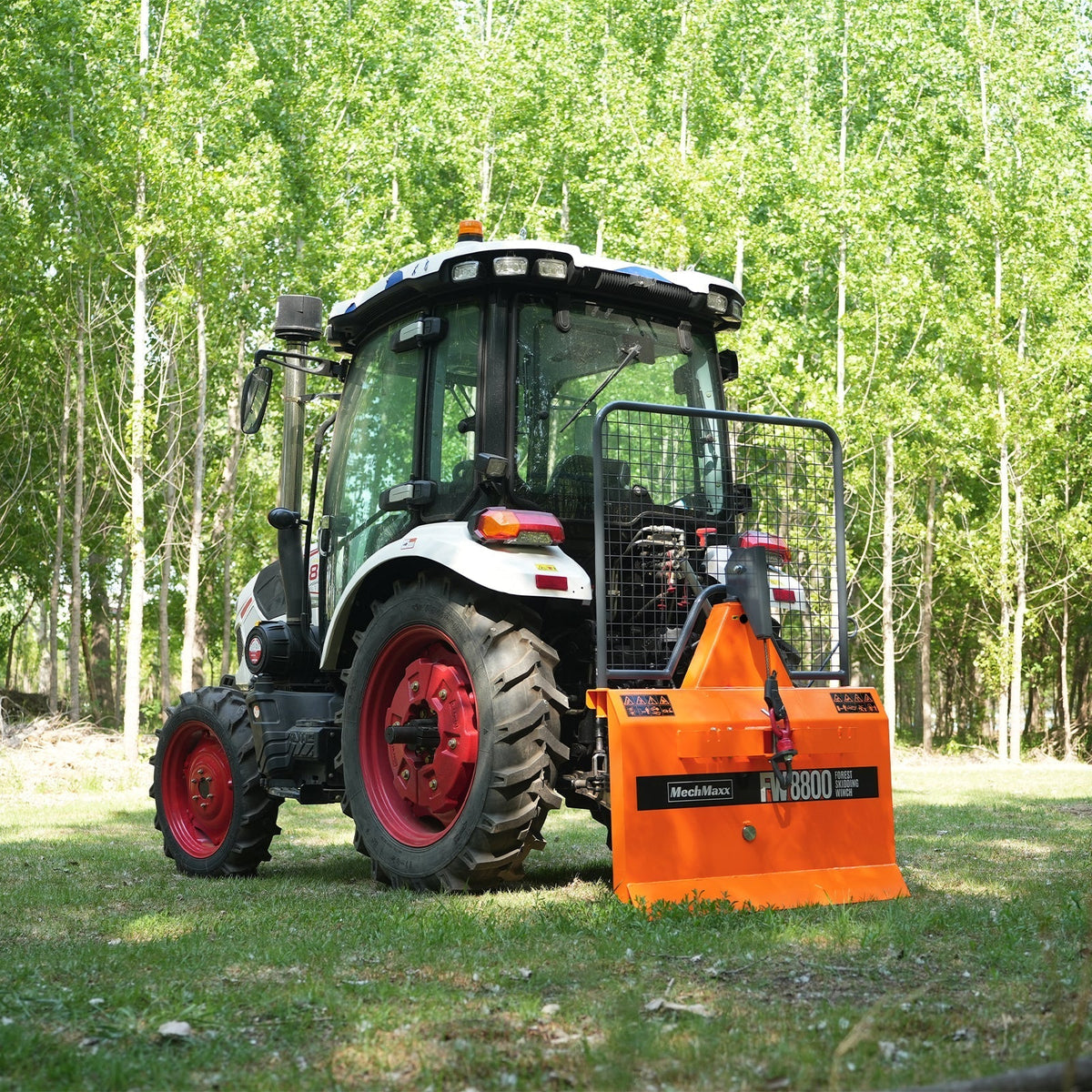

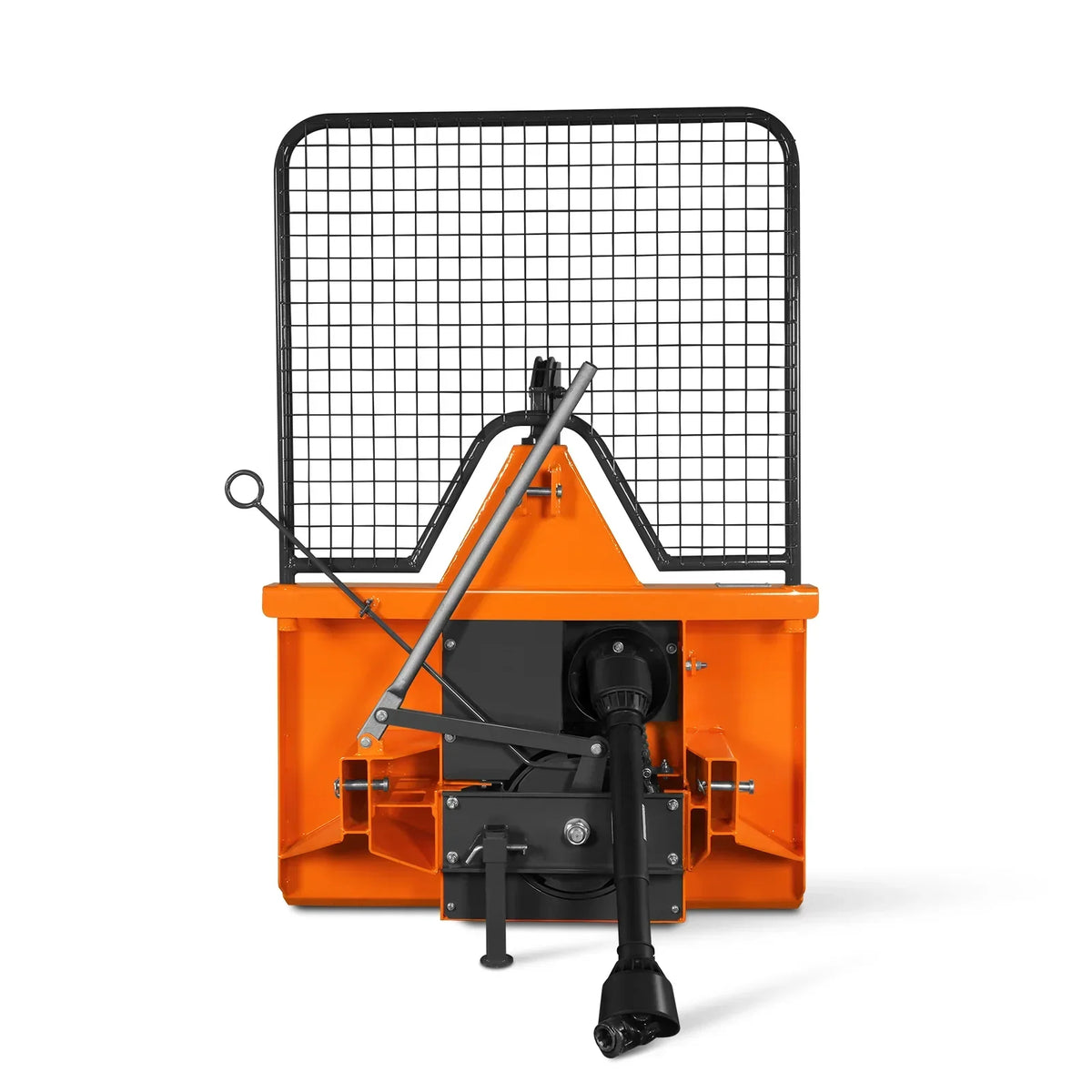

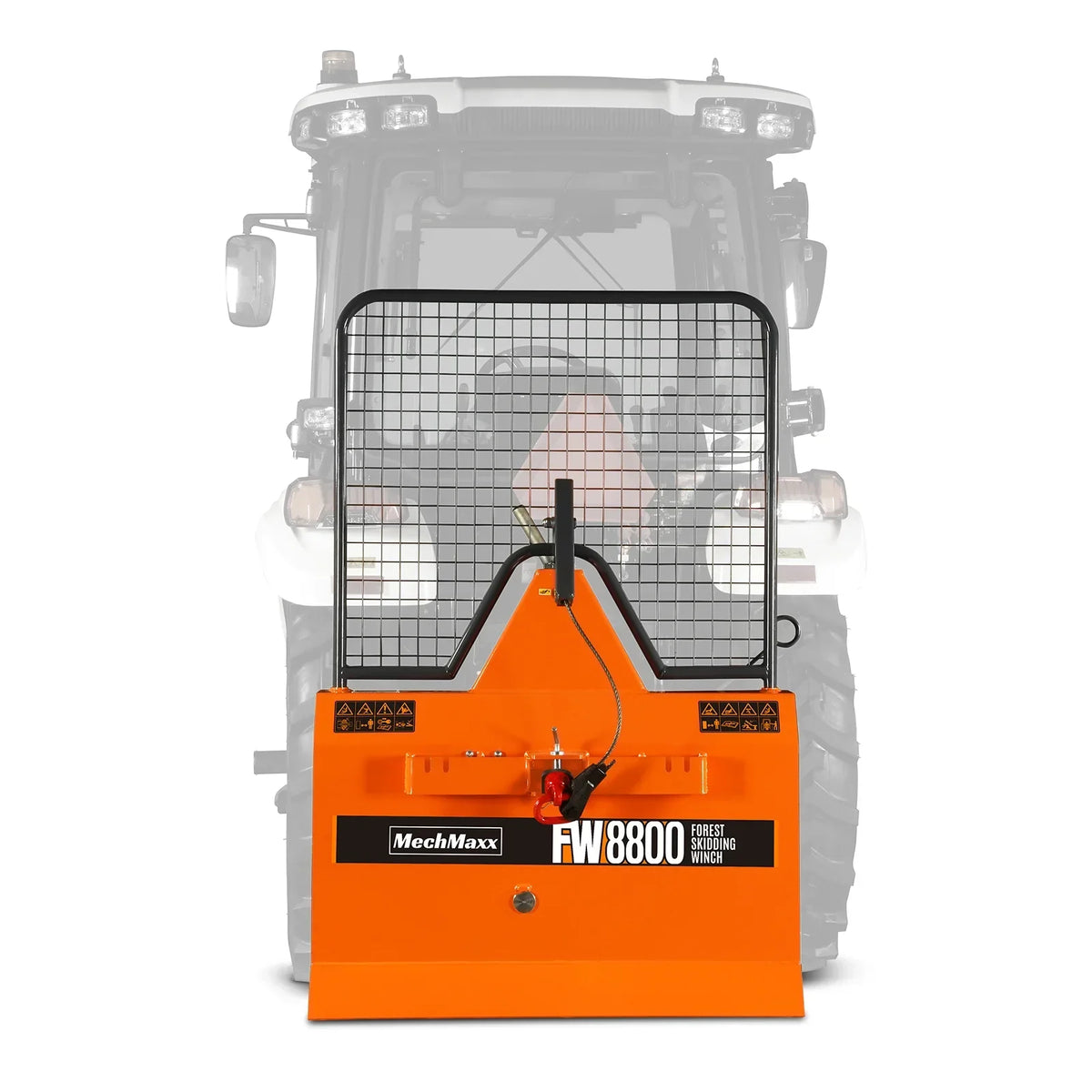

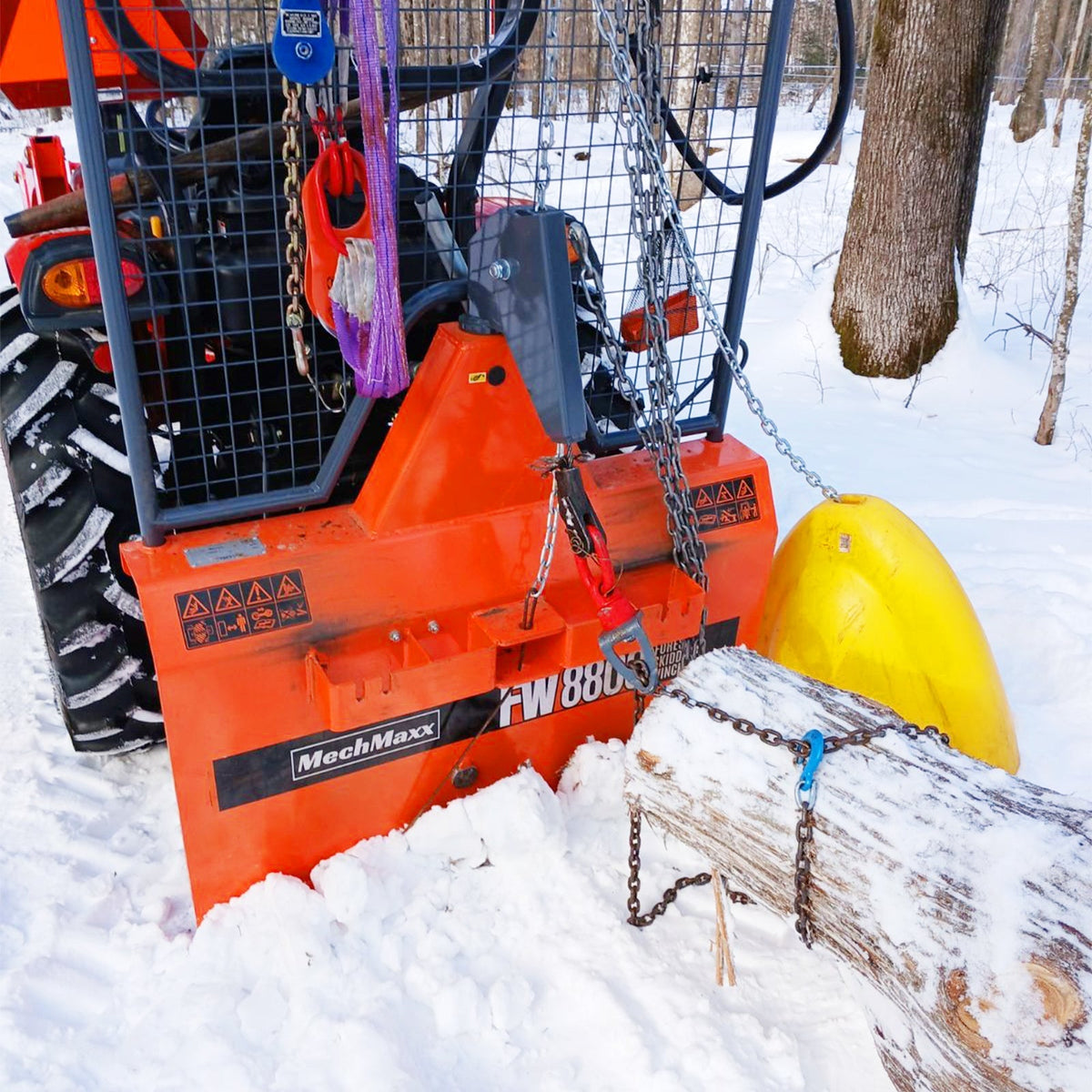

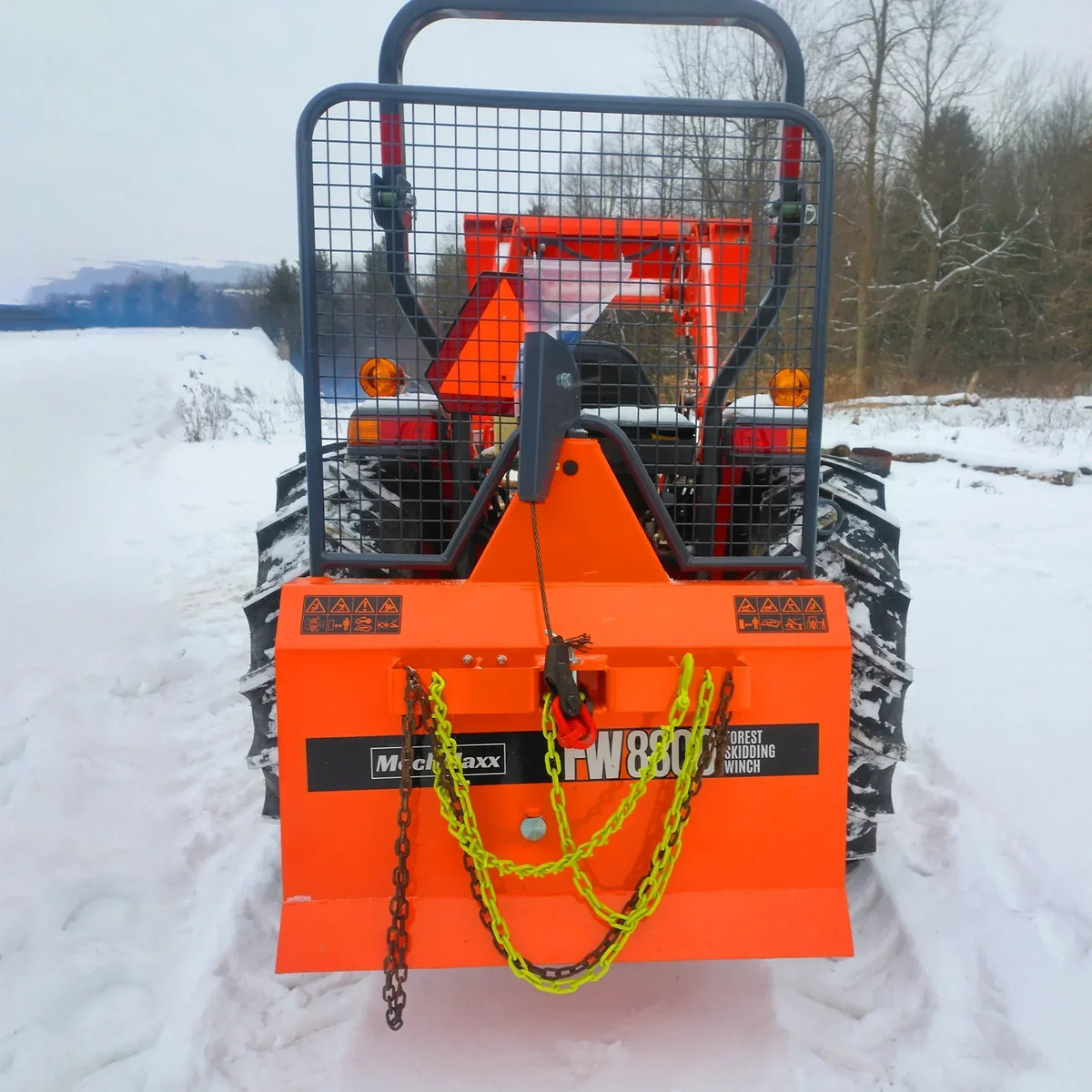

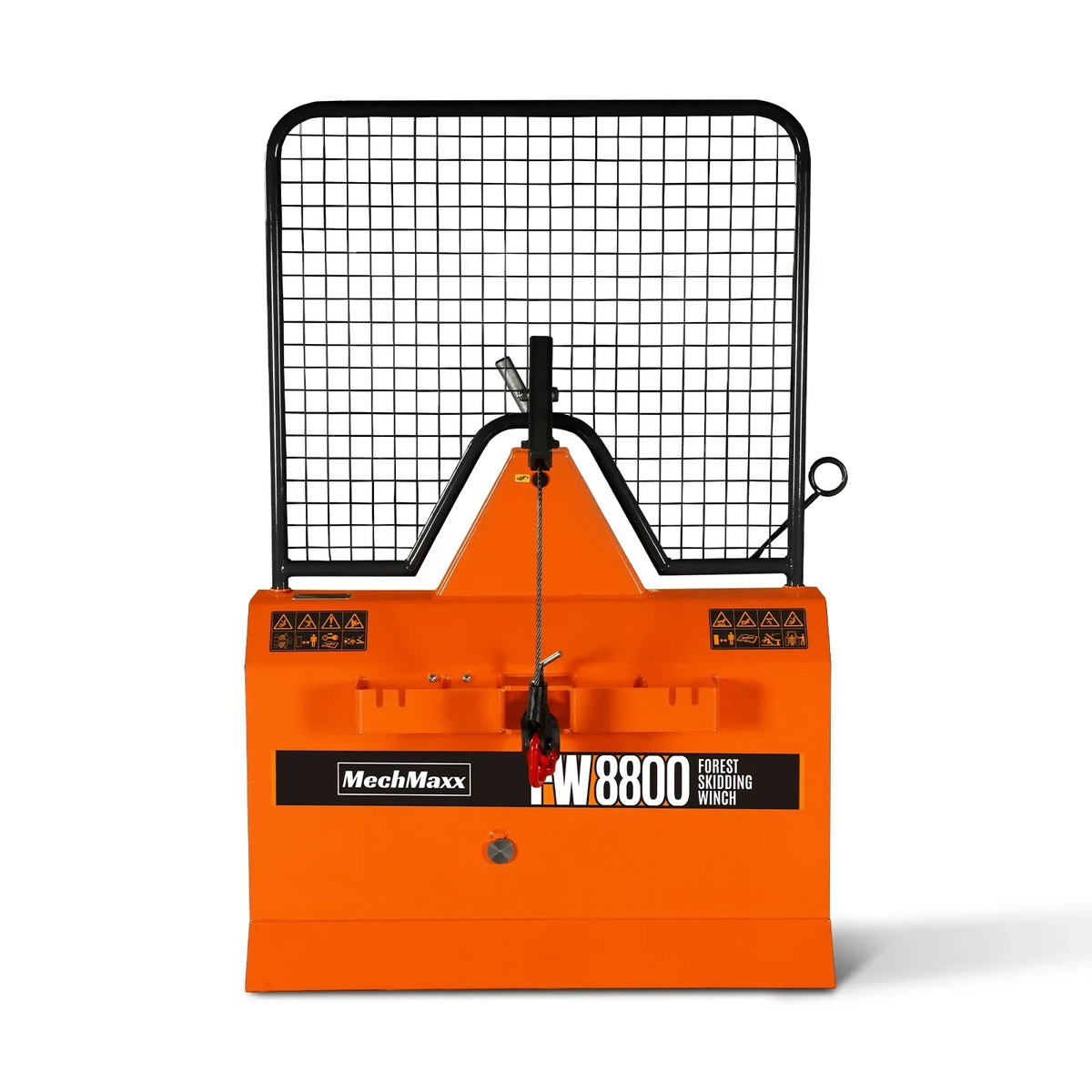

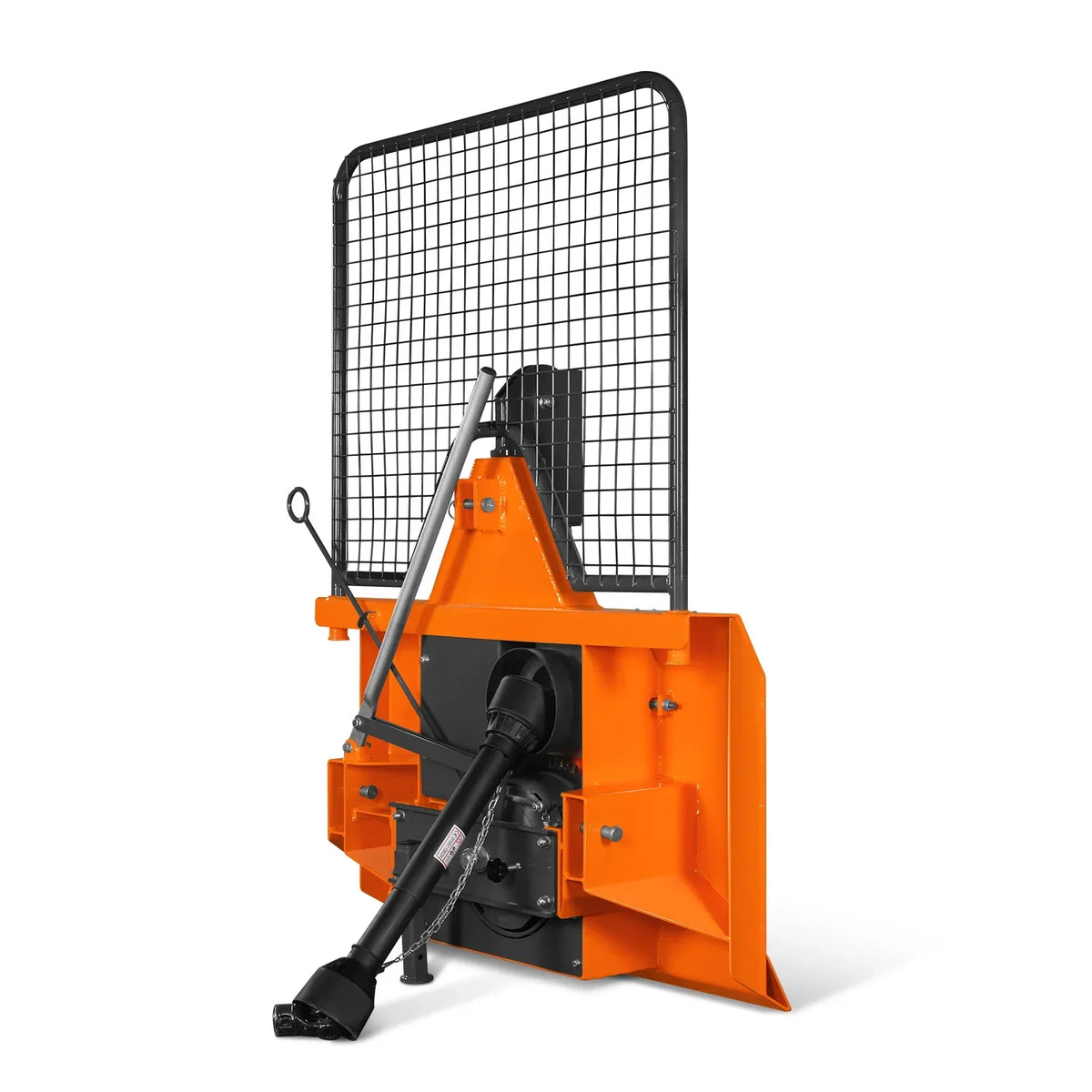

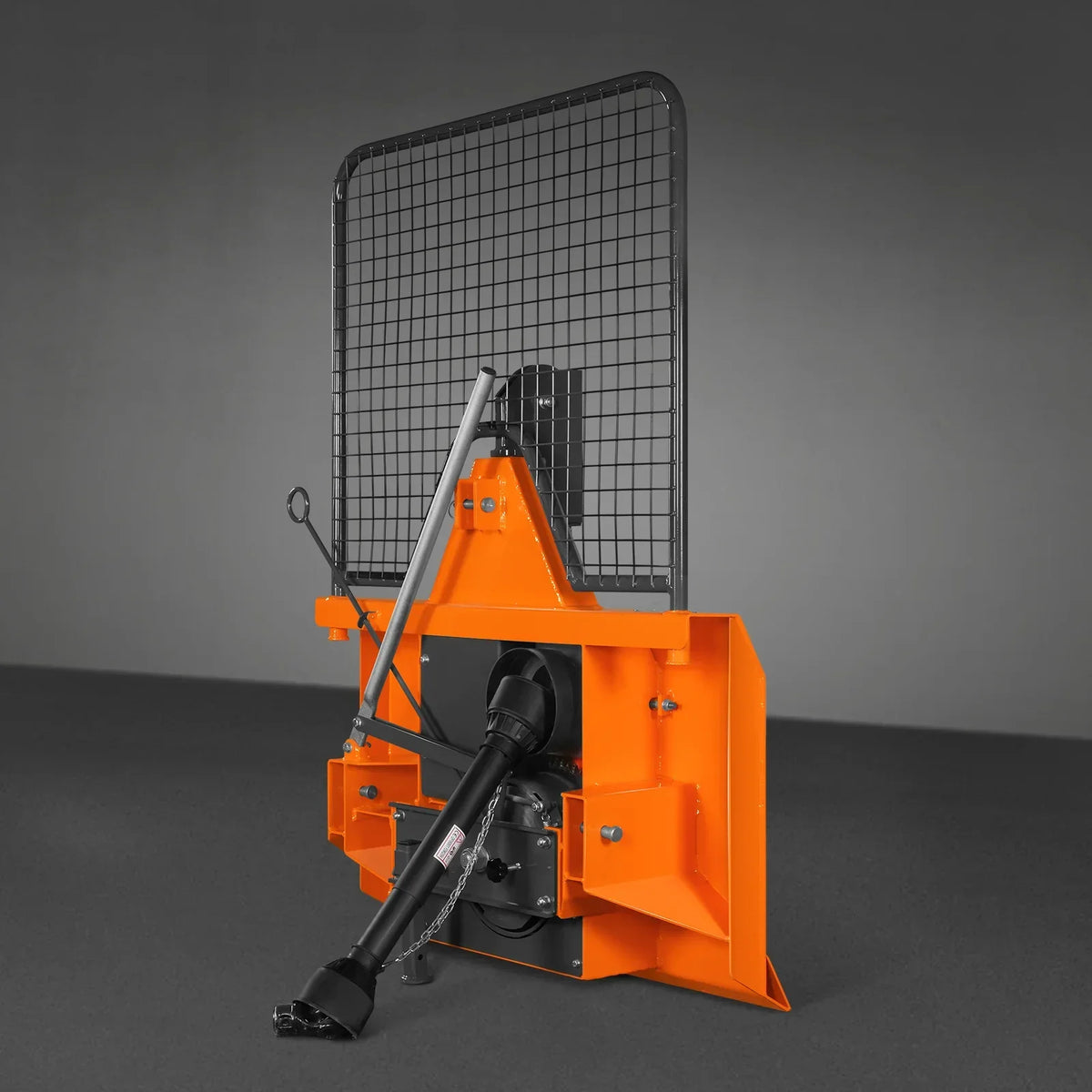

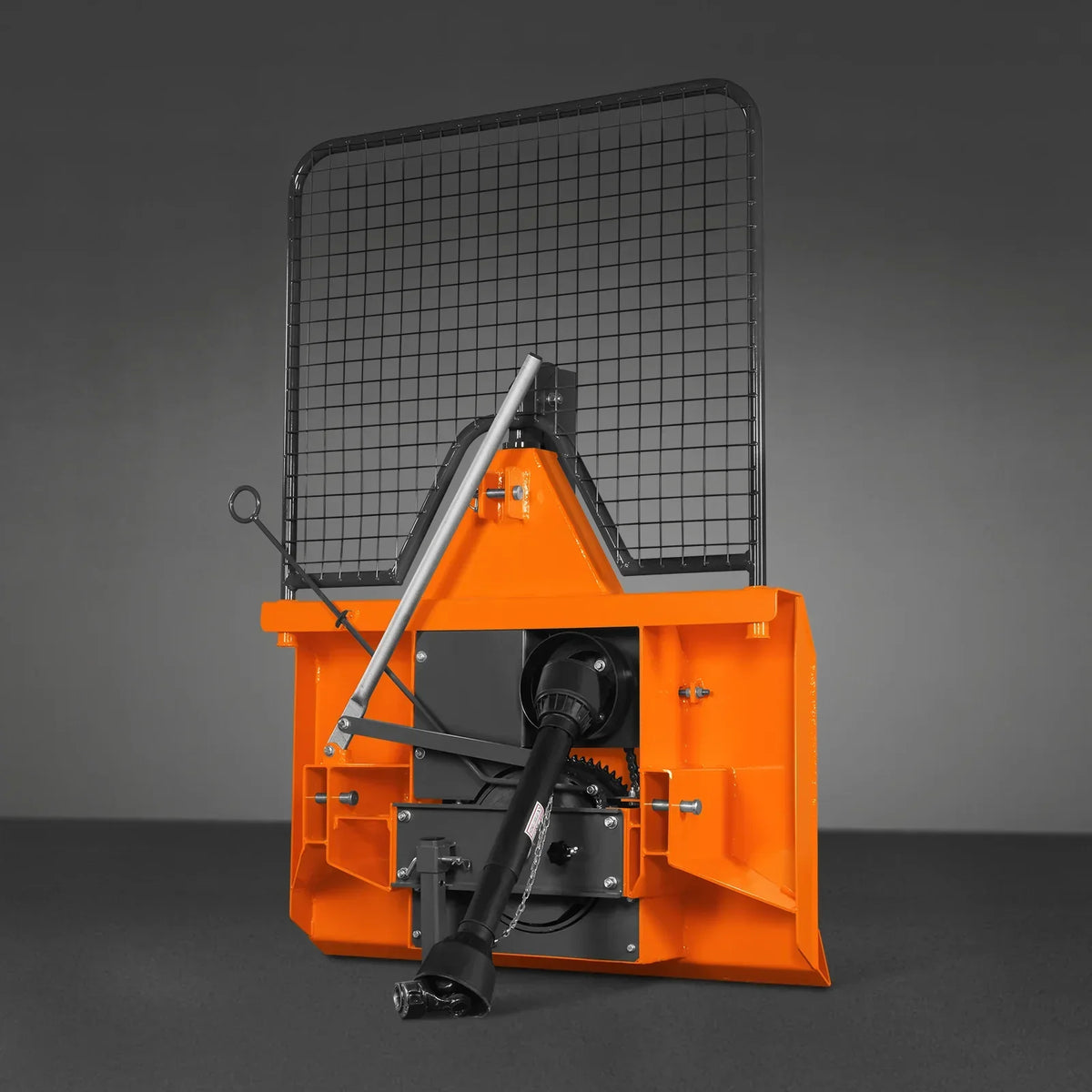

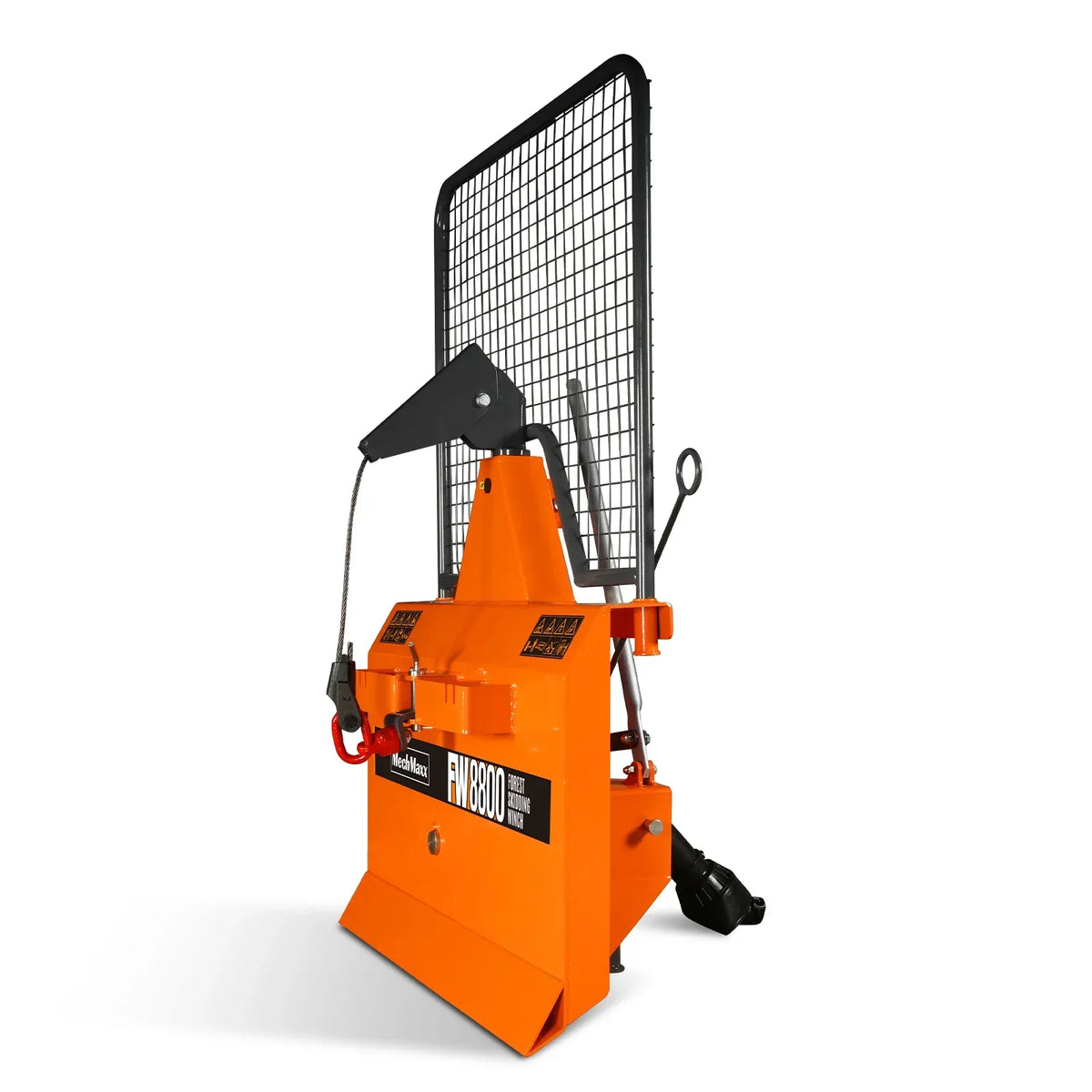

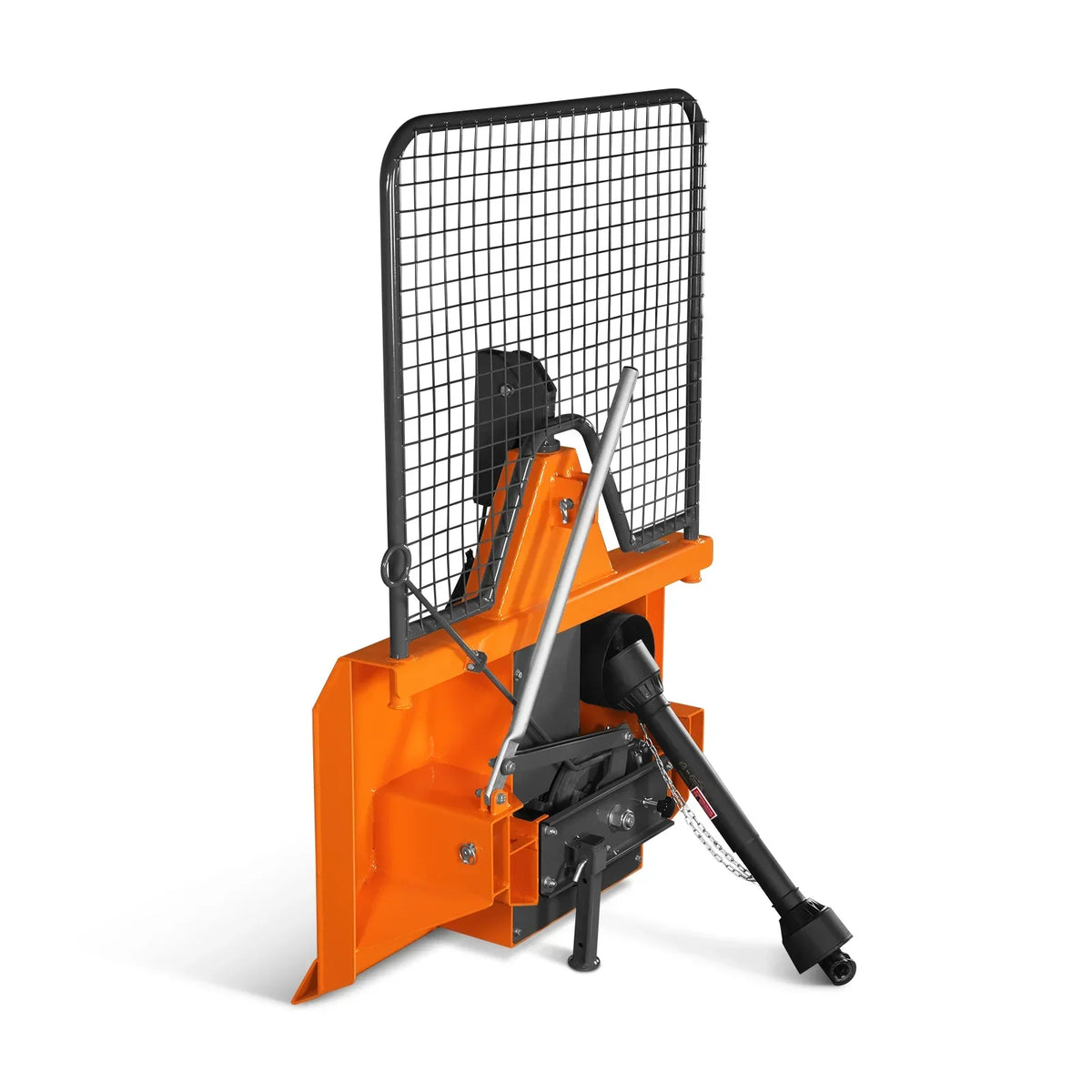

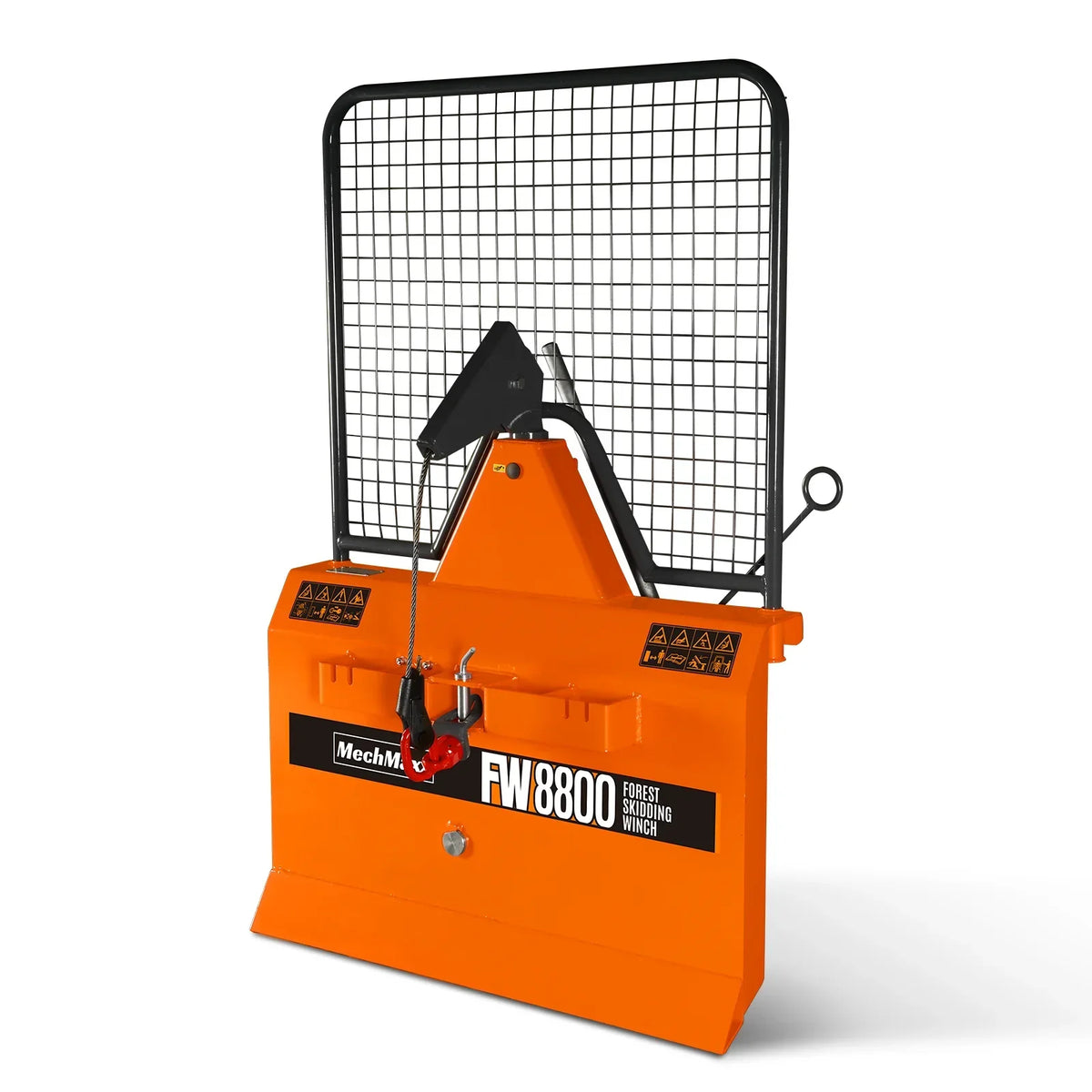

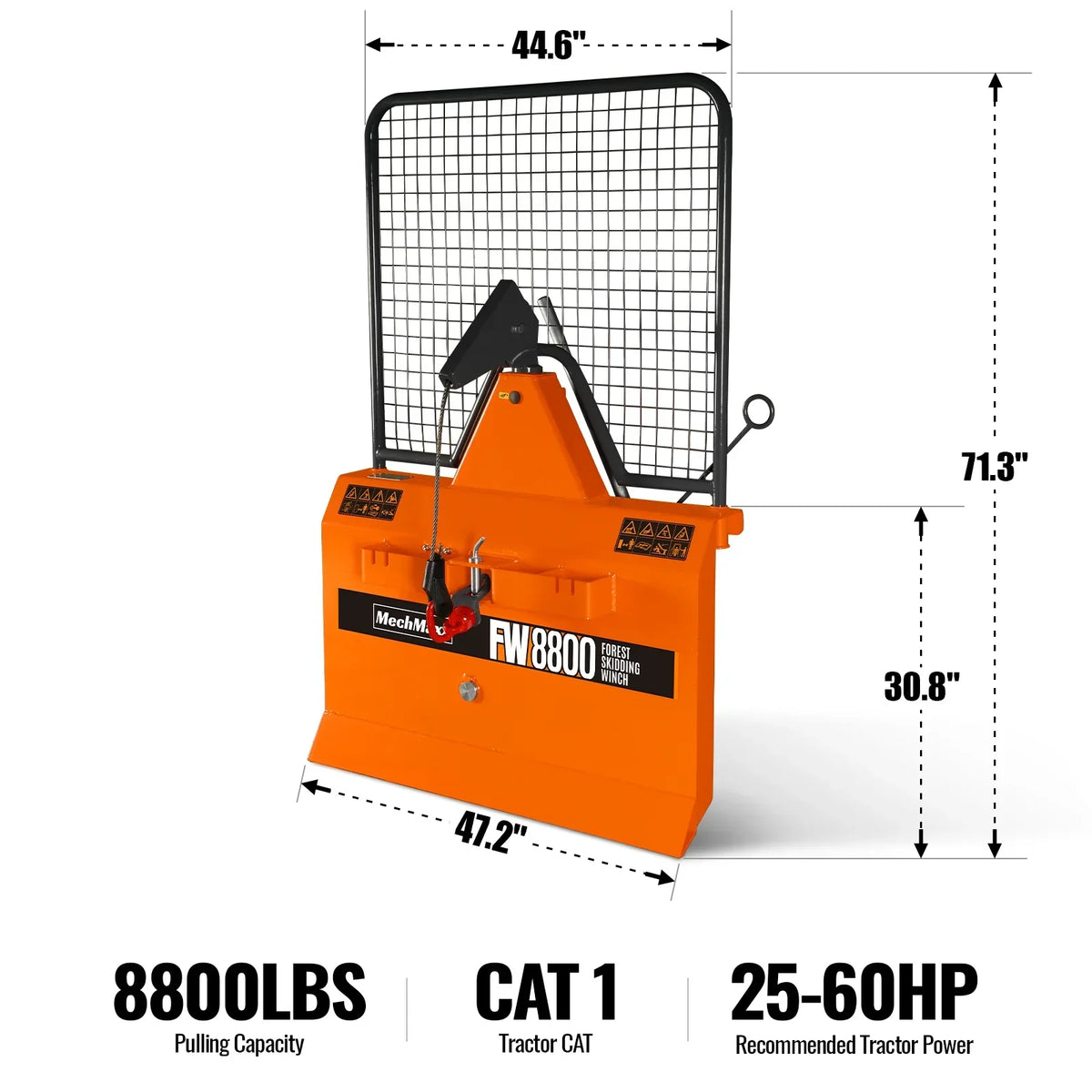

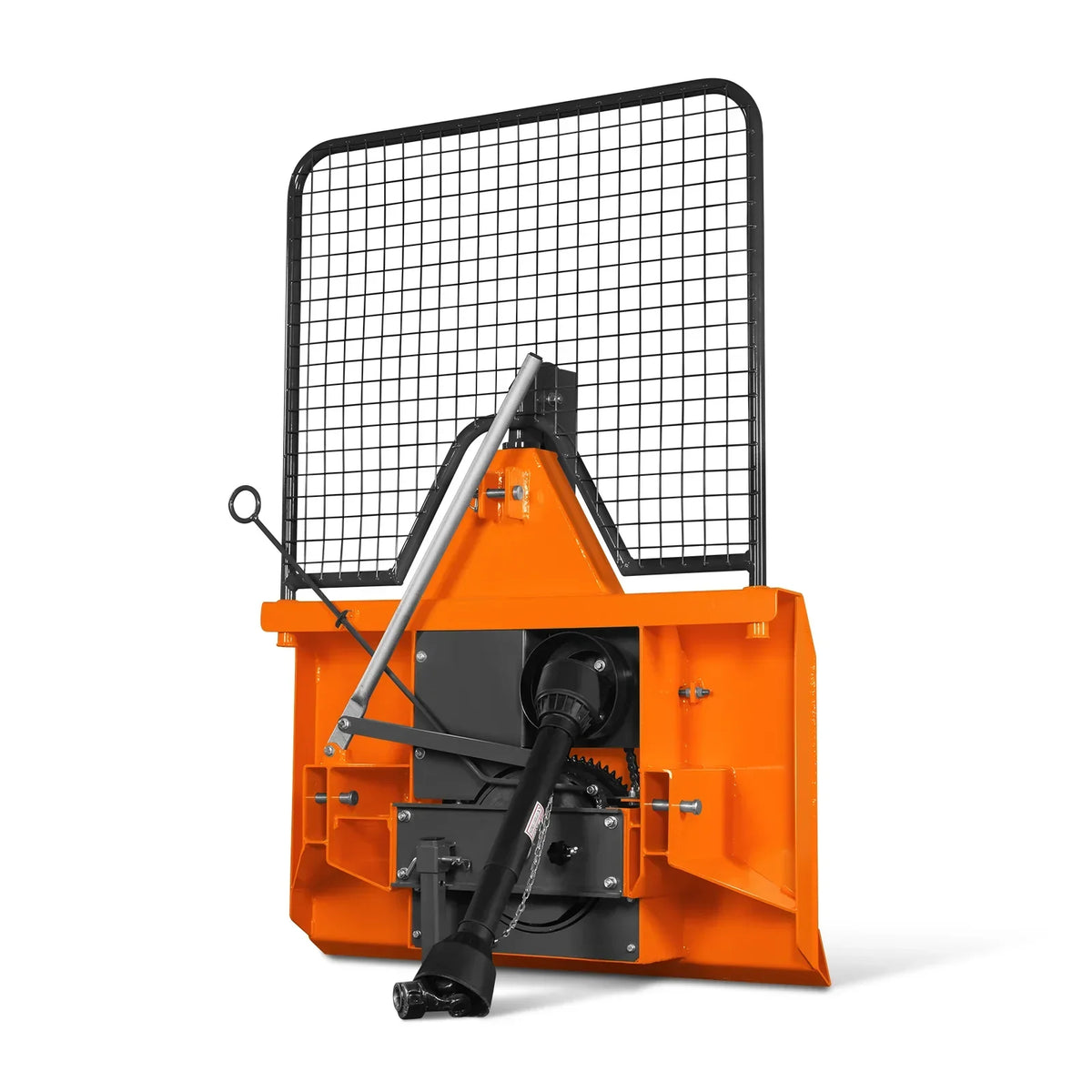

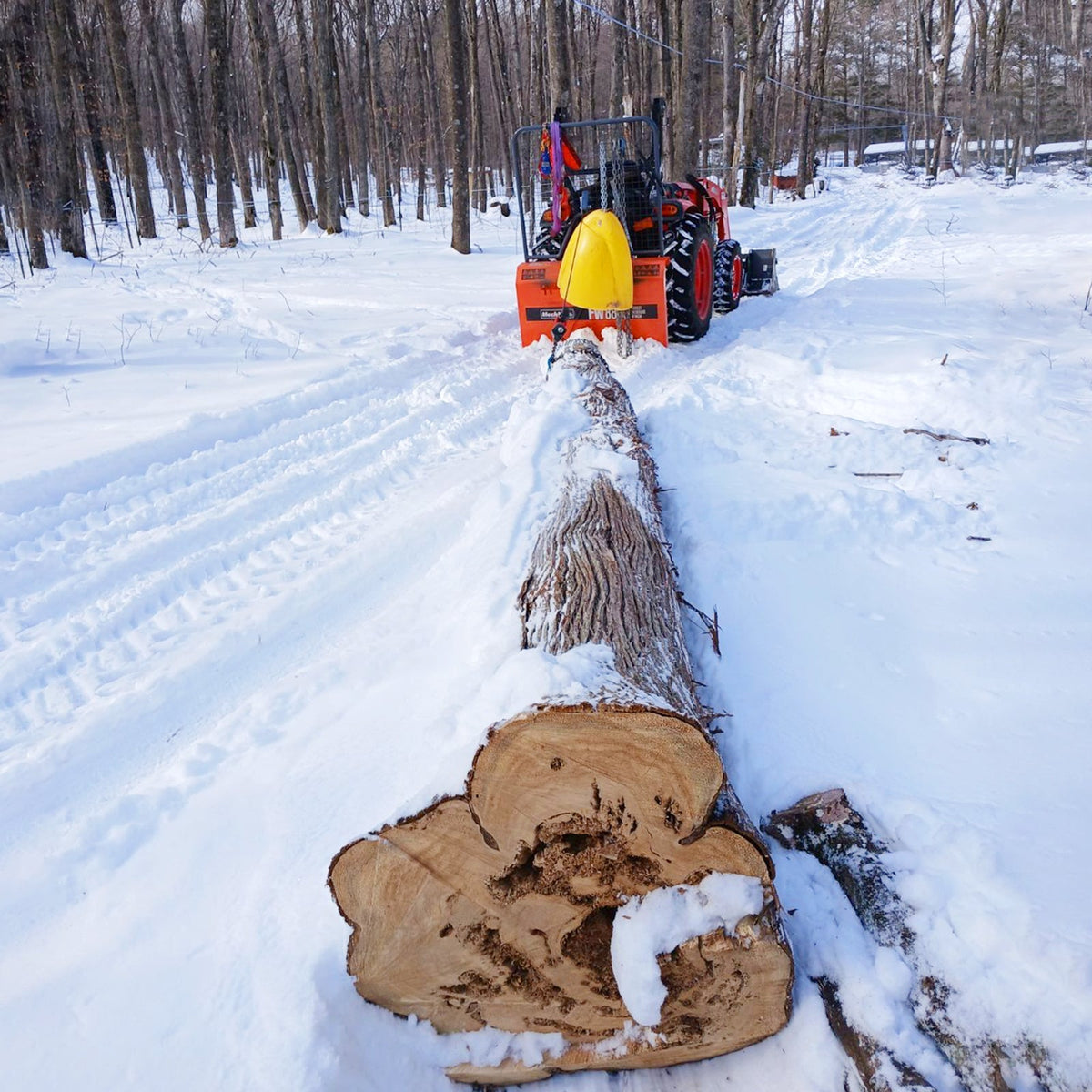

Forestry Log Skidding Winch
Recommended Tractor Power
25-60hp
Pulling Capacity
8800lbs
Winch Type
Mechanical, Dry Disc Clutch
Average Winching Speed
180 ft/minute
Cable Length
200 ft
Cable Diameter
3/8 in
Cable Type
Steel
Tractor CAT
CAT 1
PTO Input Speed
540 RPM

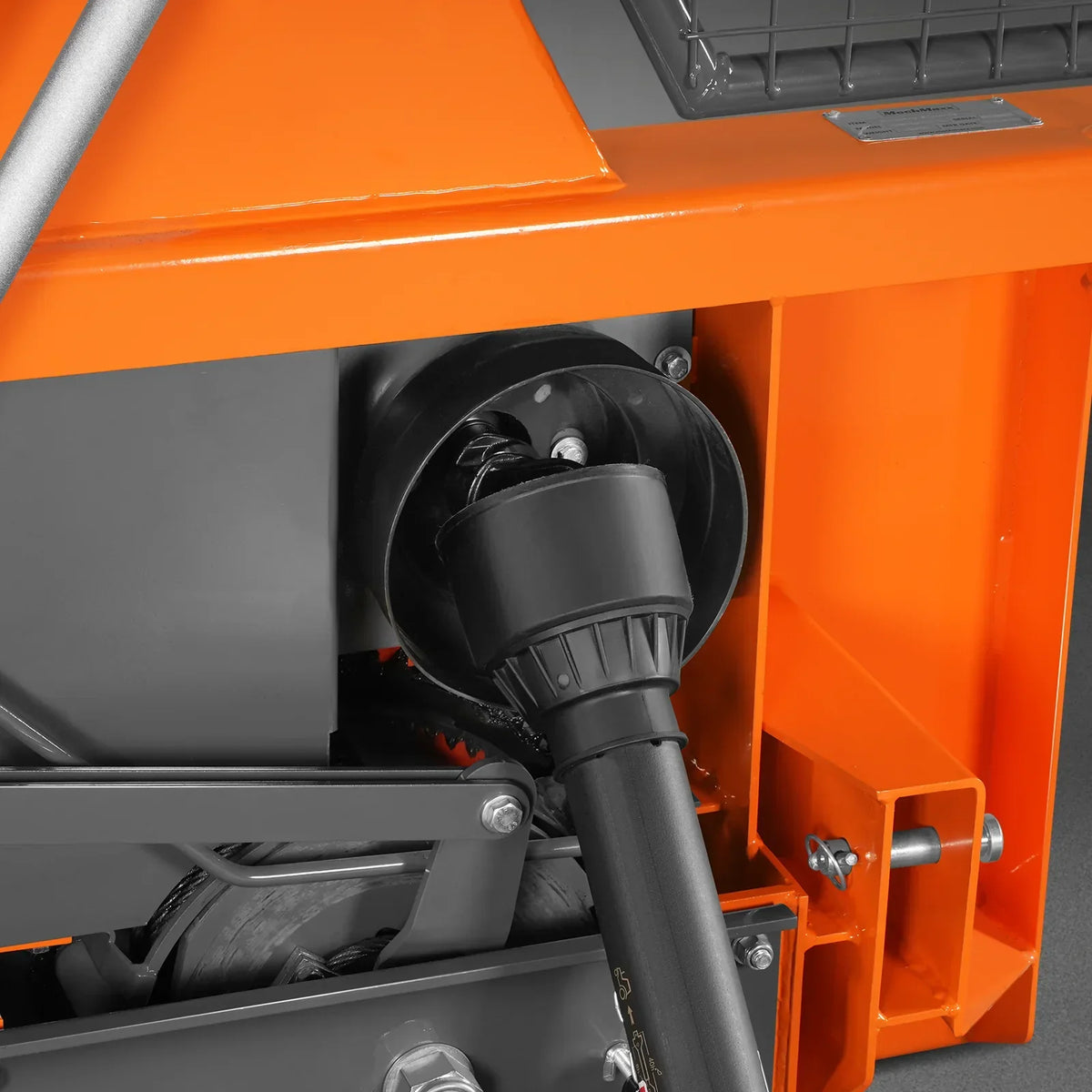

PTO Shaft
1-3/8in 6 Spline Tractor， With Shear Bolt
Dimensions
47 X 20 X 71 in
Packing Size
49 x 21 x 73 in
Weight (N.W/G.W.)
602/659 lbs
