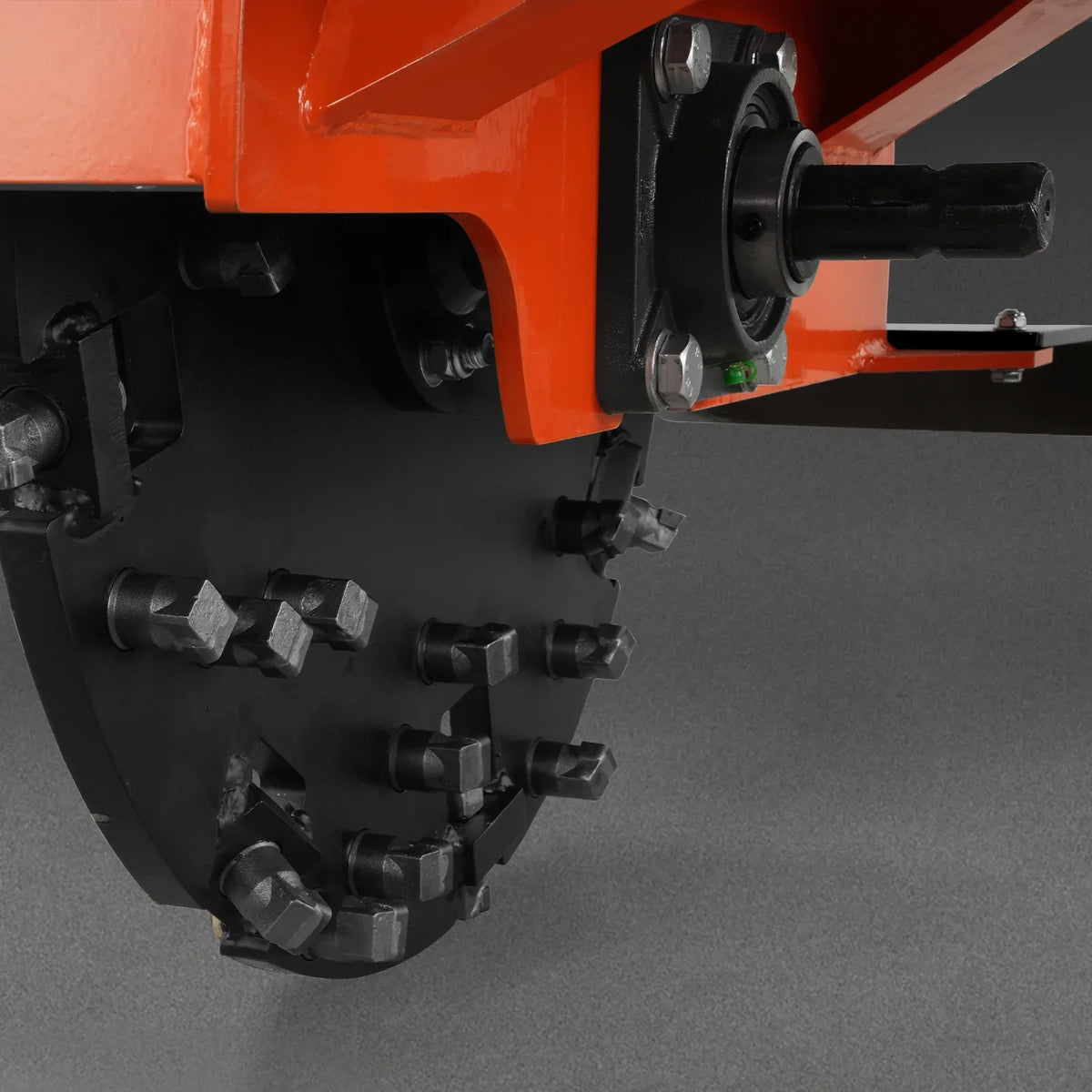

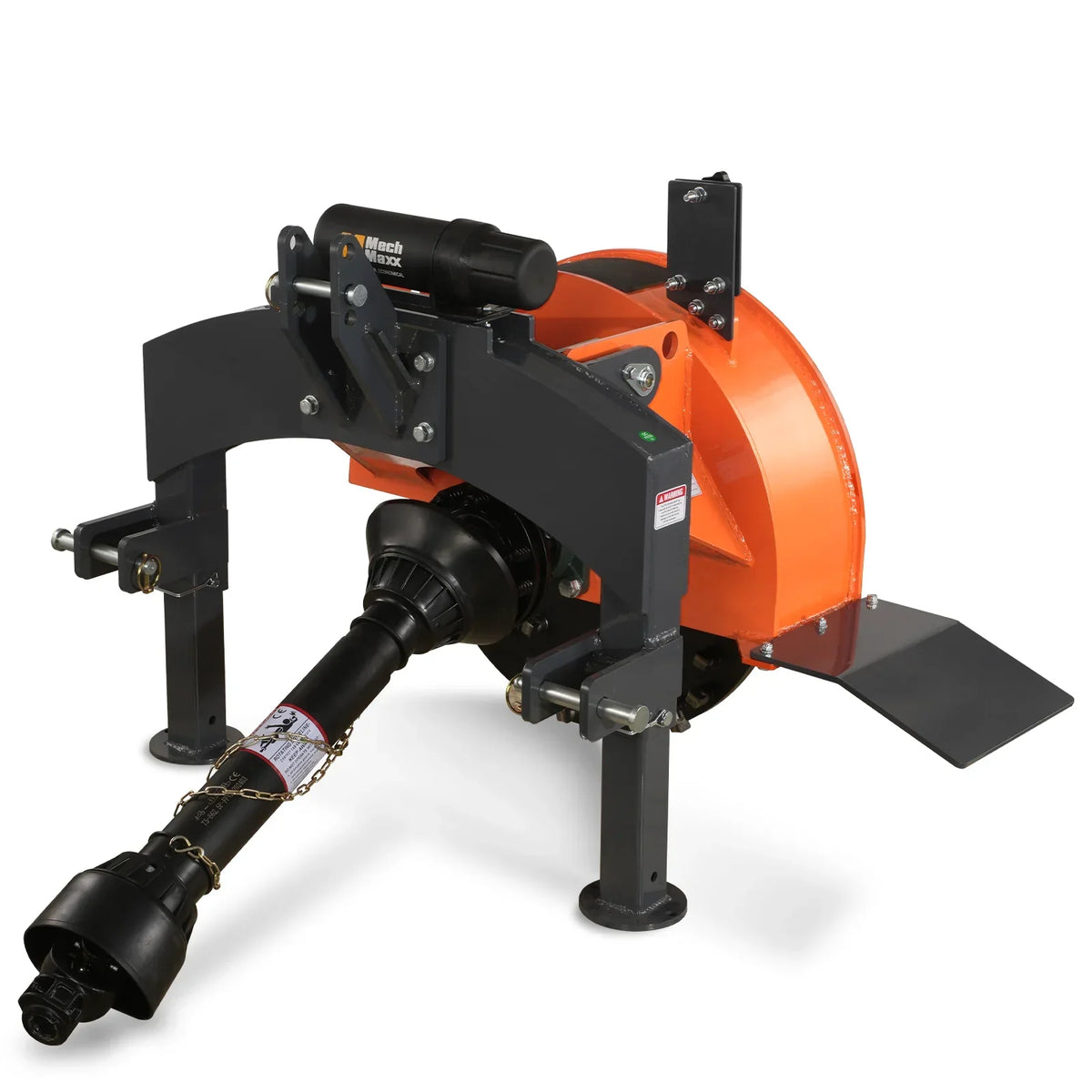

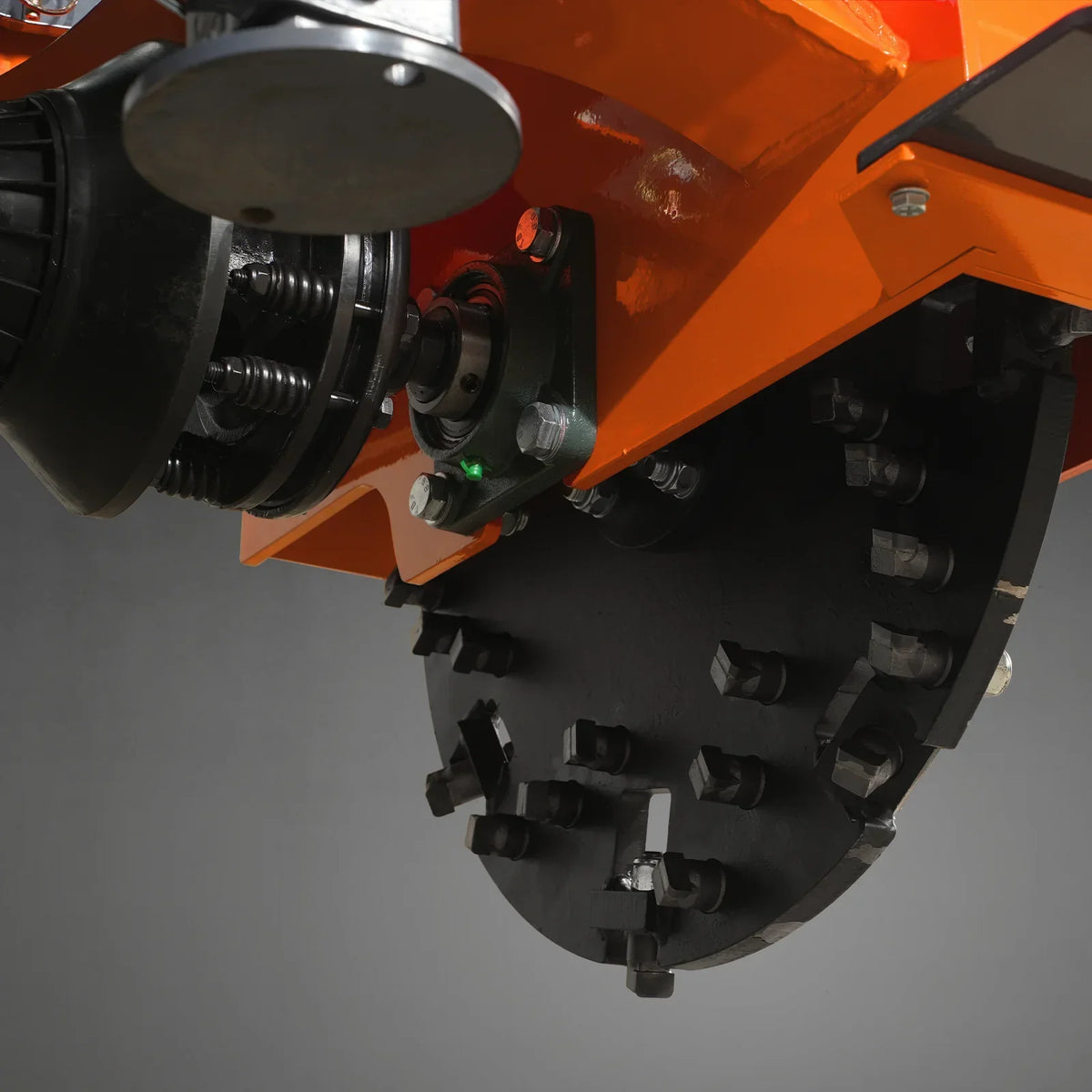

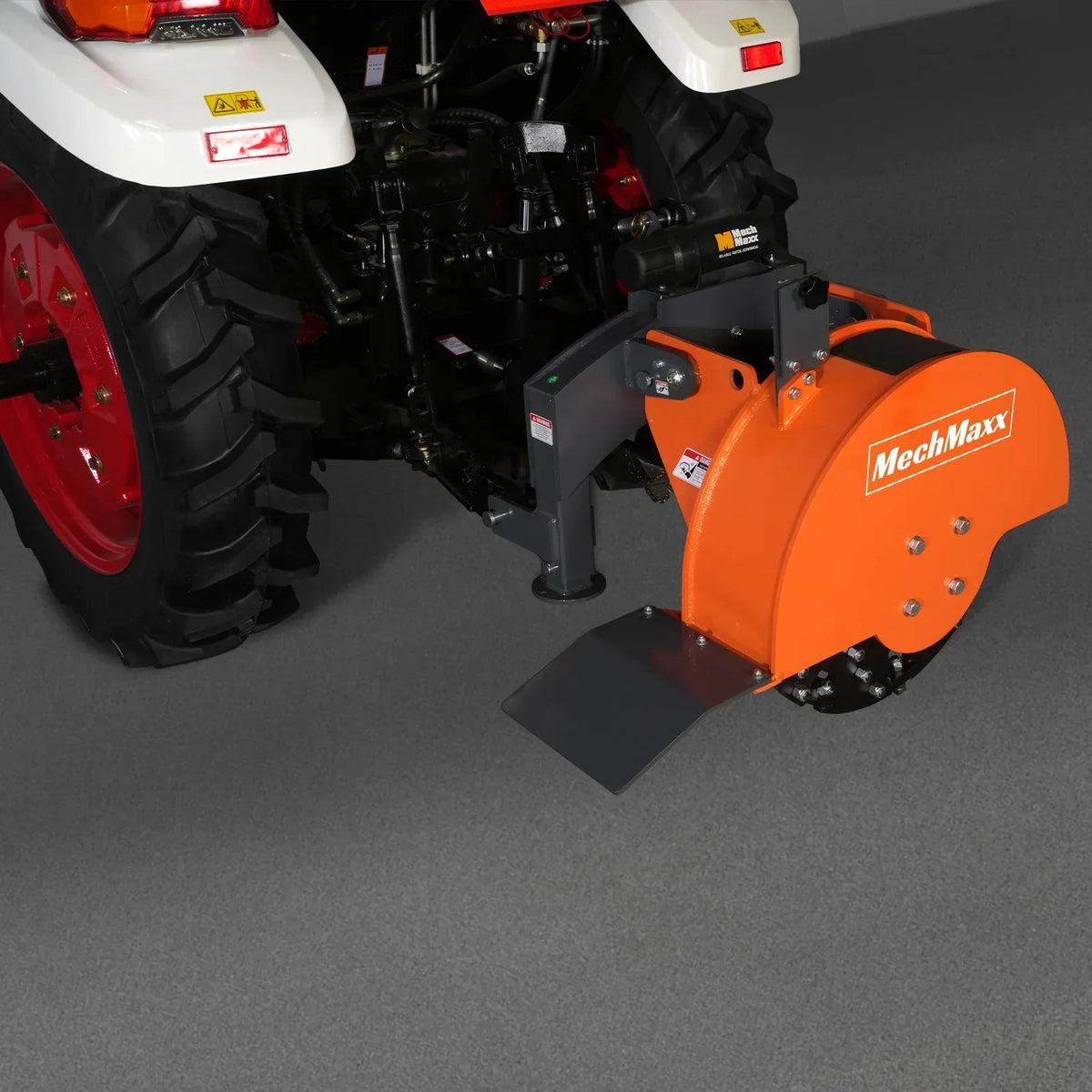

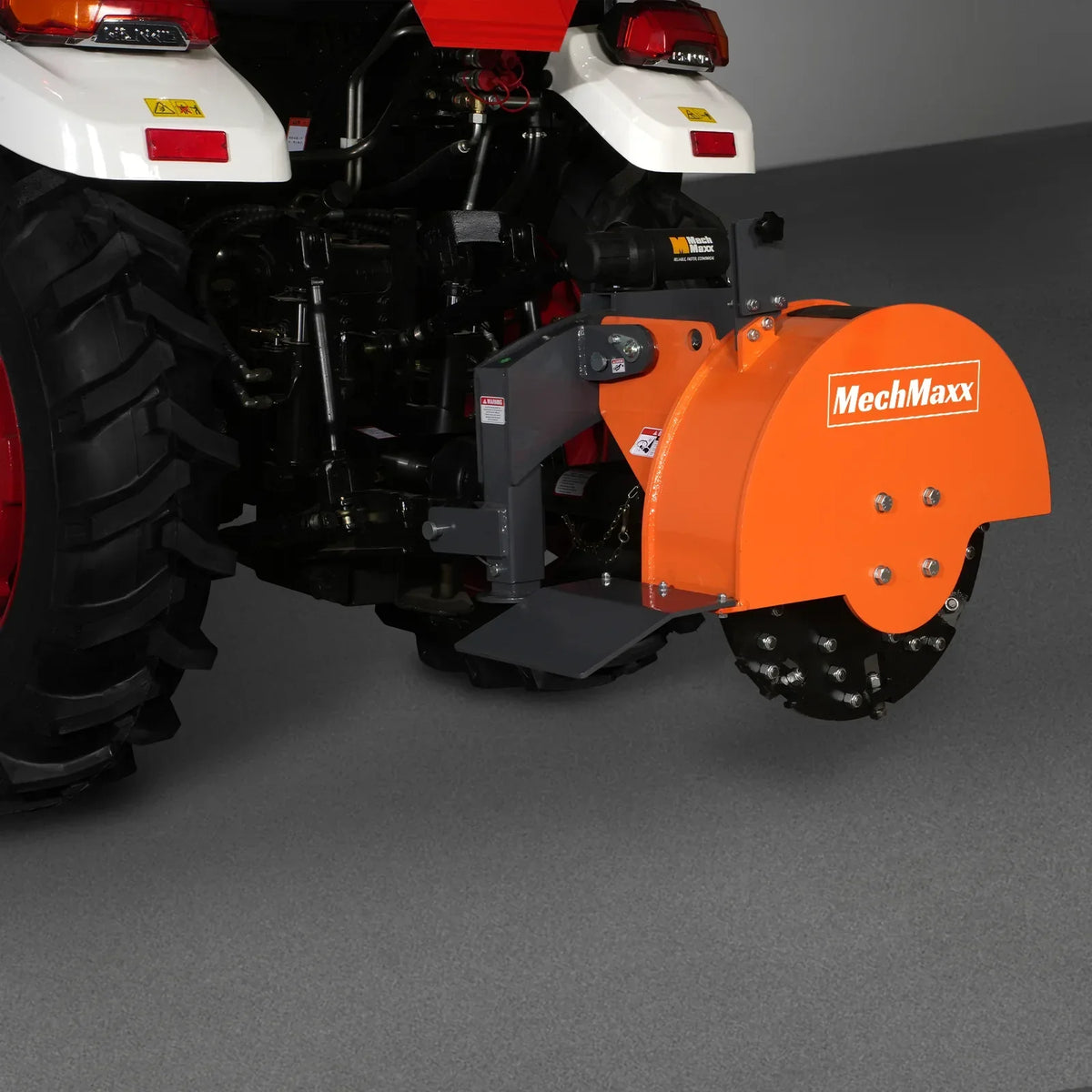

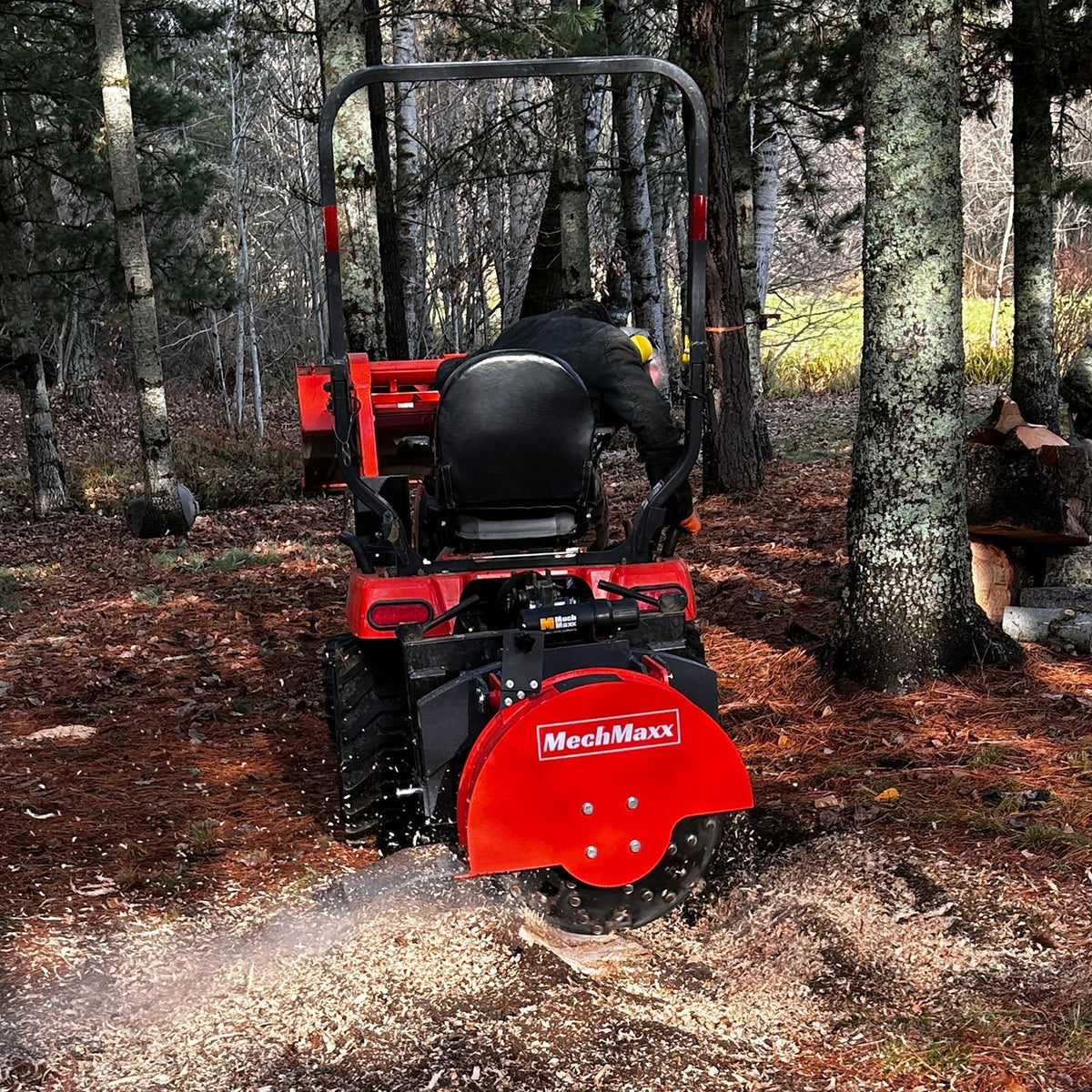

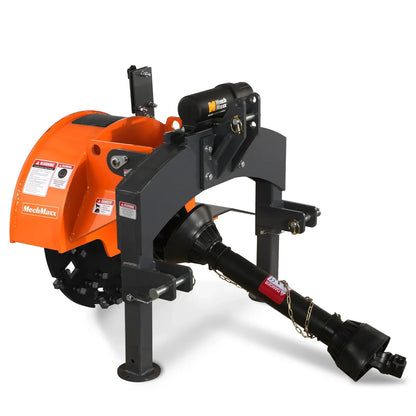

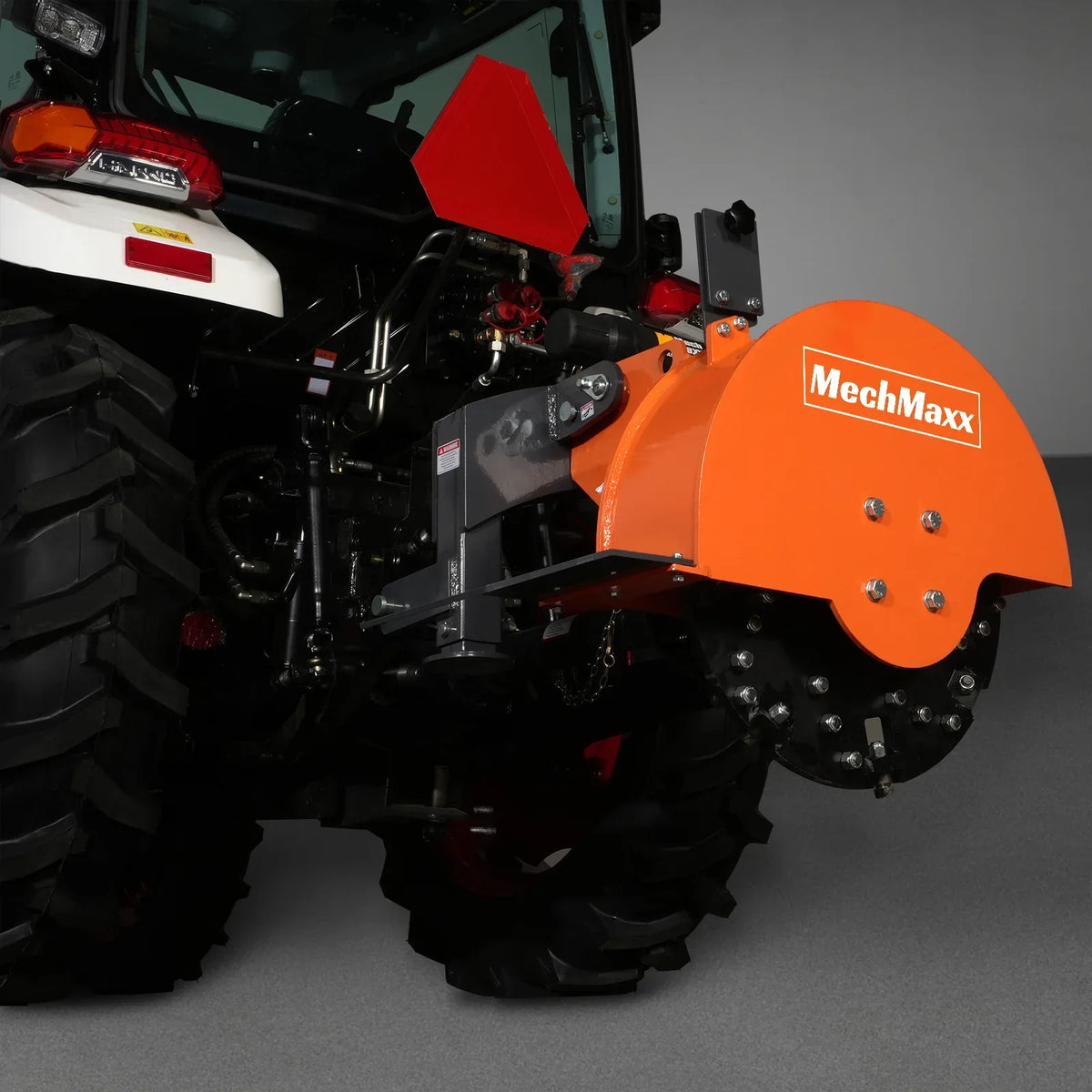

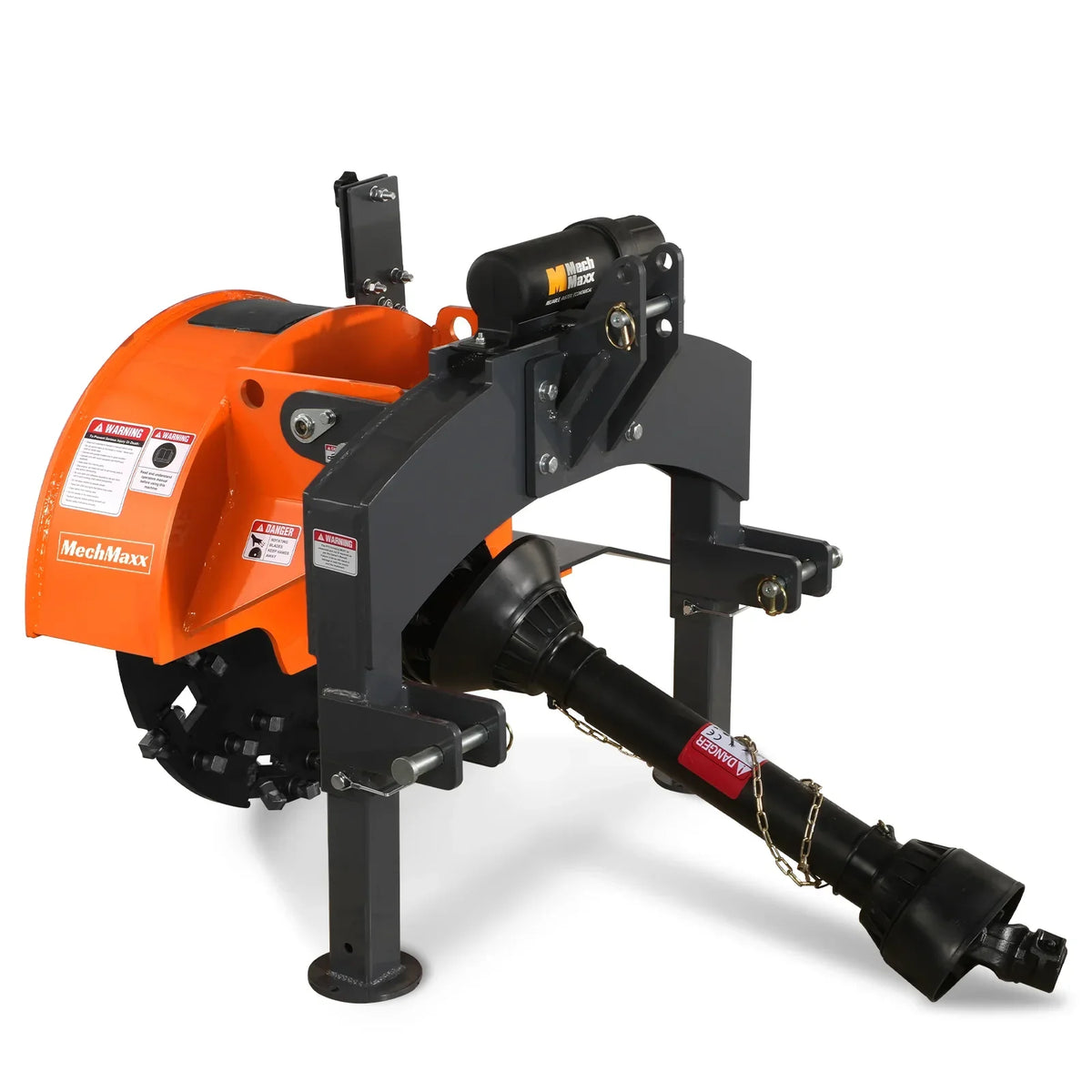

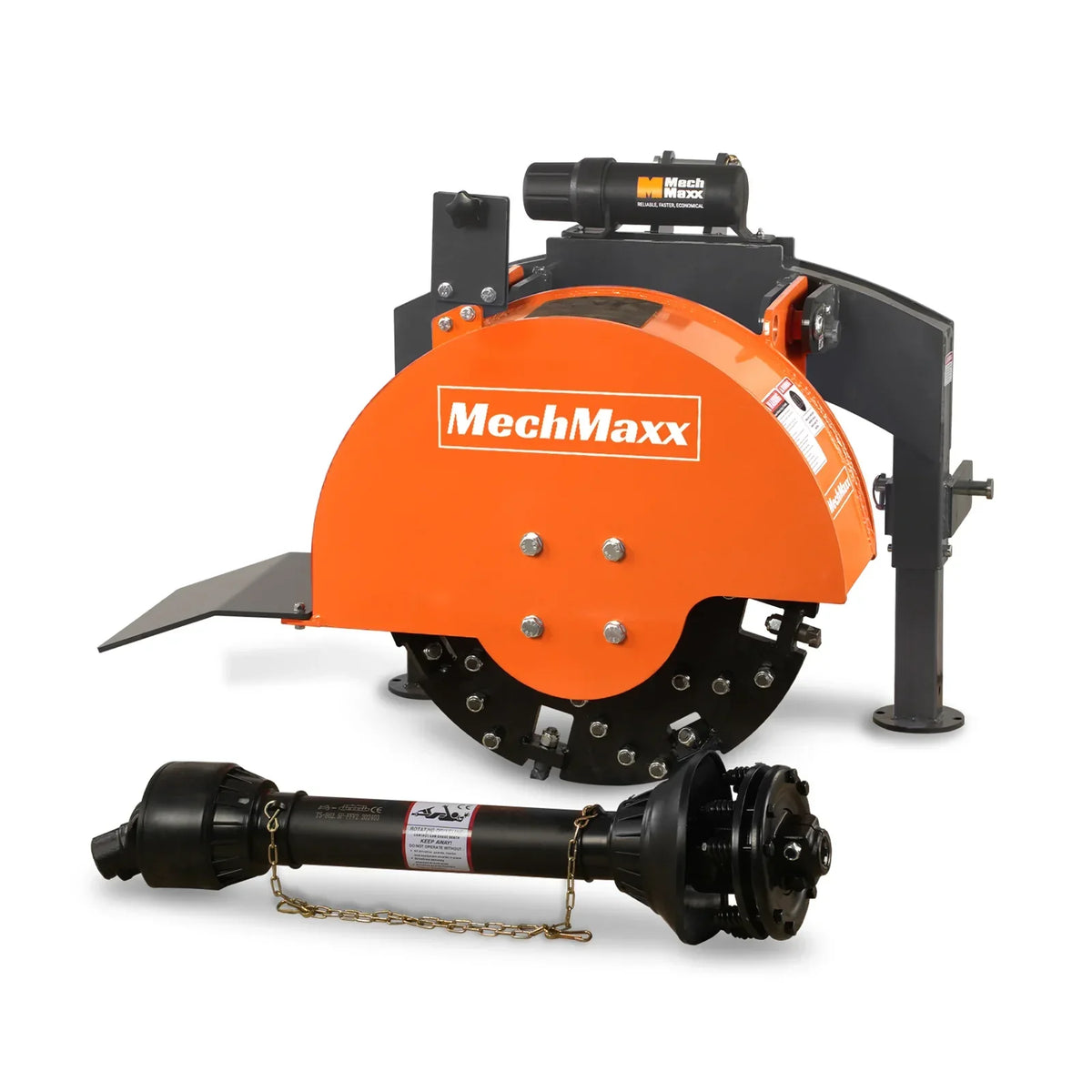

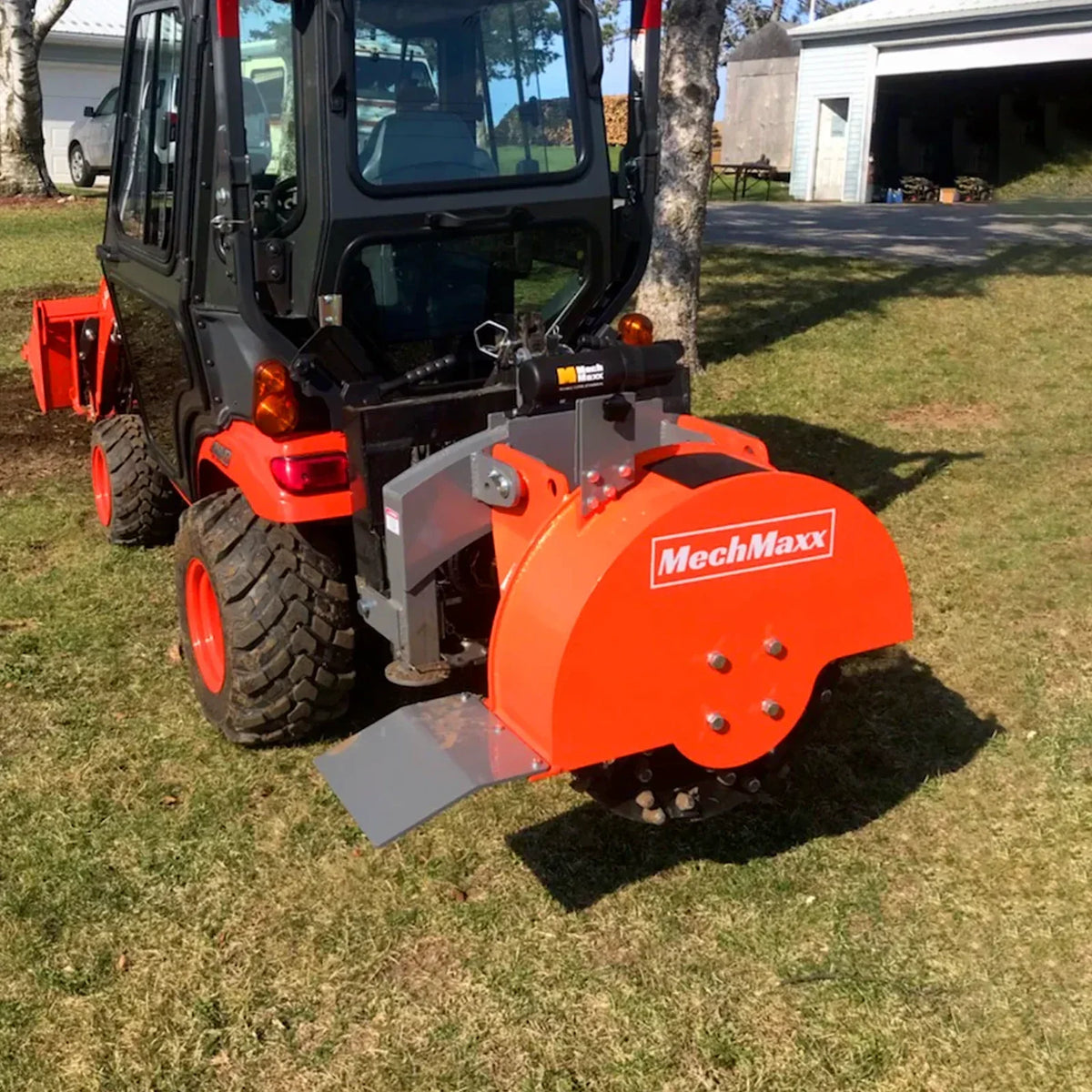

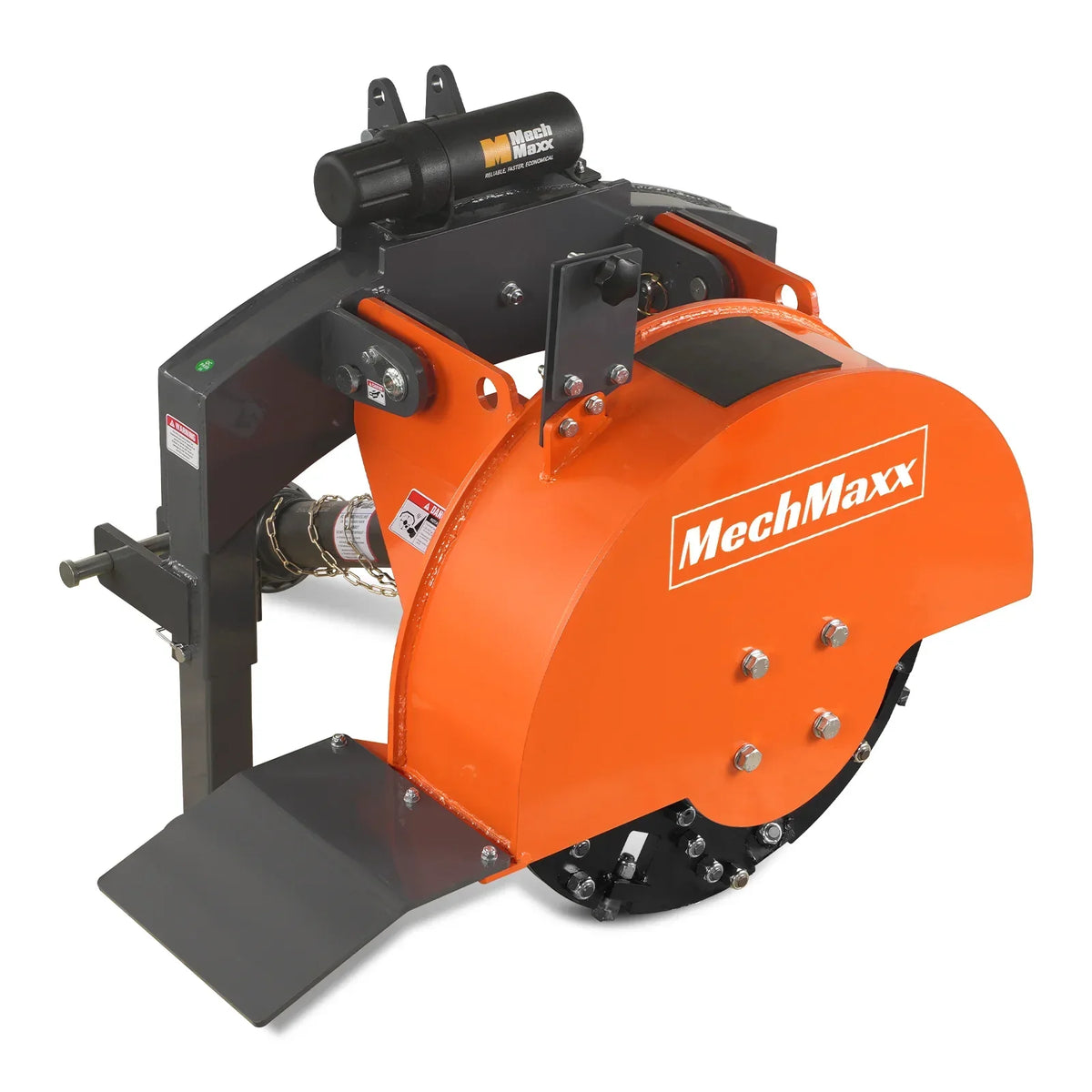

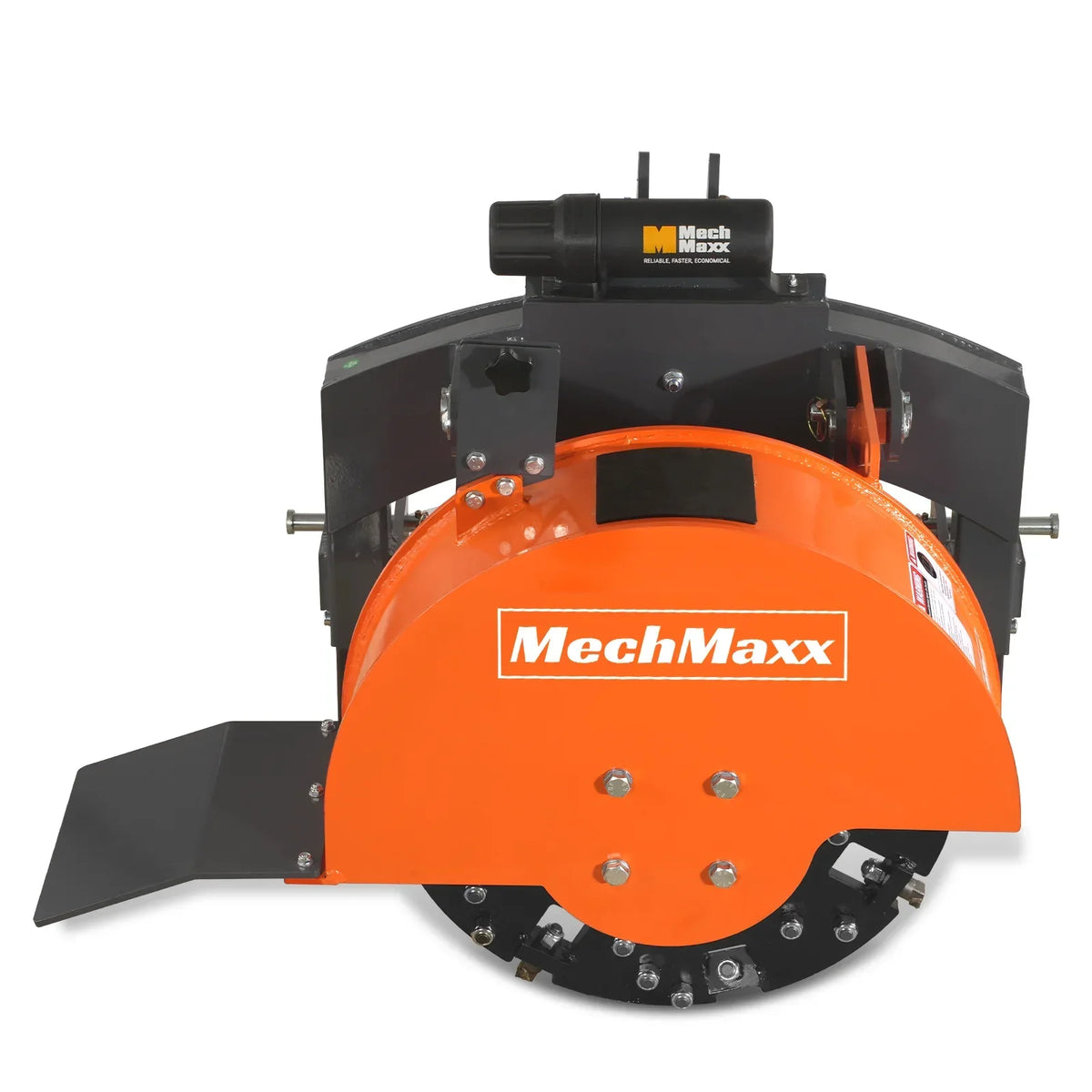

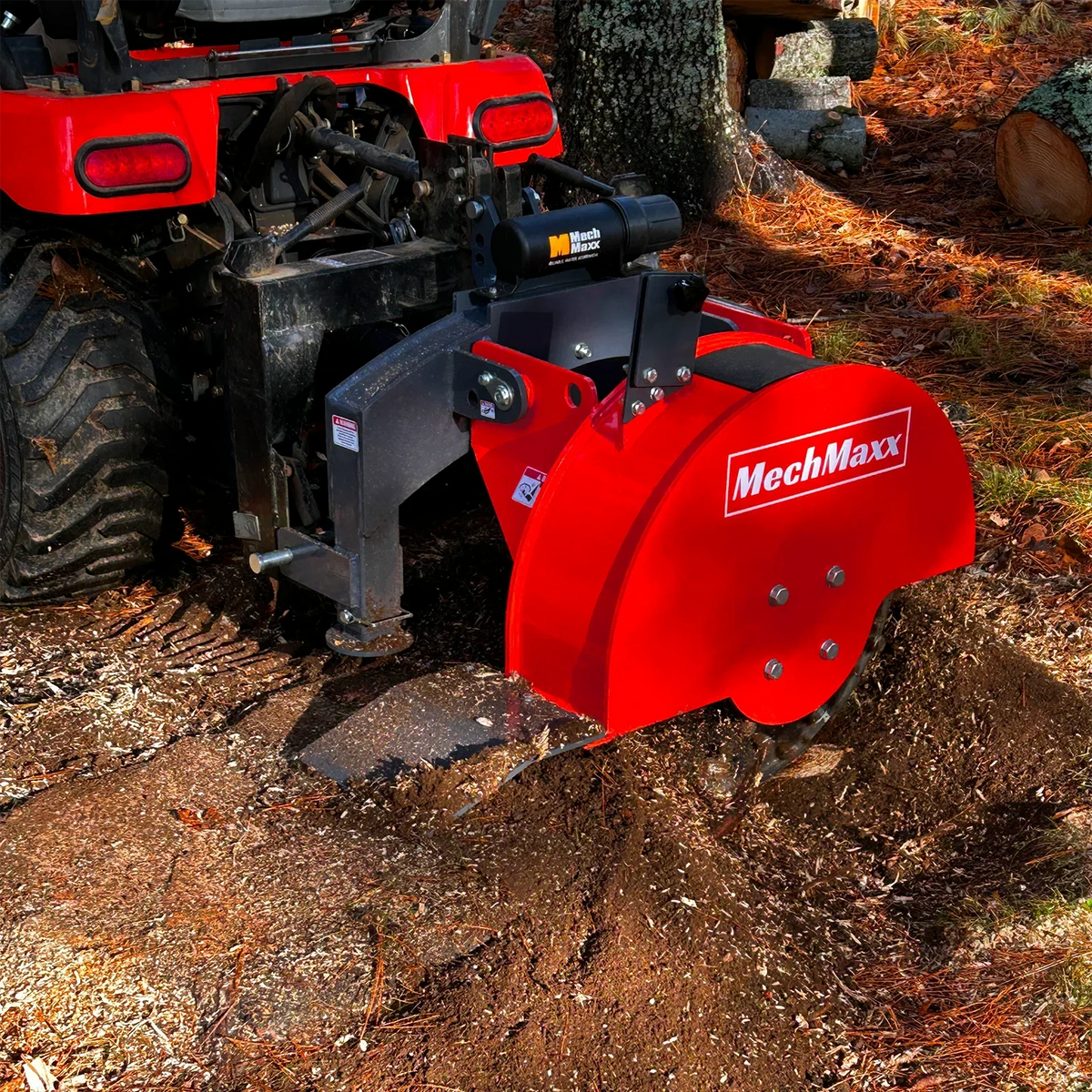

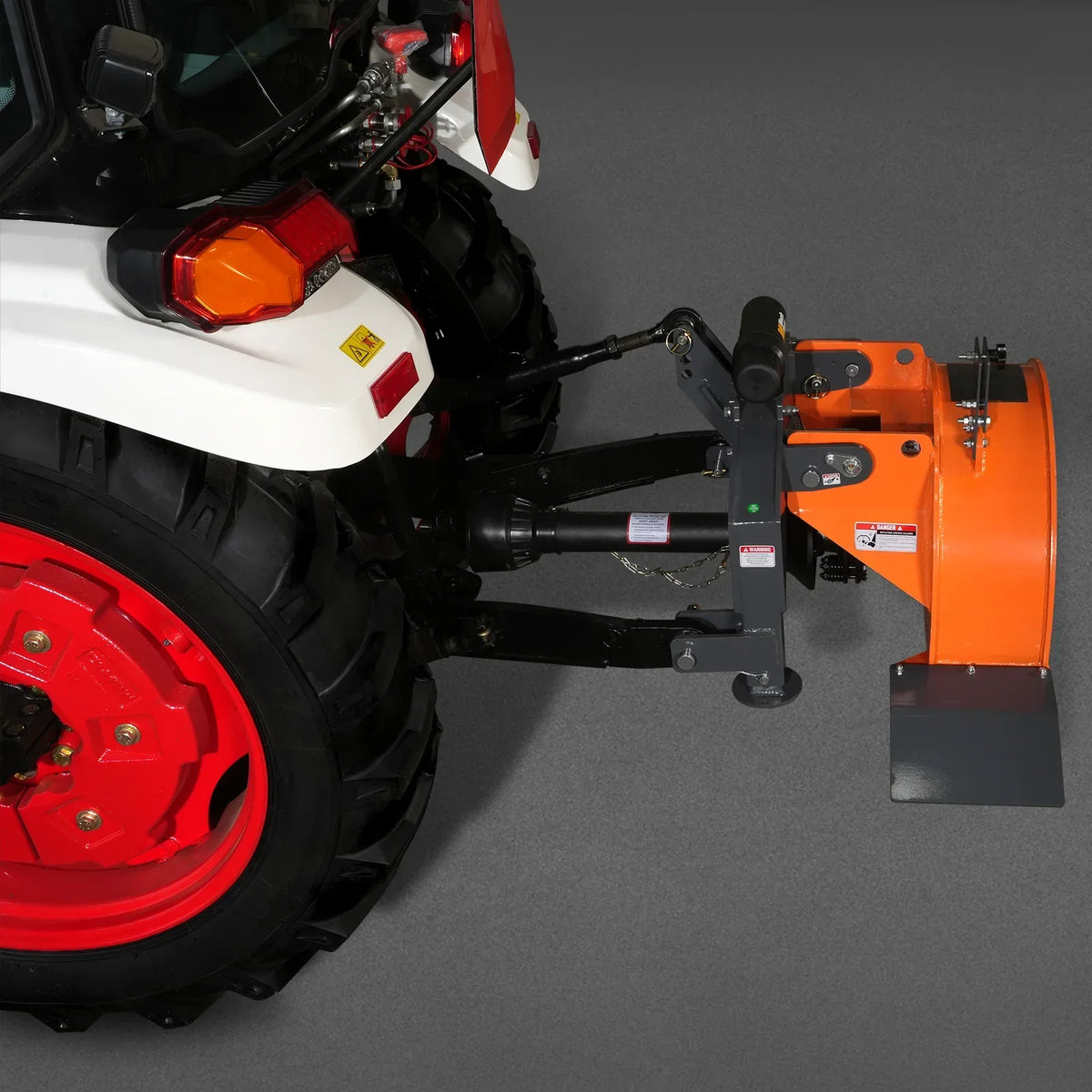

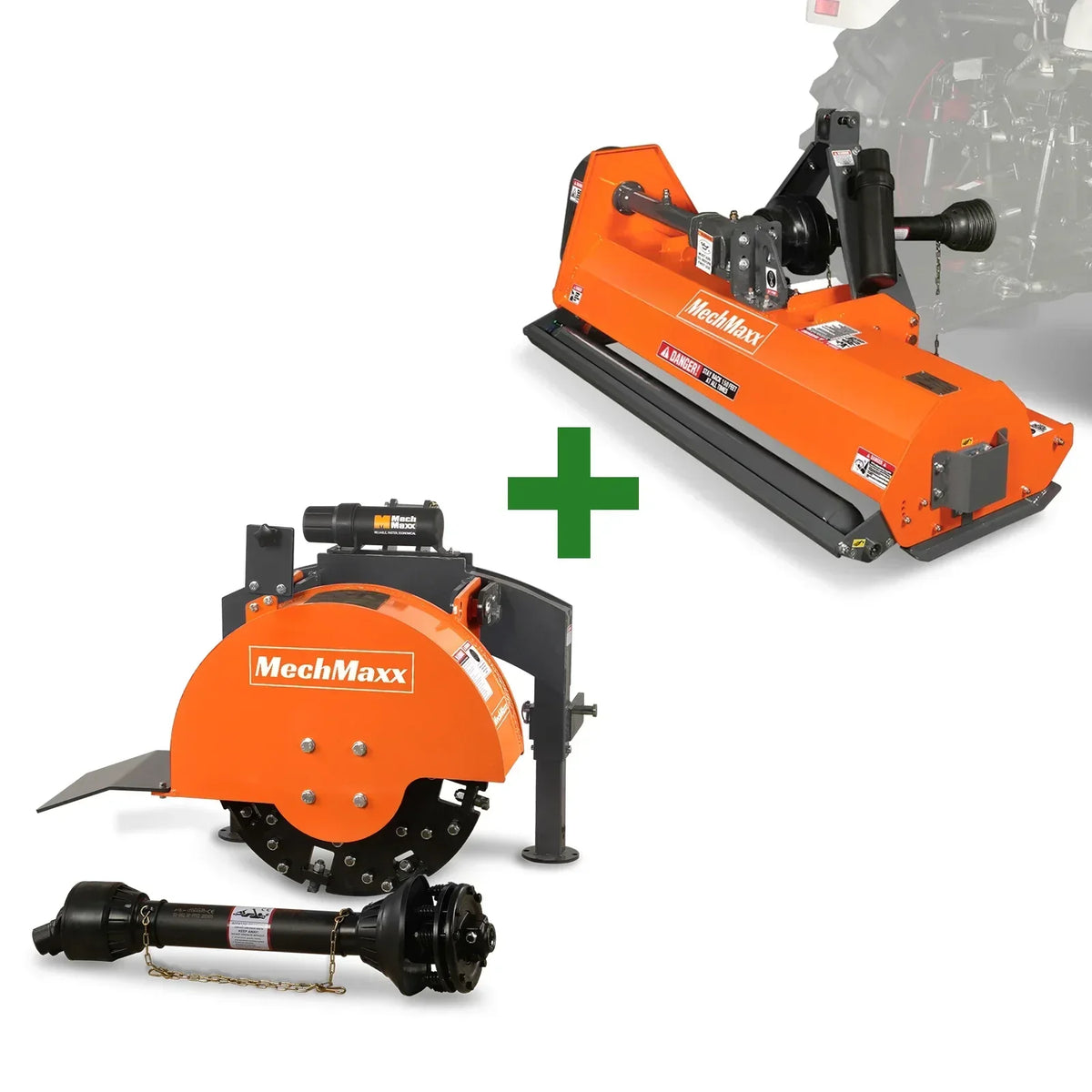

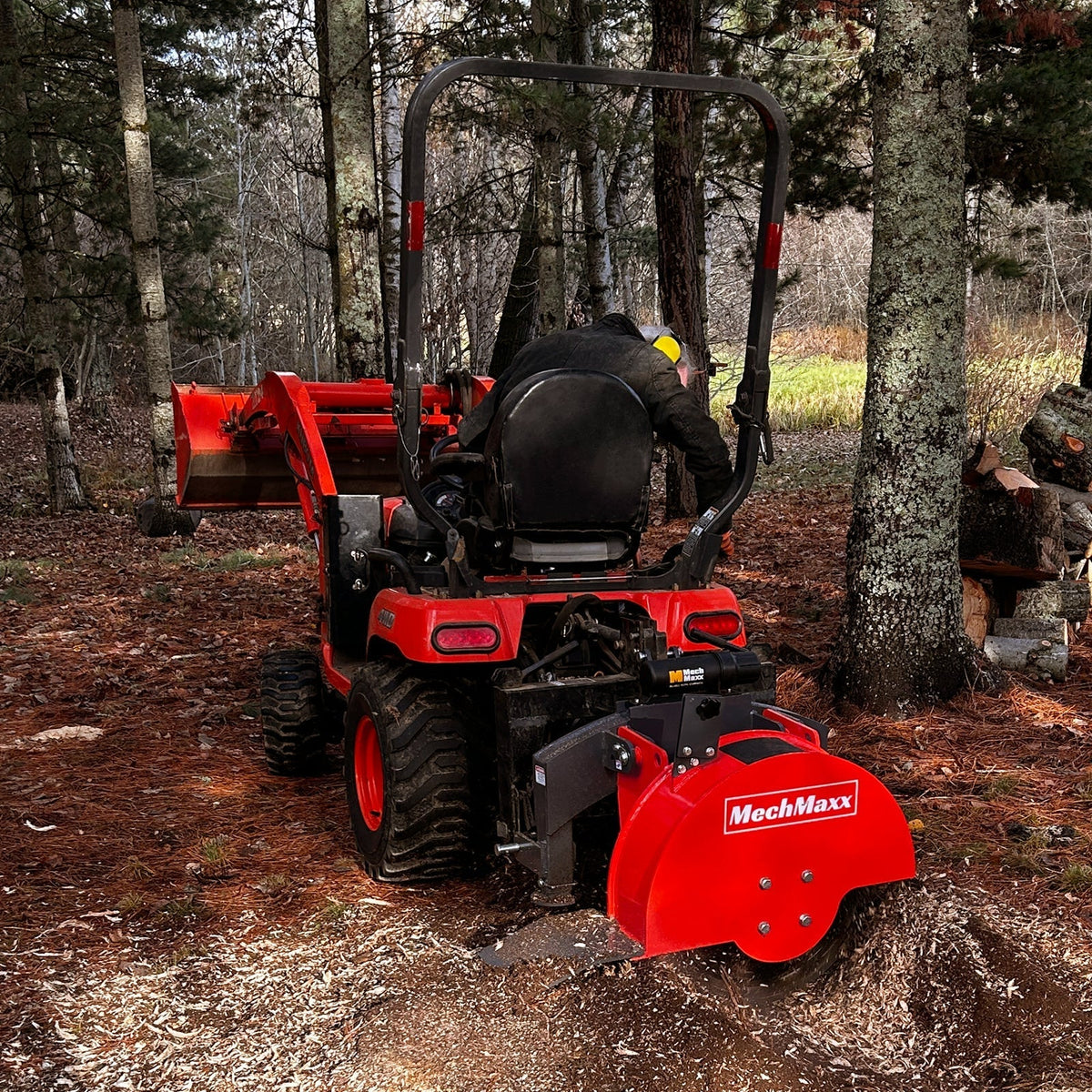

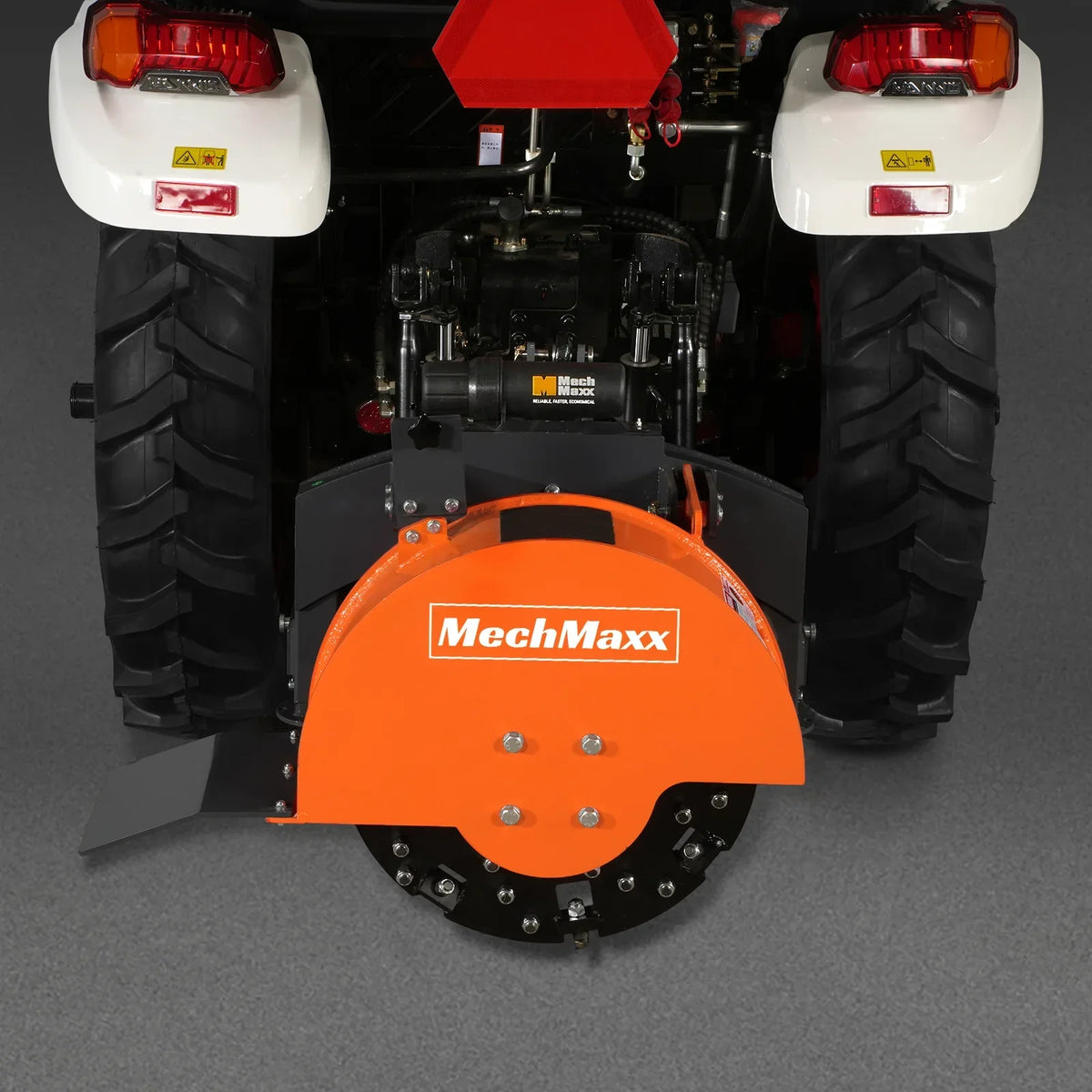

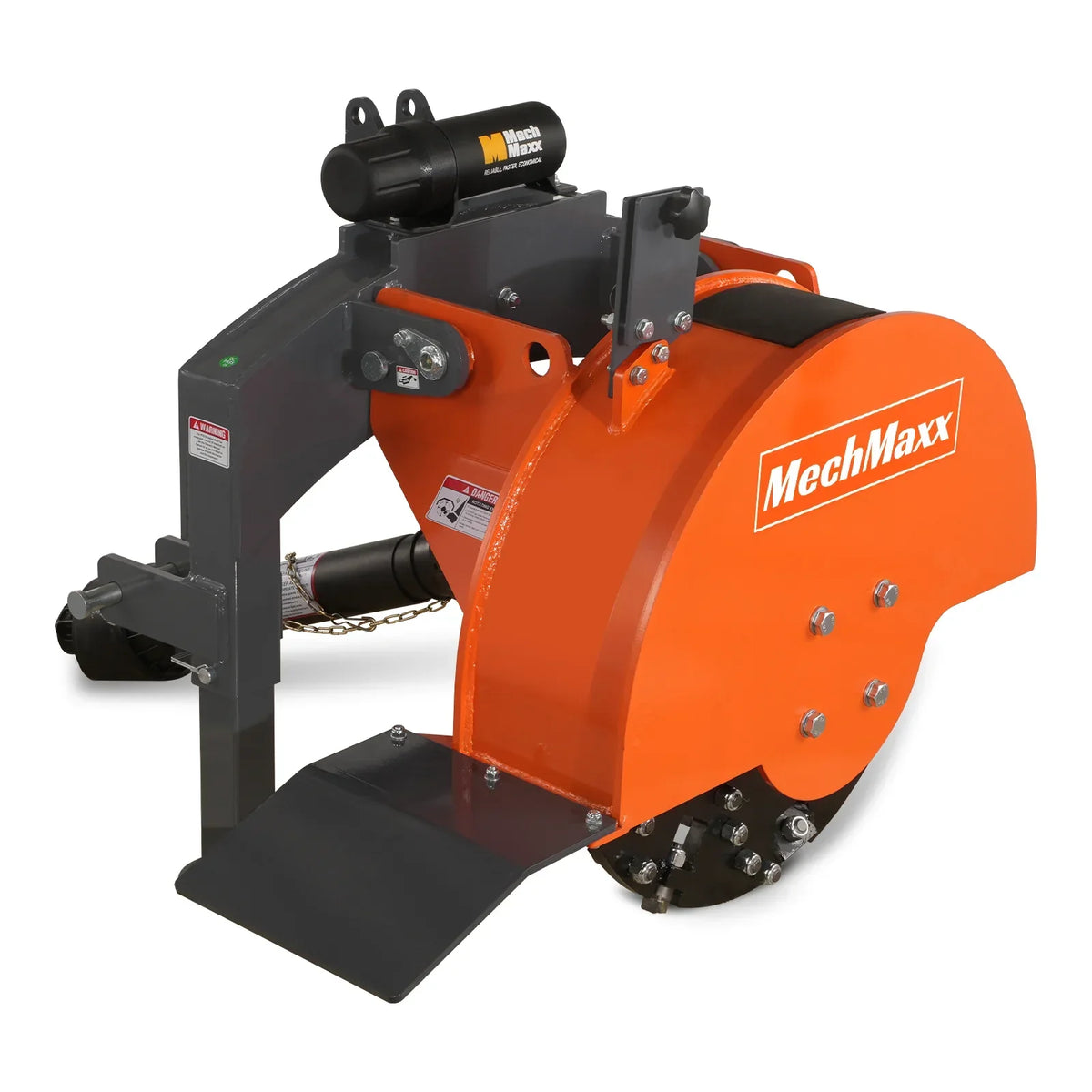

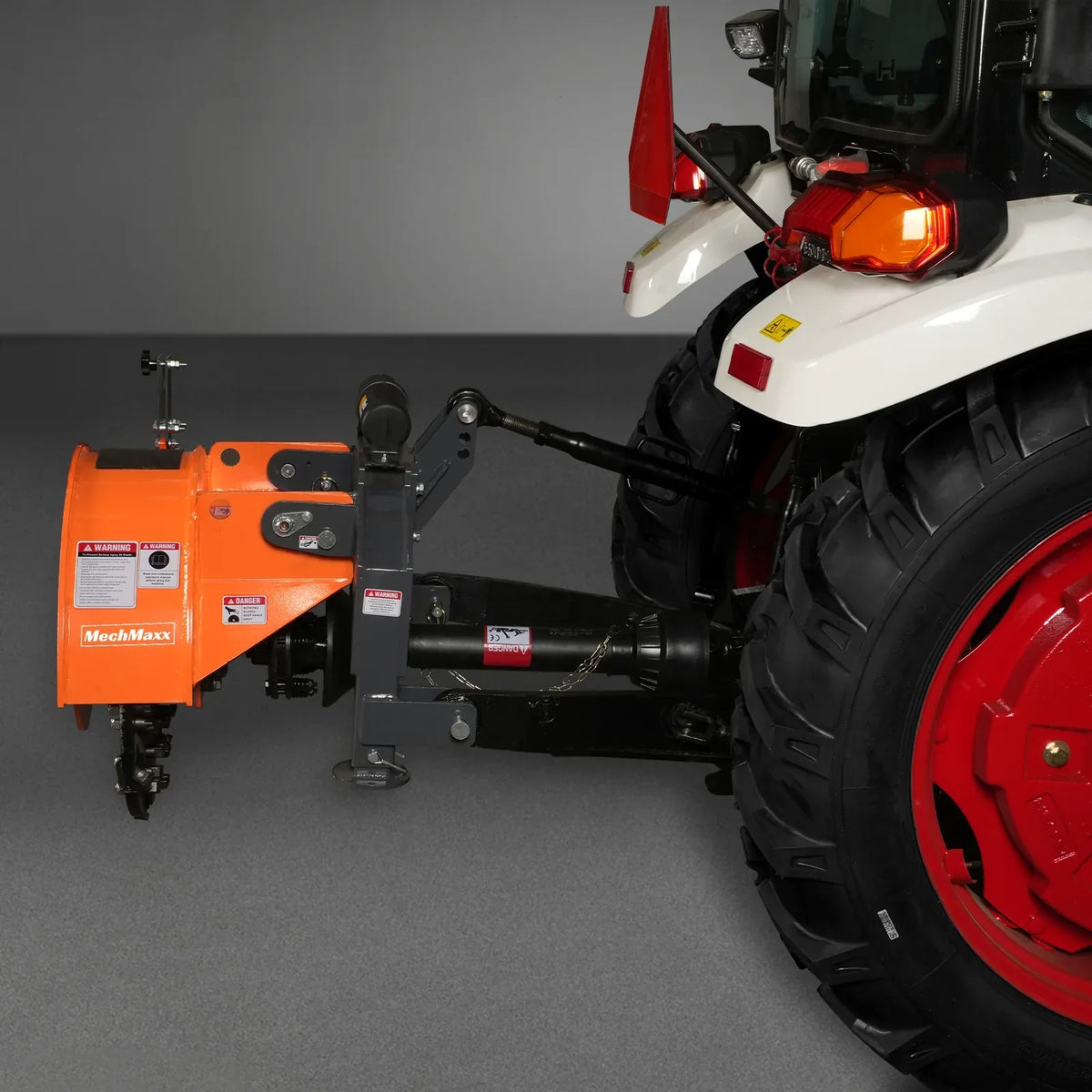

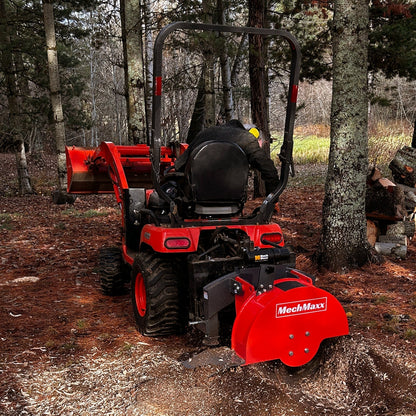

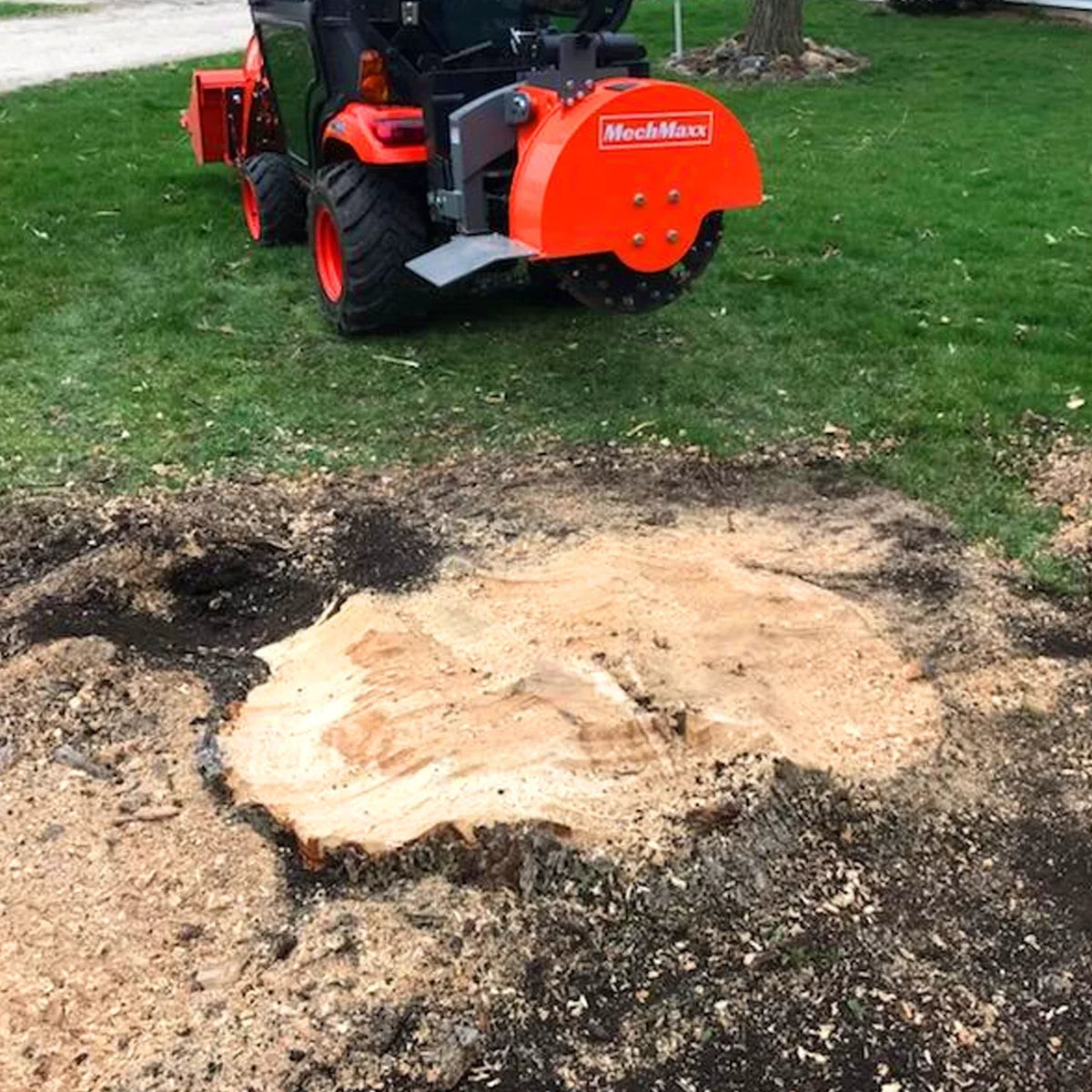

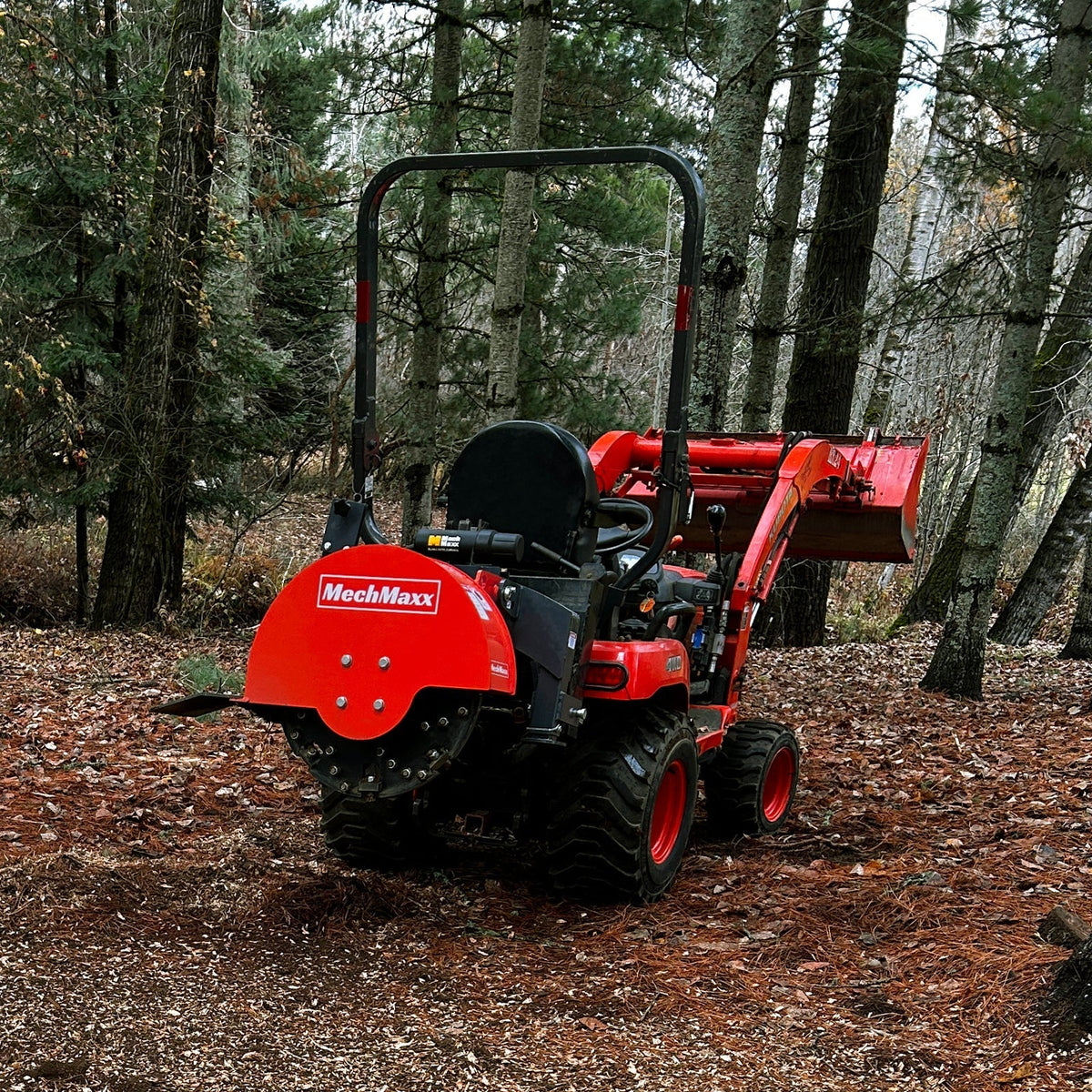

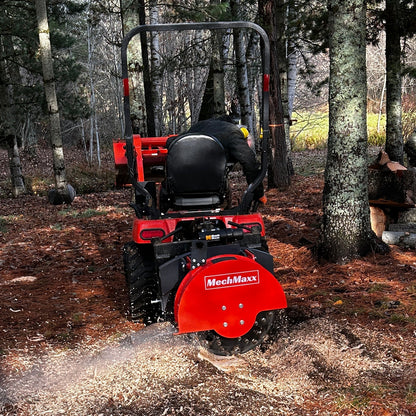

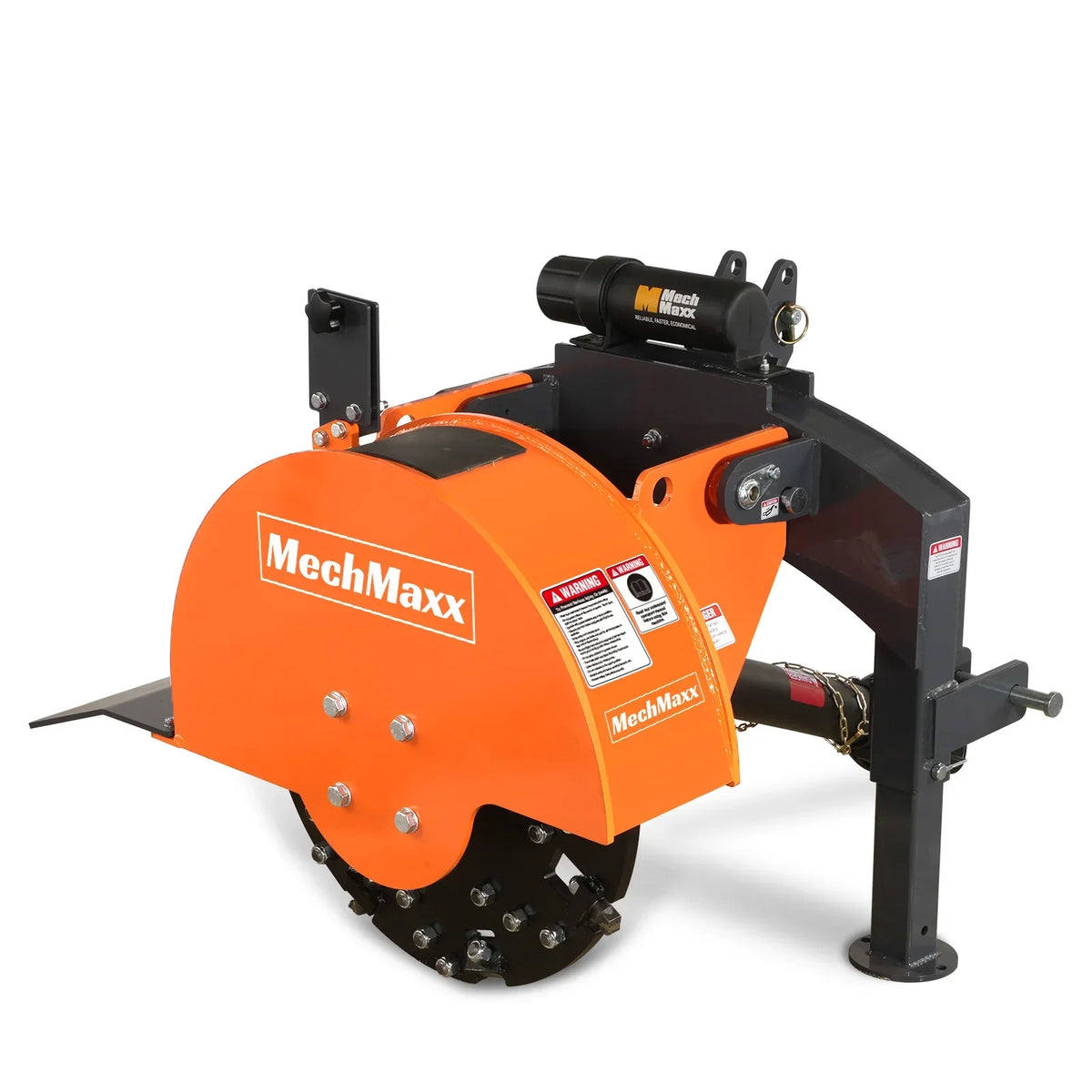

3-Point PTO Stump Grinder
Flywheel Diameter
24 in
Mounting
3 Point Hitch Cat. 1 (Quick Attach Compatible)
Flywheel Thickness
3/4 in
PTO Input
540 RPM

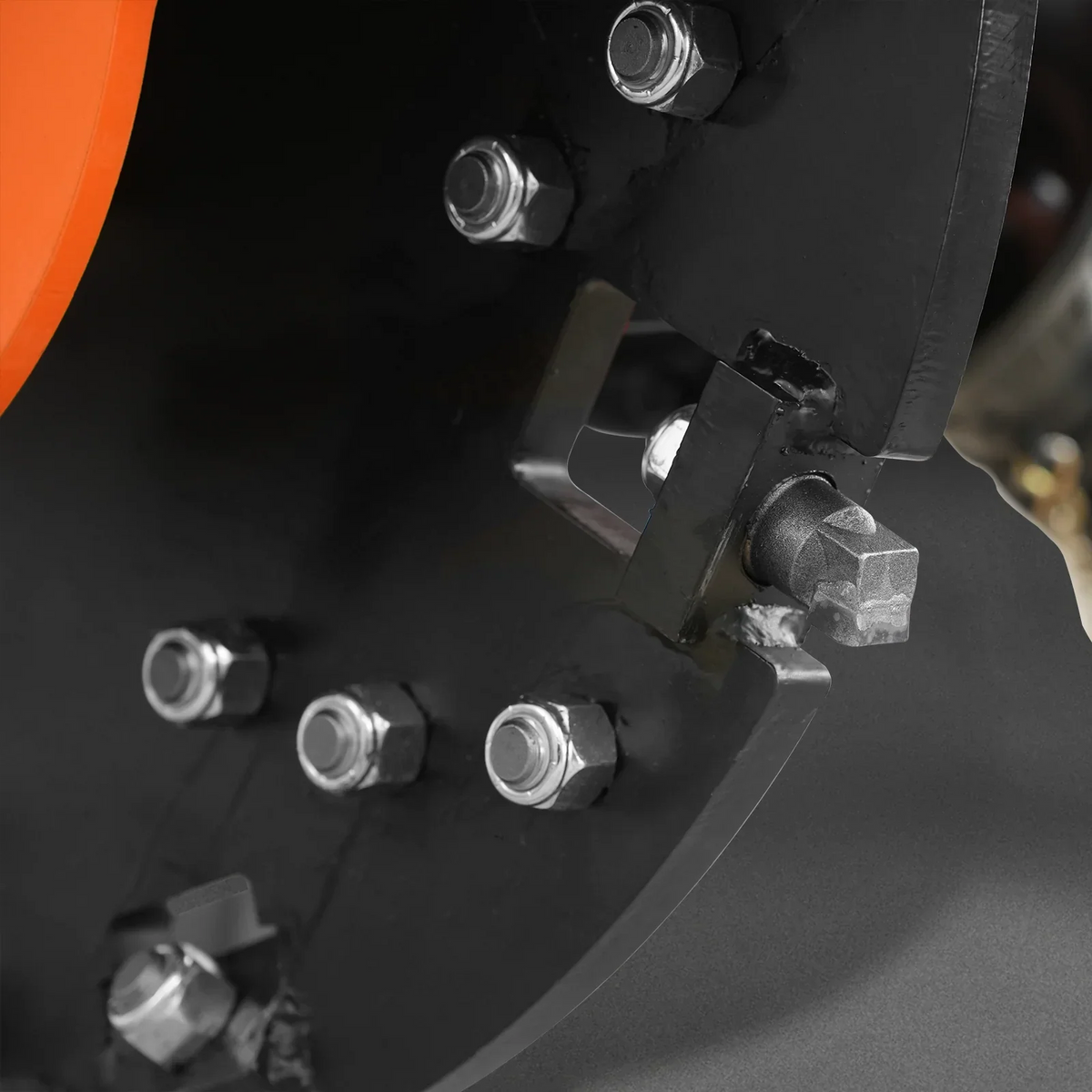

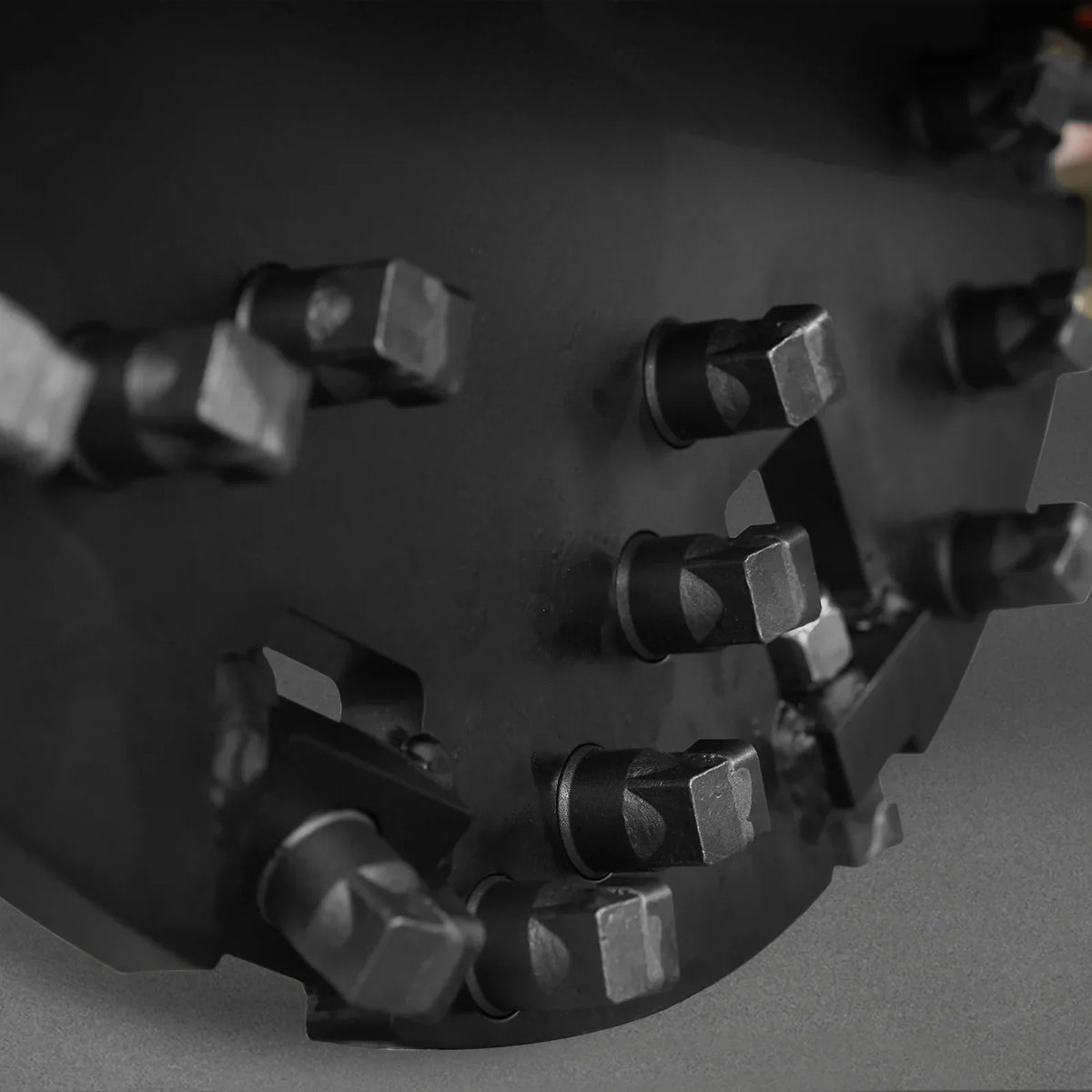

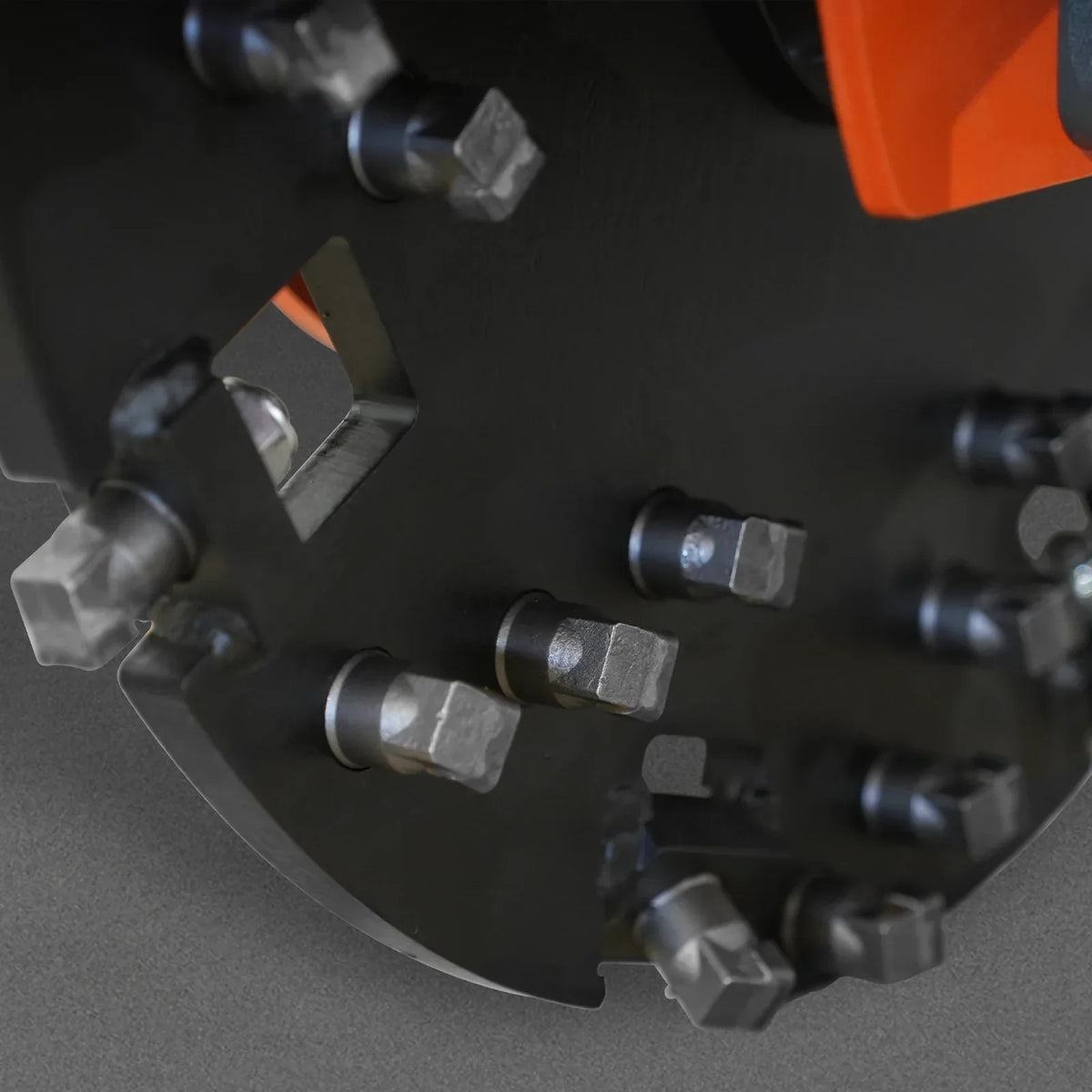

Carbid Tip
34 PCS
Max. Torque
1200 N·m
Carbid Tip Material
YG11C
PTO Shaft Weight
44 LBS
Tip Holder Material
42CrMo
Dimensions
29 × 37 × 38 in
PTO HP Required
15–45 HP
Packing
Iron Frame + Carton
PTO Shaft (Included Shipping)
1-3/8” 6 Spline Tractor and Implement Ends PTO Driveline Shaft with Slip Clutch
Weight (N.W/G.W.)
450/563 LBS

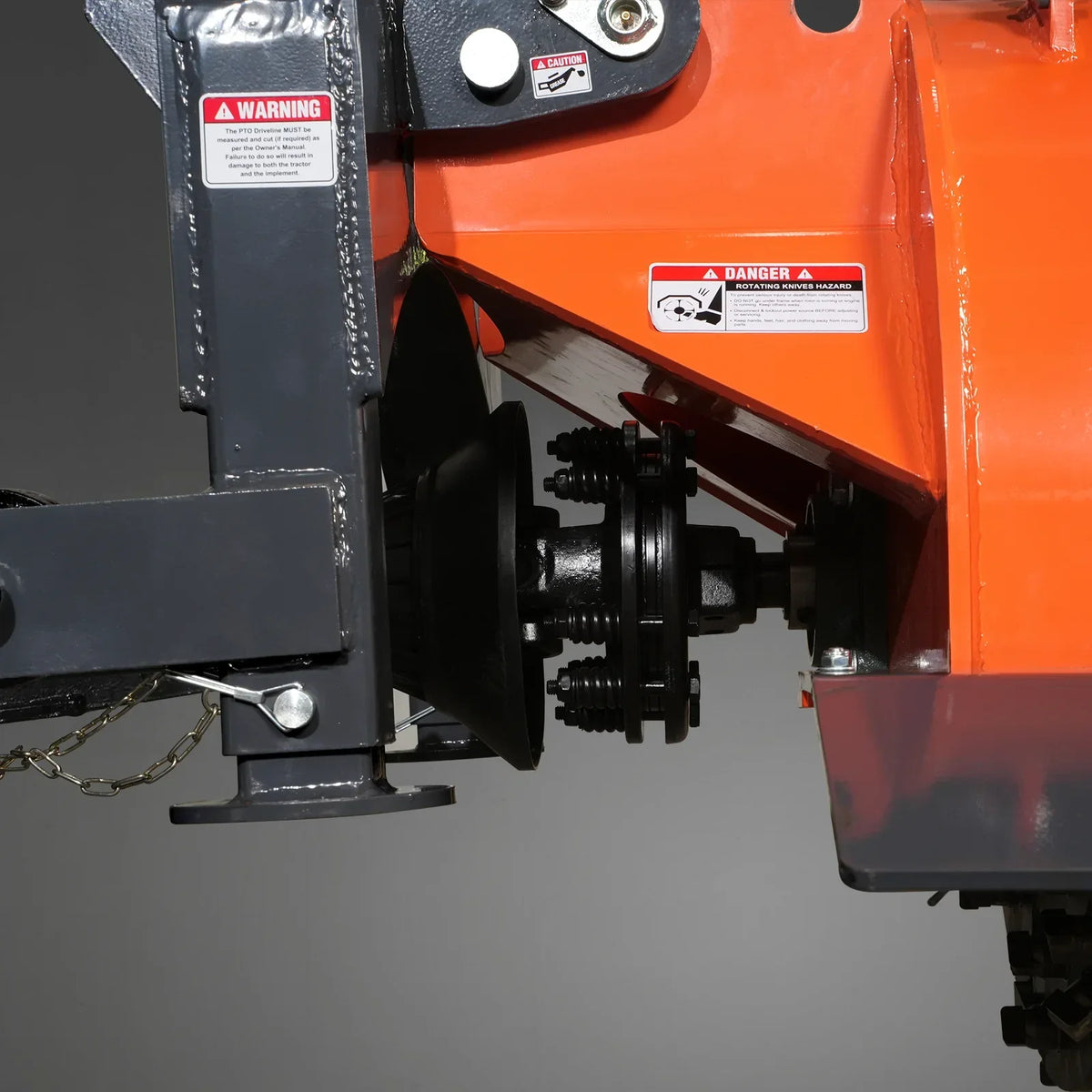

Friction Torque Limiter (Slip Clutch)
Included

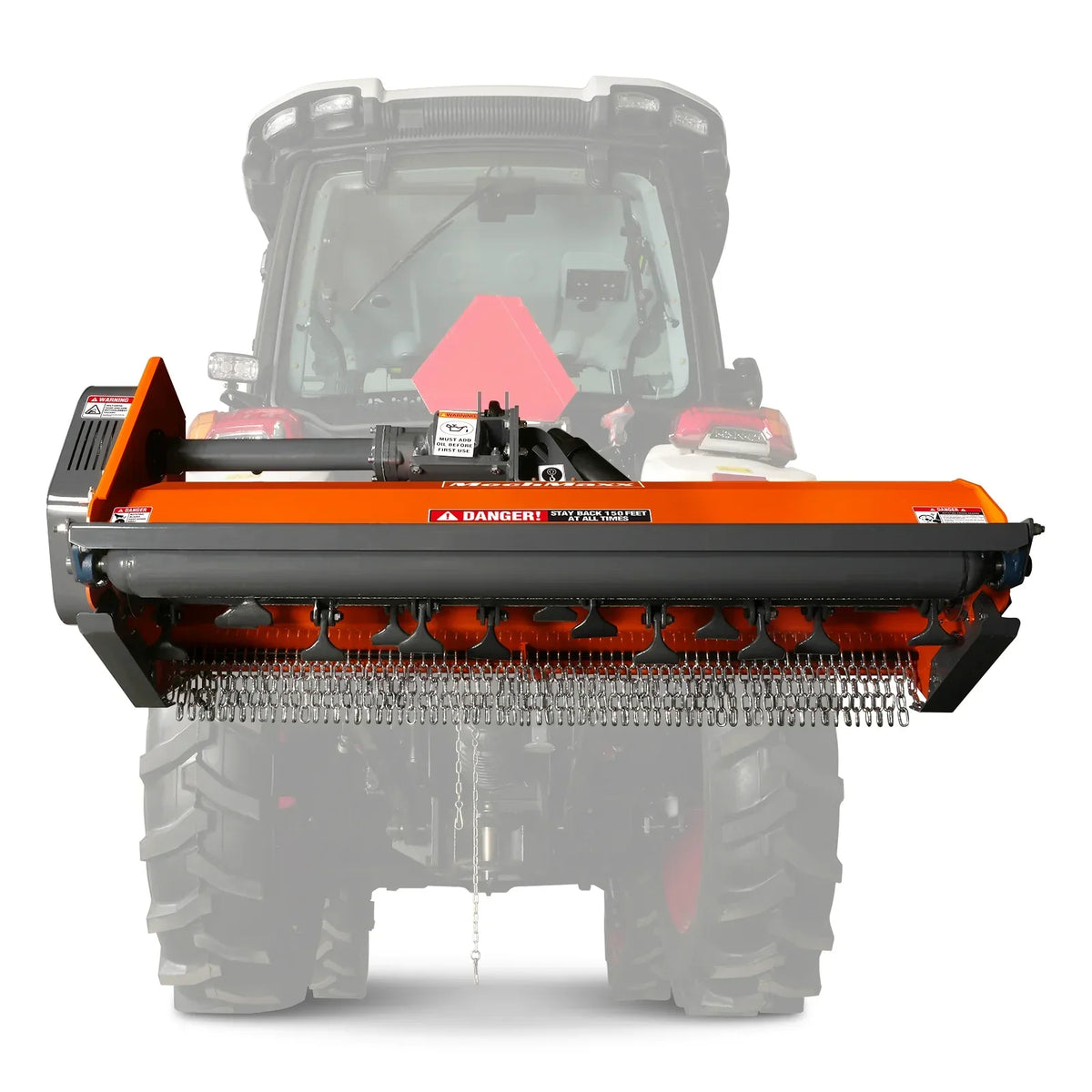

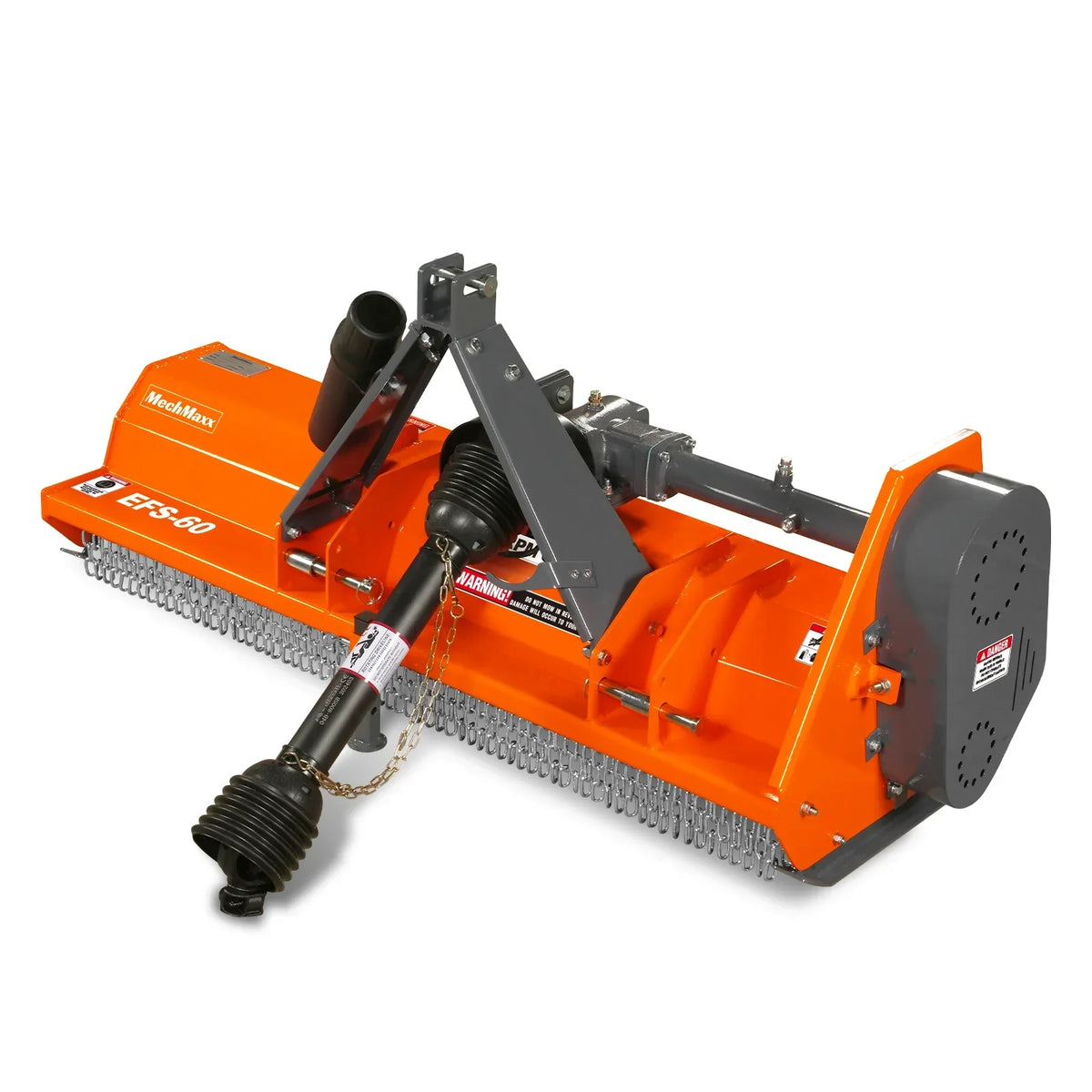

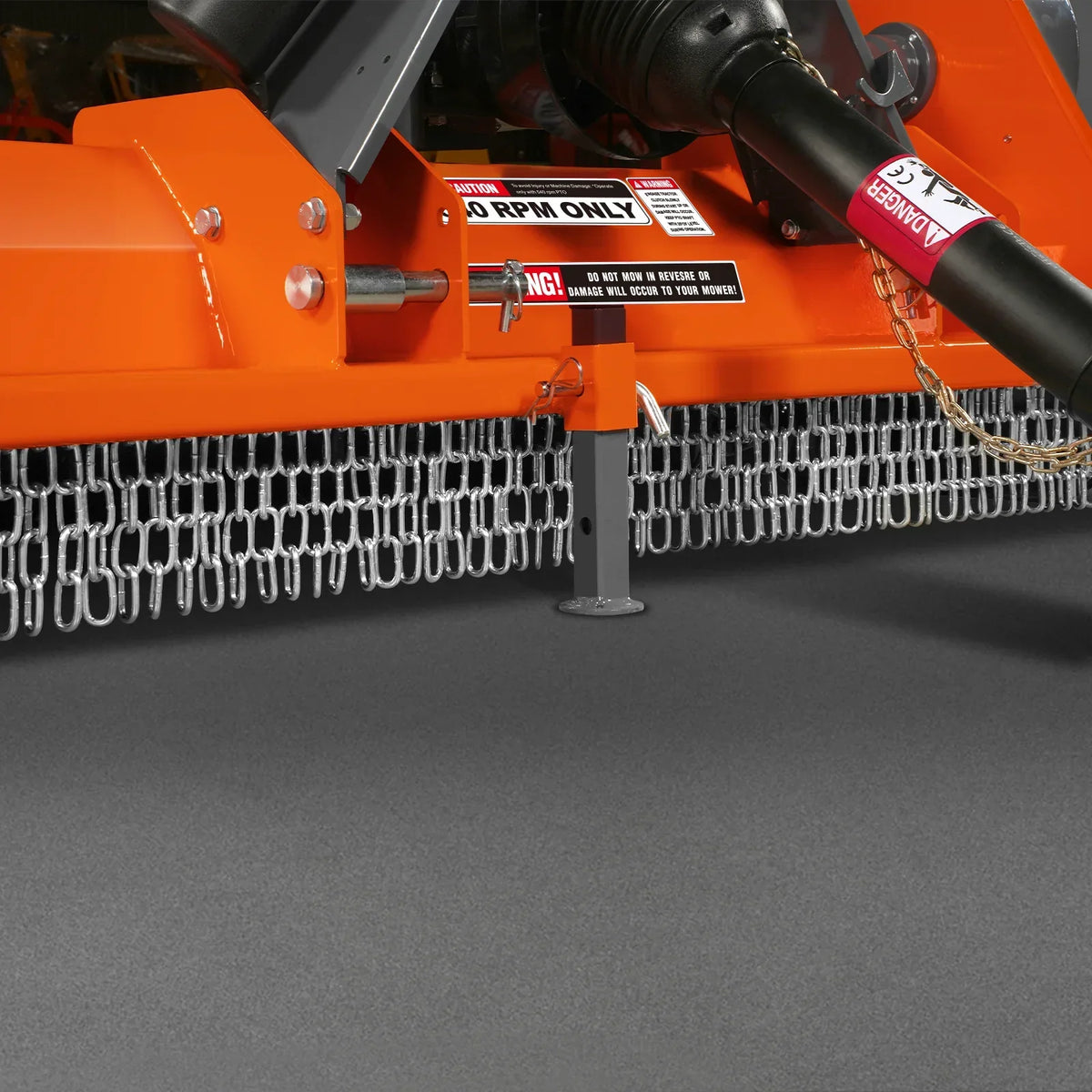

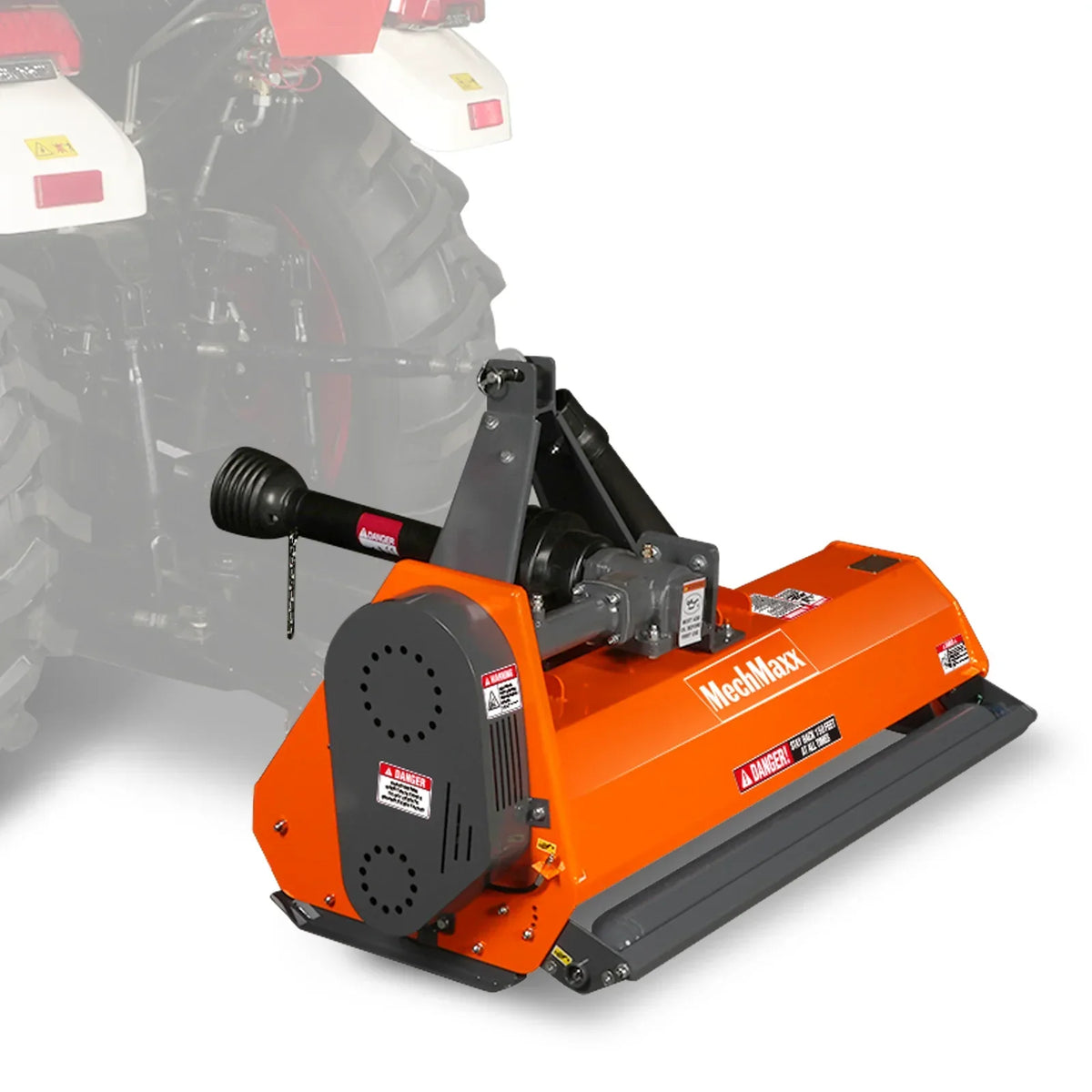

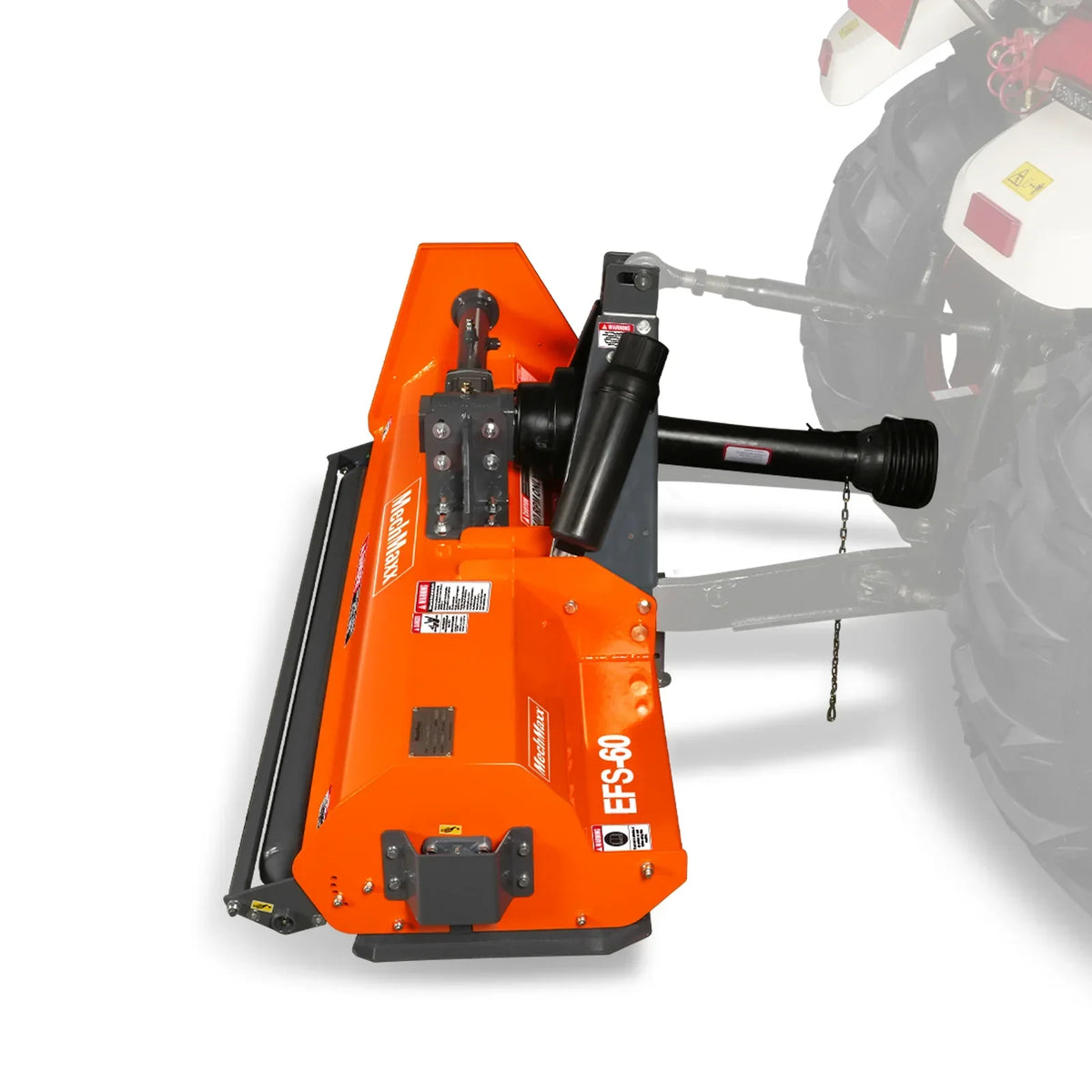

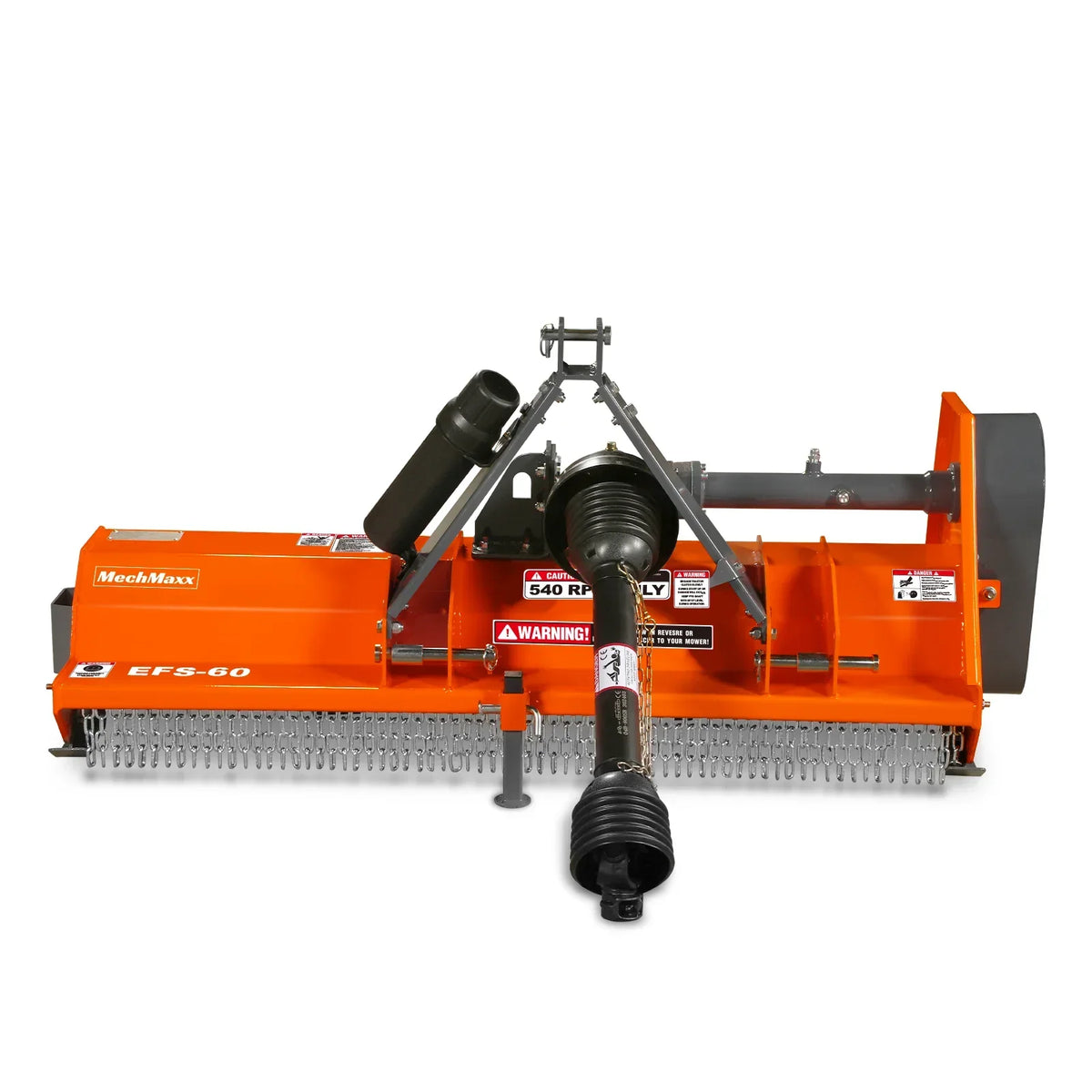

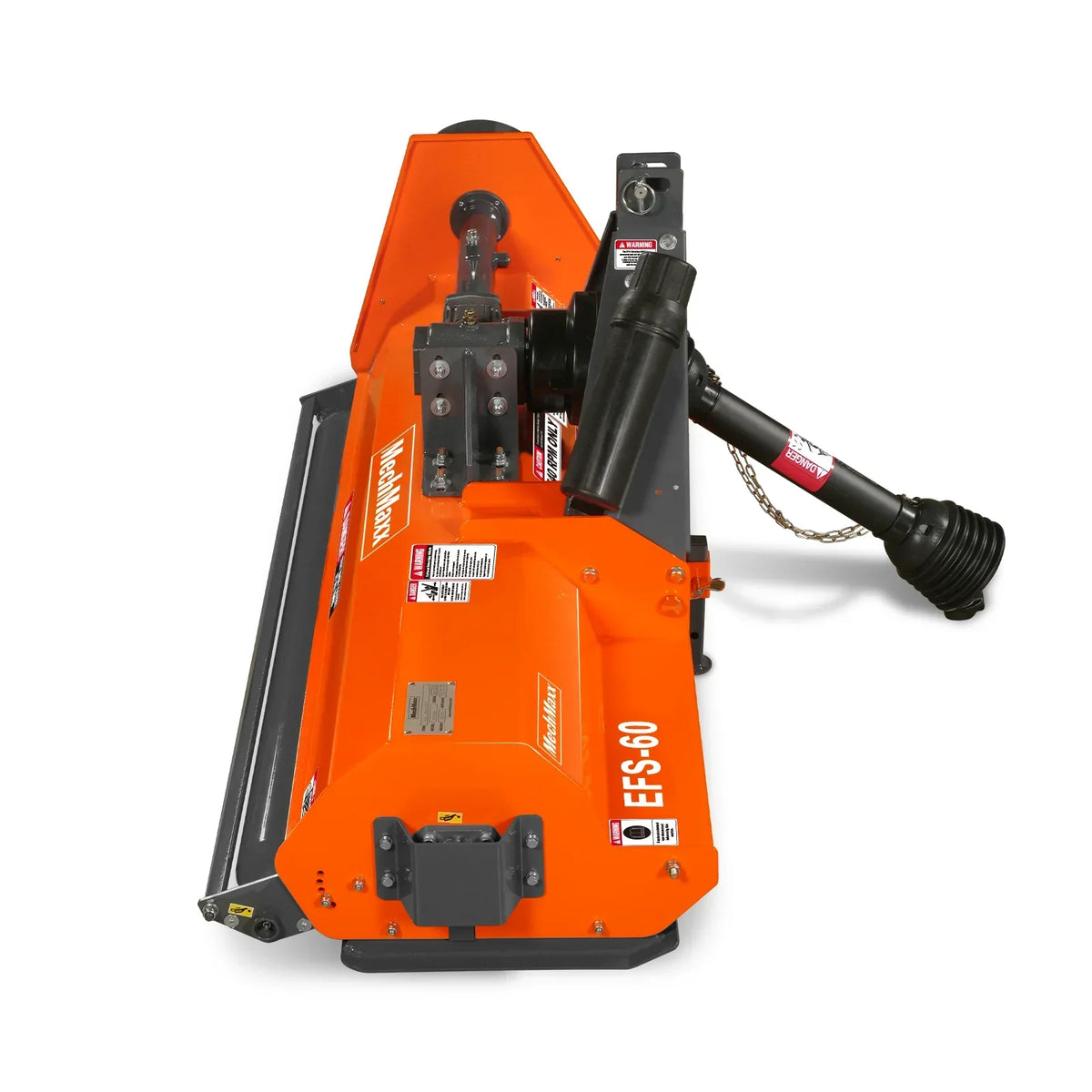

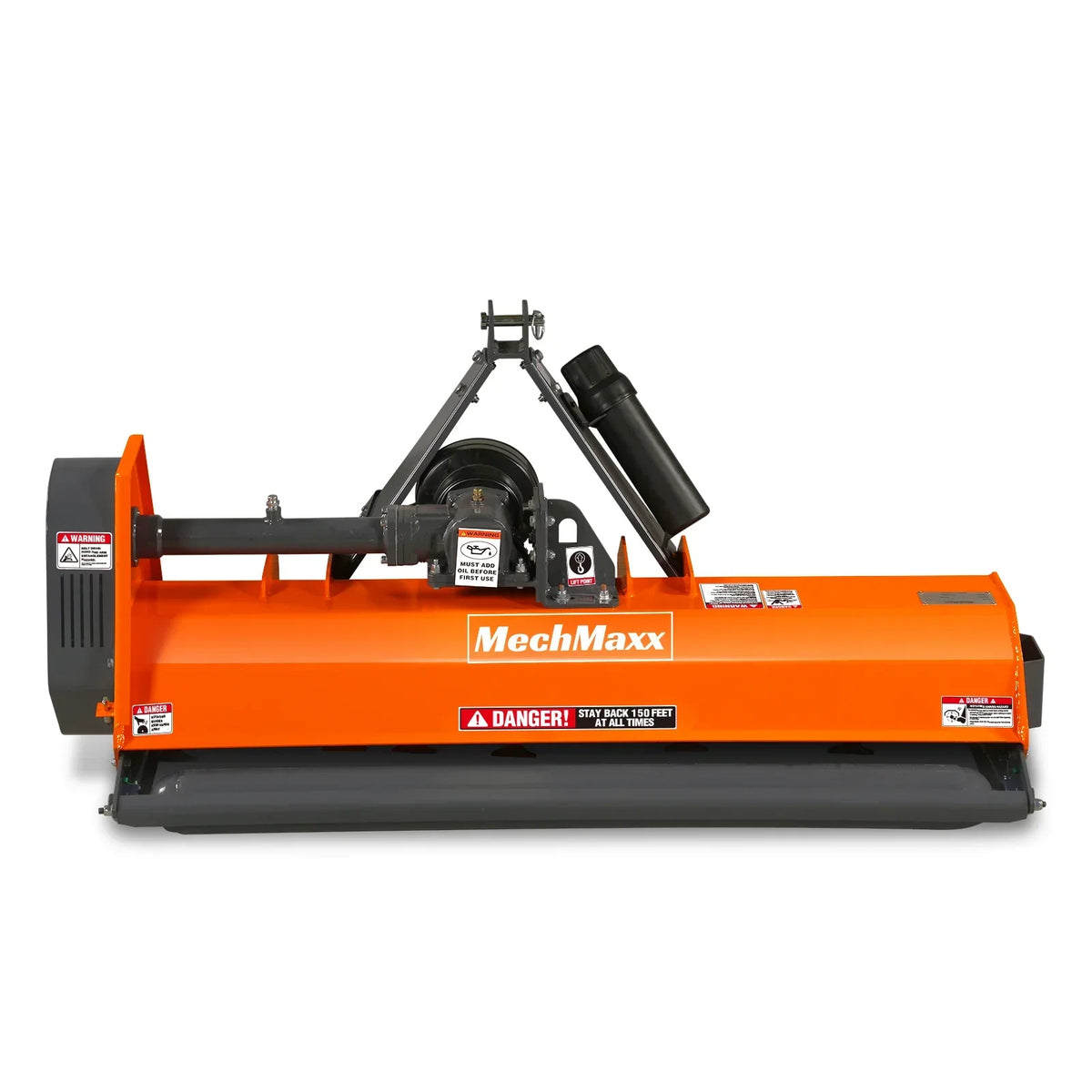

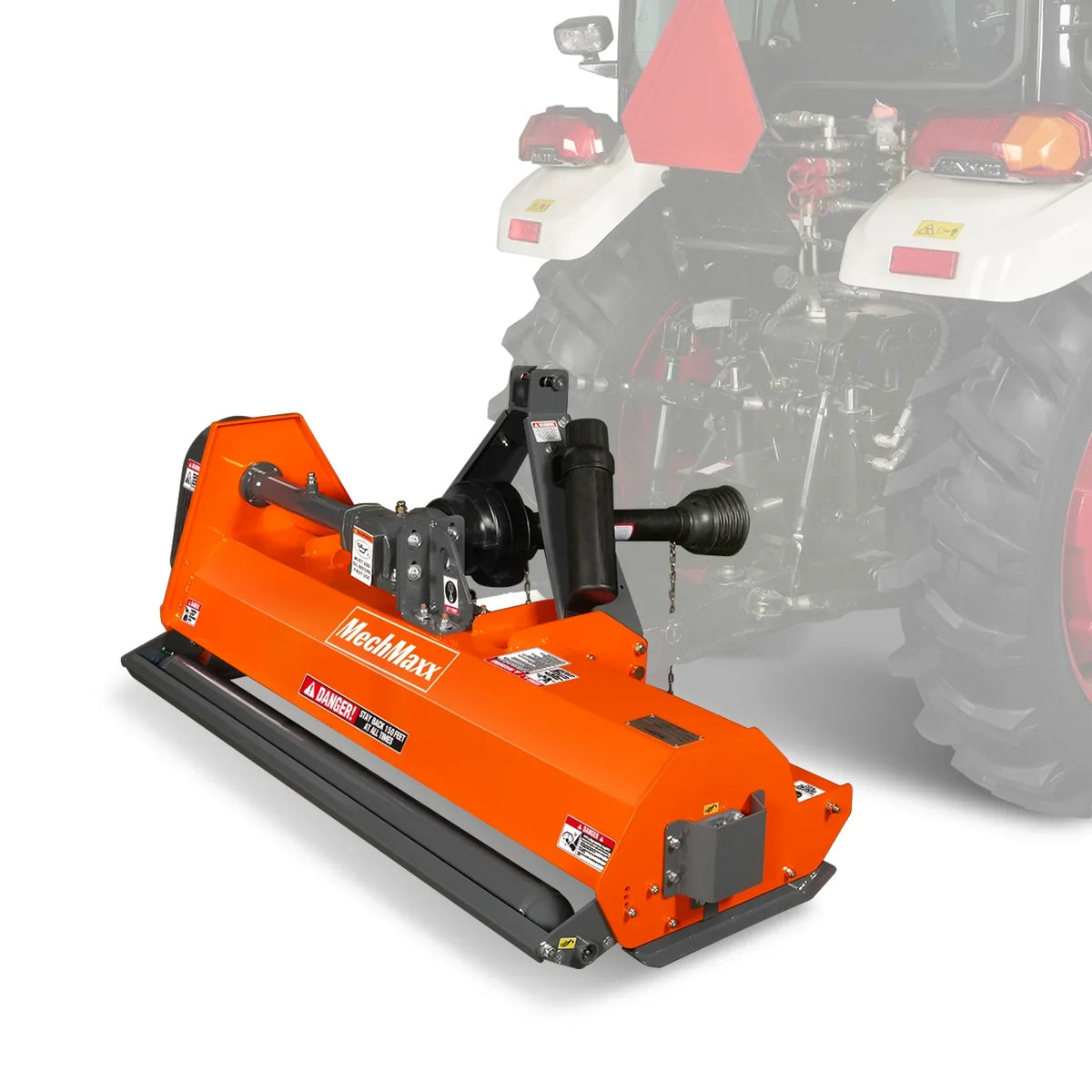

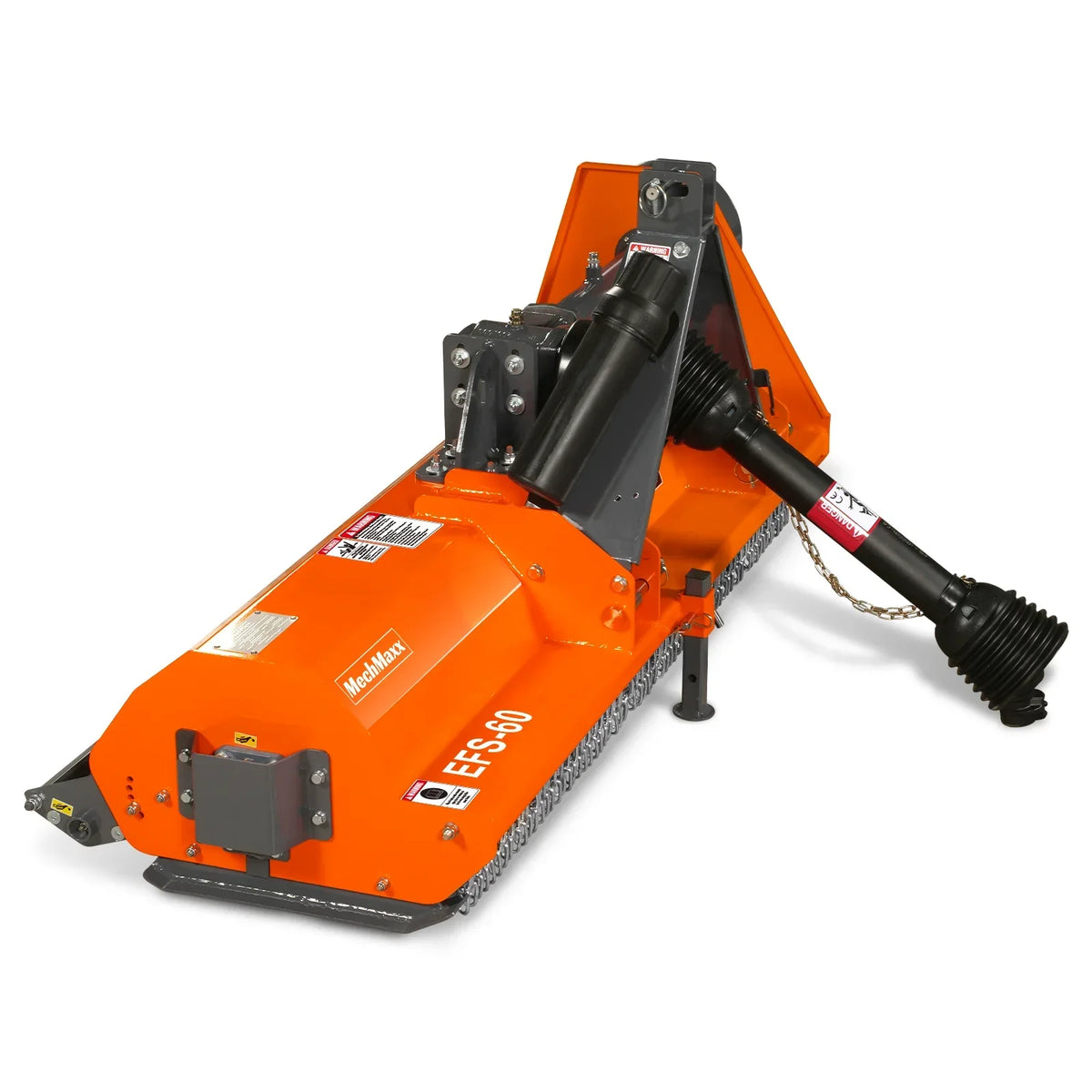

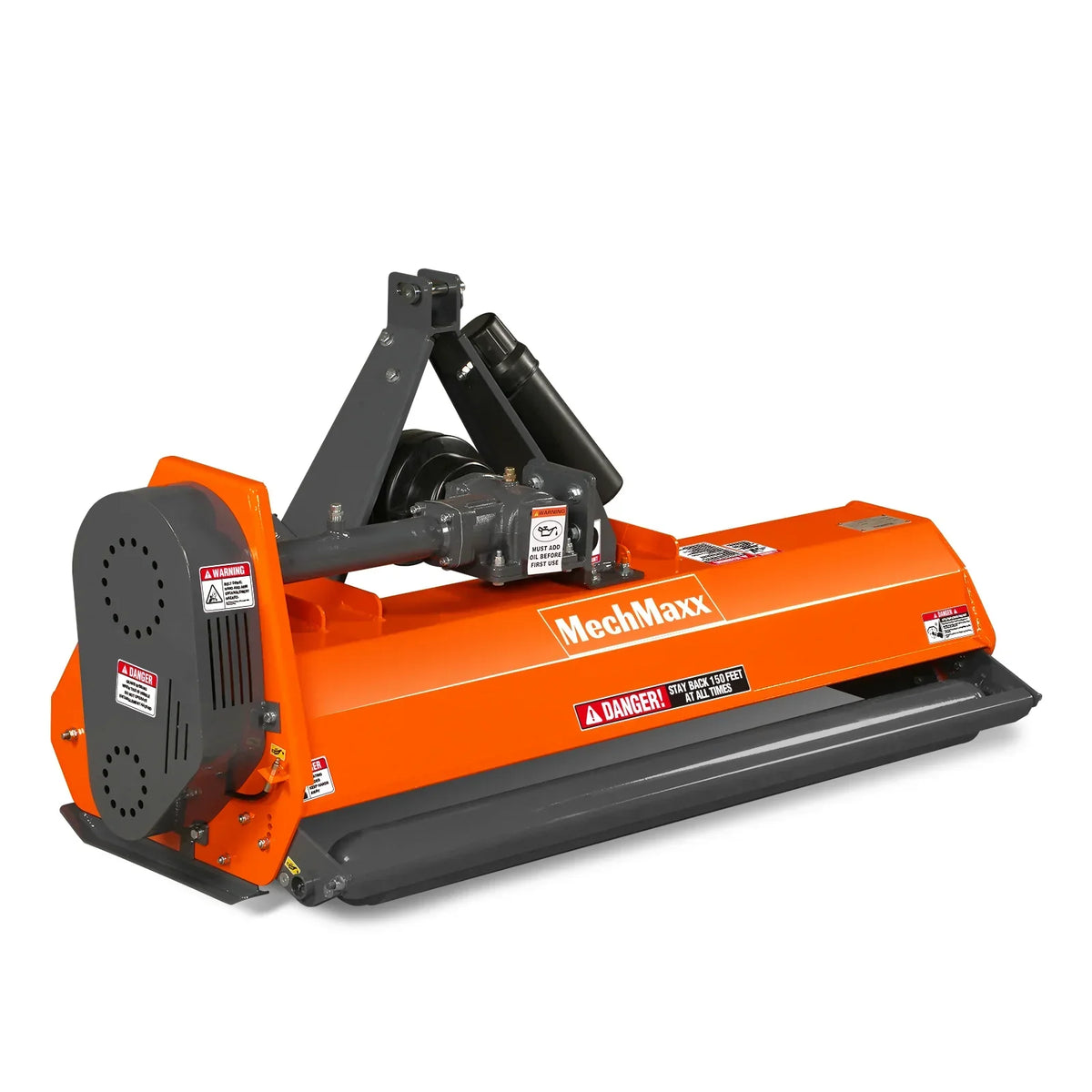

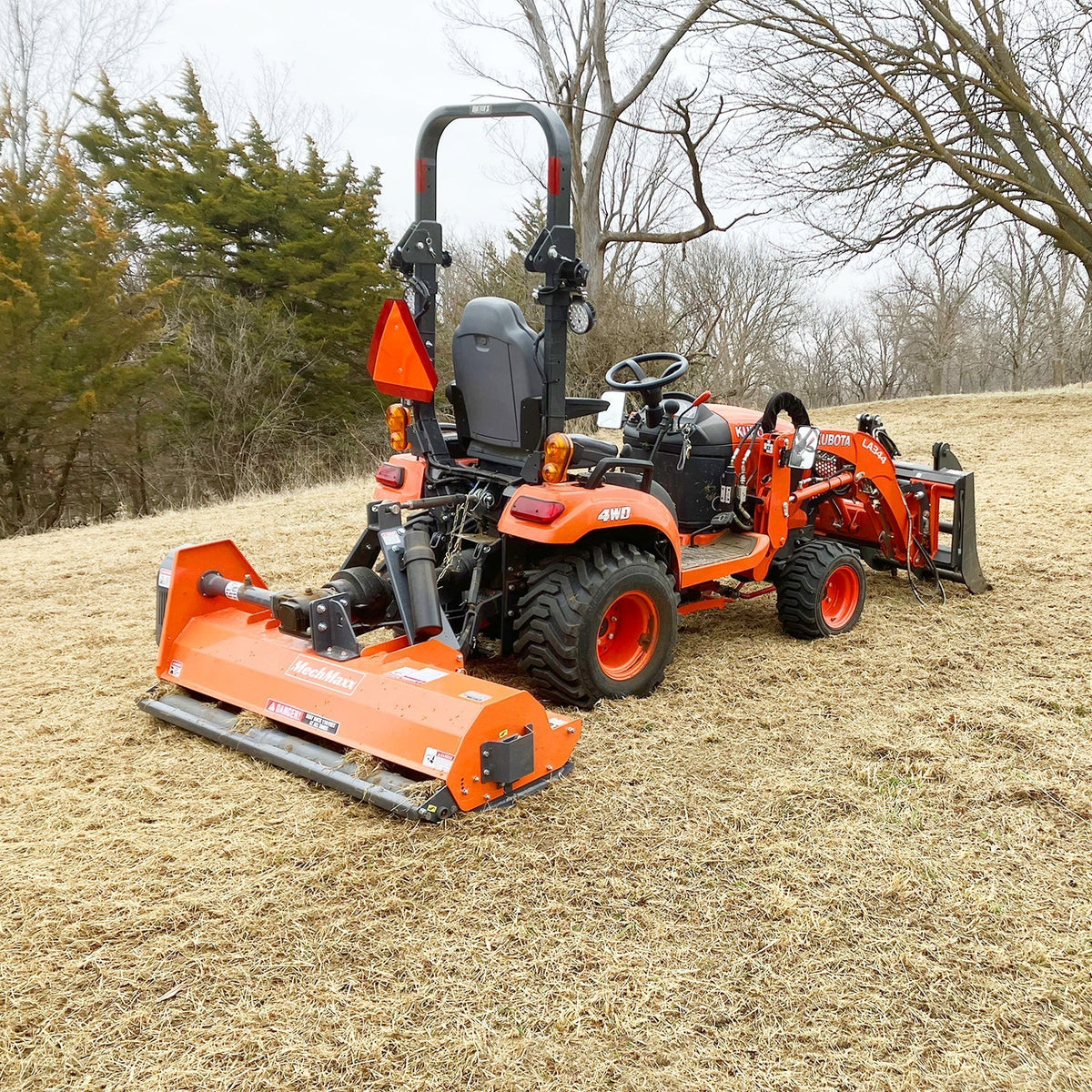

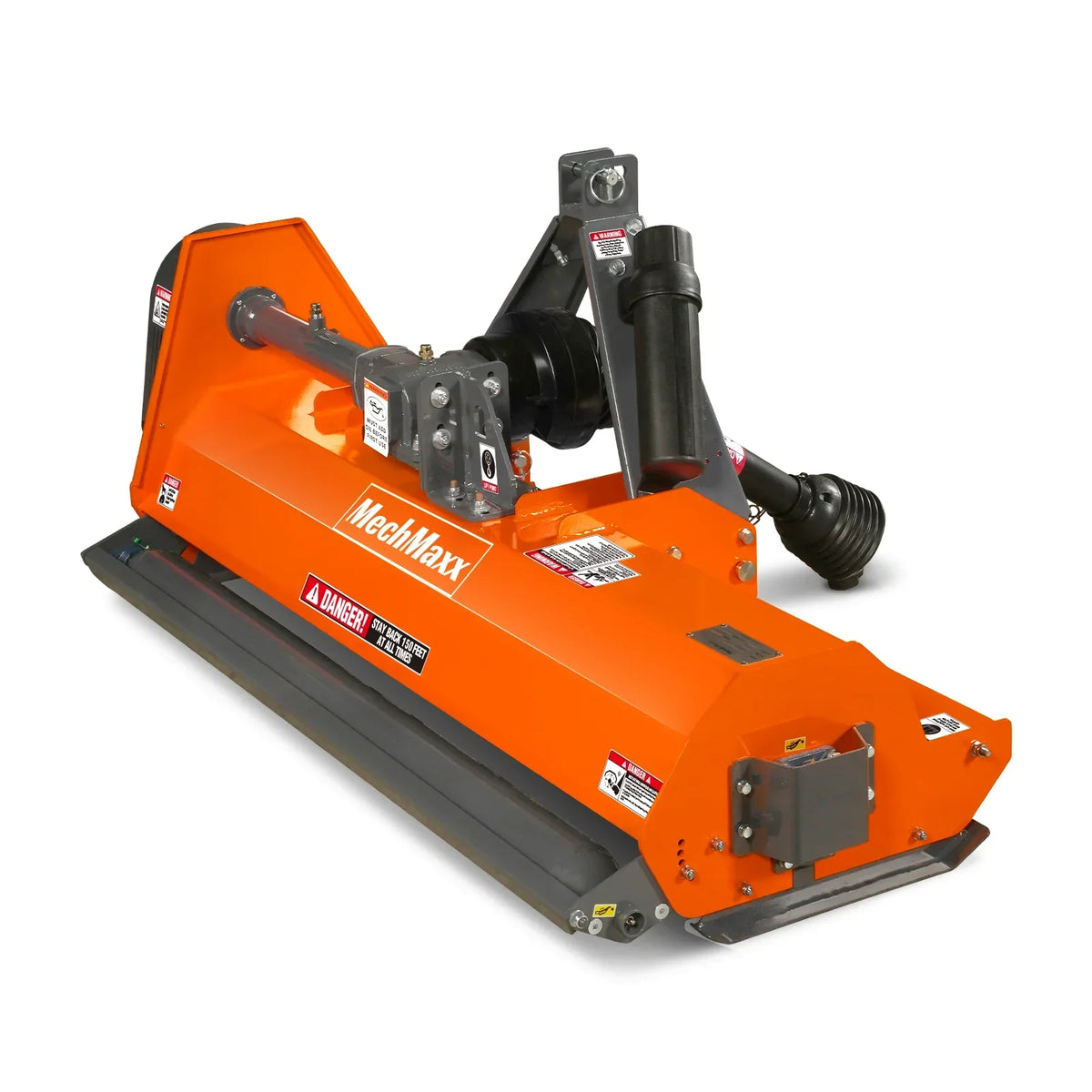

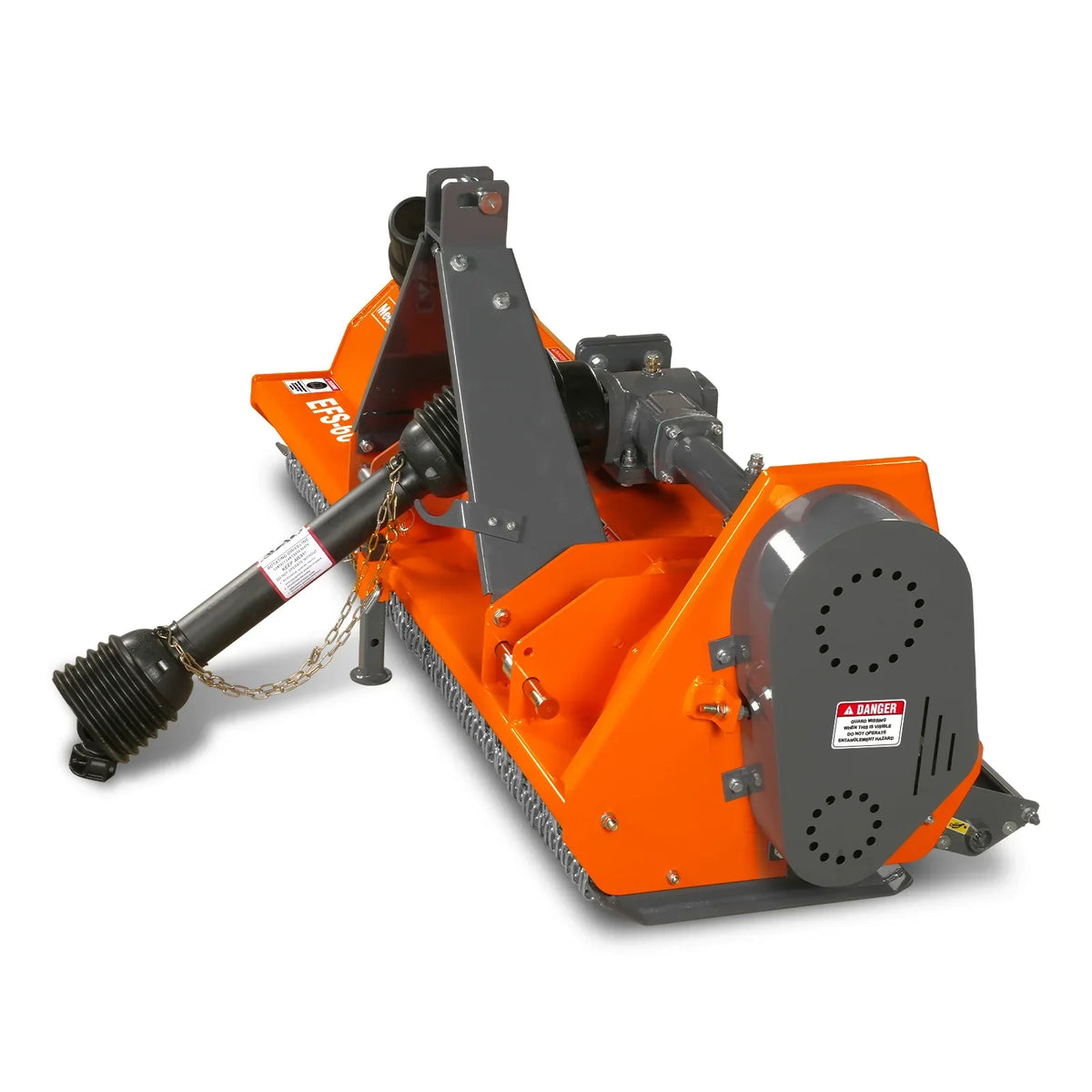

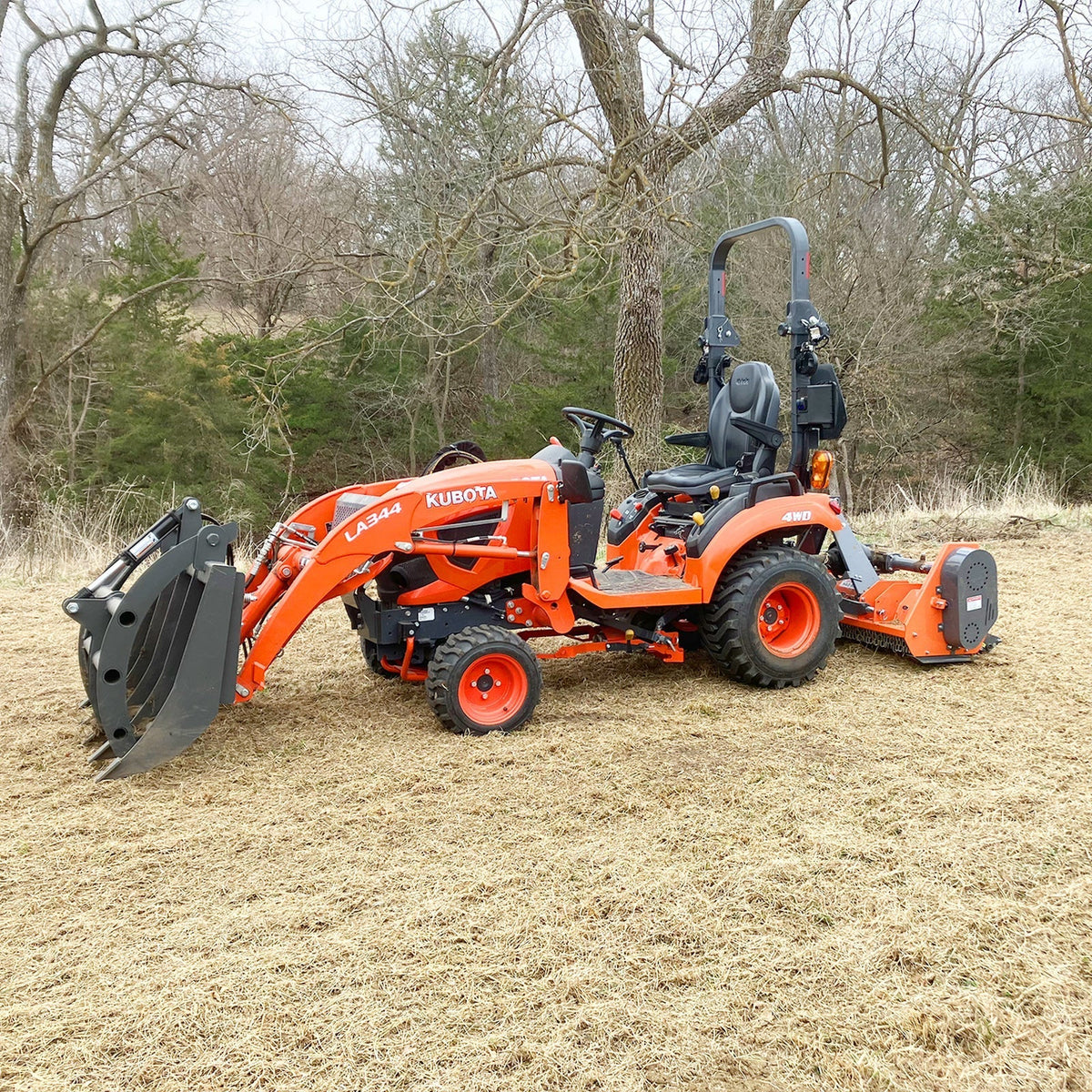

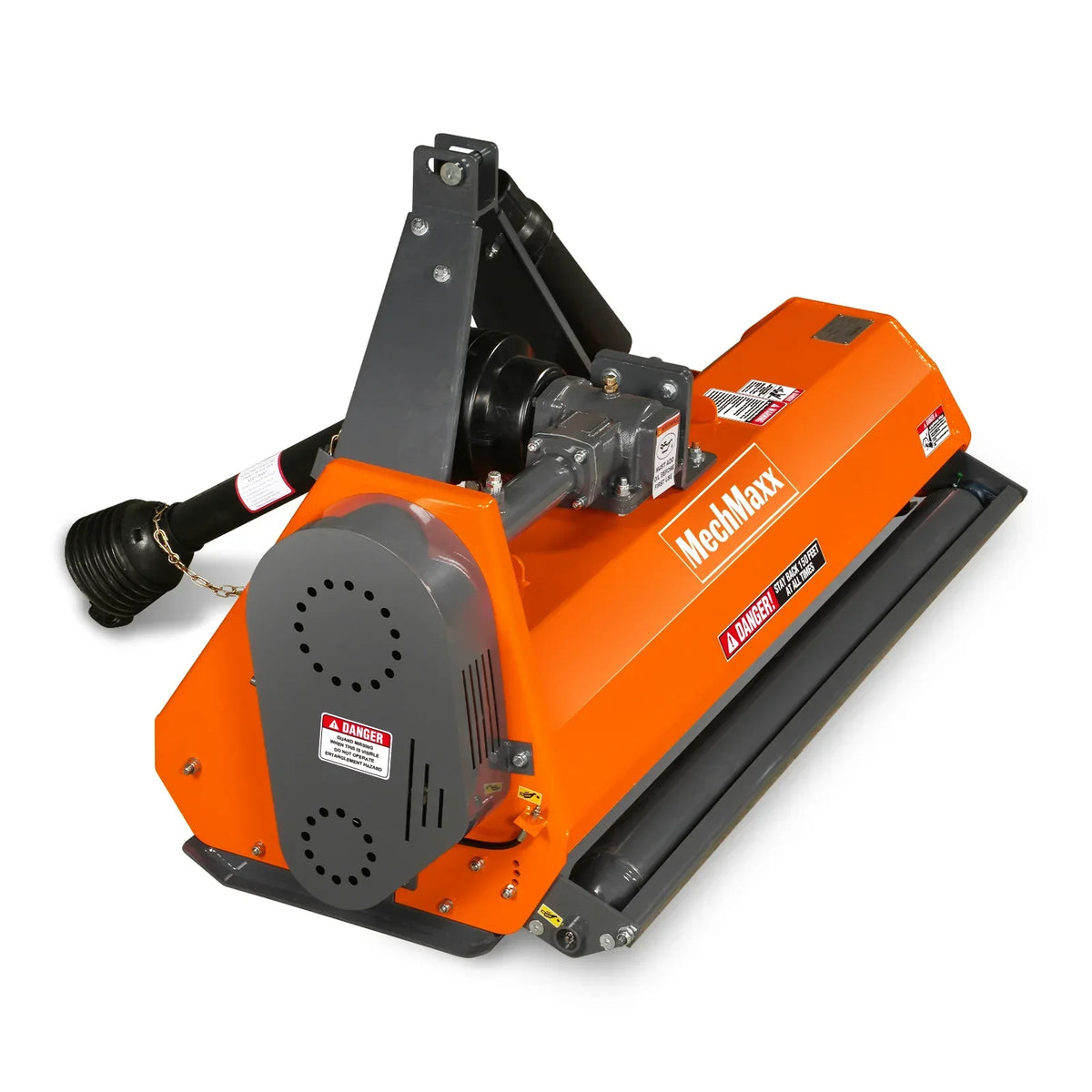

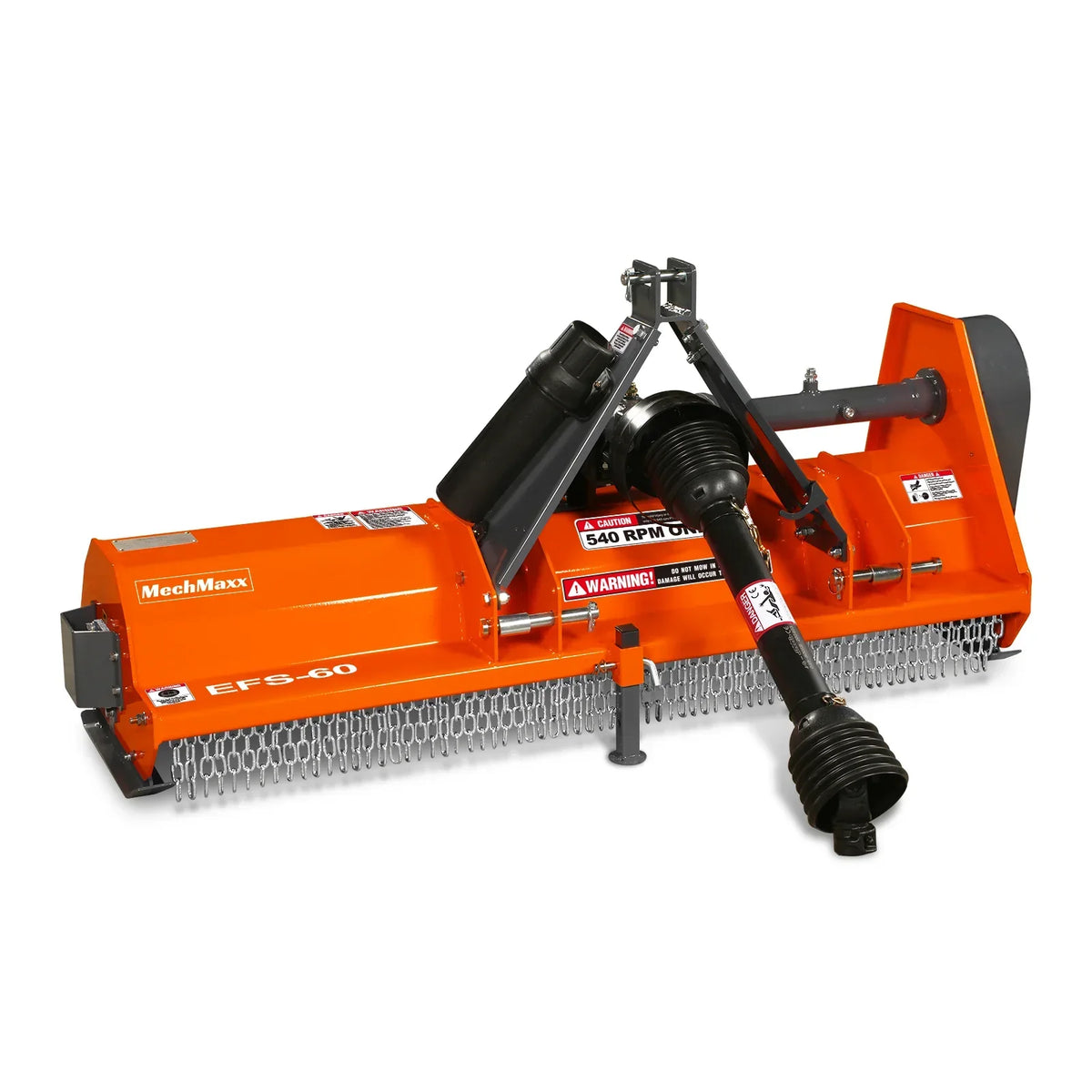

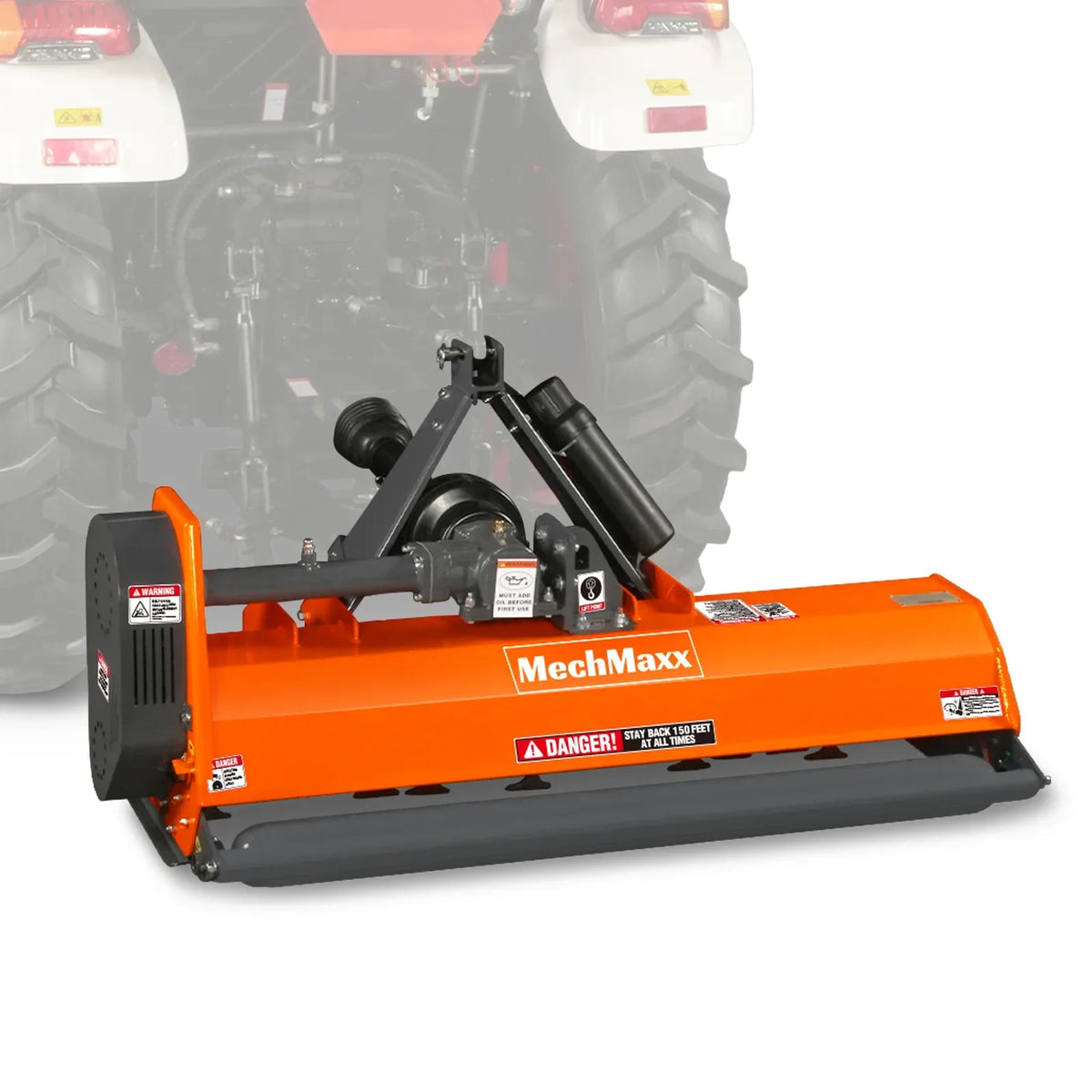

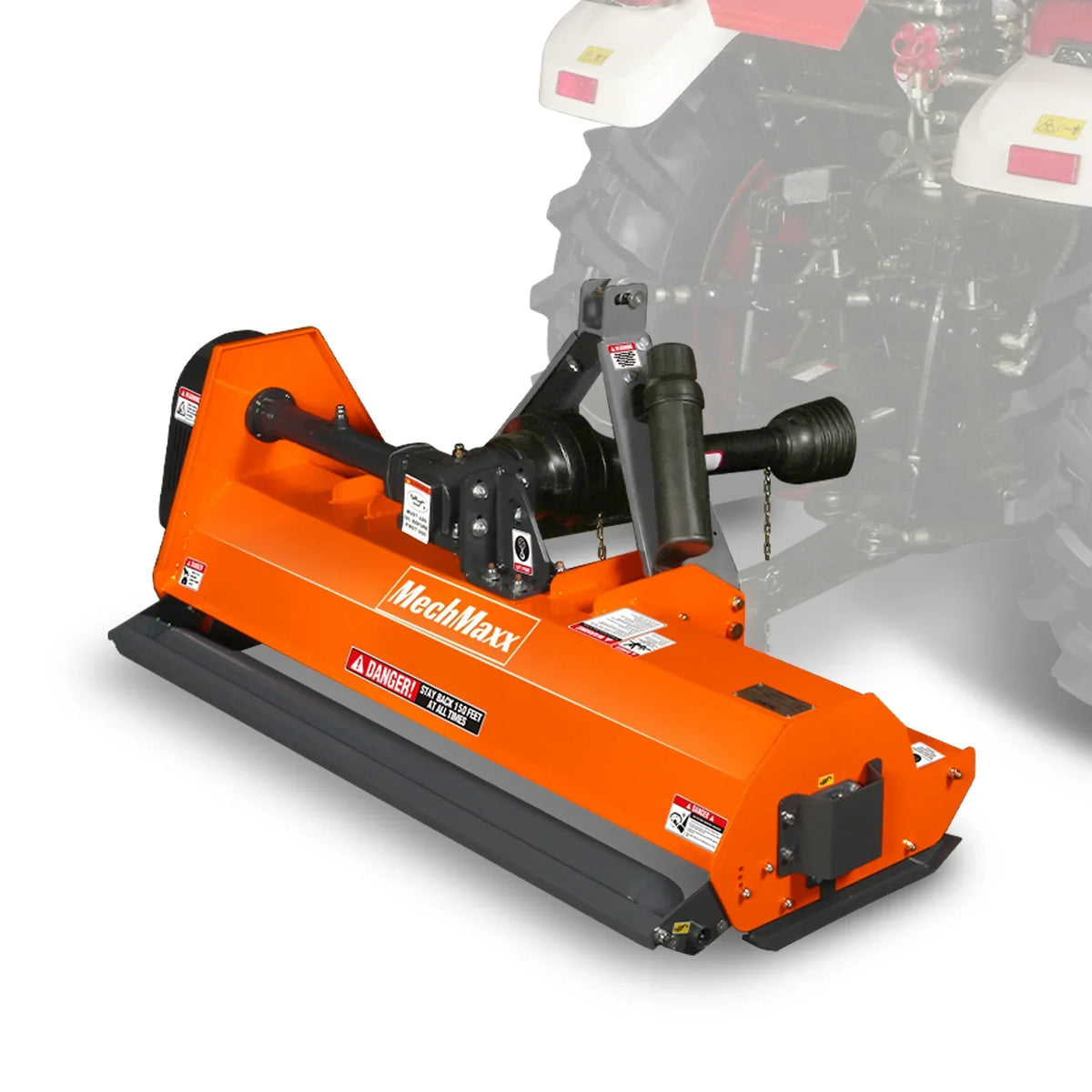

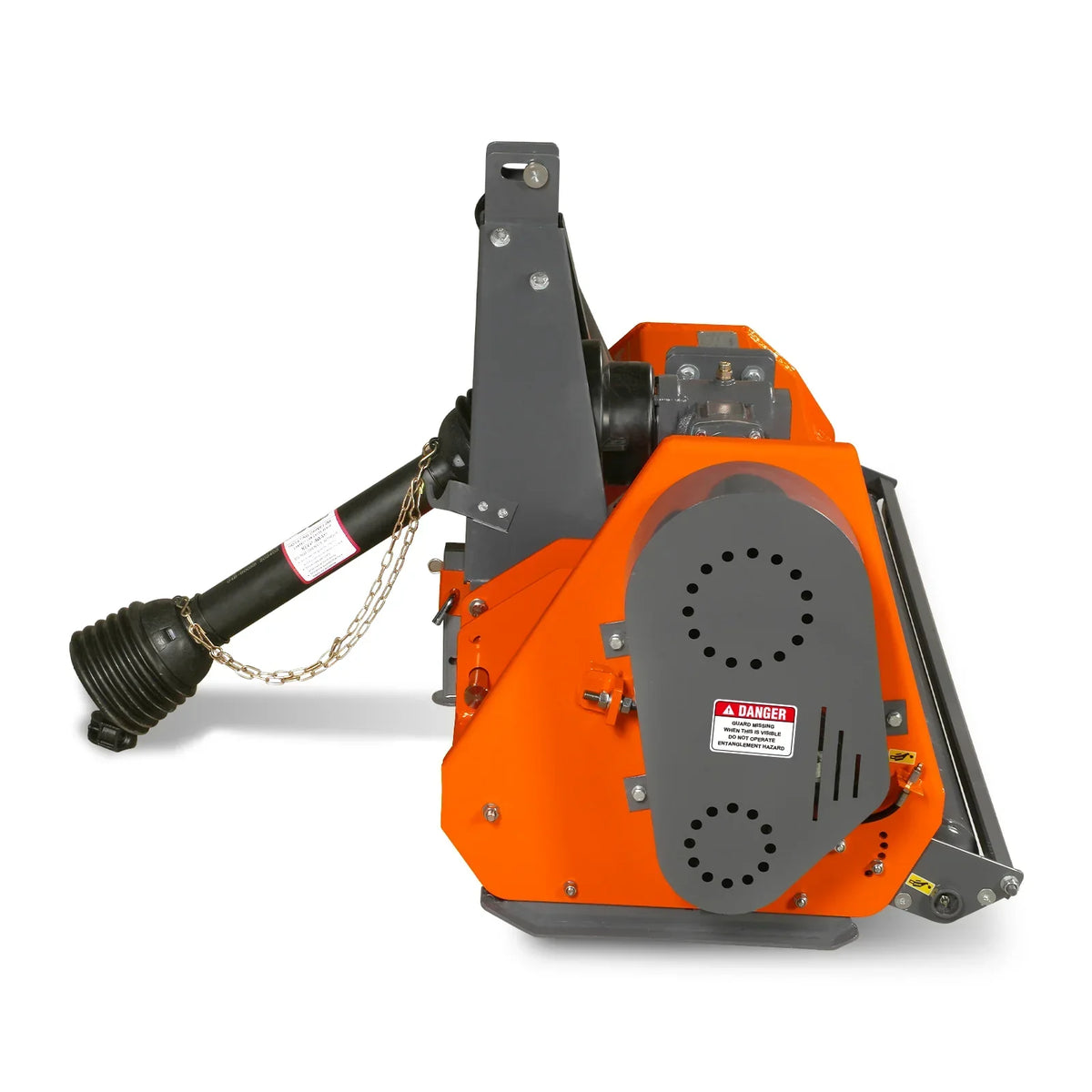

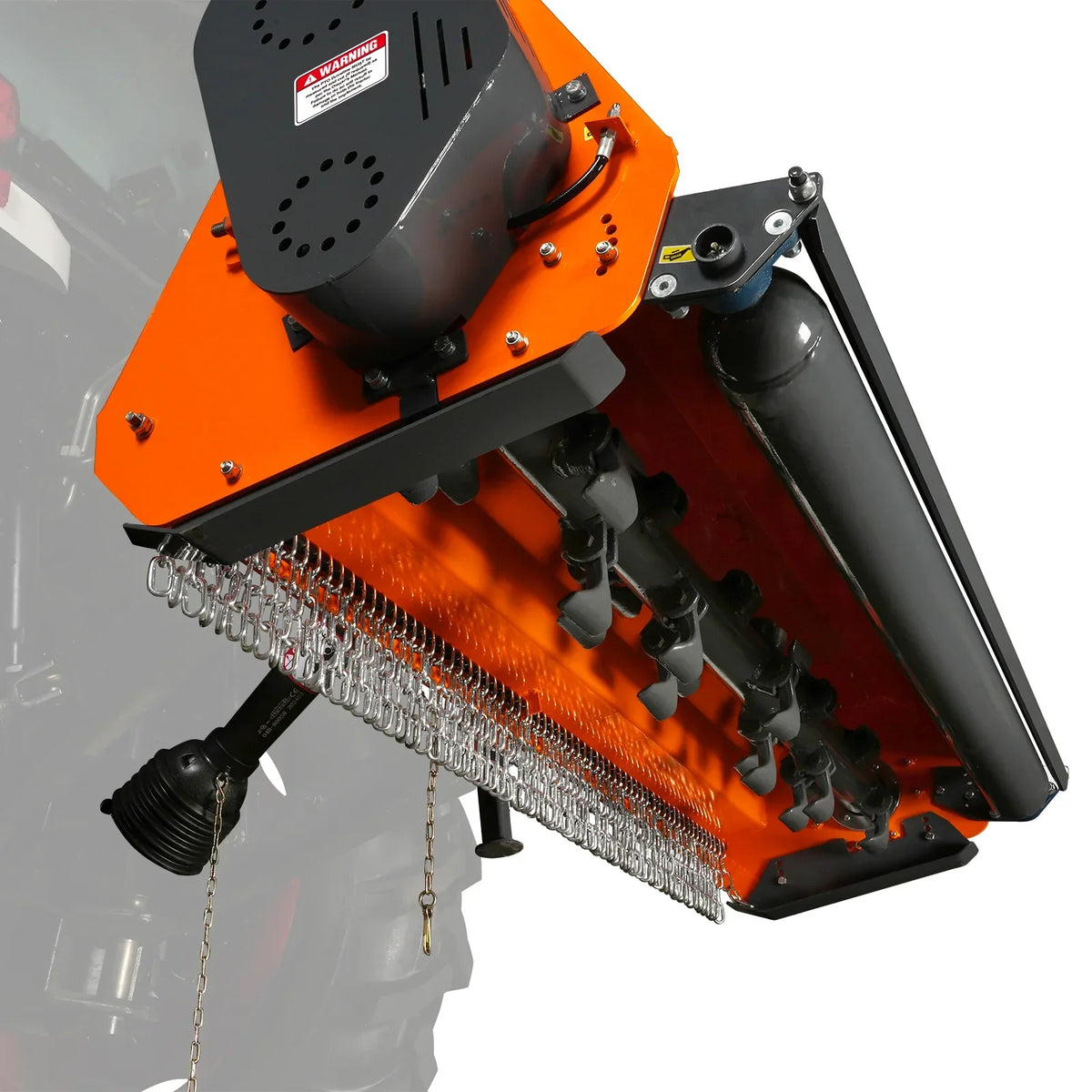

60'' PTO Flail Mower
Engine Power Required
15-35HP
Drive Type
Belt drive
Working Width
60in
Number of Belts
3
Overall Width
65in
Belt Size
V Belt 13 X 1041
Blade Ground Clearance
0.6in-1.8in
Drive Belt Tensioner
Yes
Max. Cutting Diameter
Depends On The Type Of Grass
Deck Thickness
0.16in
Number Of Blades
24
Side Plate Thickness
0.24in
Blade Type
Hammer
PTO Shaft RPM
540 RPM
Size Of Blades
3.5 x 3 x 1.6in
Driveline Shaft Length
T5-LF-31 with shear bolt; 31- 43in
Blade Weight
0.8lbs
Spline End
1.375inz6
Blade （Tines）Material
Cast Steel
Tractor Mount
Reversible
Rotor Bearing
SKF bearing

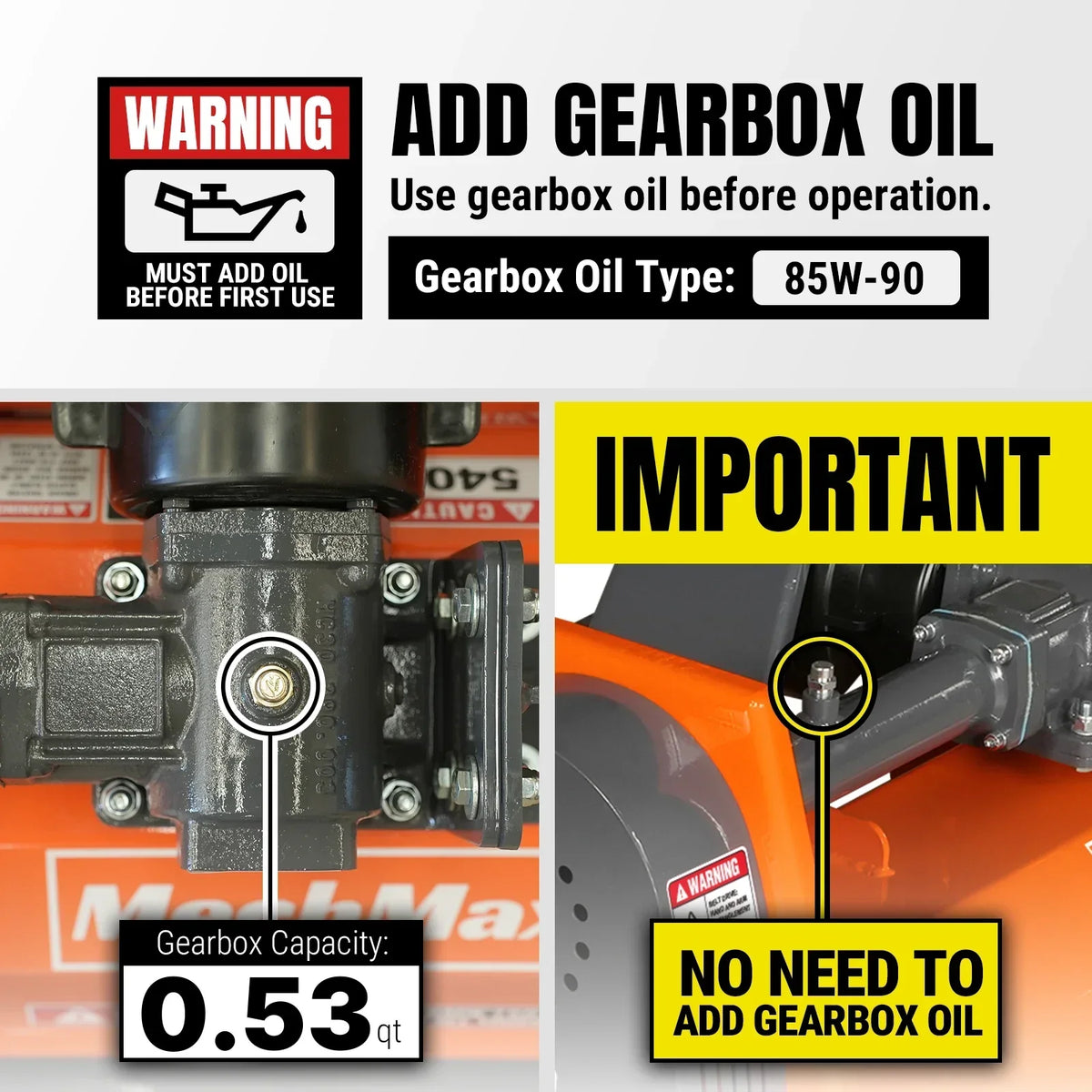

Gearbox Oil Type
85W-90
Rotor Diameter
3in
Dimensions (L x W x H)
65 x 30 x 28in
Rotor Swing Diameter
11in
Finish
Powder Coat PaintGalvanized Steel
Rotor Thickness
0.3in
Warranty
1 year
Rotor Shaft Speed
2958 rpm
Weight (N.W./G.W.)
406/503 lbs
Blade Speed
142 ft/s
