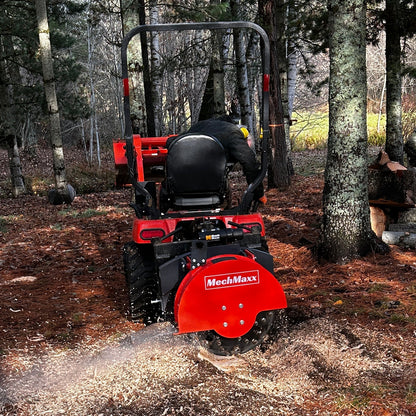

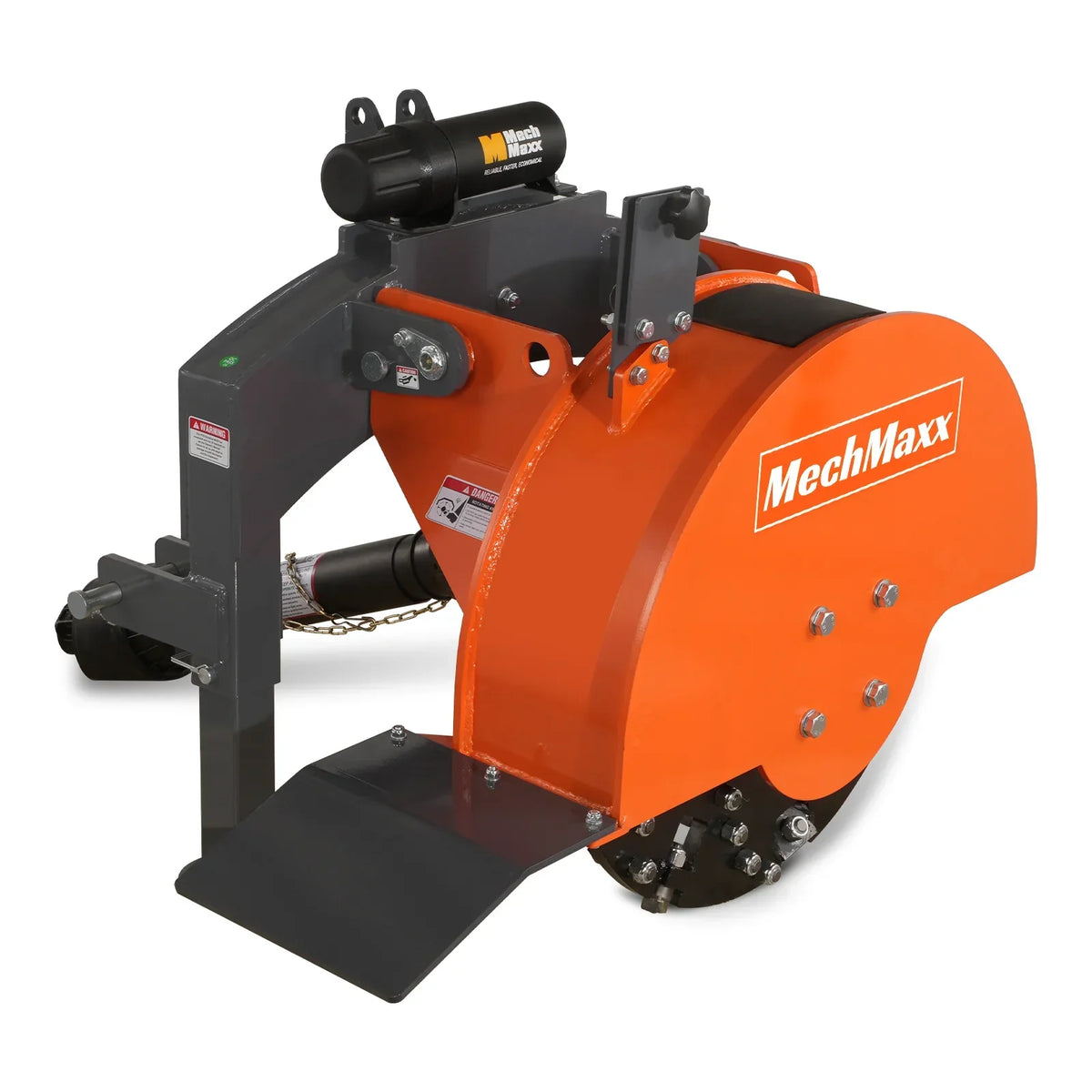

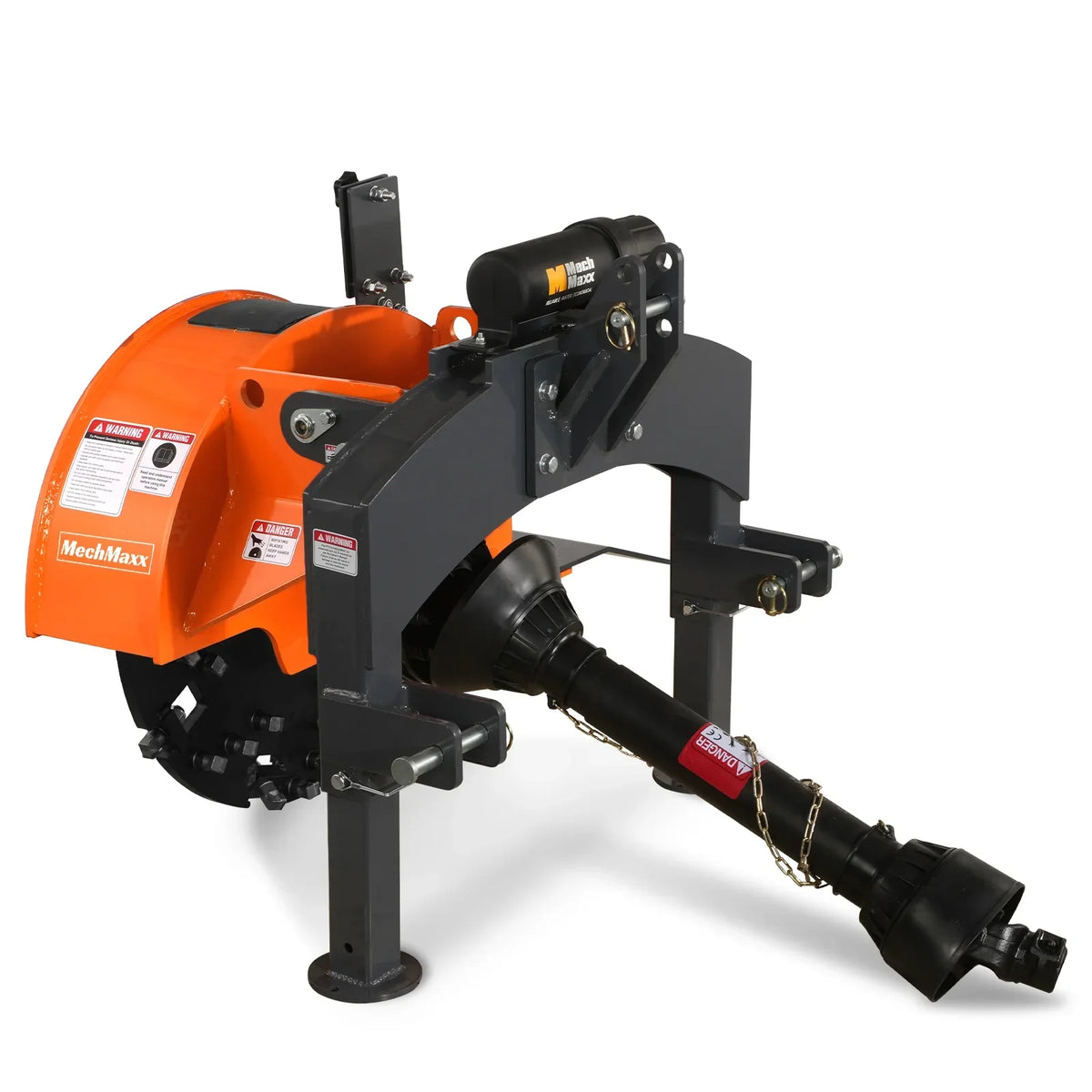

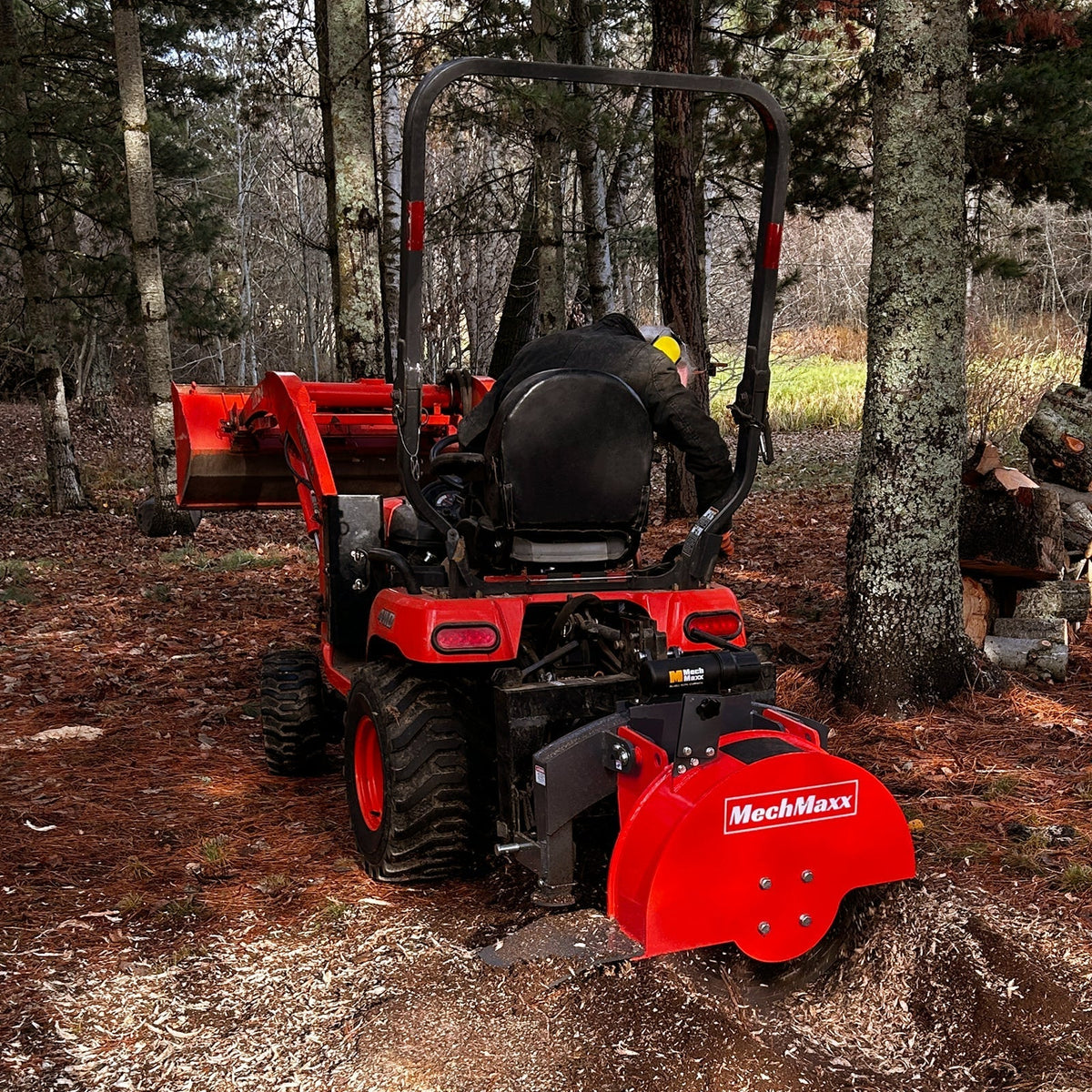

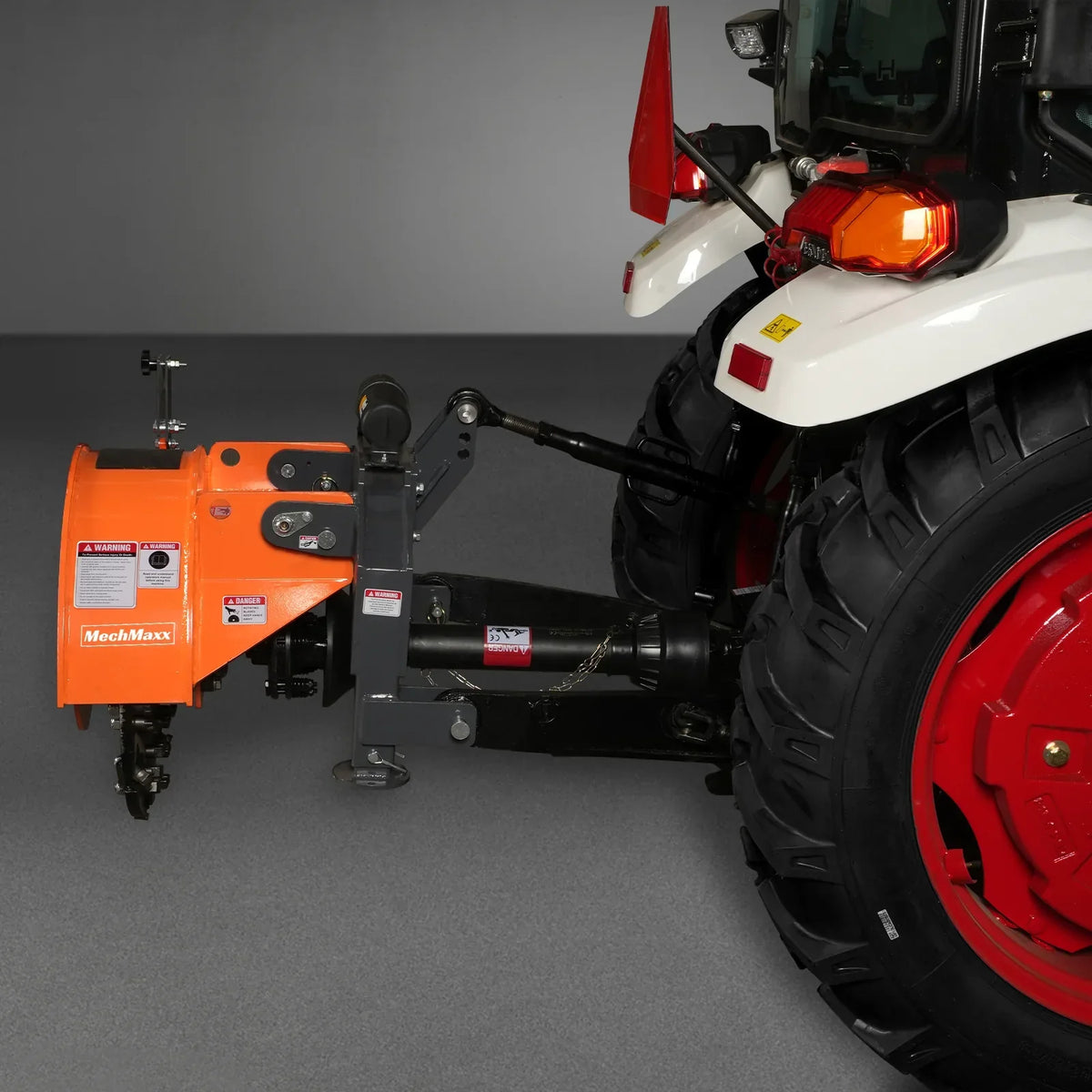

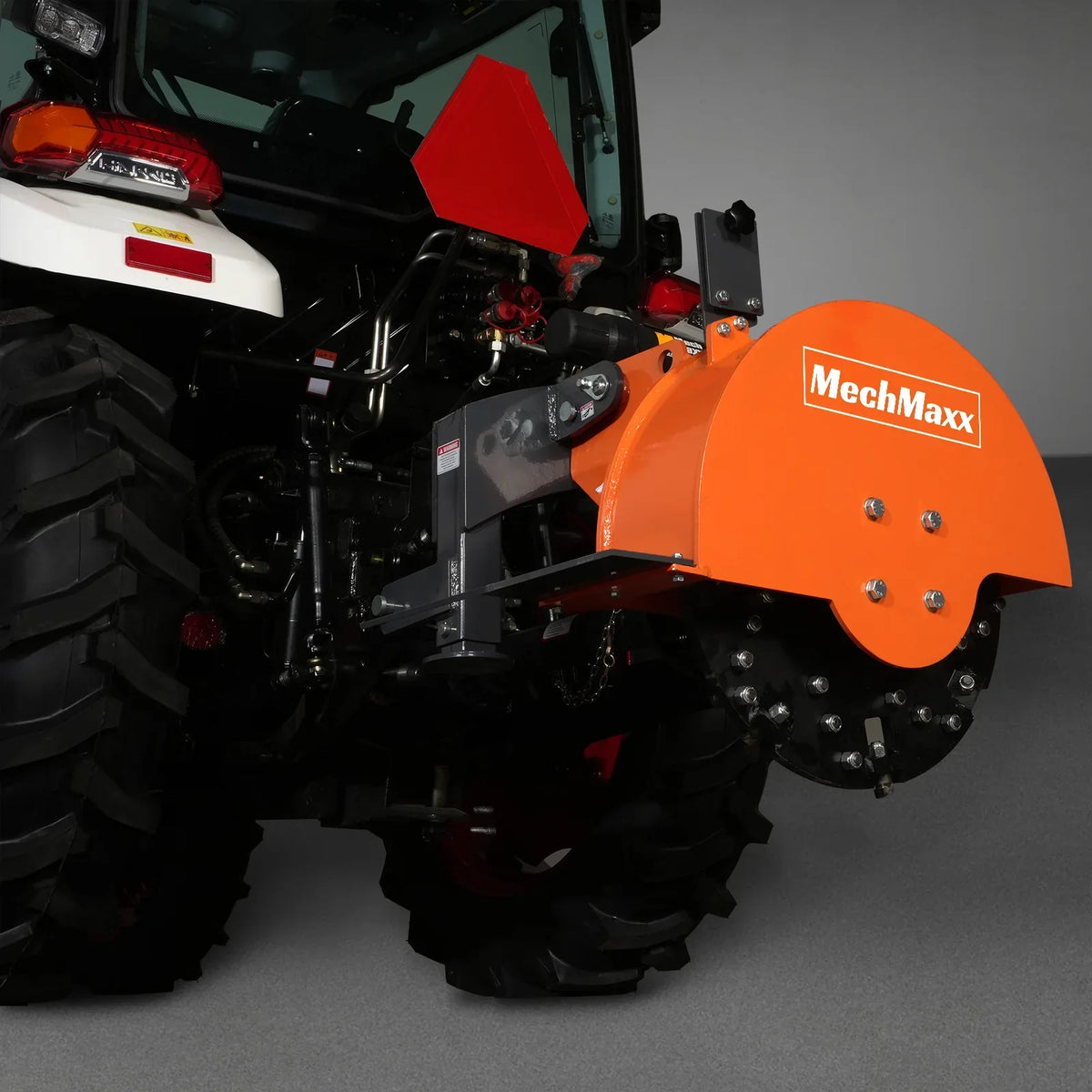

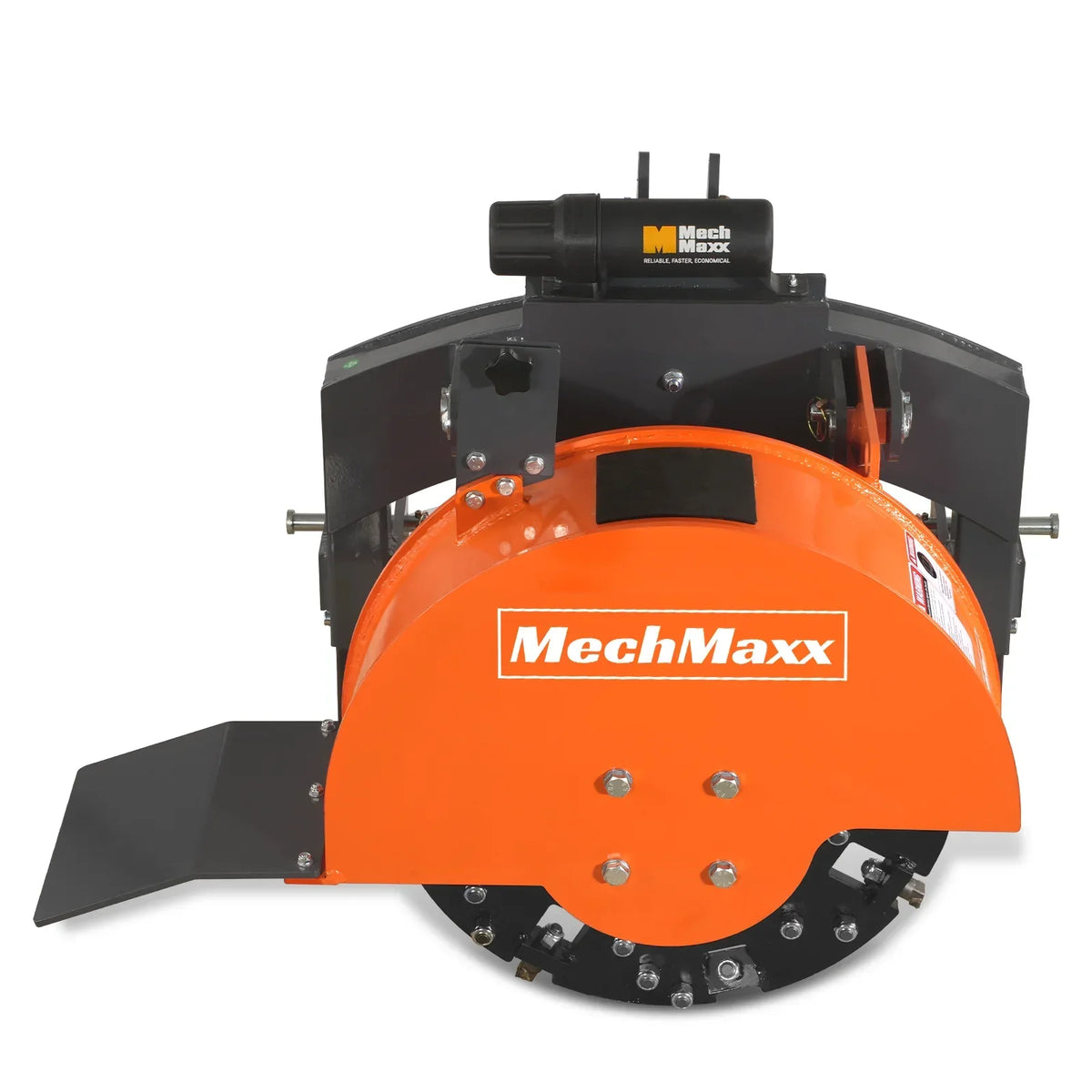

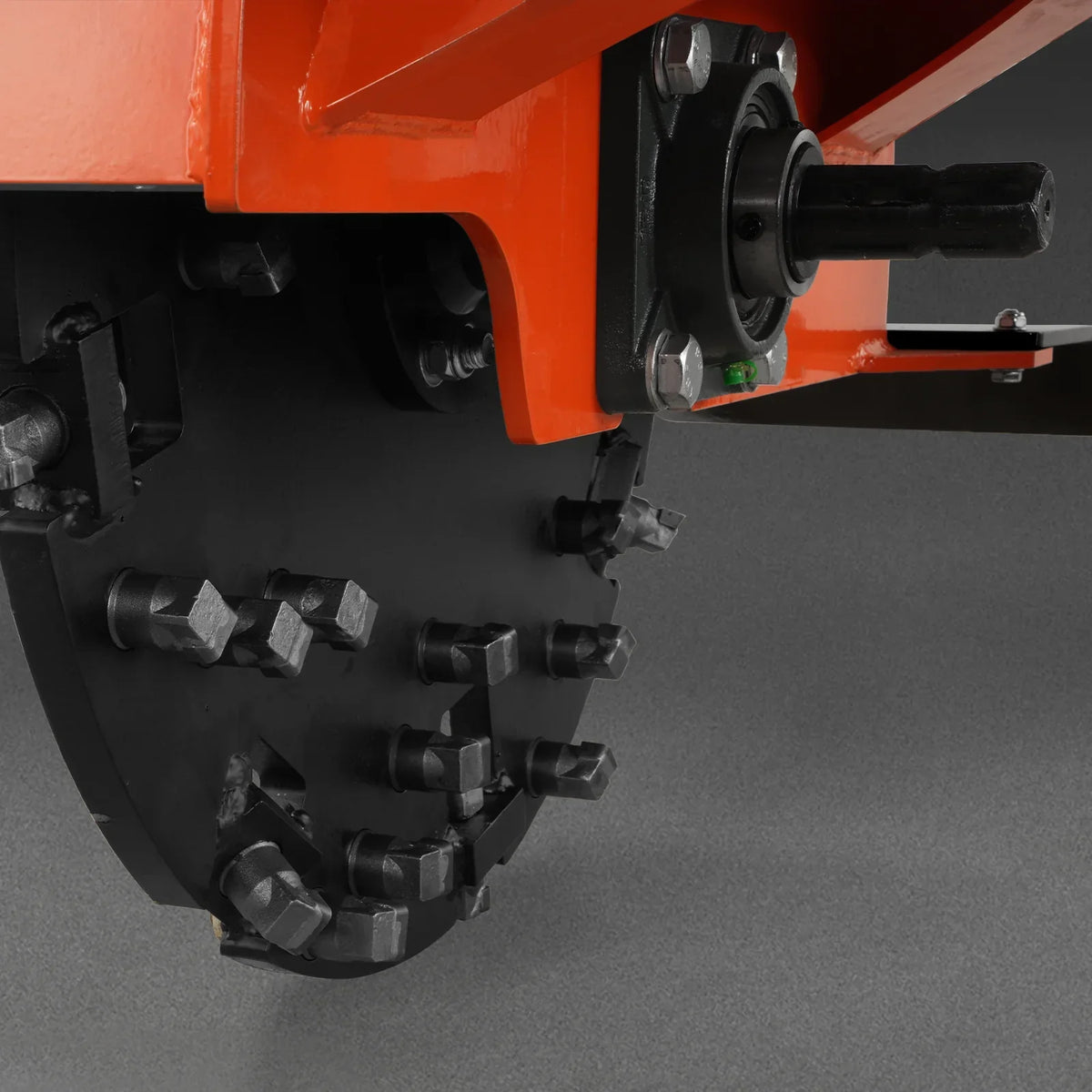

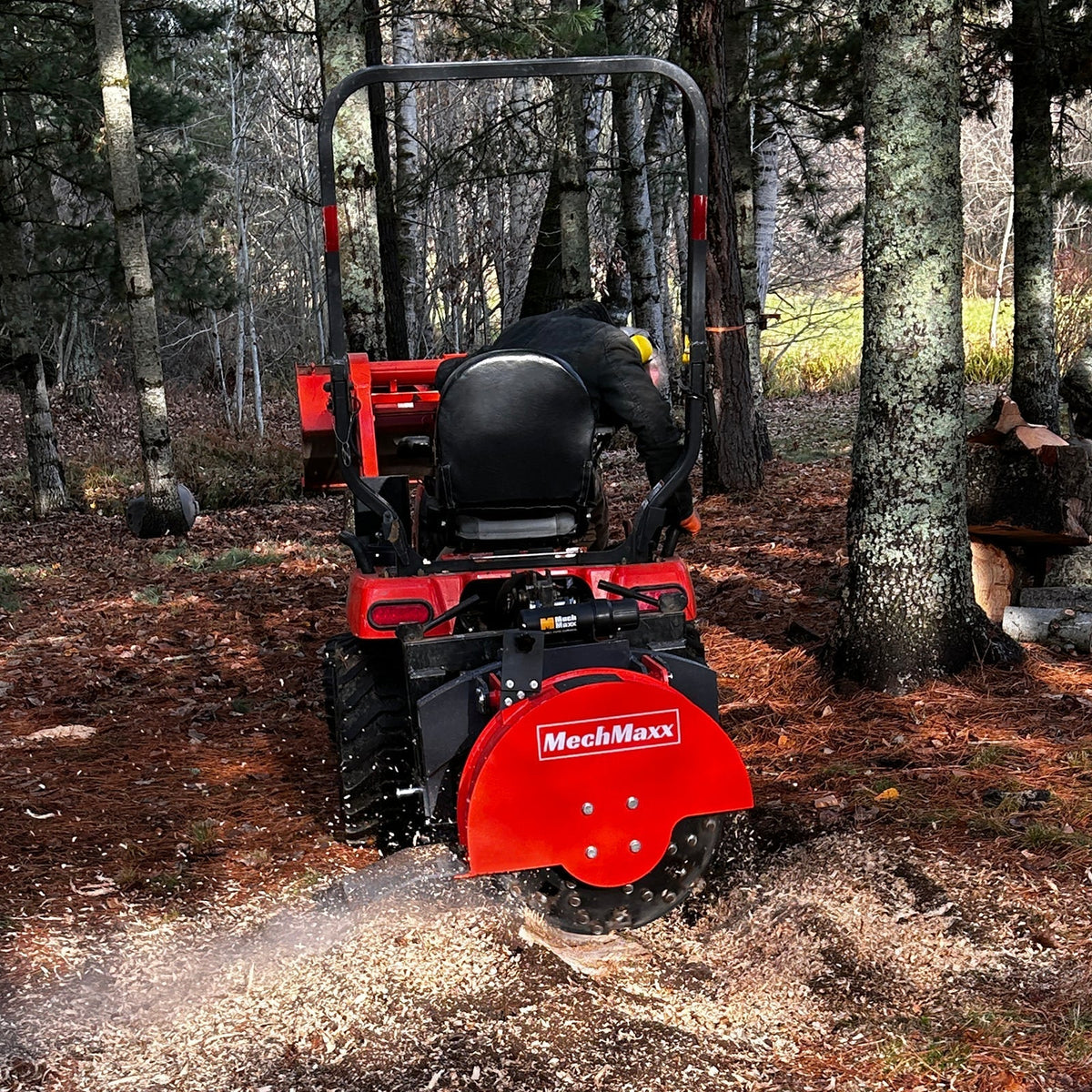

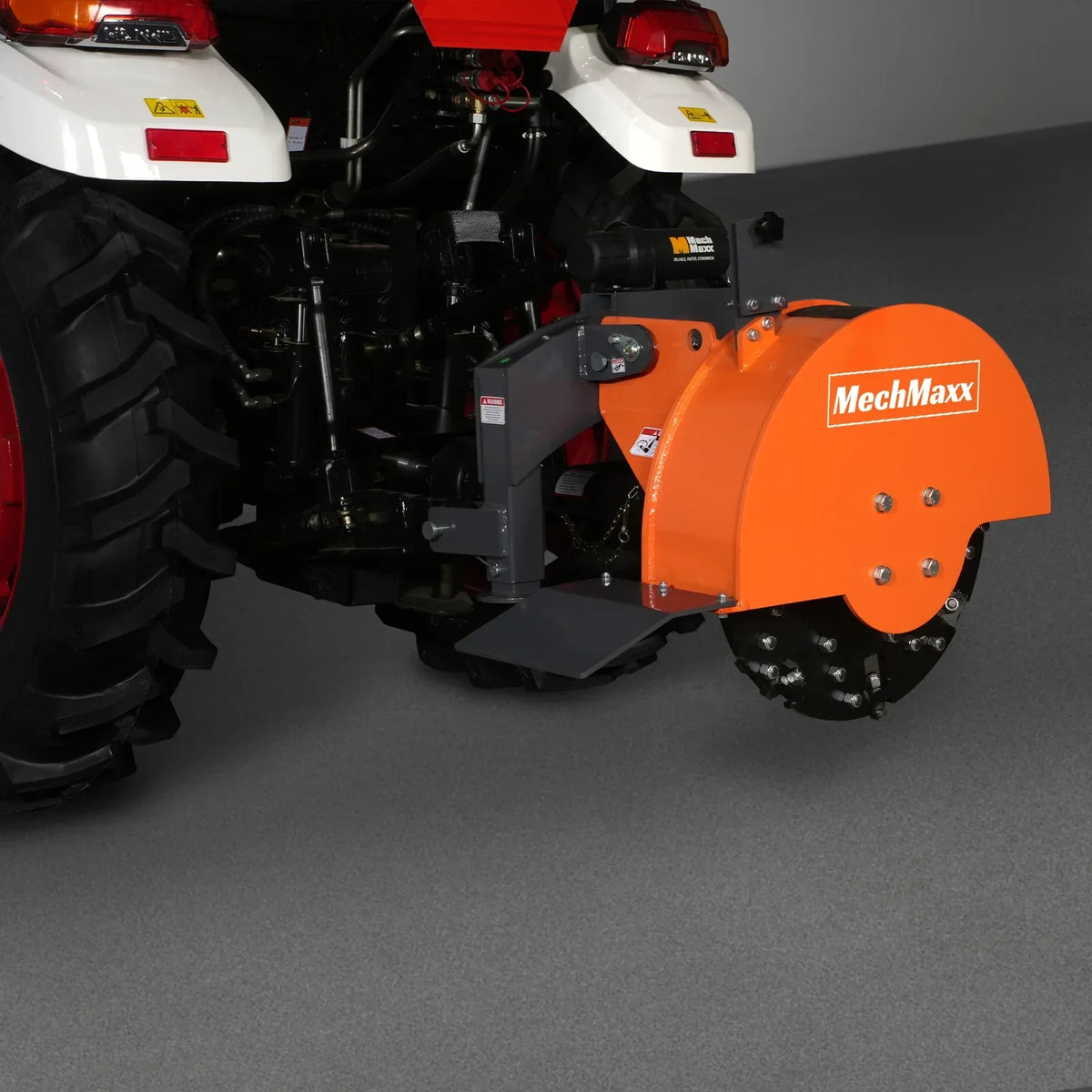

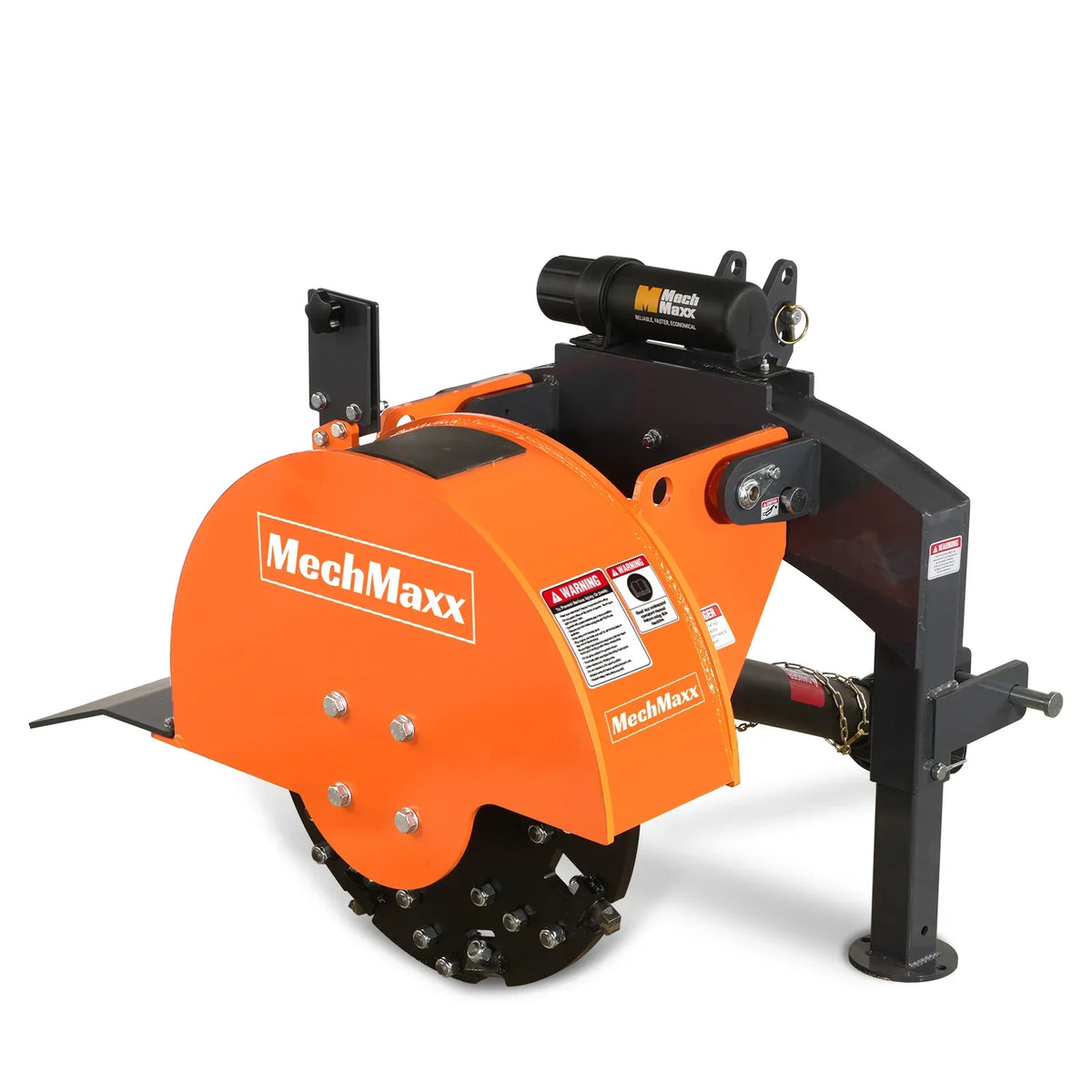

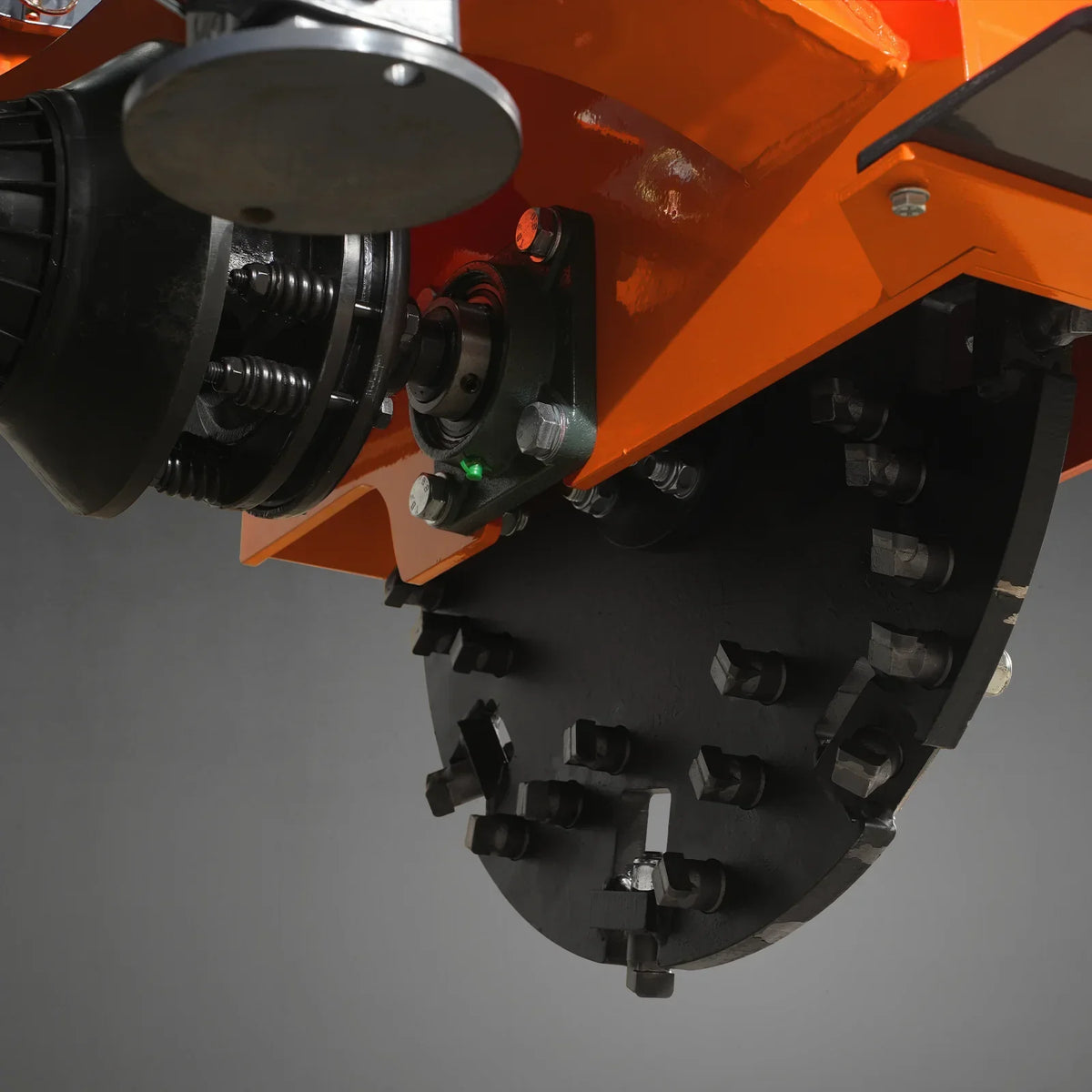

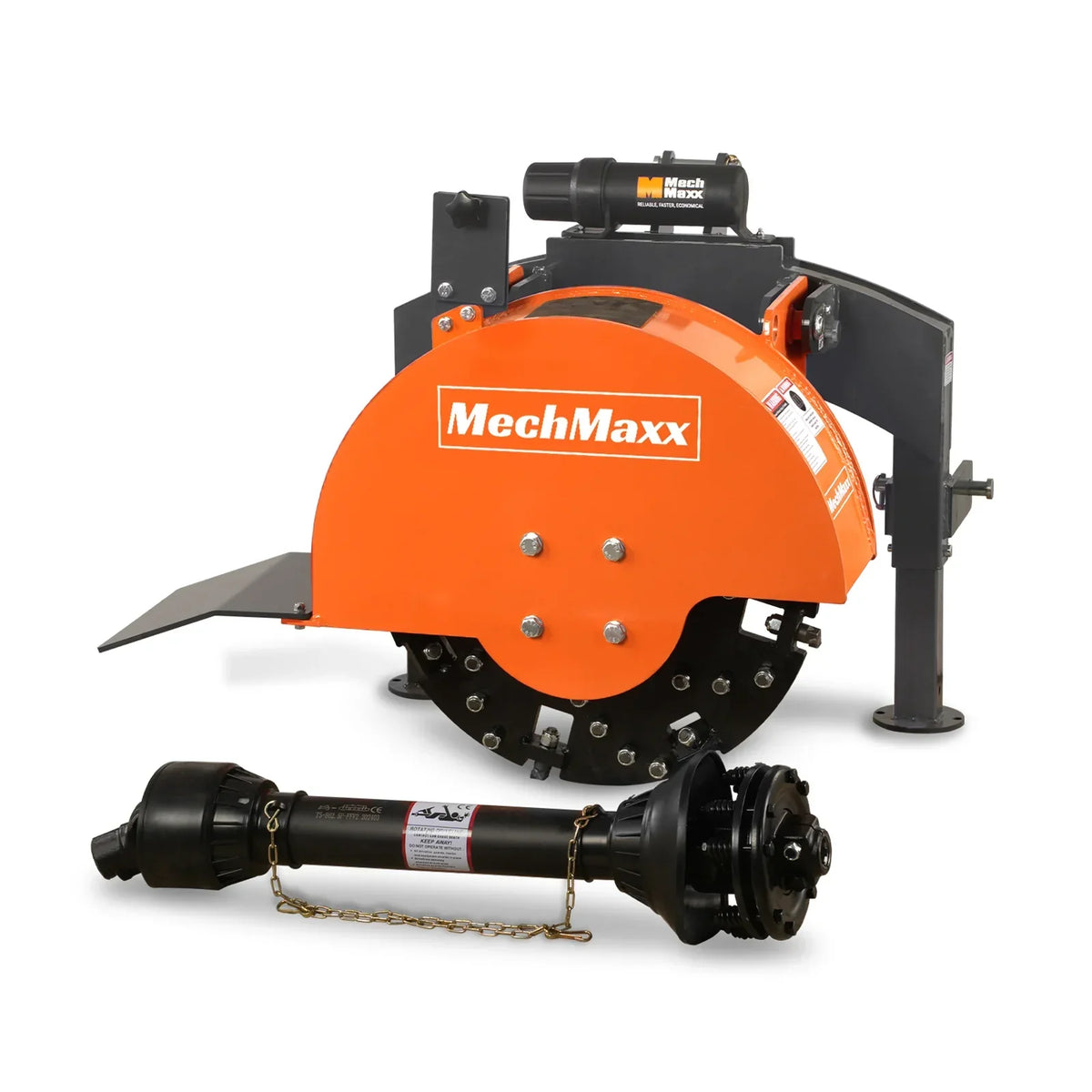

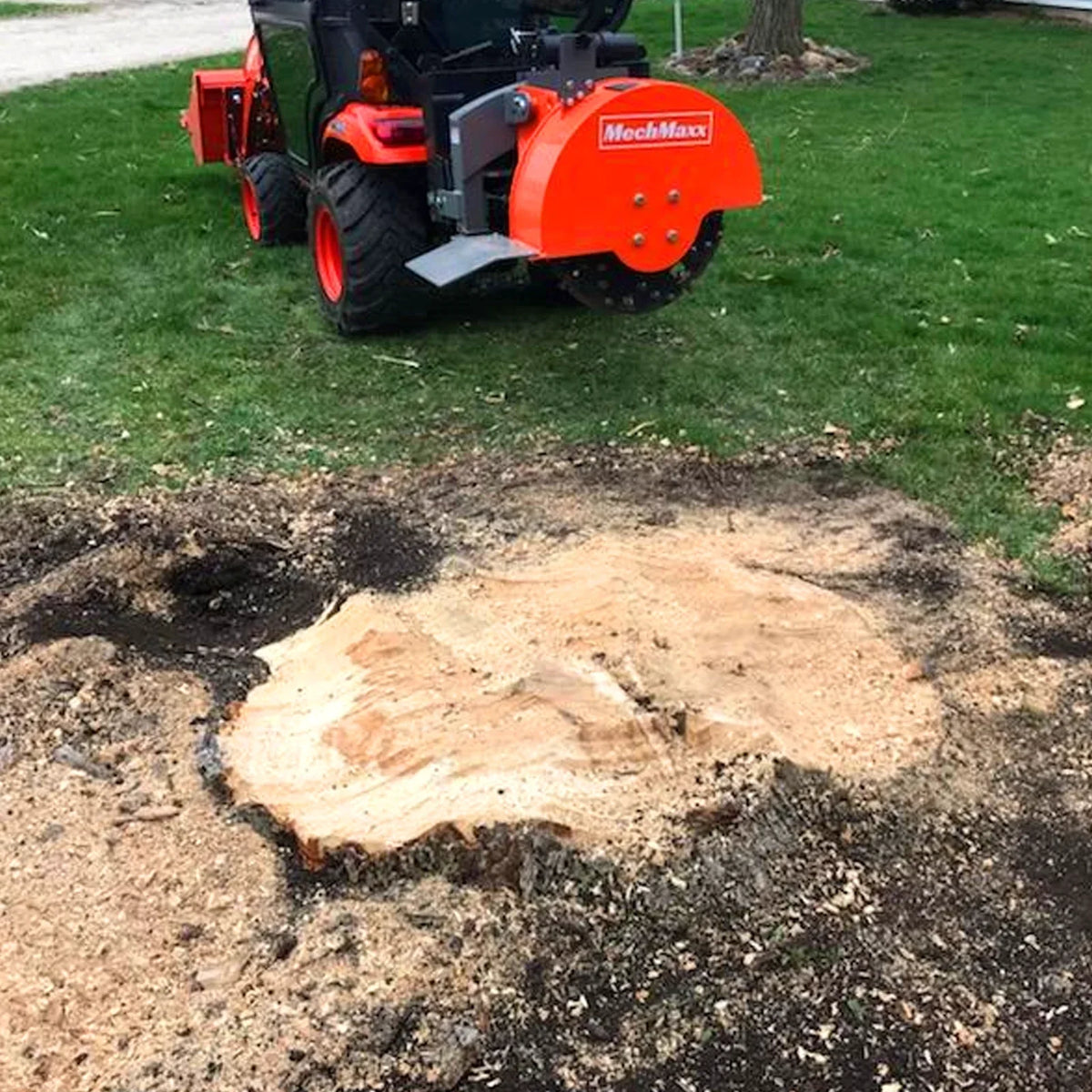

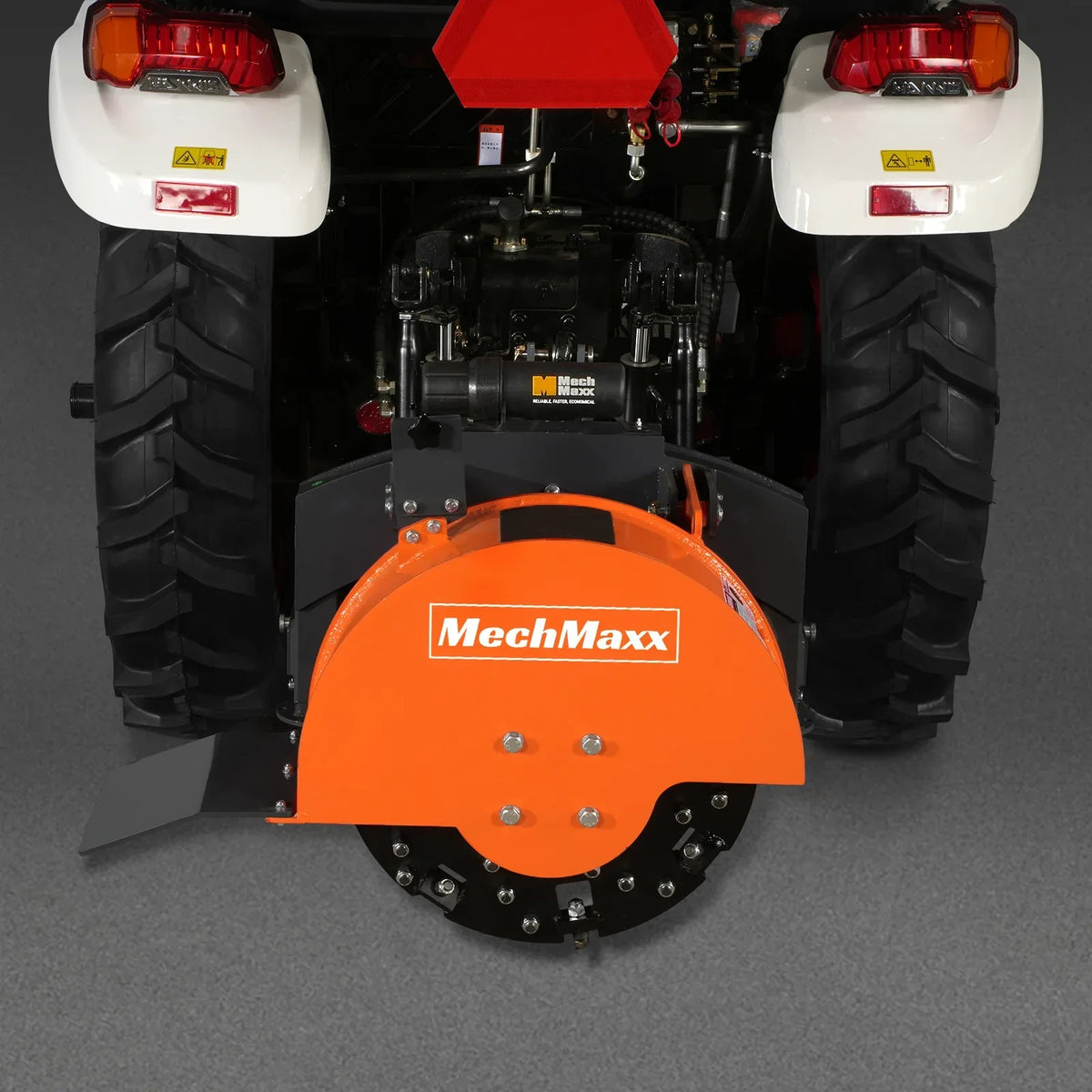

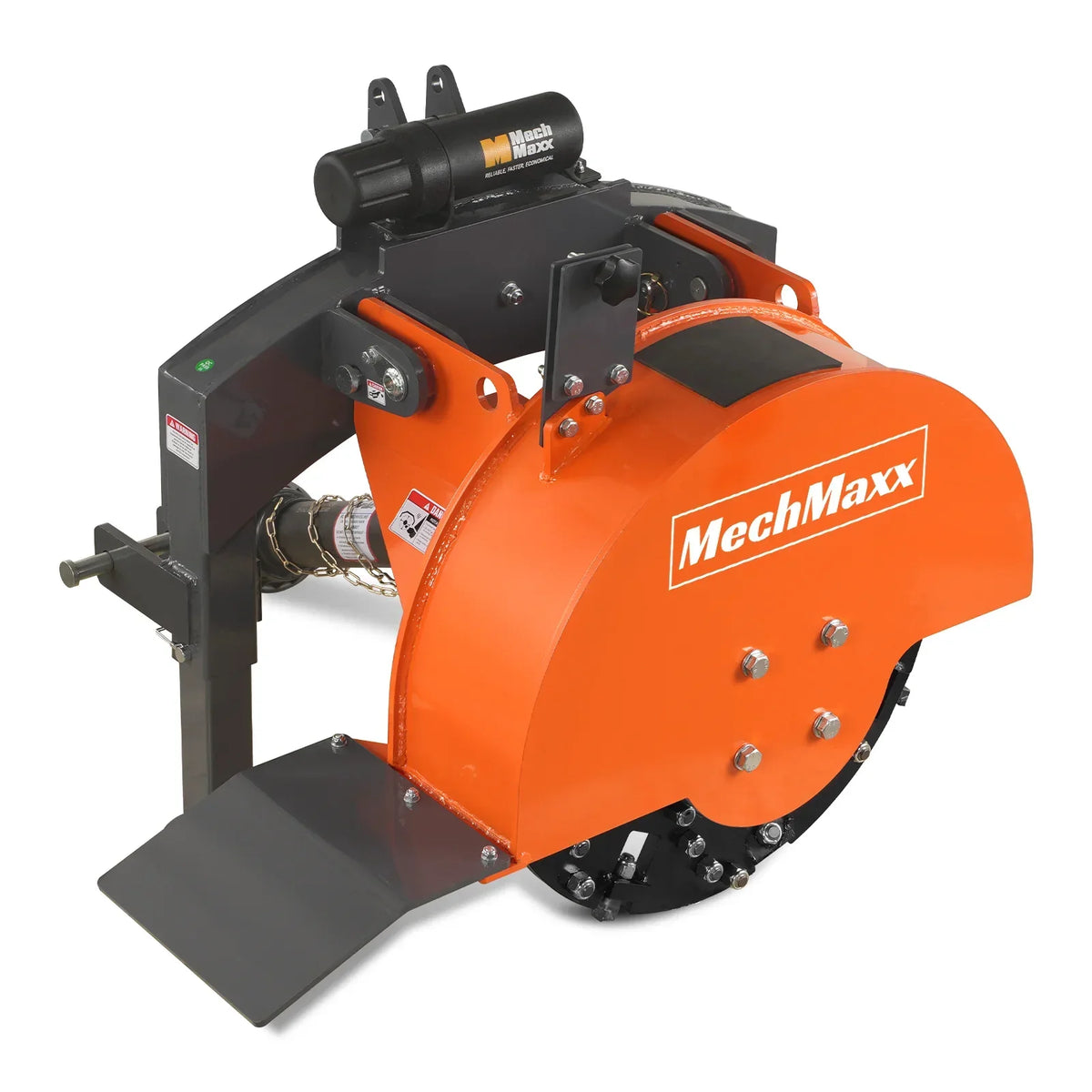

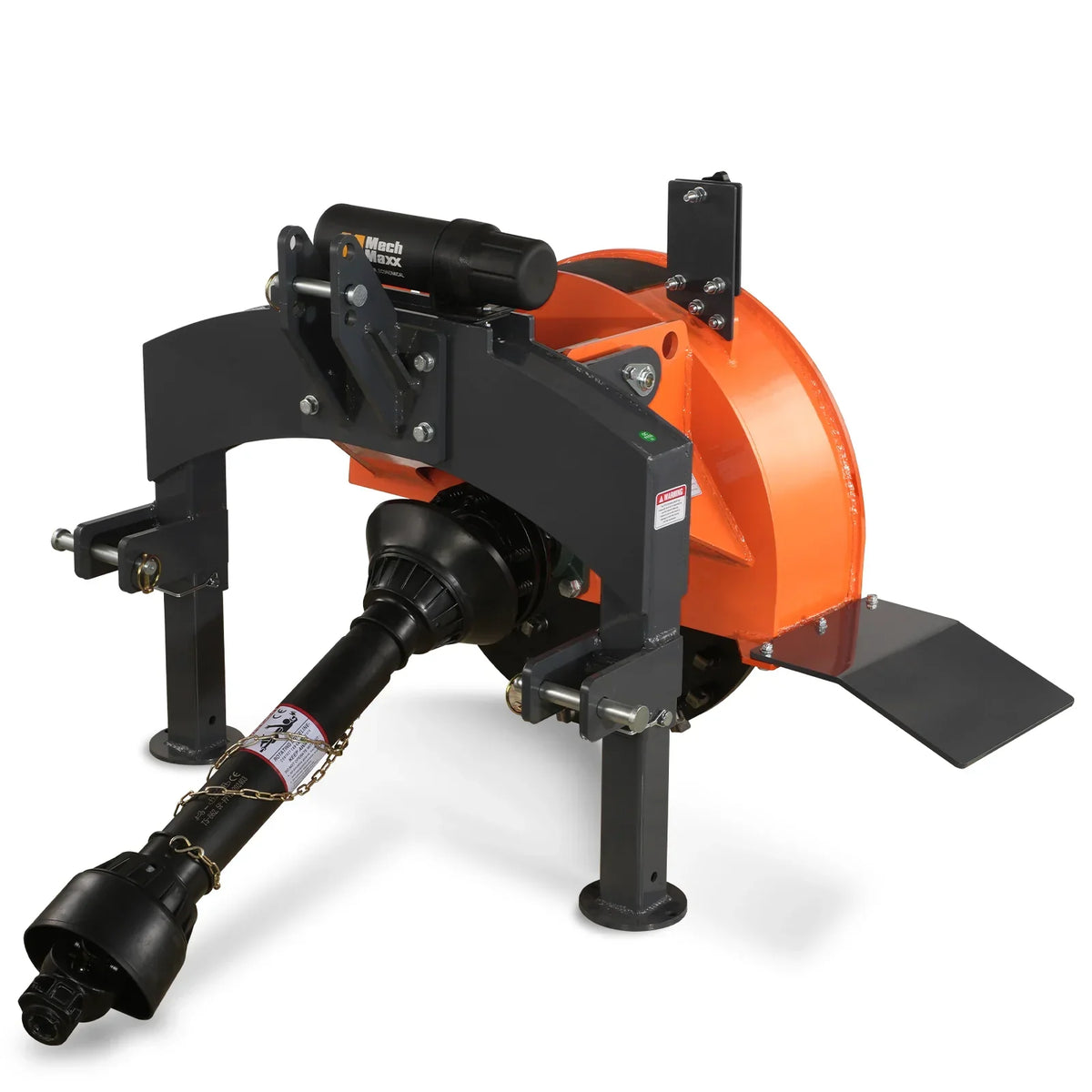

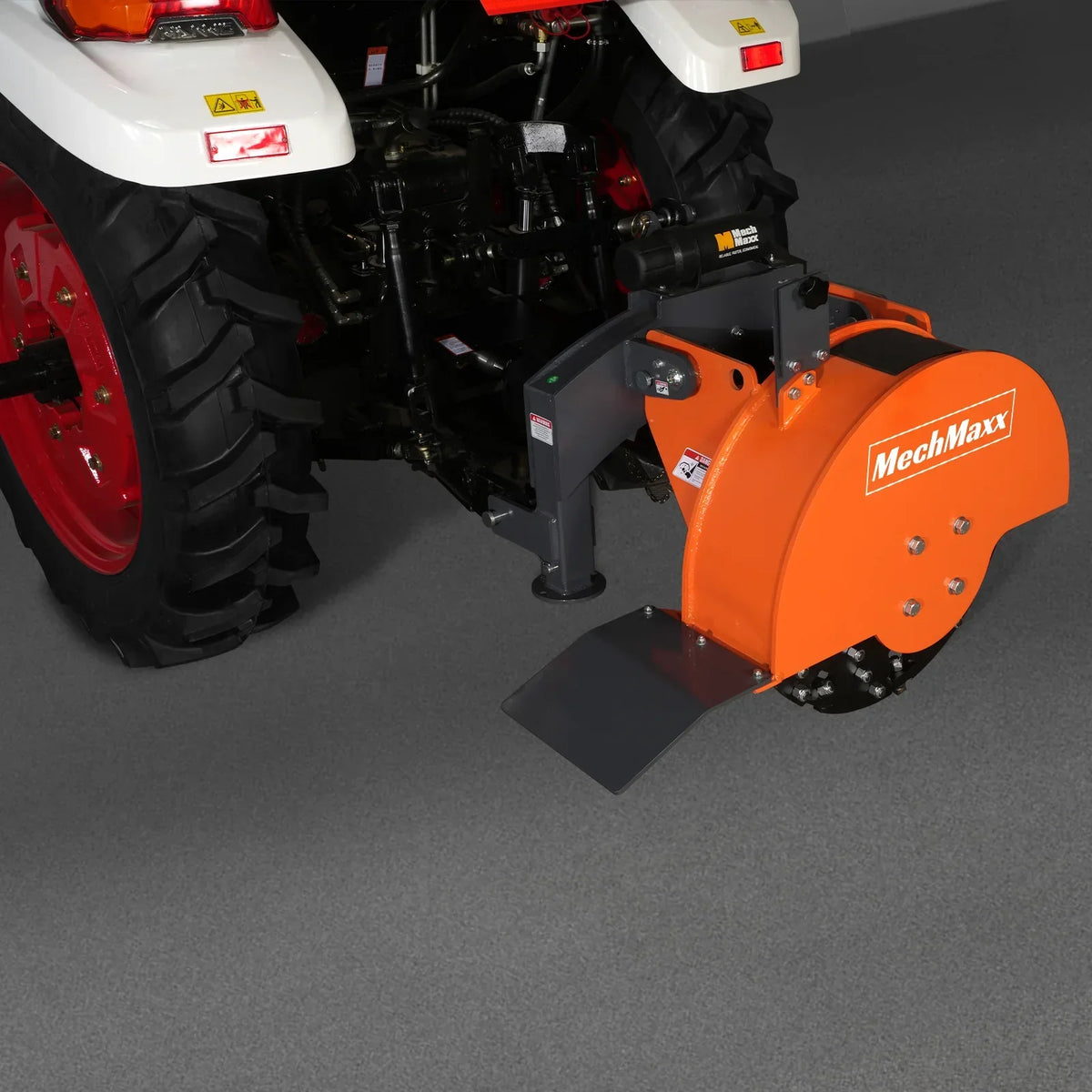

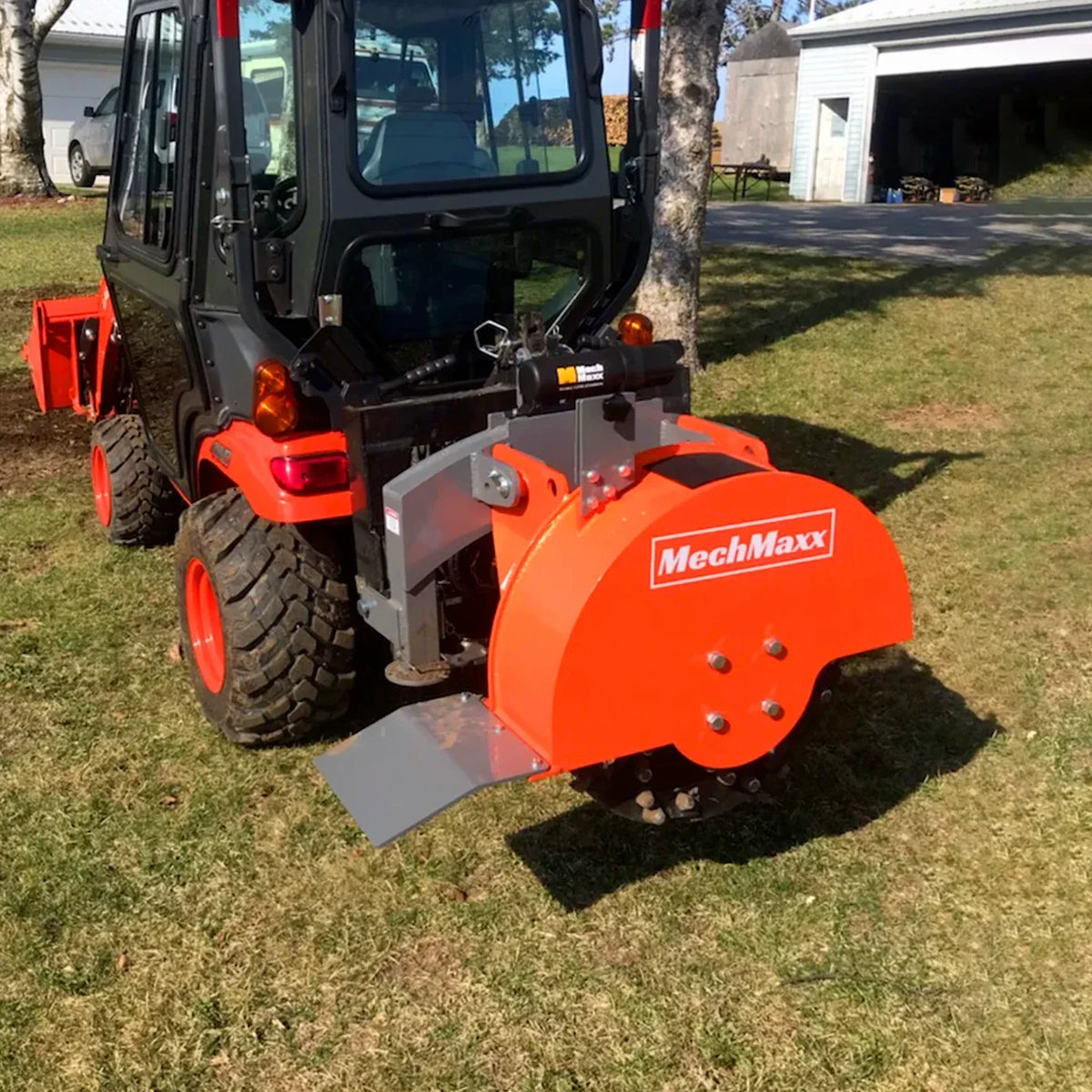

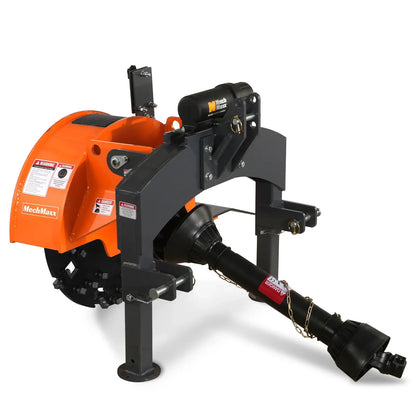

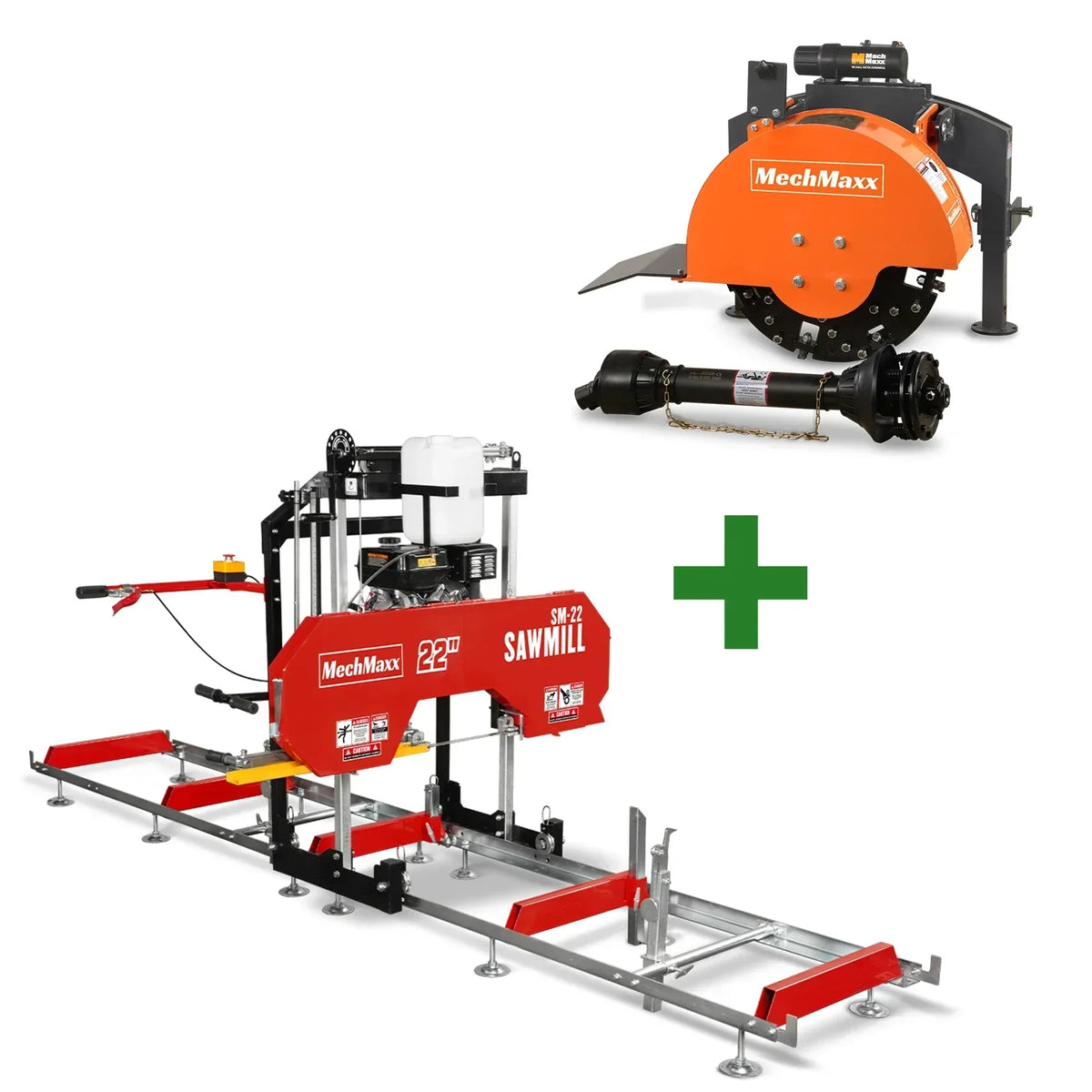

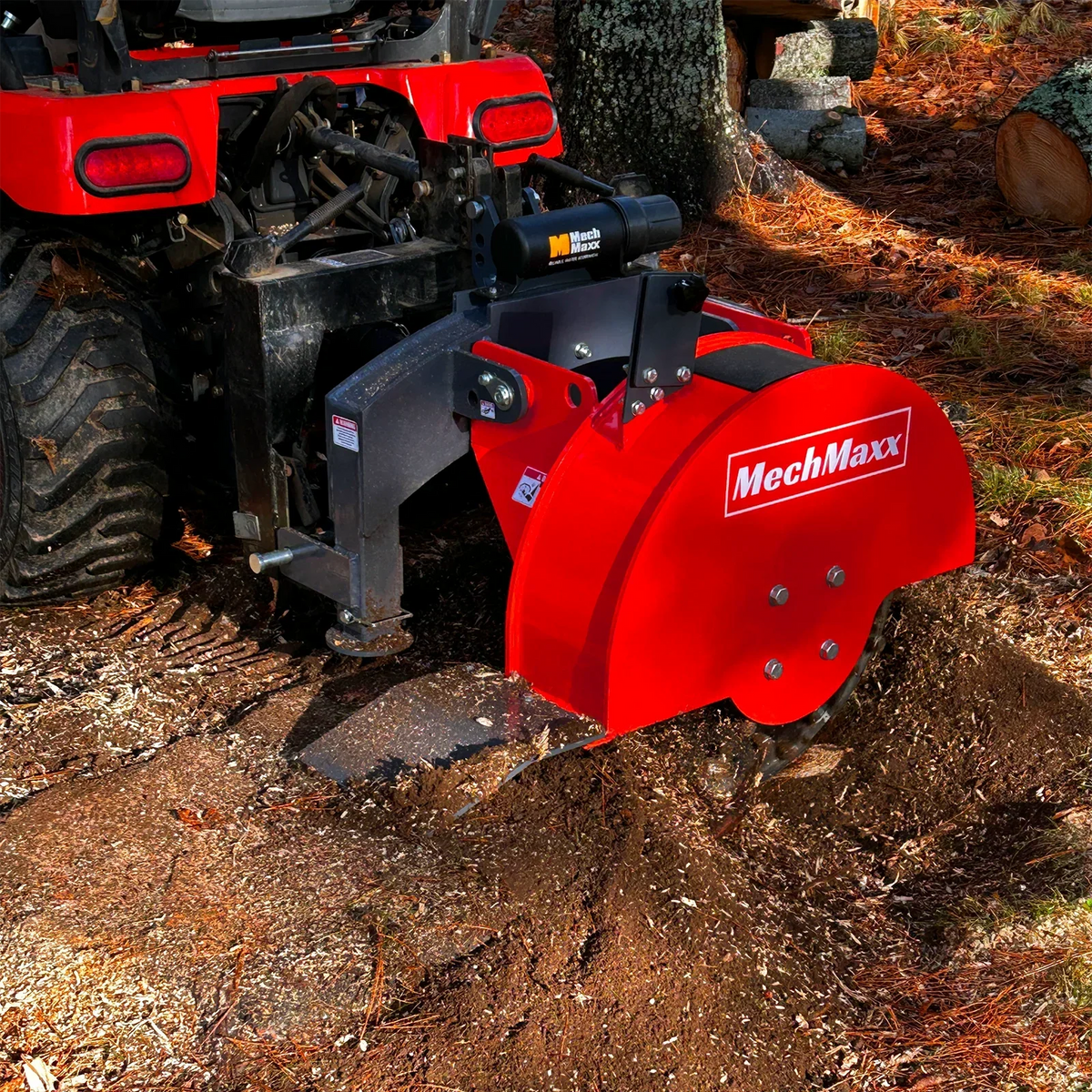

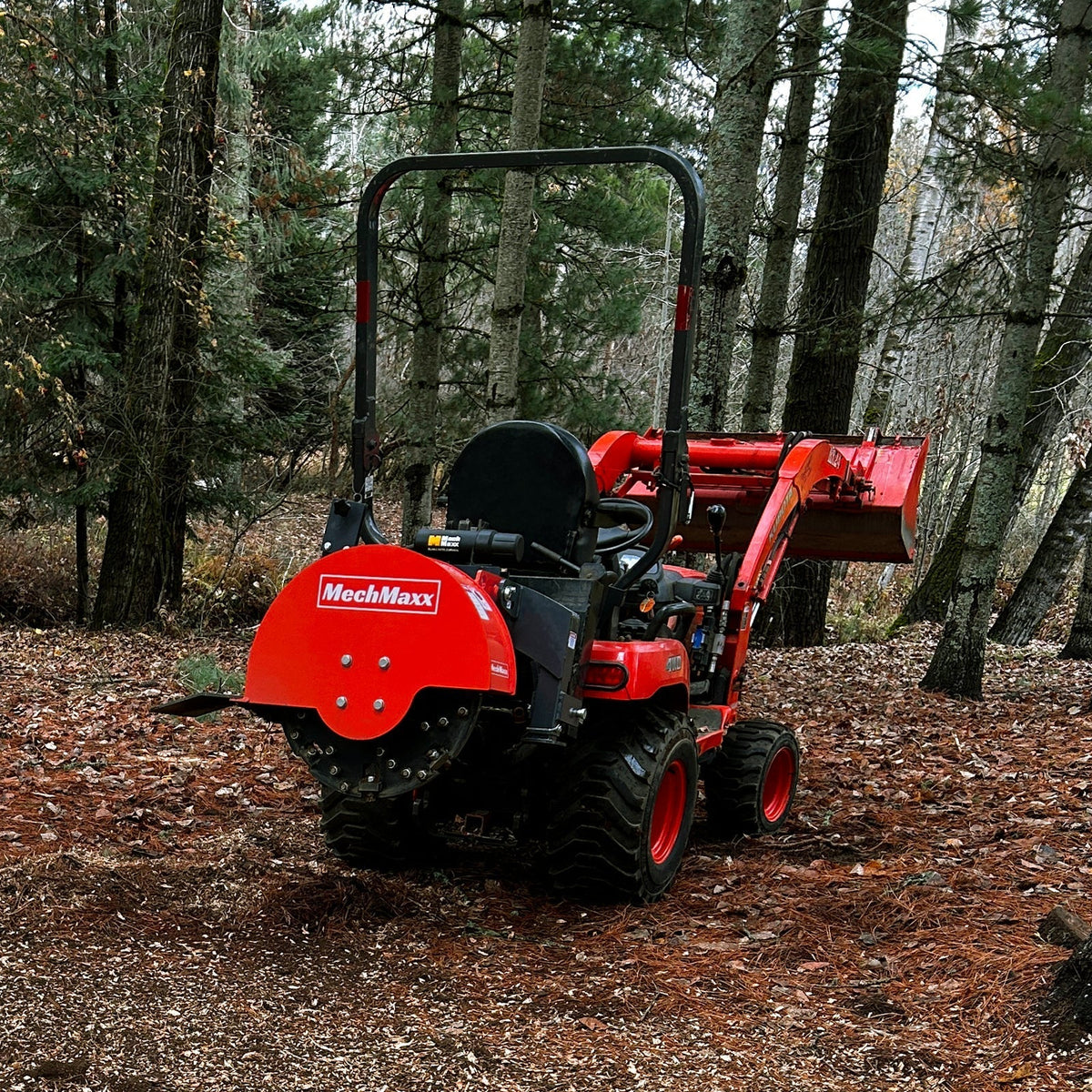

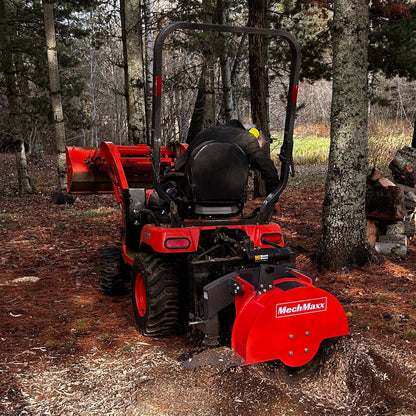

3-Point PTO Stump Grinder
Flywheel Diameter
24 in

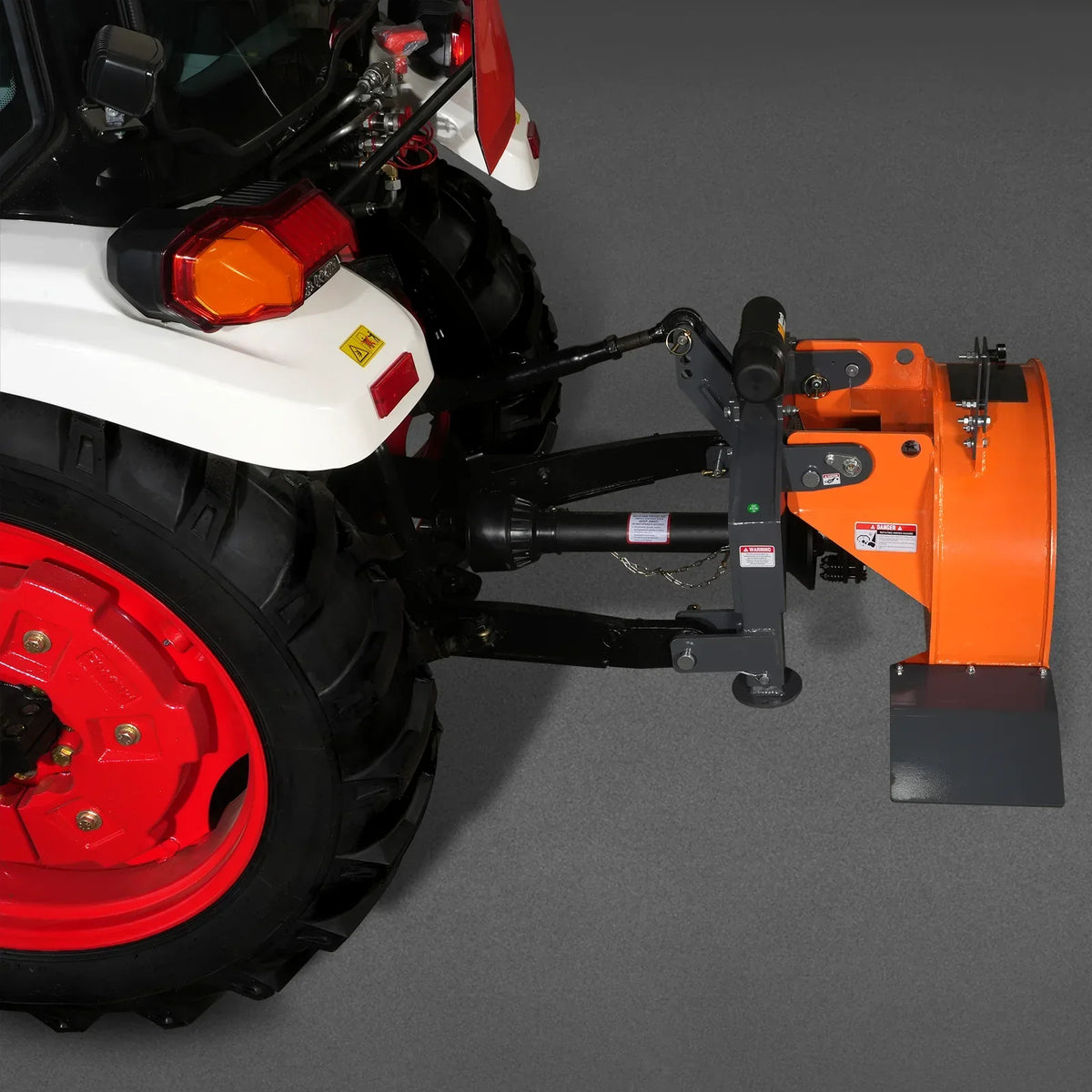

Mounting
3 Point Hitch Cat. 1 (Quick Attach Compatible)
Flywheel Thickness
3/4 in
PTO Input
540 RPM

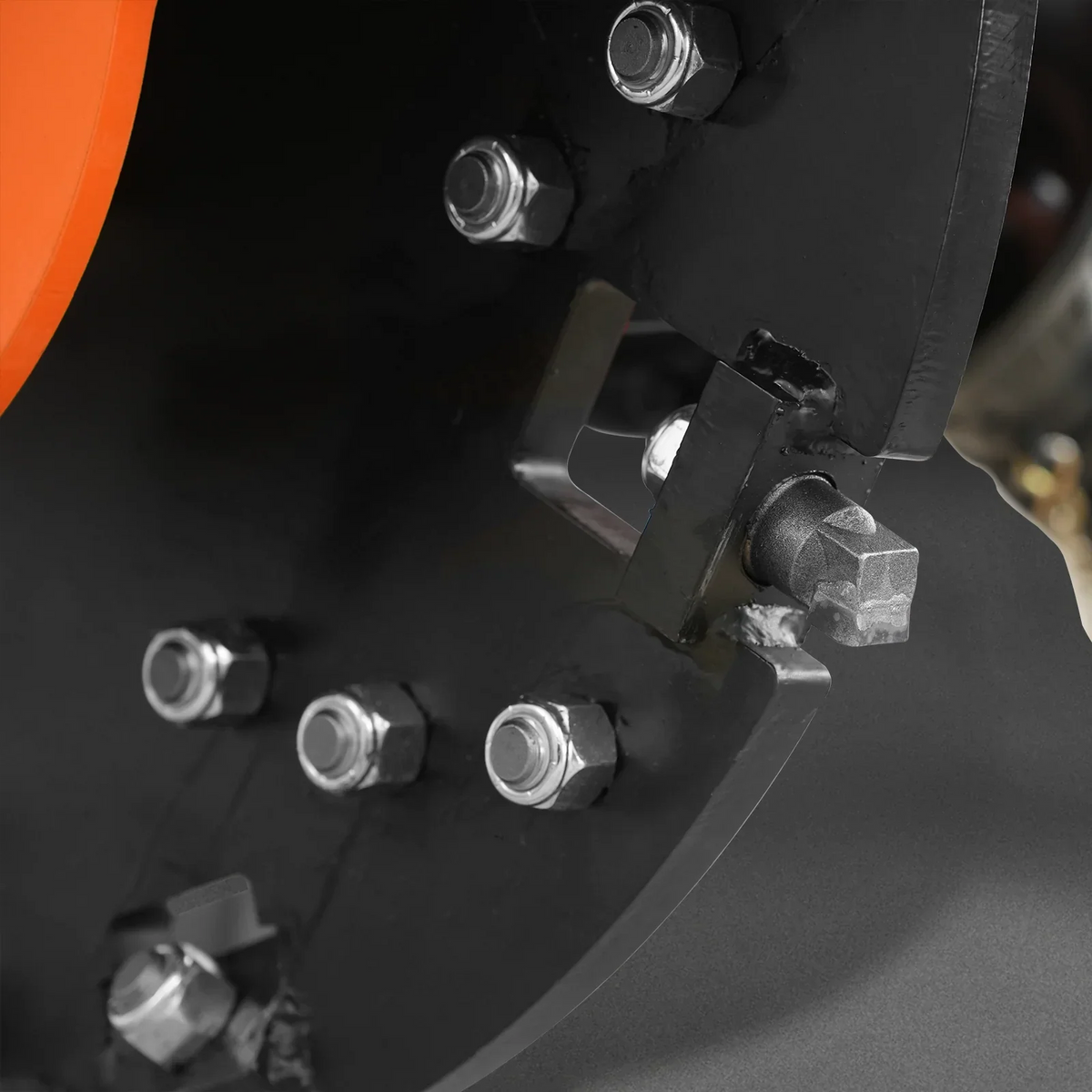

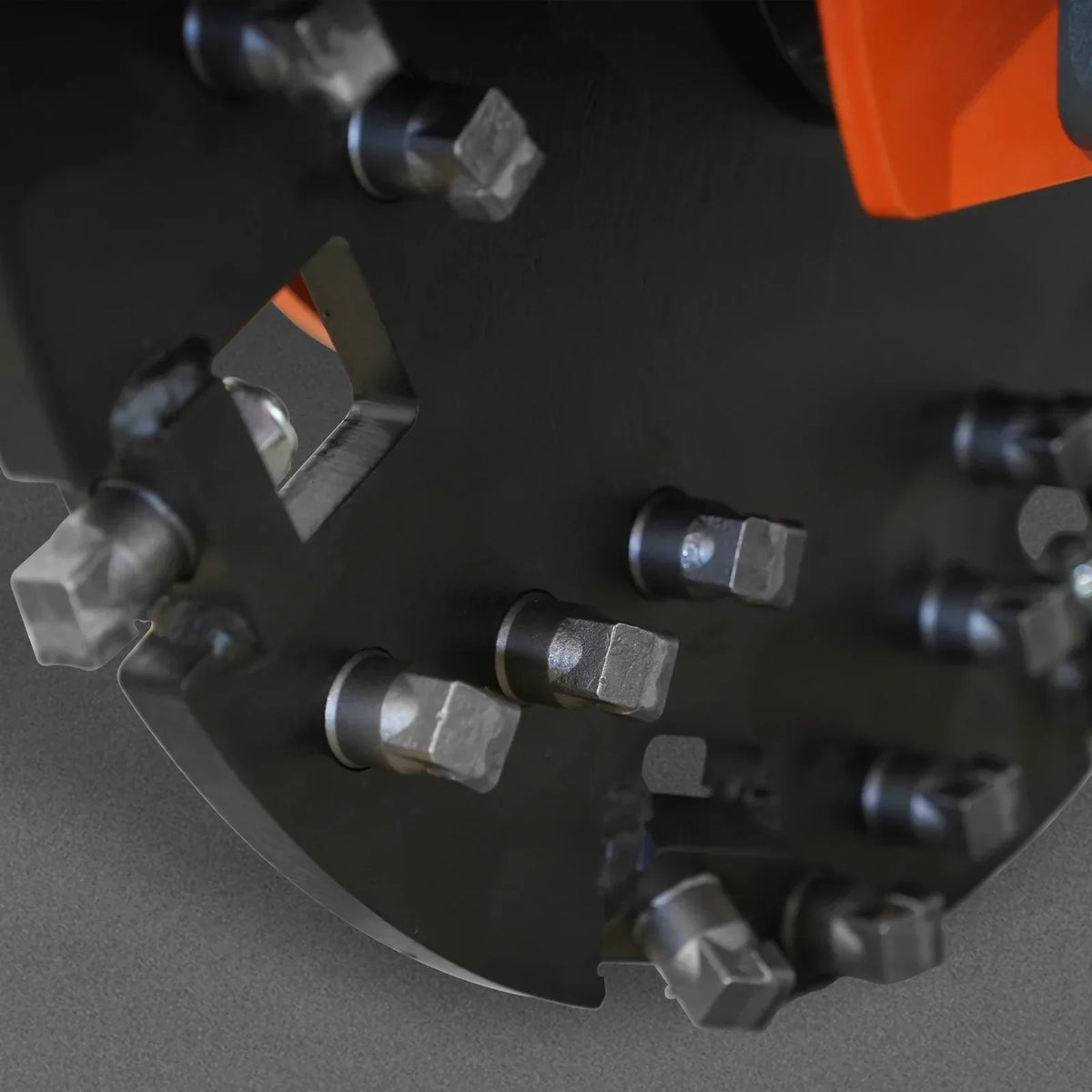

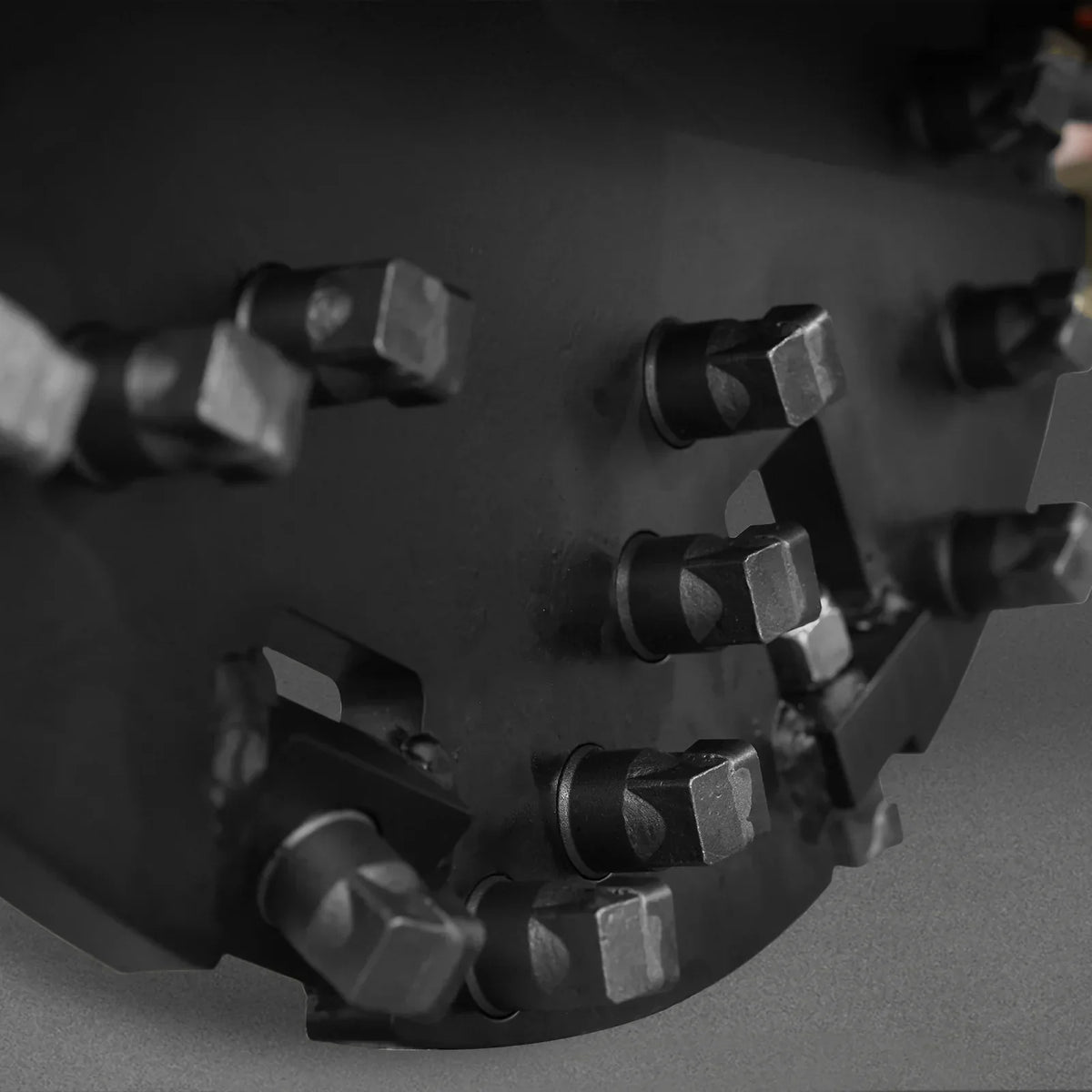

Carbid Tip
34 PCS
Max. Torque
1200 N·m
Carbid Tip Material
YG11C
PTO Shaft Weight
44 LBS
Tip Holder Material
42CrMo
Dimensions
29 × 37 × 38 in
PTO HP Required
15–45 HP
Packing
Iron Frame + Carton
PTO Shaft (Included Shipping)
1-3/8” 6 Spline Tractor and Implement Ends PTO Driveline Shaft with Slip Clutch
Weight (N.W/G.W.)
450/563 LBS
Friction Torque Limiter (Slip Clutch)
Included

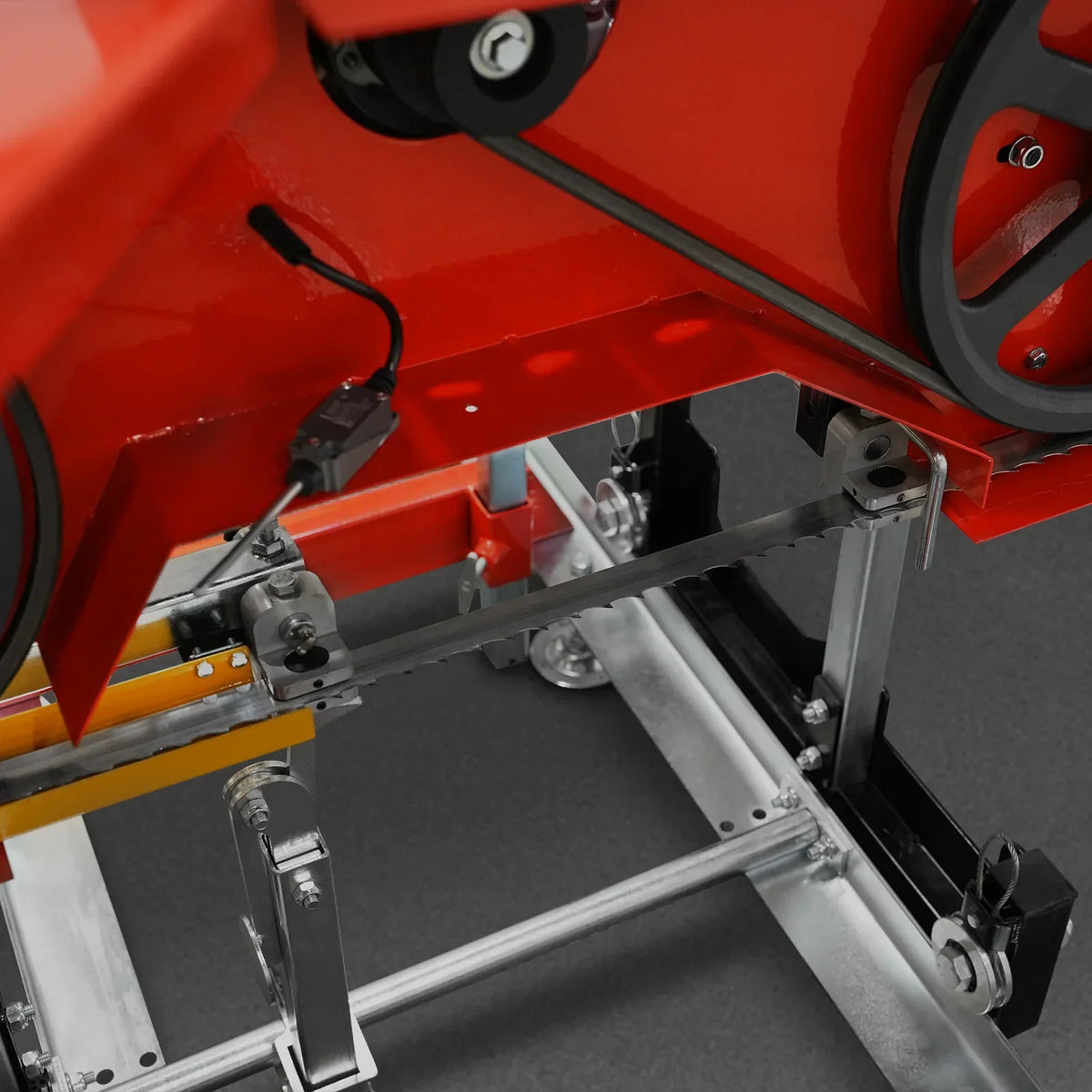

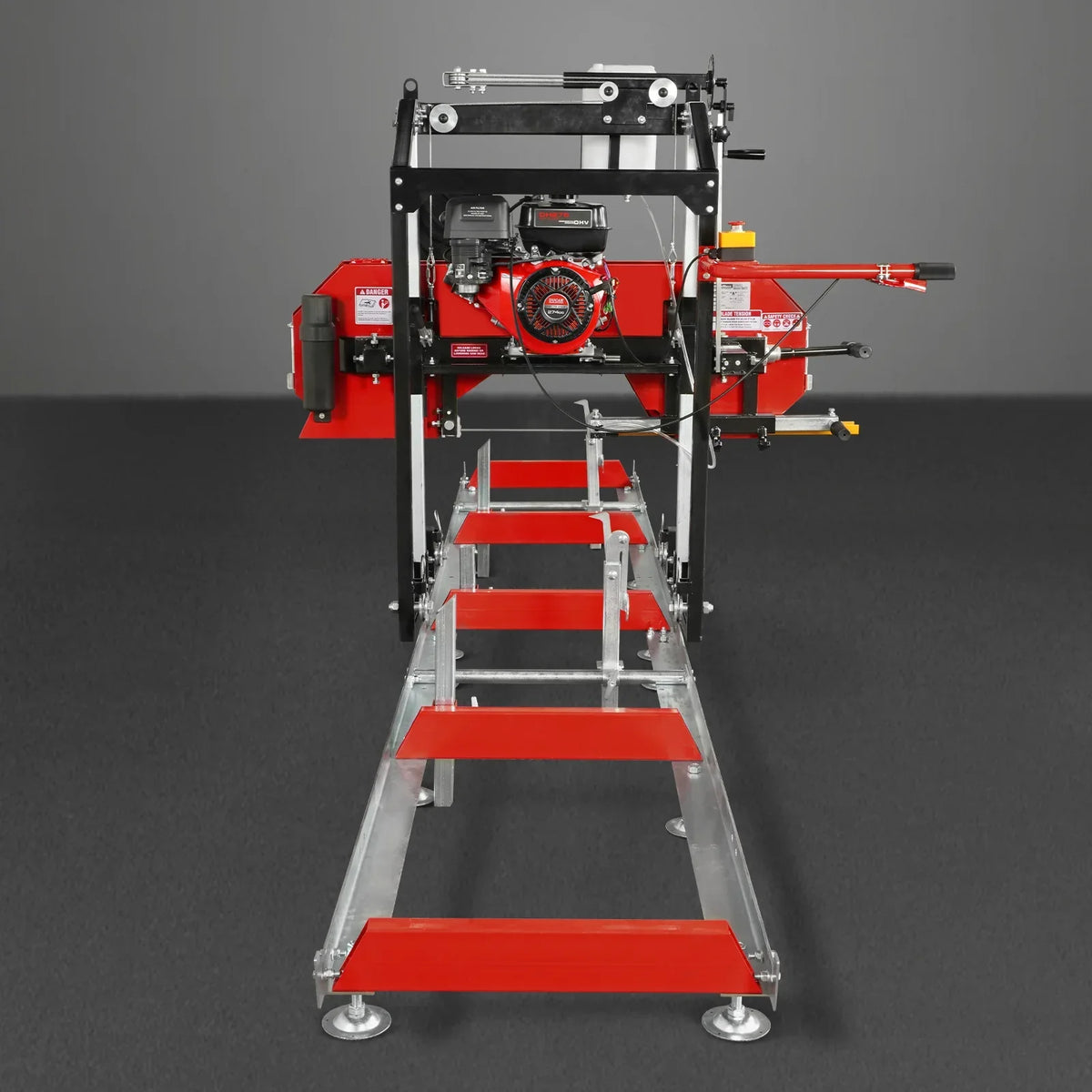

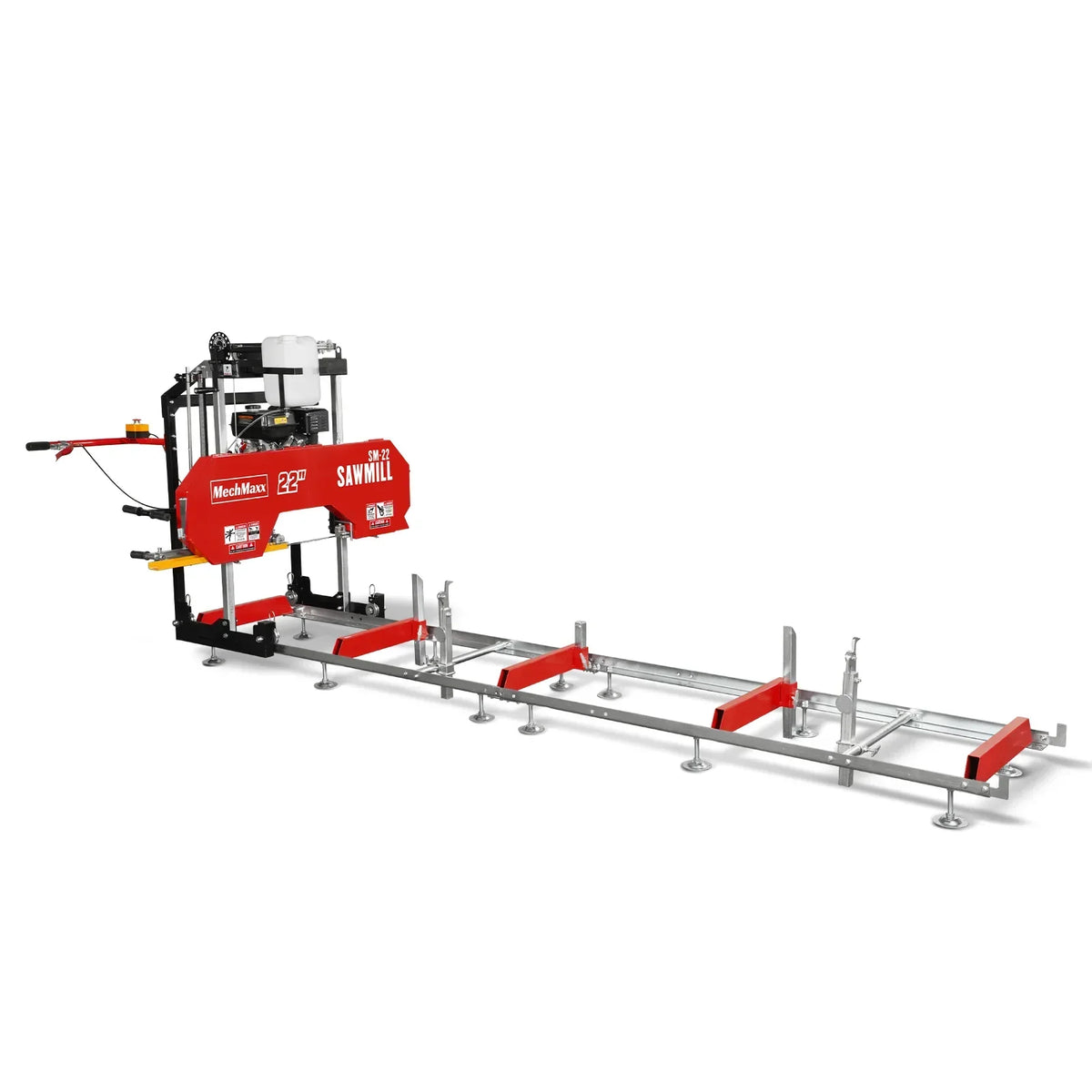

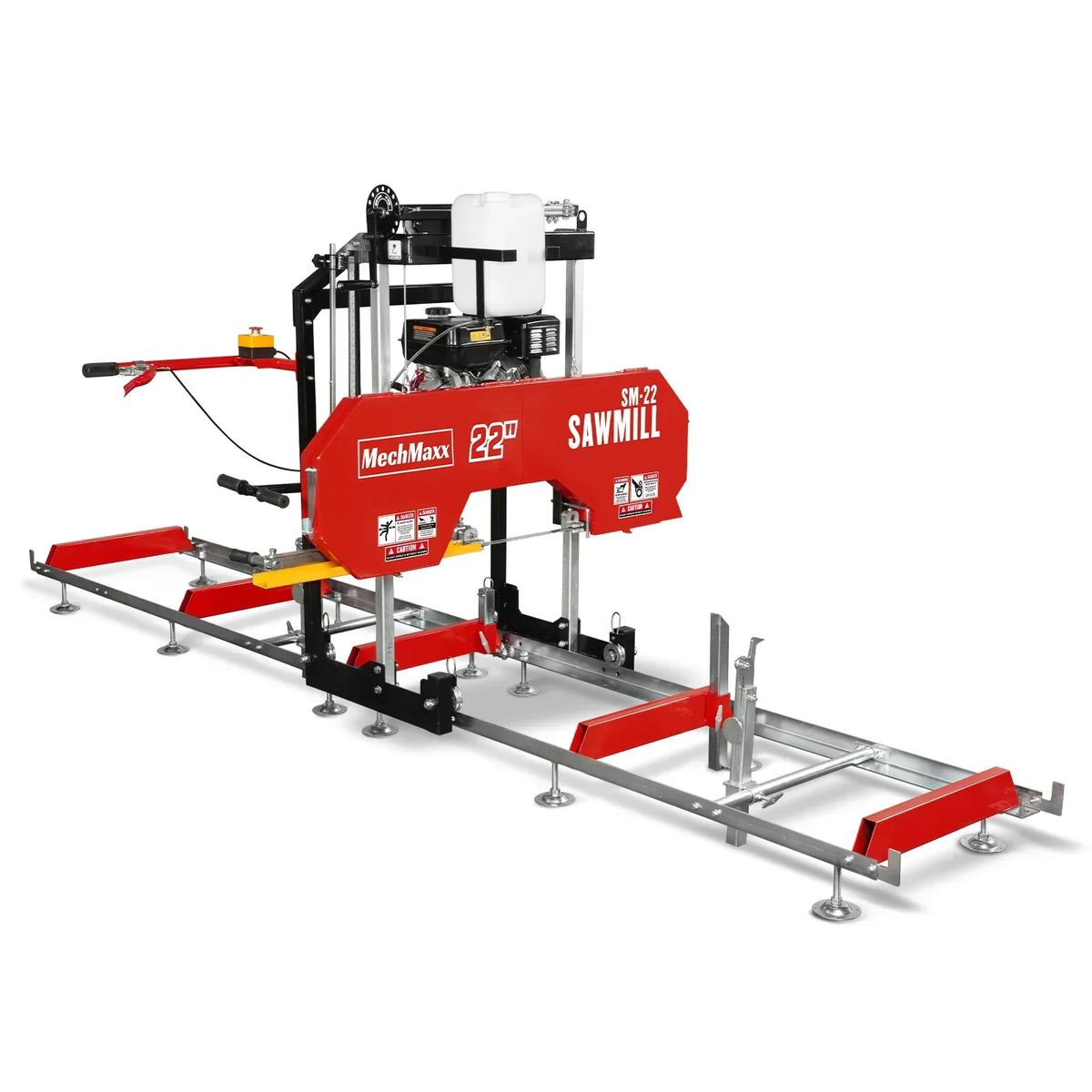

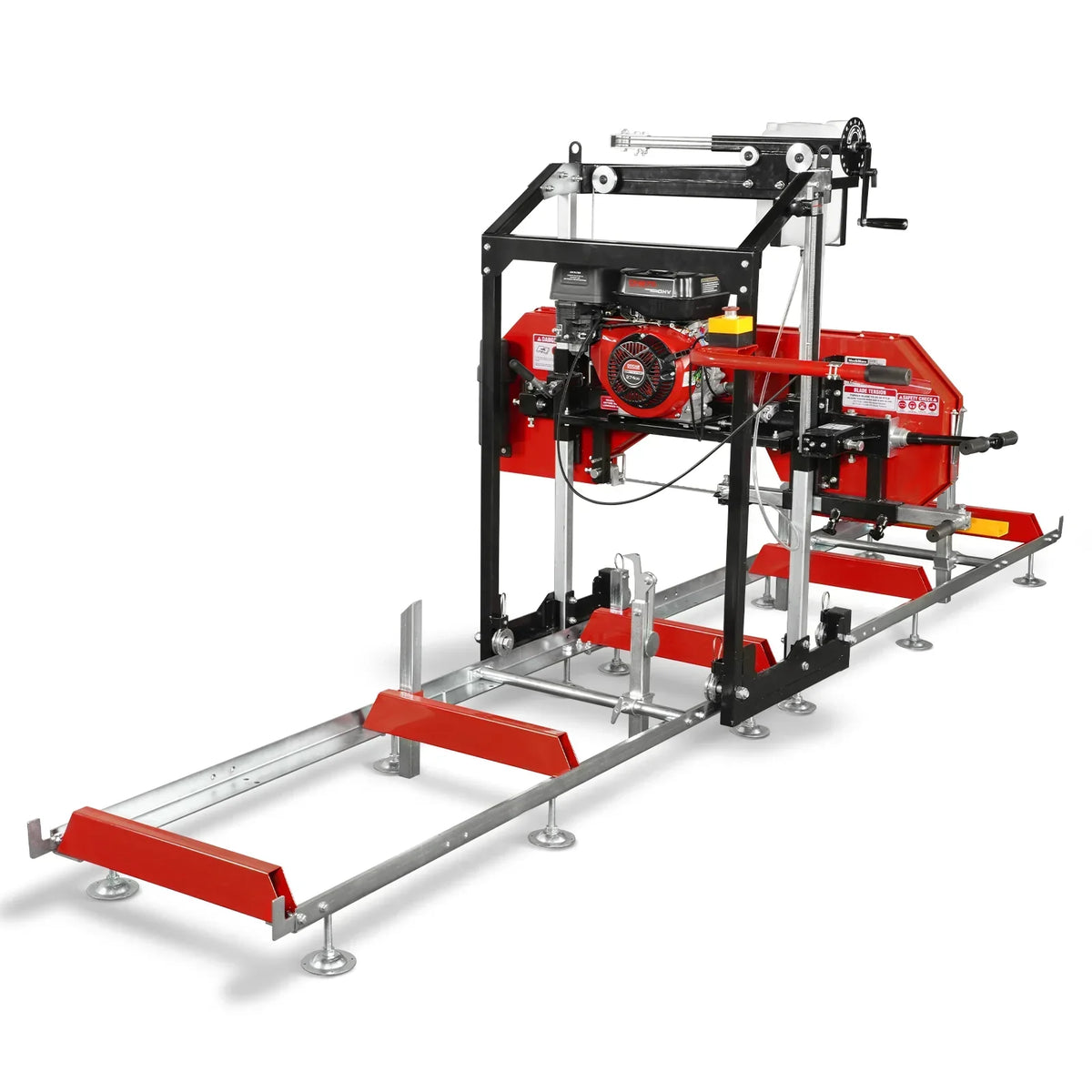

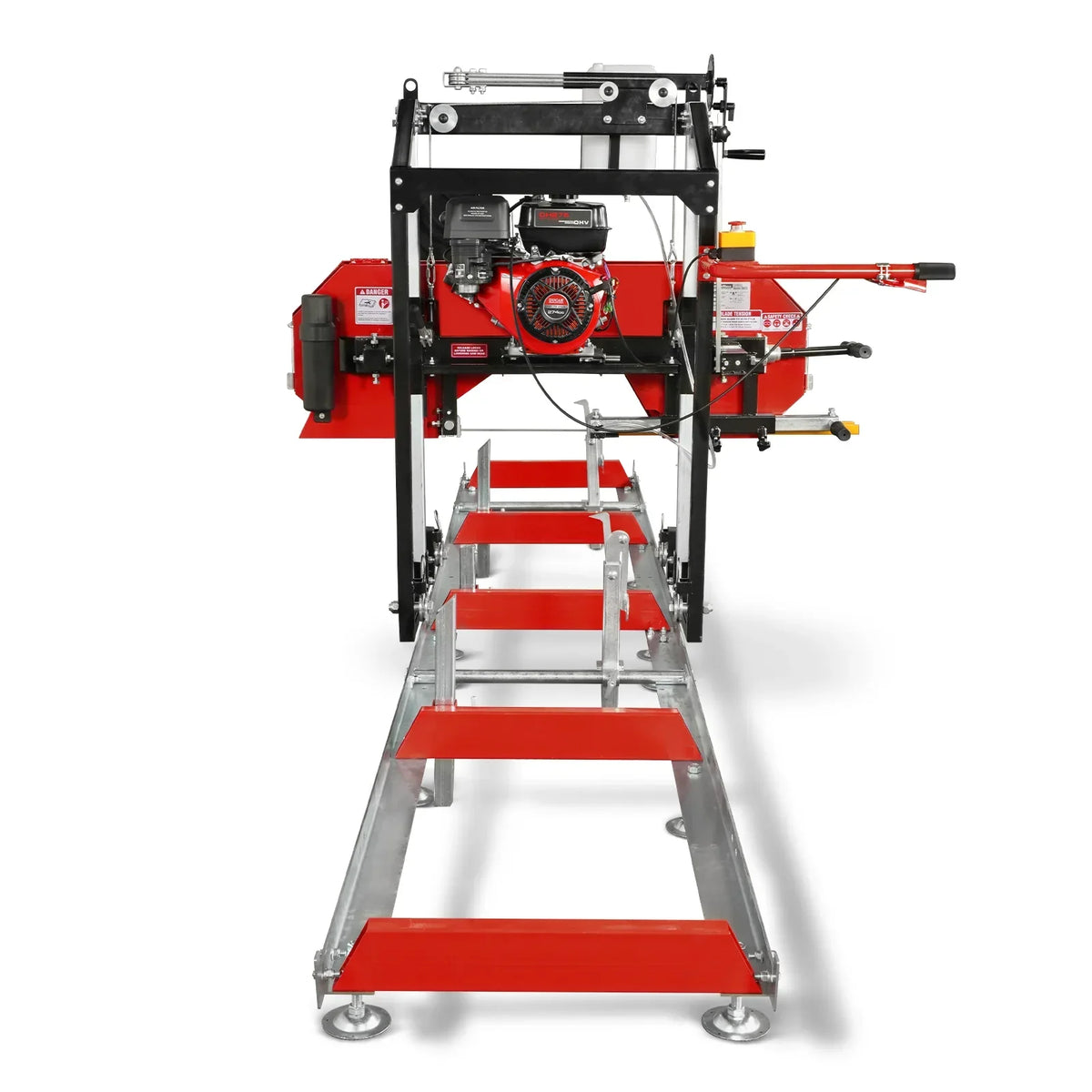

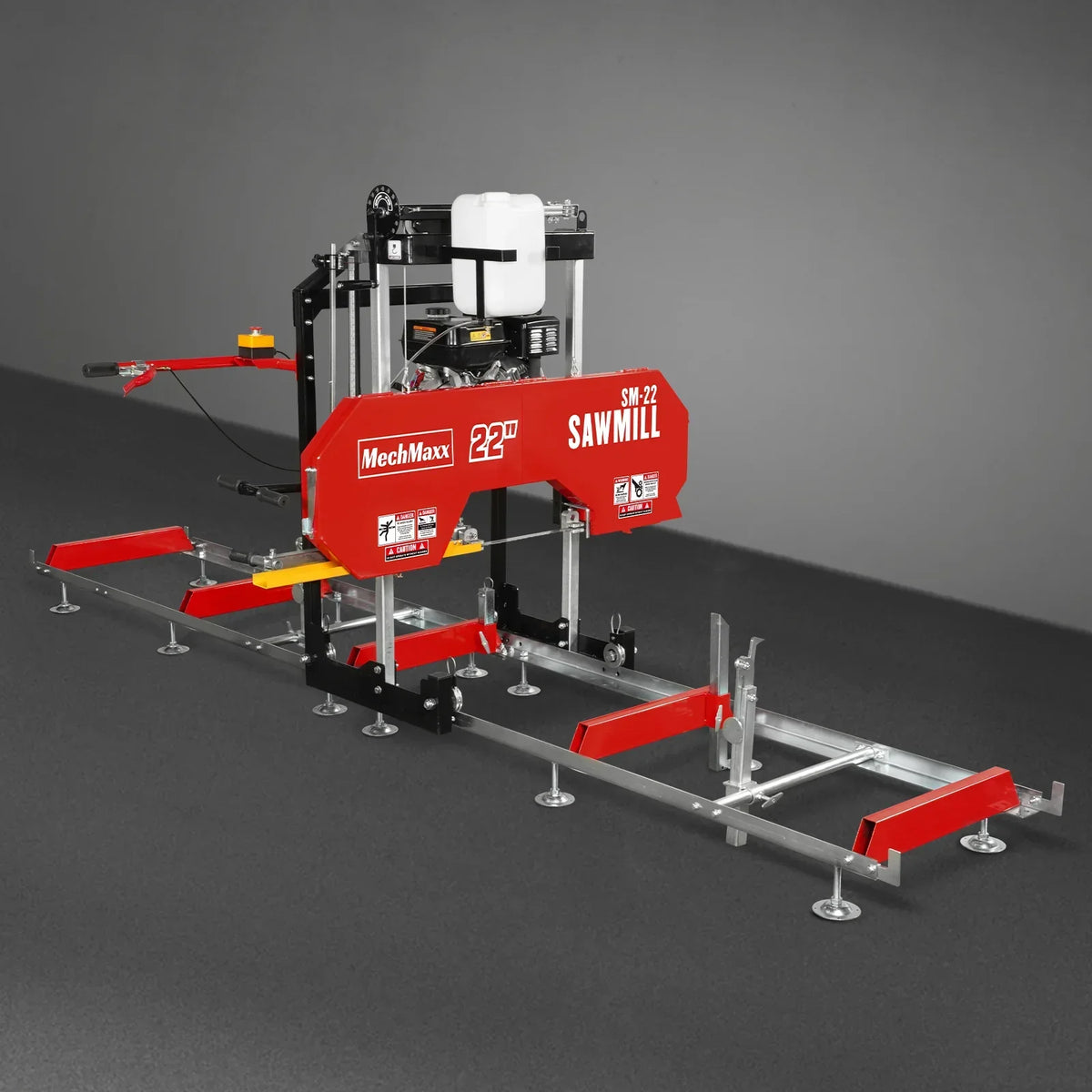

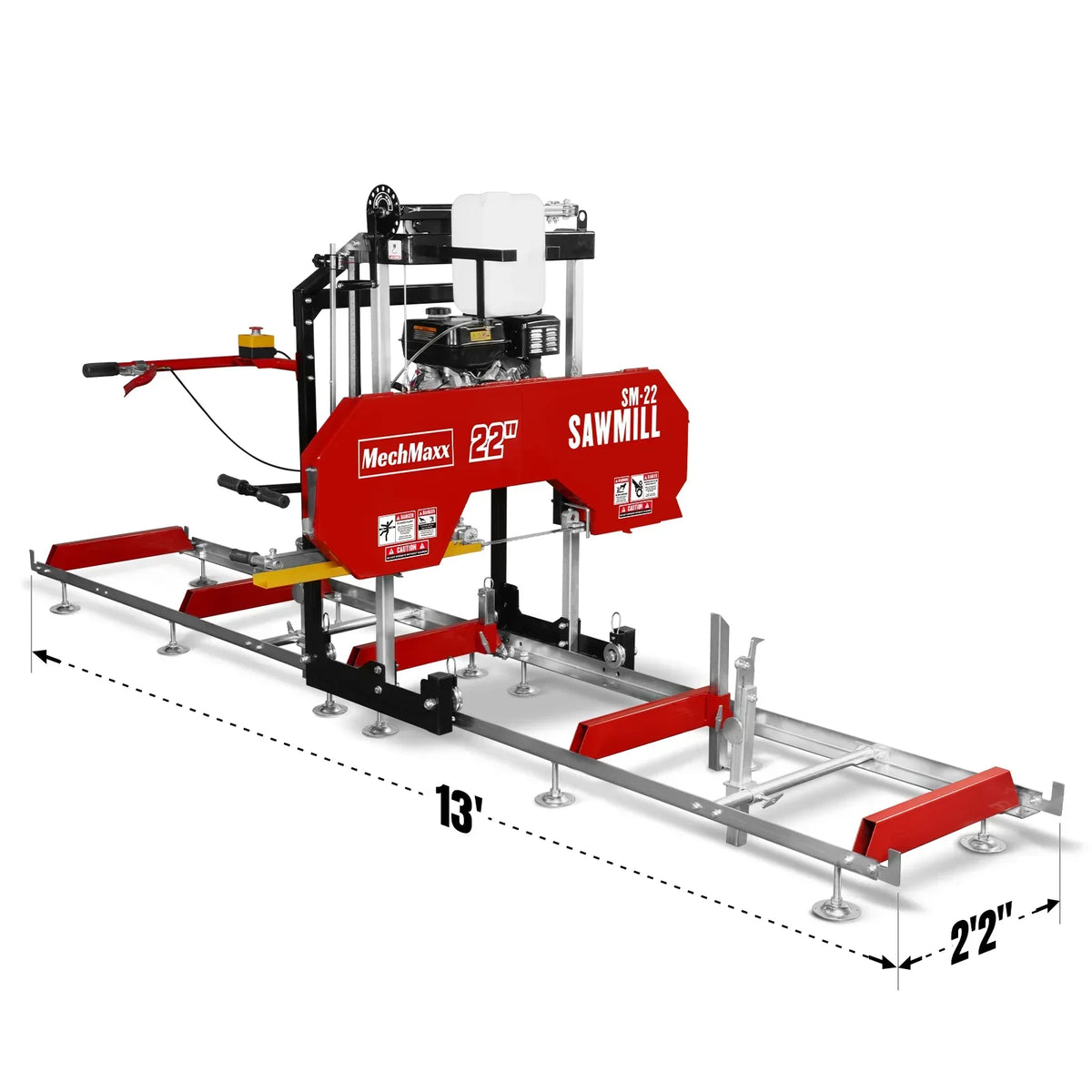

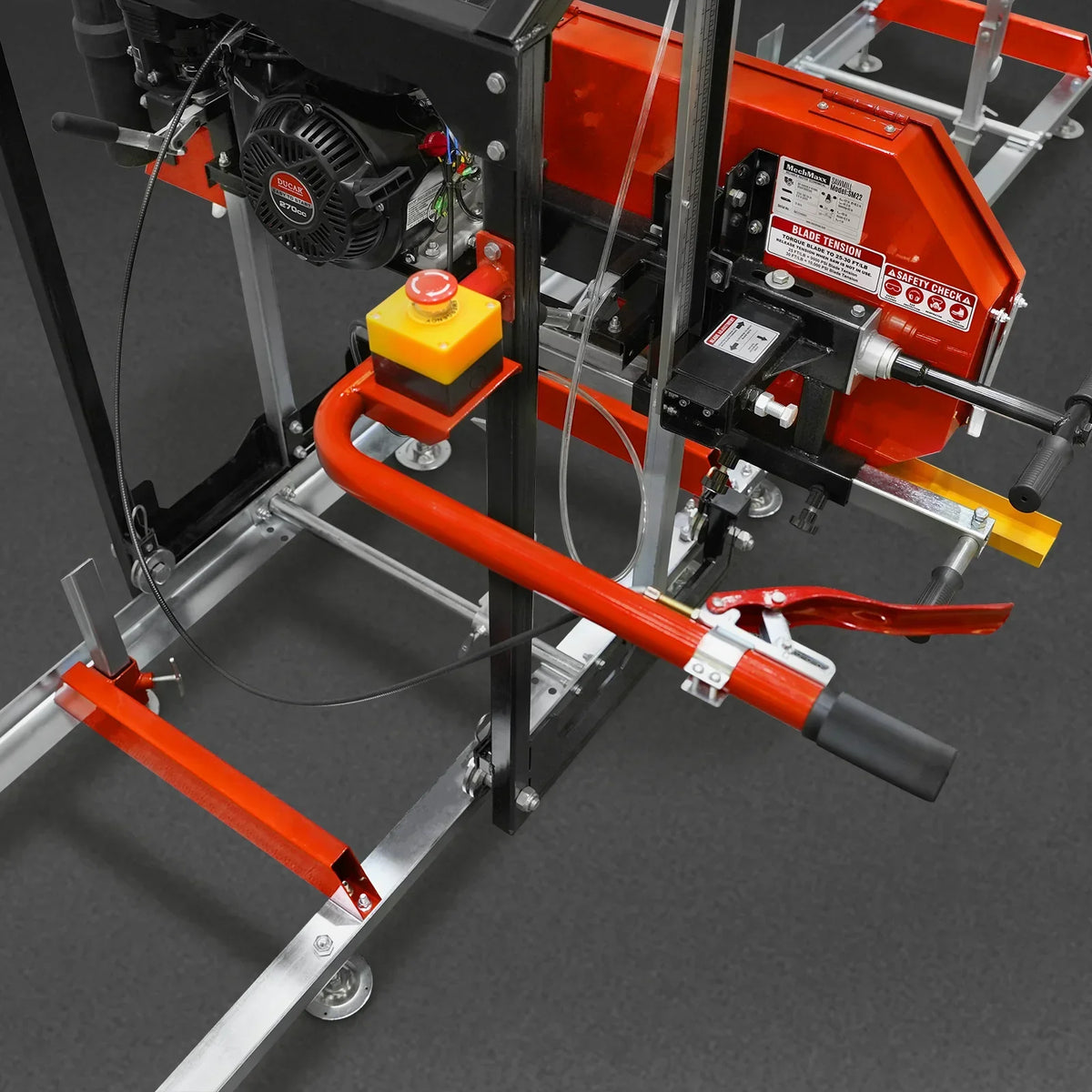

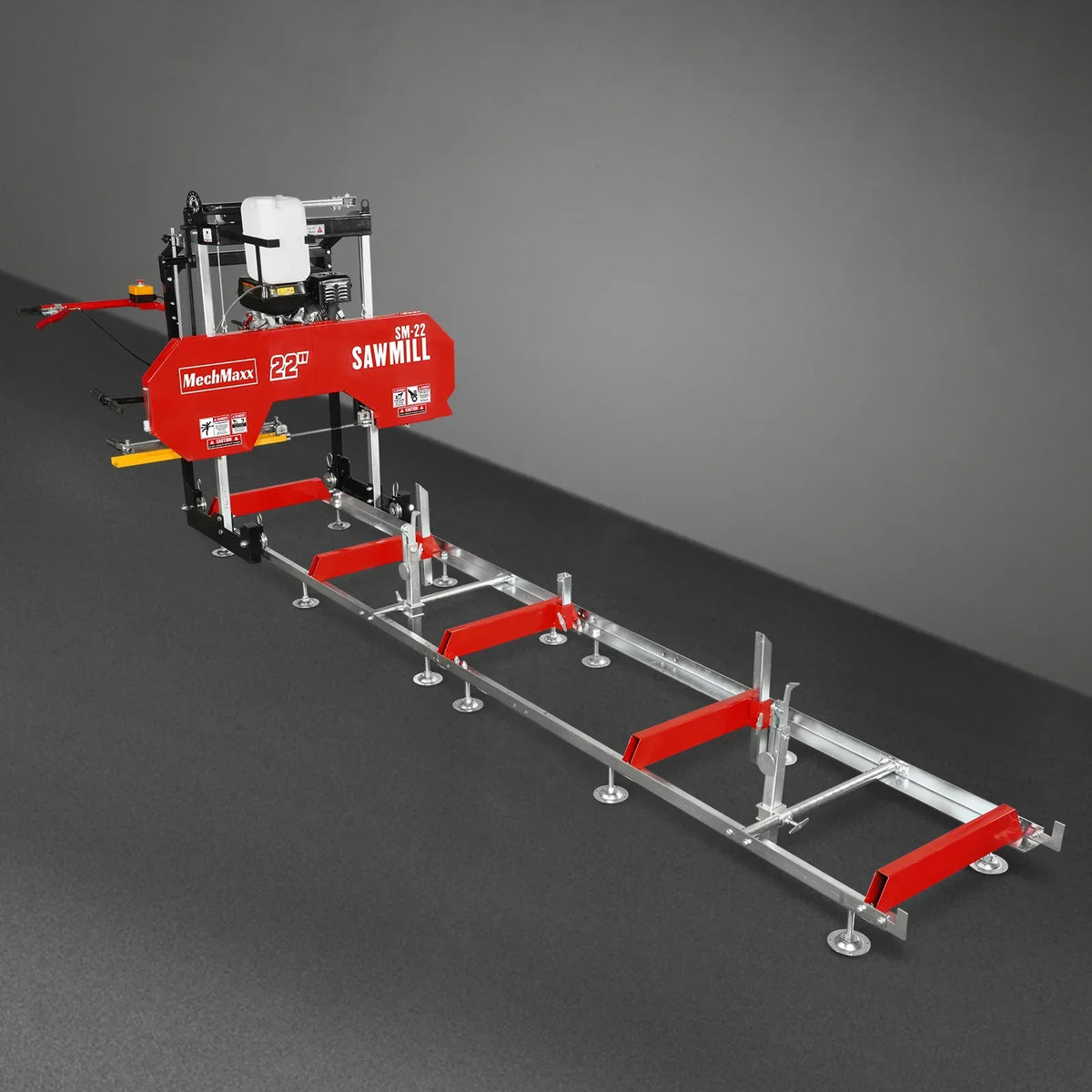

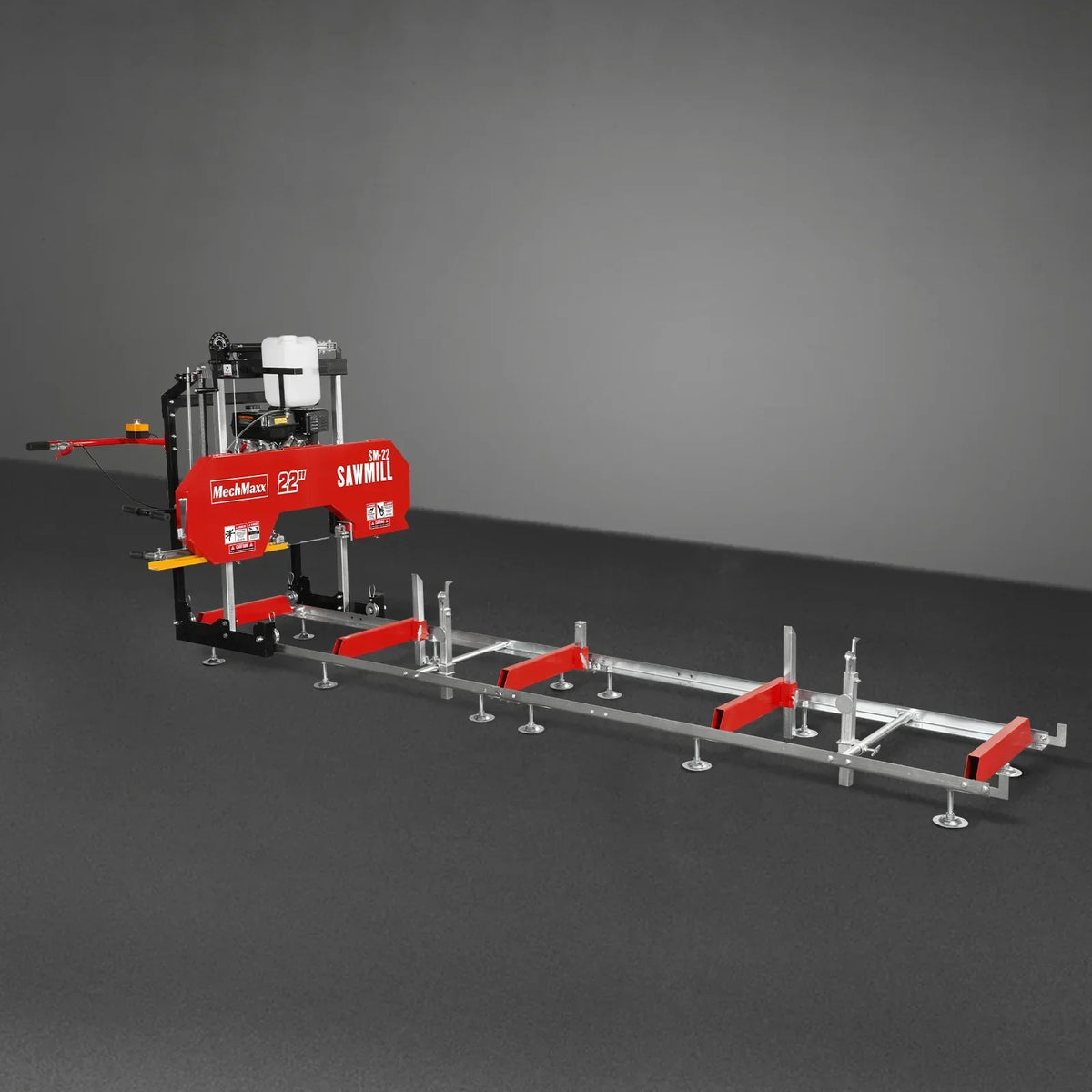

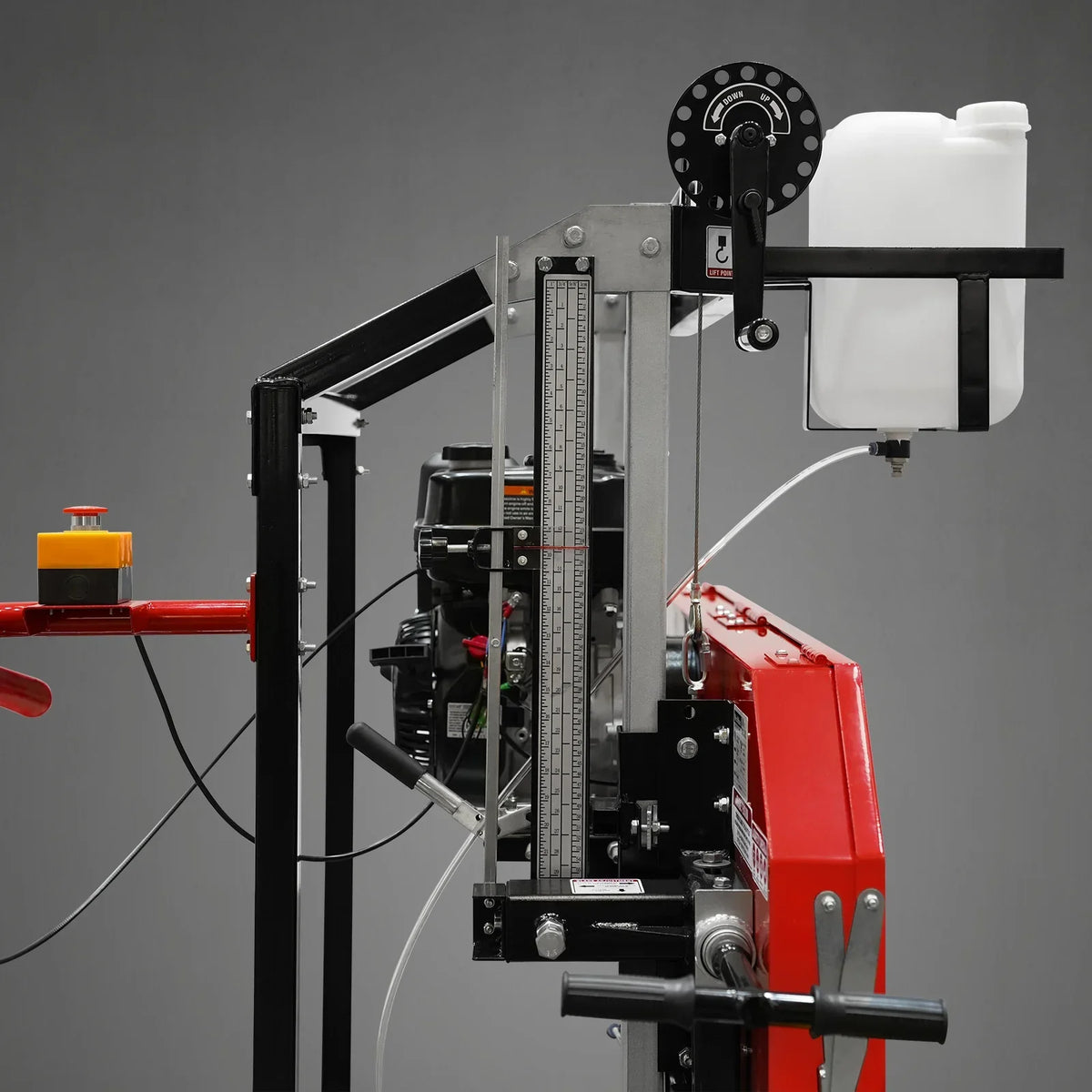

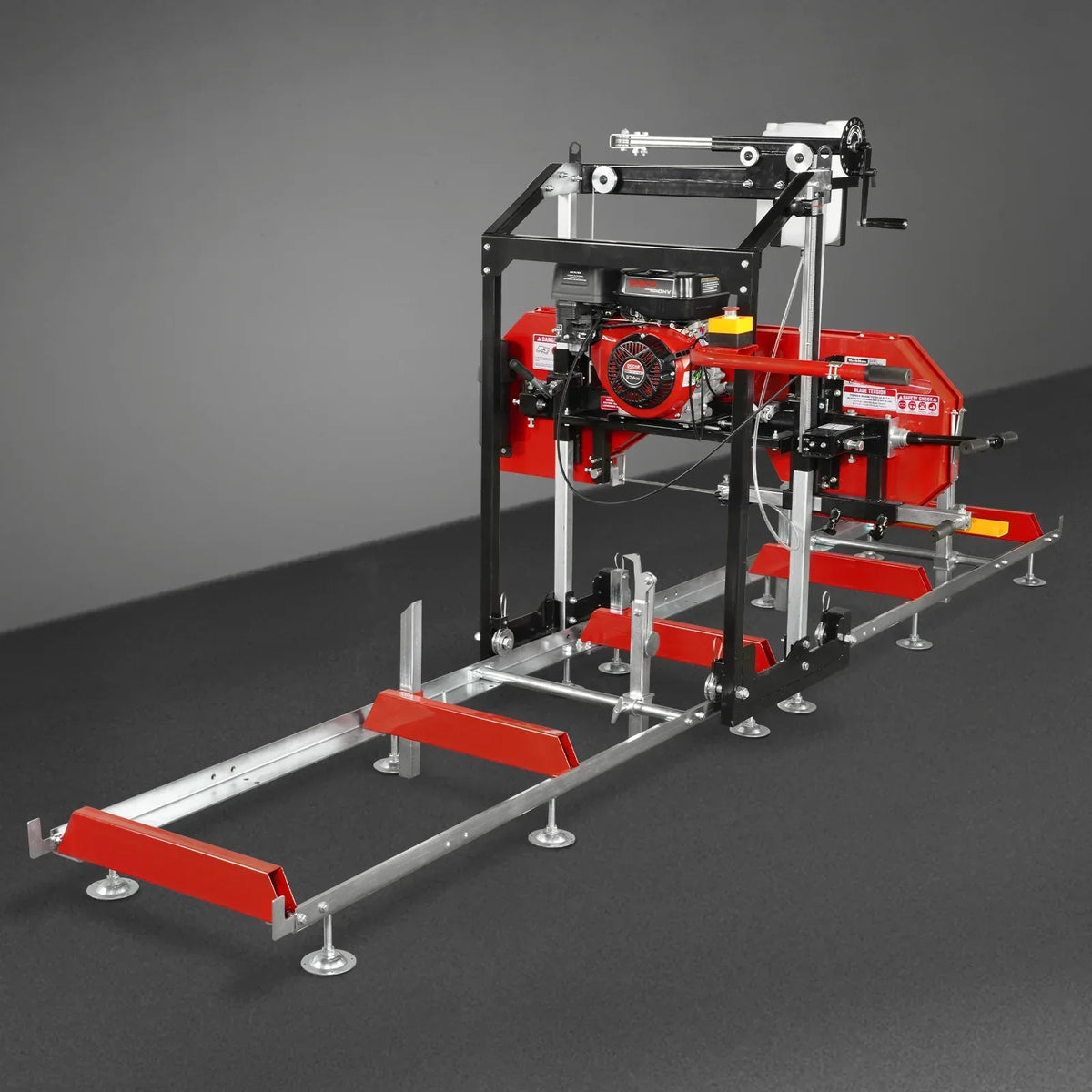

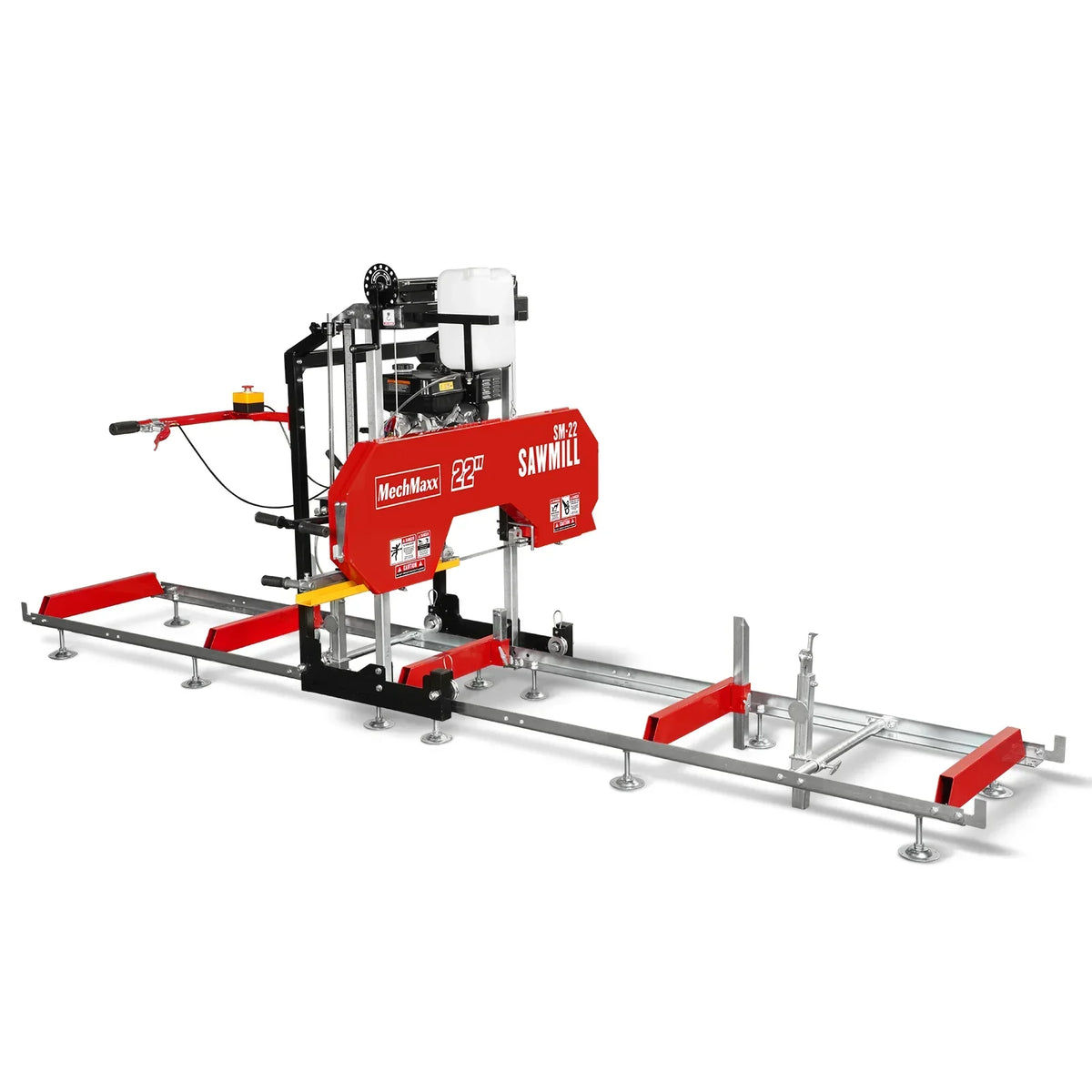

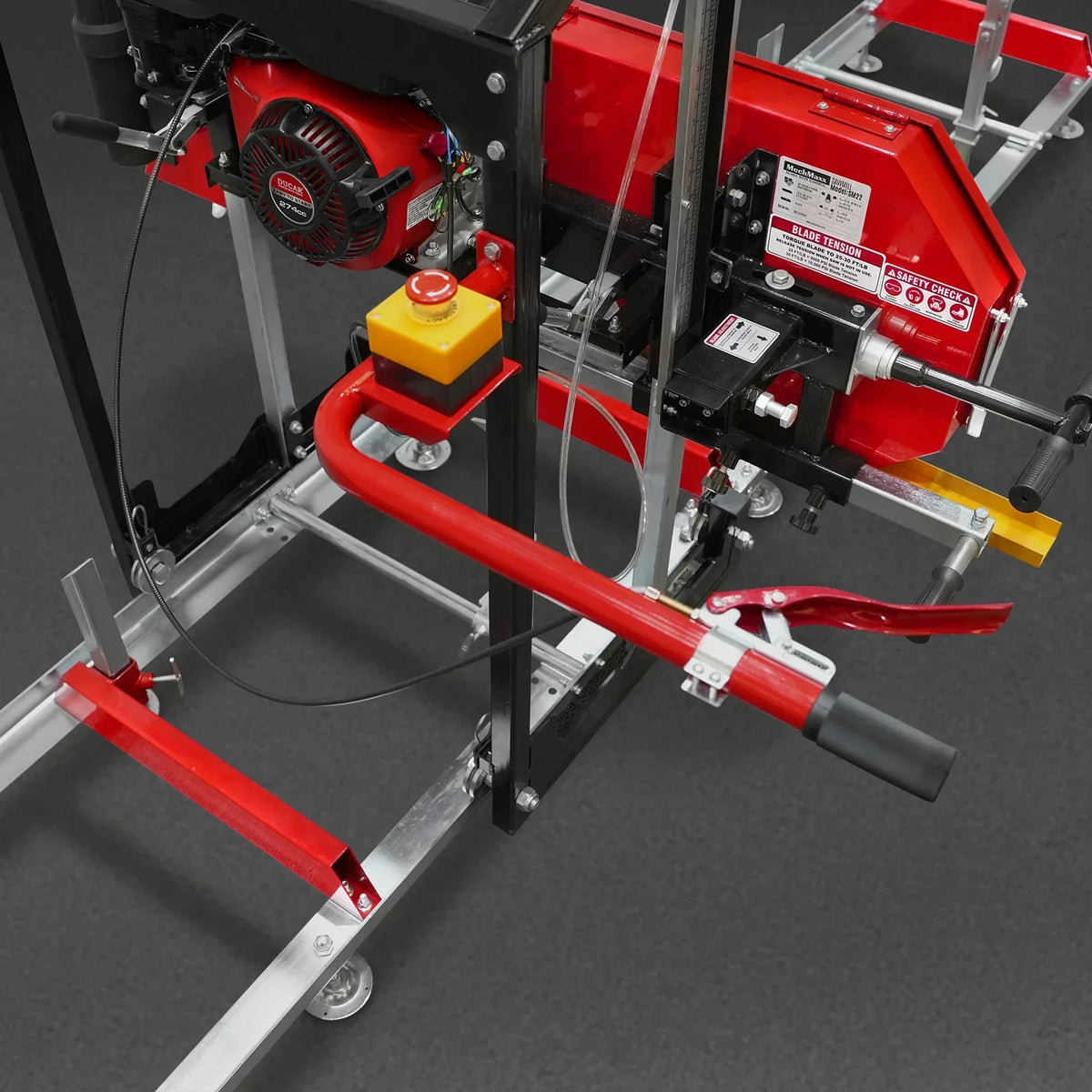

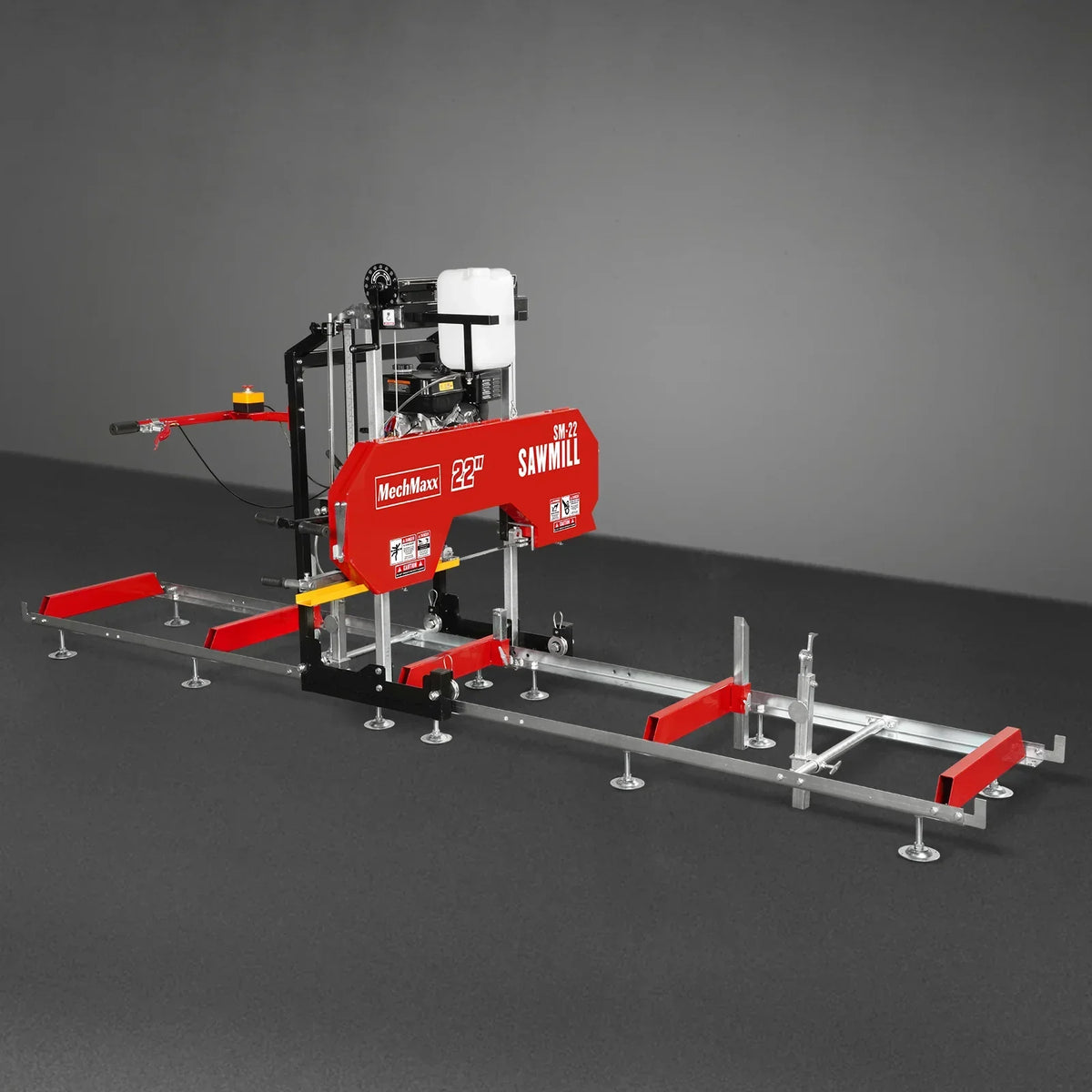

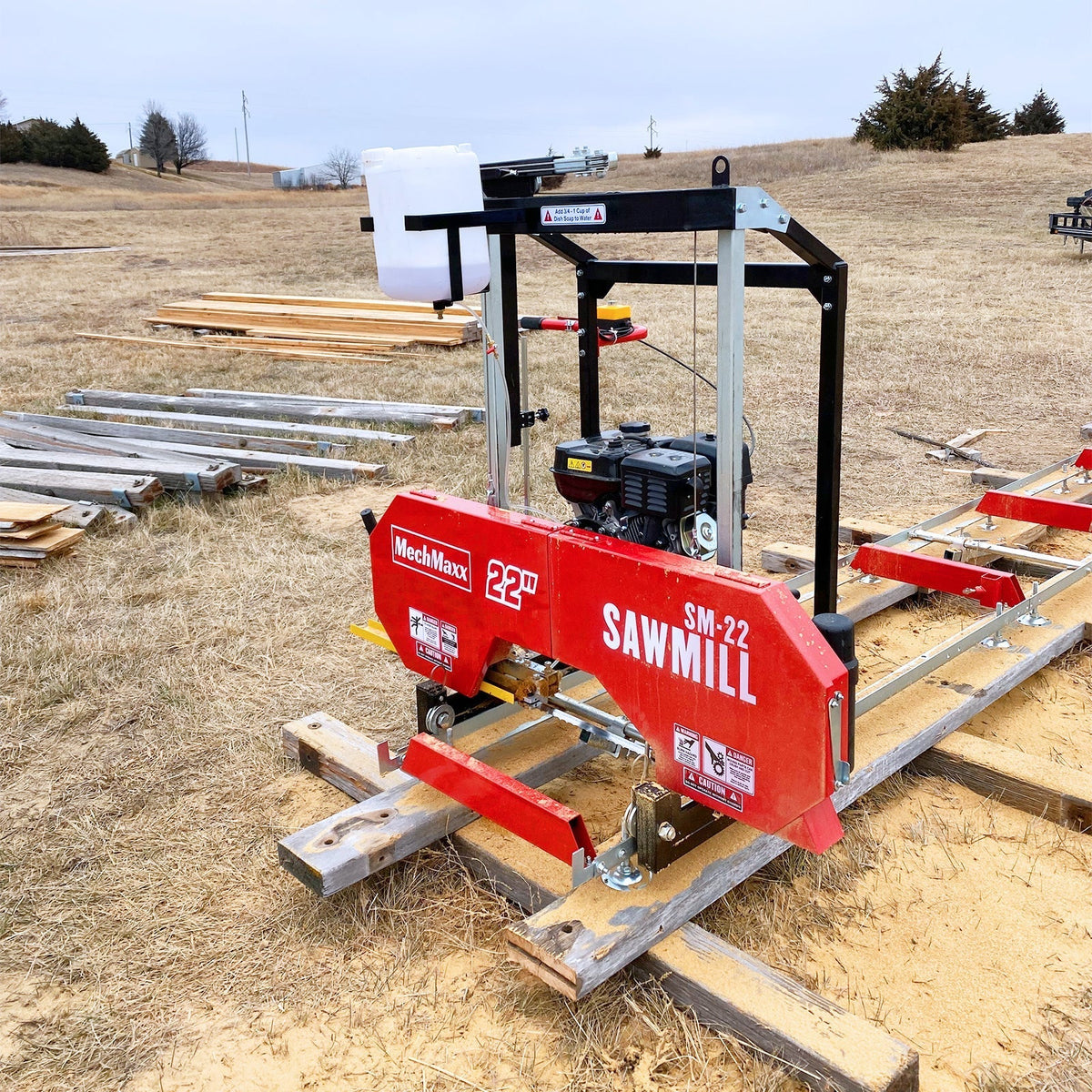

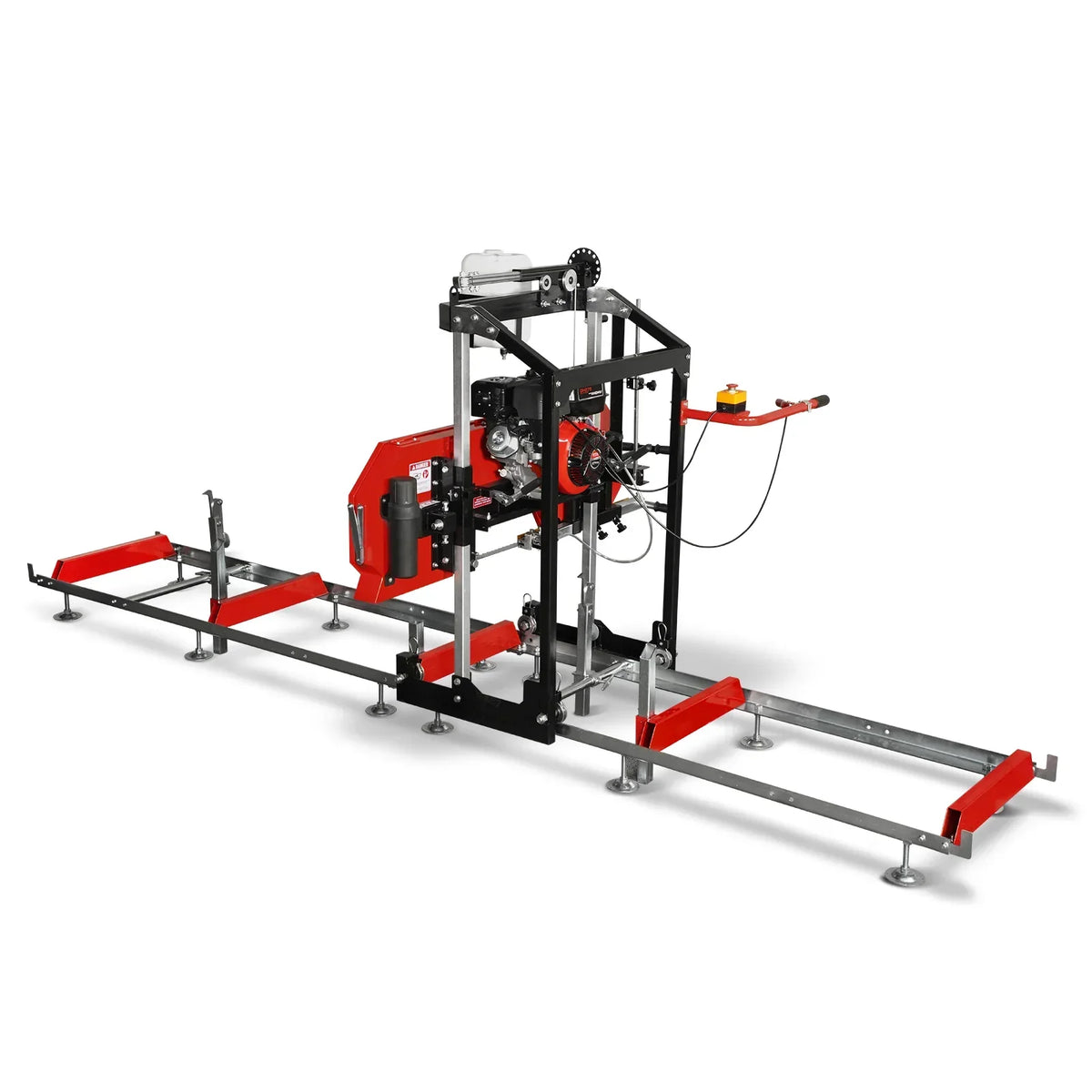

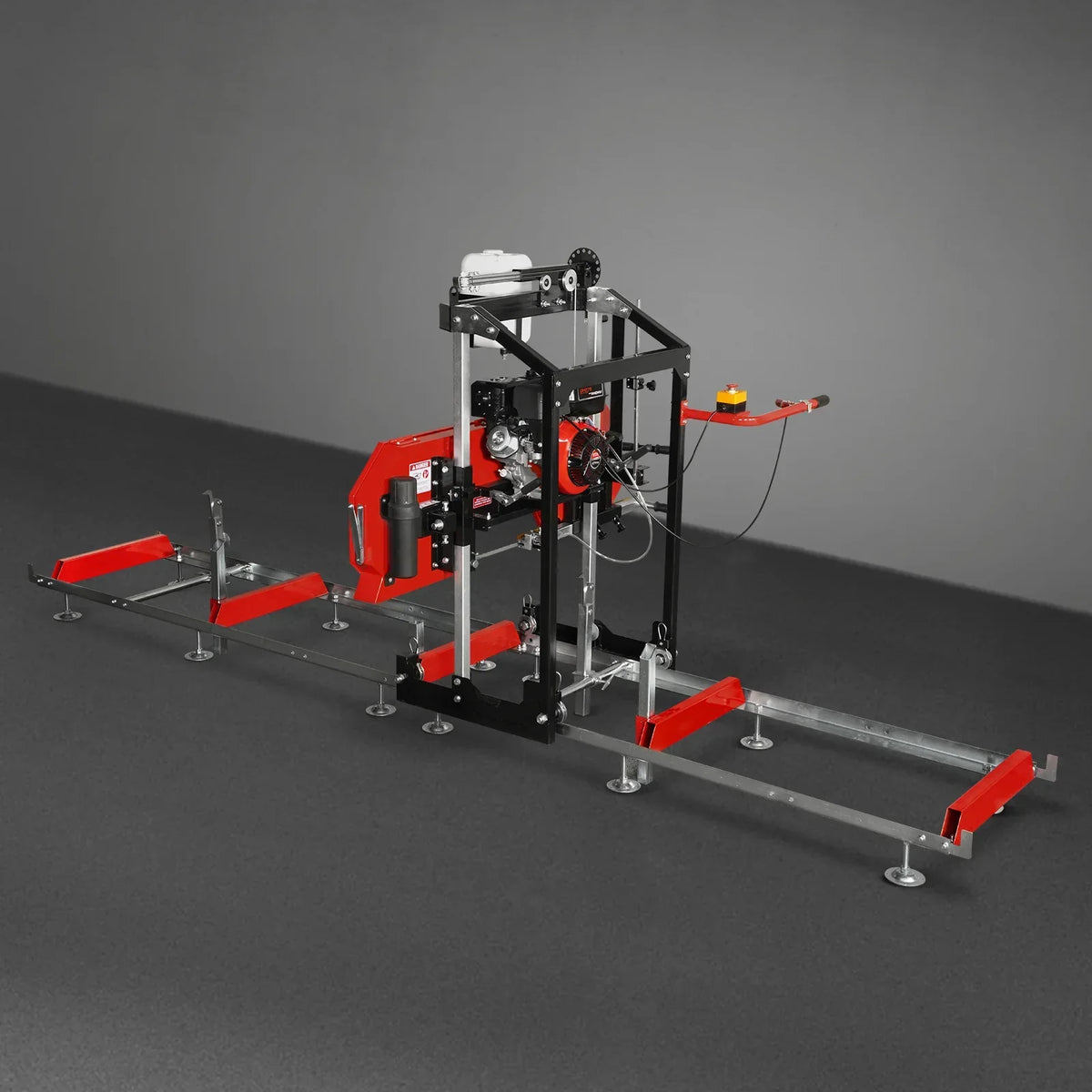

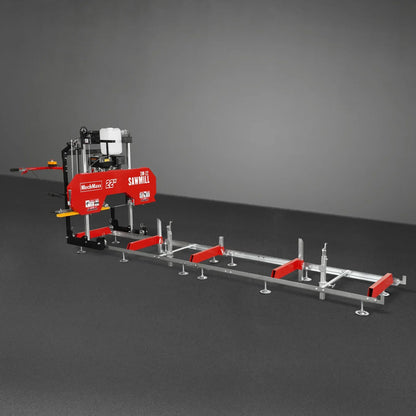

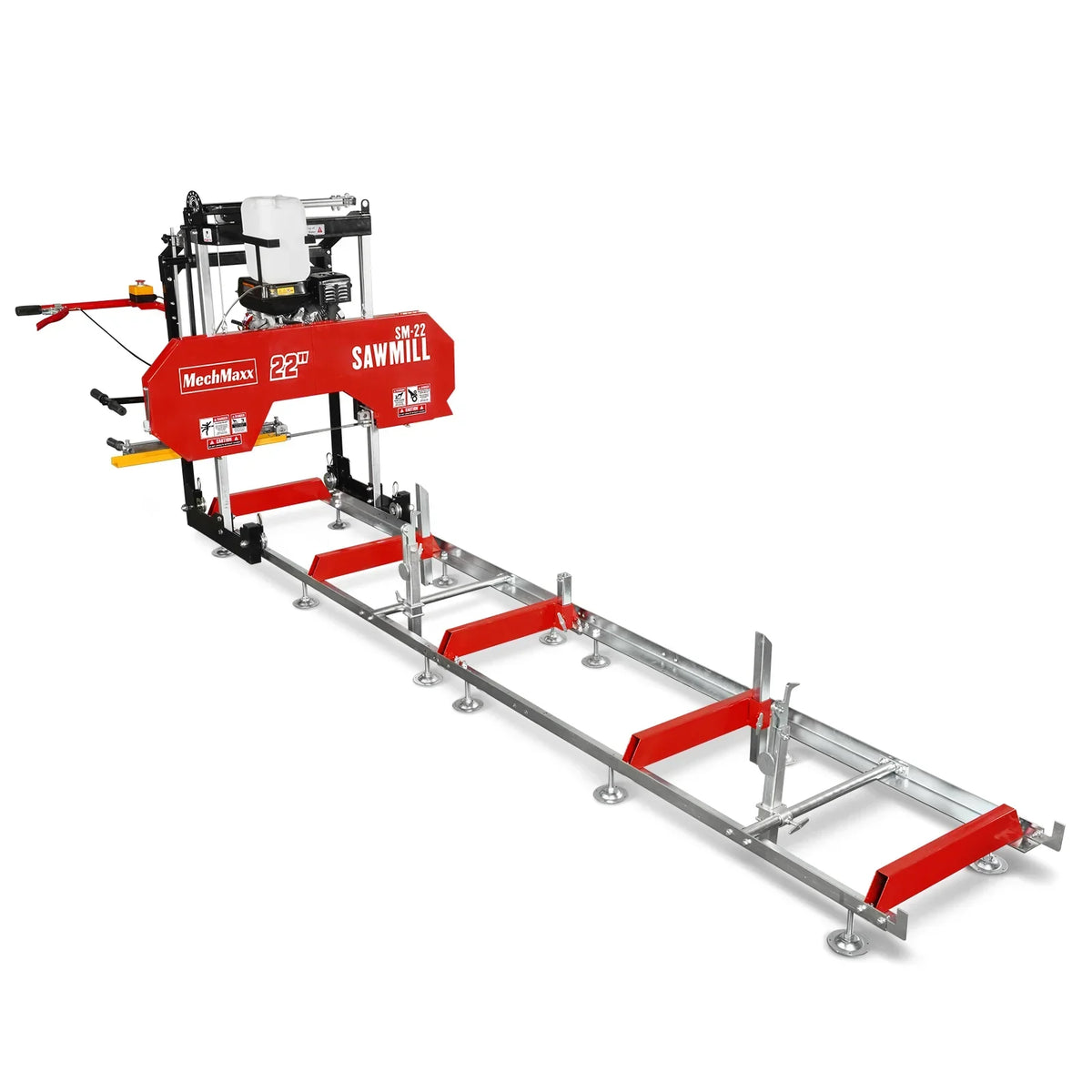

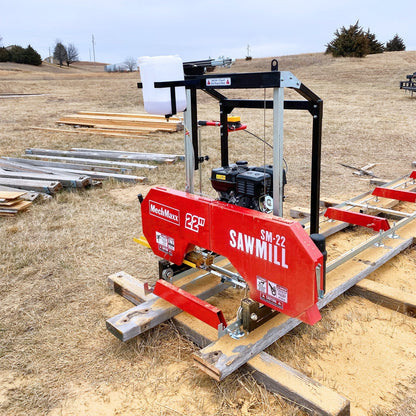

22" Portable Sawmill

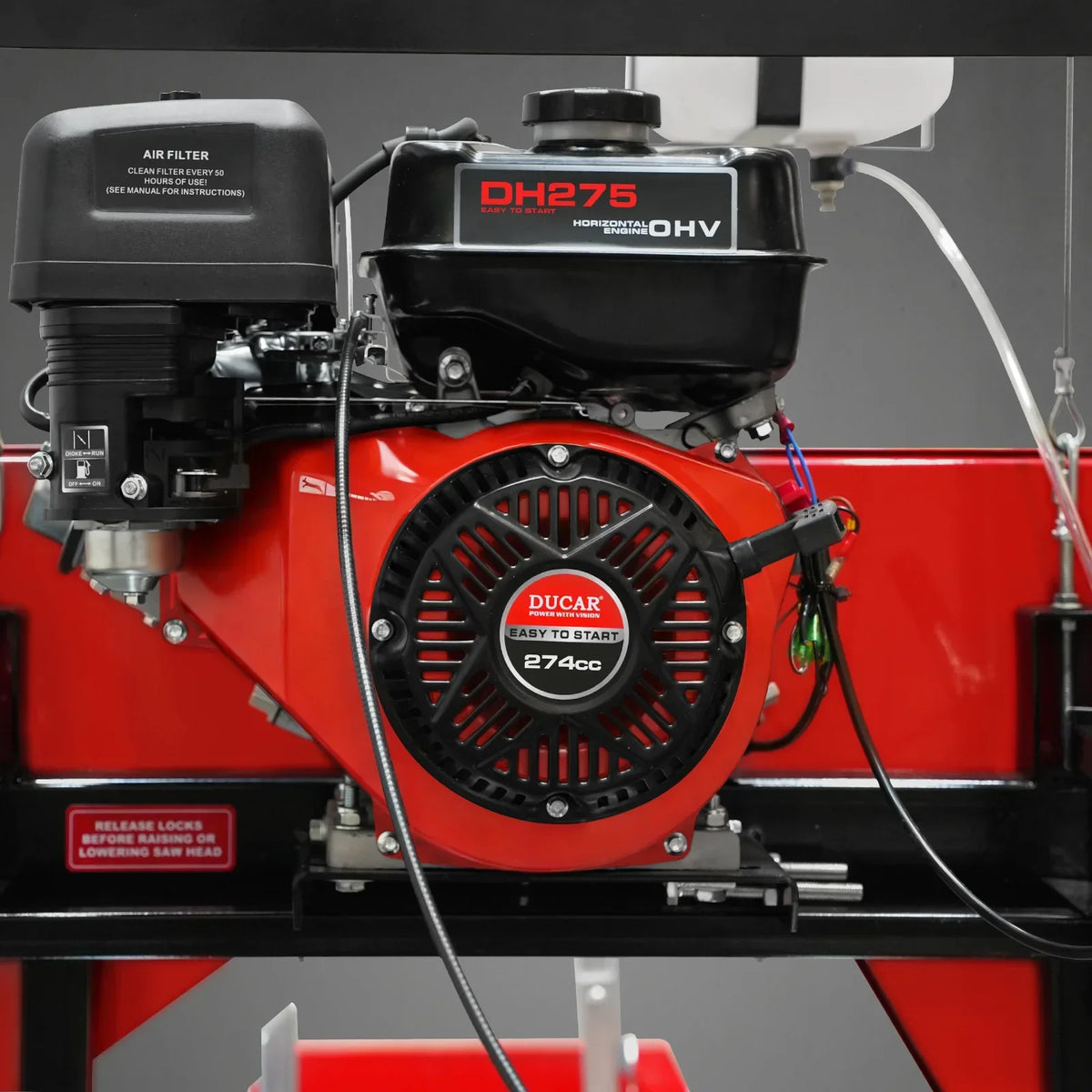

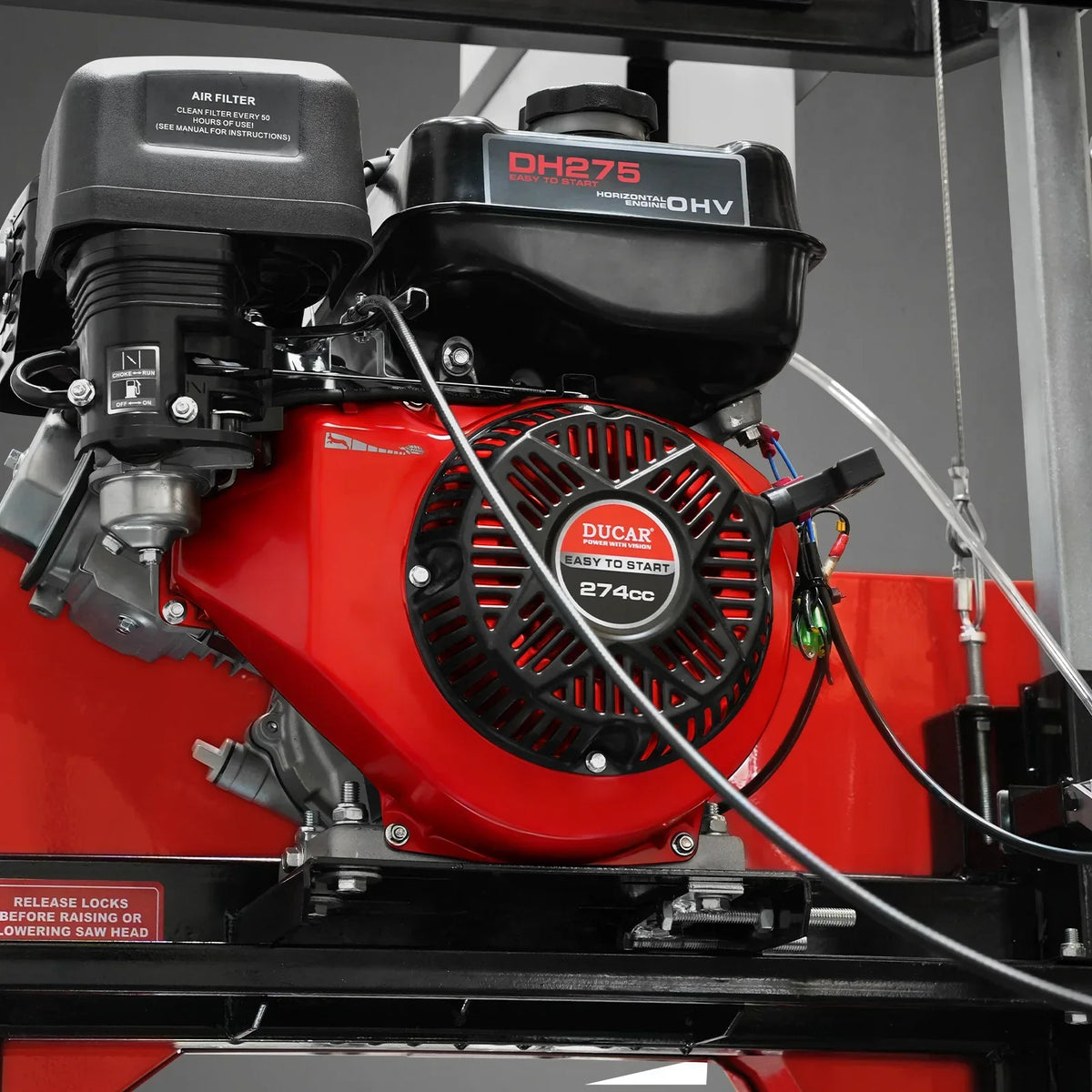

Engine
DUCAR DH275
Lubricant Tank Size
2.6 gal
Engine Type
Single Cylinder, 4 Stroke, Air-Cooled, OHV
Track Load-Bearing
2 ton
Engine Displacement
274 cc
Track Width
2 ft 2 in
Horsepower
8.1 HP
Track Length
13 ft
Start
Recoil
Track Extension Length
6.4 ft
Log Diameter
22 in
Leveling Feet
12
Max Live Edge Width
18 in

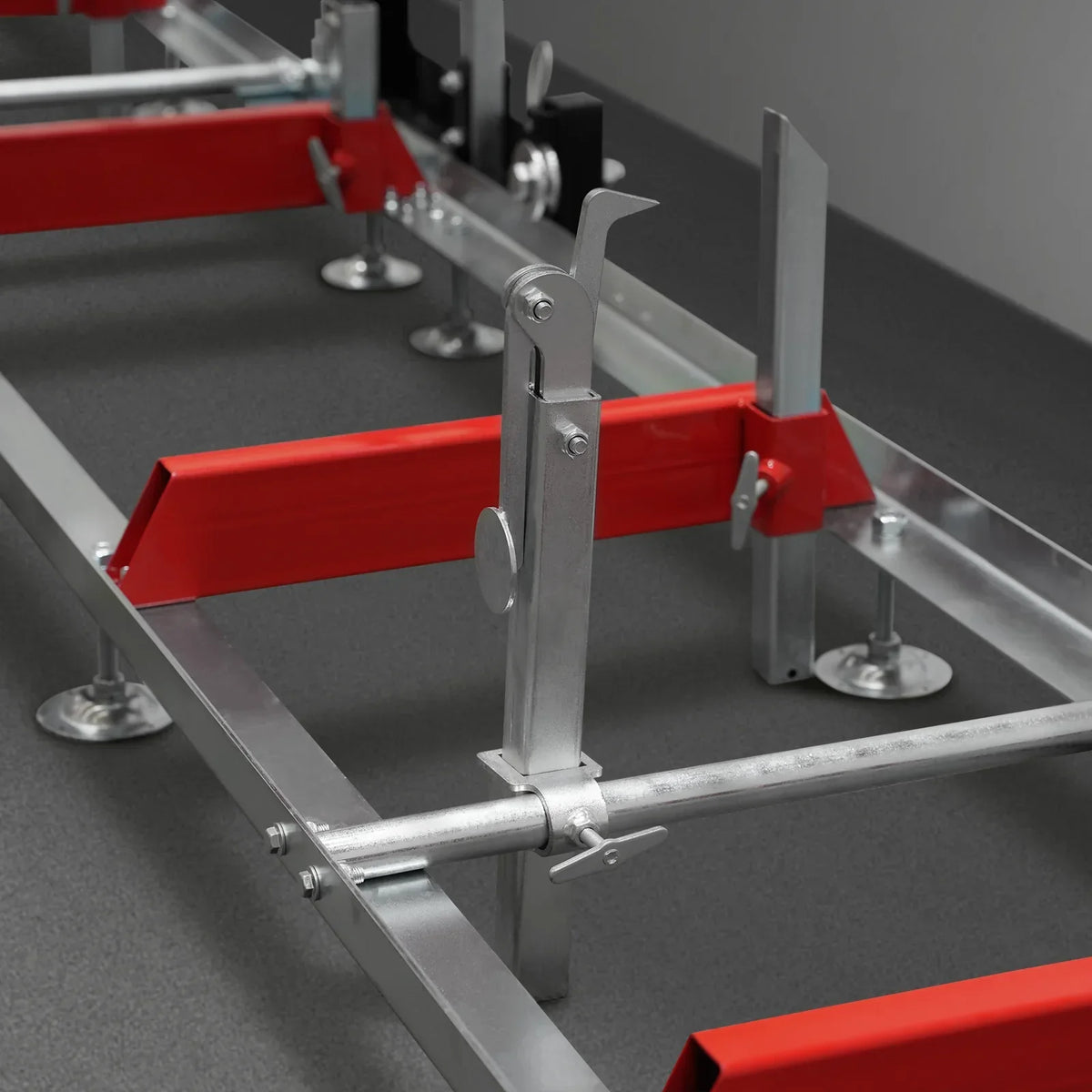

Log Rests
2 Long and 2 Short Rests
Standard Cutting Length
10.4 ft
Log Clamps
2 x Quick Lock
Max Board Thickness
6 in
Track Bunks
1.6 x 3.9 in
Blade Engagement System
Centrifugal Clutch
4 Post Head Design
Yes

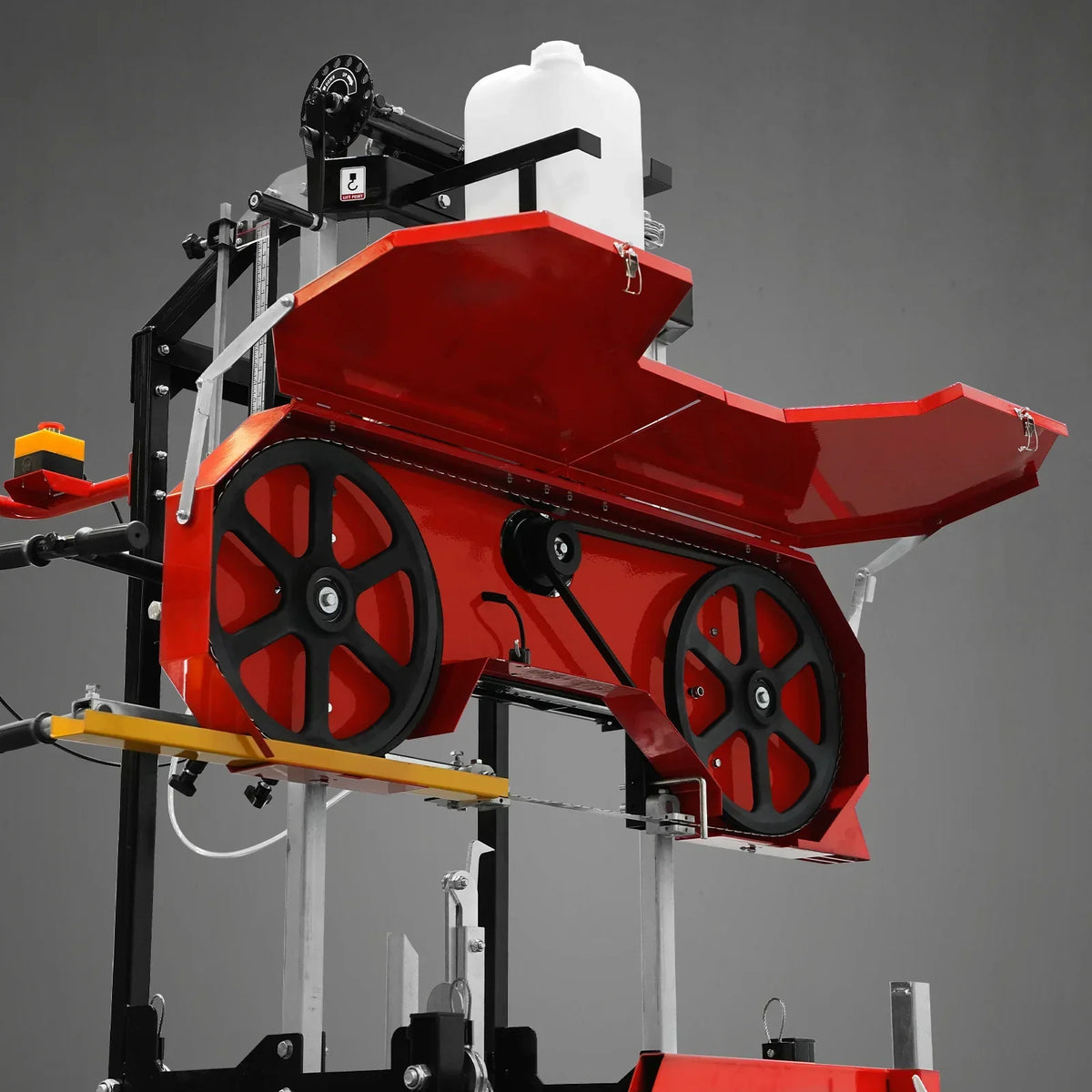

Cast Iron Bandwheel Diameter
16.5 in
Finish
Powder Coat Paint Galvanized Steel
Blade Wheel Engagement
Belt Drive
Sawmill Warranty
2 Years

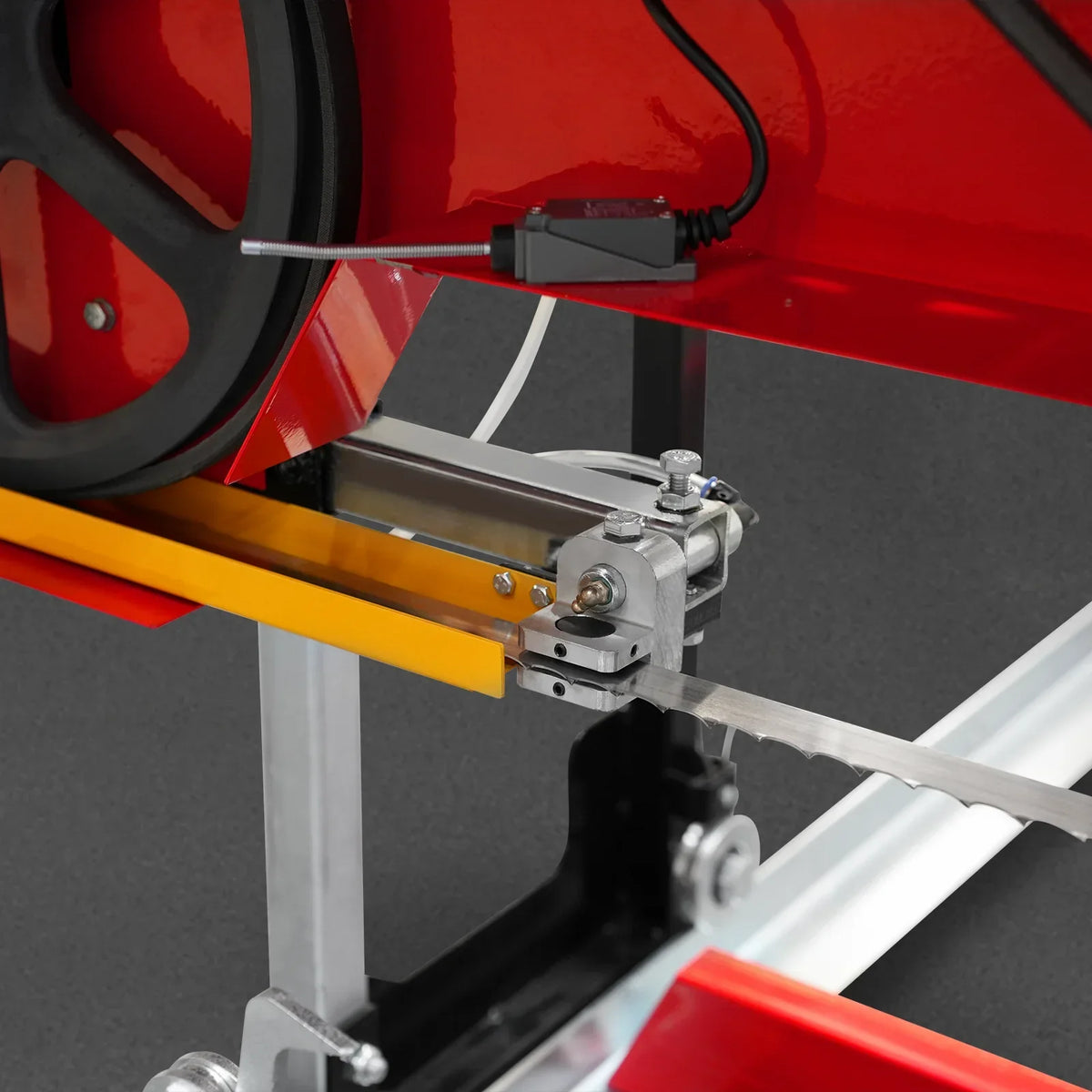

Blade Guide
By Roller
Engine Warranty
1 Year
Blade Tension
By Adjustable Lever
Package Method
Wood
Blade Size
127 x 1.3 in
Packing Size
87 x 19 x 32 in
Blade Pitch
7/8 in
Weight (N.W./G.W.)
509/600 lbs
Blade Lubrication
Water Lube - Manual Valve
