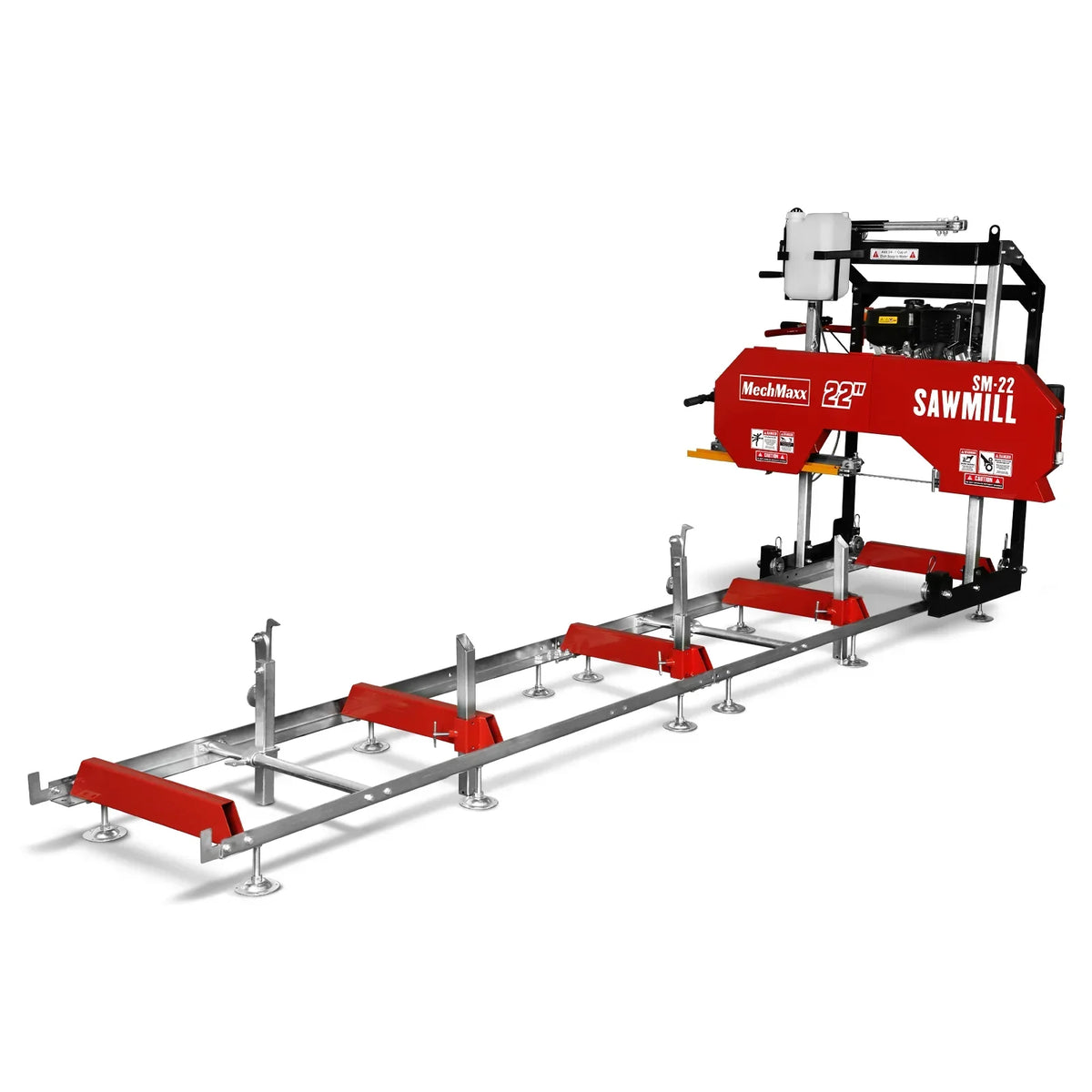

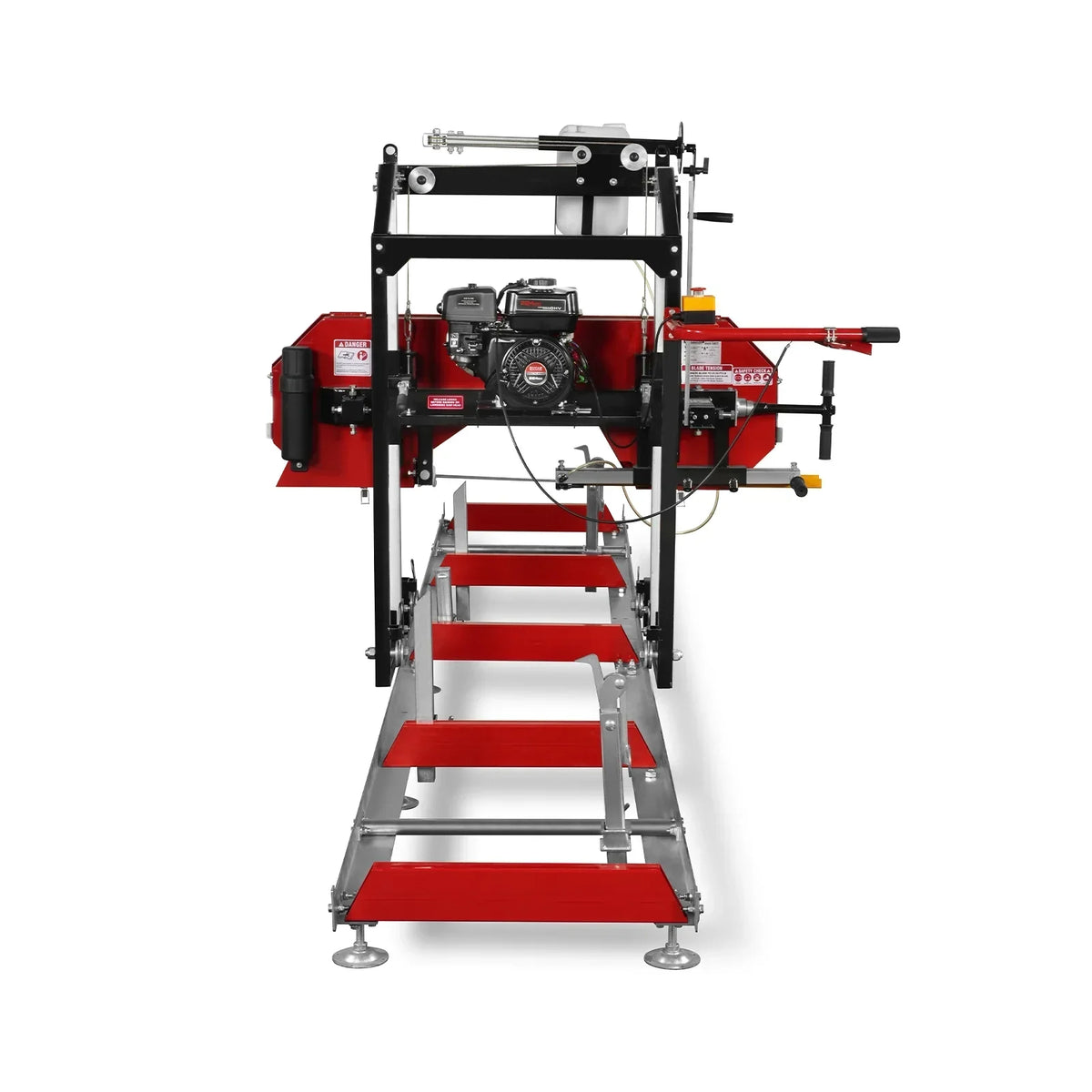

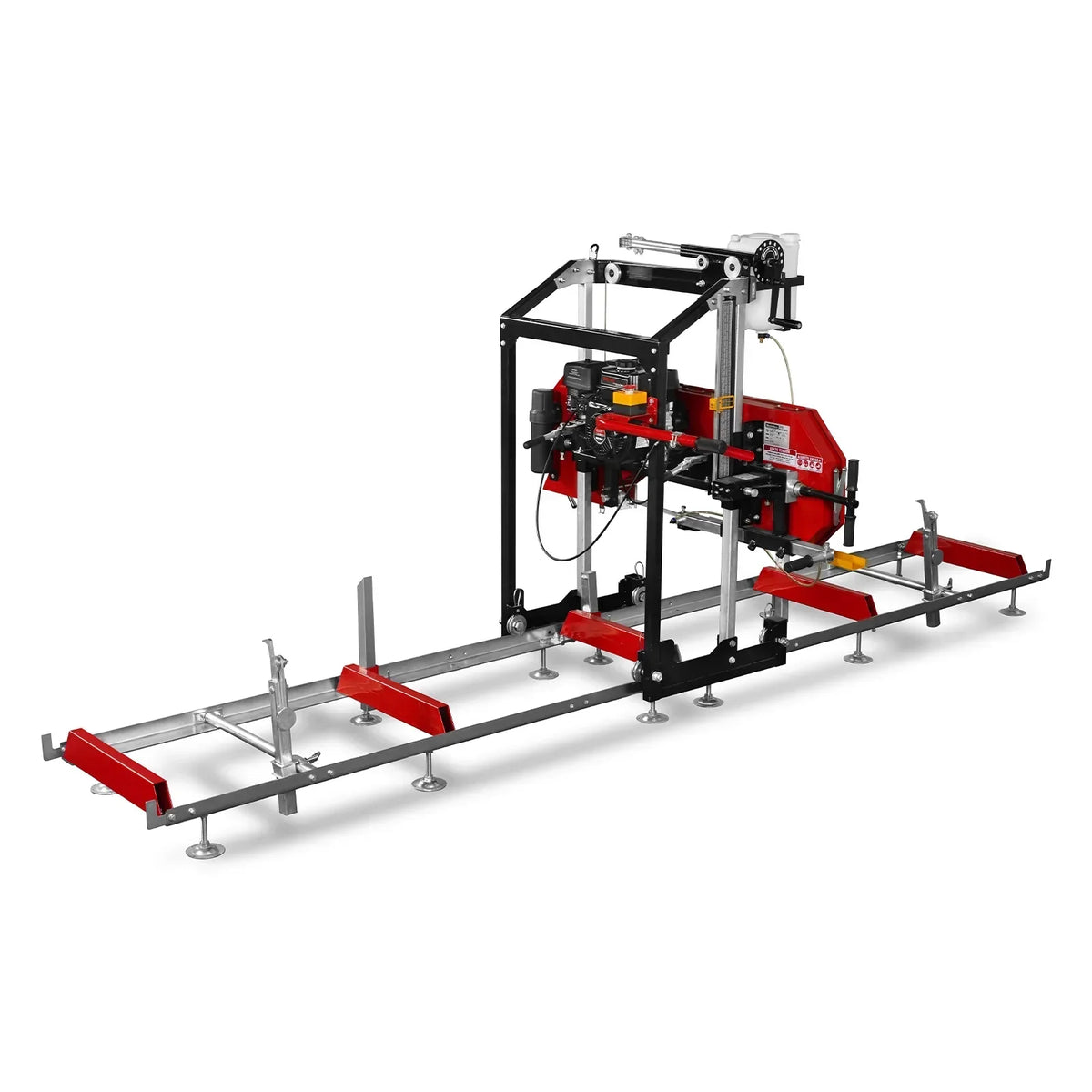

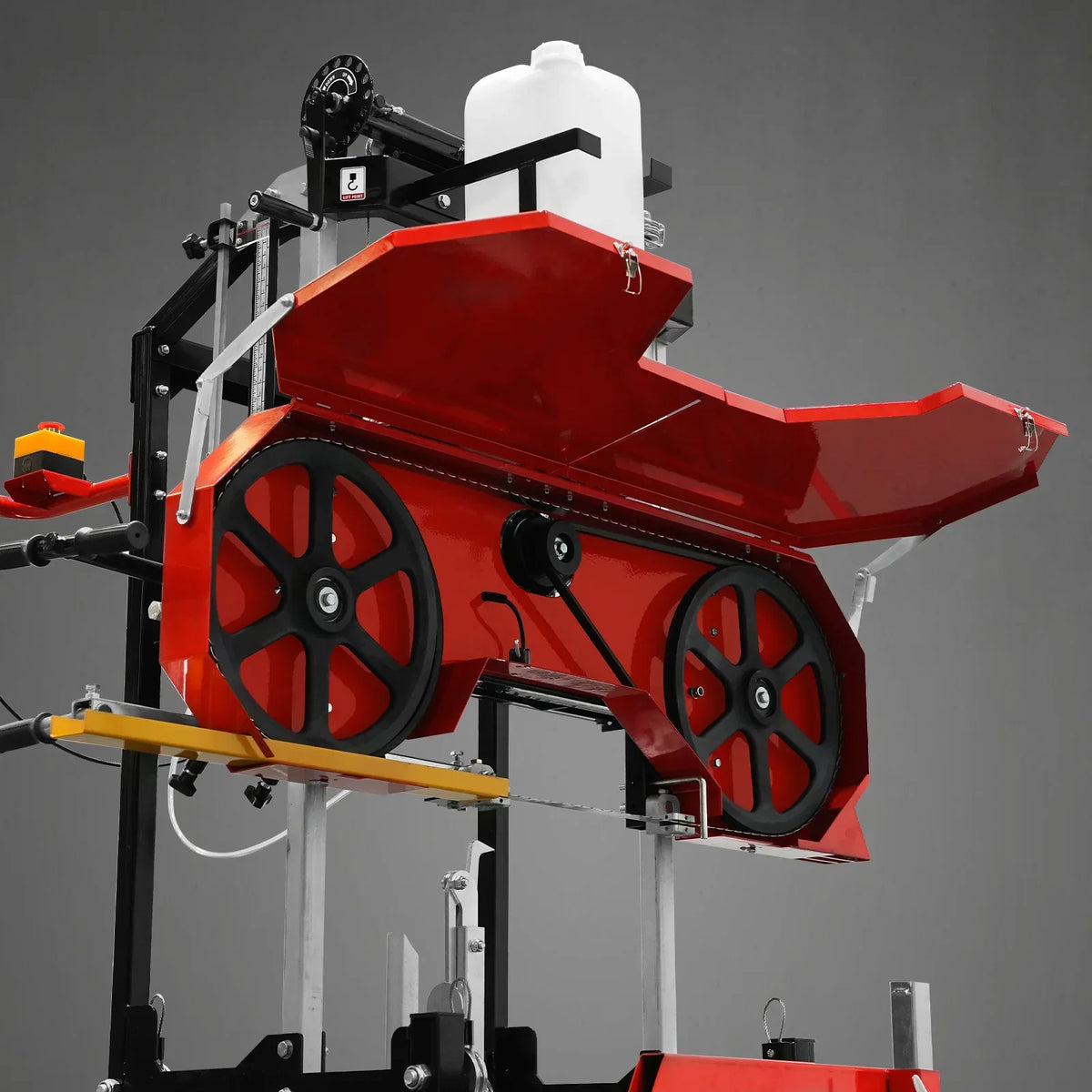

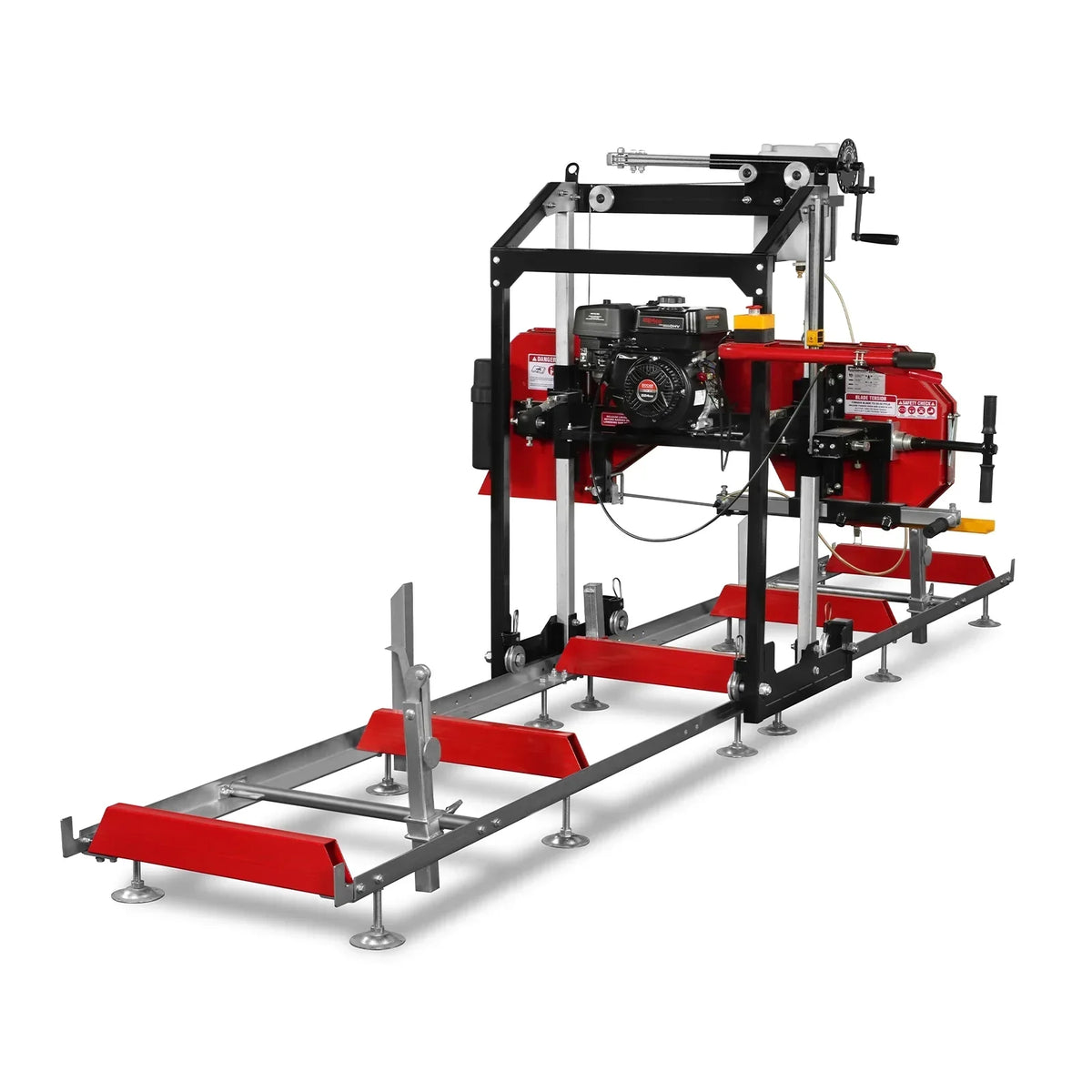

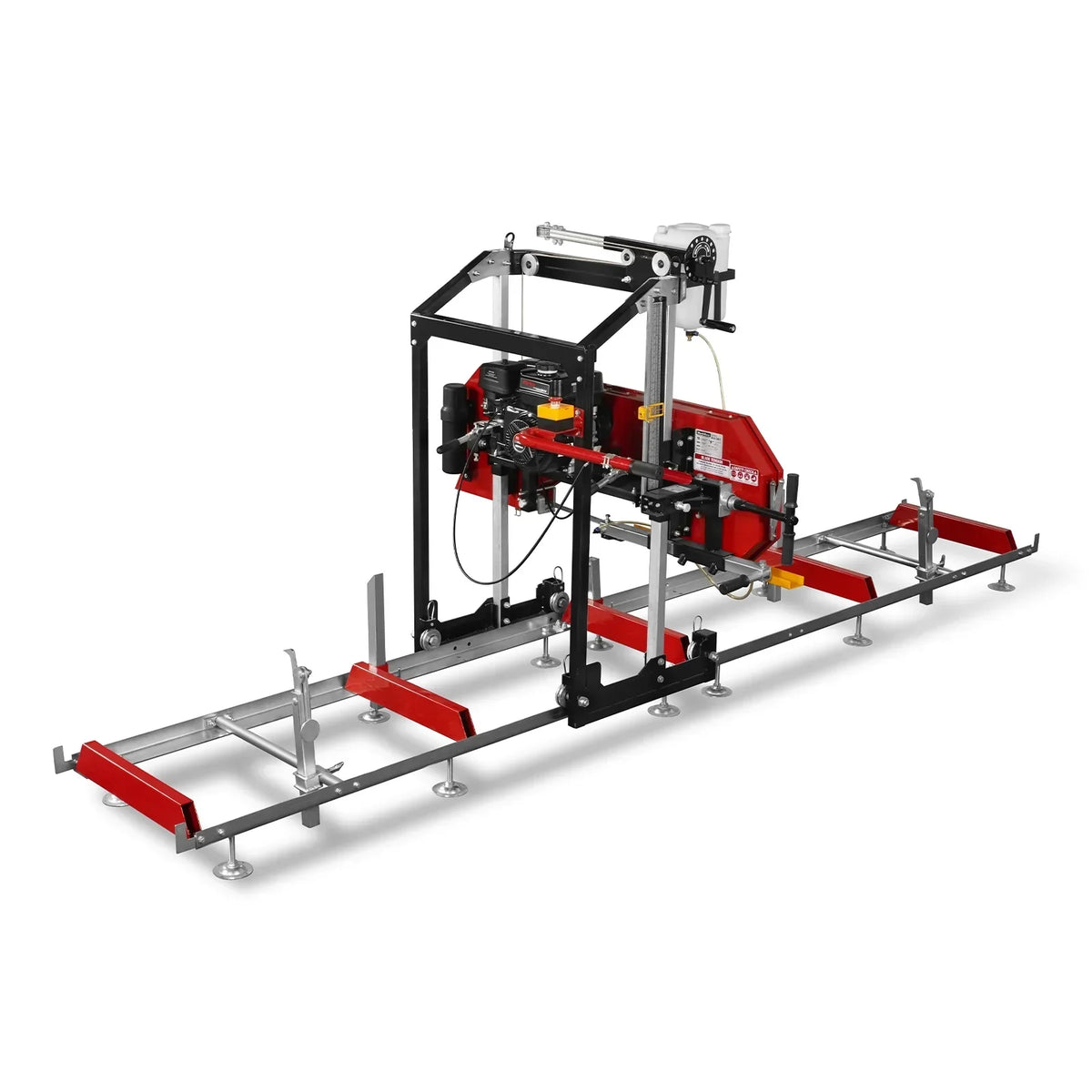

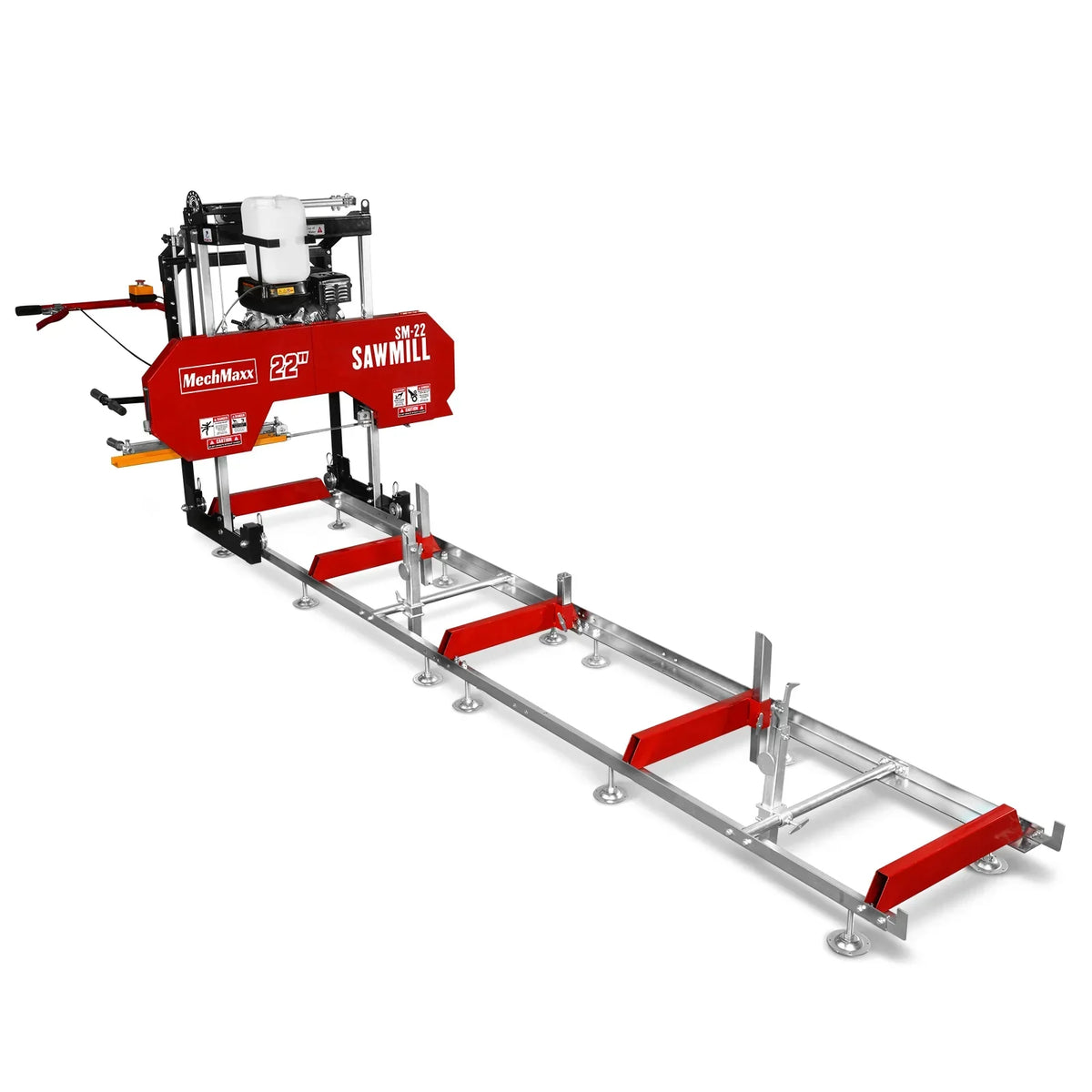

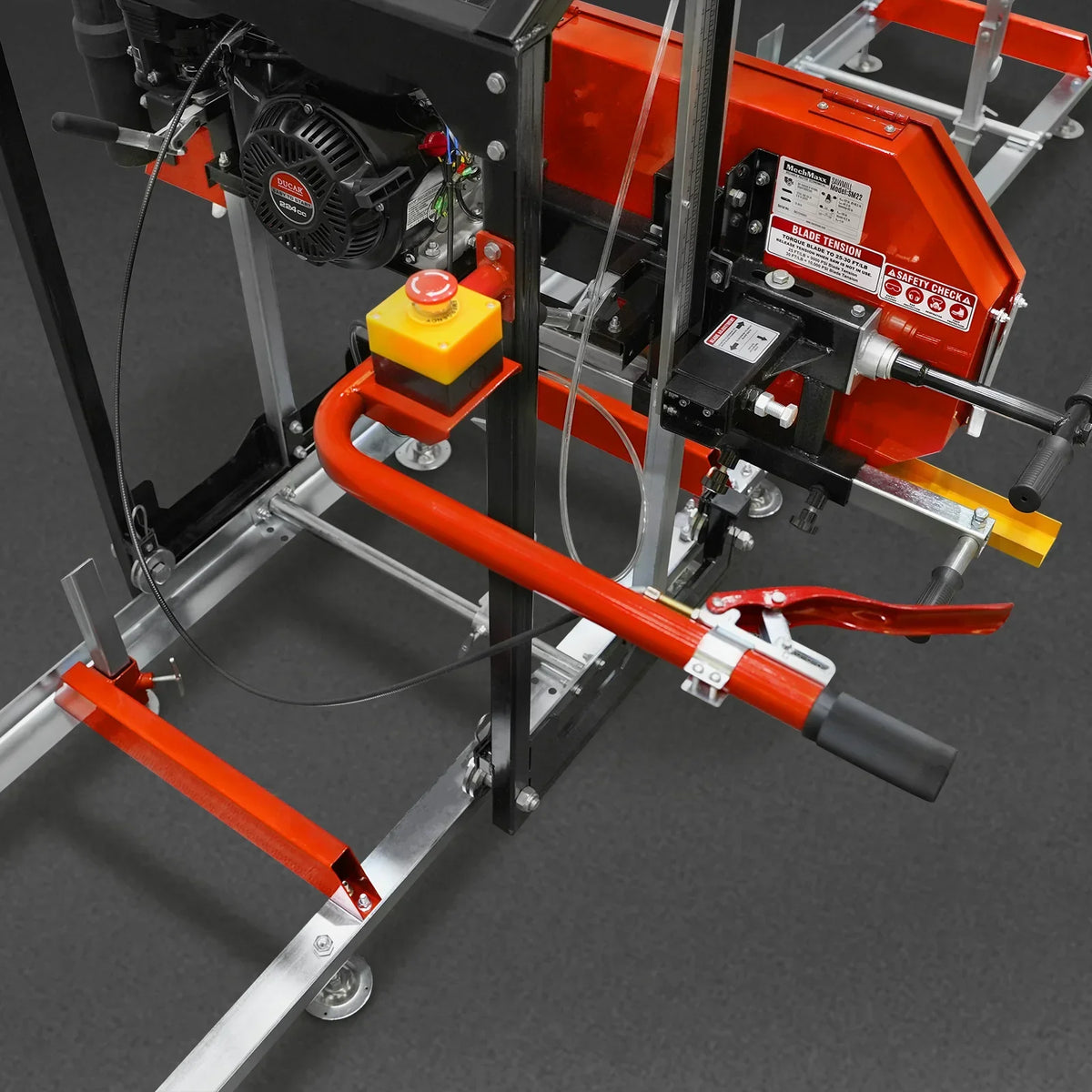

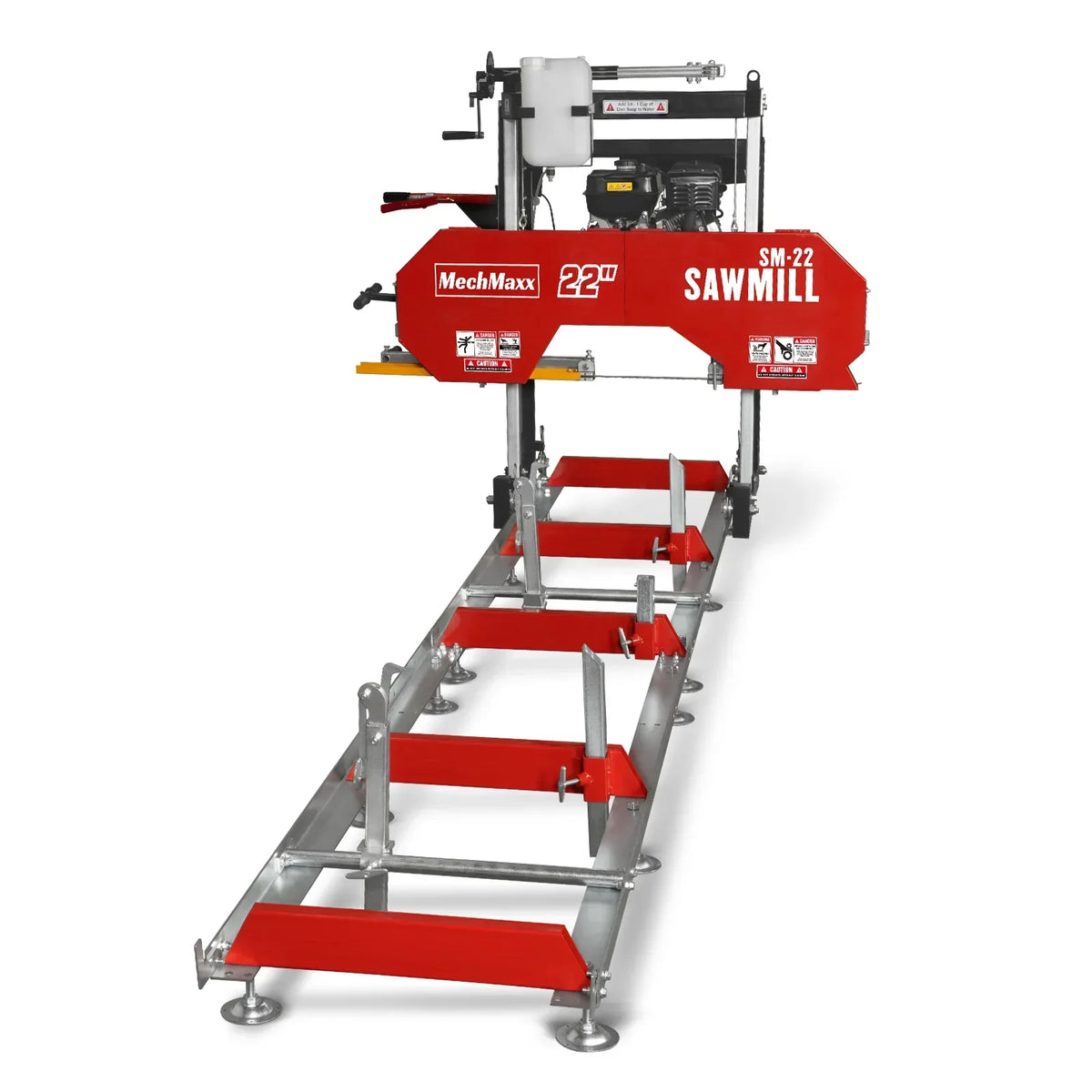

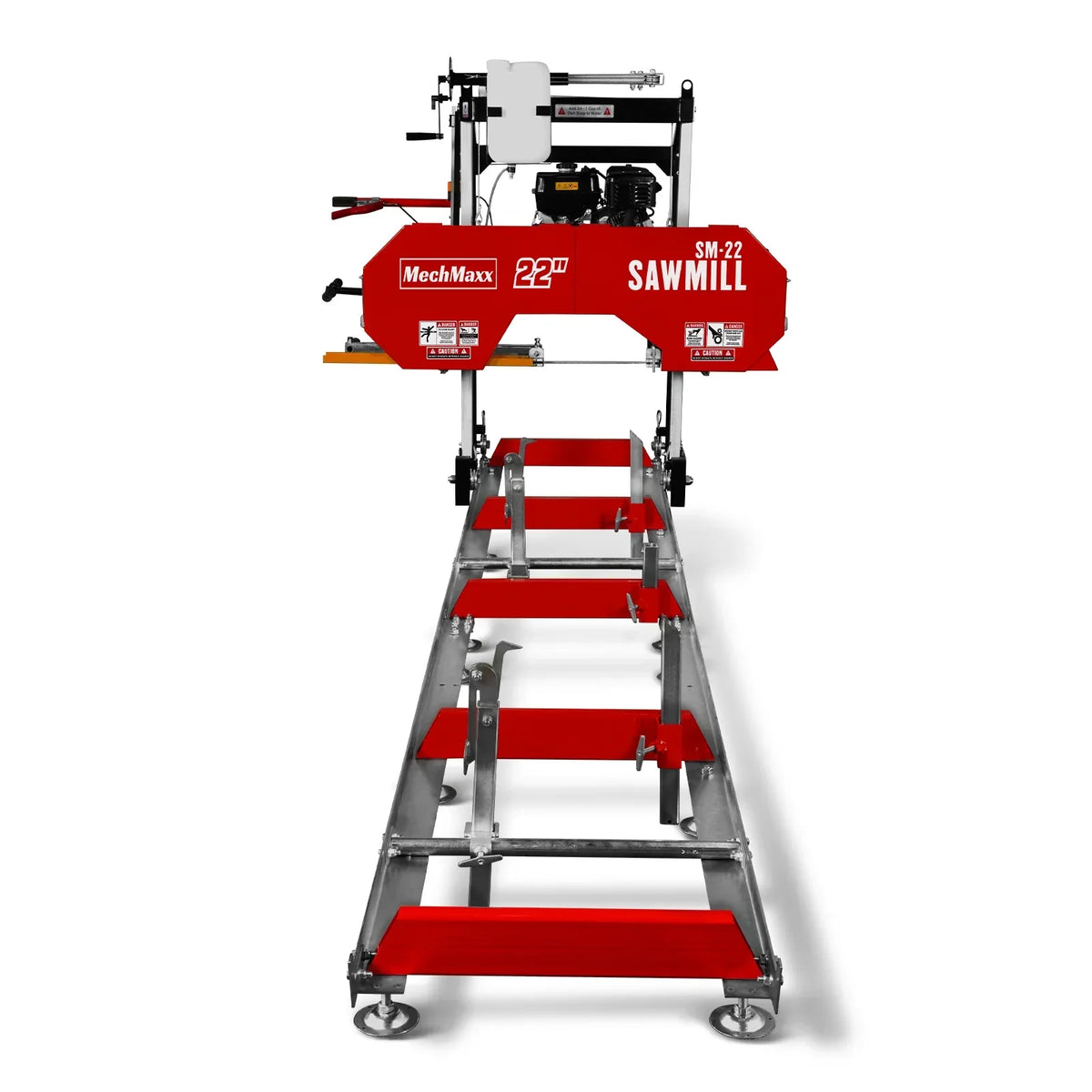

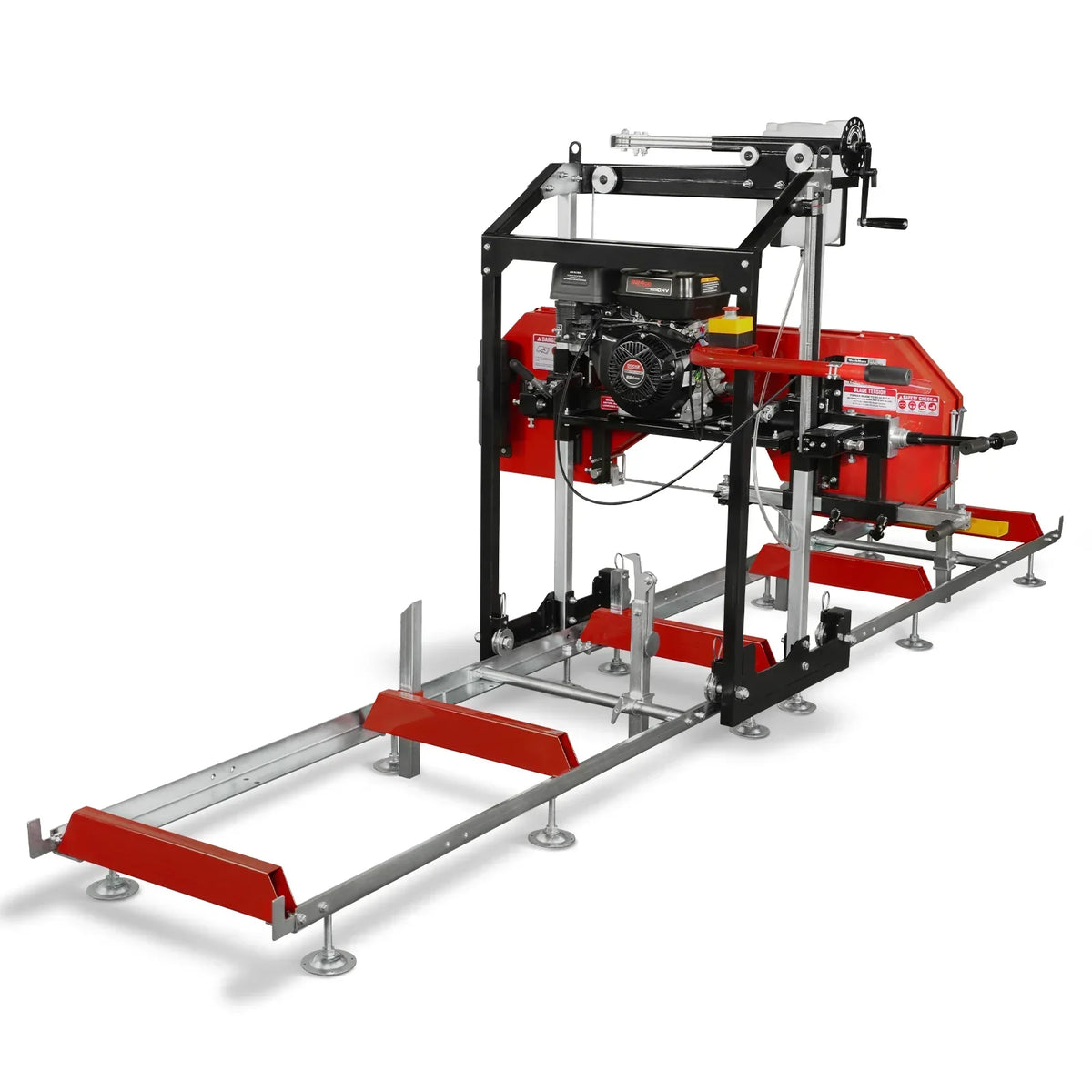

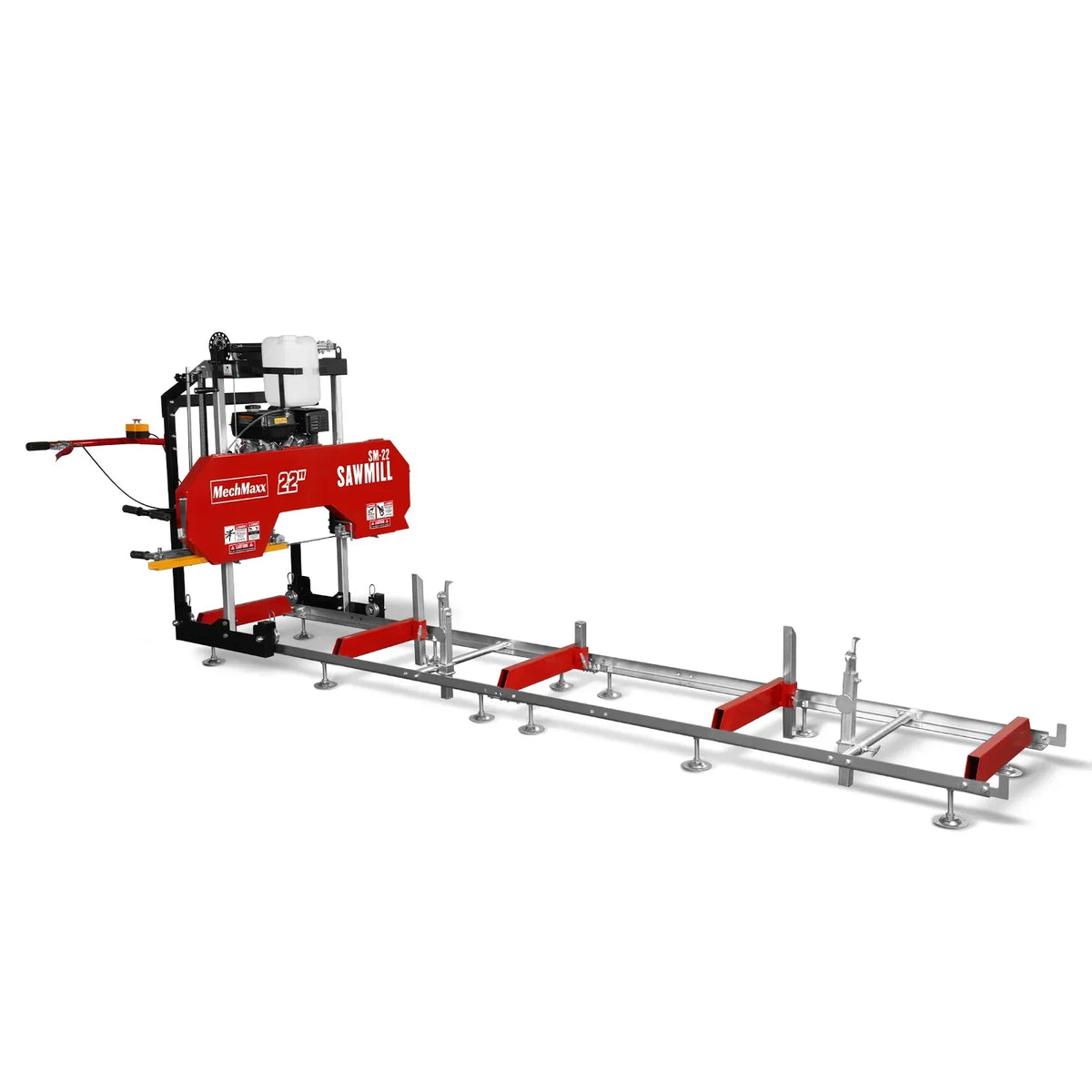

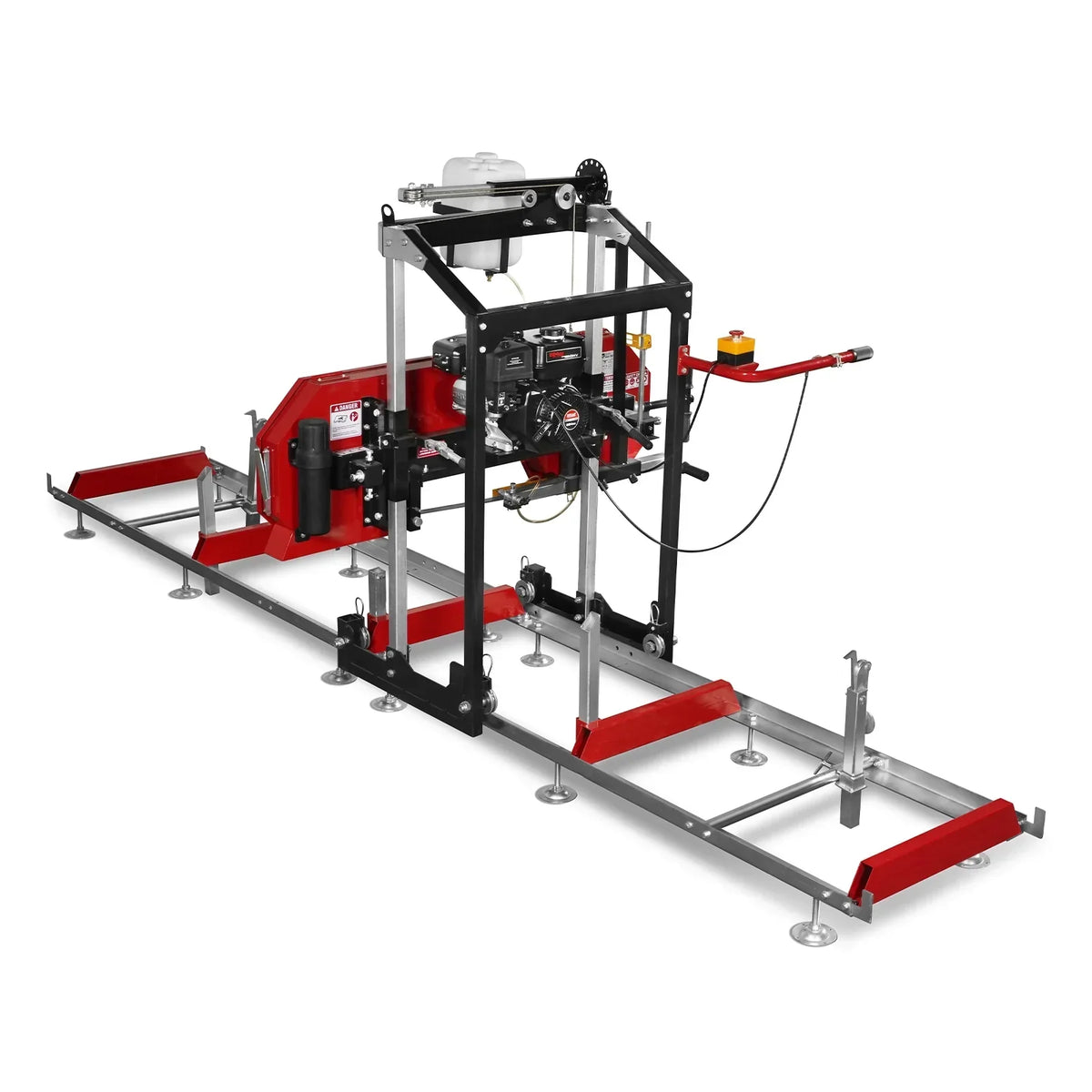

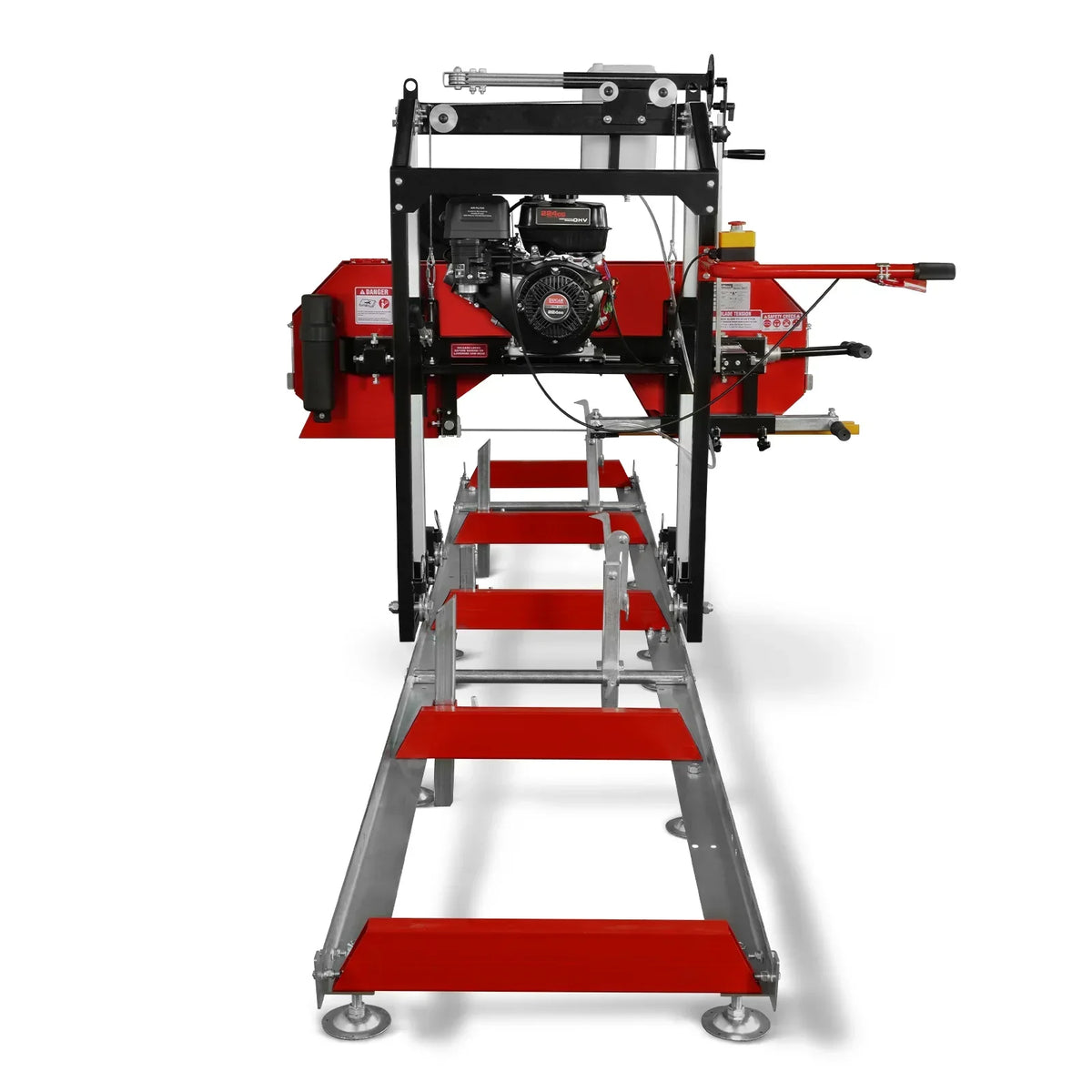

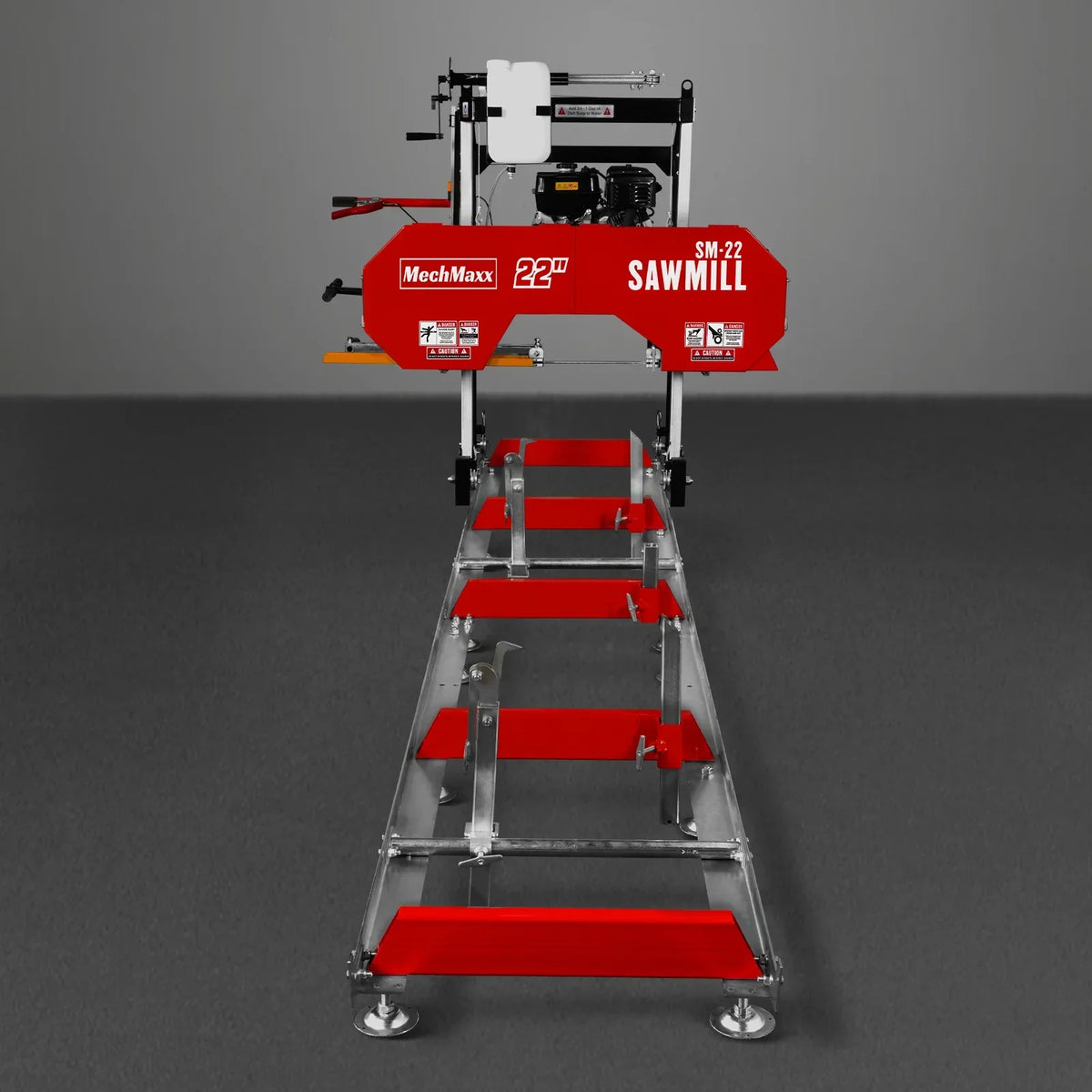

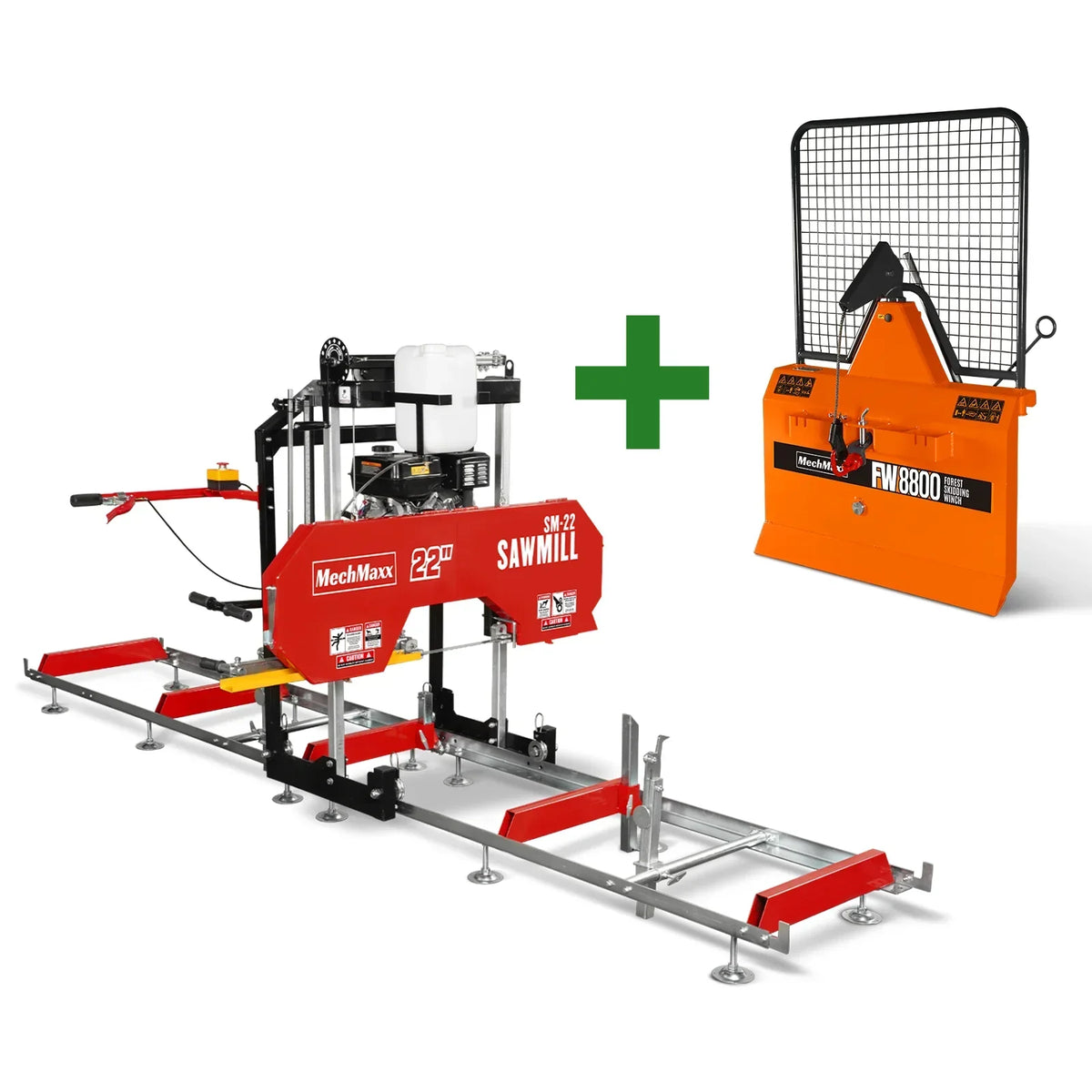

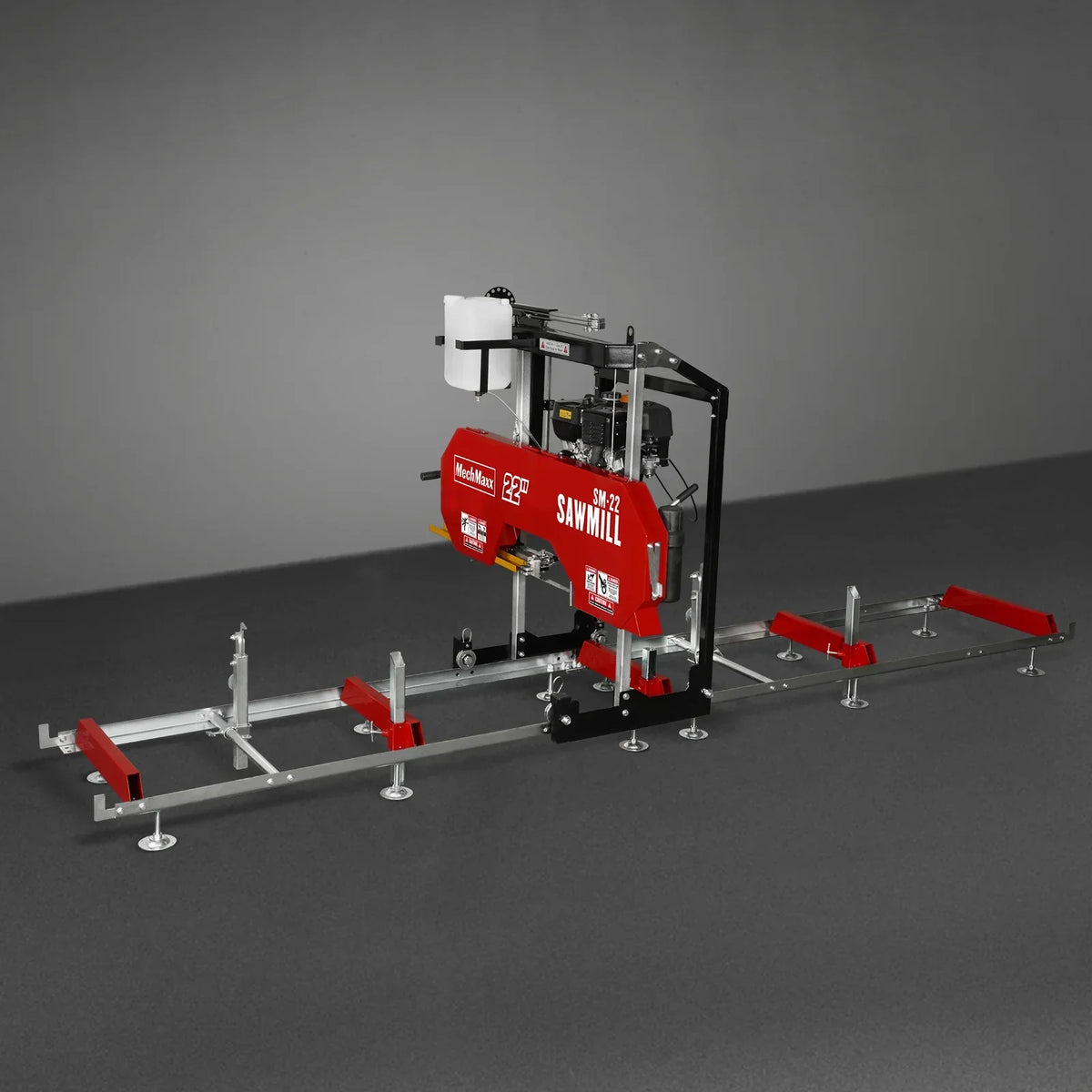

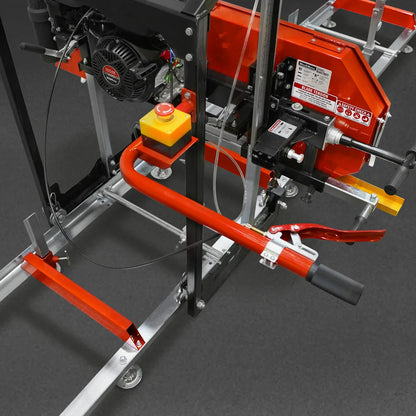

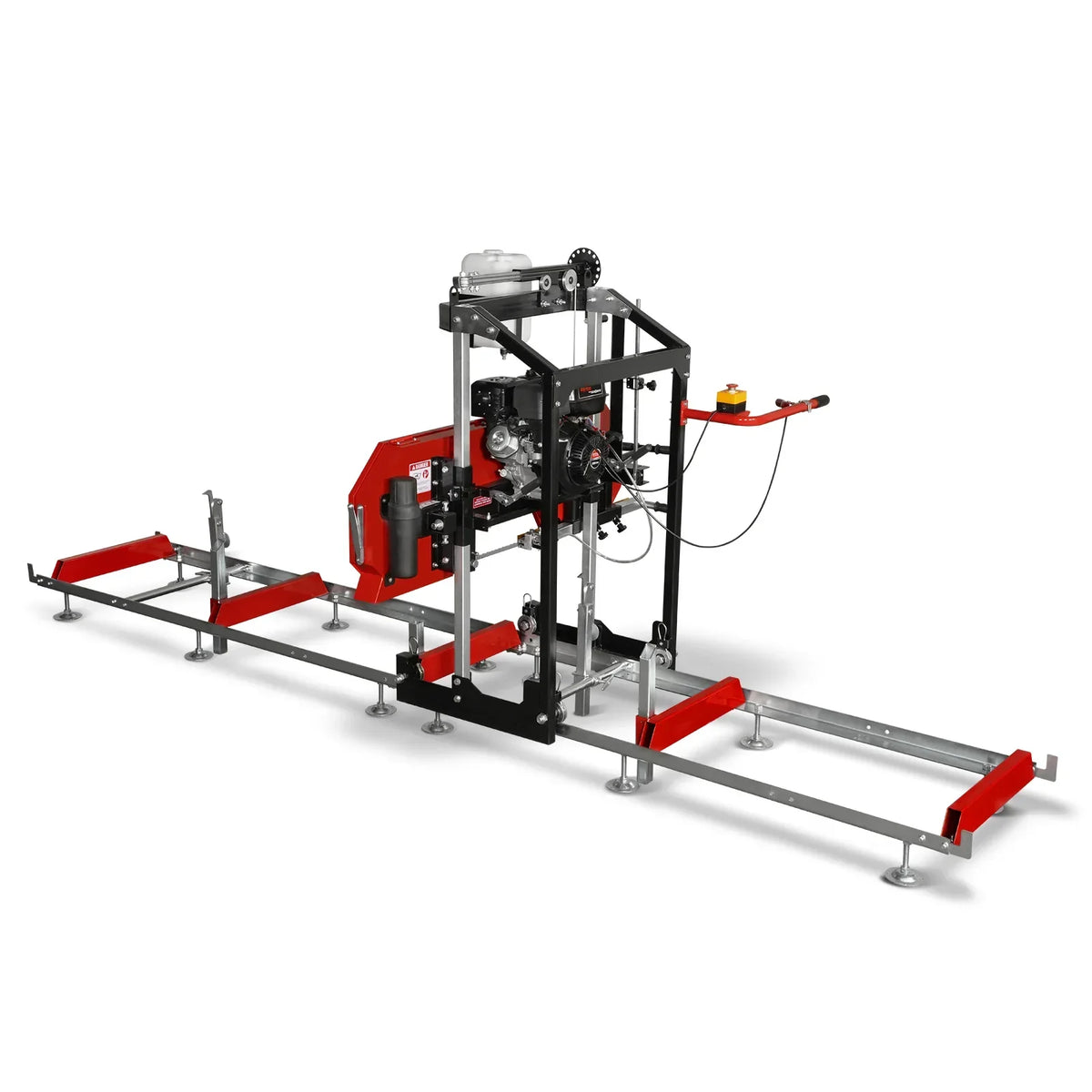

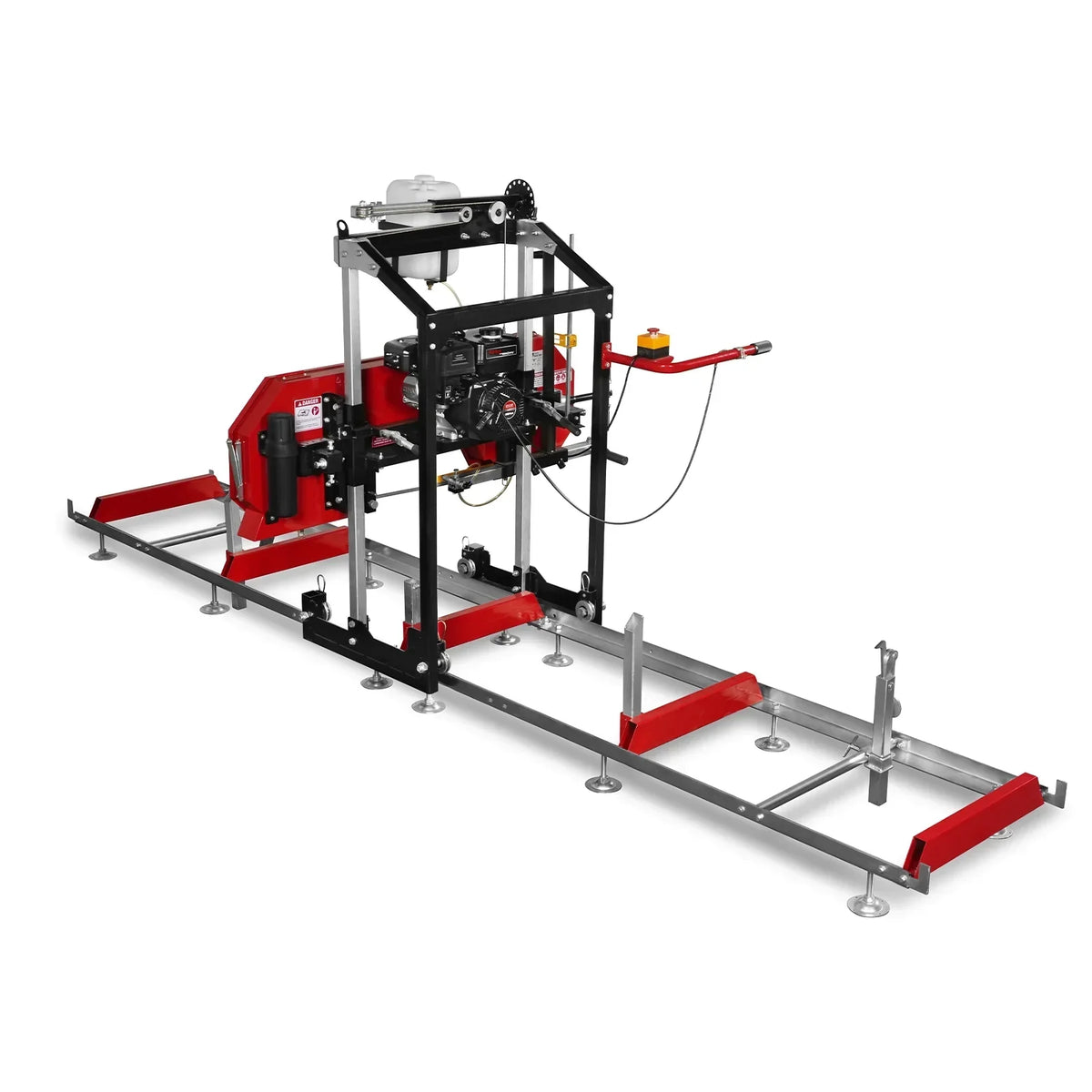

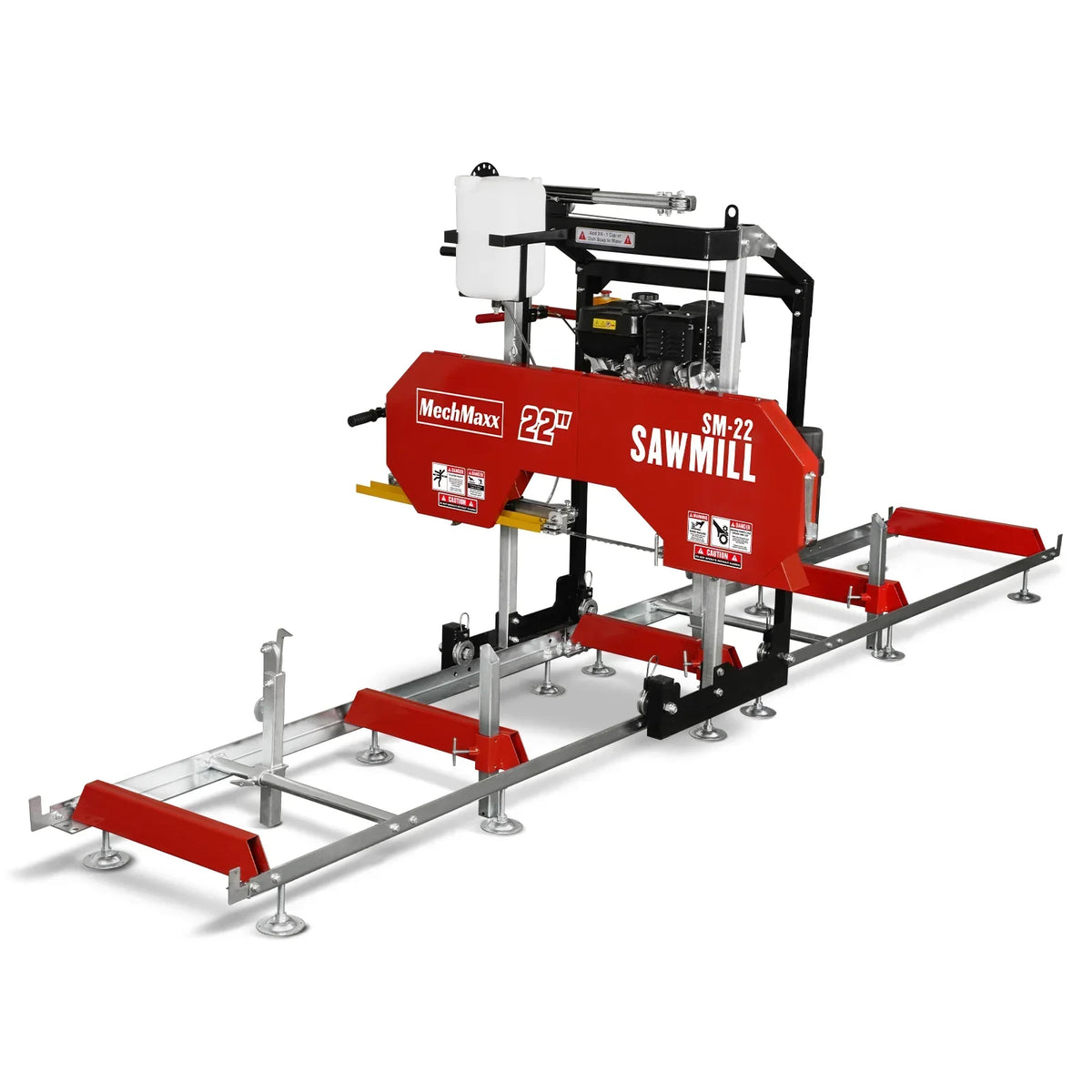

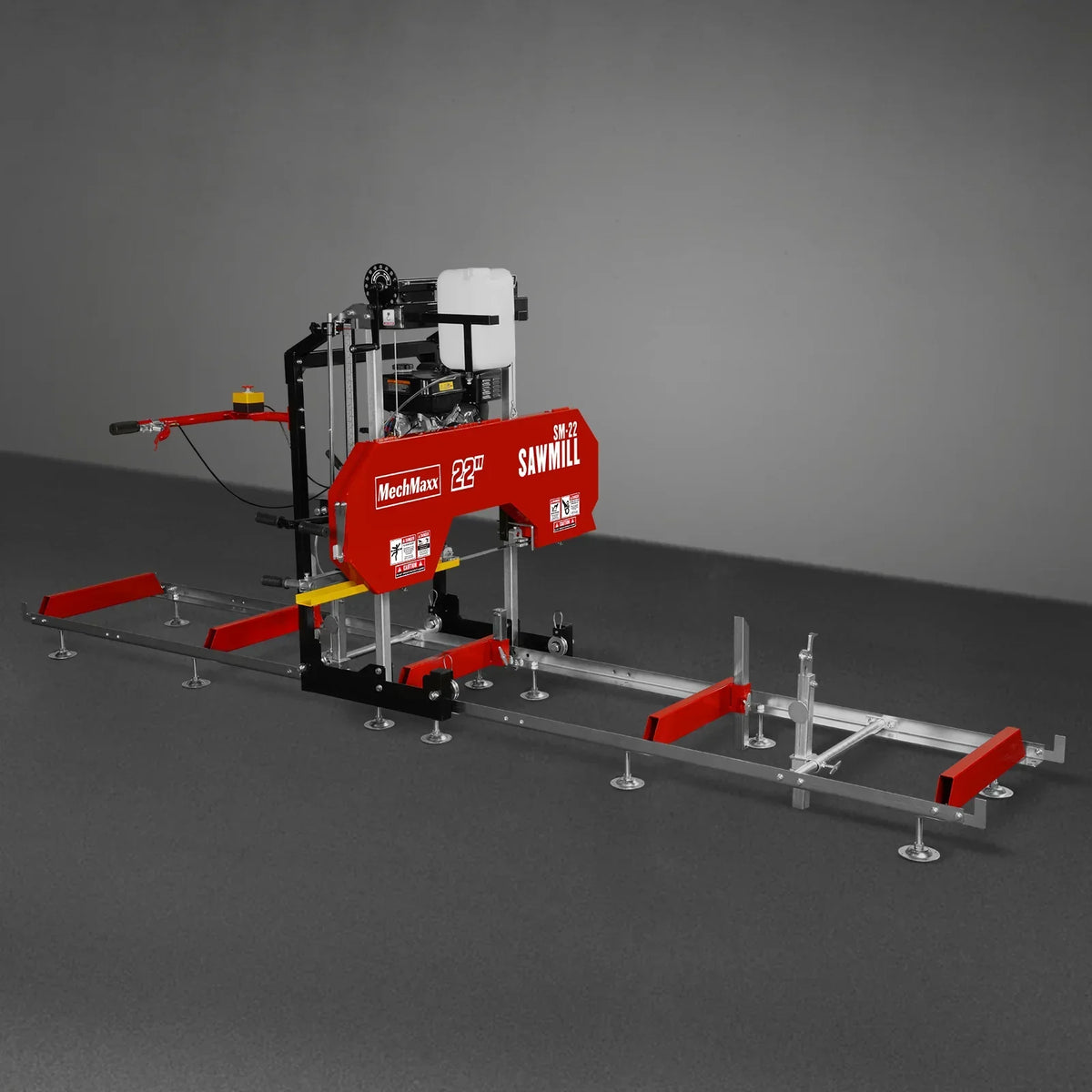

22" Portable Sawmill

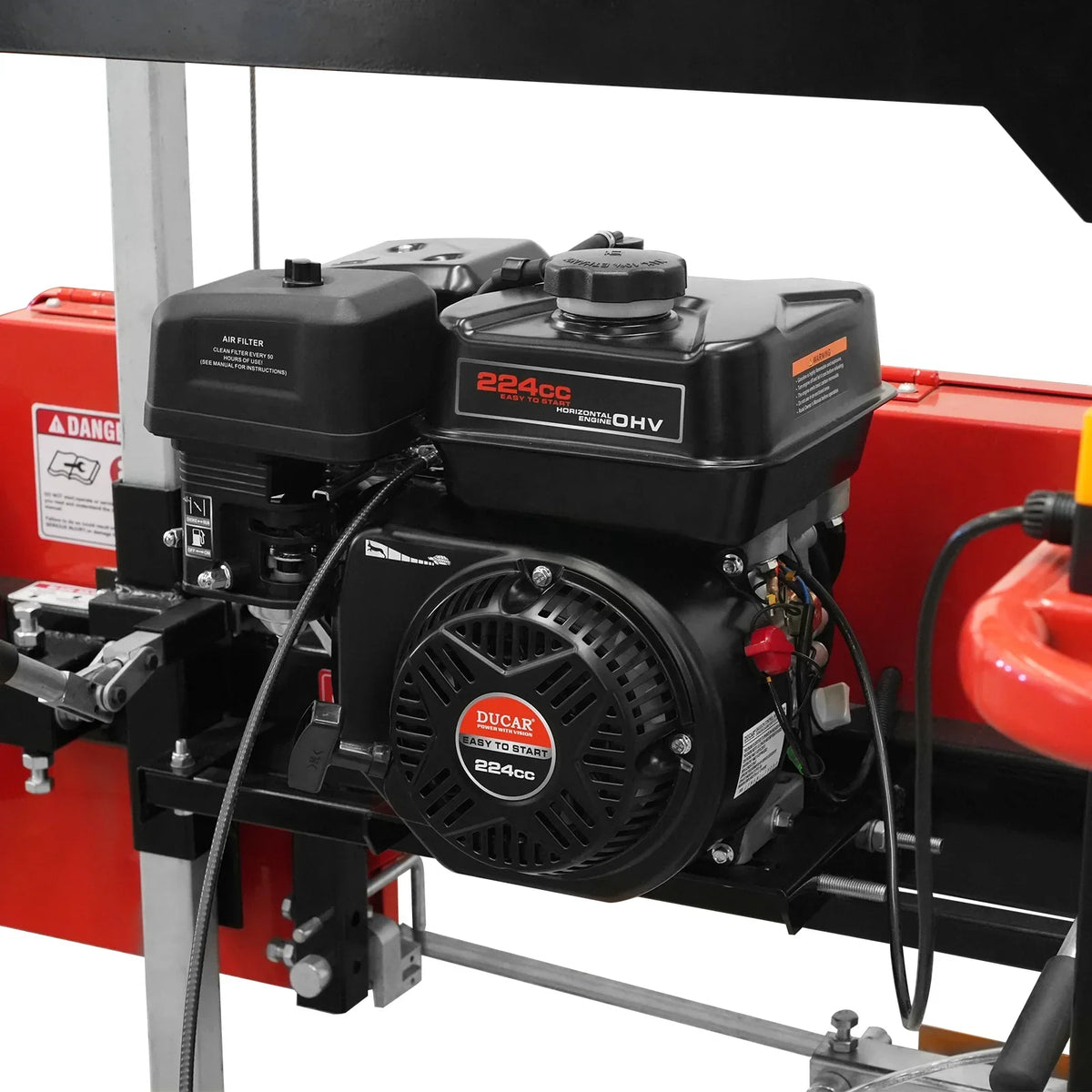

Engine
DUCAR
Blade Lubrication
Water Lube - Manual Valve

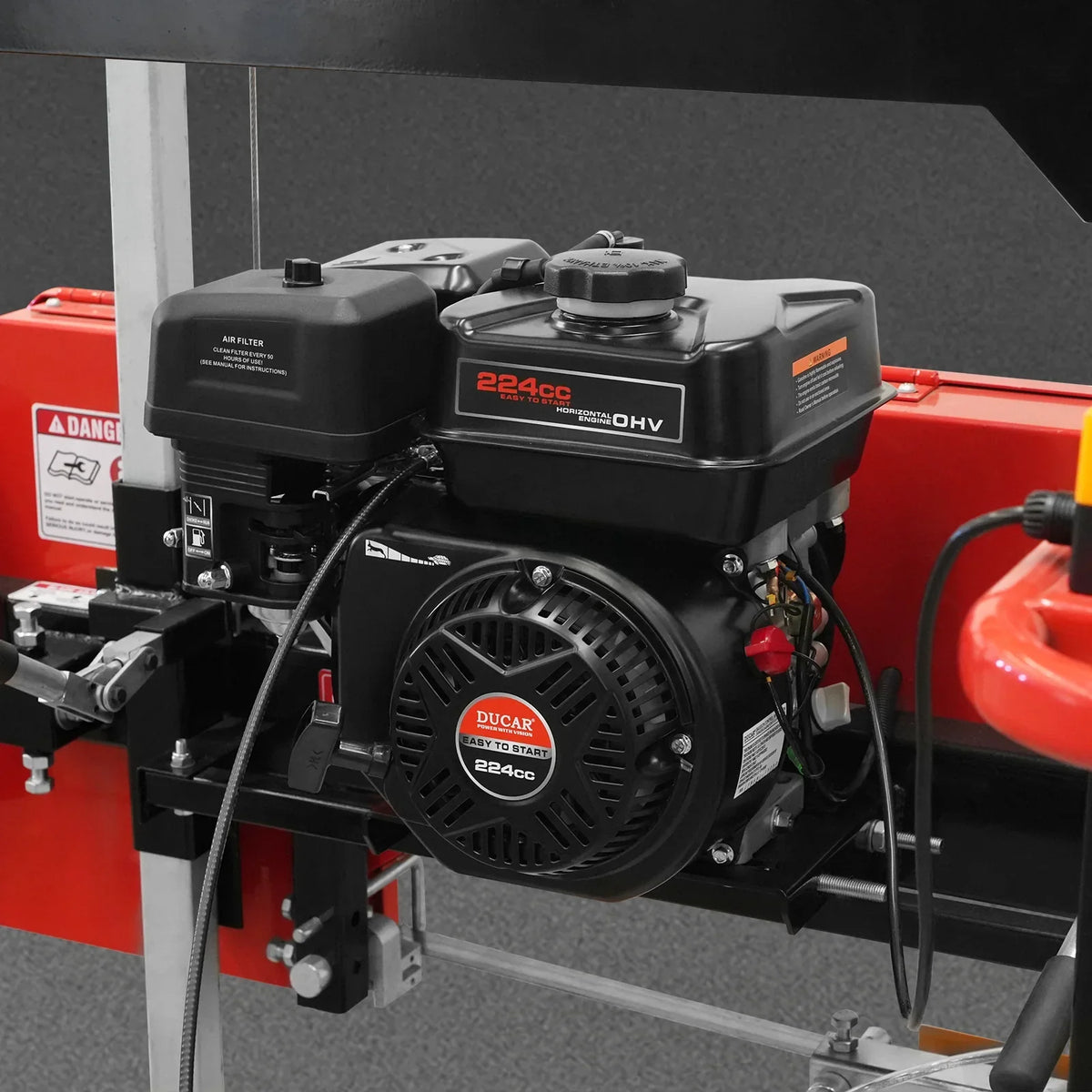

Engine Type
Single Cylinder, 4 Stroke, Air-Cooled, OHV

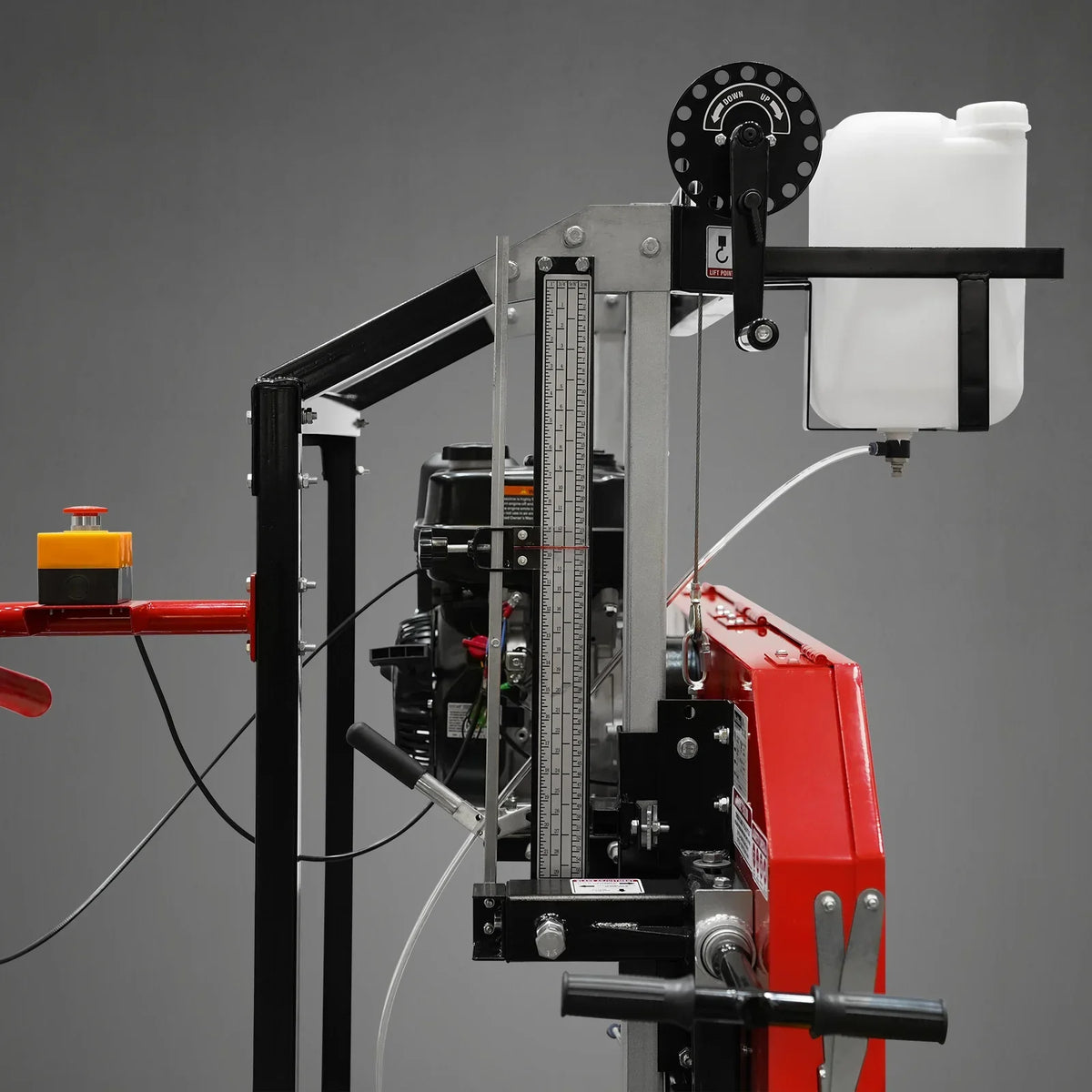

Lubricant Tank Size
2.6 gal
Engine Displacement
224 cc
Track Width
2 ft 2 in
Horsepower
7 HP
Track Length
13 ft
Start
Recoil
Track Extension Length
6 ft 6 in
Log Diameter
22 in
Levelling Feet
12
Max Live Edge Width
20 in

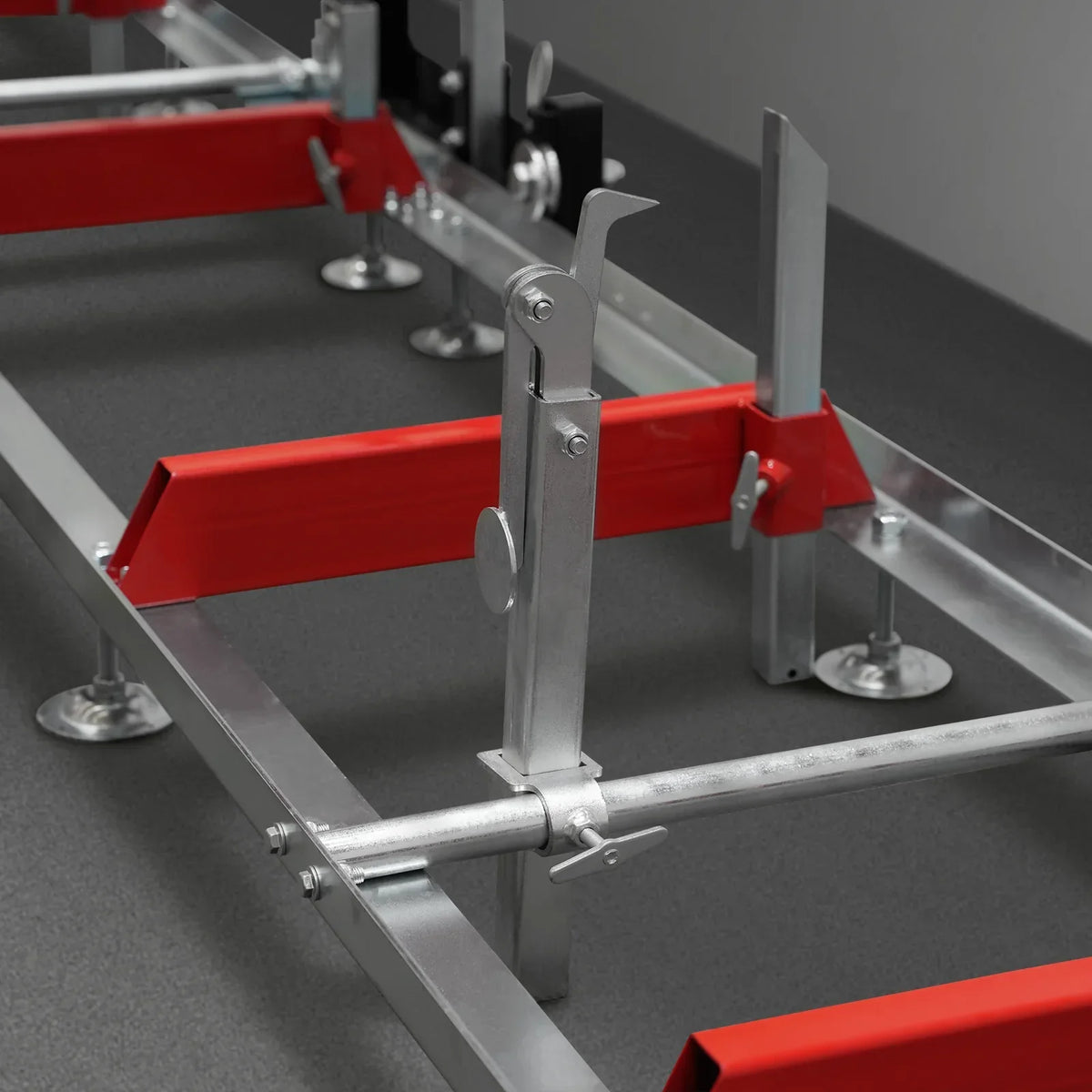

Log Rests
2 Long and 2 Short Rests
Standard Cutting Length
10 ft 5 in
Log Clamps
2 x Quick Lock
Max Board Thickness
6 in
Track Bunks
1.6 x 3.9 in
Blade Engagement System
Centrifugal Clutch
4 Post Head Design
Yes
Cast Iron Bandwheel Diameter
16.5 in
Finish
Powder Coat Paint Galvanized Steel
Blade Wheel Engagement
Belt Drive
Sawmill Warranty
2 Years

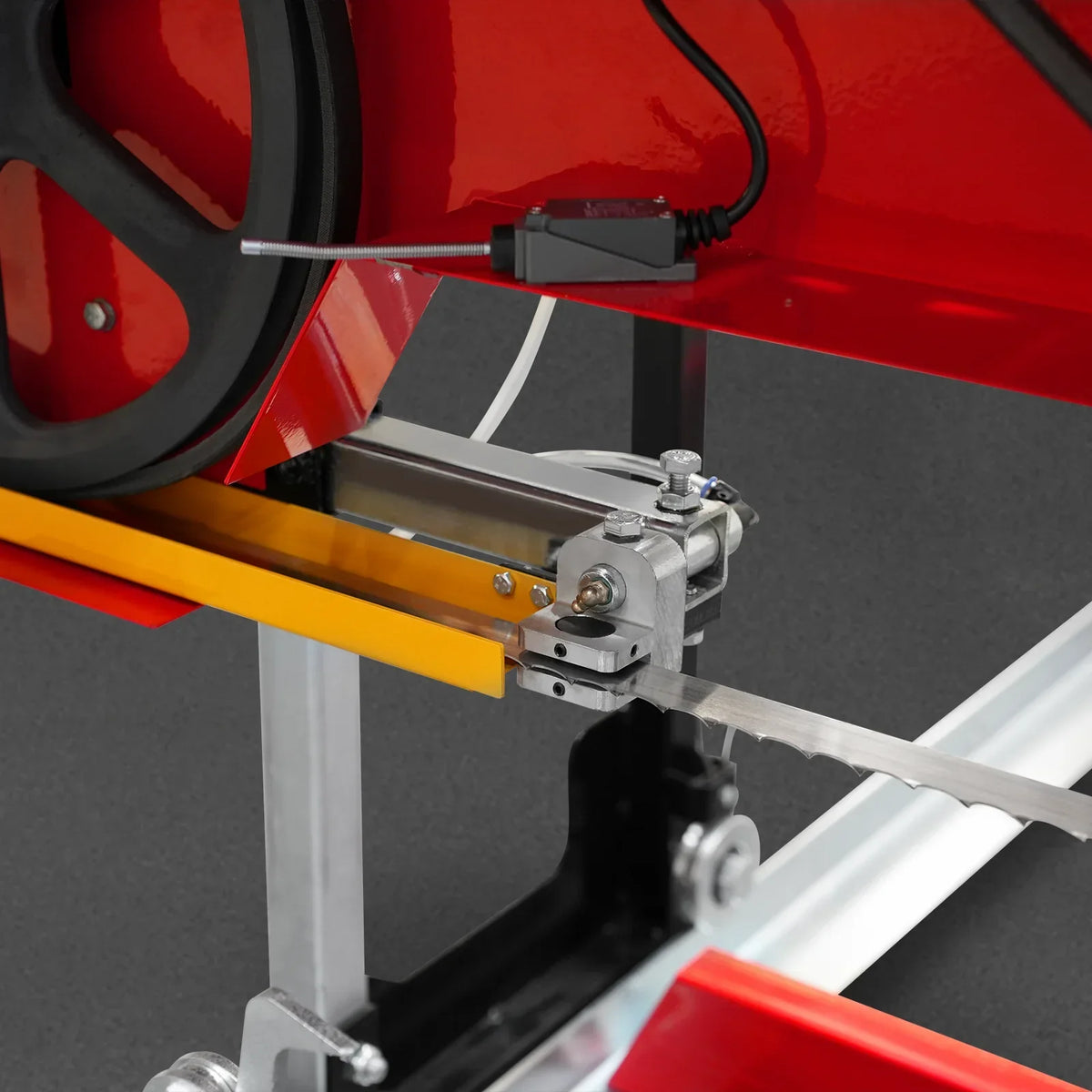

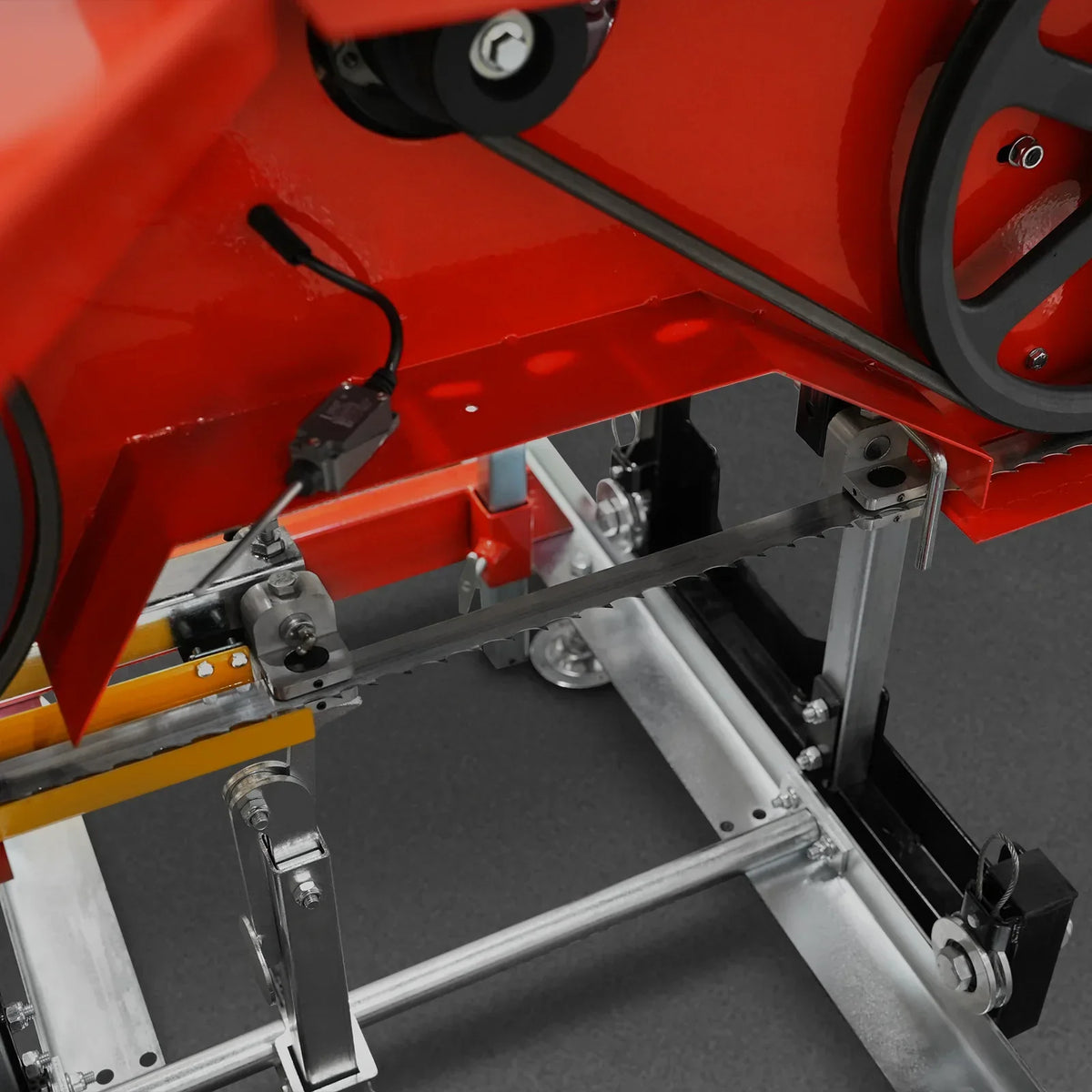

Blade Guide
By Block
Engine Warranty
1 Year
Blade Tension
By Adjustable Lever
Package Method
Wood
Blade Size
127 x 1.3 in
Packing Size
87 x 19 x 32 in
Blade Pitch
7/8 in
Weight (N.W./G.W.)
483/580 lbs

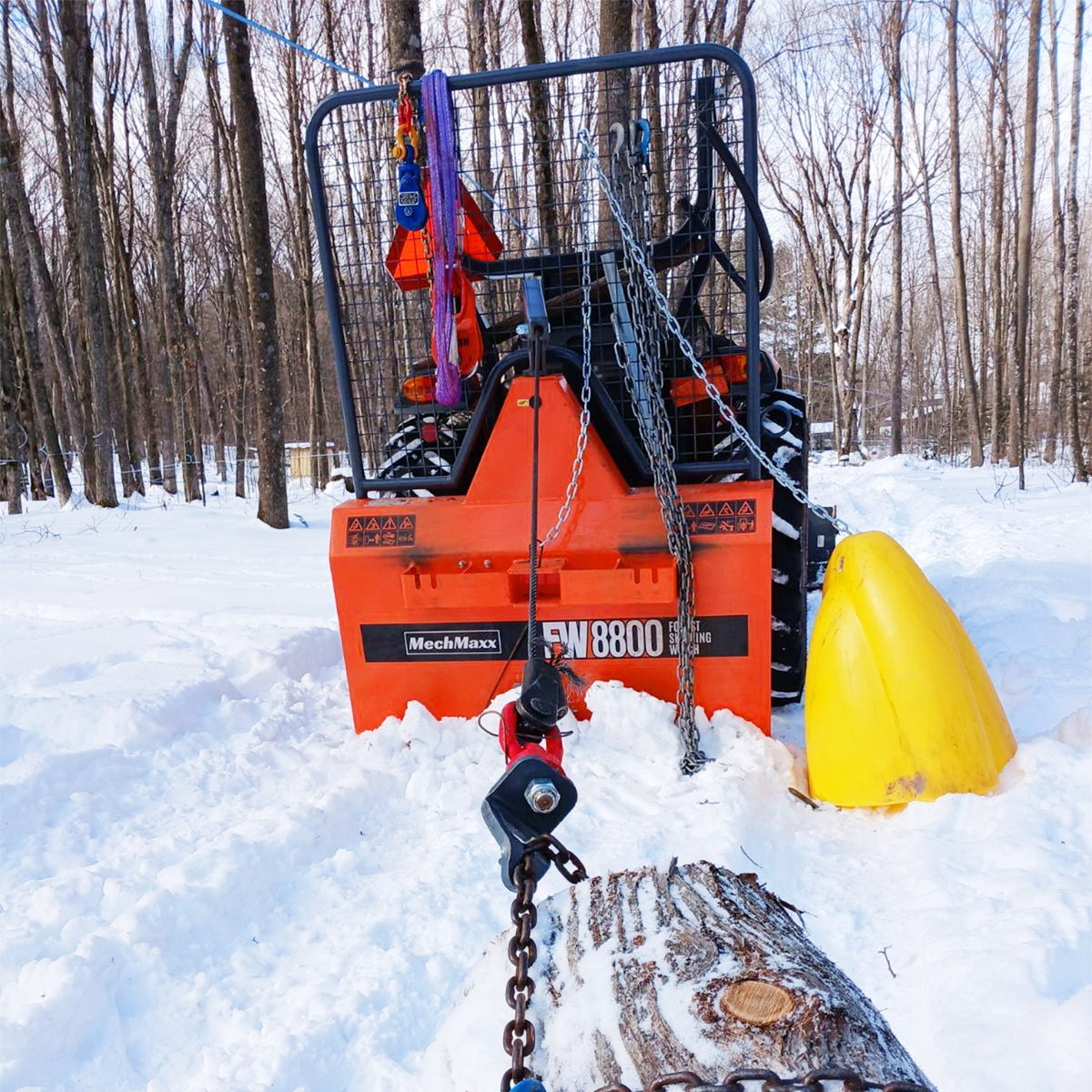

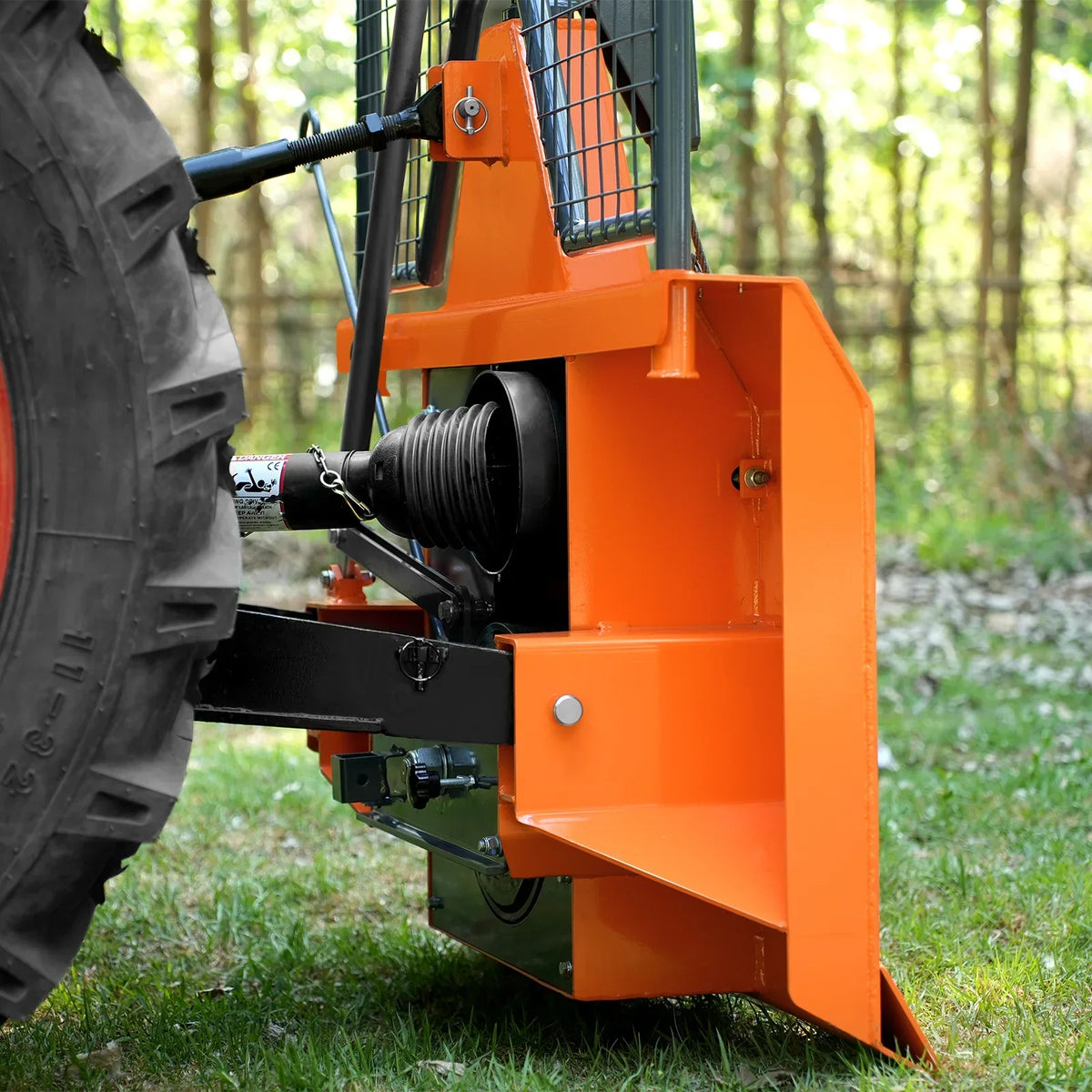

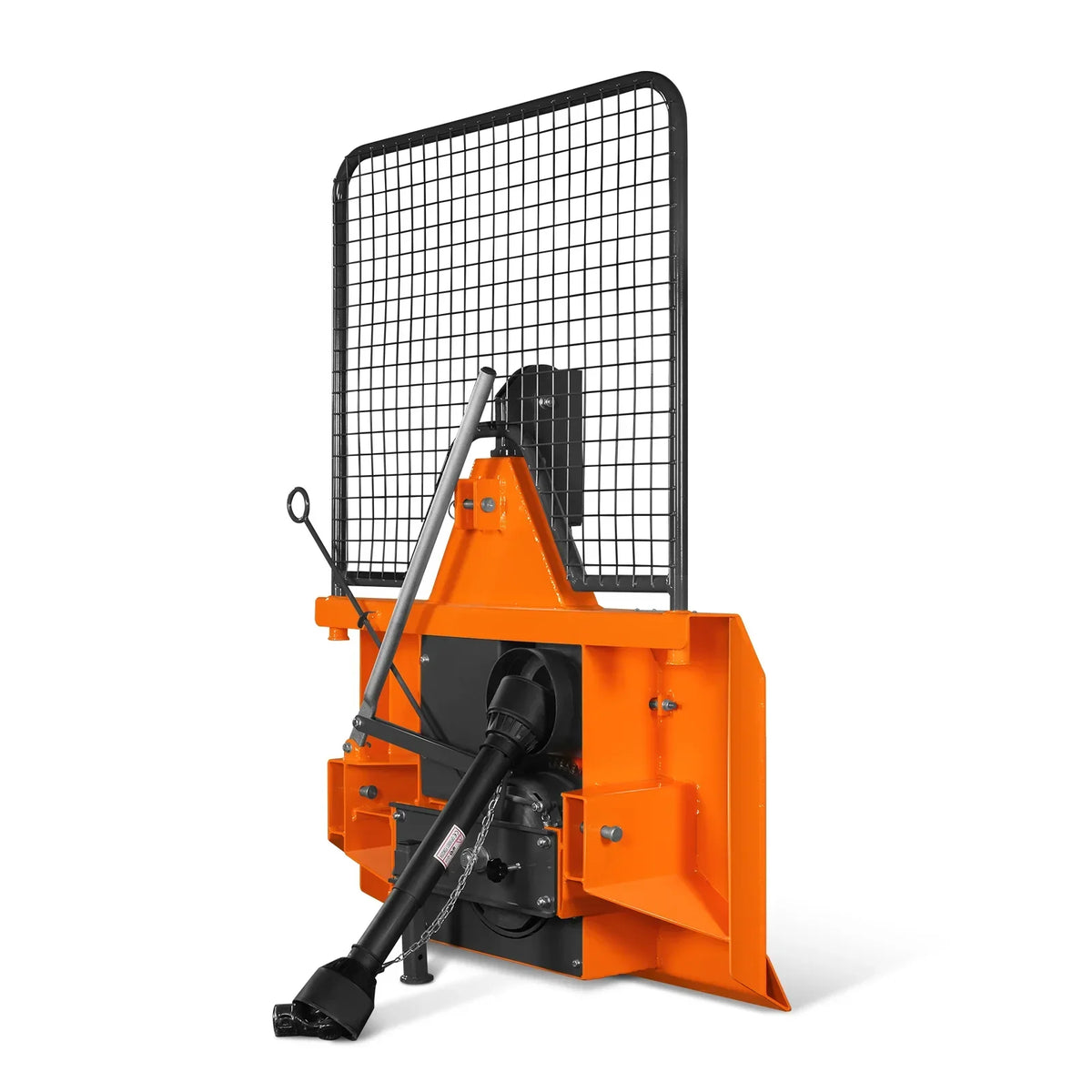

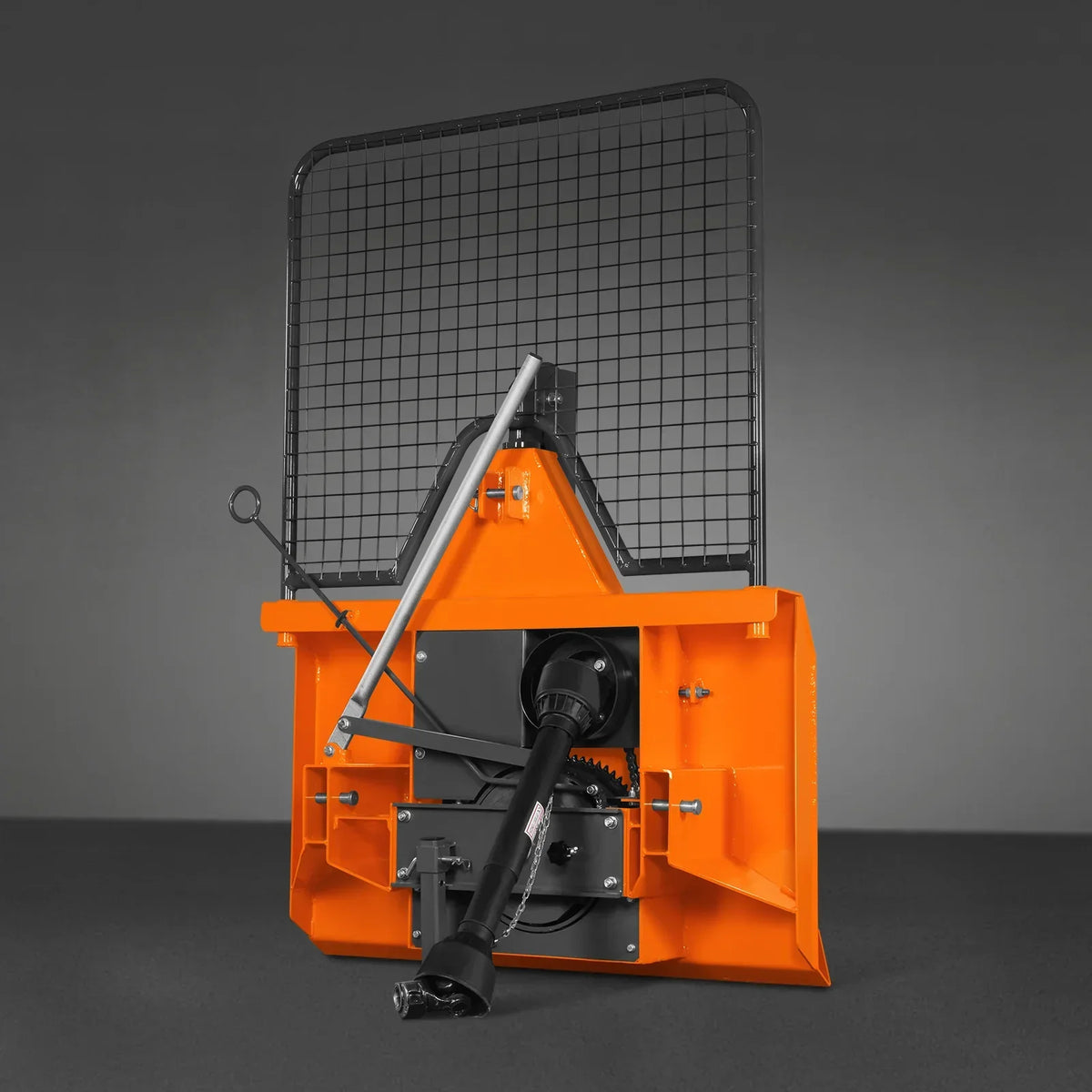

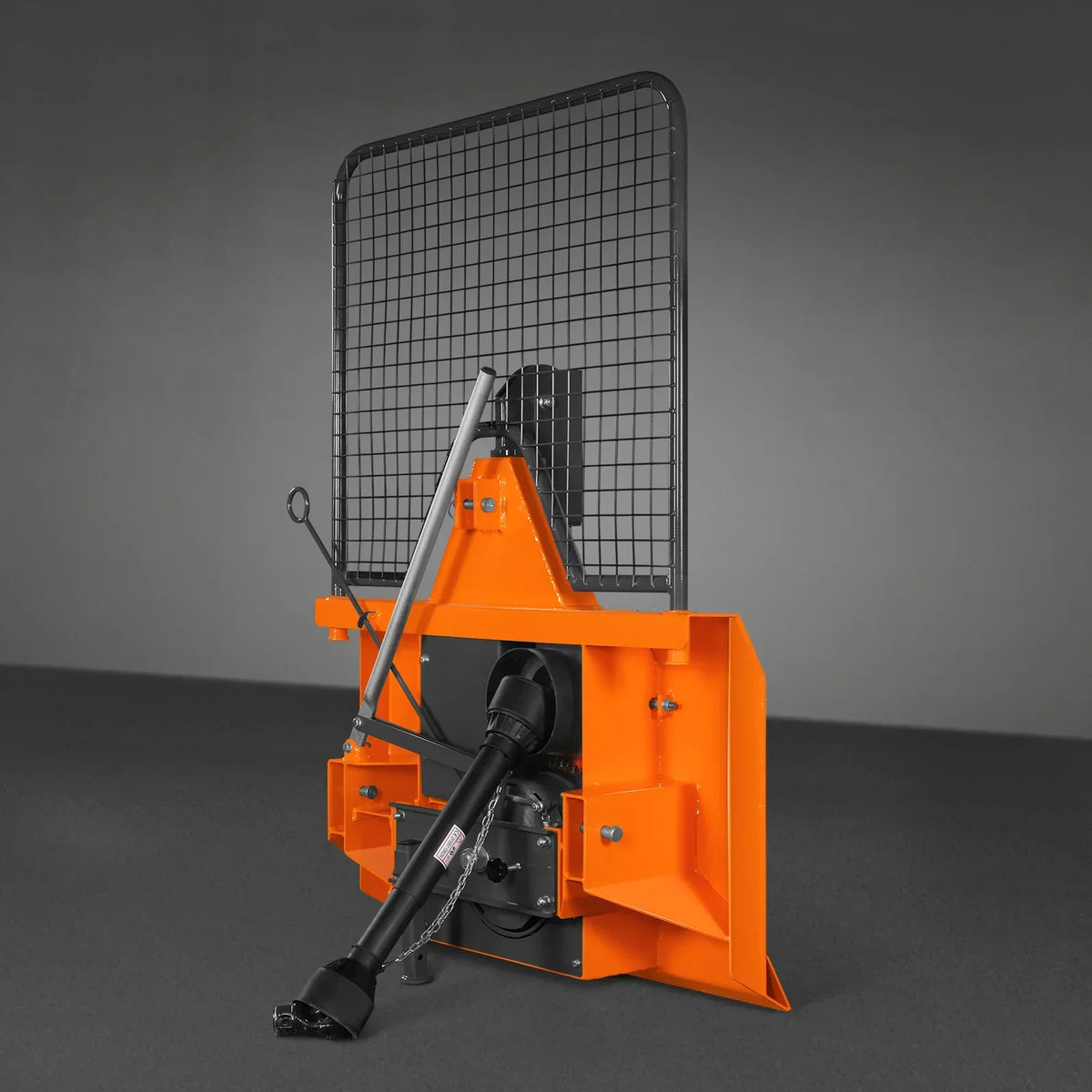

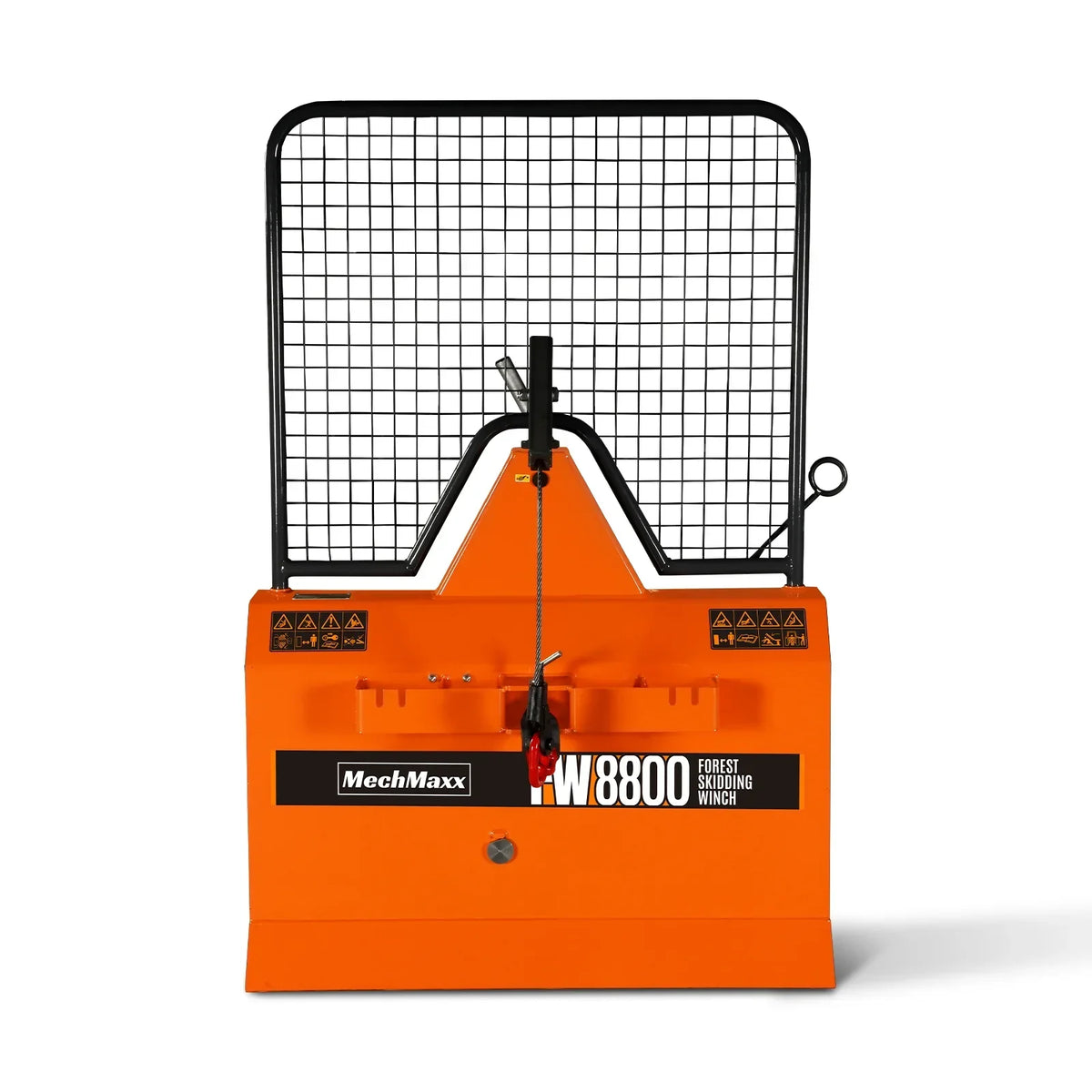

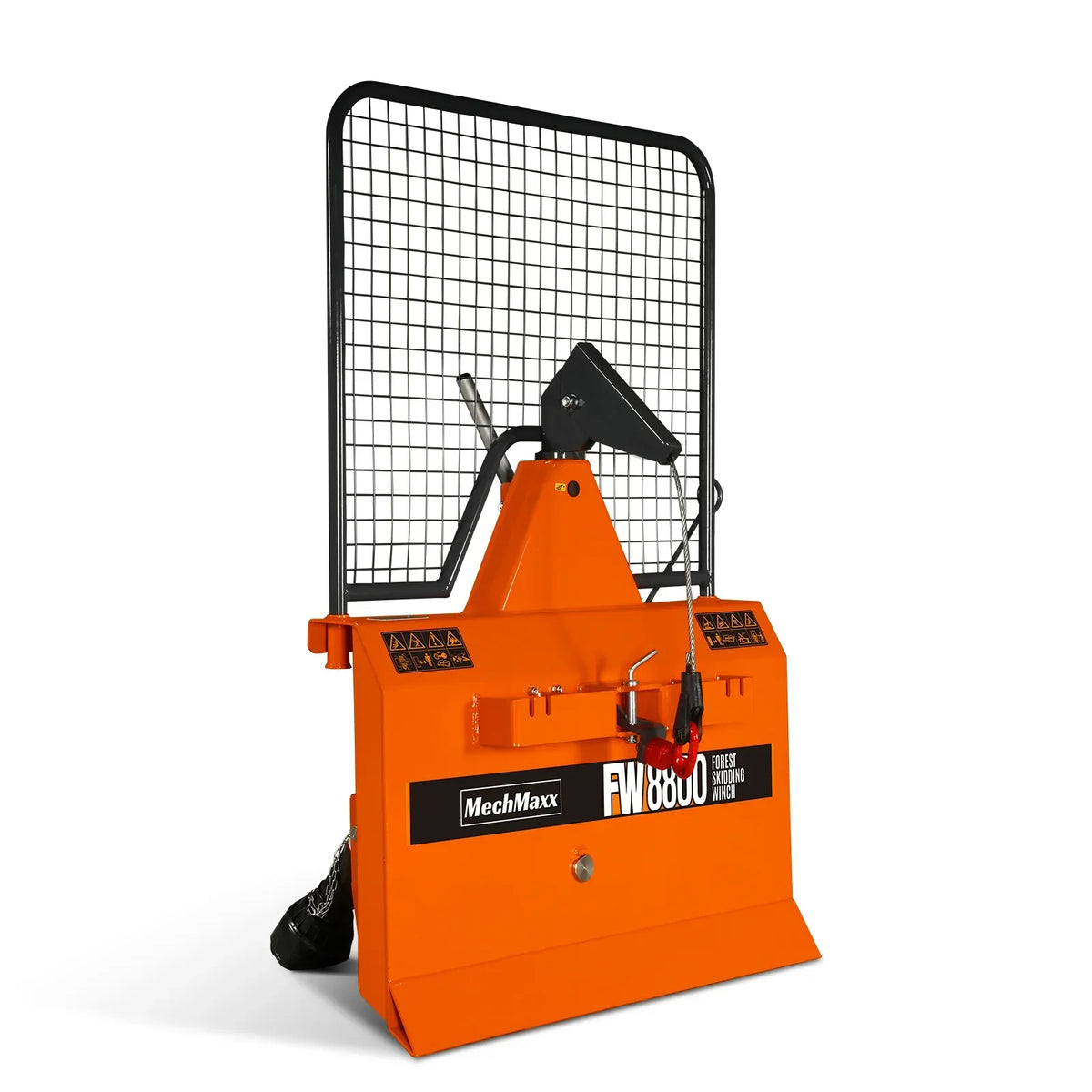

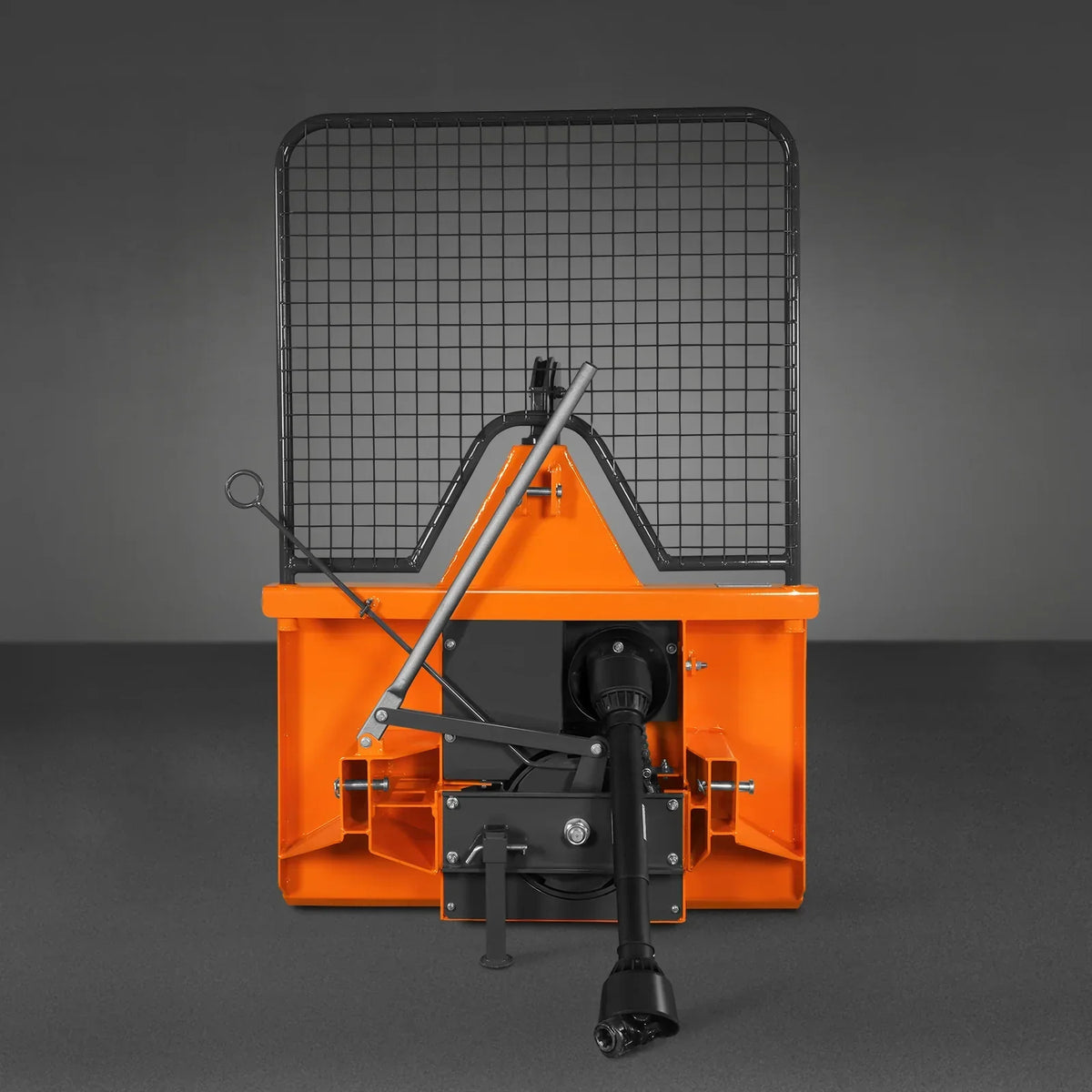

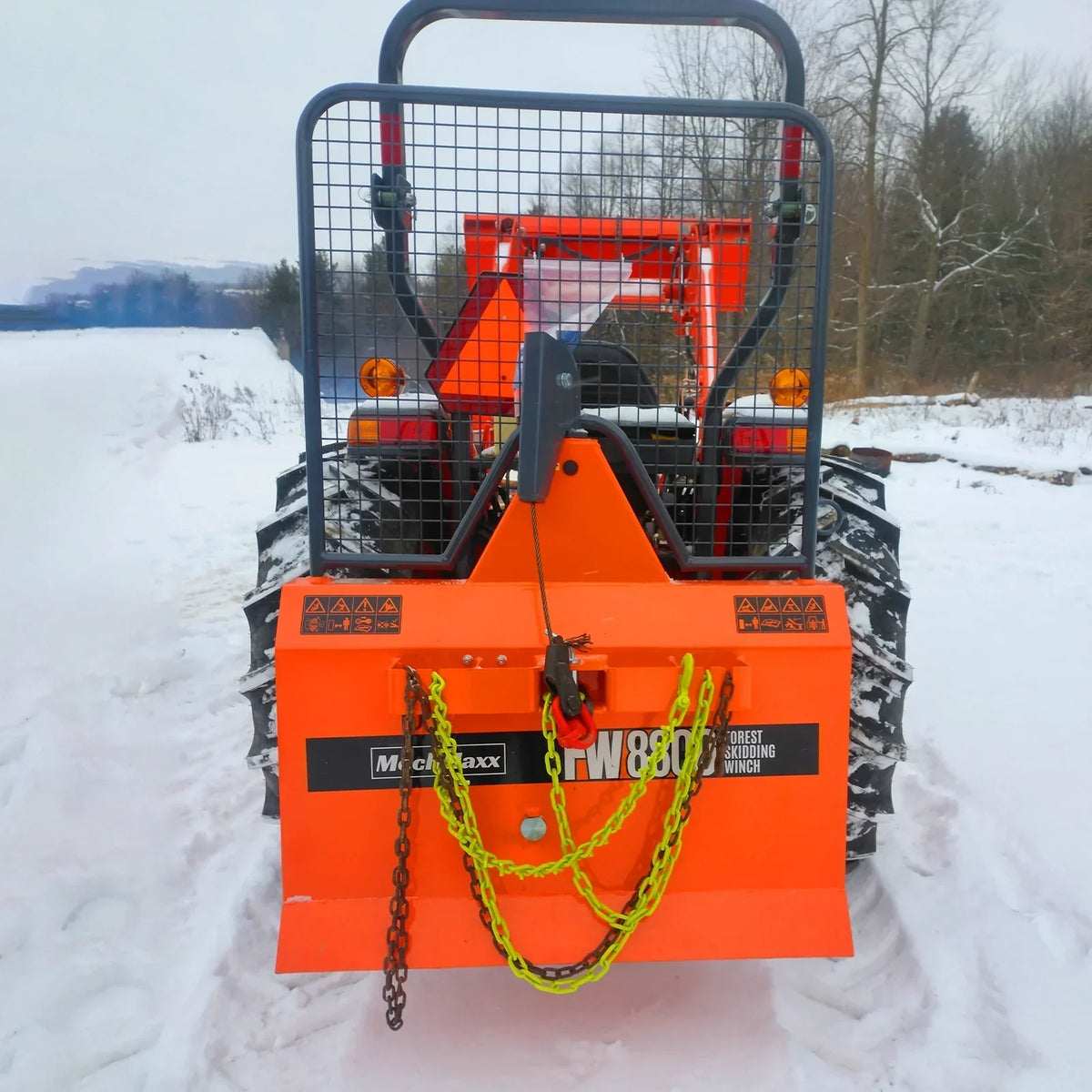

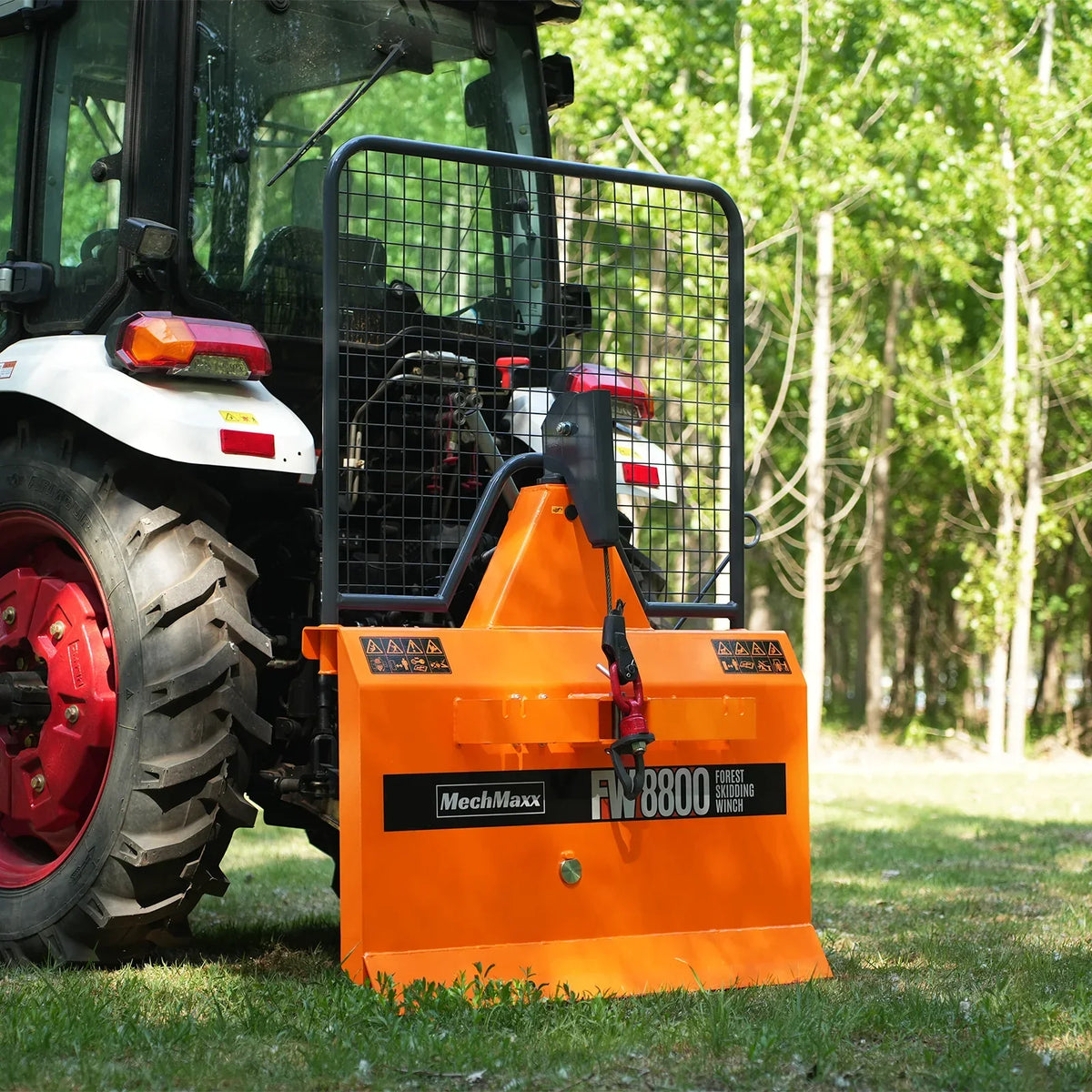

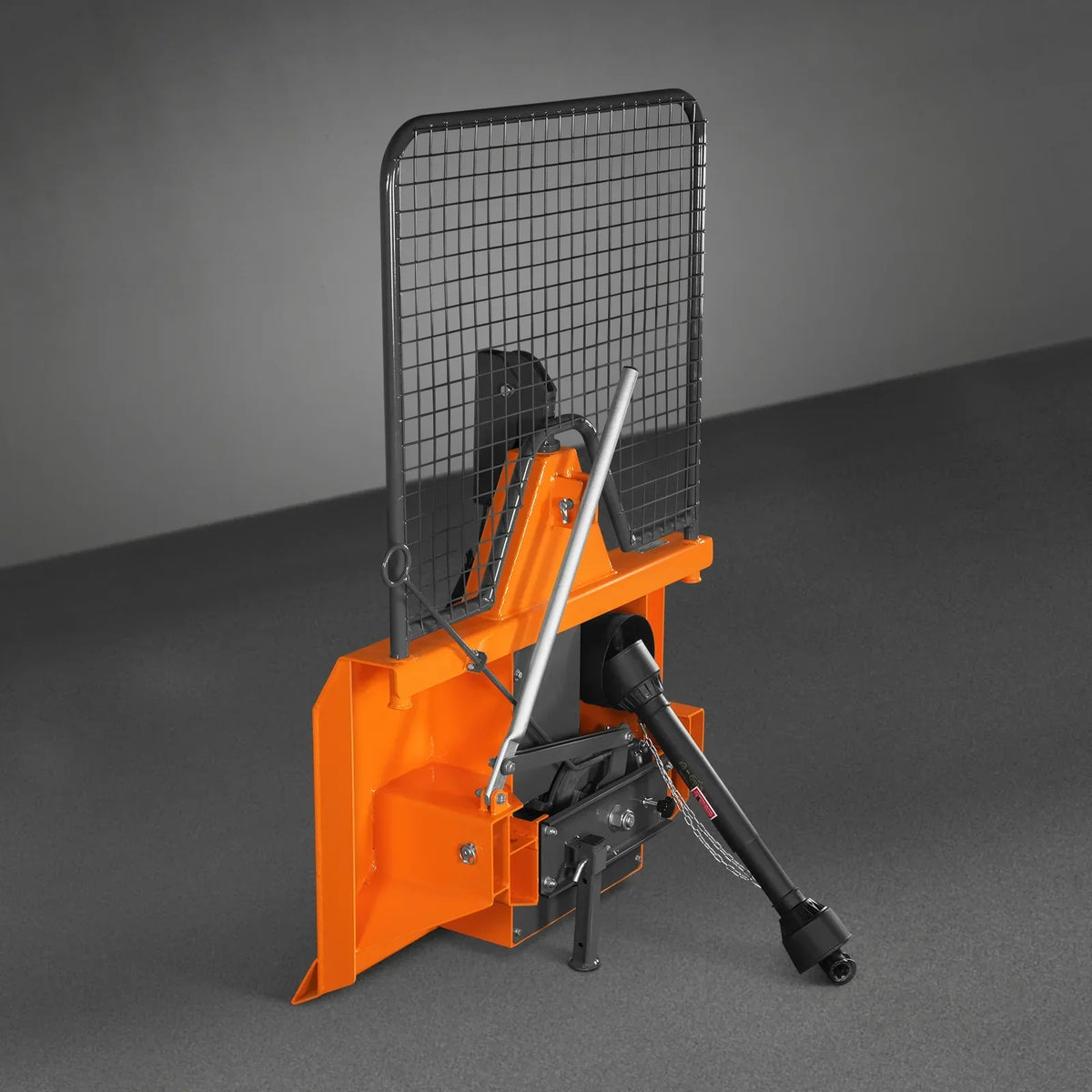

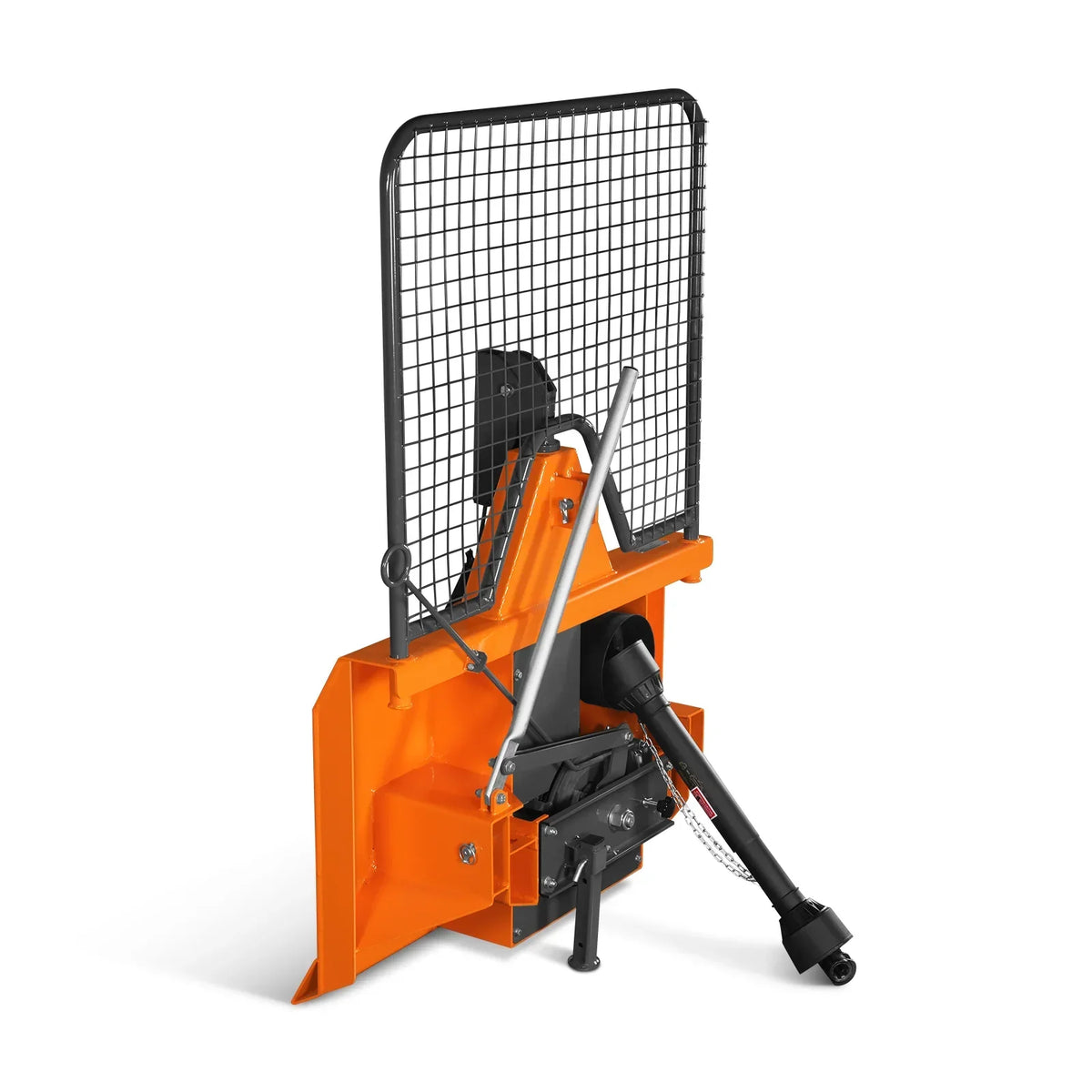

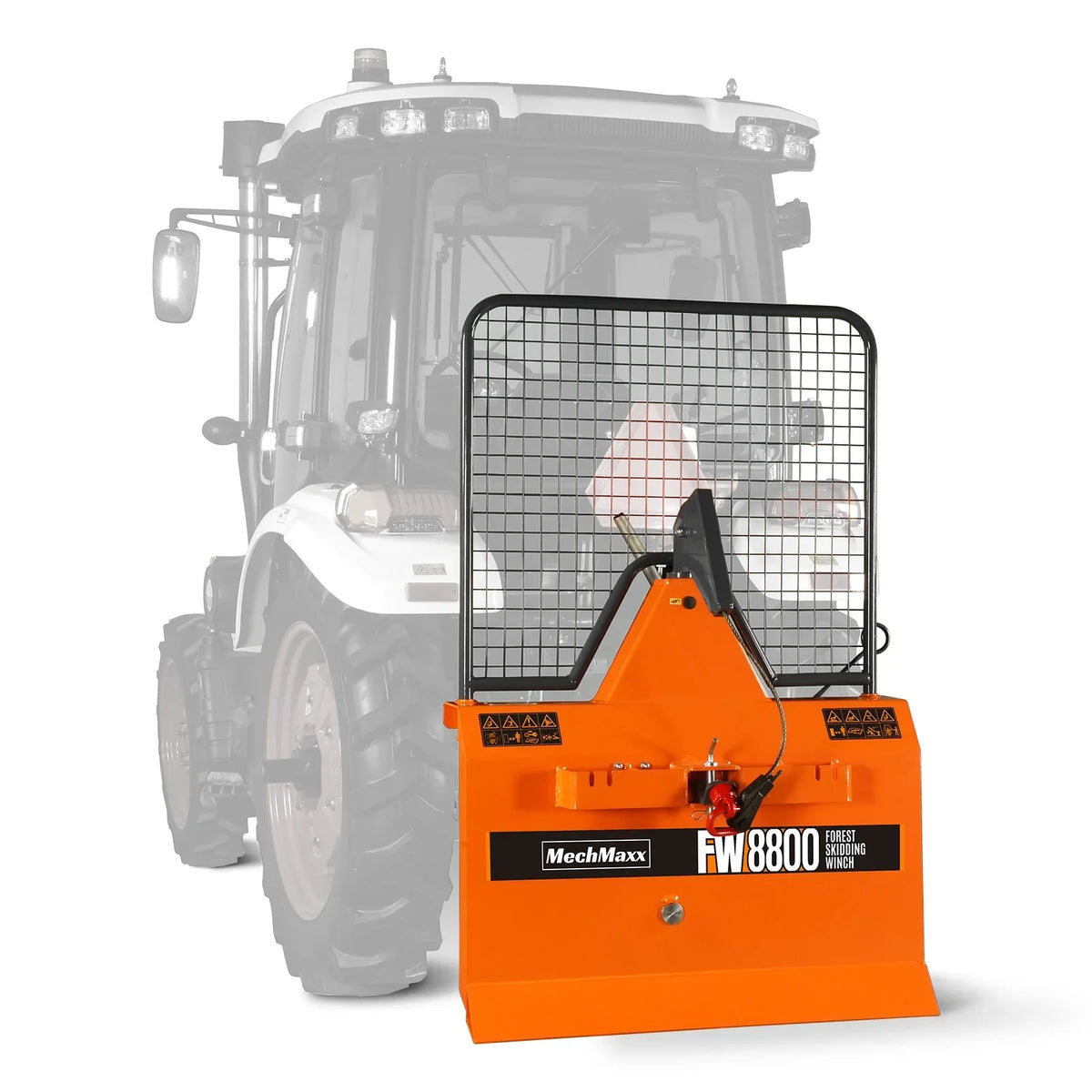

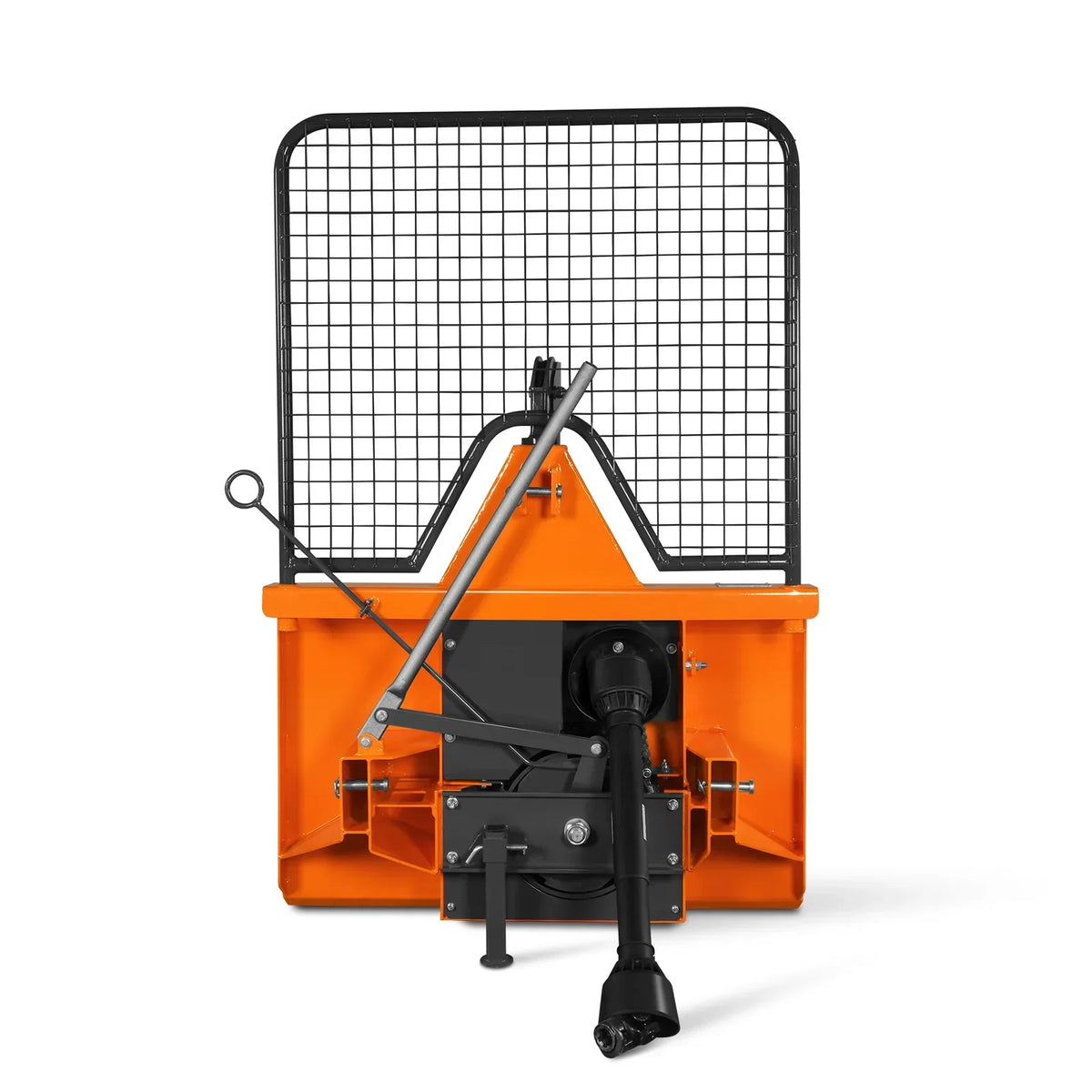

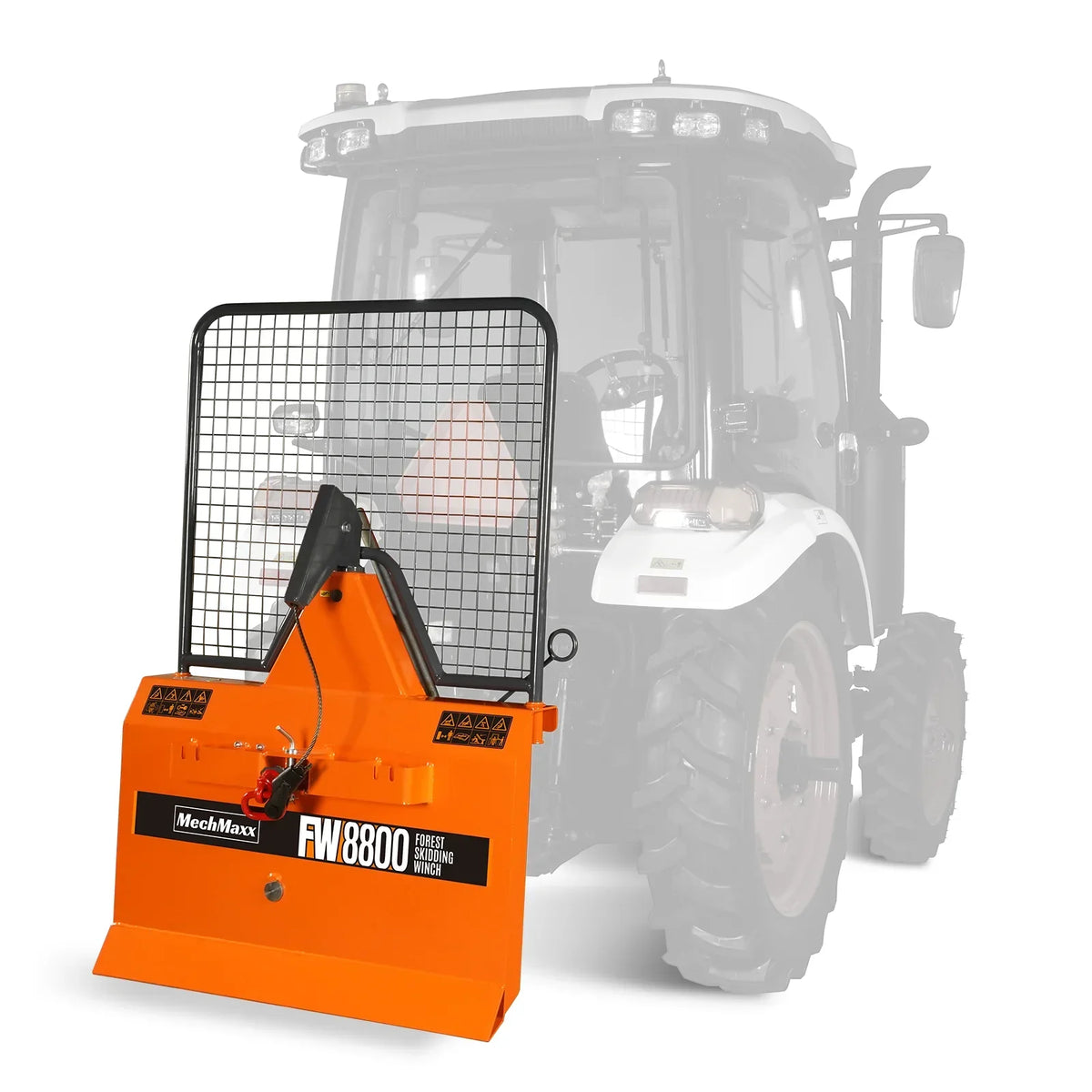

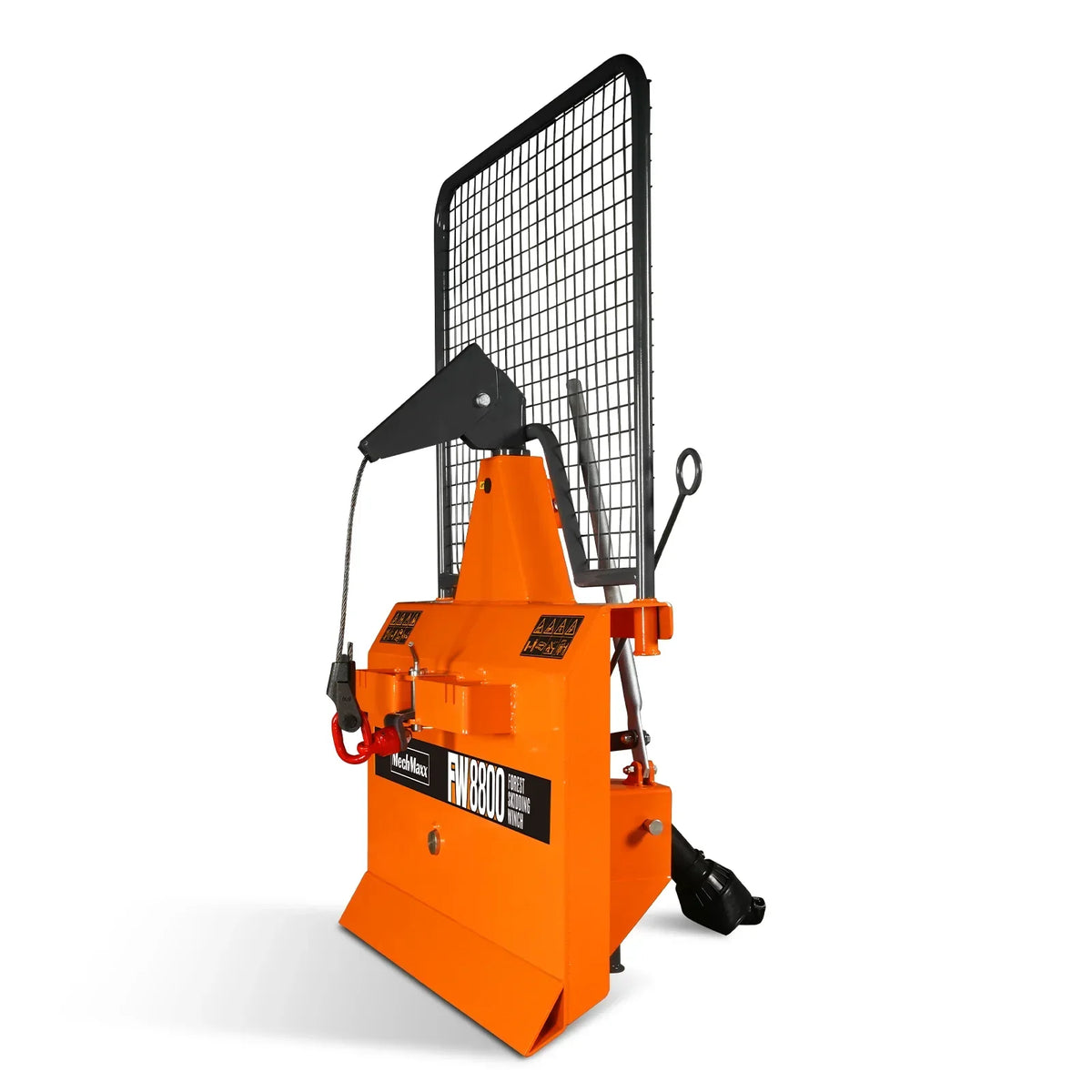

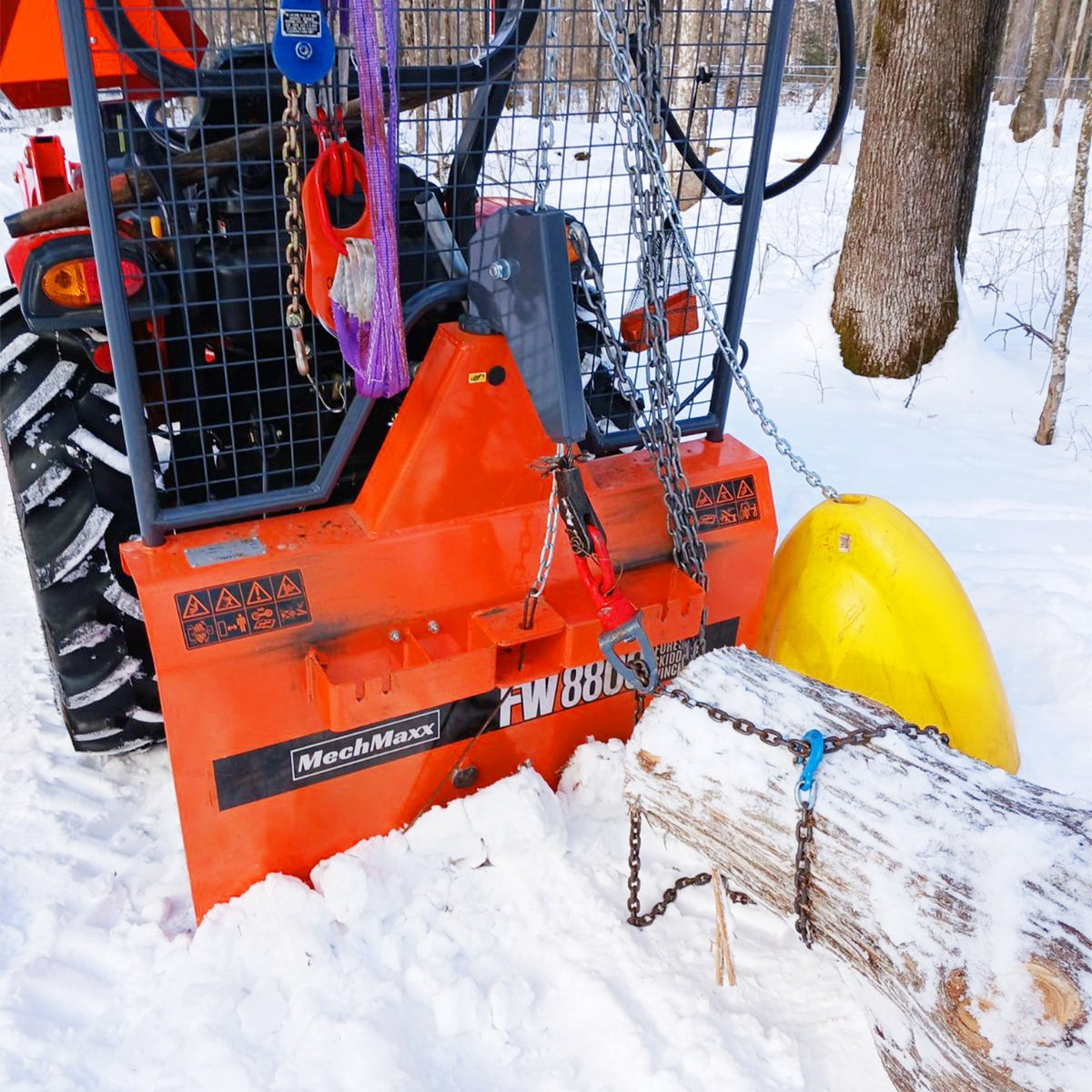

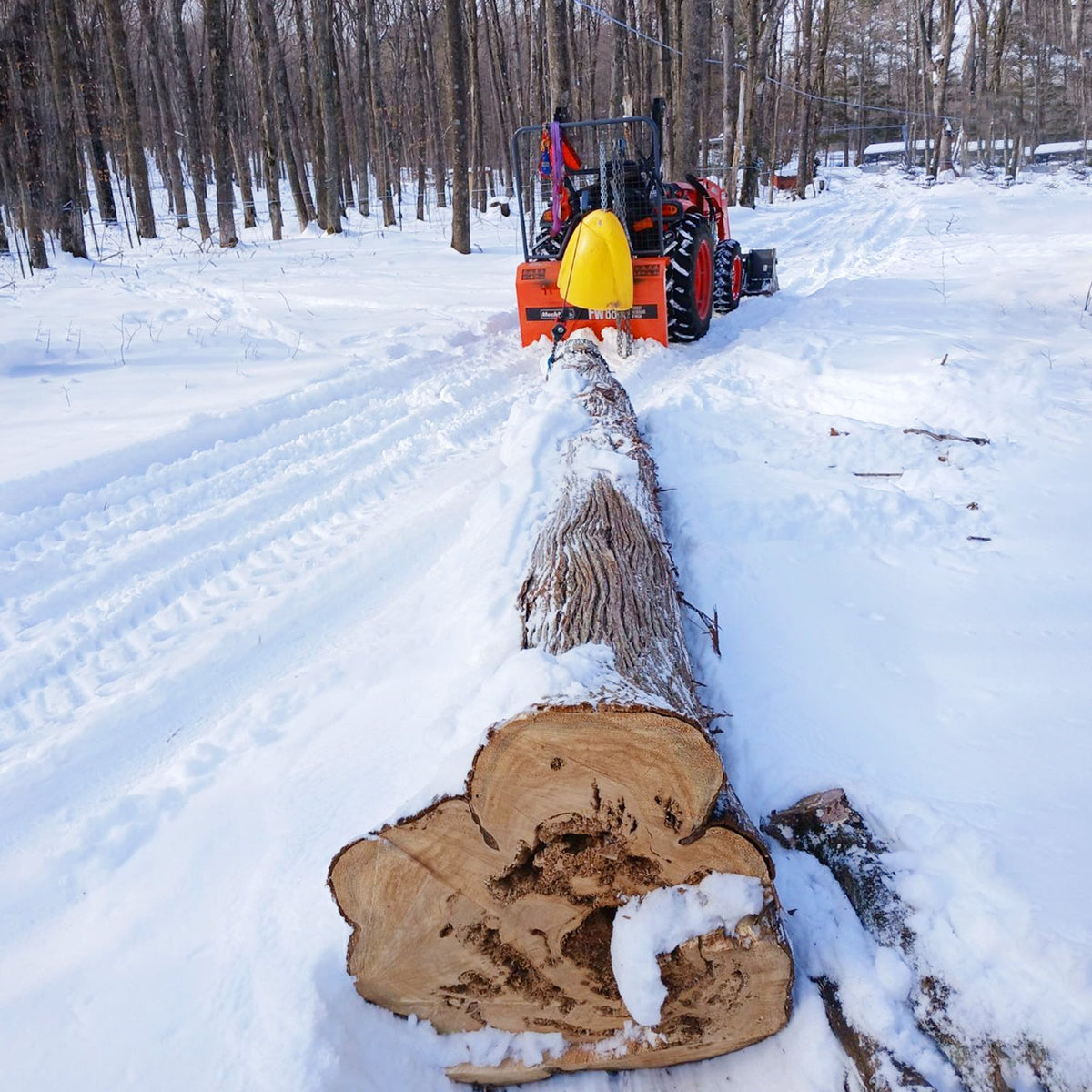

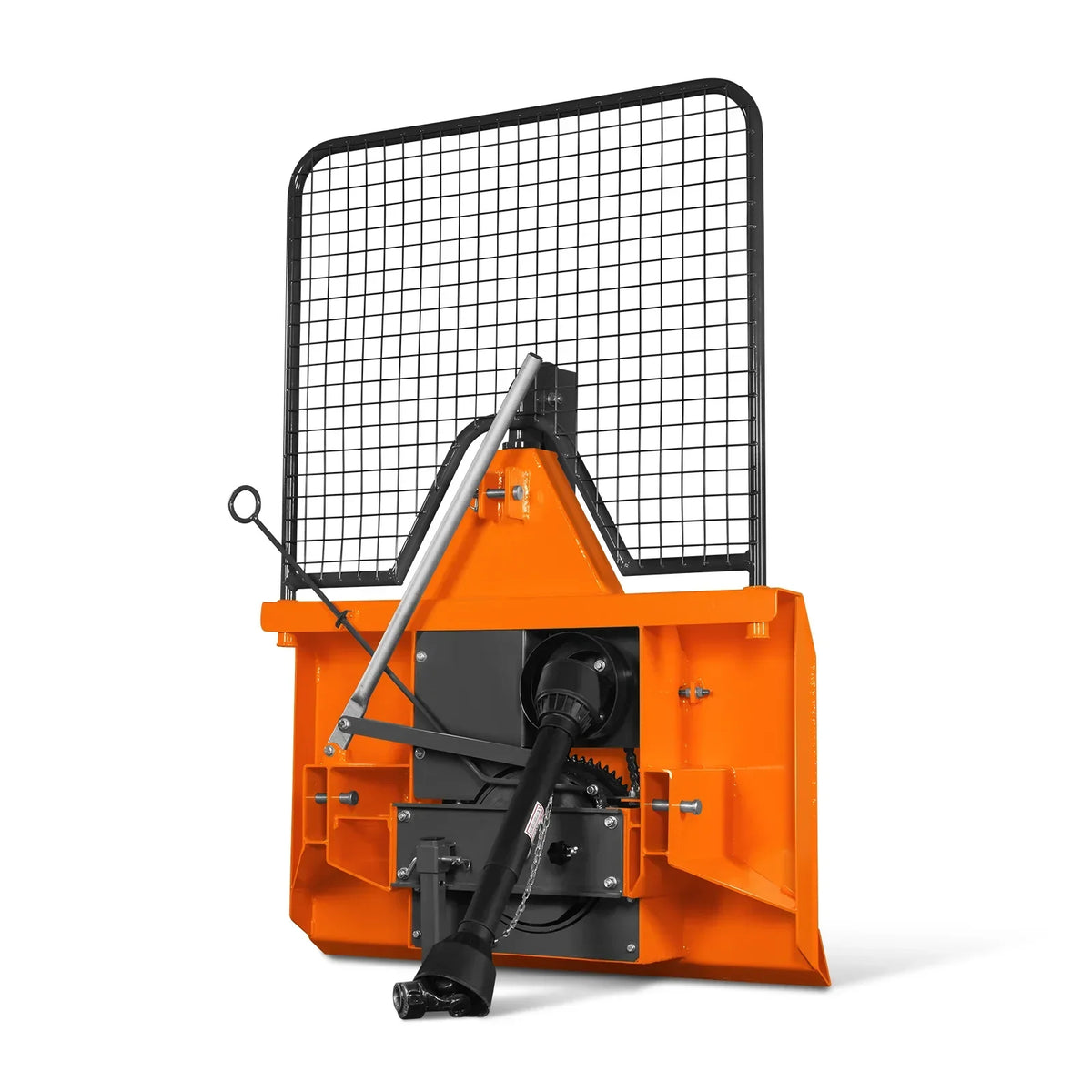

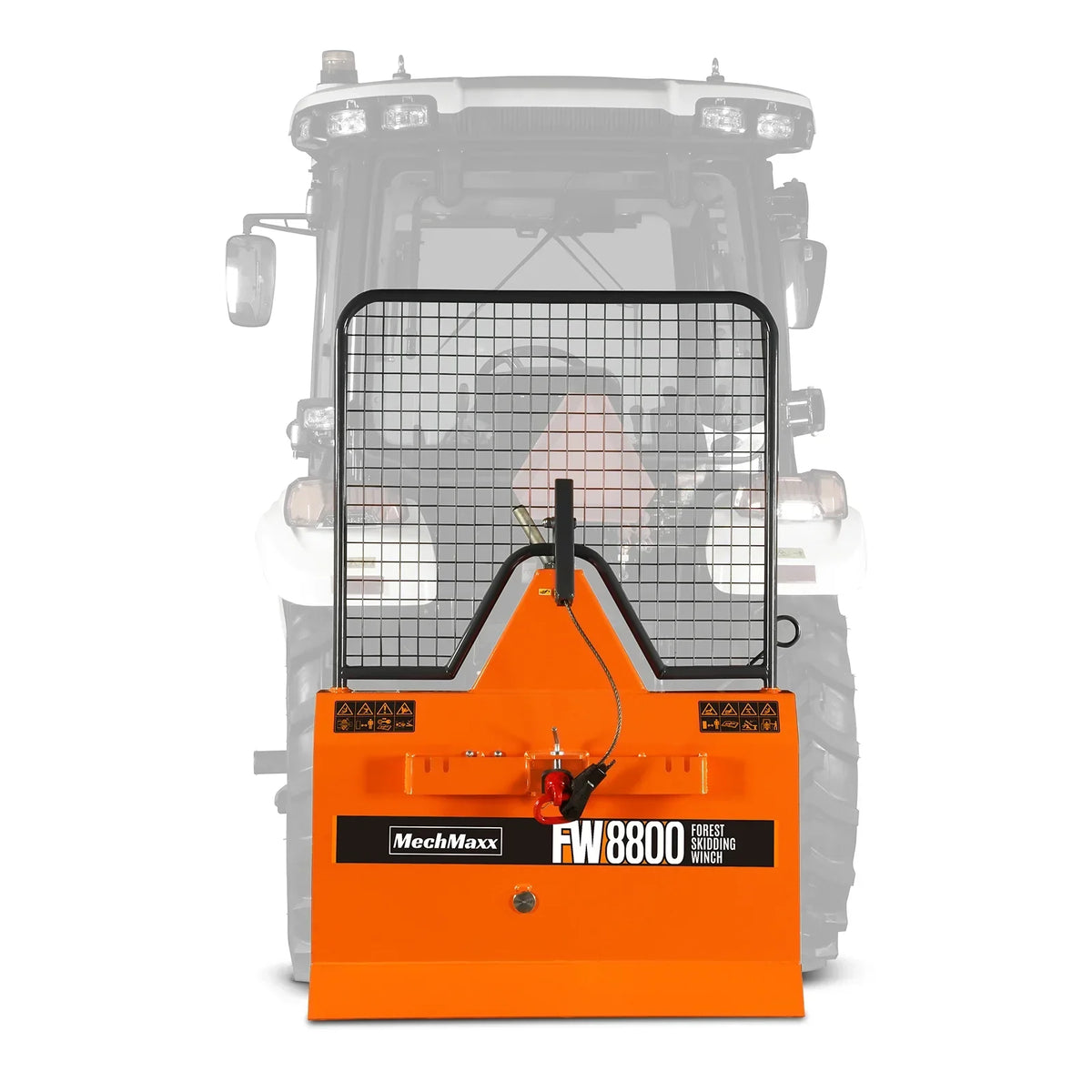

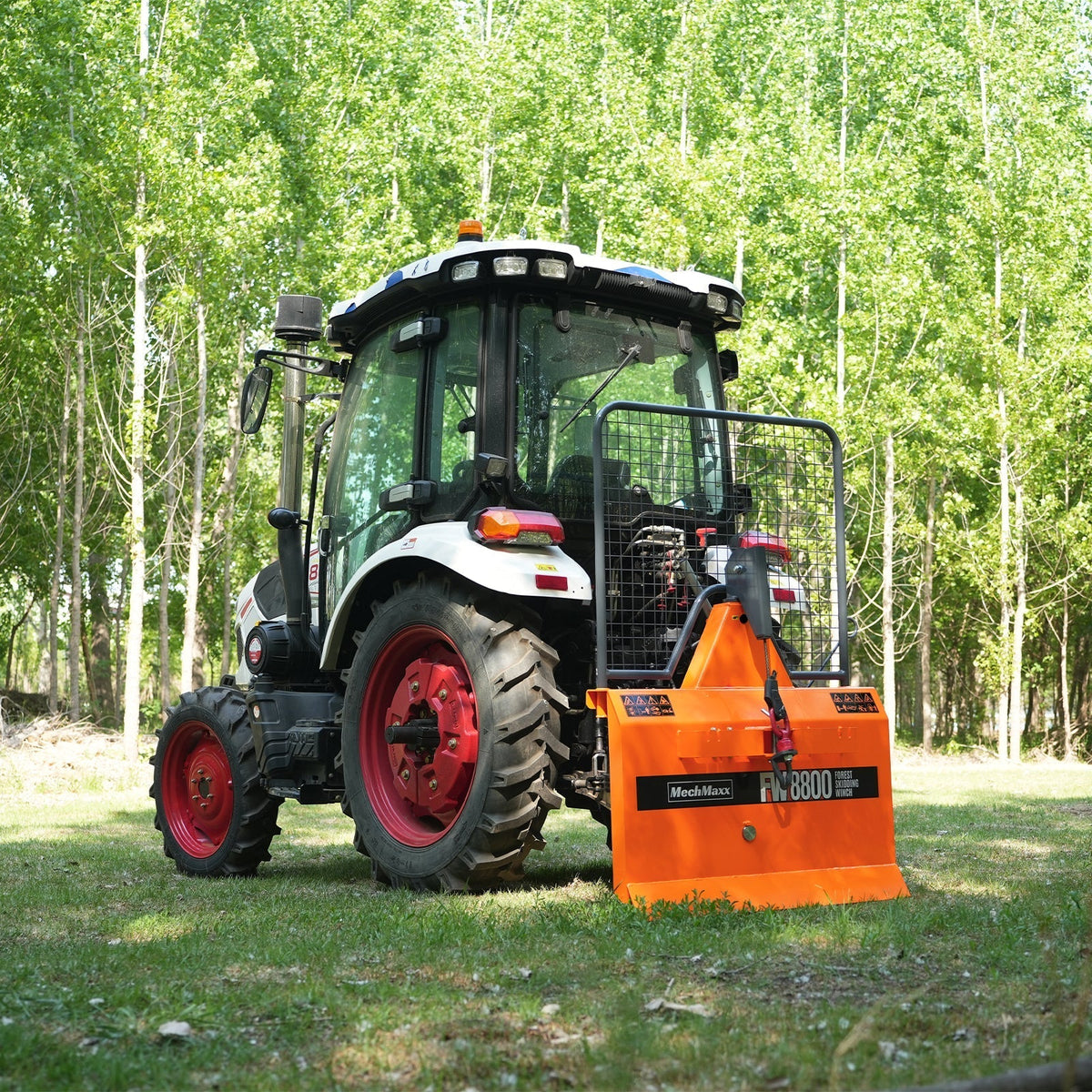

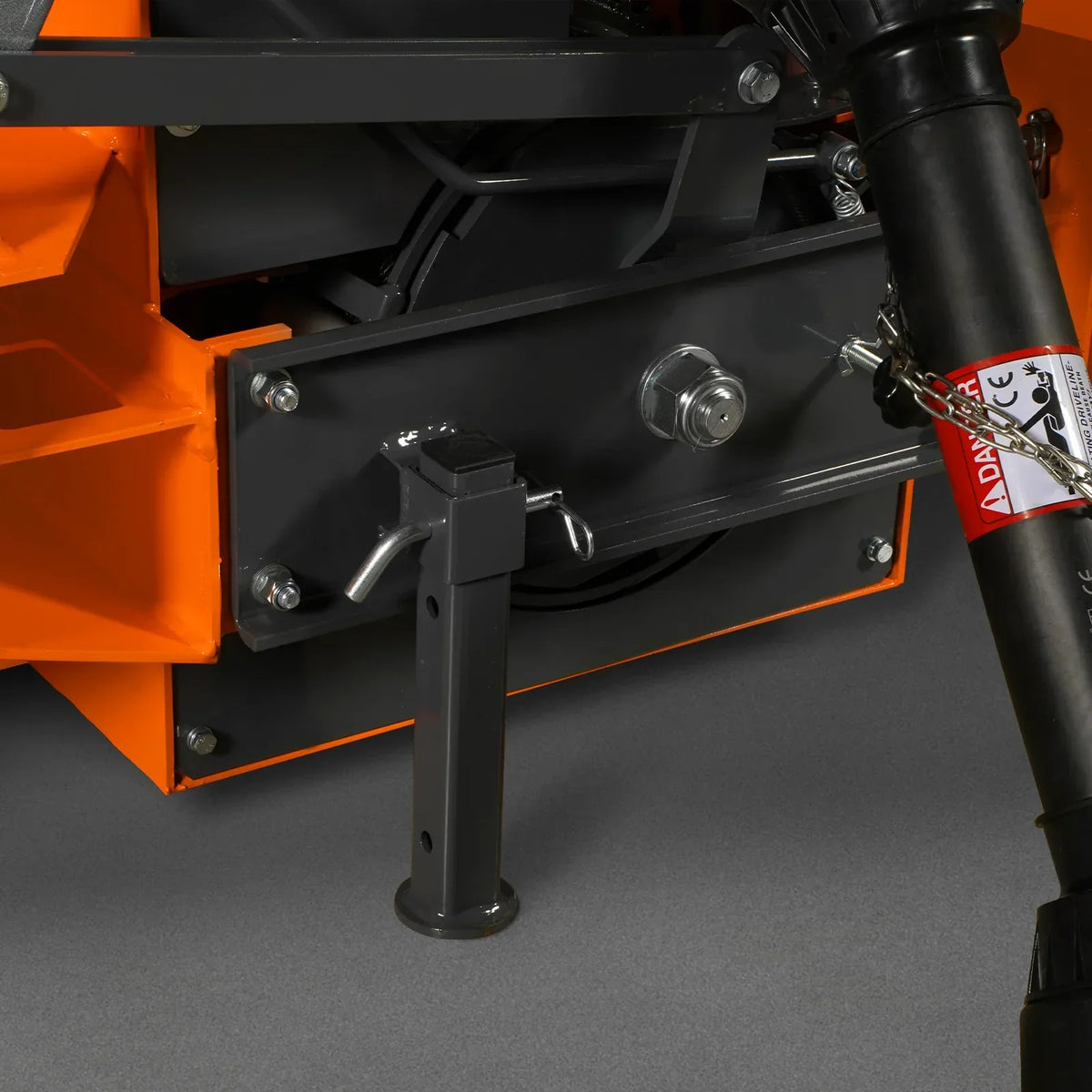

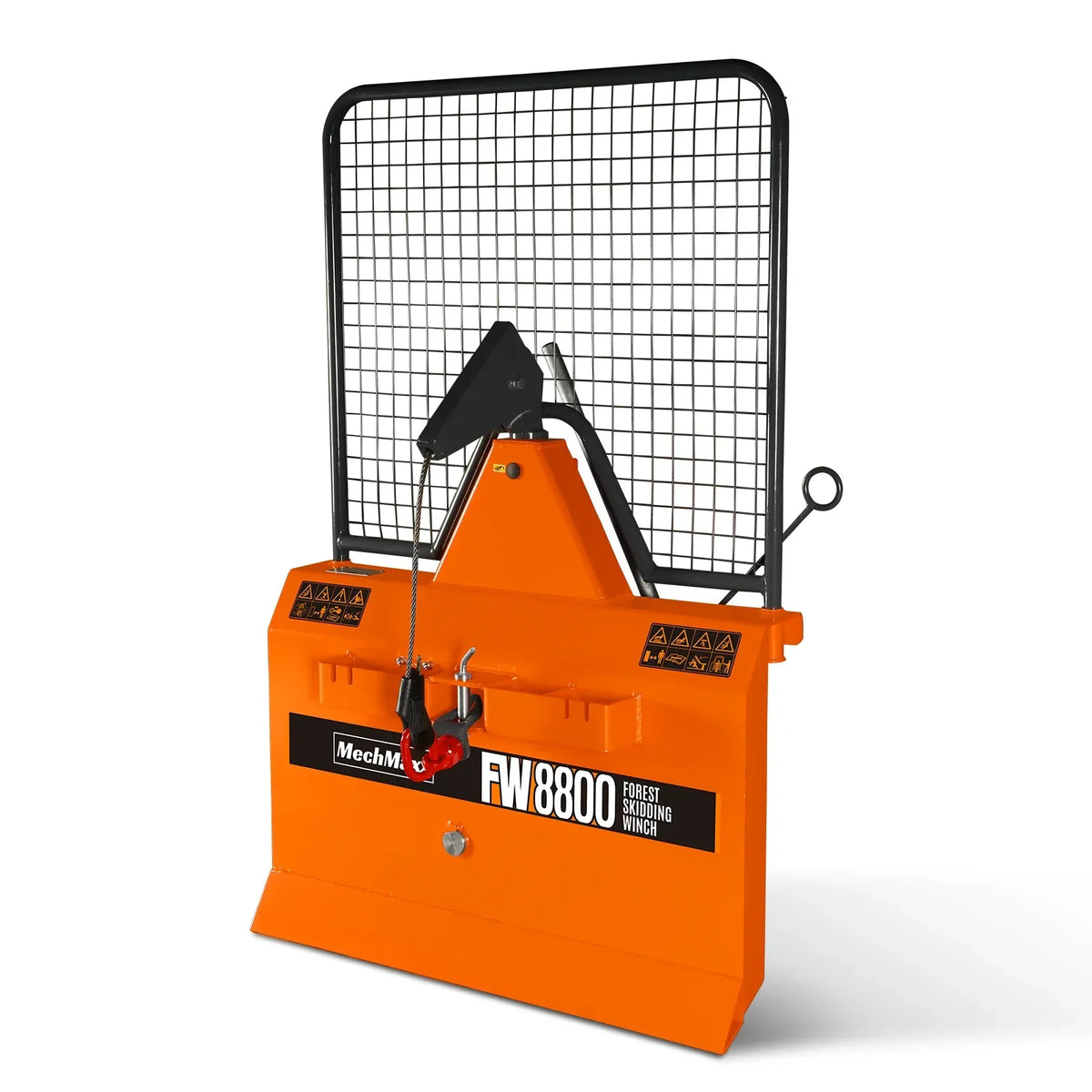

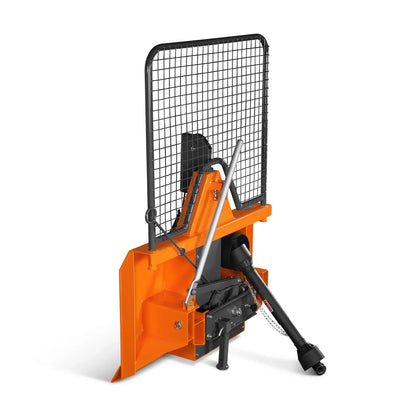

Forestry Log Skidding Winch
Recommended Tractor Power
25-60hp
Pulling Capacity
8800lbs
Winch Type
Mechanical, Dry Disc Clutch
Average Winching Speed
180 ft/minute
Cable Length
200 ft
Cable Diameter
3/8 in
Cable Type
Steel
Tractor CAT
CAT 1
PTO Input Speed
540 RPM

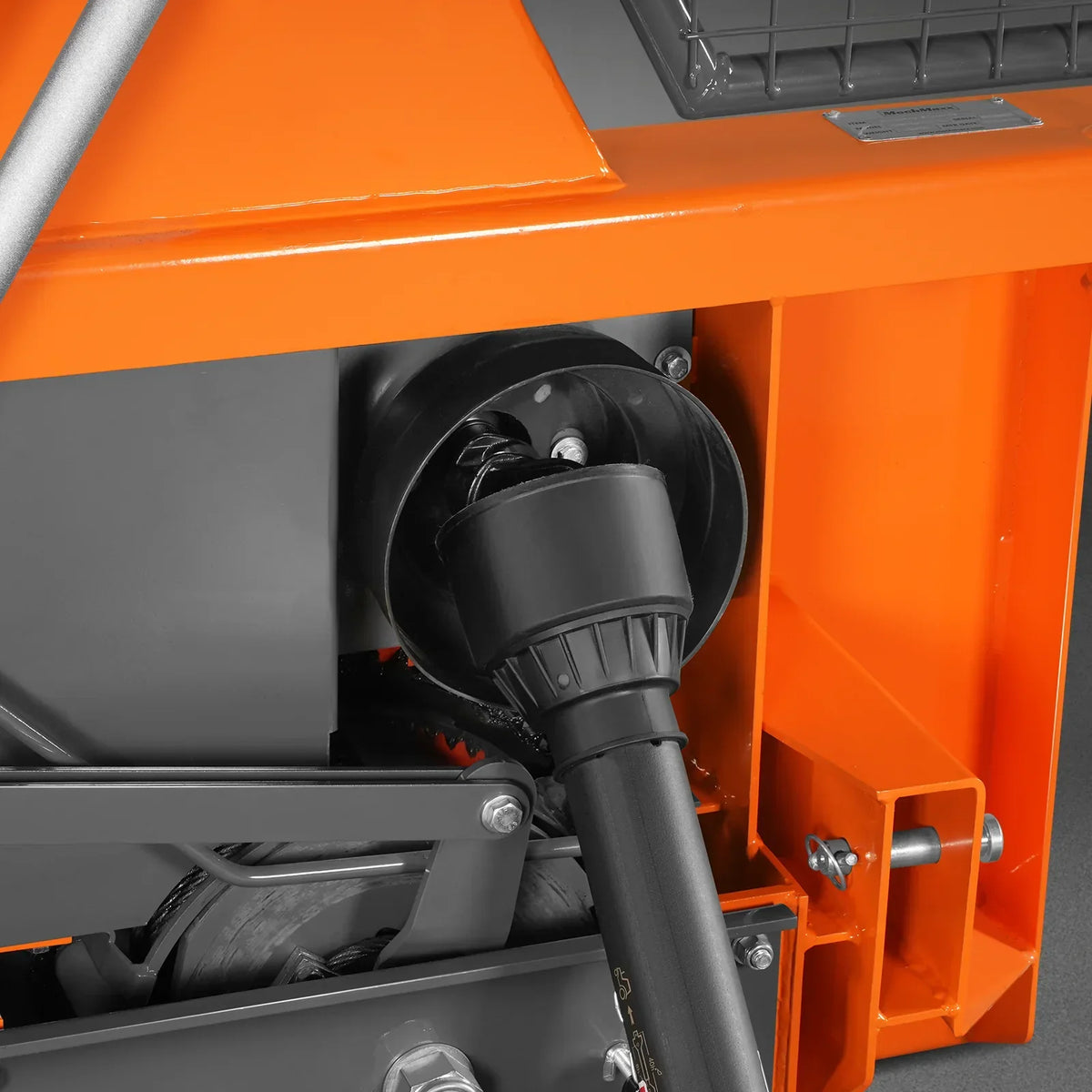

PTO Shaft
1-3/8in 6 Spline Tractor， With Shear Bolt

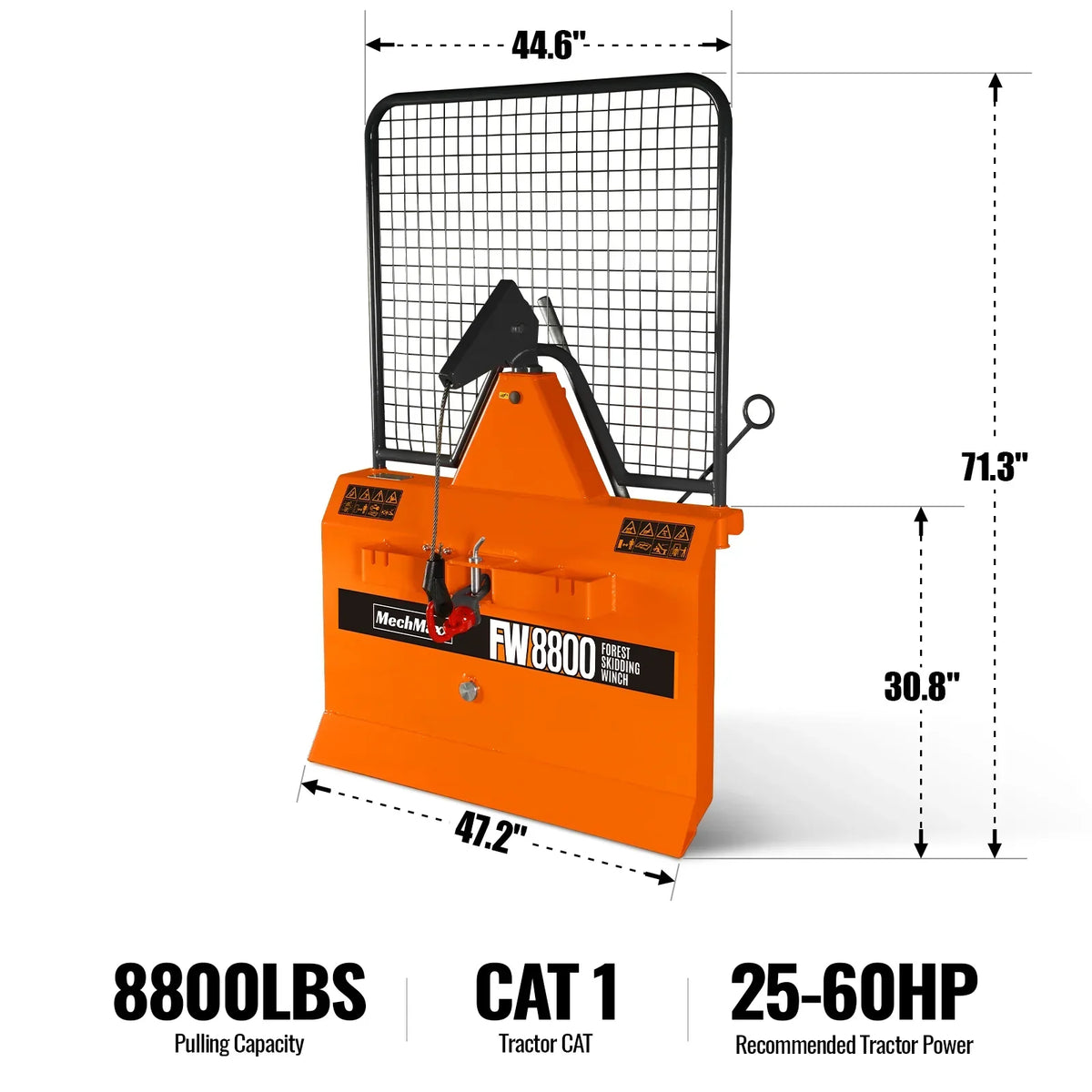

Dimensions
47 X 20 X 71 in
Packing Size
49 x 21 x 73 in
Weight (N.W/G.W.)
602/659 lbs
