MechMaxx

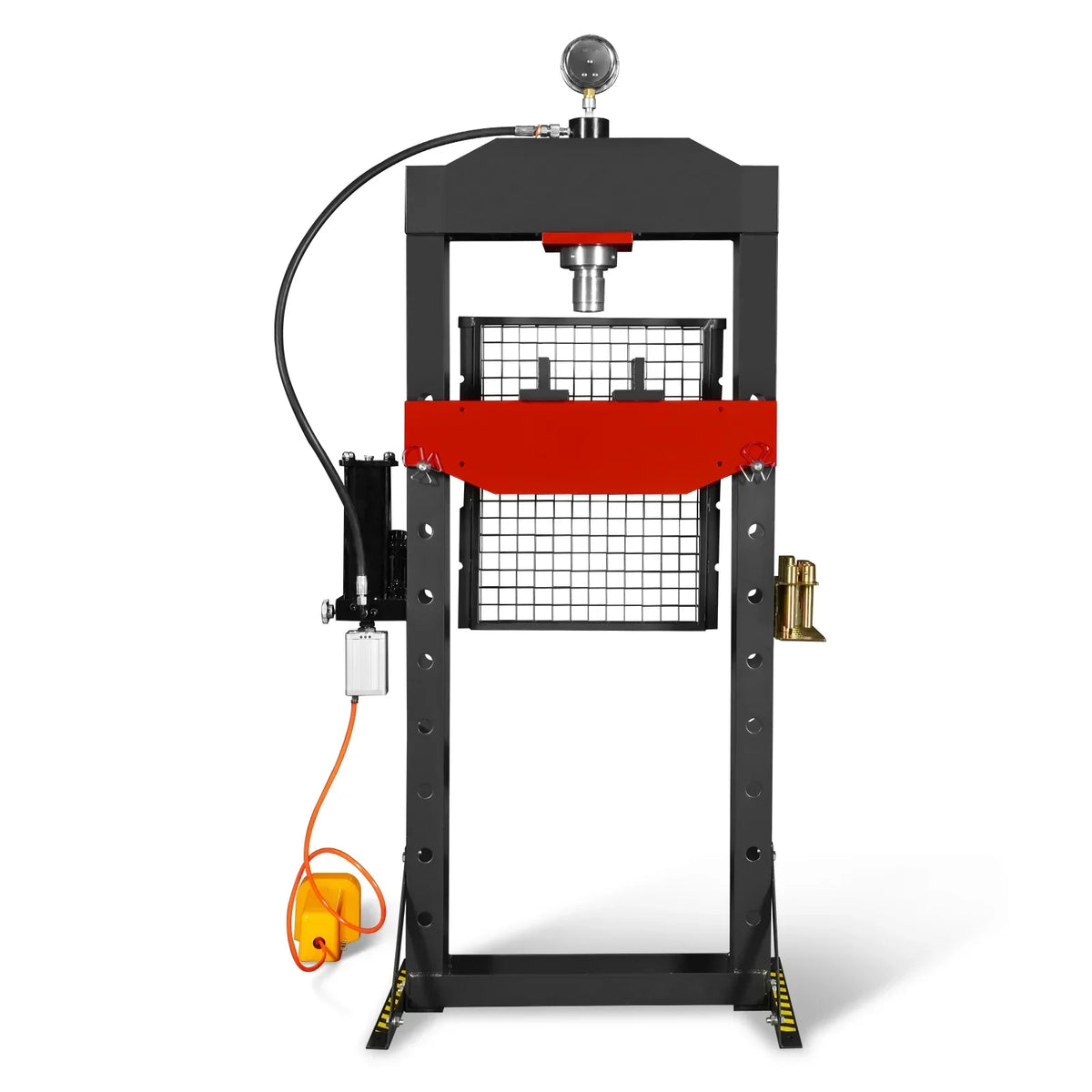

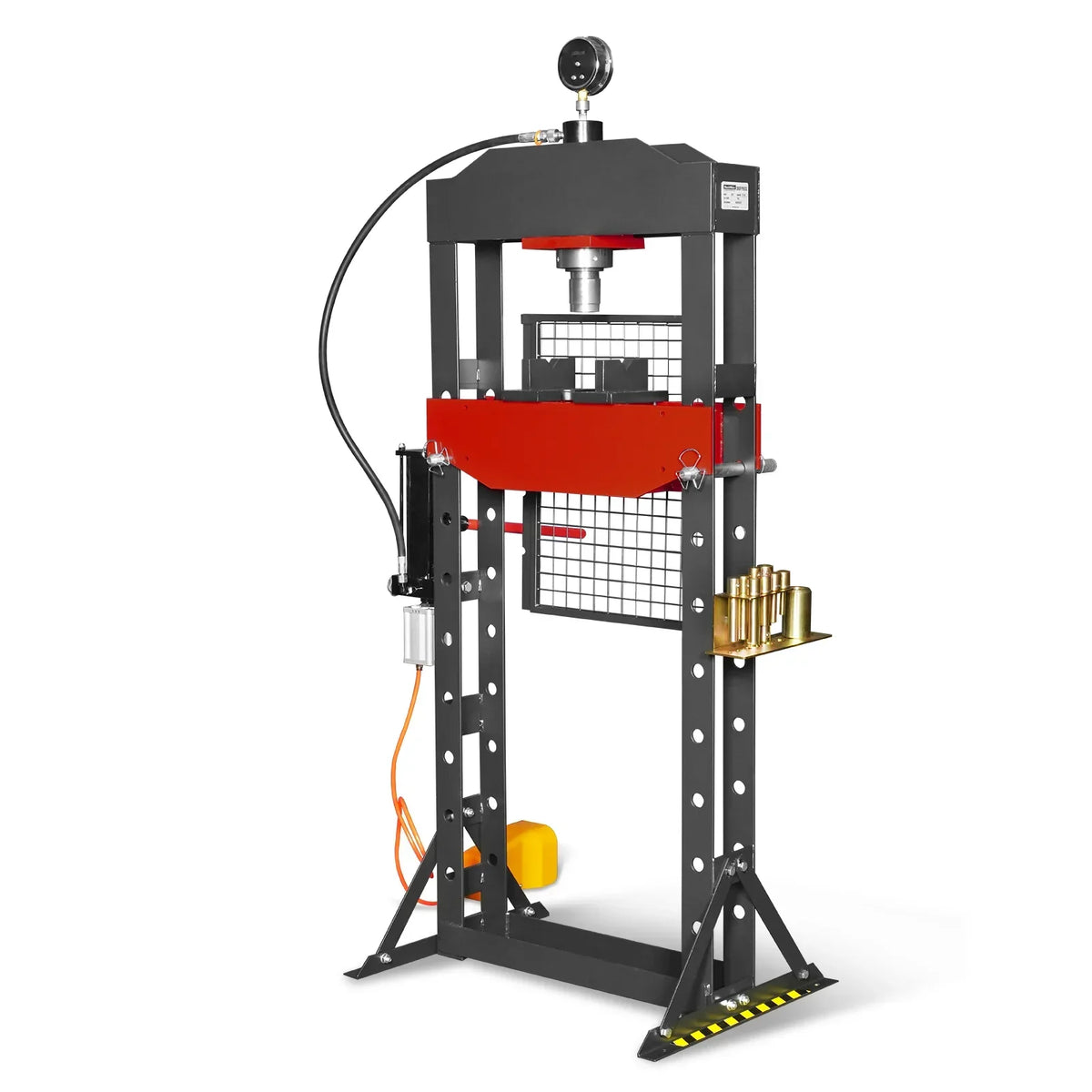

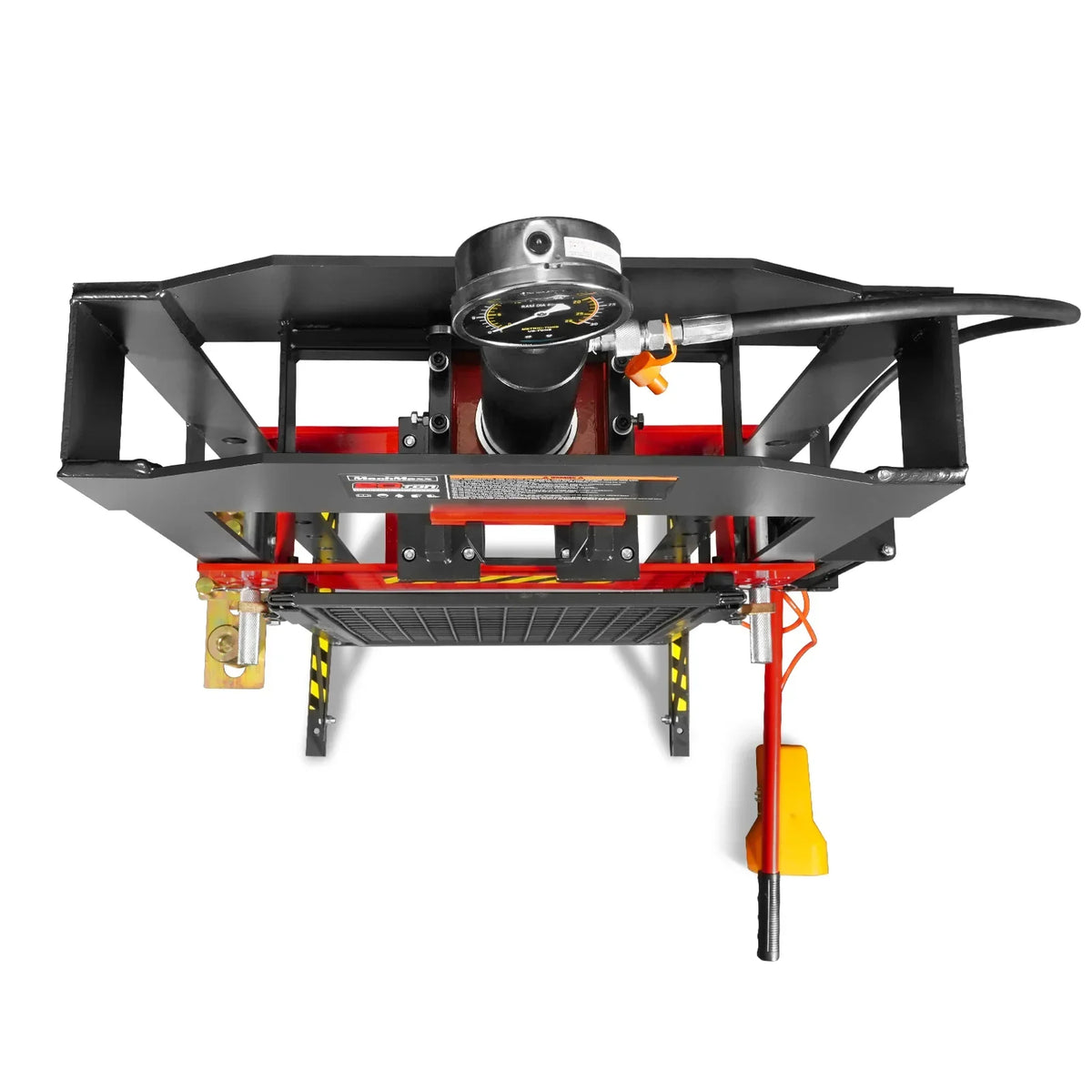

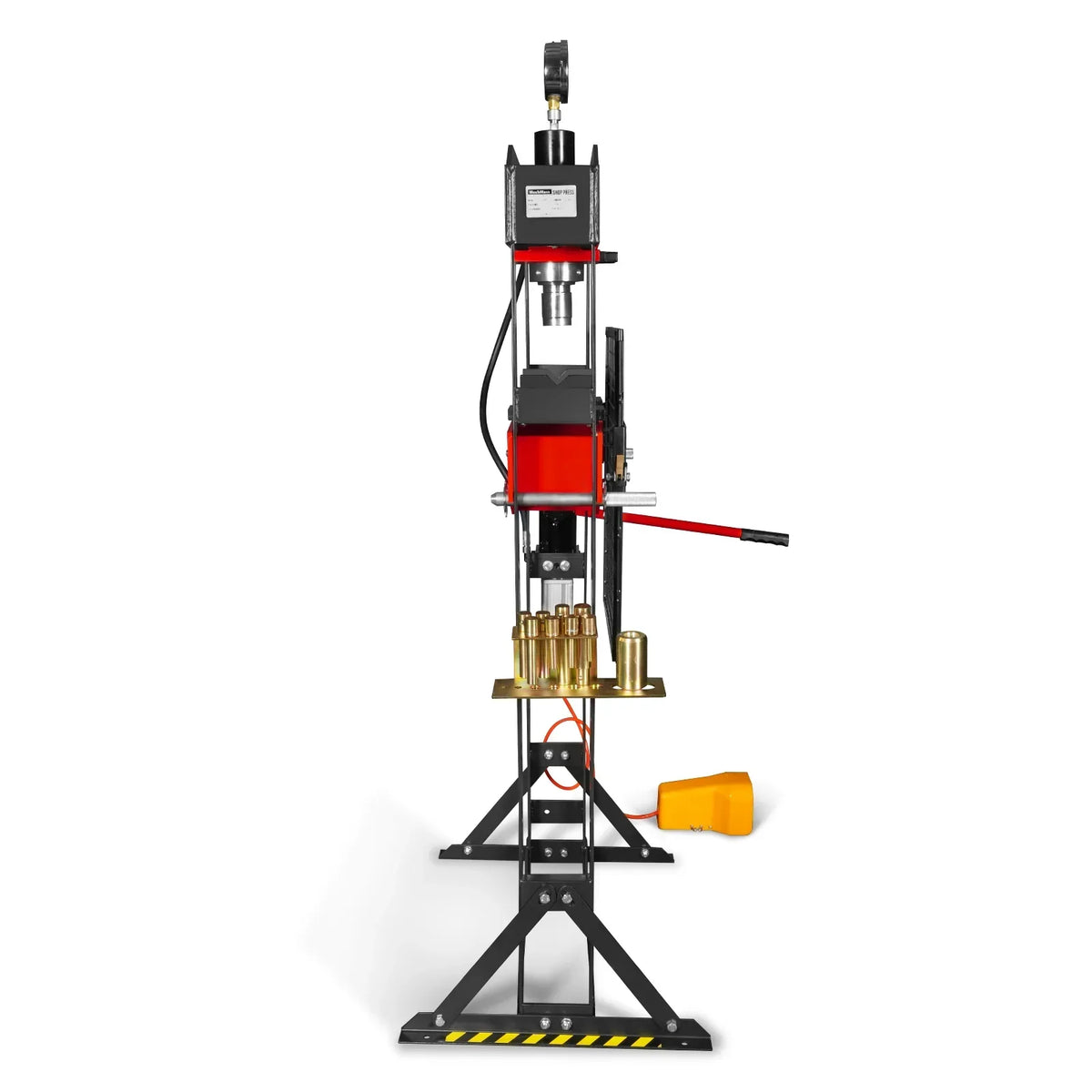

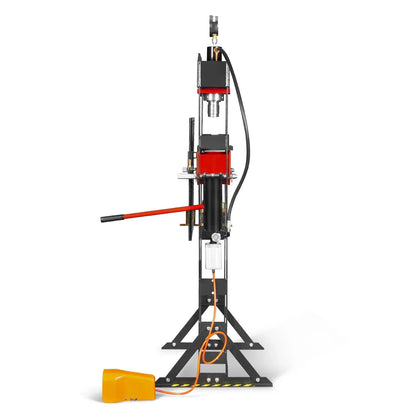

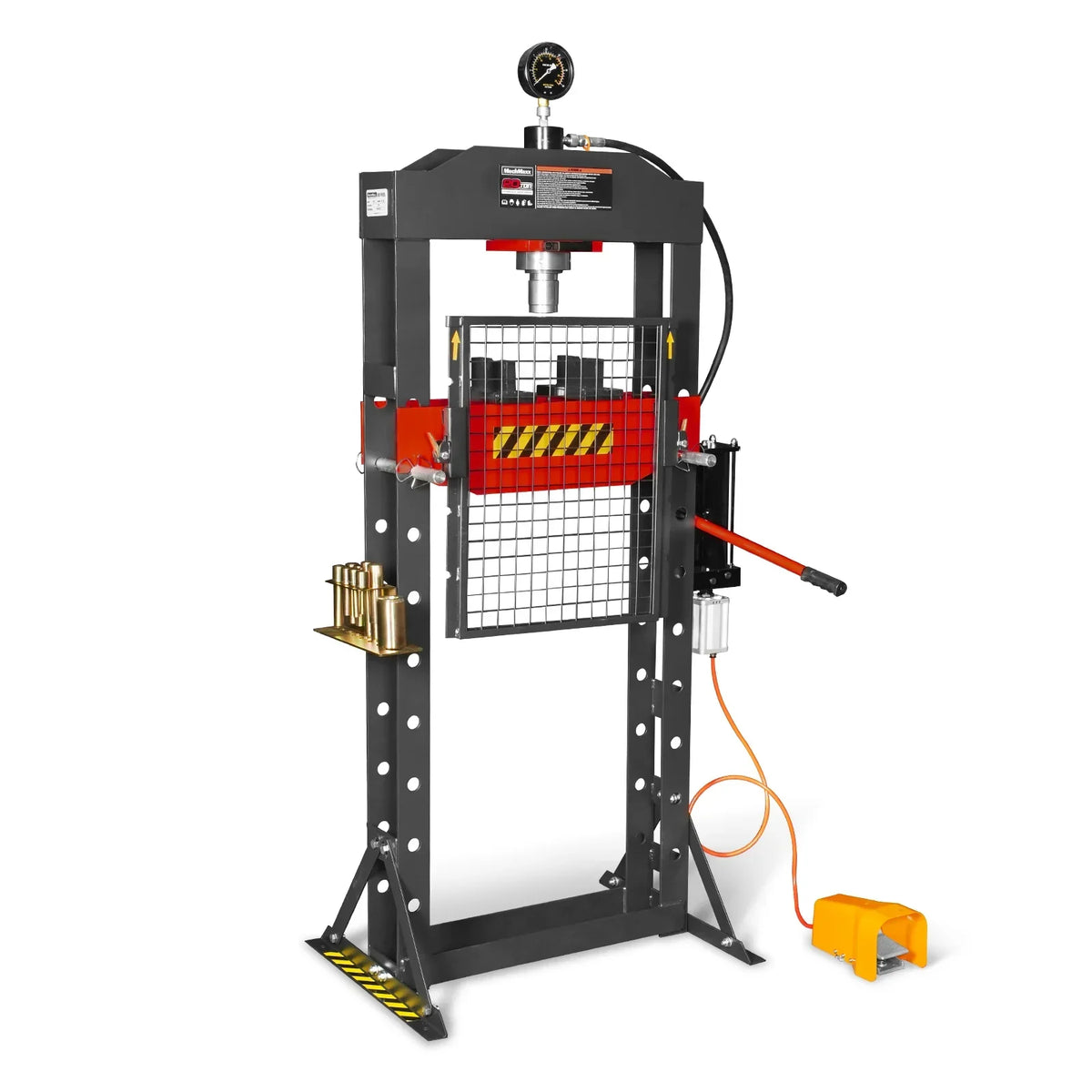

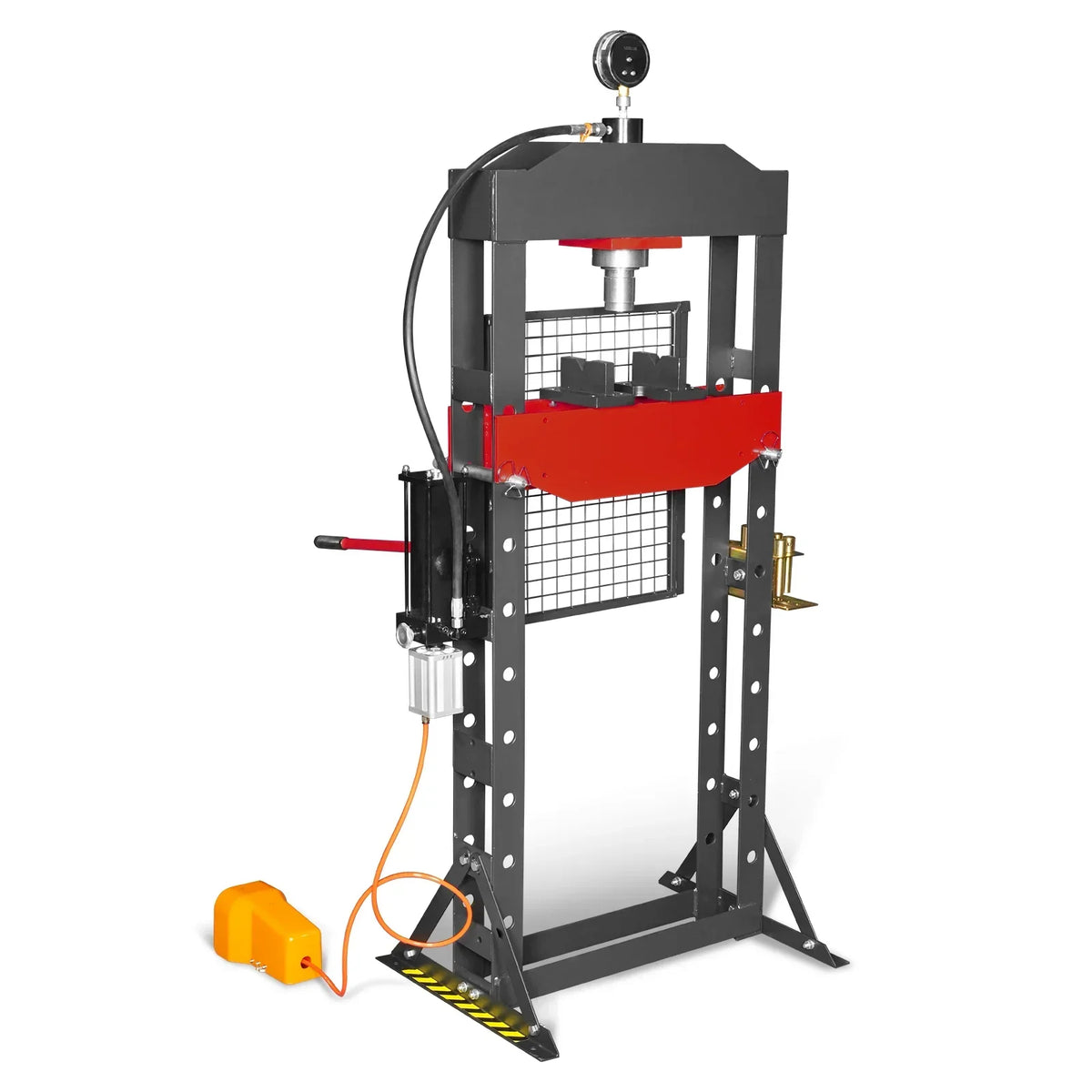

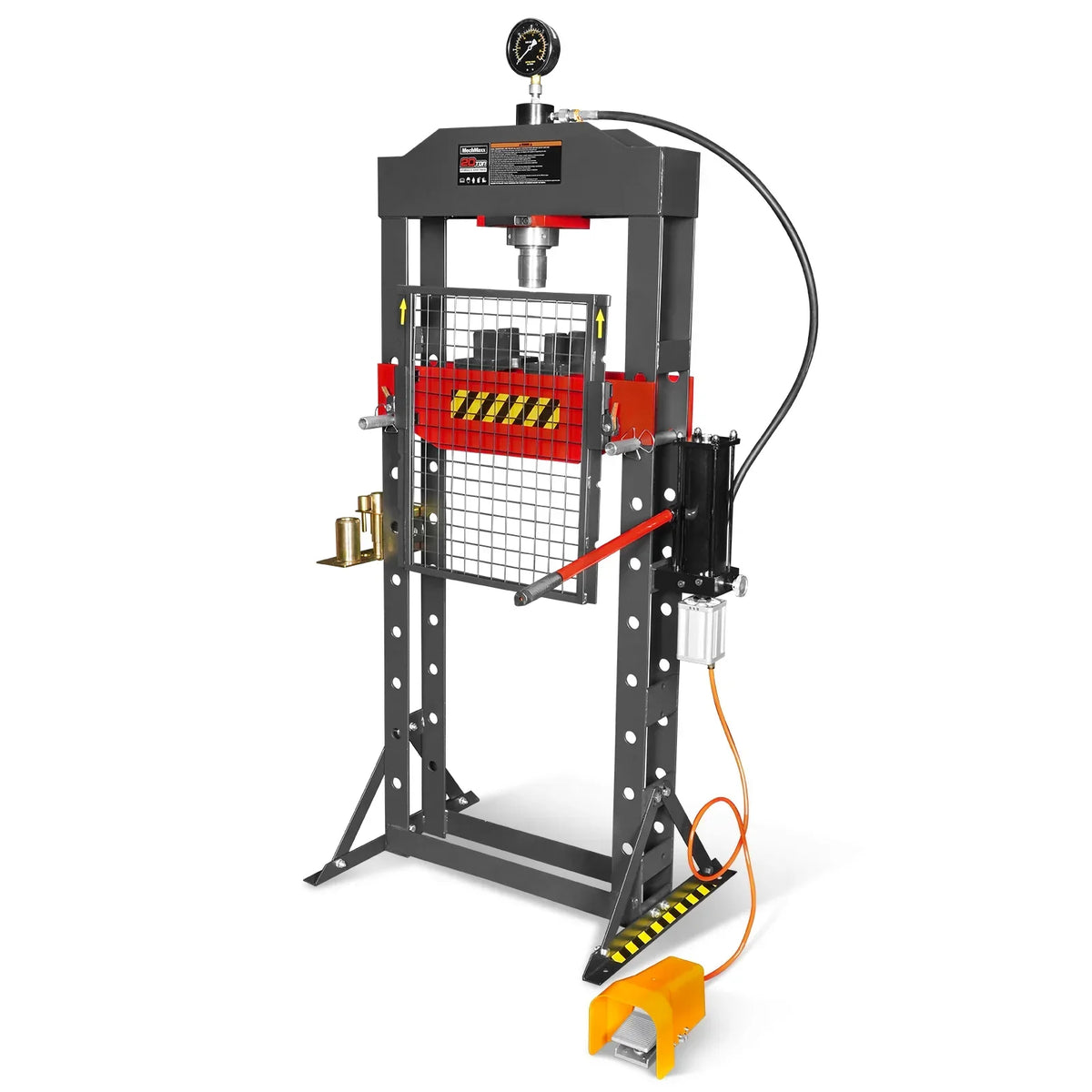

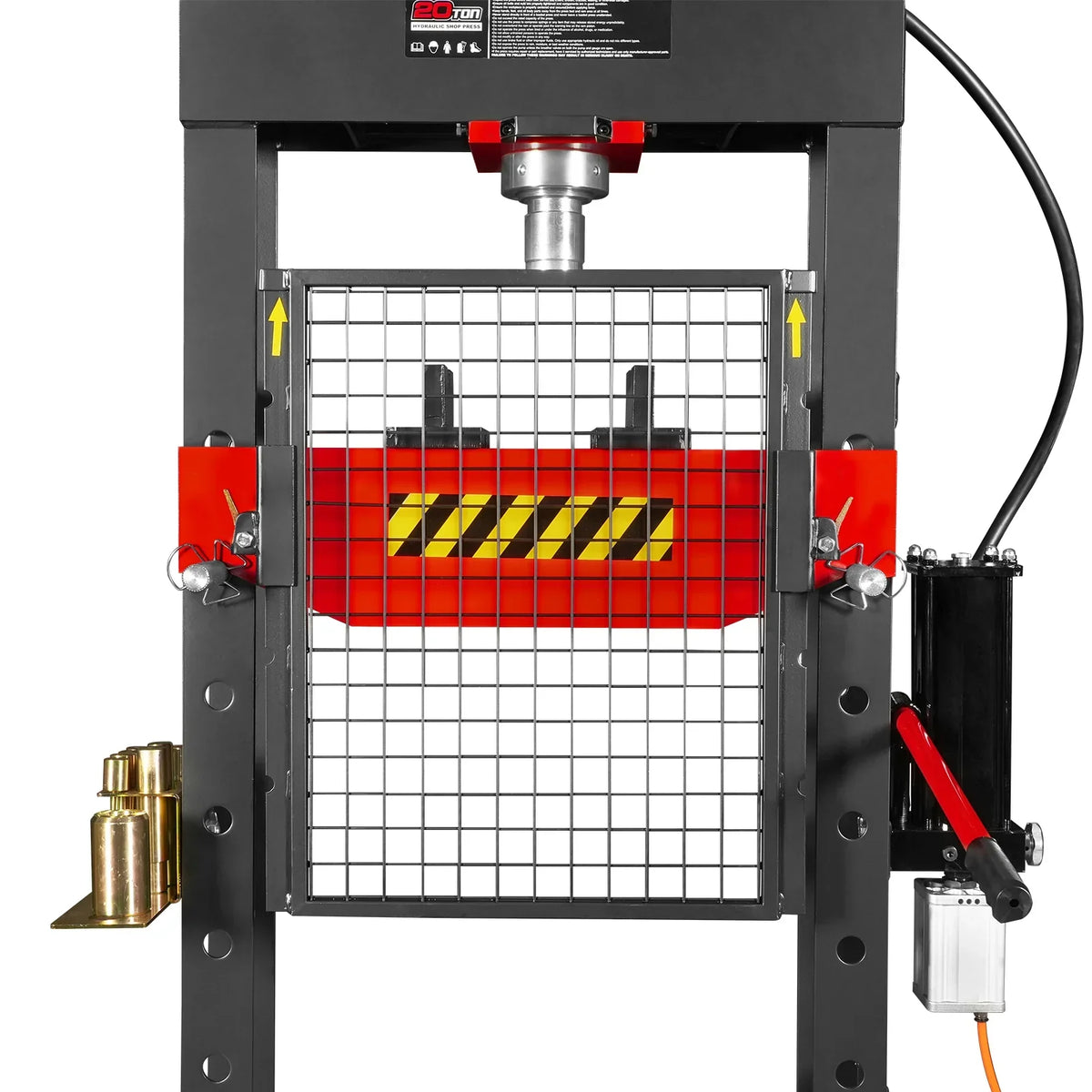

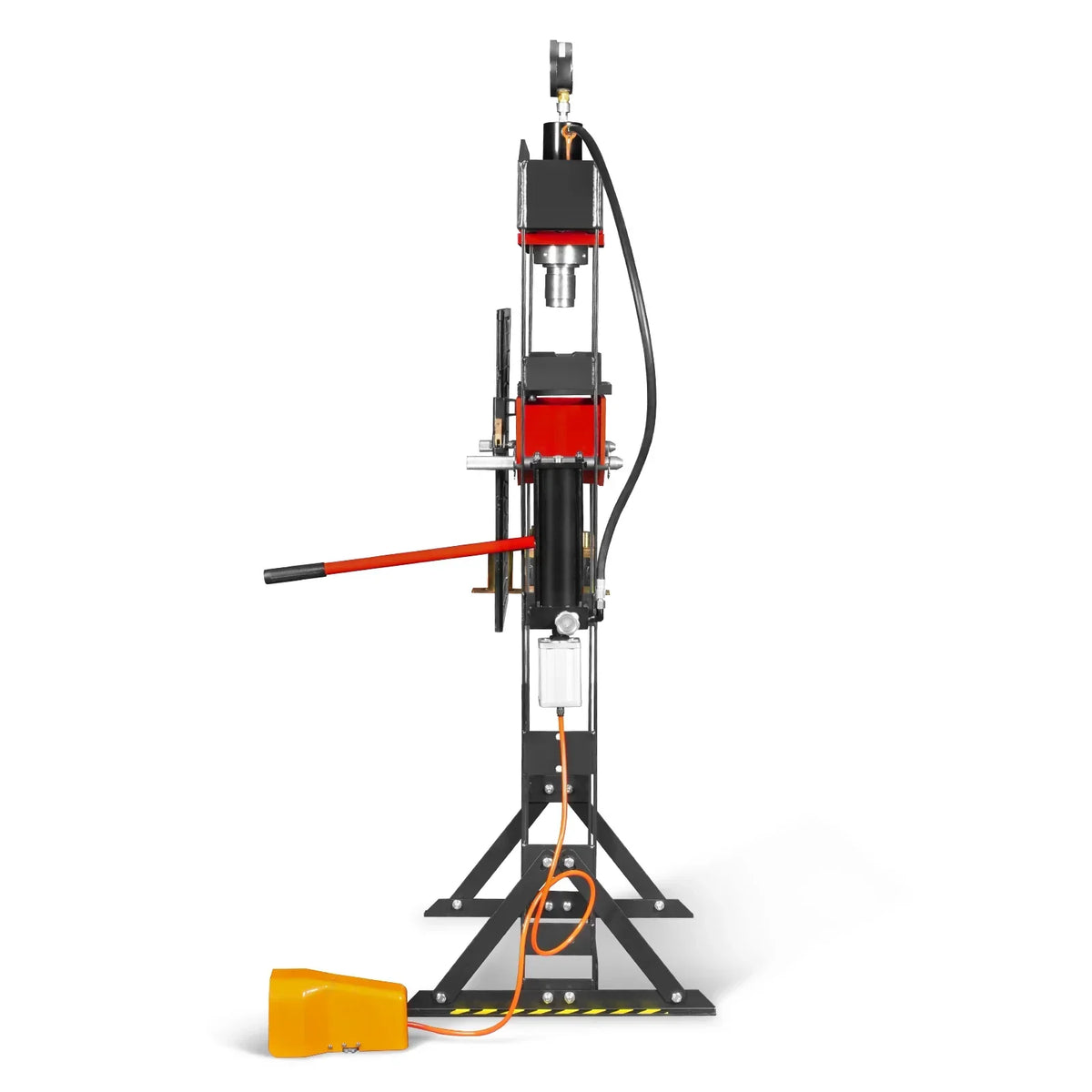

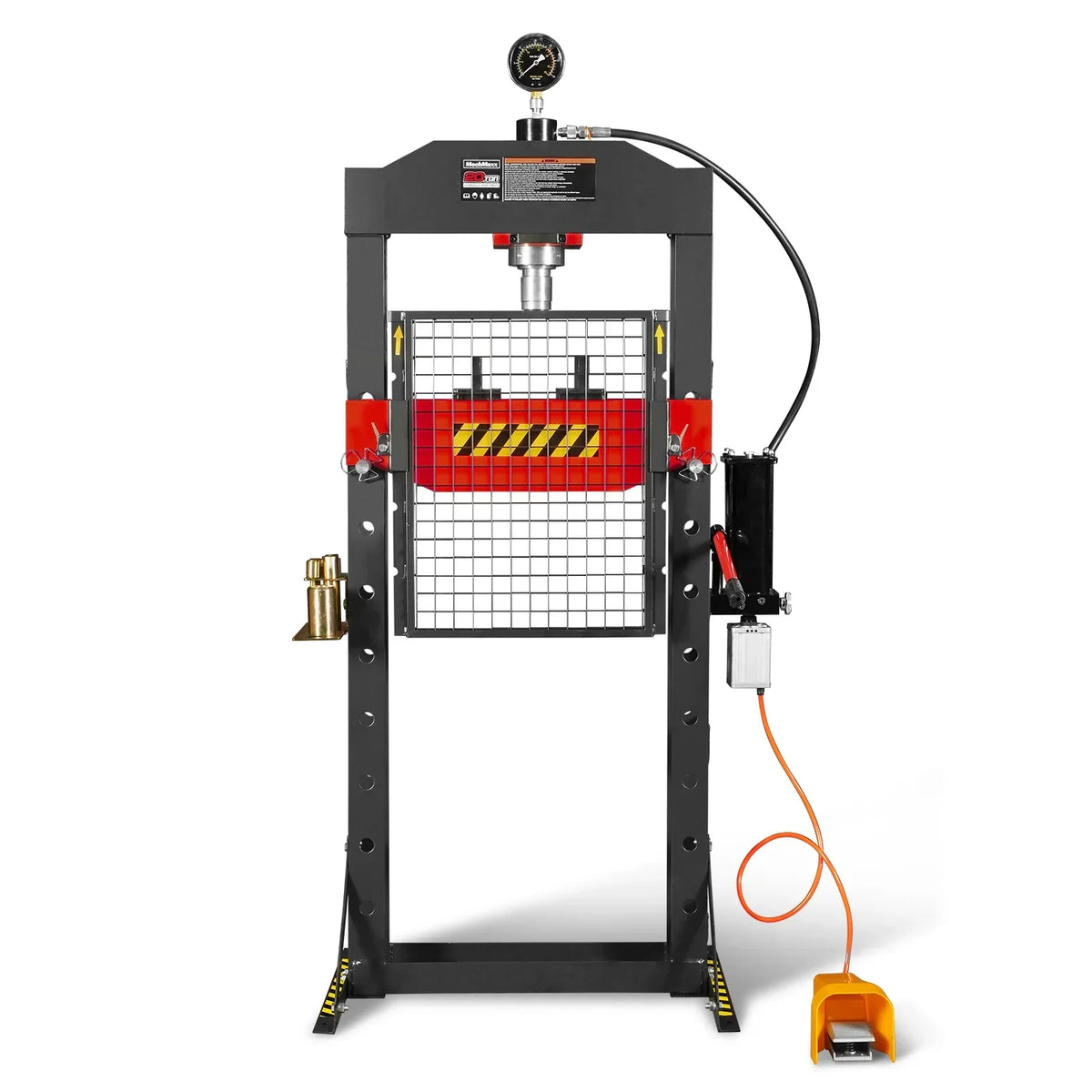

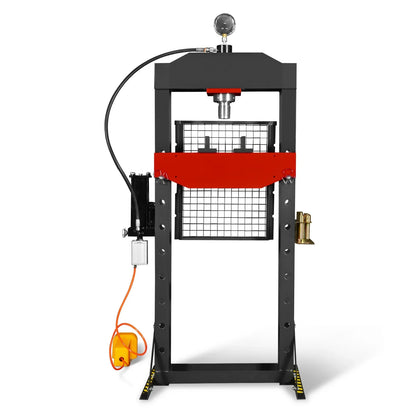

20 Ton H-Frame Air/Hydraulic Shop Press with Press Pin Kit, Fully Welded Steel Frame, Safety Guard, Foot Pedal Control, HSP20

20 Ton H-Frame Air/Hydraulic Shop Press with Press Pin Kit, Fully Welded Steel Frame, Safety Guard, Foot Pedal Control, HSP20

Normaler Preis €1.299,00
Normaler Preis €1.599,00 Verkaufspreis €1.299,00
Sale Ausverkauft
Inkl. Steuern. Versand wird beim Checkout berechnet
Anzahl

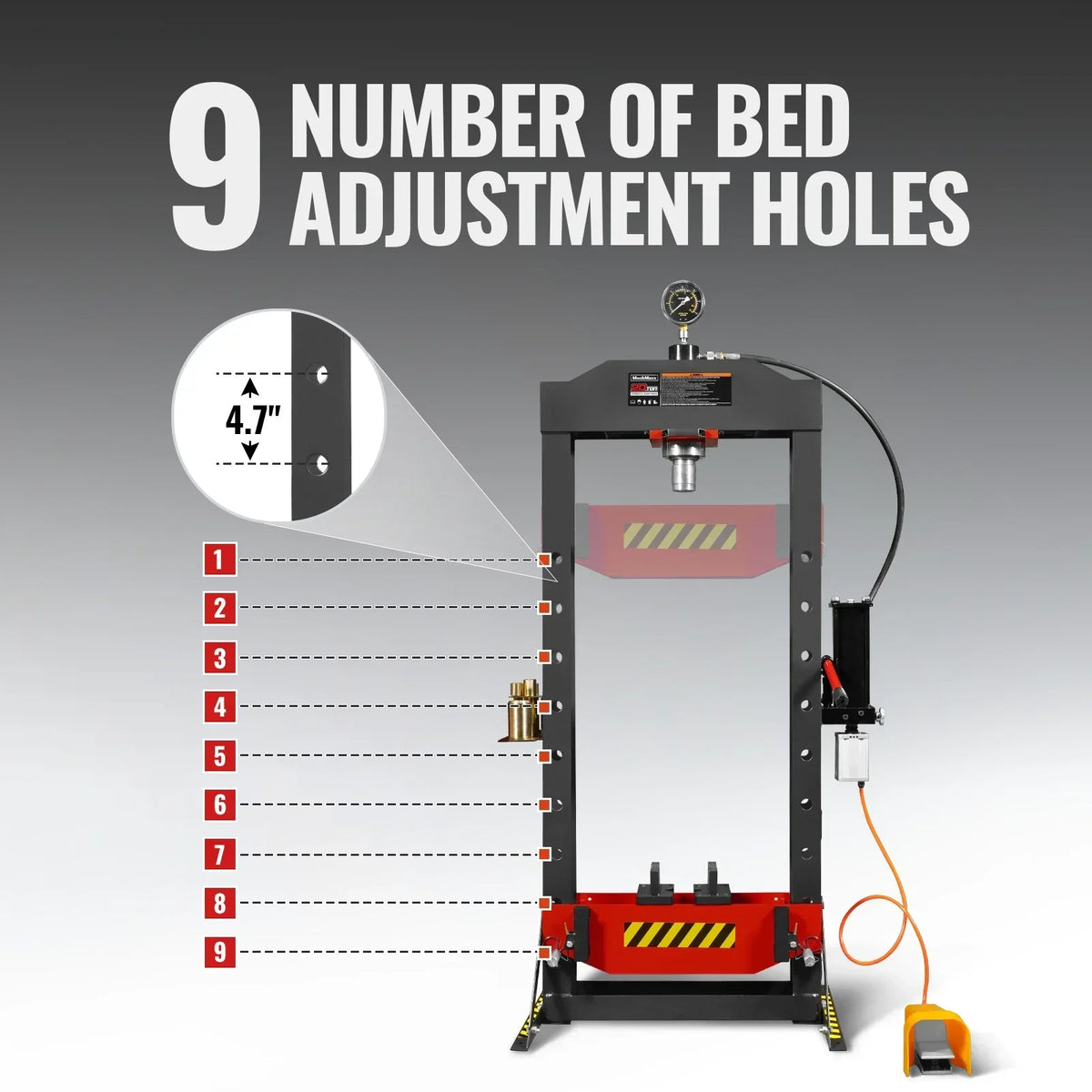

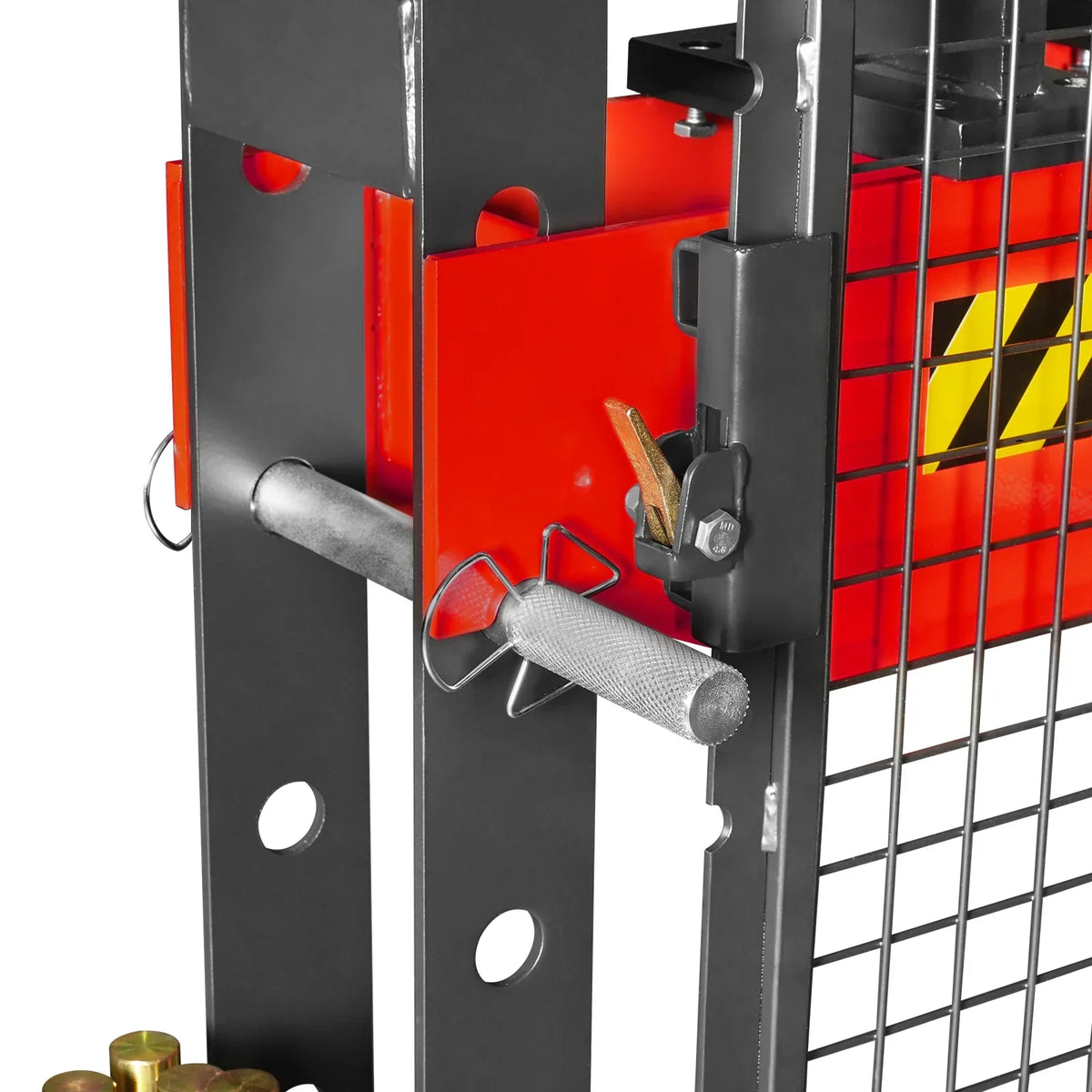

Rated Capacity 20 Tons Number of Bed Adjustment Holes 9

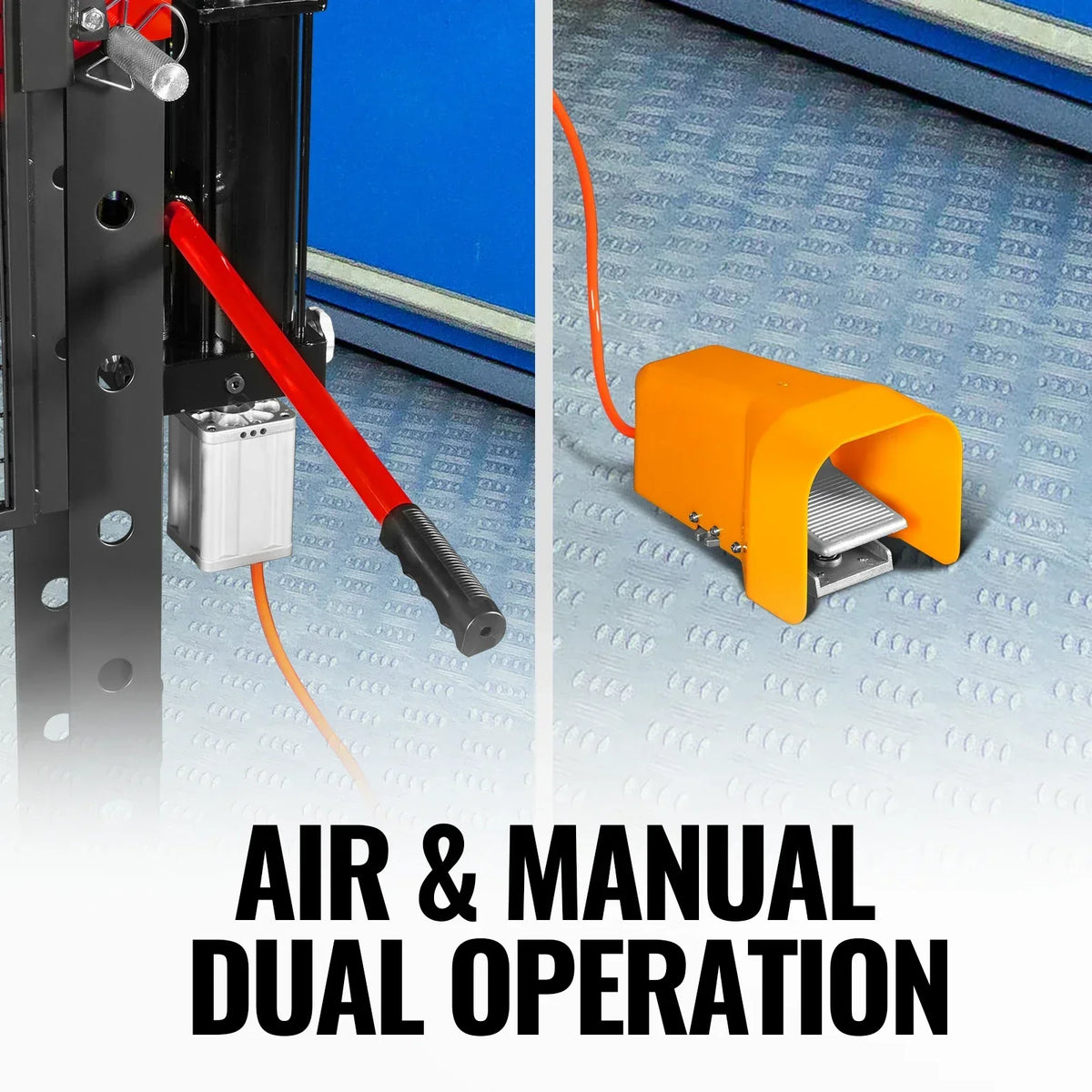

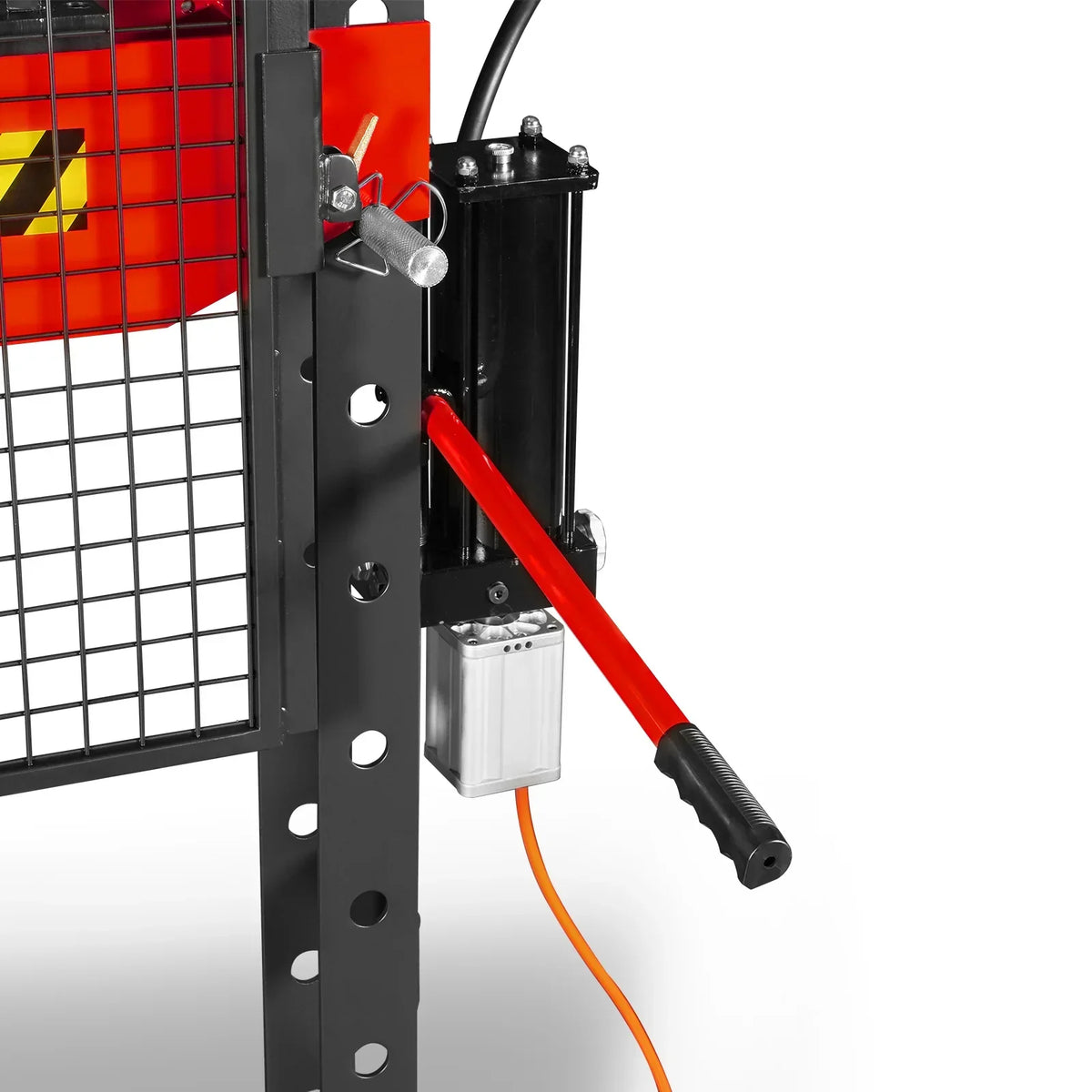

Operation Type Air & Manual Dual Operation Bed Adjustment Hole Spacing 4.7 in

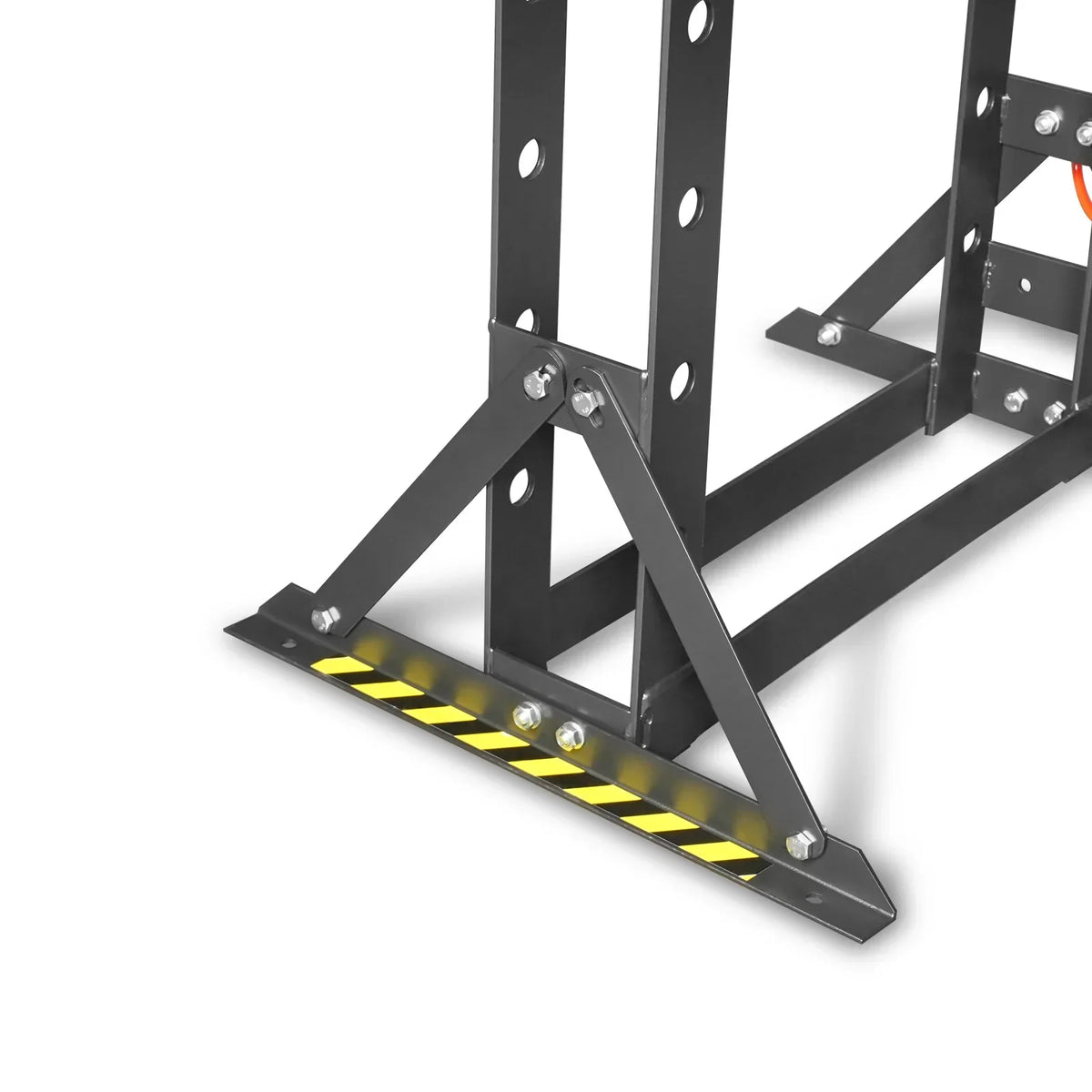

Air Pressure 110-125 PSI Frame Construction Fully Welded Heavy-Duty H-Frame

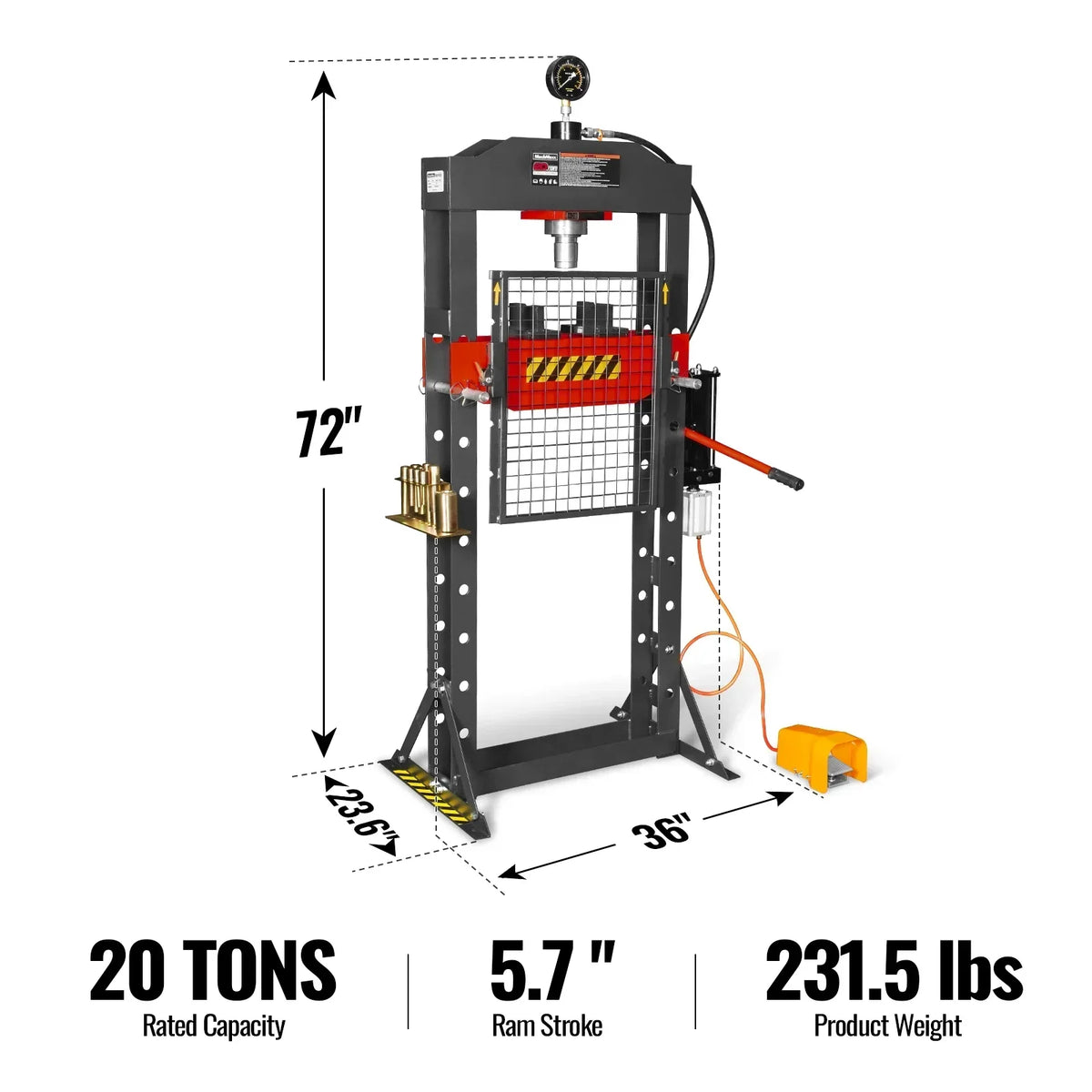

Ram Stroke 5.7 in Assembled Size (H x D x W) 72 x 23.6 x 36 in

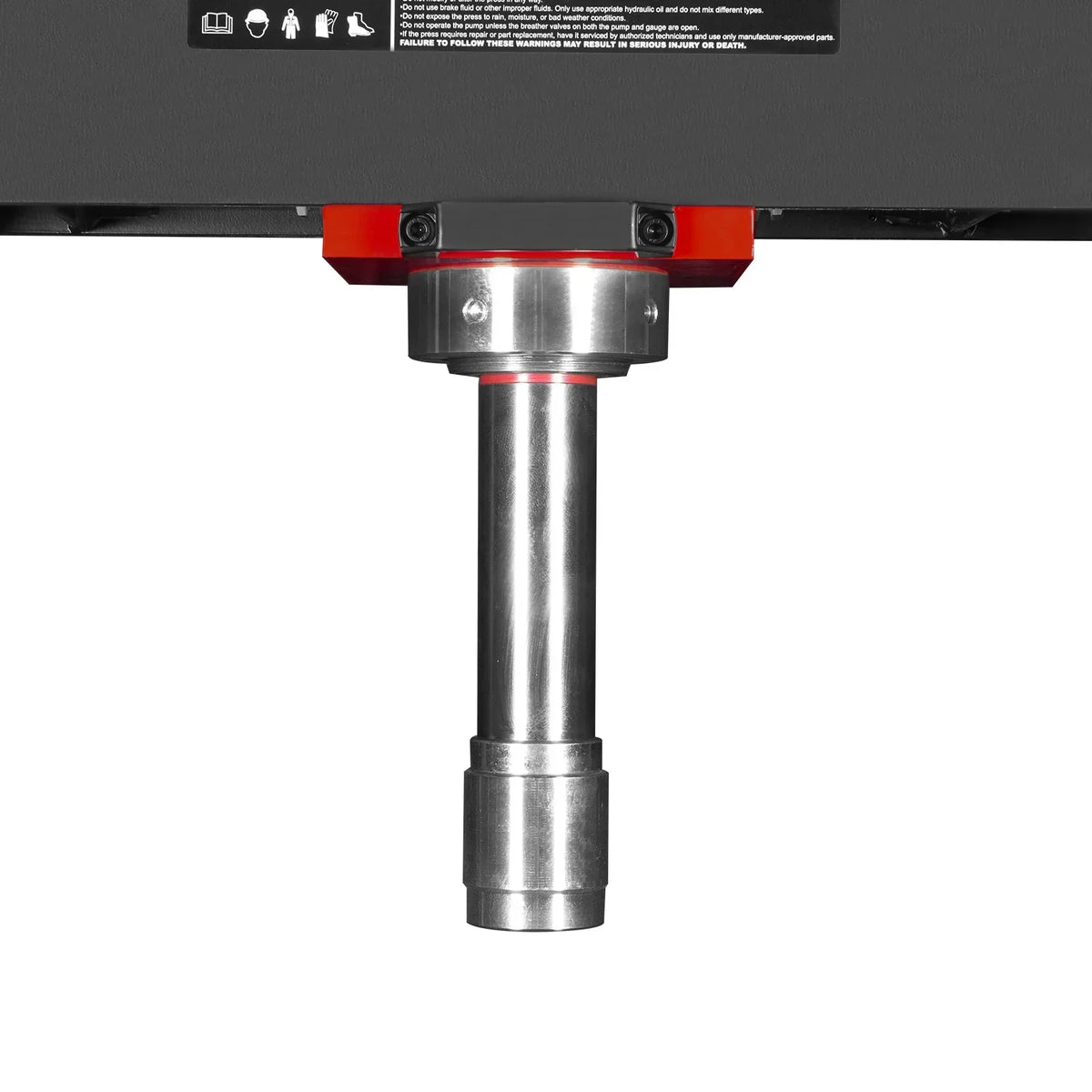

Ram Diameter 1.9 in Internal Frame Width 21.3 in

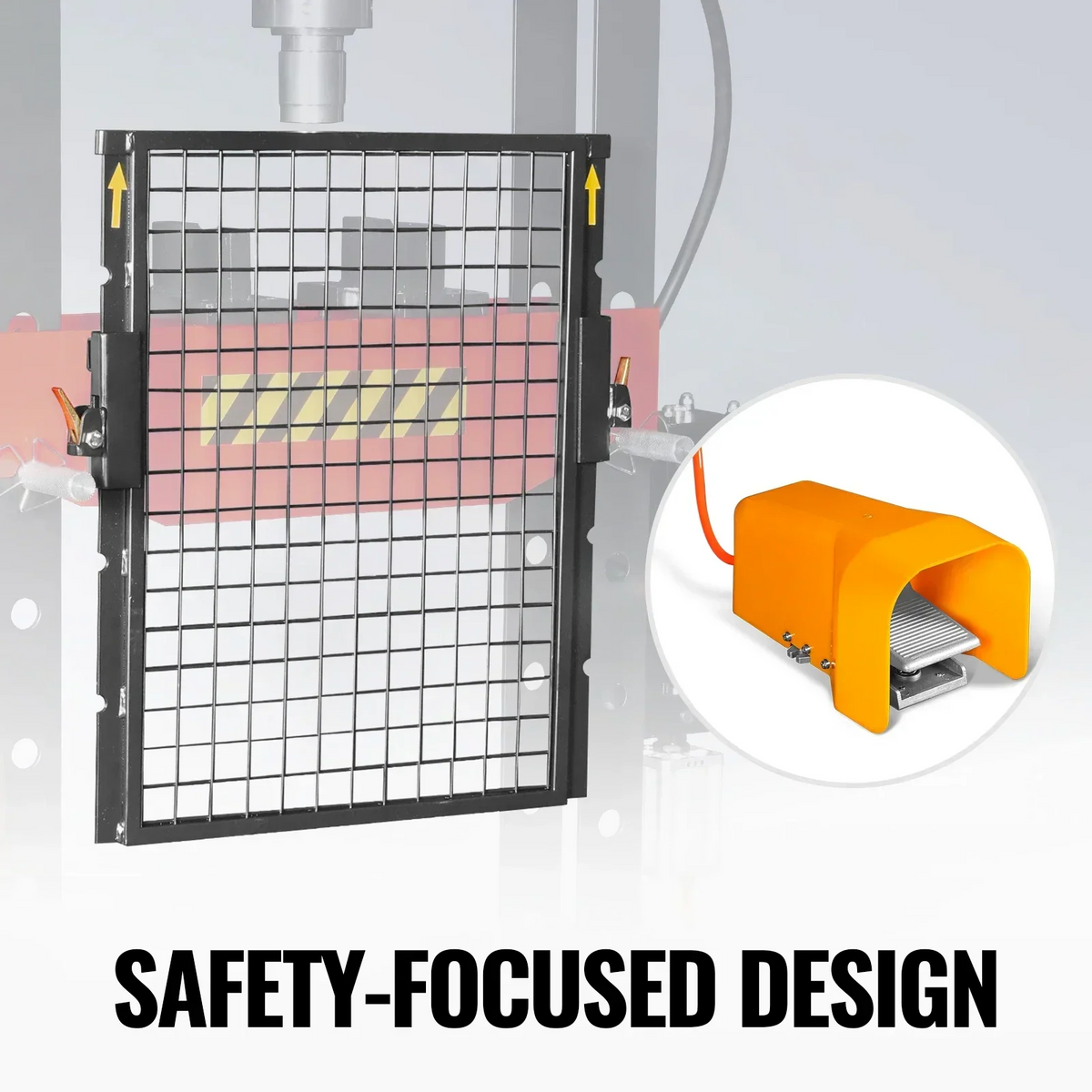

Cylinder Bore 2.4 in Protective Grid Guard Size 24 x 20 in

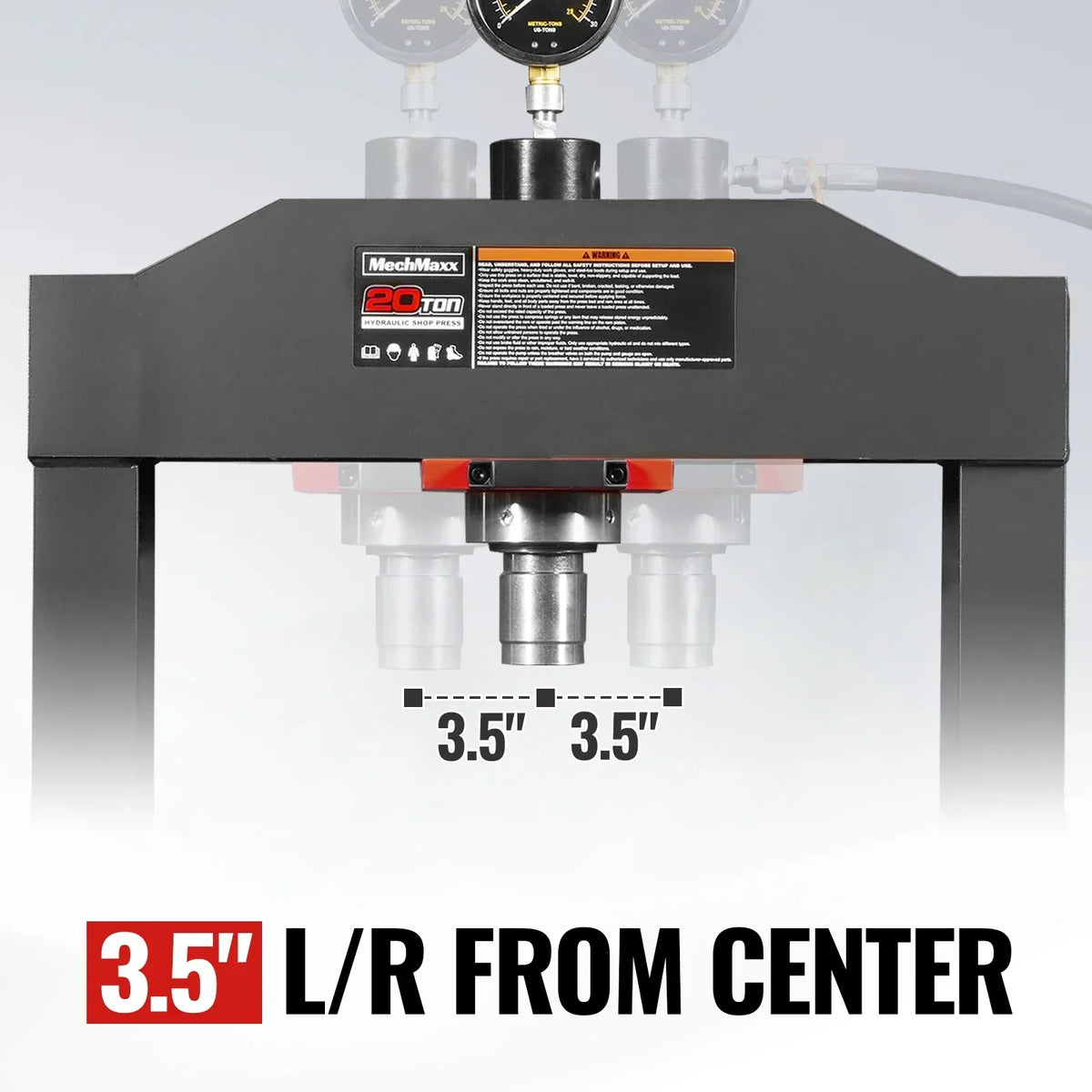

Ram Range of Movement 3.5 in Left / Right from Center Recommended Hydraulic Oil AW32 Hydraulic Oil
Bed Depth 6.3 in Recommended Oil Capacity 0.26 Gallons

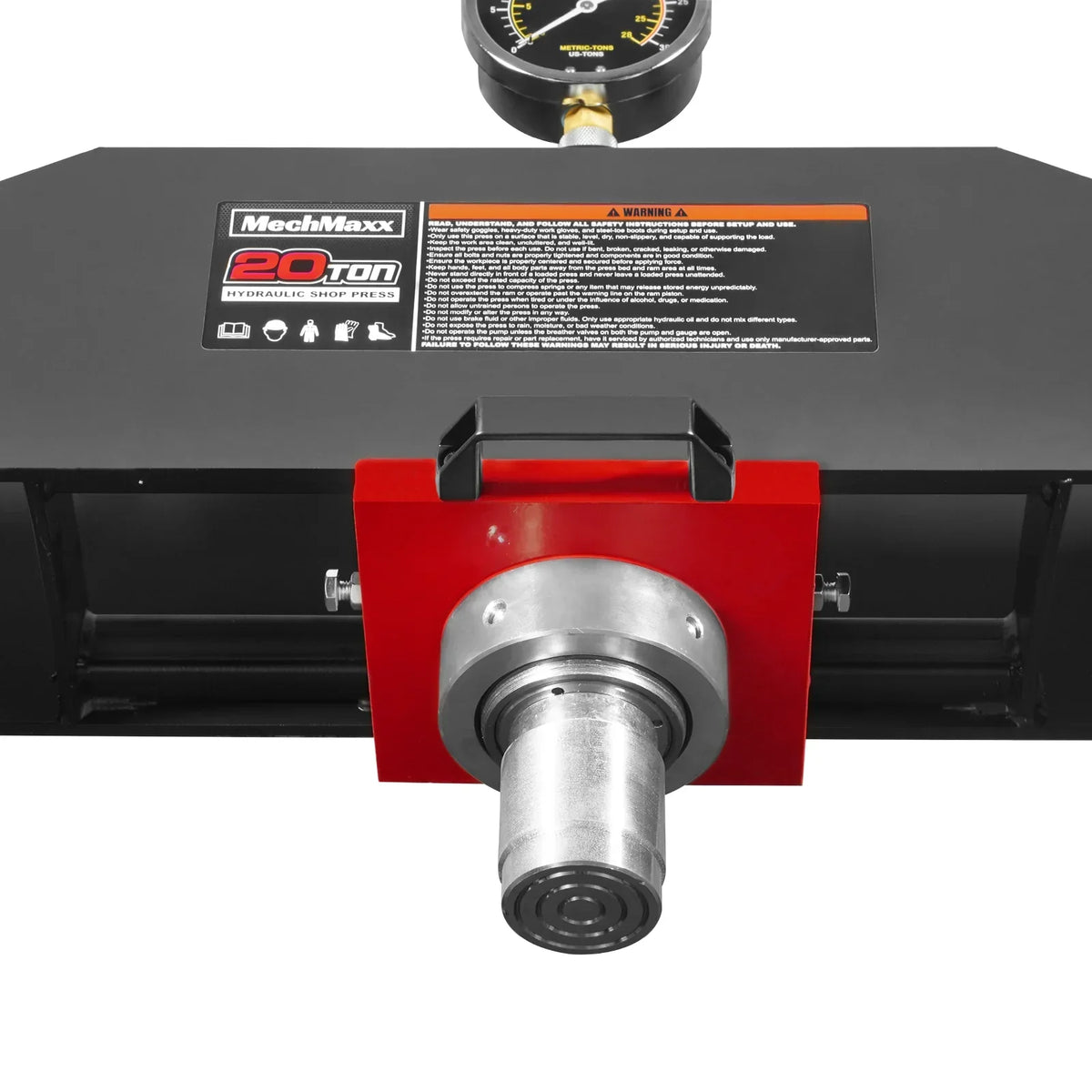

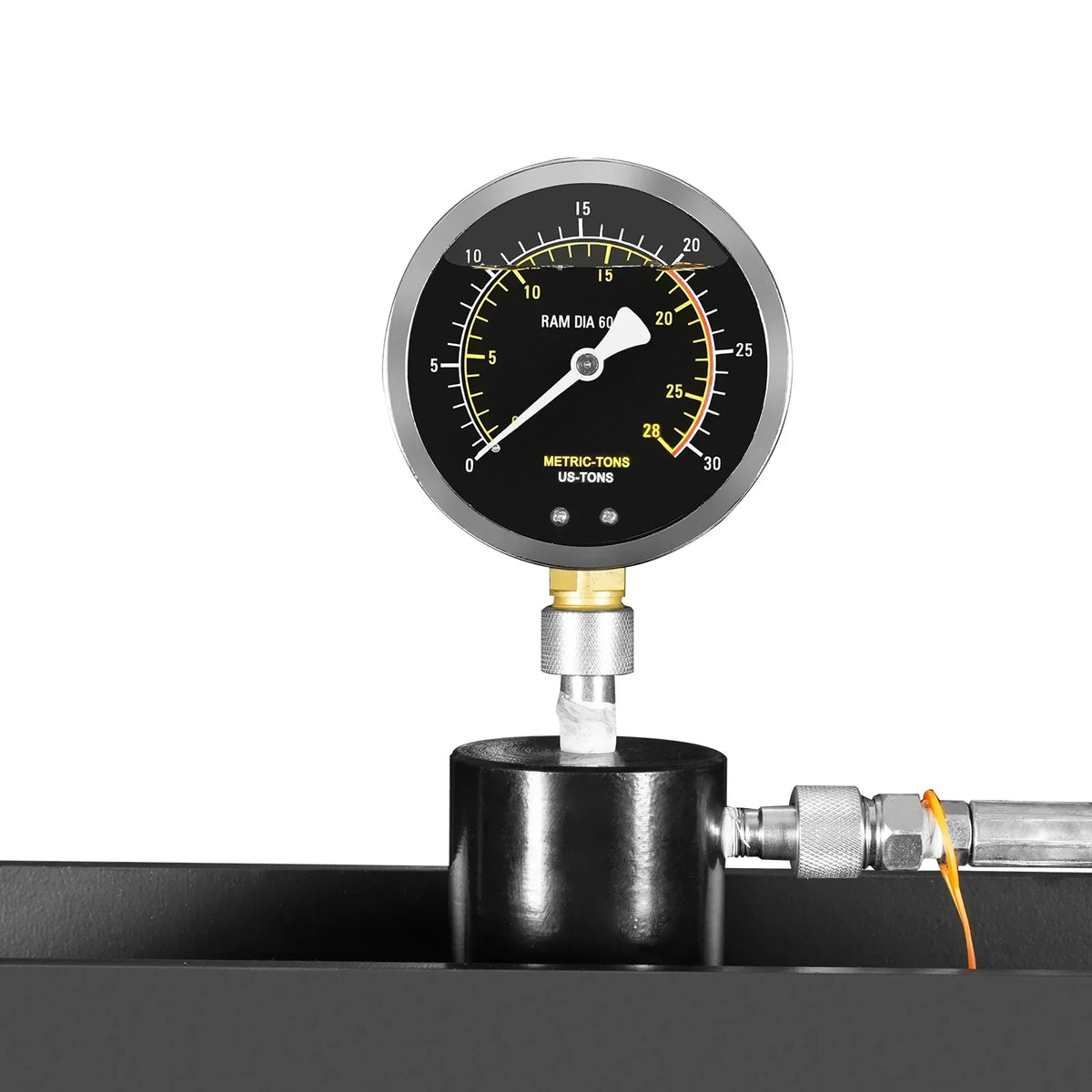

Bed Height 6.7 in Gauge Type 4 in Oil-Filled Pressure Gauge

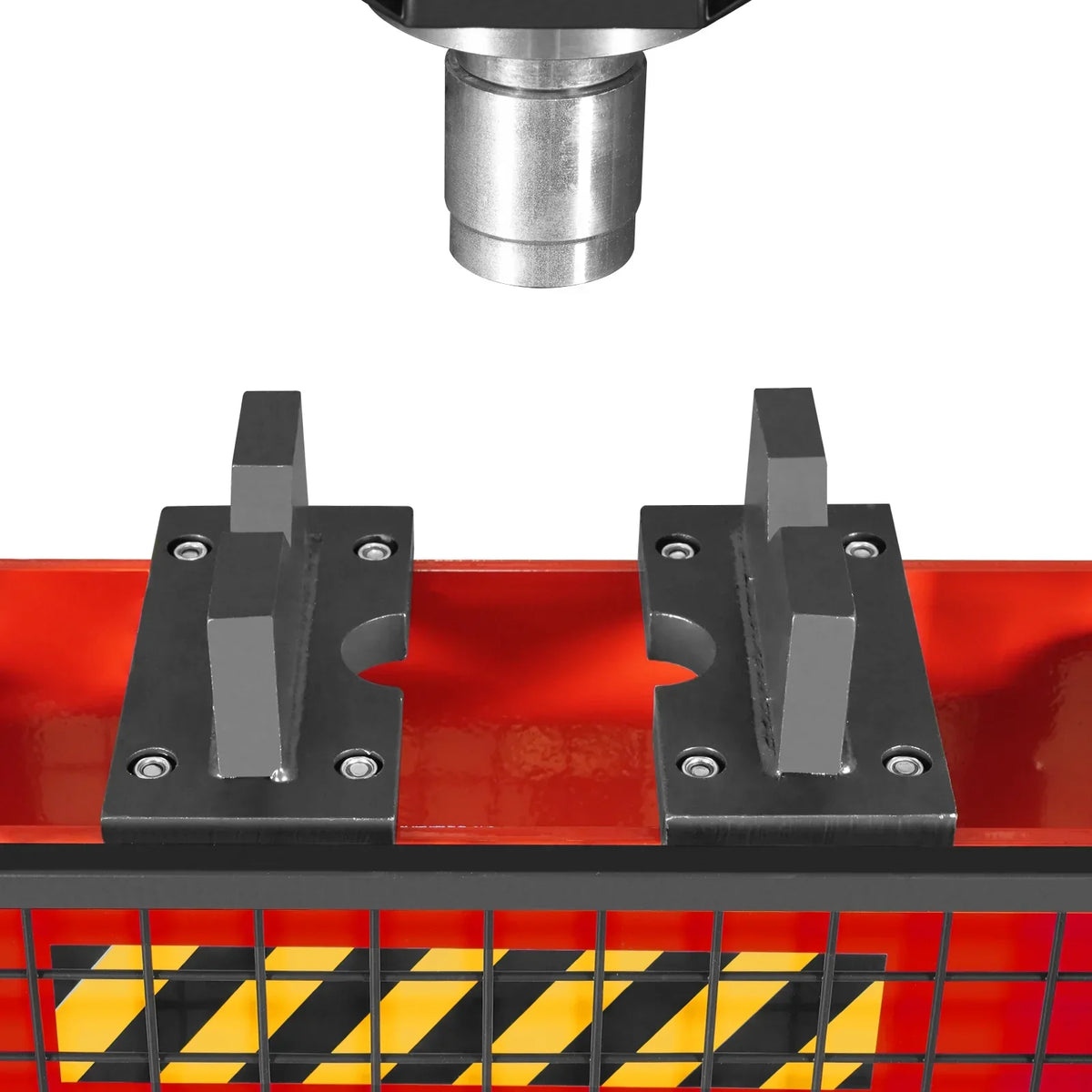

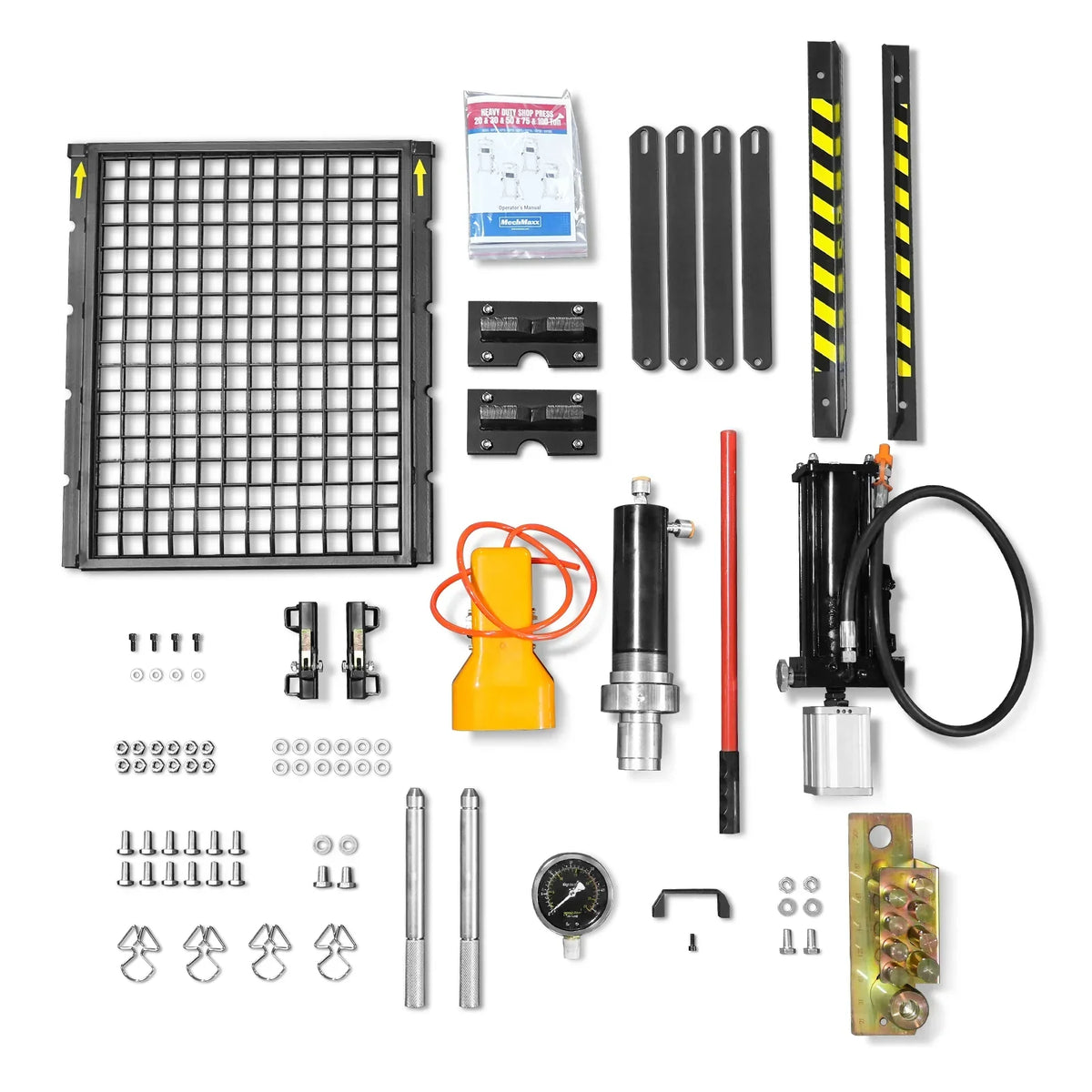

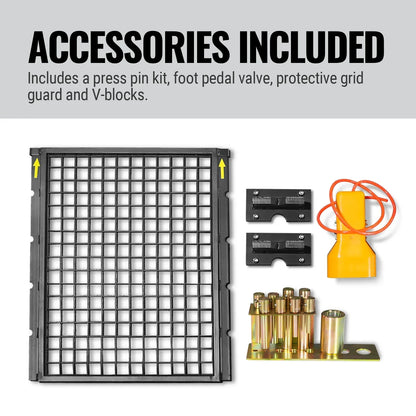

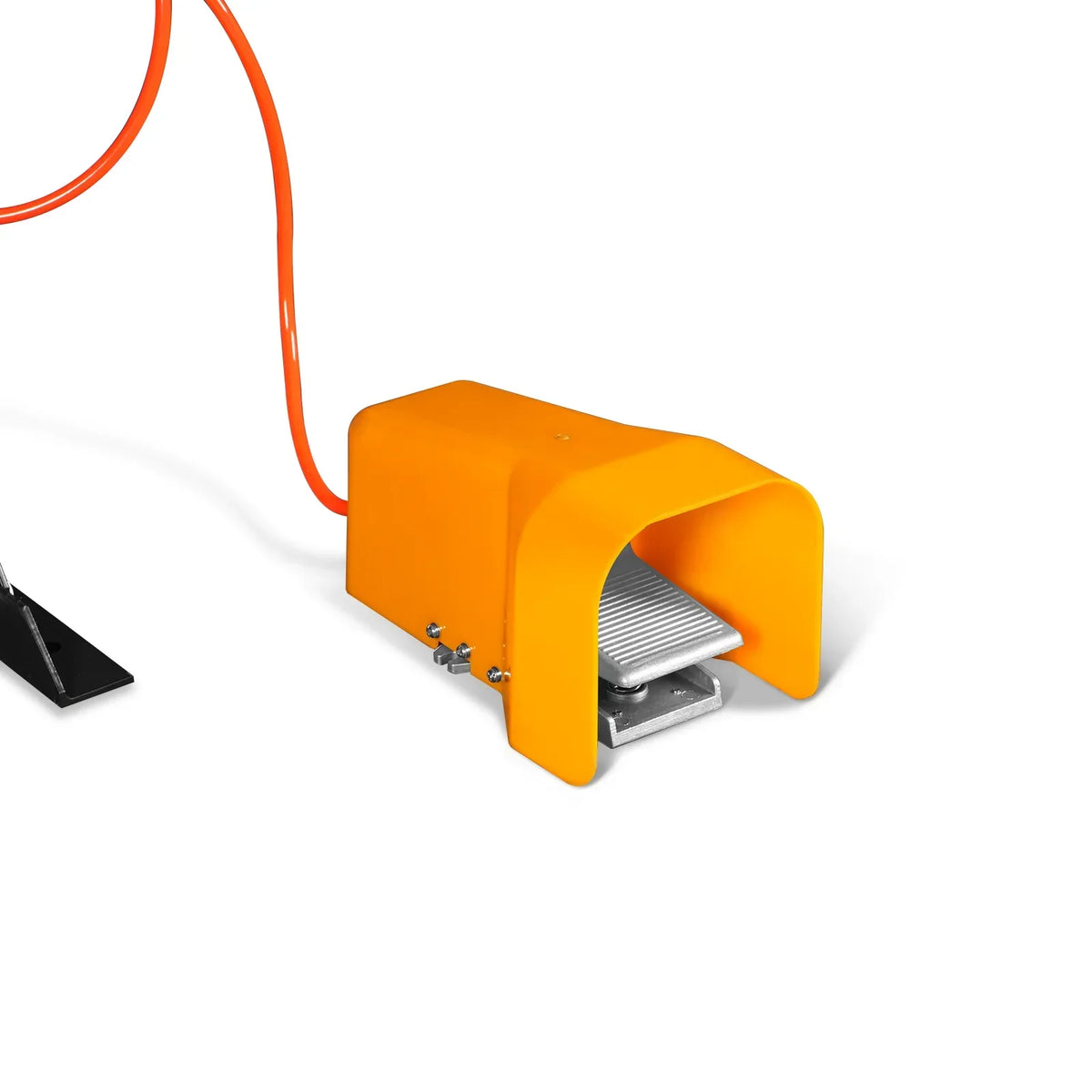

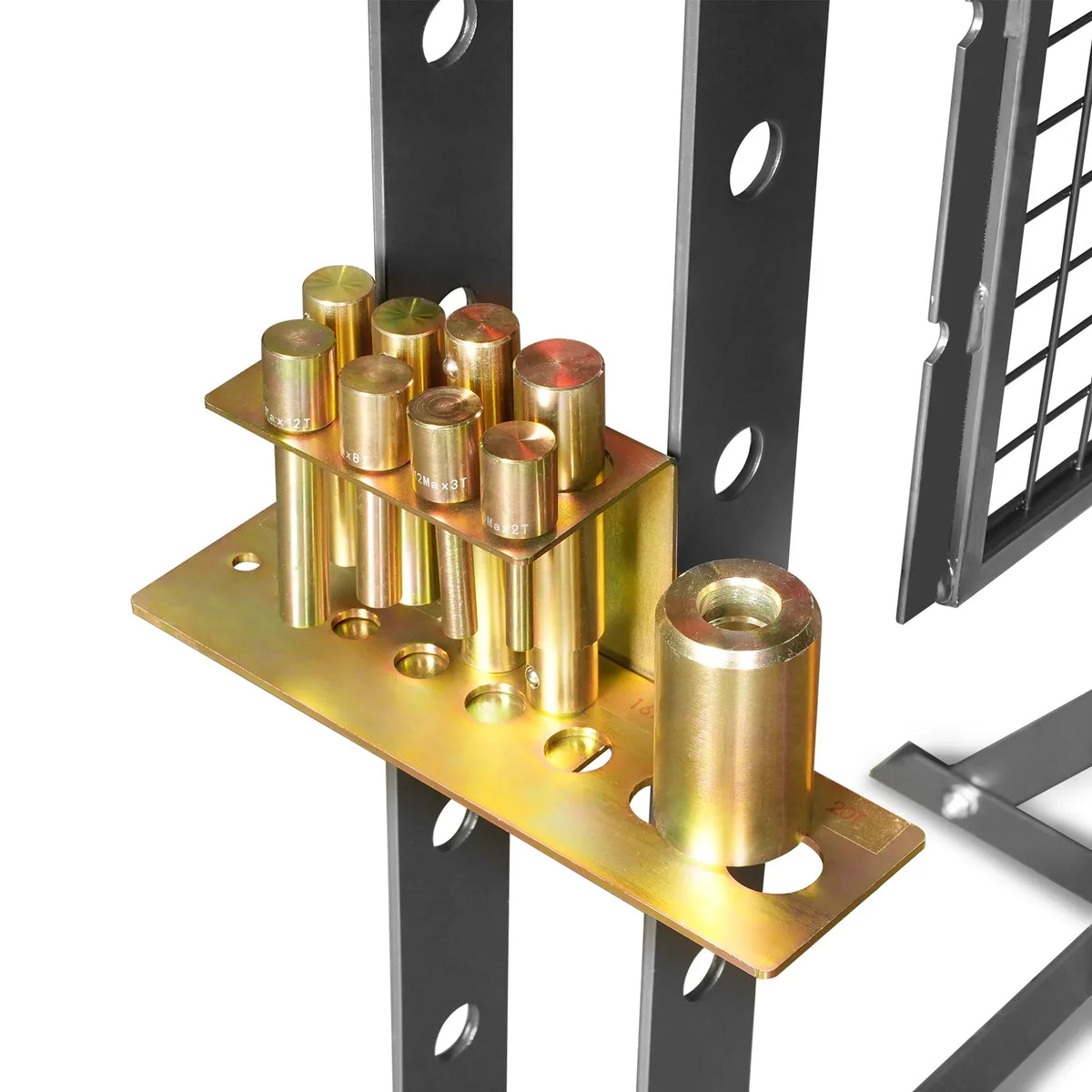

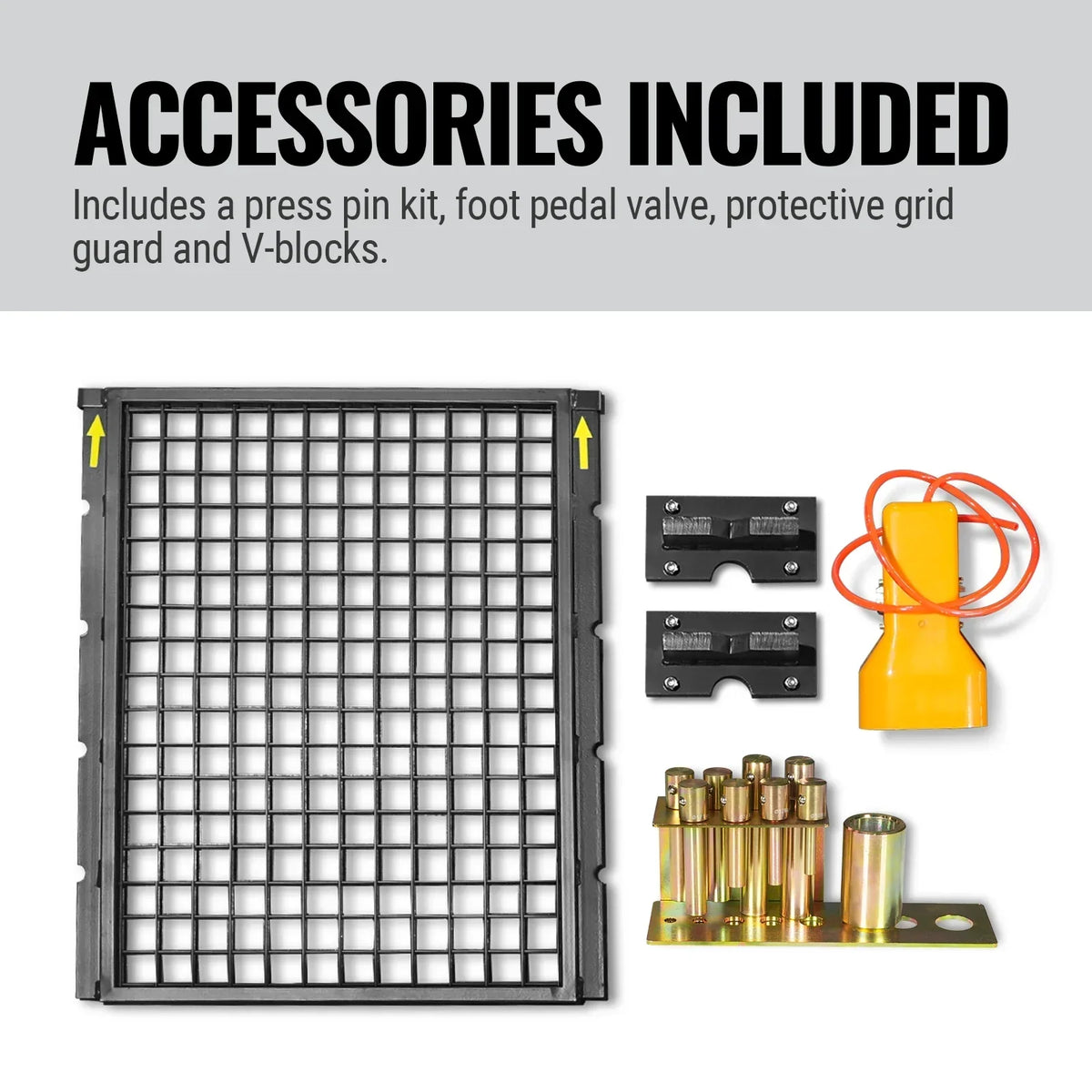

Minimum Ram to Bed 2.3 in Included Accessories Press Pin Kit, Protective Grid Guard,  Foot Pedal Valve, V-Blocks
Maximum Ram to Bed 40.1 in Packing Size (LxWxH) 67.7 x 28.7 x 11.0 in
Ram Retraction Spring Weight (N.W/G.W.) 231.5 lbs / 273.4 lbs

WARNING: This product can expose you to chemicals including engine exhaust (including diesel engine exhaust when equipped),lead and lead compounds, mineral oils, soot, phthalates, and carbon monoxide which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.
Certain specification(s) are based on engineering calculations and are not actual measurements. Specification(s) are provided for comparison purposes only and are subject to change without notice. Specification(s)  for your individual equipment will vary based on normal variations in design, manufacturing, operating conditions, and other factors.
