Model
M15AC460
Voltage
460V 3PH 60HZ（L1+L2+L3,G）
Air Flow Capacity
45.9CFM

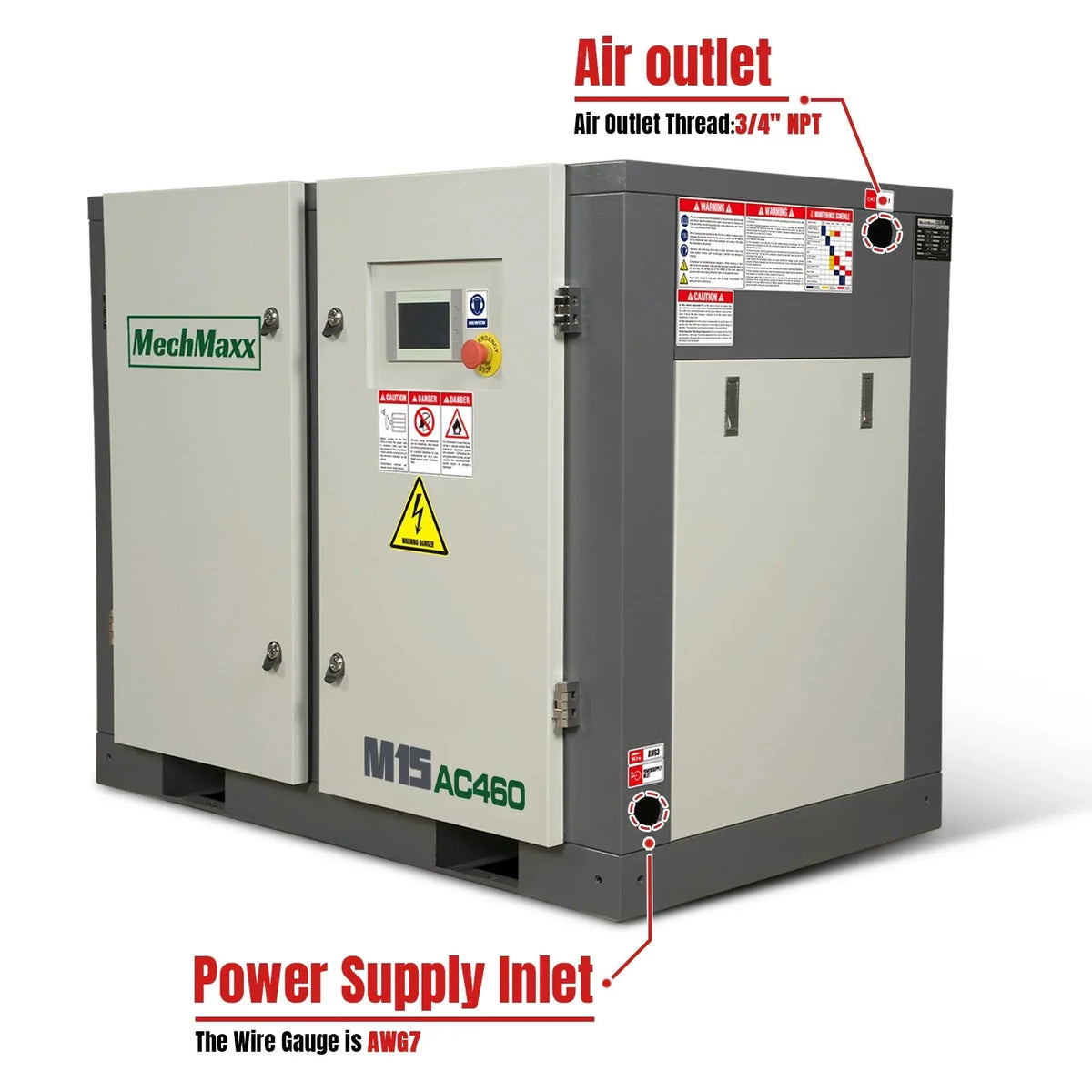

Wire Gauge
AWG7

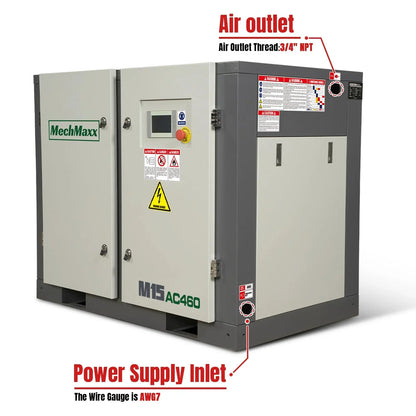

Air Outlet Thread
3/4“NPT
Oil Tank Capacity
2.64Gal (10L)
Maximum Current
21A
Rated Power
15HP
Starting Method
Star-Delta (Wye-Delta) Start
Rated Pressure
116 PSI (0.8 MPa)
Noise Level
65dba
Motor Speed
3515RPM
Oil Type
Oil Lubricated
Oil System
Splash Lubricated
Recommended Oil Grade
S3R46
Oil Sight Glass
Yes
Standard Adaptor
3/4" NPT
Machine Size:
49.2" x 31.5" x 39.5"
Packing Size:
50" x 33.46" x 45.3"
N.W.:/ G.W.:
602 lb/704 lb
WARNING: This product can expose you to chemicals including engine exhaust (including diesel engine exhaust when equipped),lead and lead compounds, mineral oils, soot, phthalates, and carbon monoxide which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov. Certain specification(s) are based on engineering calculations and are not actual measurements. Specification(s) are provided for comparison purposes only and are subject to change without notice. Specification(s) for your individual equipment will vary based on normal variations in design, manufacturing, operating conditions, and other factors.
