Motor
1.5 HP, 110V, Single-Phase, 10A, 60Hz
Swing Over Bed
8‑1/4"(210mm)
Swing Over Cross Slide
4‑5/8"(117mm)
Swing Over Saddle
3-1/2"(90mm)
Distance Between Centers
15‑3/4"(400mm)
Bed Width
4"(100mm)
Spindle Bore
1-1/2"(38mm)
Spindle Mount
Intrinsic back plate
Spindle Type
One-piece Spindle
Spindle Taper
MT#5
Tailstock Taper
MT#2

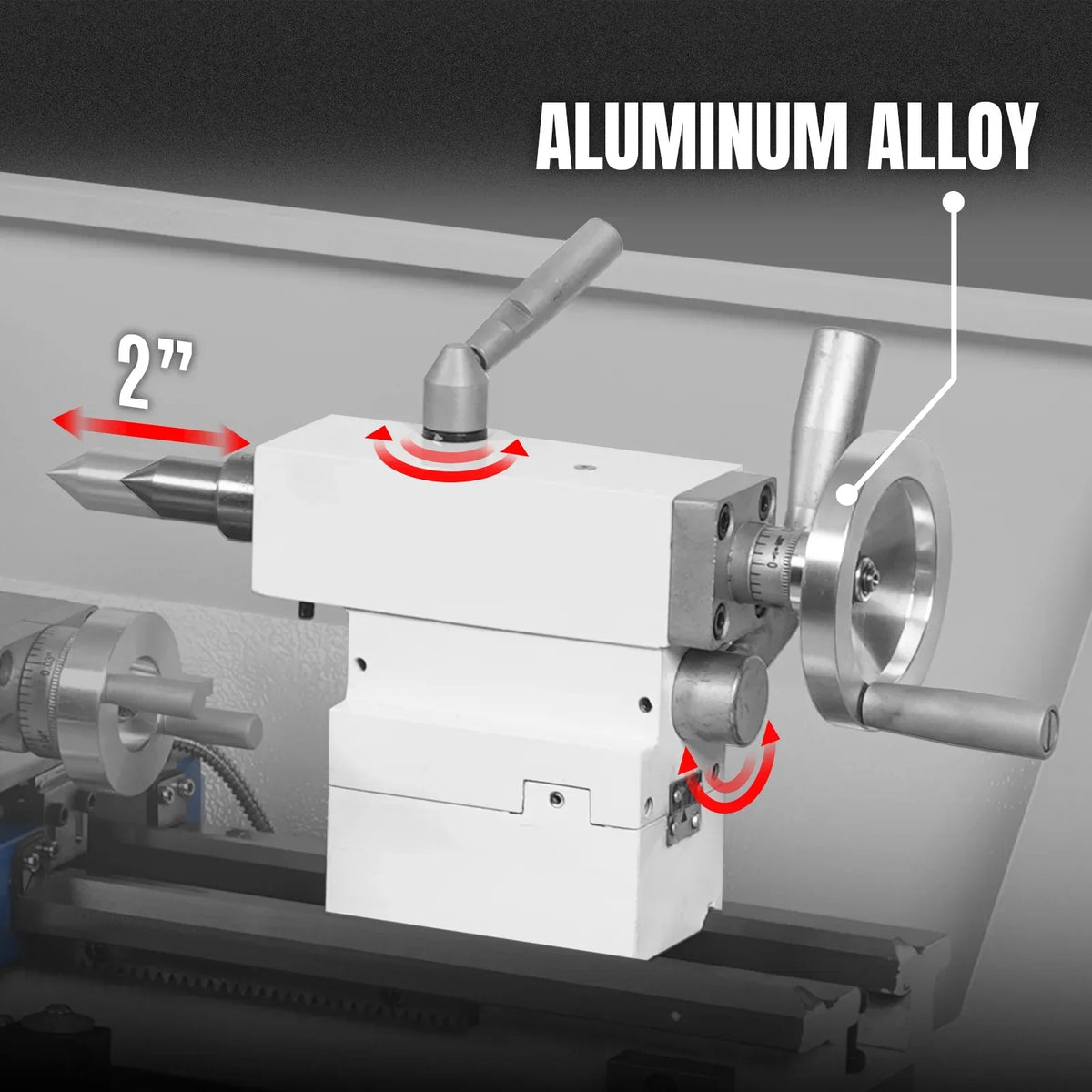

Tailstock Quill Travel
2"(50mm)

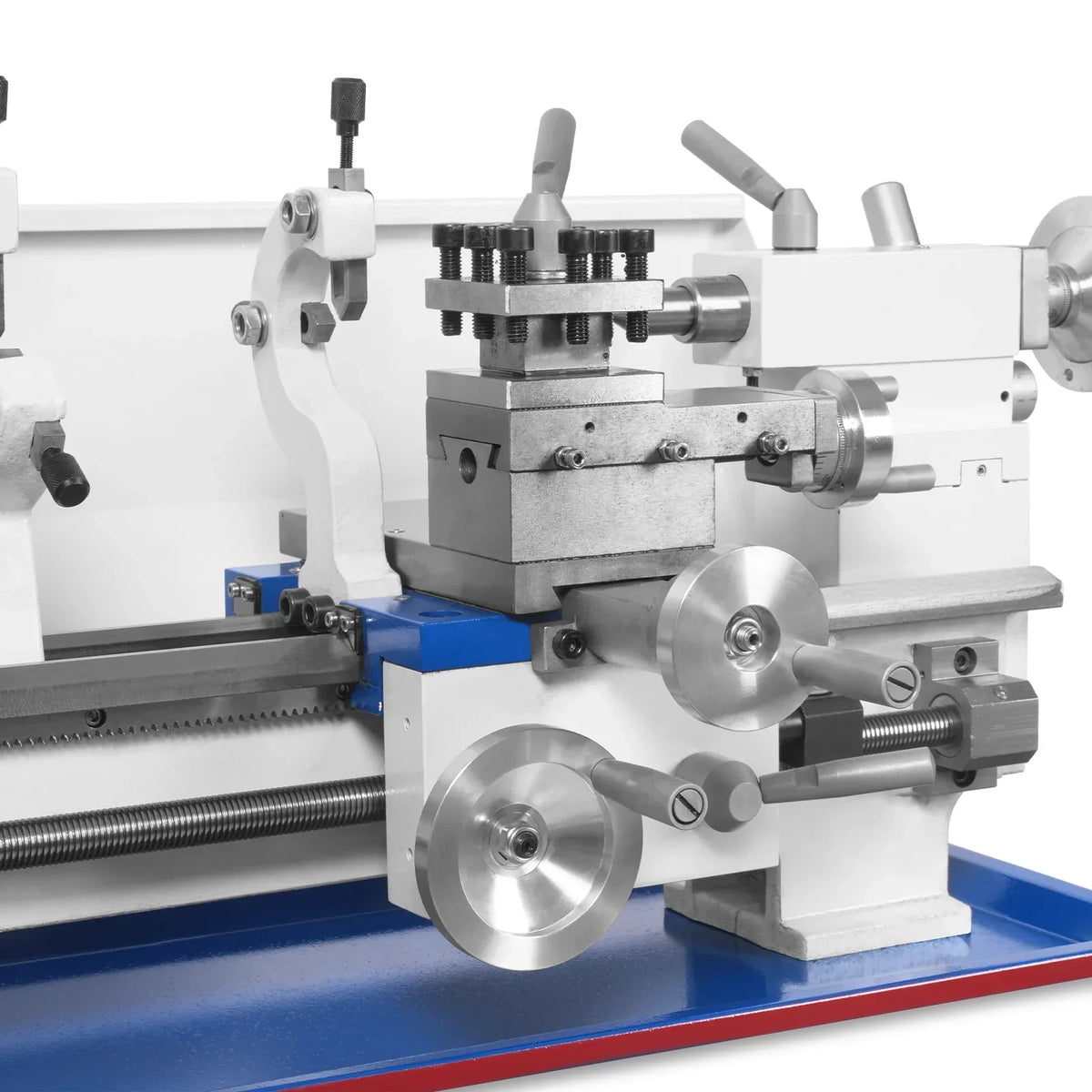

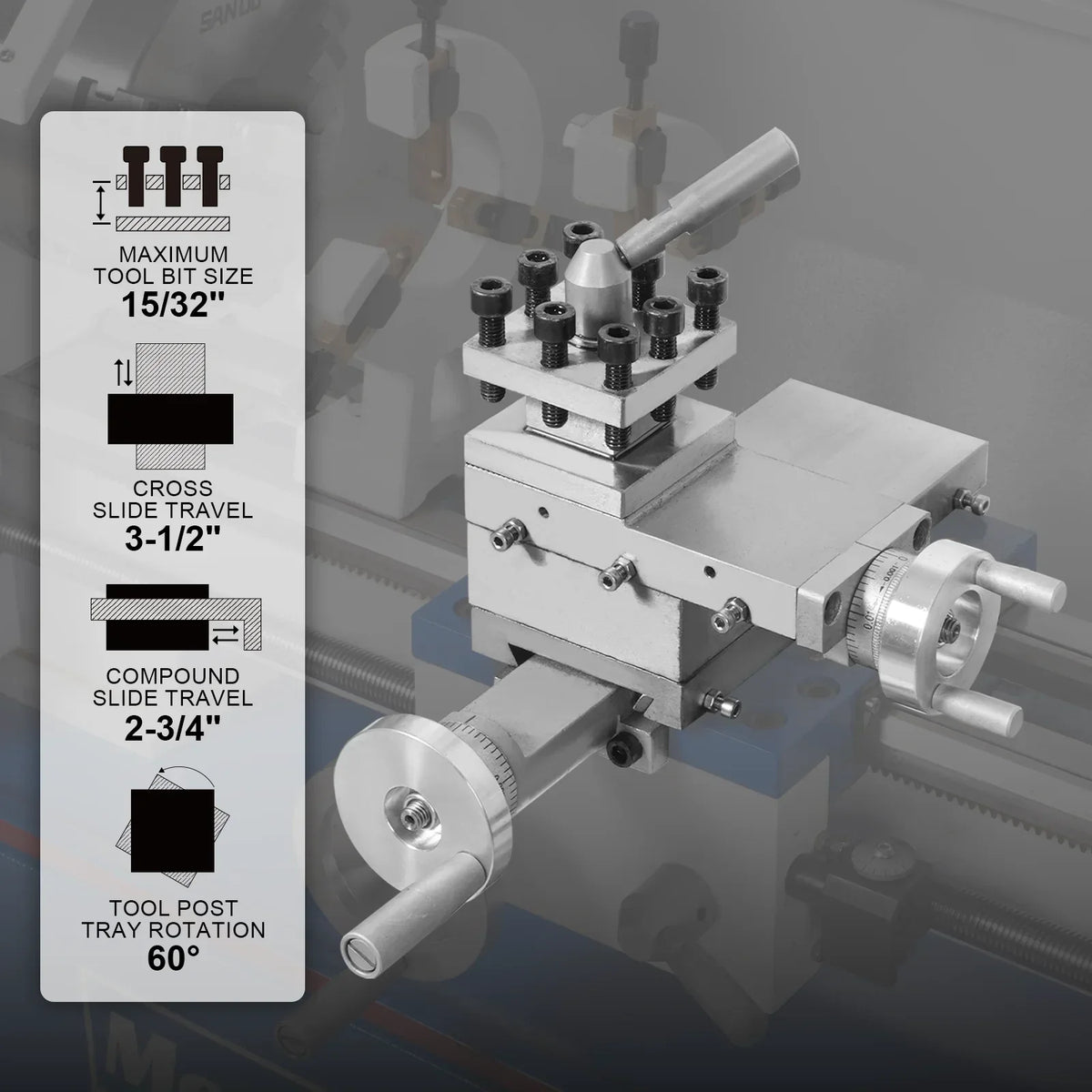

Cross Slide Travel
3-1/2"(90mm)
Compound Slide Travel
2-3/4"(70mm)
Carriage Travel
14-5/16(350mm)

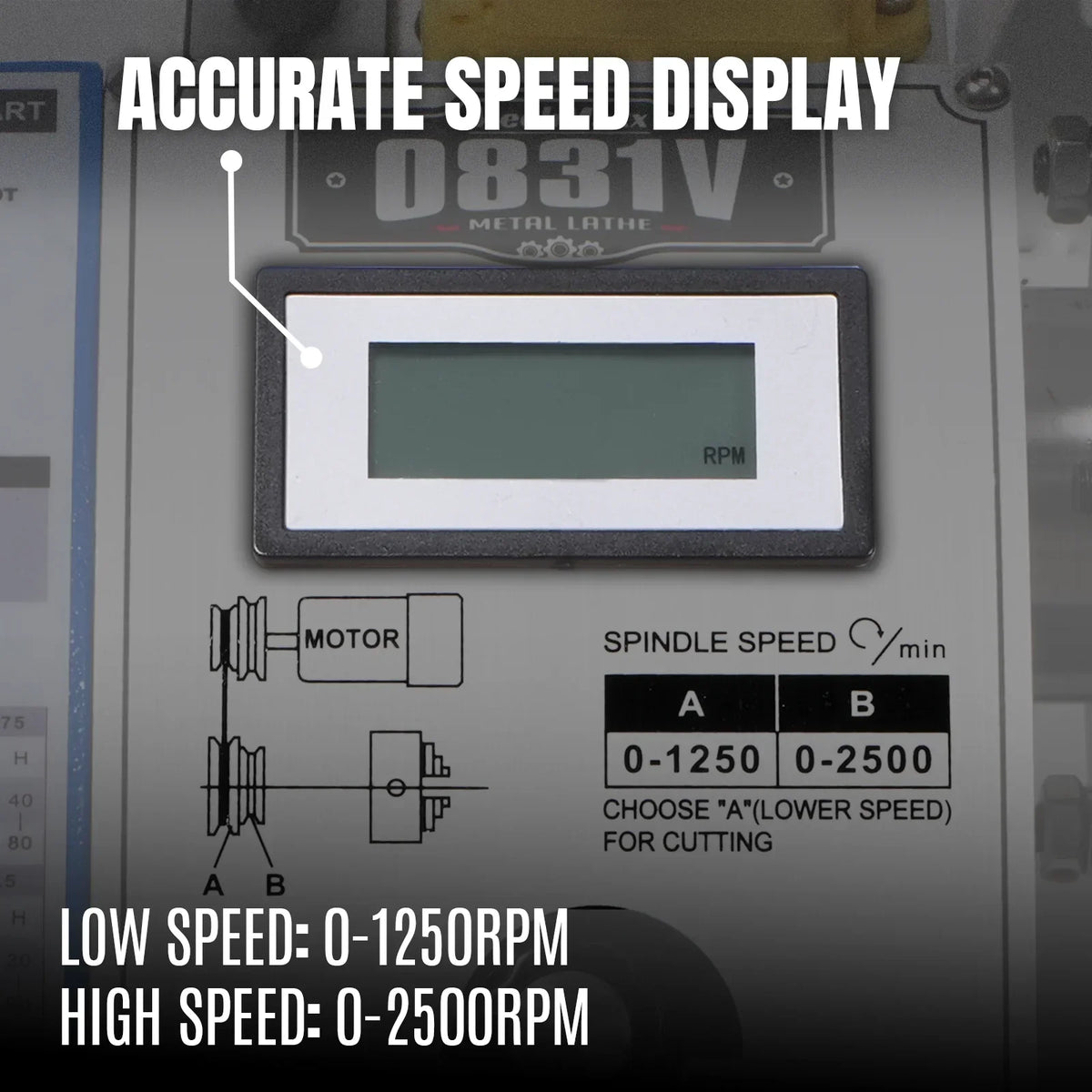

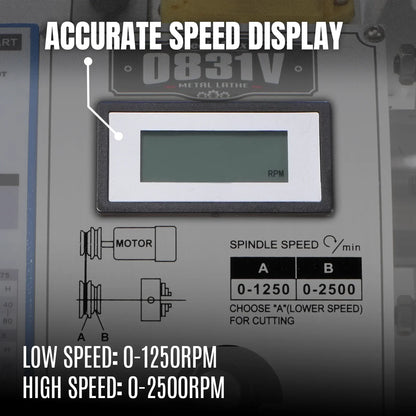

Spindle Speeds
0–2500 RPM
Number of Speed Ranges
Variable
Longitudinal Feeds
0.0037-0.0068 in./rev.

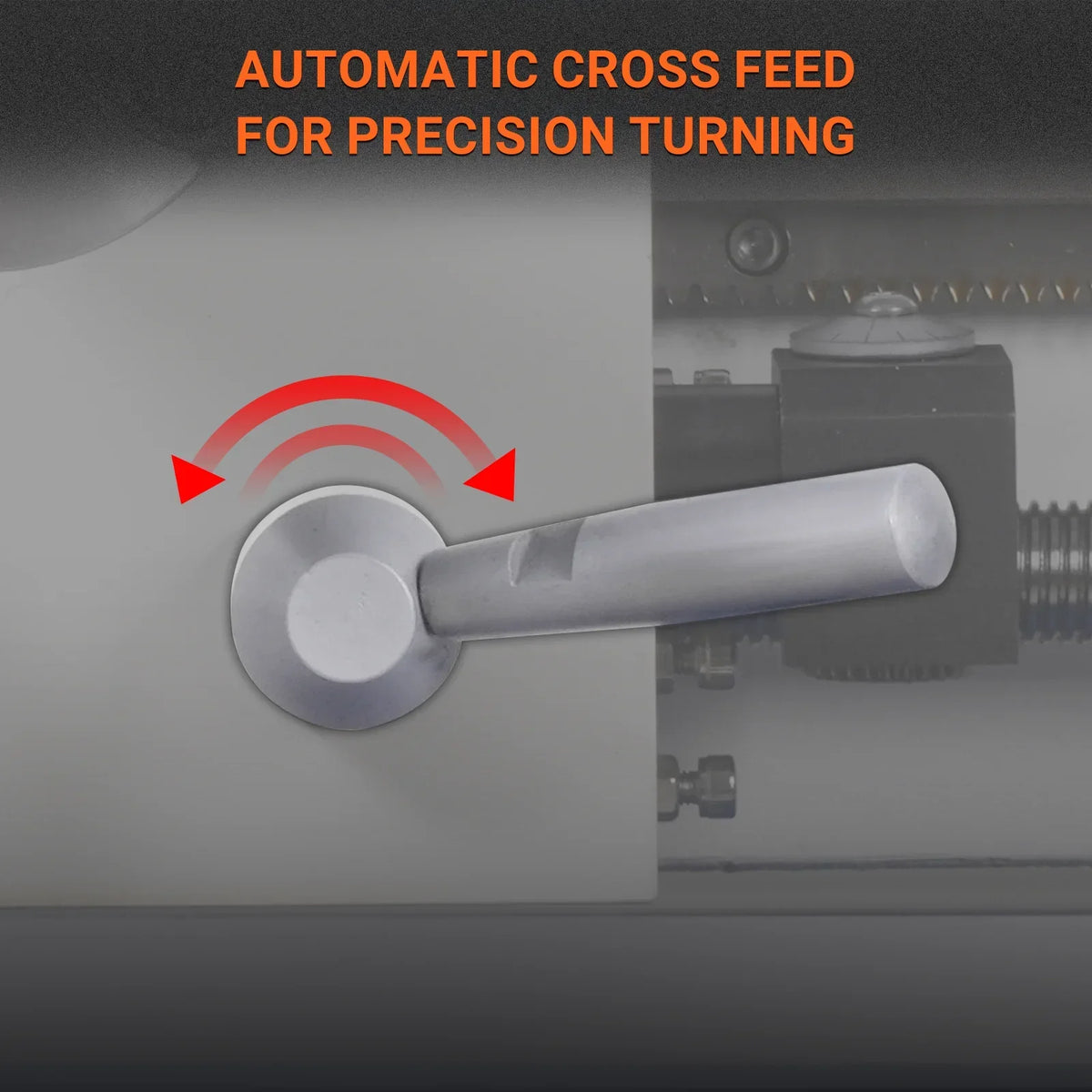

Transverse Feed Rate
/
Leadscrew Size & Pitch
16mm(12TPI)
Threading Capacity - Inch
8–48 TPI（18kinds）
Threading Capacity - Metric
0.4–3.5mm(15kinds)
Maximum Tool Bit Size
15/32"(12mm)

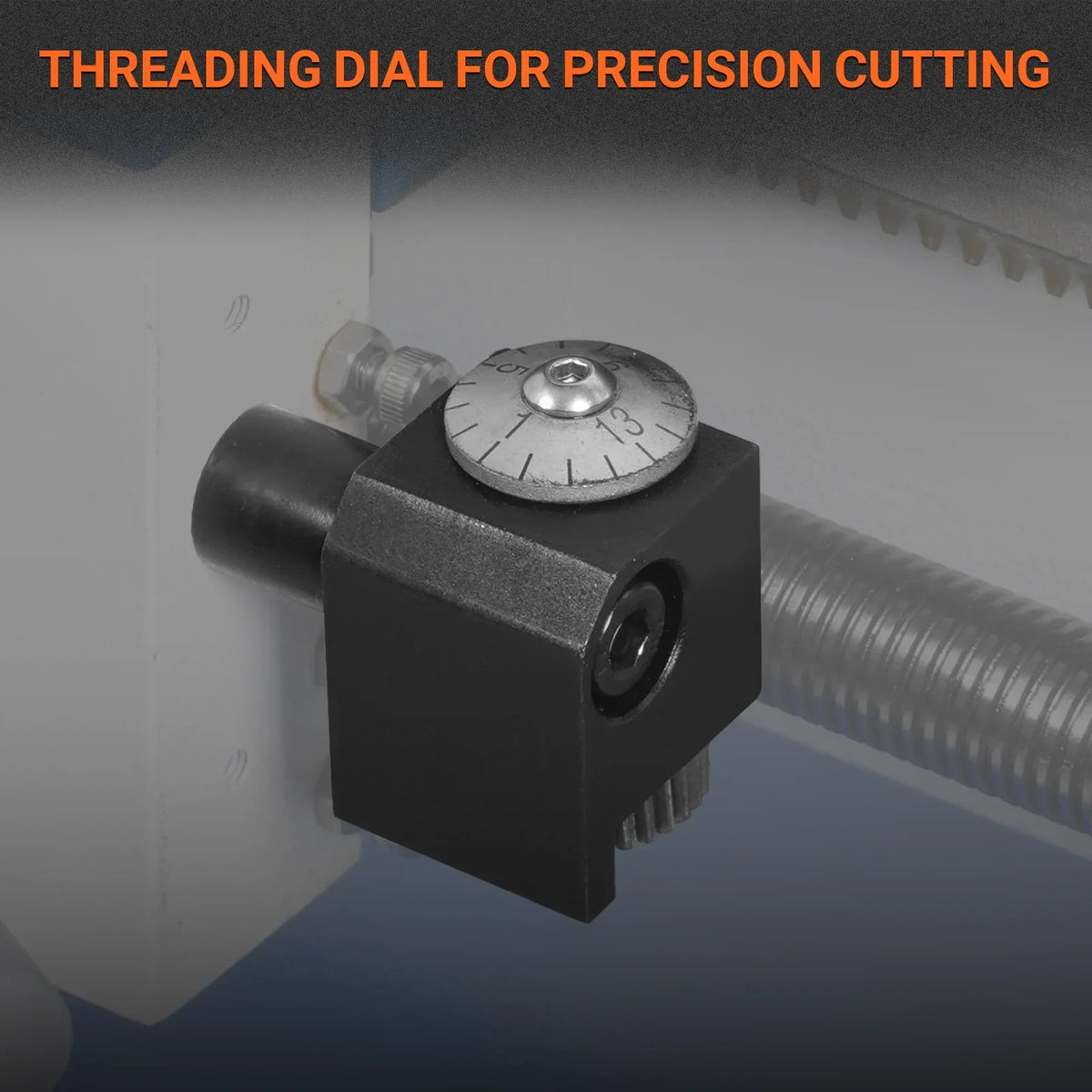

Thread Dial Indicator
YES
Overall Dimensions
36" W x 19" D x 20" H (914 x 480 x 490 mm)
Approximate Shipping Weight
190lbs(75 kg)
