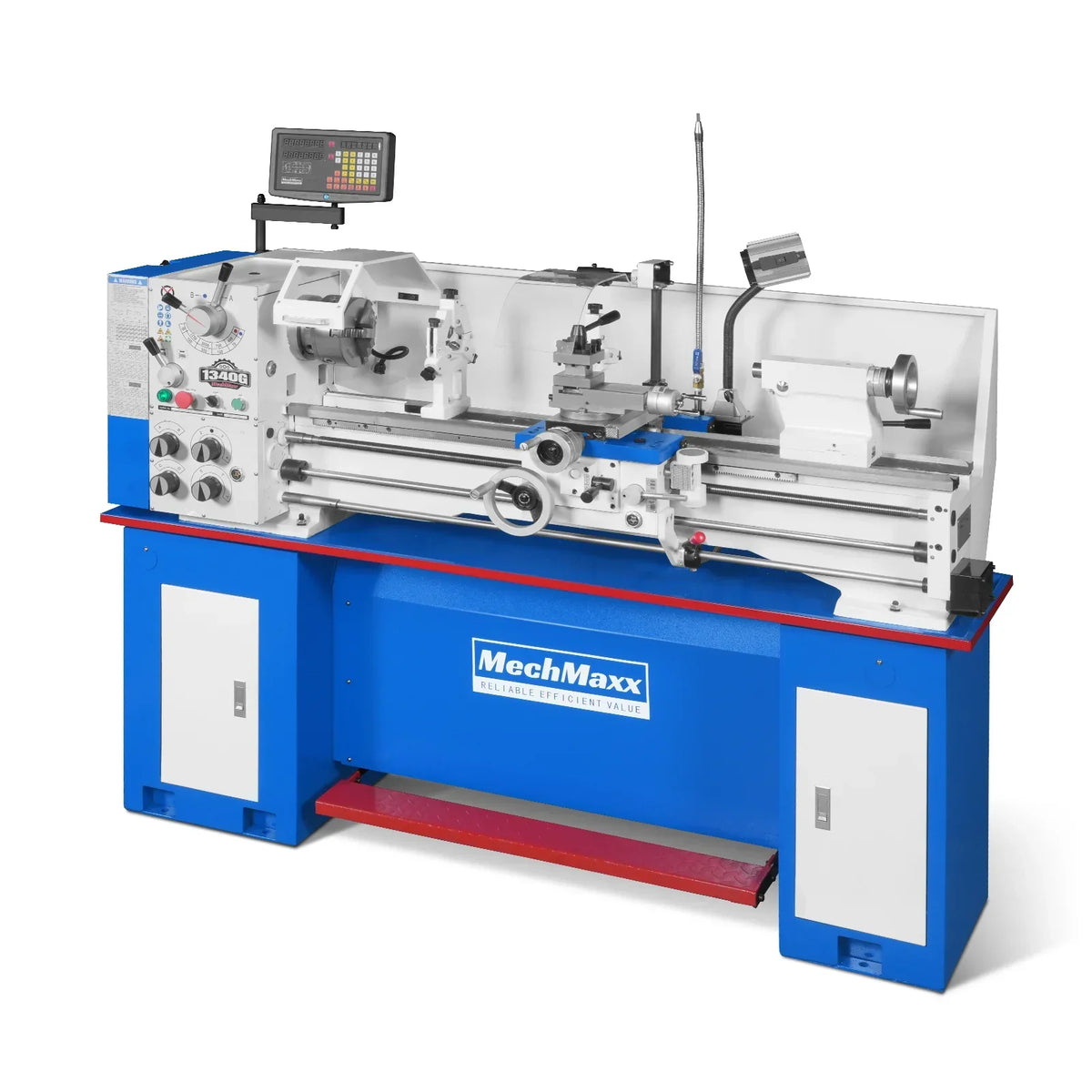

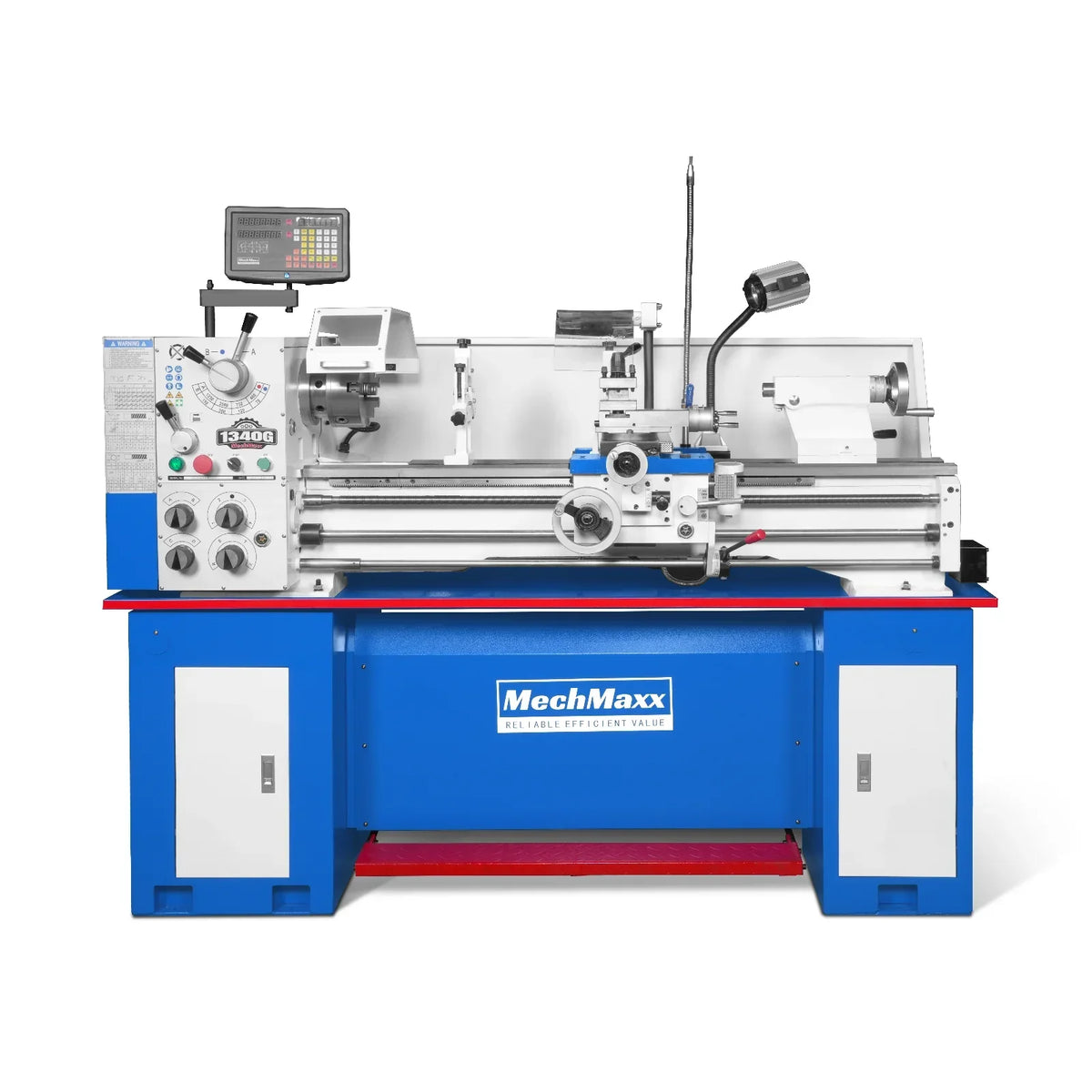

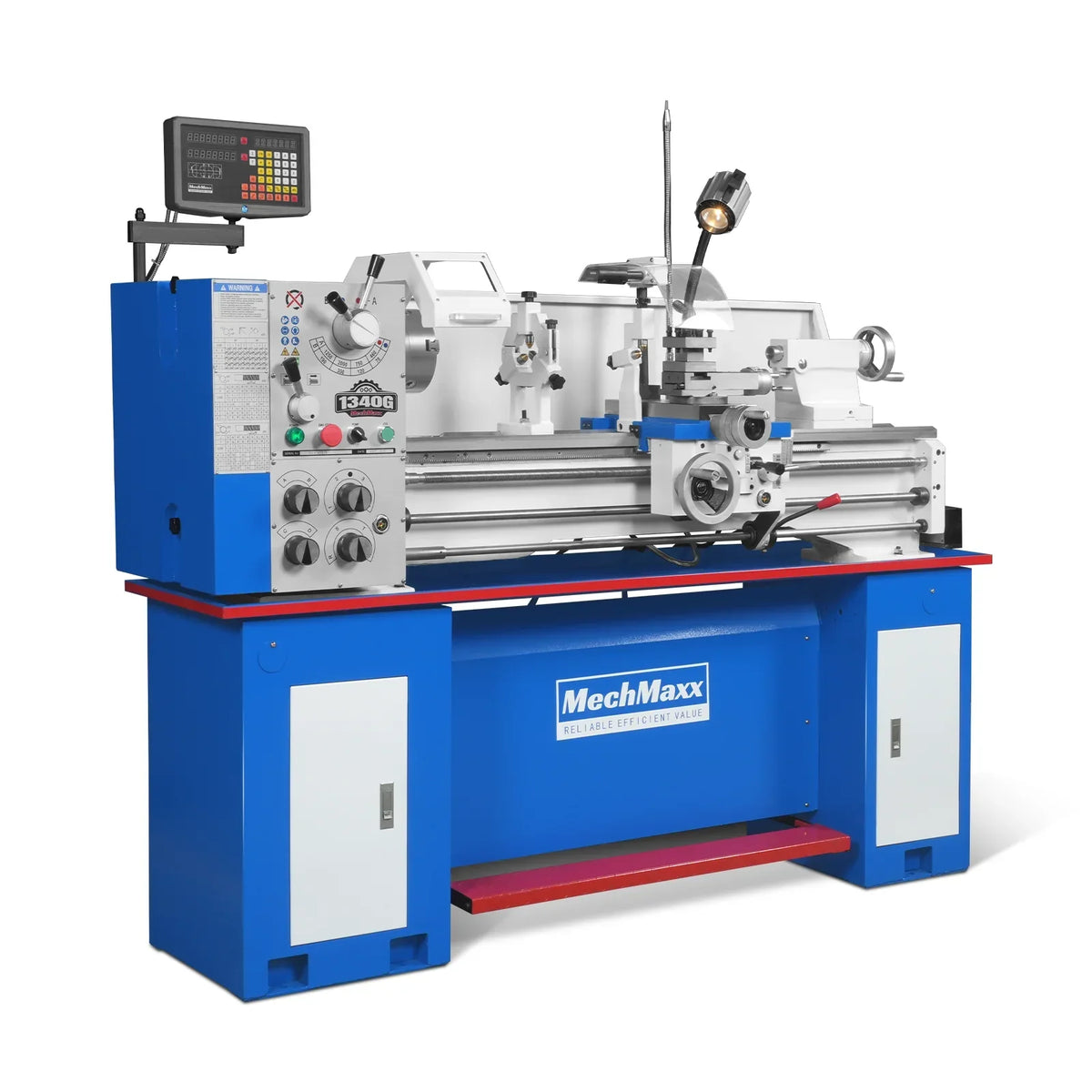

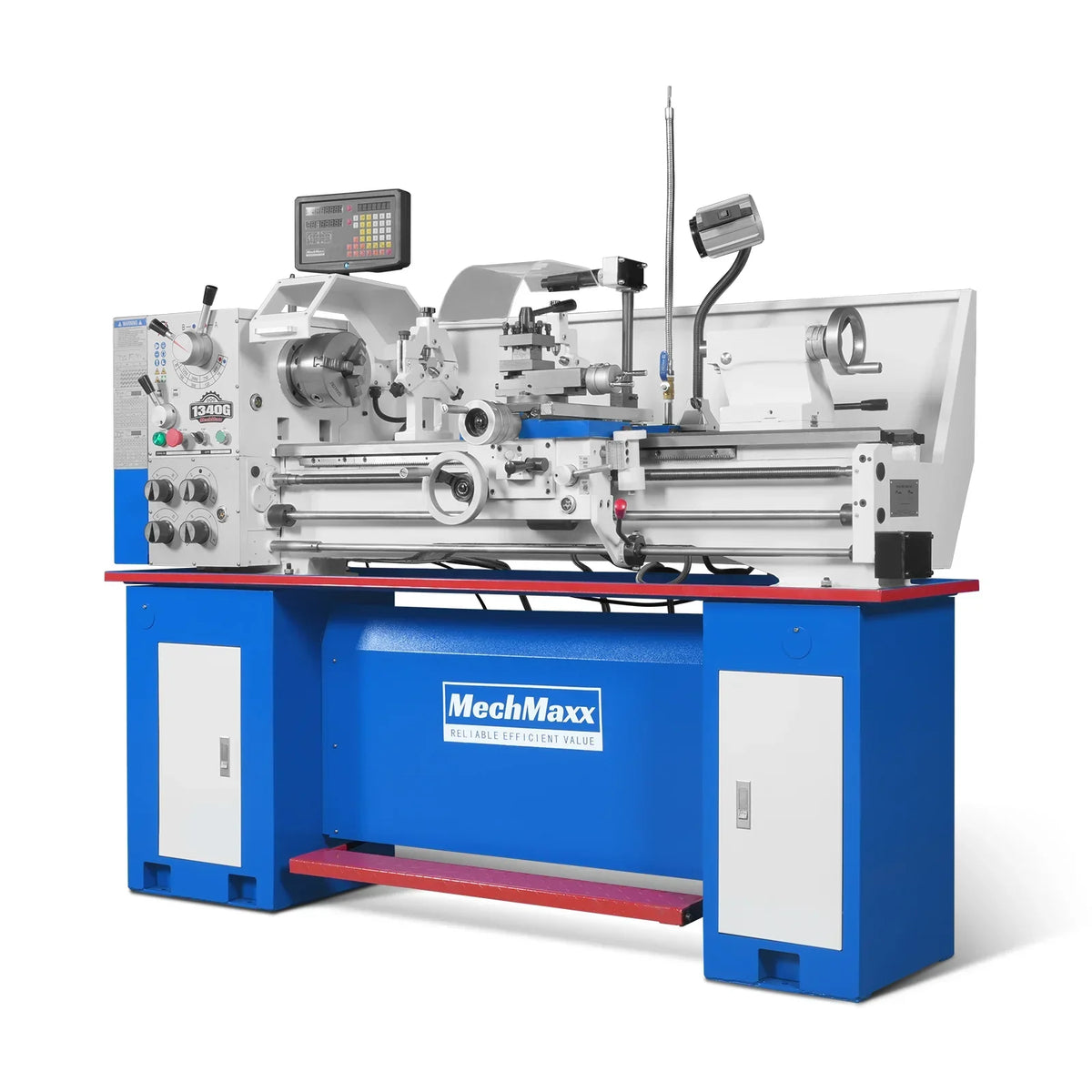

13" x 40" Industrial Heavy Duty Bench Metal Lathe 2HP/1500W Metal Working Lathe High Precision 70-2000 RPM Variable Speed with Four-axis sliding system 1340G
Inkl. Steuern.
Versand wird beim Checkout berechnet
Anzahl
Verfügbarkeit für Abholungen konnte nicht geladen werden
Specification
1340G
Motor
2HP(1500W) 220V 60HZ 1PH
Swing Over Bed
13 in/ 330mm
Swing Over Cross Slide
7.67 in/ 195mm
Swing Over gap
18.7 in/ 476mm
Distance Between Centers
39.37 in/ 1000mm

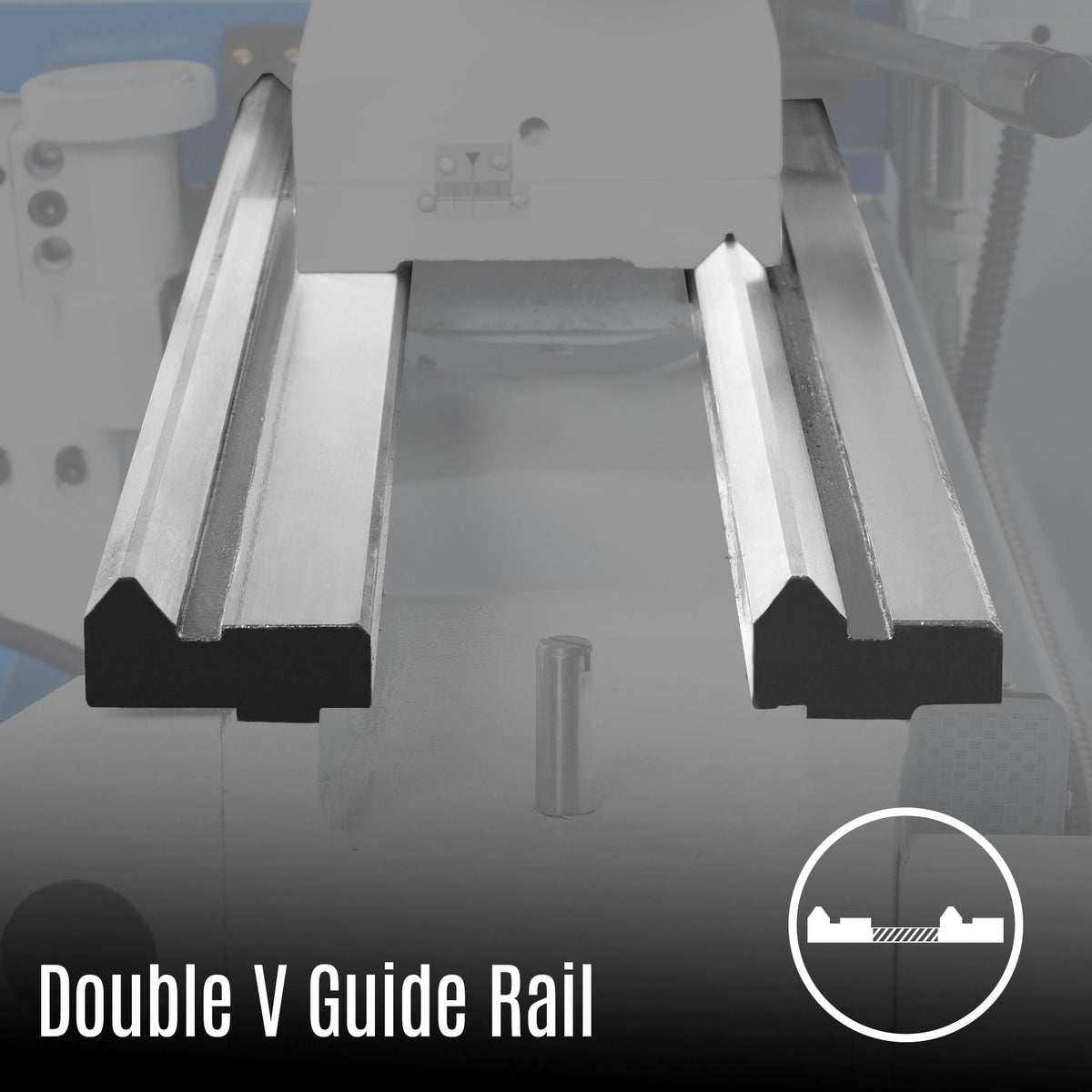

Bed Width
7.37 in/ 187mm

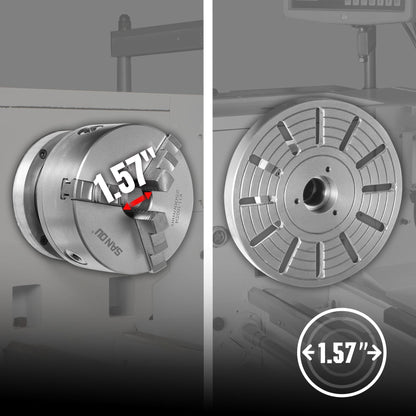

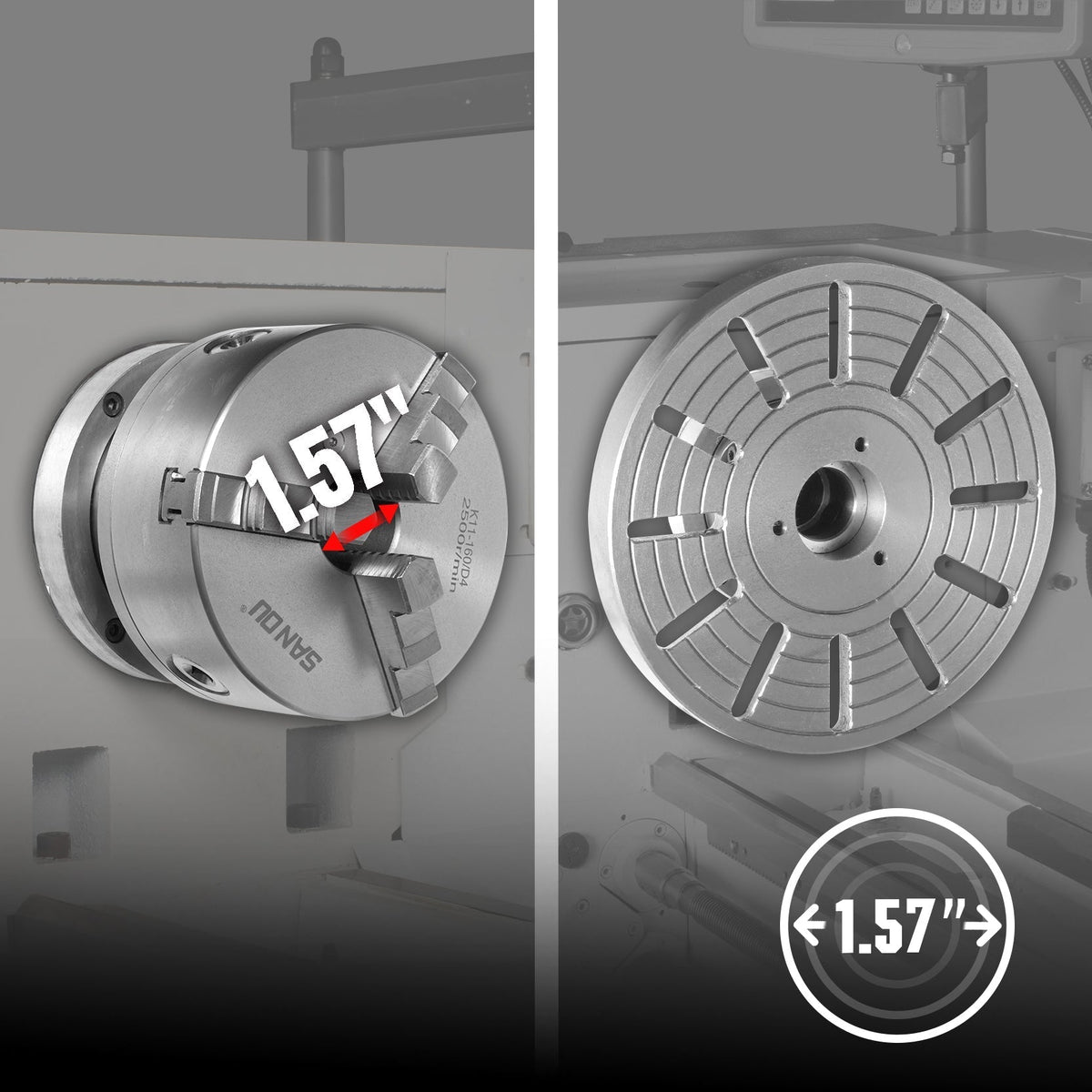

Spindle Bore
1.57 in/ 40mm
Spindle Mount
Cam-Lock Mechanism
Spindle Type
D1-4
Spindle Taper
MT5
Tailstock Taper
MT3

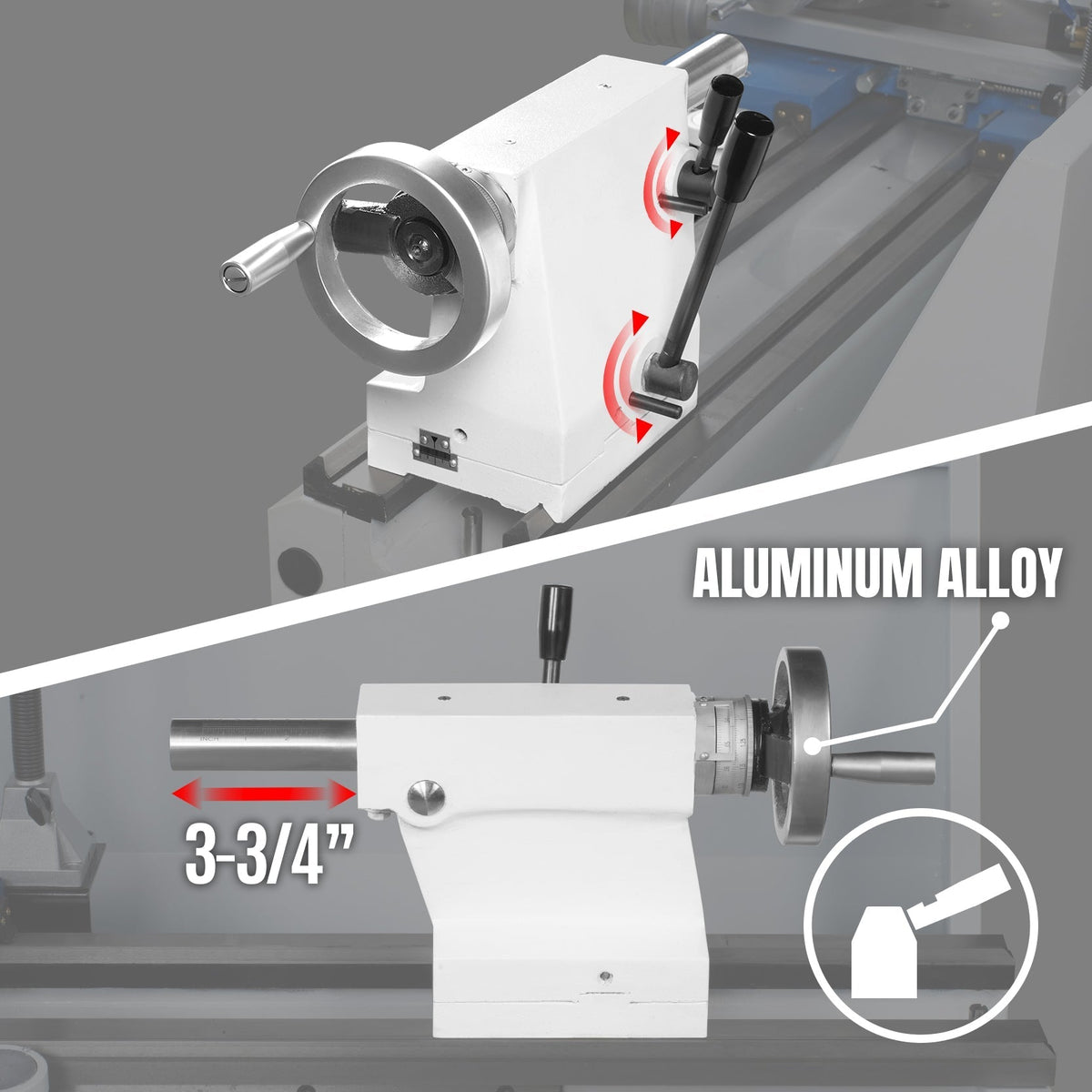

Tailstock Quill Travel
3.74 in/ 95mm

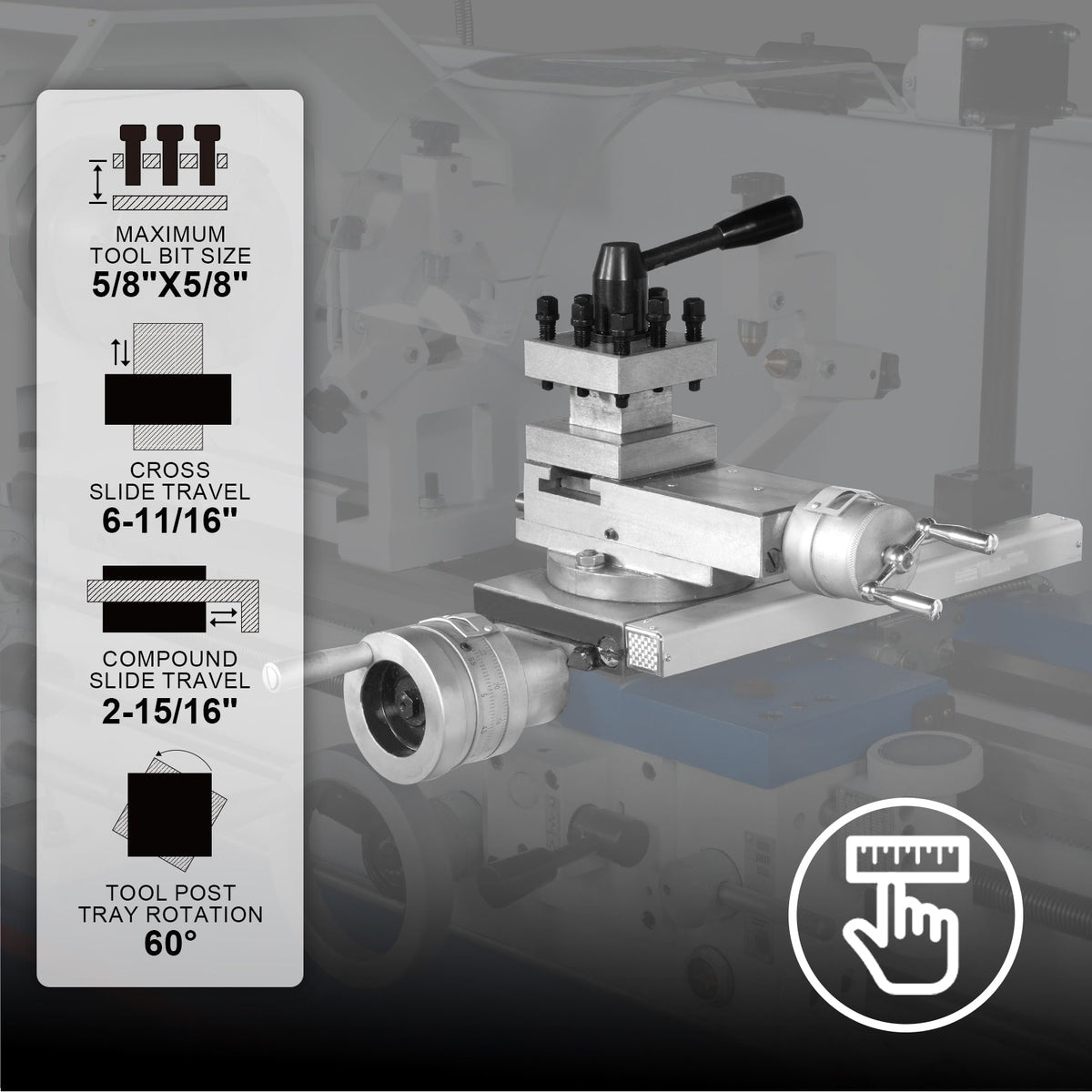

Cross Slide Travel
6.69 in/ 170mm
Compound Slide Travel
2.91 in/ 74mm
Carriage Travel
39.37 in/ 1000mm
Spindle Speeds
70-2000RPM
Number of Speed Ranges
8
Longitudinal Feeds
0.002''-0.0548''
Transverse Feed Rate
0.00055''-0.015''
Leadscrew Size & Pitch
22mm/ 7/8''8TPI
Threading Capacity - Inch
4-56TPI(34 kinds)
Threading Capacity - Metric
0.4-7mm(26 kinds)
Module thread
0.35-5M.P(16 kinds)
Diametral thread
6-104D.P(36 kinds)
Maximum Tool Bit Size
0.63"(16mm) × 0.63"(16mm)
Coolant System
YES
Approximate Shipping Dimension Weight
75.6x29.52x59in 1416.8lbs 1920x750x1500mm 644kgs
