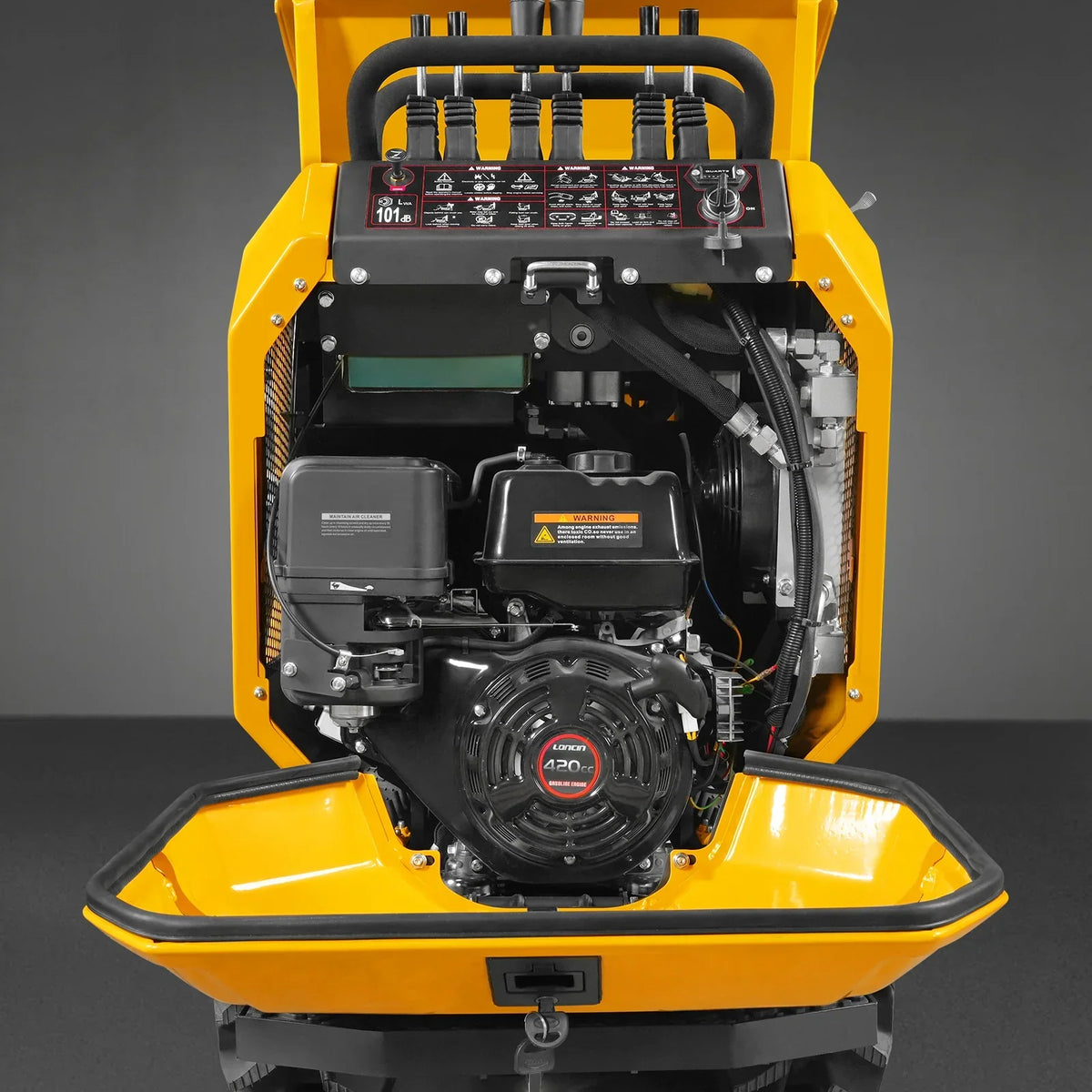

ENGINE
Engine Type
Single cylinder; 4 stroke; air cooled; OHV
Model Name
Loncin G420F(D)
Displacement/Horsepower
420cc; 15HP
Engine Power
9.0 kW / 3600 rpm
Start
E-start
Maximum Torque
26.5 Nm/2500 rpm
DIMENSIONS & SPECIFICATIONS
Overall Length (w/o Shovel)
85.5 in
Overall Length with Shovel
112 in
Overall Height
47 in

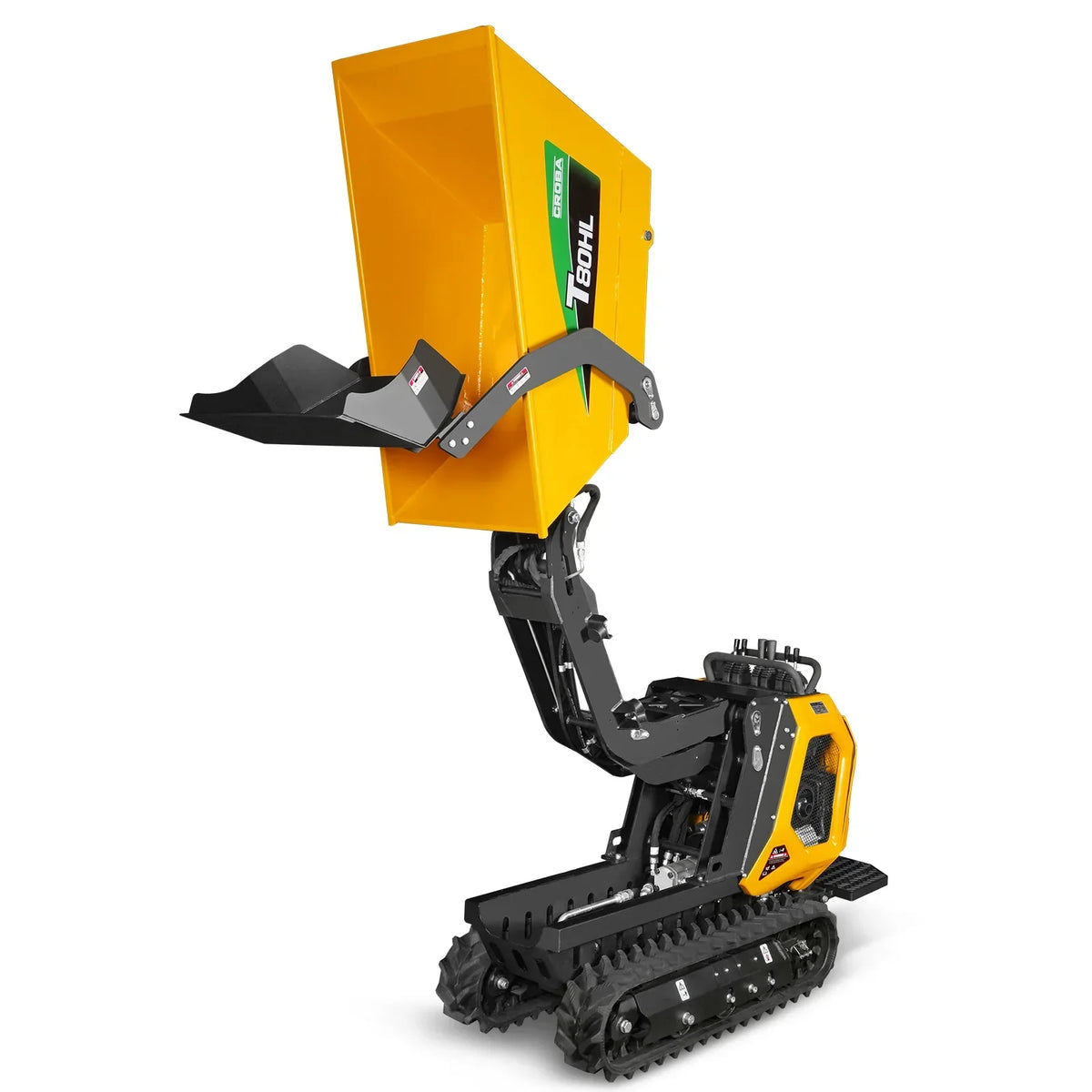

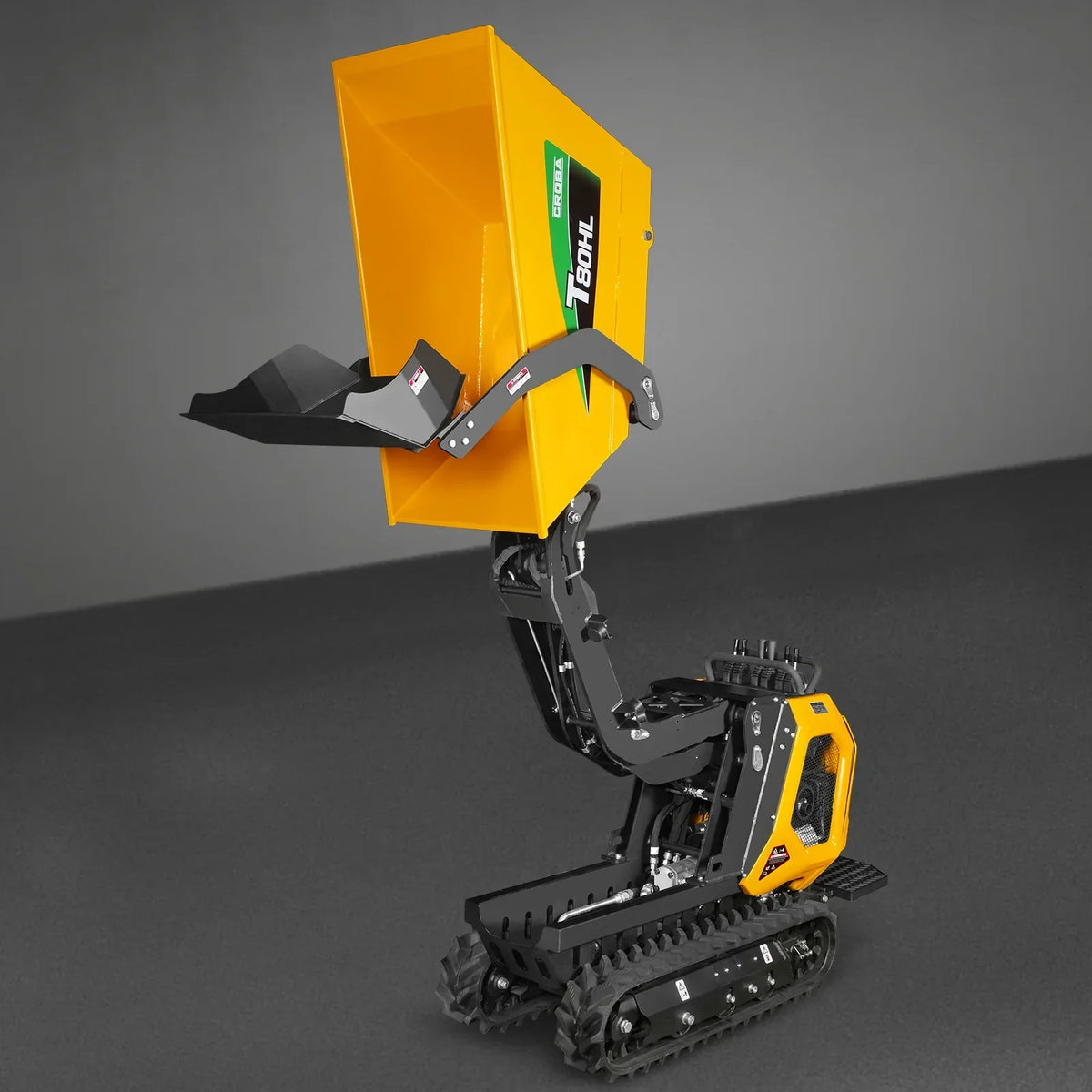

Lifting Overall Height
98.5 in
Overall Width
29 in
Max. Overall Height
120 in
Max. dumping height
65.4 in
Loading Capacity
1102 lbs
Weight
1631 lbs
Operating Weight
1786 lbs
Wheelbase
38.8 in
Bucket Capacity
9.5 cu ft
Track Width
7.09 in
Track Length
51.2 in
Track Height
11.8 in
Dump Front End Height
33.3 in
Dump Back End Height
43.3 in
Dump Width
24.3 in
Console Height
40.2 in
Platform Ground Clearance
10.4 in
OPERATION
Working Type

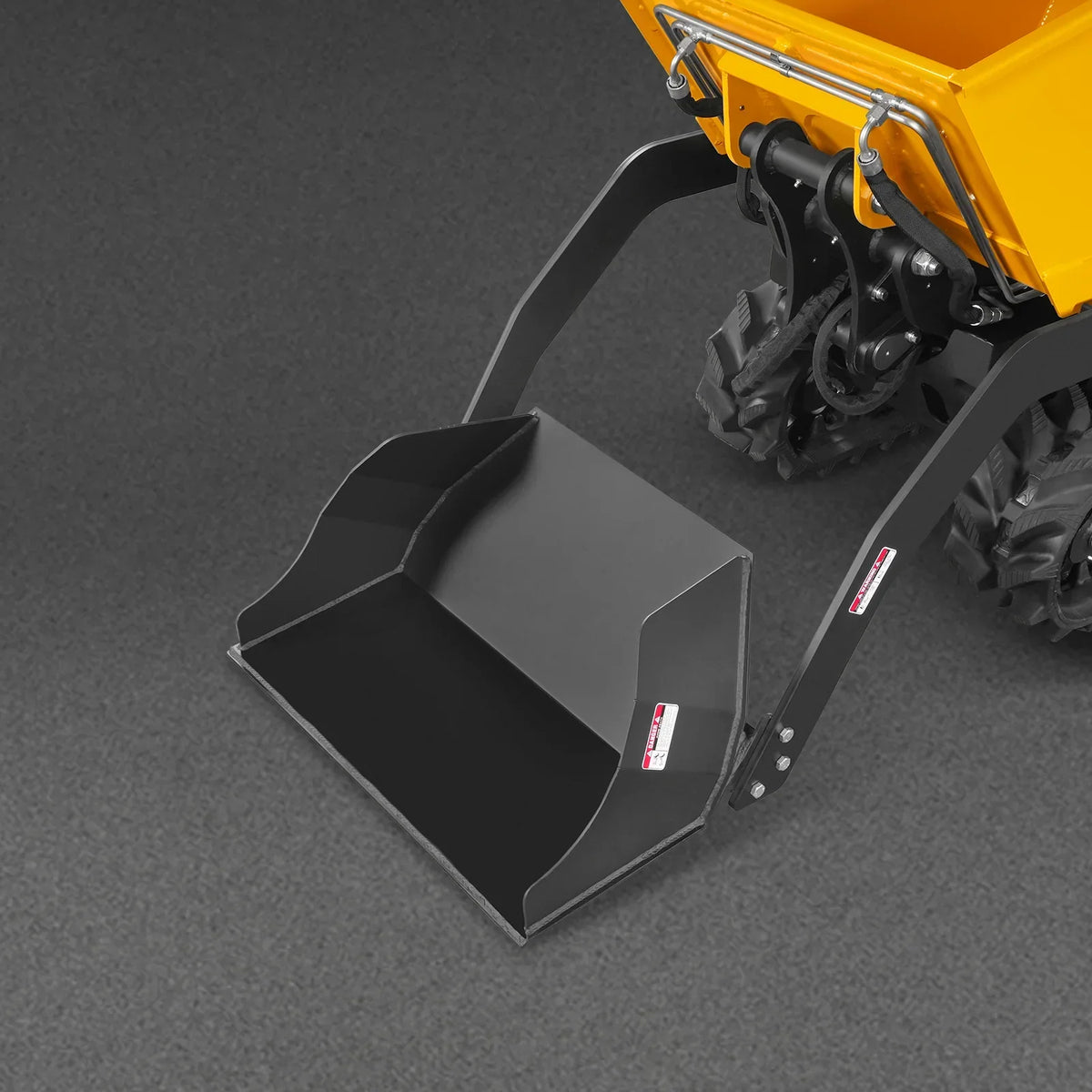

Self Loading and Unloading
Transmission

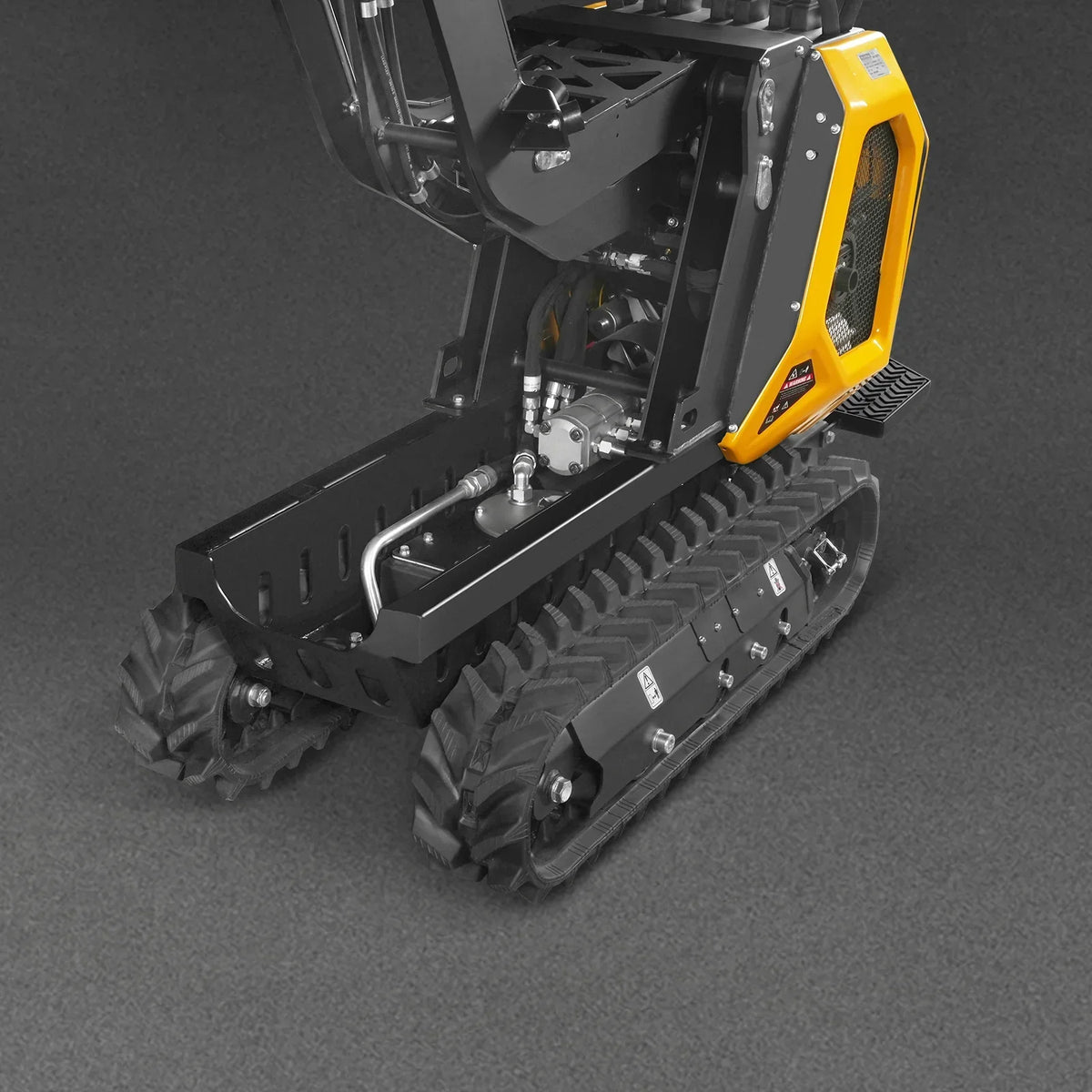

Hydrostatic Track Drive System
Parking Brake
Yes
Operator Platform
Stand-on
PERFORMANCE
Max.Travel Speed
0-2.73 mph
Min. Travel Speed
0-1.37 mph
Max. Gradeability
30%
Ground Pressure (with Operator)
2.9 psi
Battery Capacity
12V 20Ah

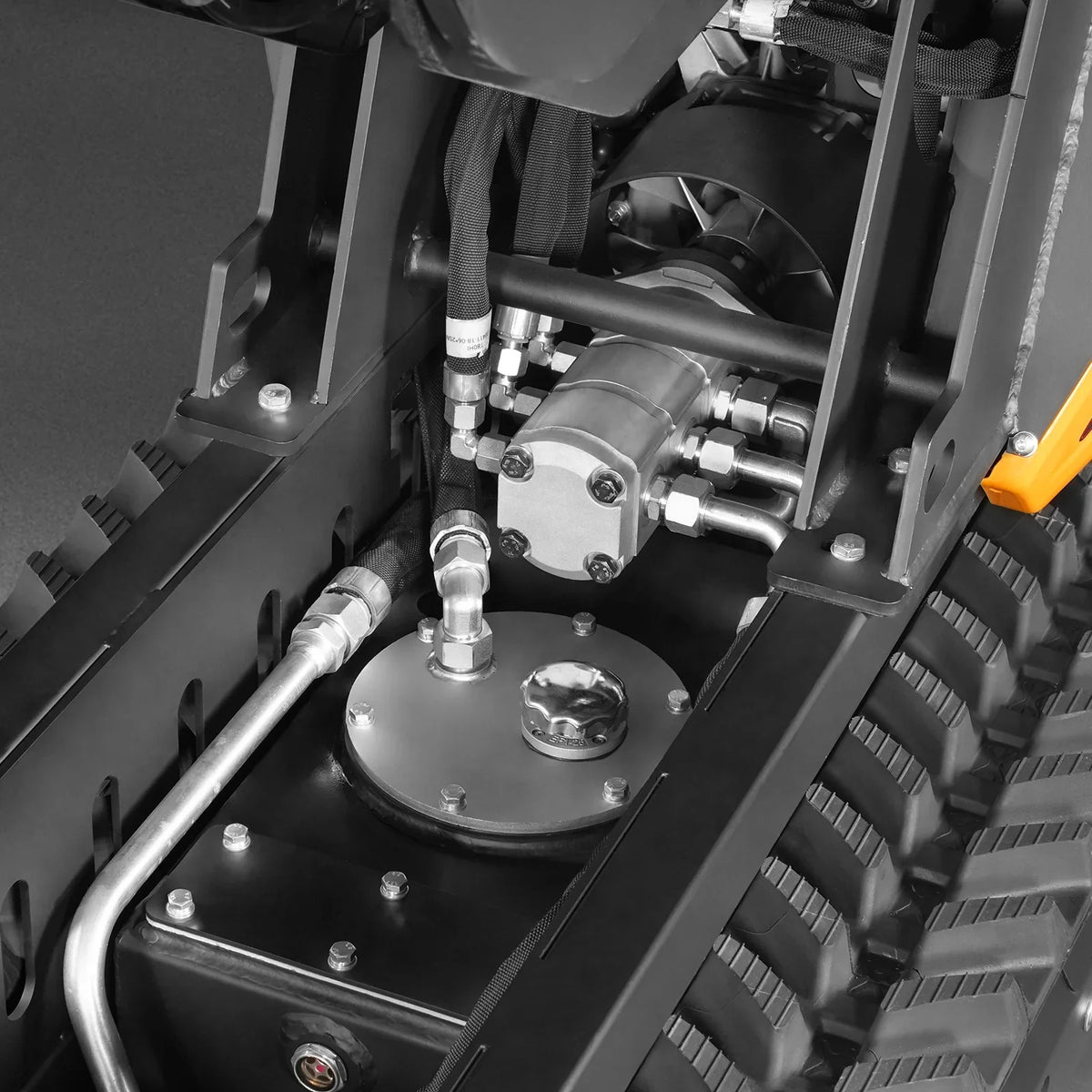

Pump Type
Triple Gear Pump
Hydraulic pressure
2900 psi
SERVICE & FILL CAPACITIES
Fuel Tank Capacity
1.72 gal
Hydraulic System
6.13 gal
