Inkl. Steuern.
Versand wird beim Checkout berechnet
Anzahl
Verfügbarkeit für Abholungen konnte nicht geladen werden
Rated Capacity
100 Tons

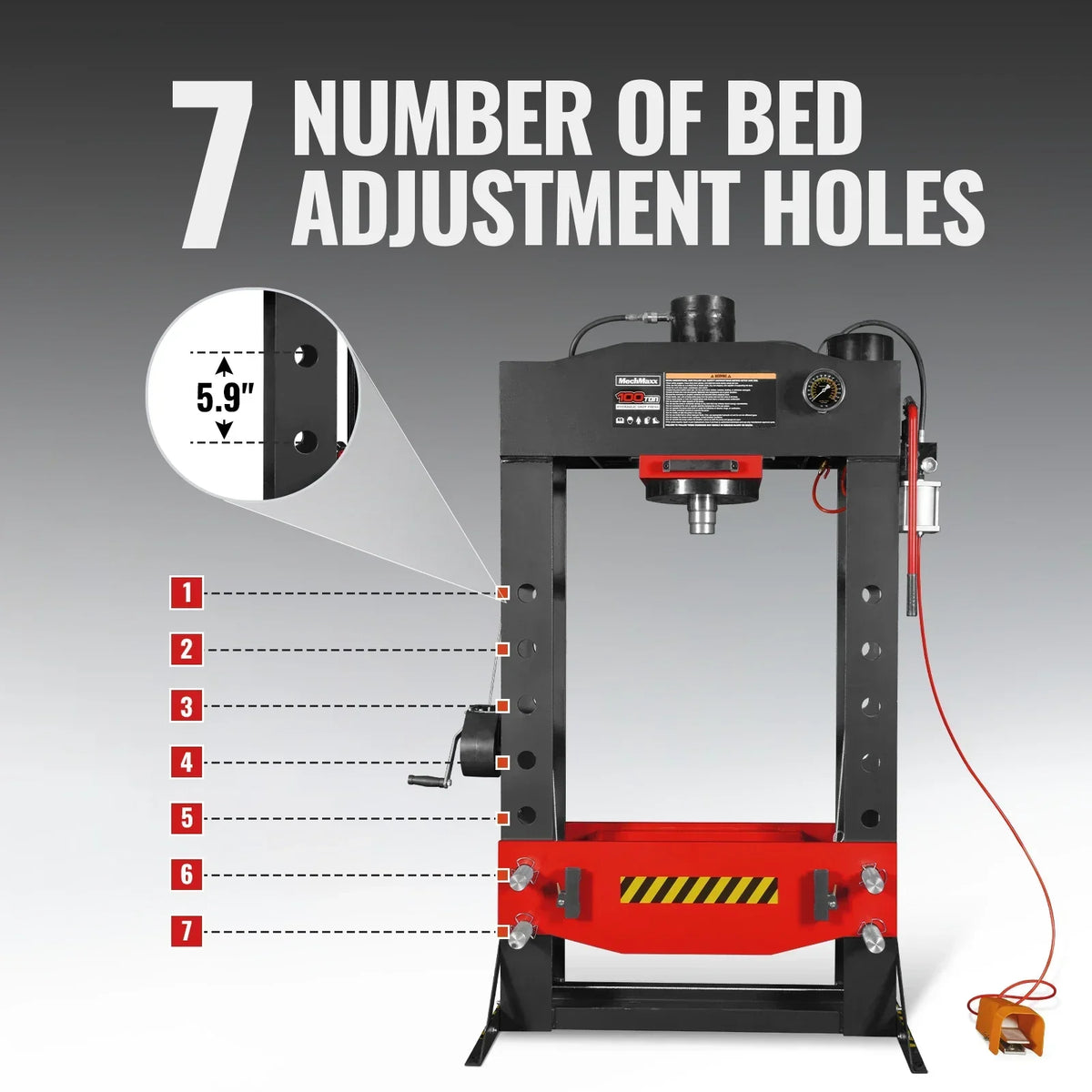

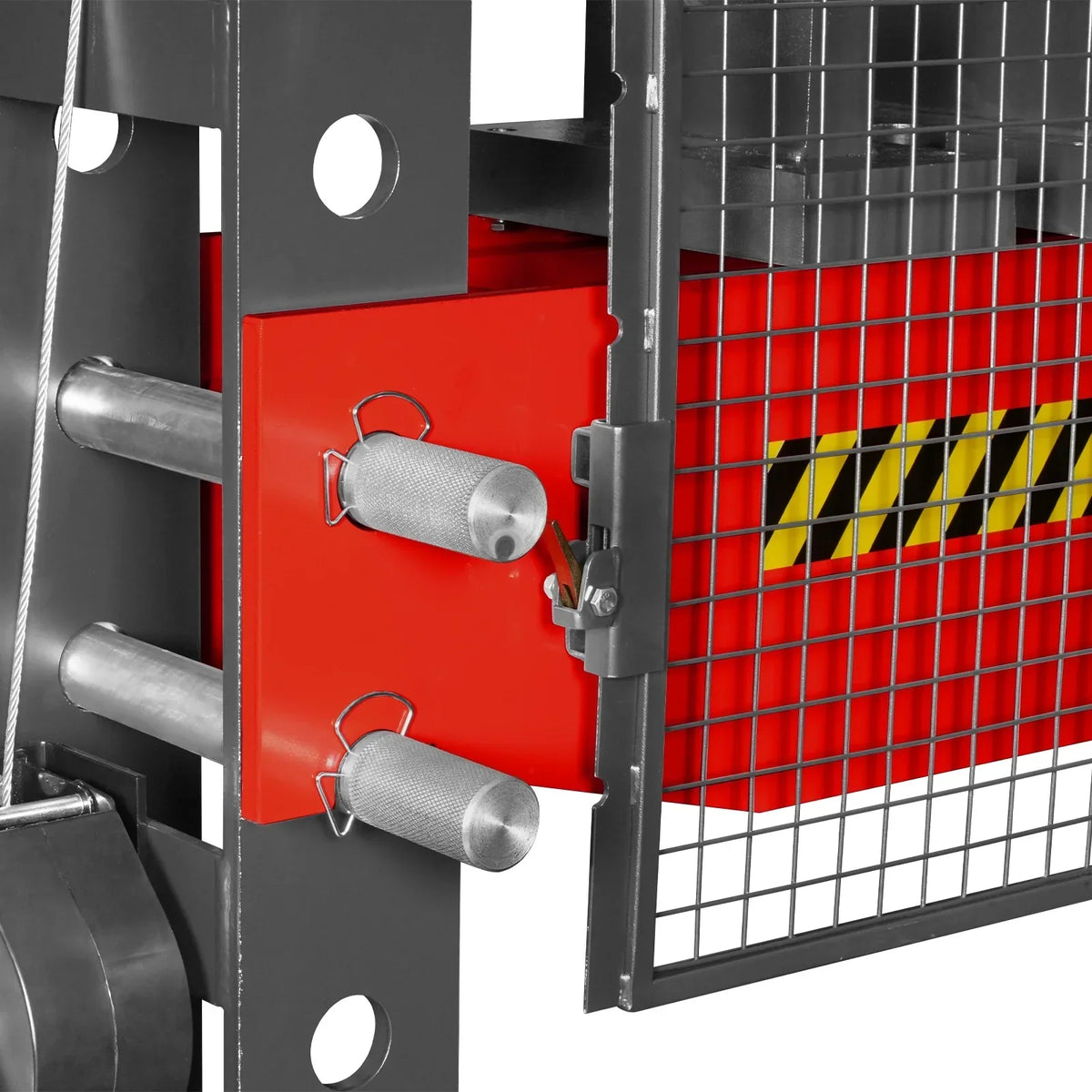

Number of Bed Adjustment Holes
7

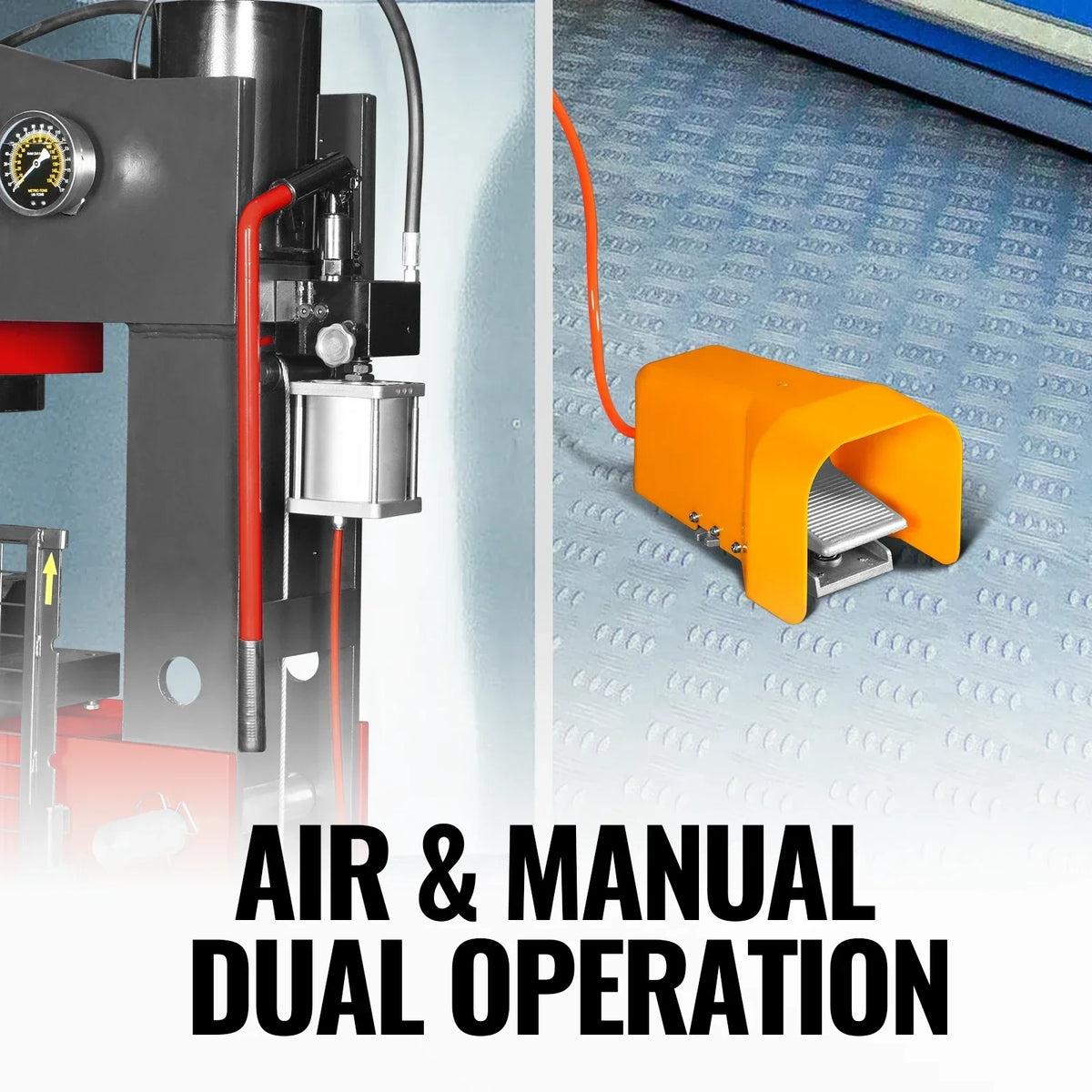

Operation Type
Air & Manual Dual Operation
Bed Adjustment Hole Spacing
5.9 in
Air Pressure
110-125 PSI

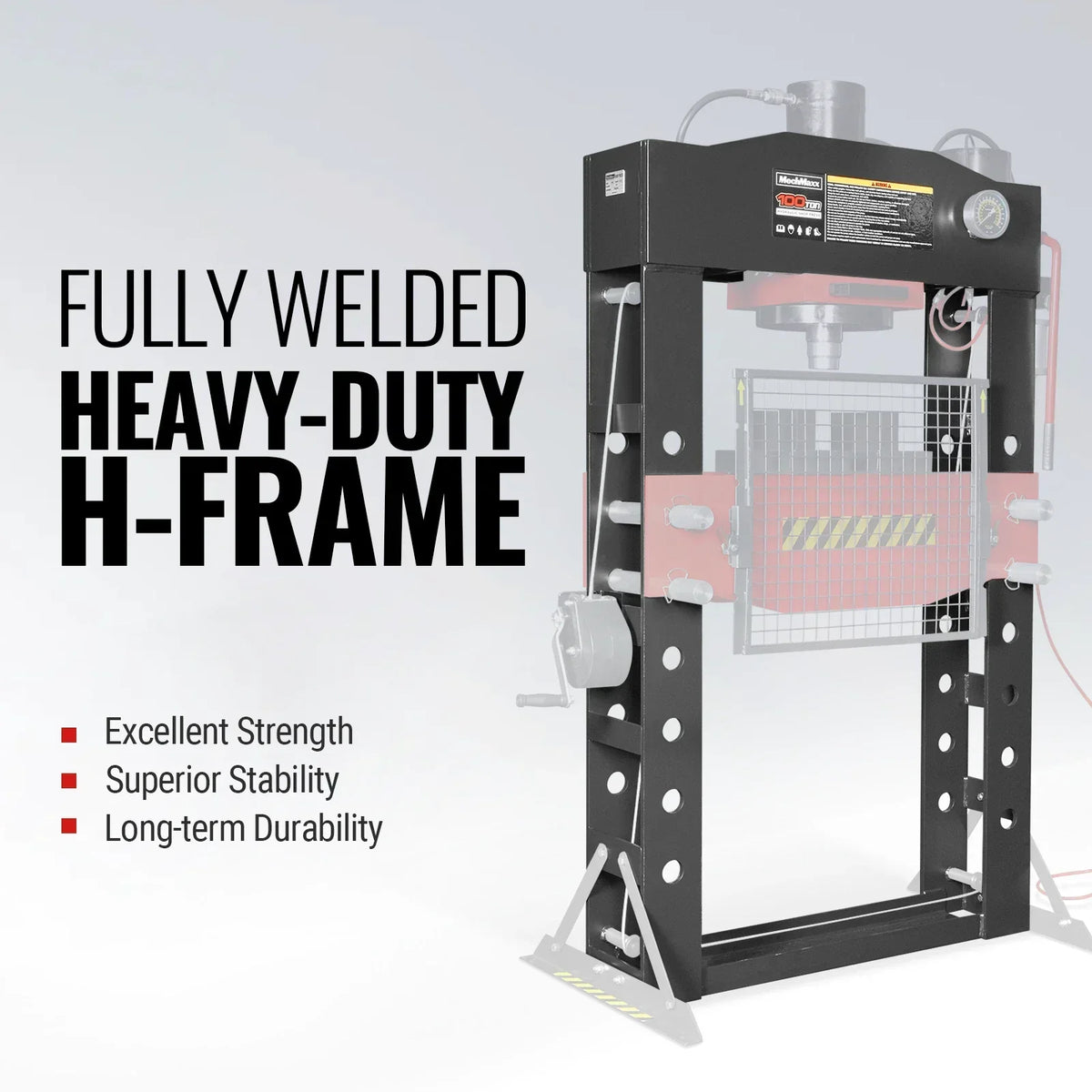

Frame Construction
Fully Welded Heavy-Duty H-Frame
Ram Stroke
11.8 in

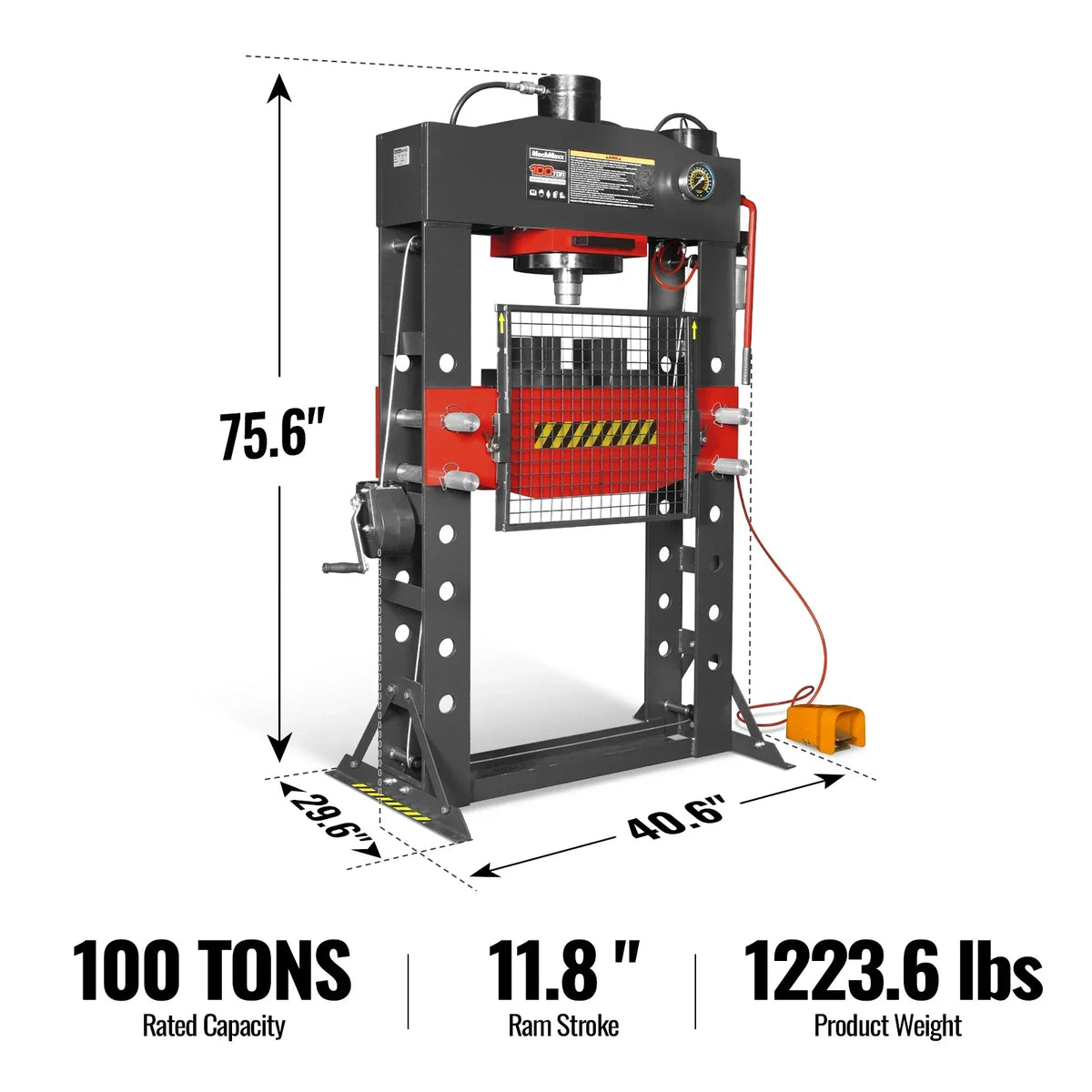

Assembled Size (H x D x W)
75.6 x 29.6 x 40.6 in

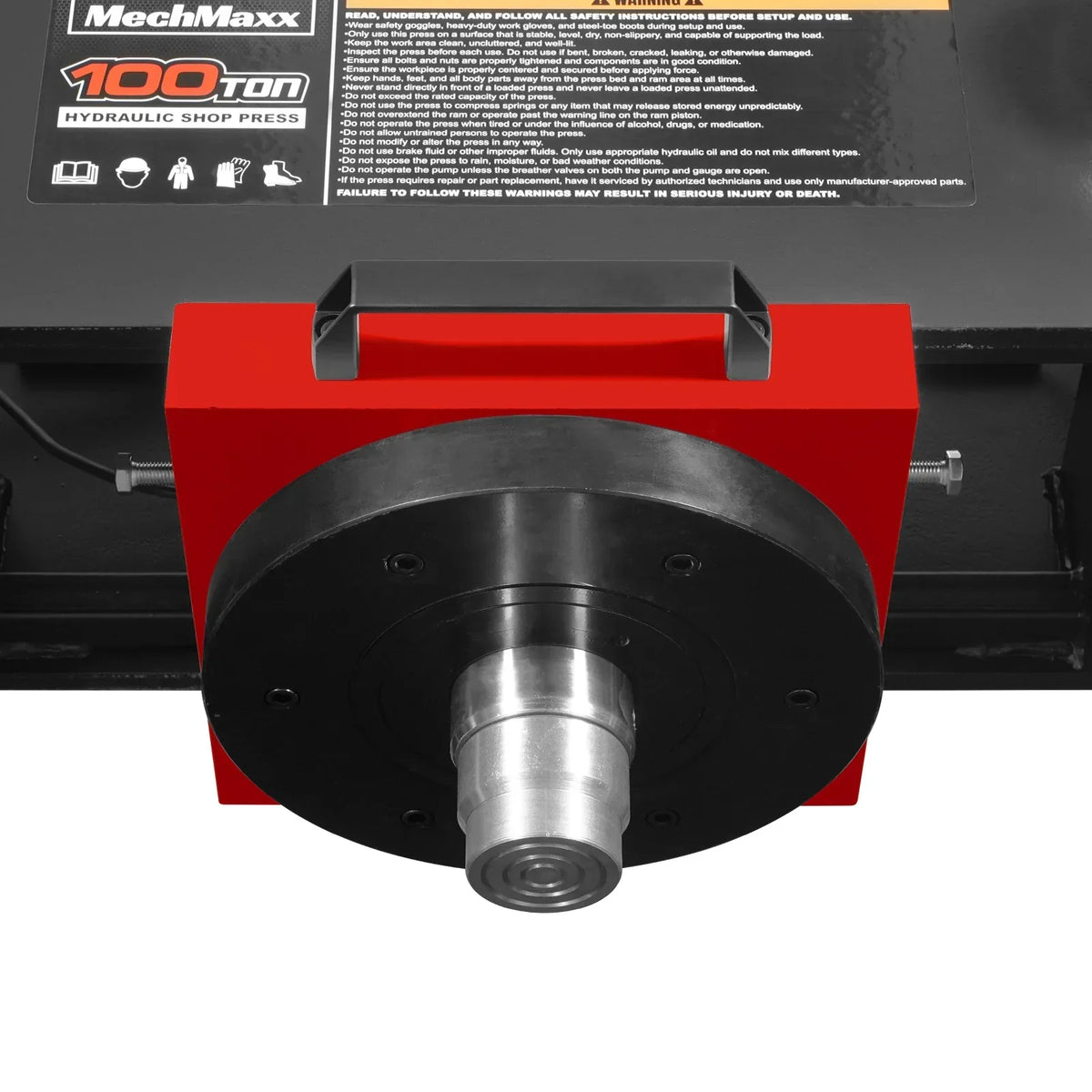

Ram Diameter
3.4 in
Internal Frame Width
30.9 in
Cylinder Bore
5.5 in

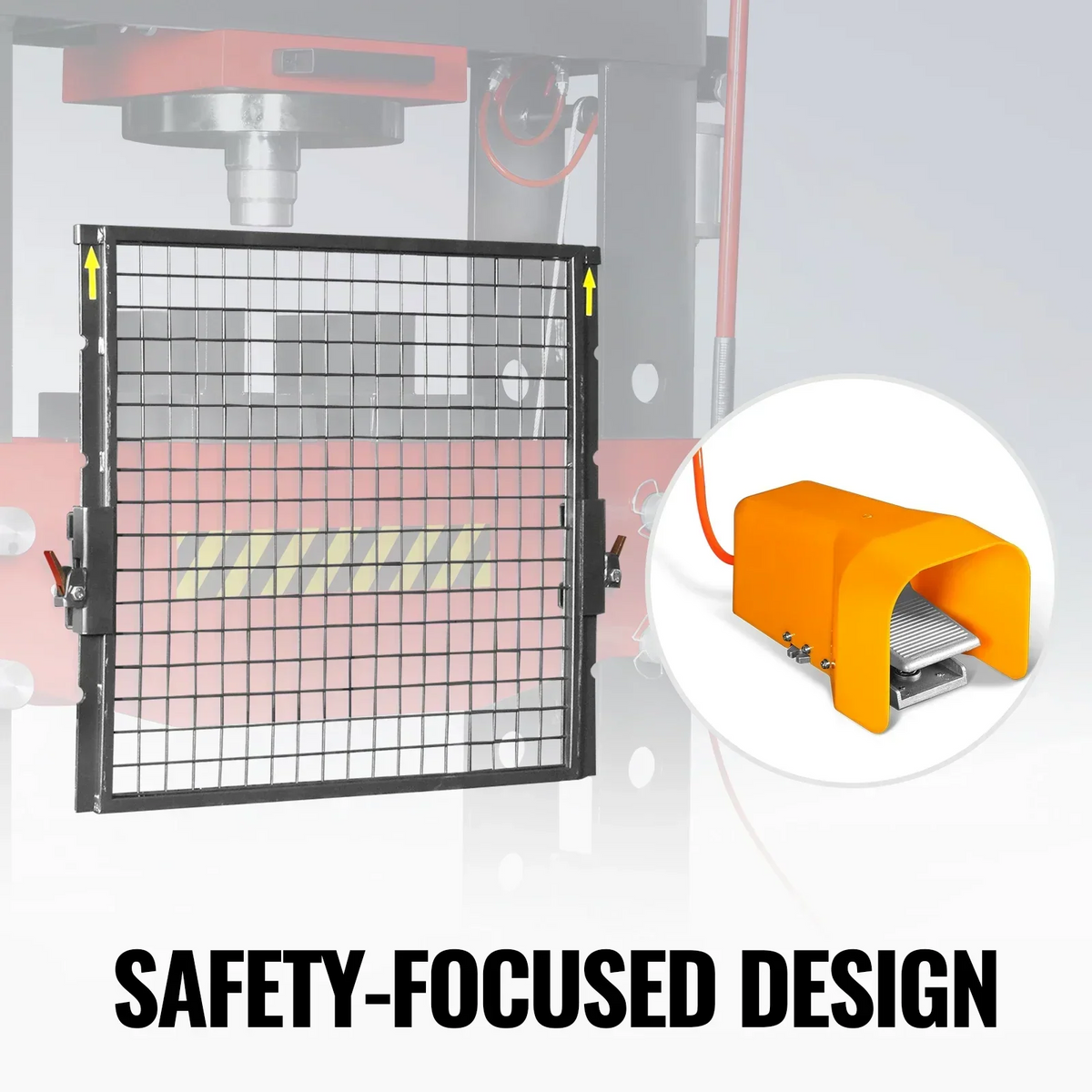

Protective Grid Guard Size
27 x 24 in

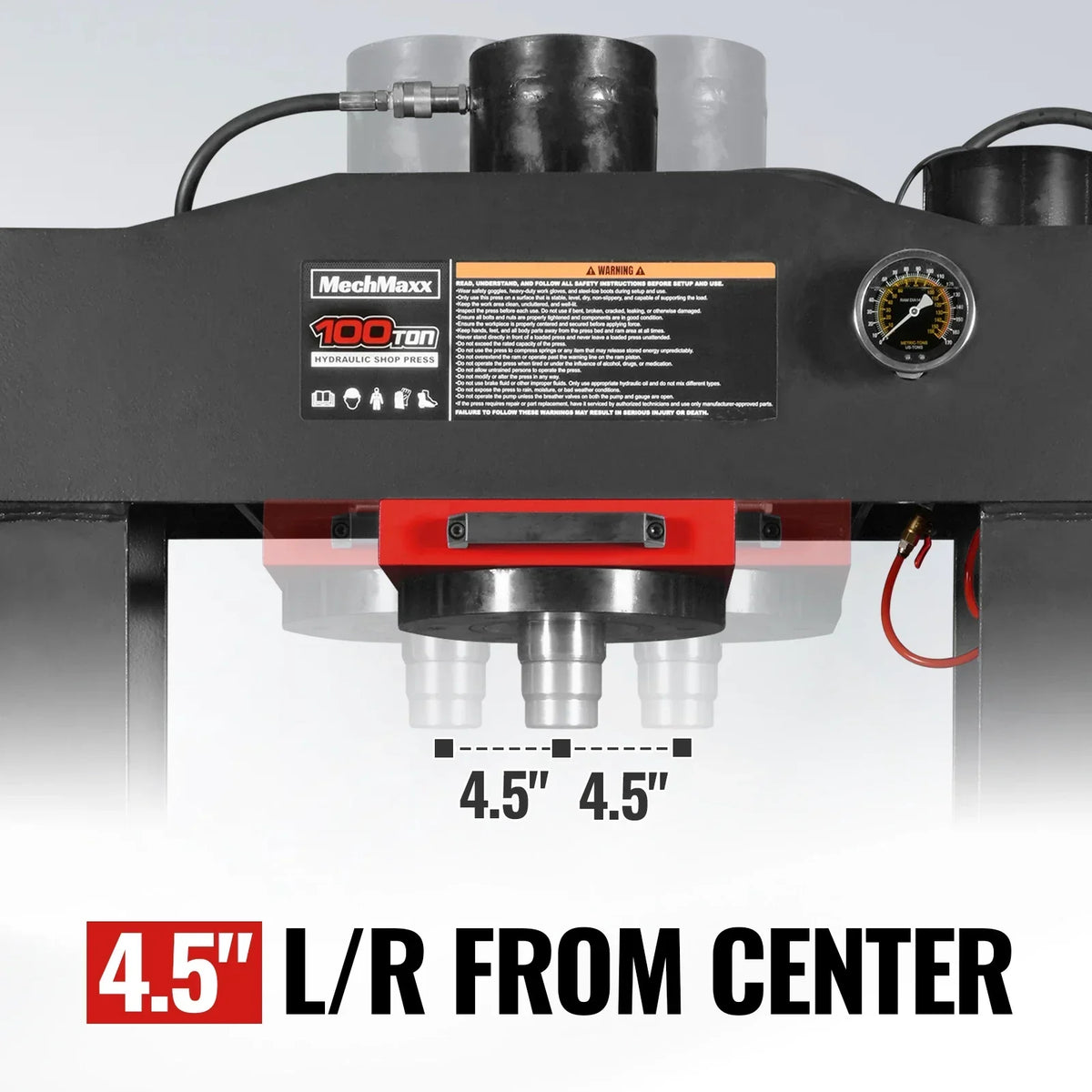

Ram Range of Movement
4.5 in Left / Right from Center
Recommended Hydraulic Oil
AW32 Hydraulic Oil
Bed Depth
8 in
Recommended Oil Capacity
1.69 Gallons
Bed Height
11.8 in

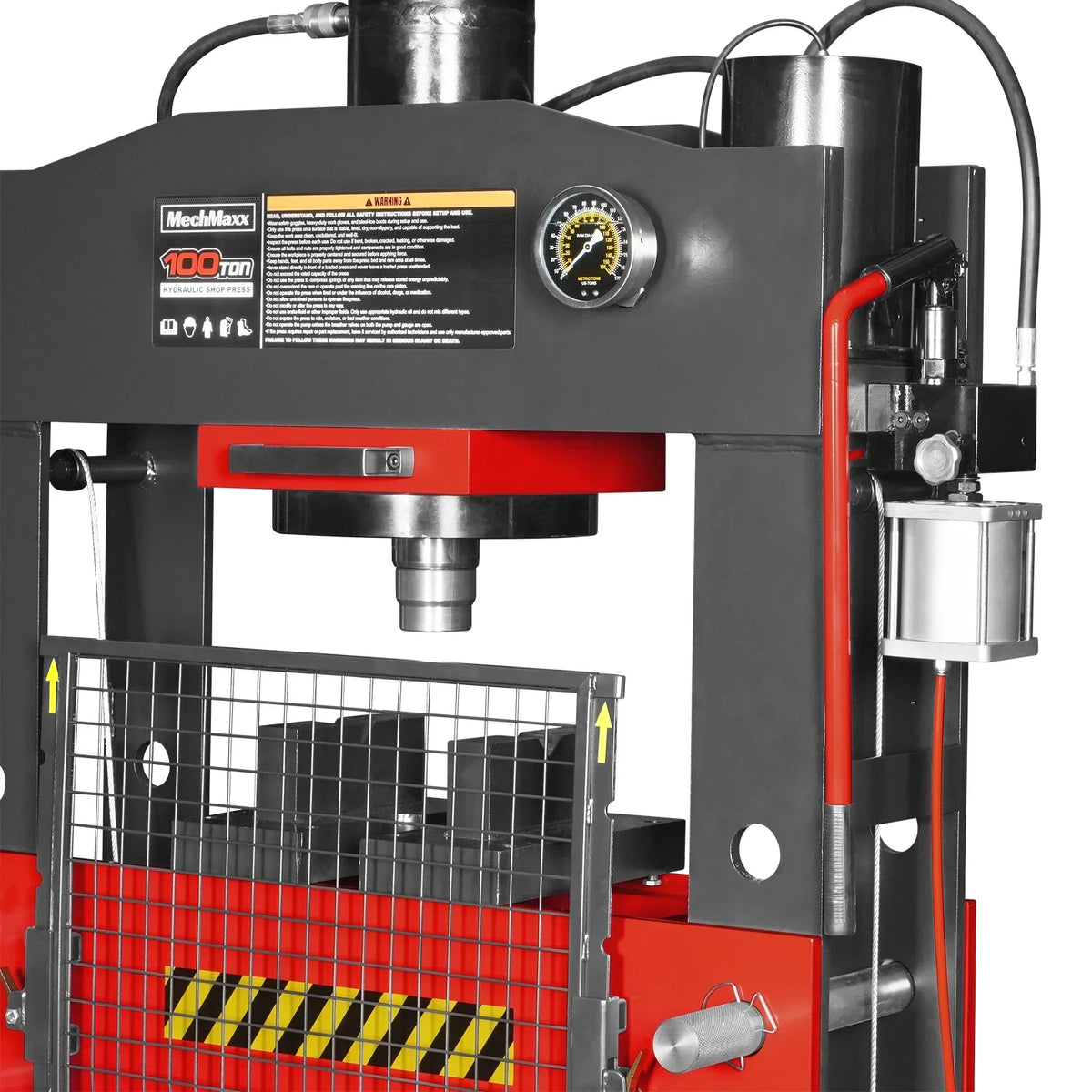

Gauge Type
4 in Oil-Filled Pressure Gauge
Minimum Ram to Bed
3.5 in

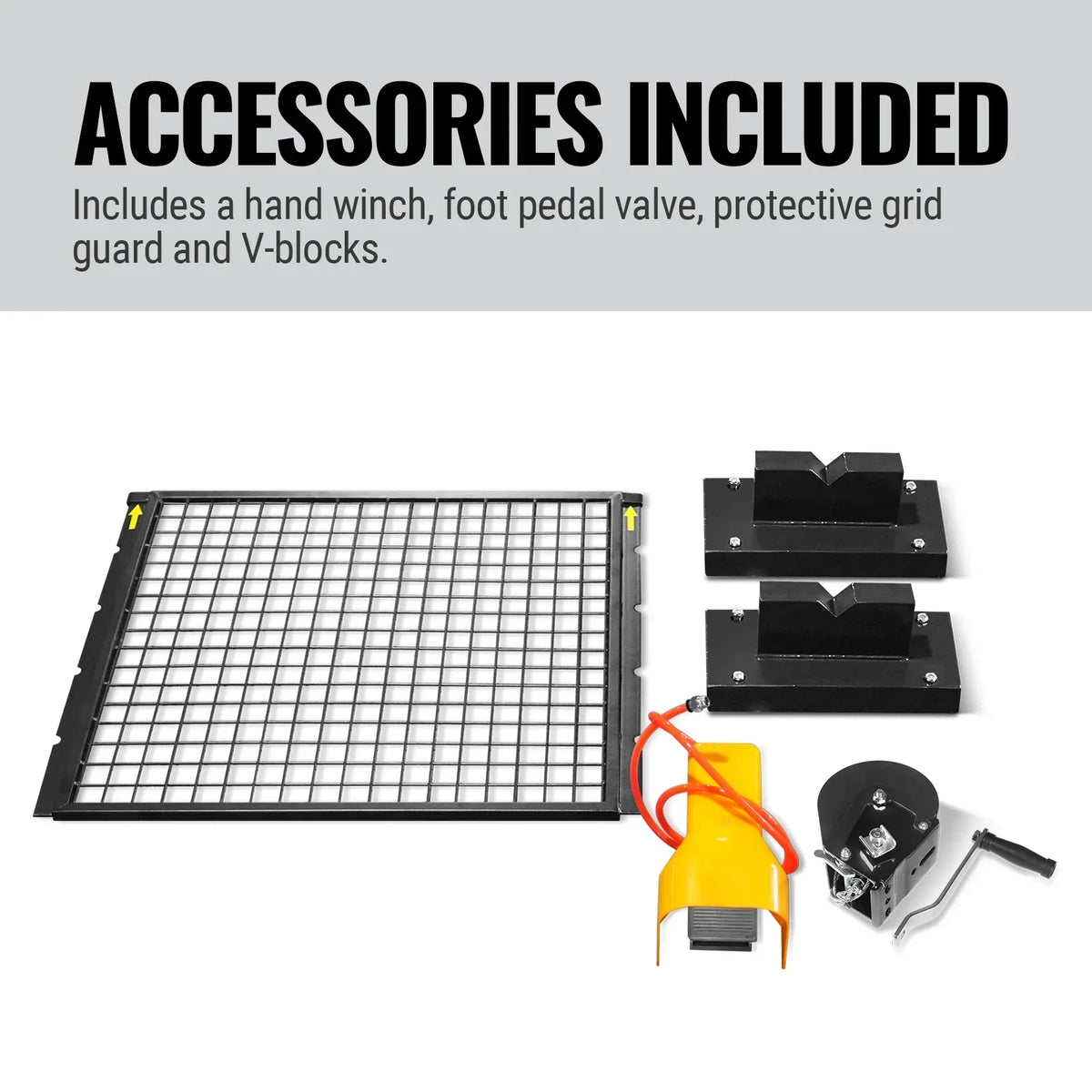

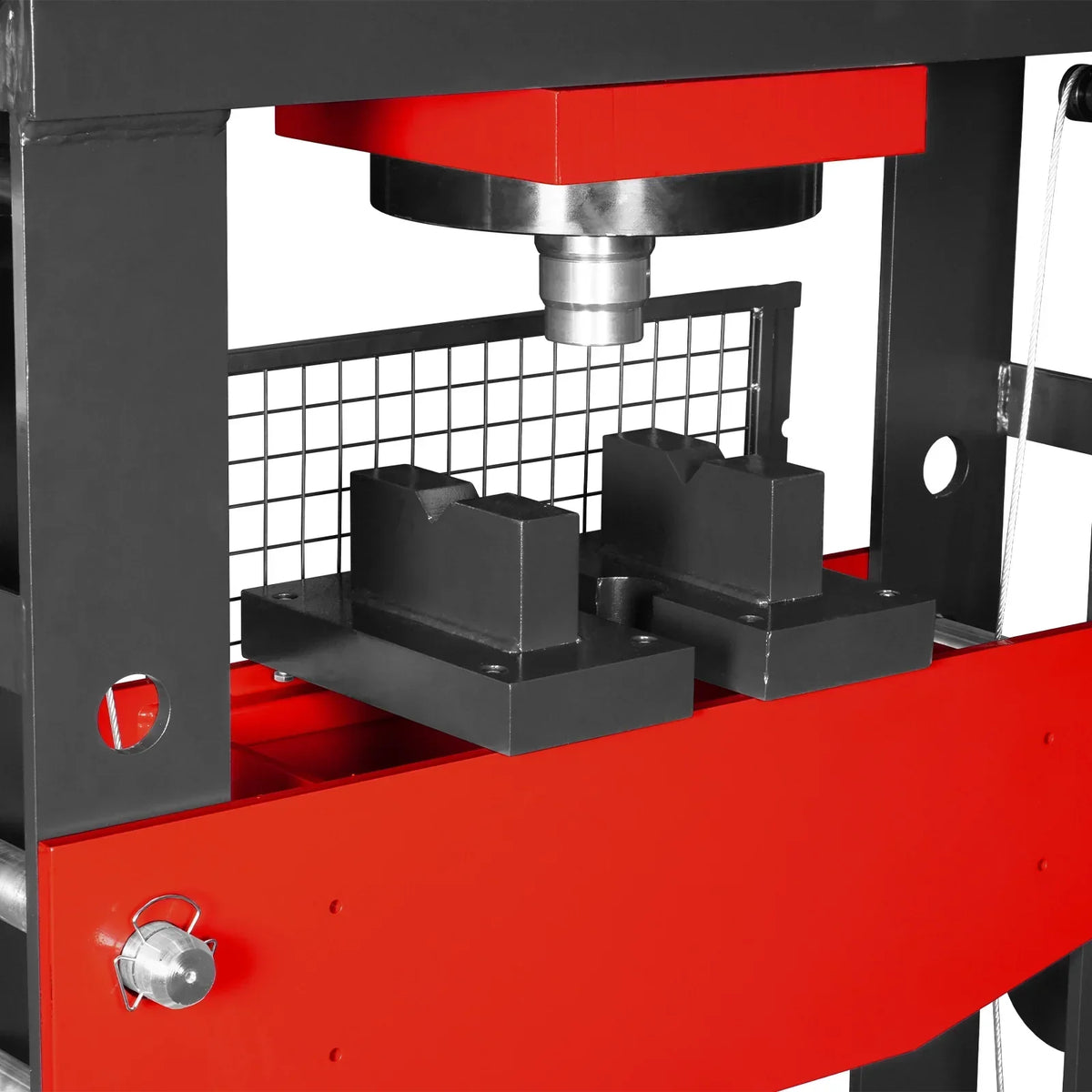

Included Accessories

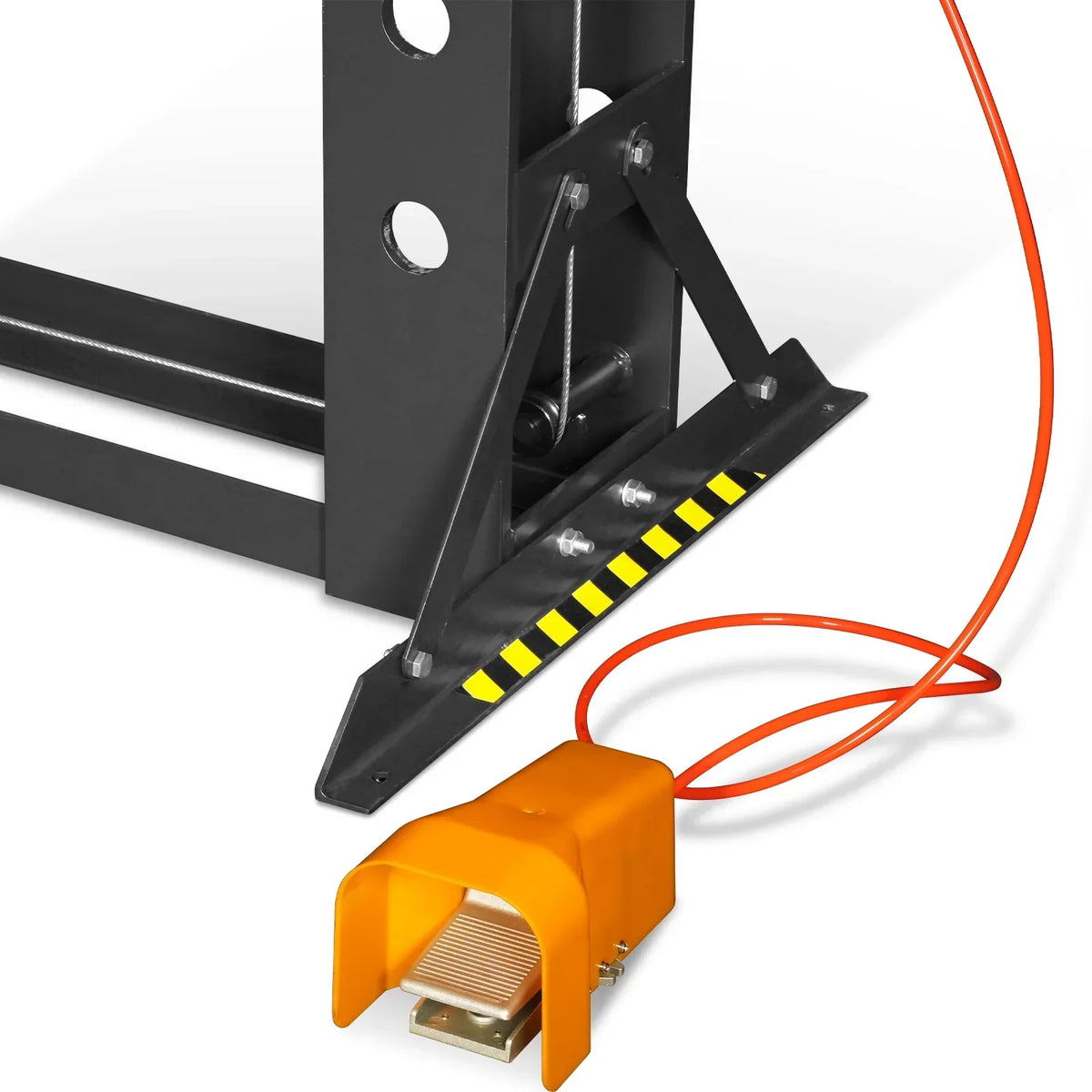

Protective Grid Guard, Hand Winch, Foot Pedal Valve, V-Blocks
Maximum Ram to Bed
33.1 in
Packing Size (LxWxH)
81.1 x 44.5 x 17.3 in
Ram Retraction
Spring
Weight (N.W/G.W.)
1223.6 lbs / 1333.8 lbs
WARNING: This product can expose you to chemicals including engine exhaust (including diesel engine exhaust when equipped),lead and lead compounds, mineral oils, soot, phthalates, and carbon monoxide which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov. Certain specification(s) are based on engineering calculations and are not actual measurements. Specification(s) are provided for comparison purposes only and are subject to change without notice. Specification(s) for your individual equipment will vary based on normal variations in design, manufacturing, operating conditions, and other factors.
