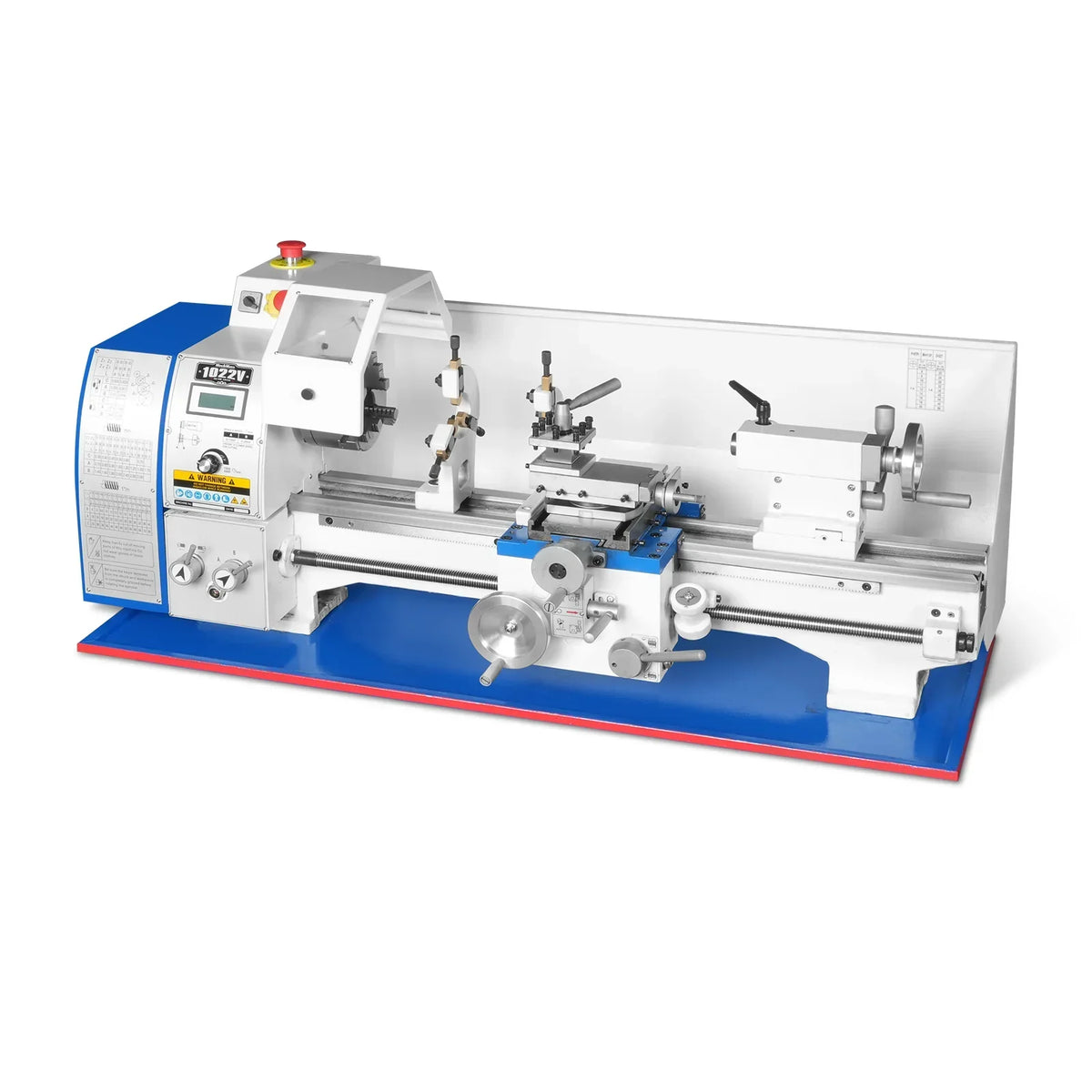

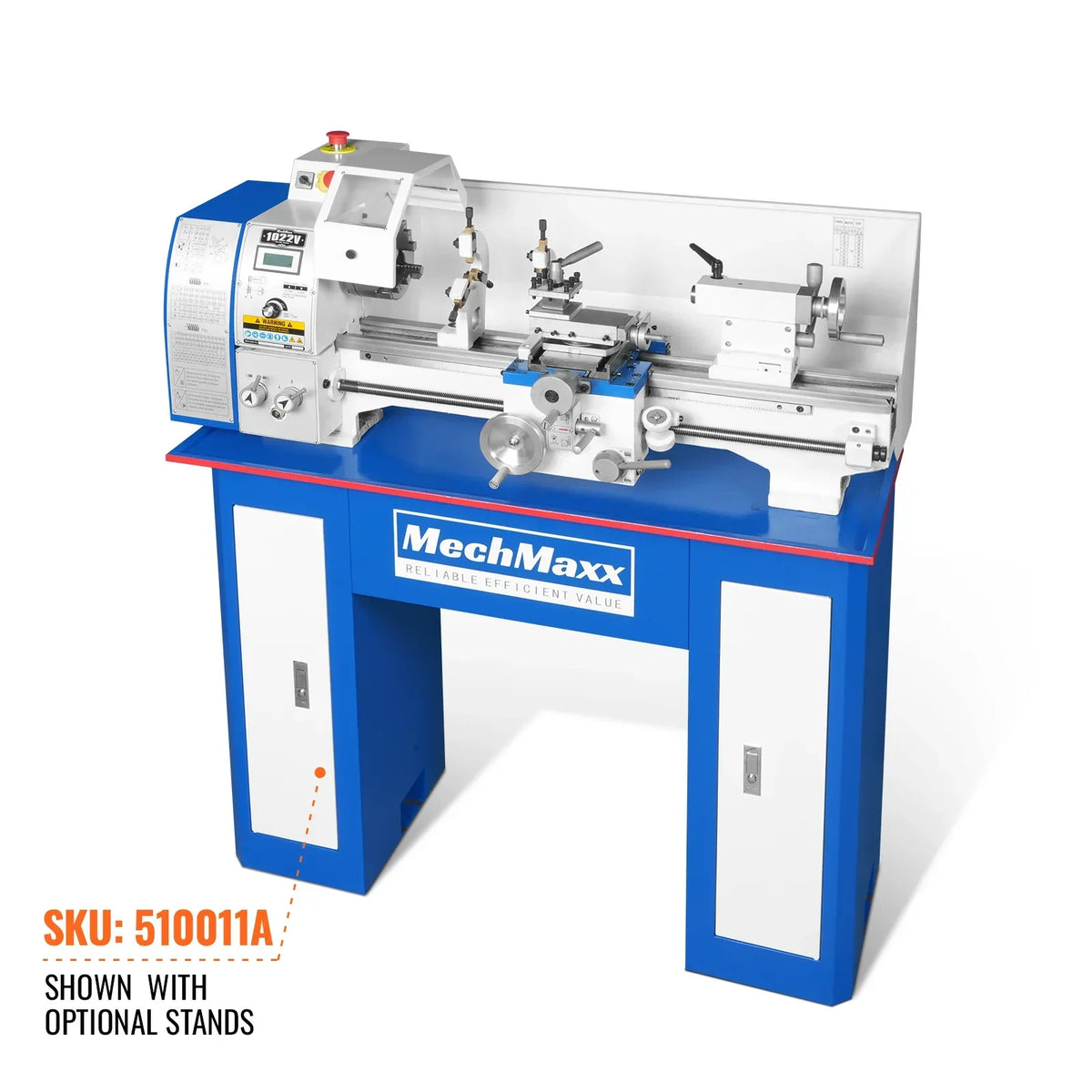

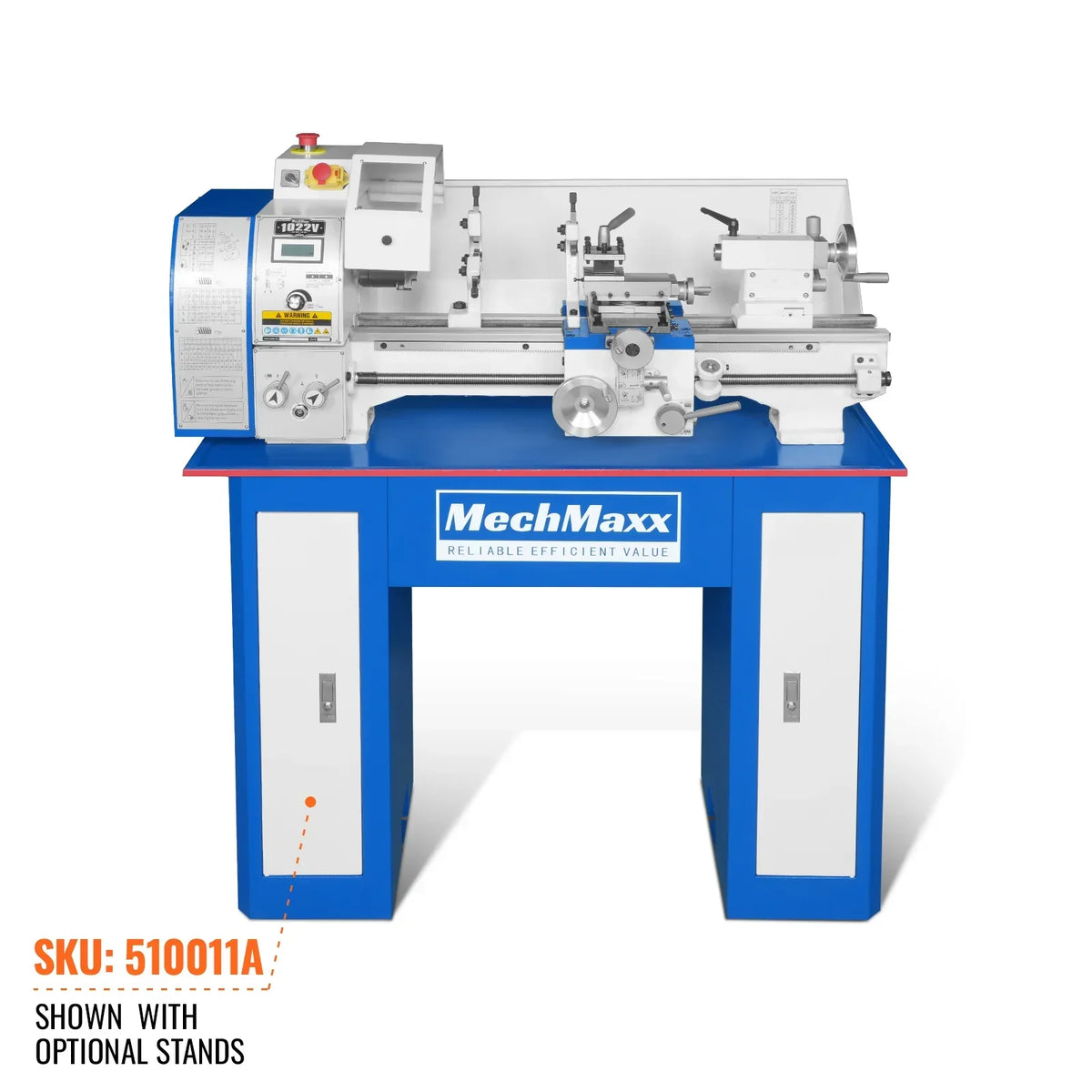

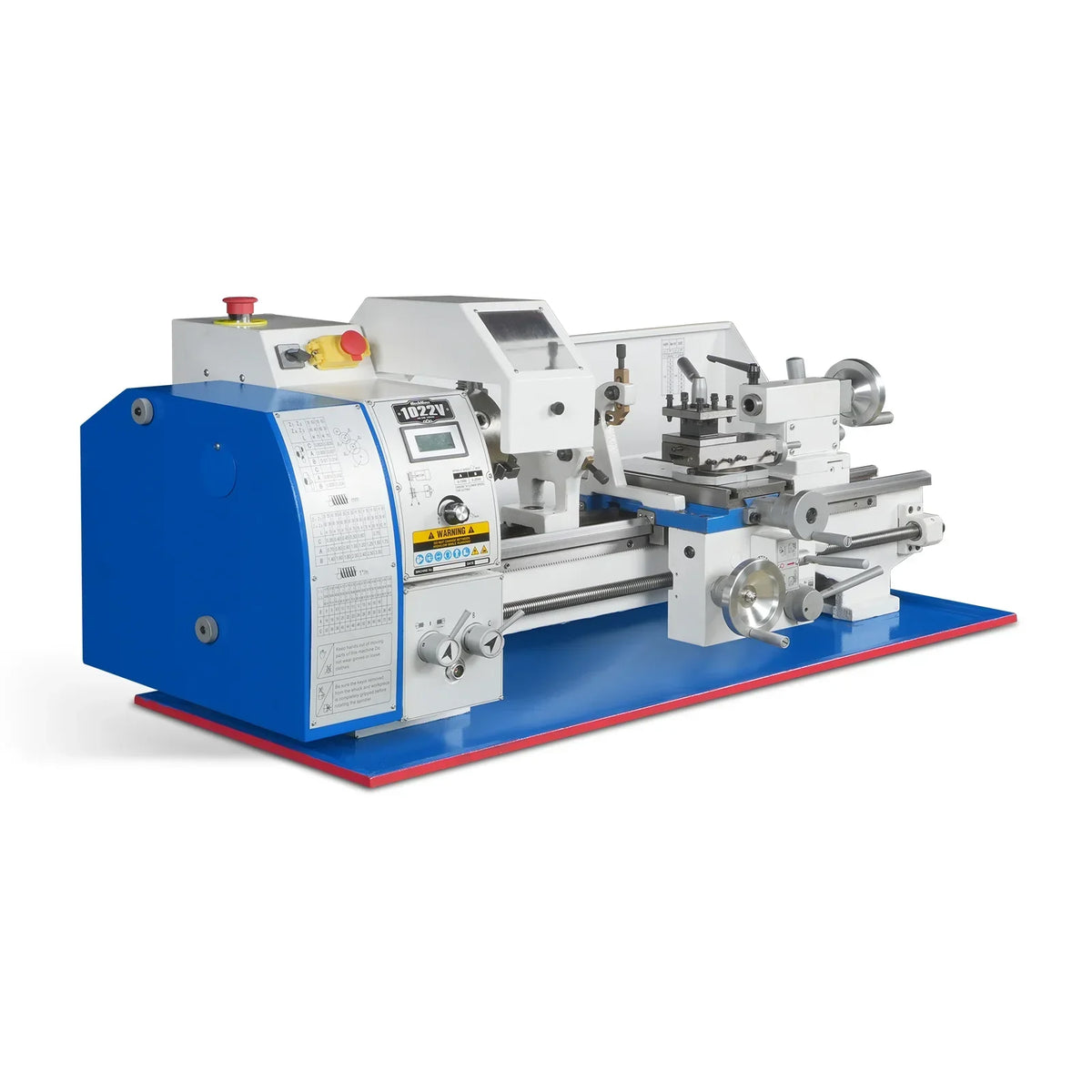

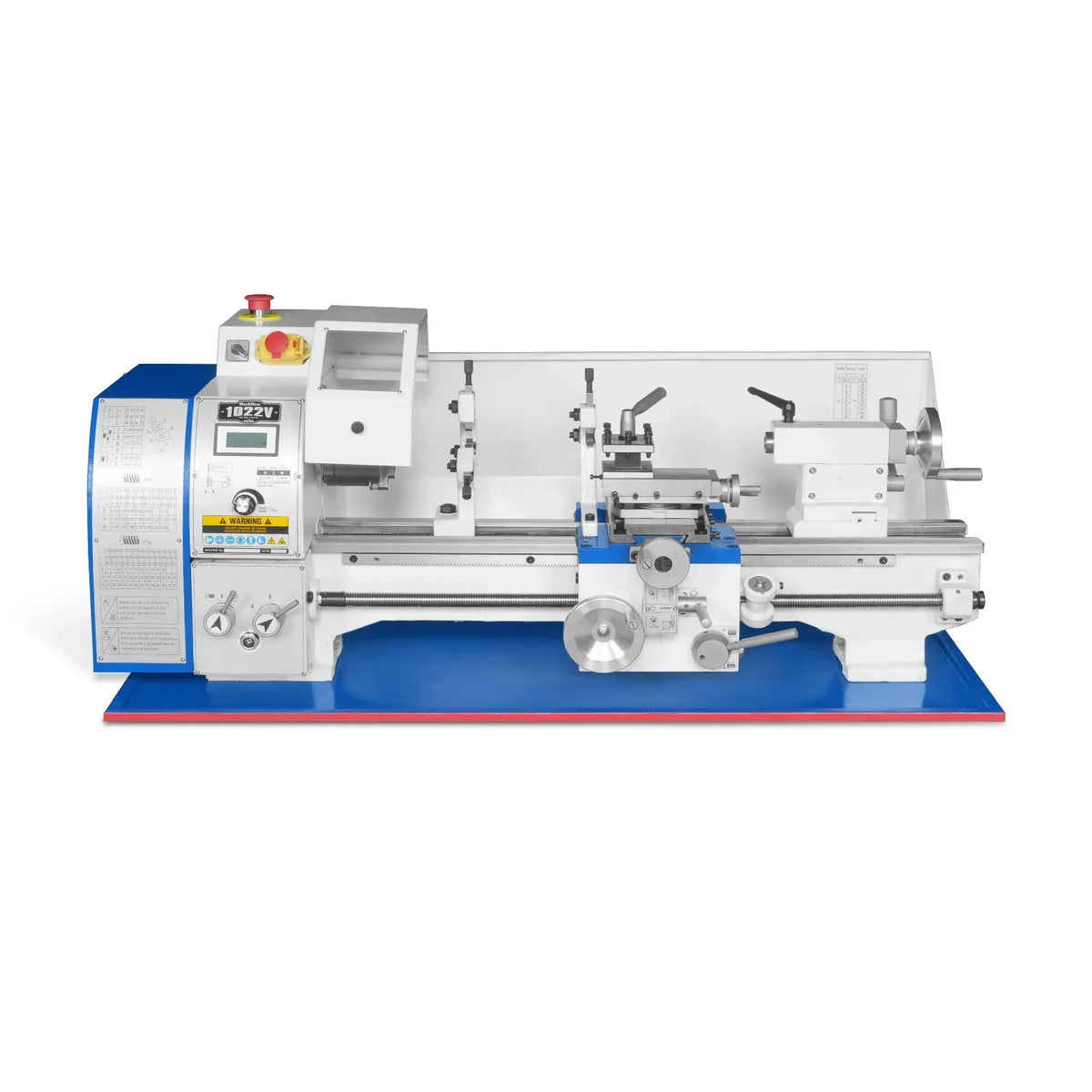

10'' x 22'' Industrial Metal Lathe Machine High Precision Benchtop 1.5HP Brushless Motor 0-2000 RPM Variable Speed Metal Working Machine Small Lathe without Stand 1022V
Inkl. Steuern.
Versand wird beim Checkout berechnet
Anzahl
Verfügbarkeit für Abholungen konnte nicht geladen werden
Specification
1022V
Motor
1.5 HP,110V, single-phase, 10A
Swing Over Bed
9-7/8" (250 mm)
Swing Over Cross Slide
5-1/2" (140 mm)
Swing Over Saddle
5" (127 mm)
Distance Between Centers
21-5/8" (550 mm)
Bed Width
5-3/8" (135mm)
Spindle Bore
1-1/2" (38 mm)
Spindle Mount
Intrinsic back plate
Spindle Type
One-piece Spindle
Spindle Taper
MT#5
Tailstock Taper
MT#2
Tailstock Quill Travel
3" (75 mm)
Cross Slide Travel
5" (127 mm)
Compound Slide Travel
3" (75 mm)
Carriage Travel
19-5/8"(500mm)
Spindle Speeds
0–2000 RPM
Number of Speed Ranges
Variable
Longitudinal Feeds
0.0025 – 0.014 in./rev.
Transverse Feed Rate
0.0014 – 0.004 in./rev.
Leadscrew Size & Pitch
20mm(8TPI)
Threading Capacity - Inch
8–80 TPI(37KINDS)
Threading Capacity - Metric
0.35 – 3.0 mm(21kinds)
Maximum Tool Bit Size
15/32''(12mm)
Thread Dial Indicator
YES
Coolant System
OPTIONAL
Overall Dimensions
44.0" × 25.0" × 19.0" (1220 × 635 × 480 mm)
Approximate Shipping Weight
308/352 lbs (140/160 kg)
