MechMaxx

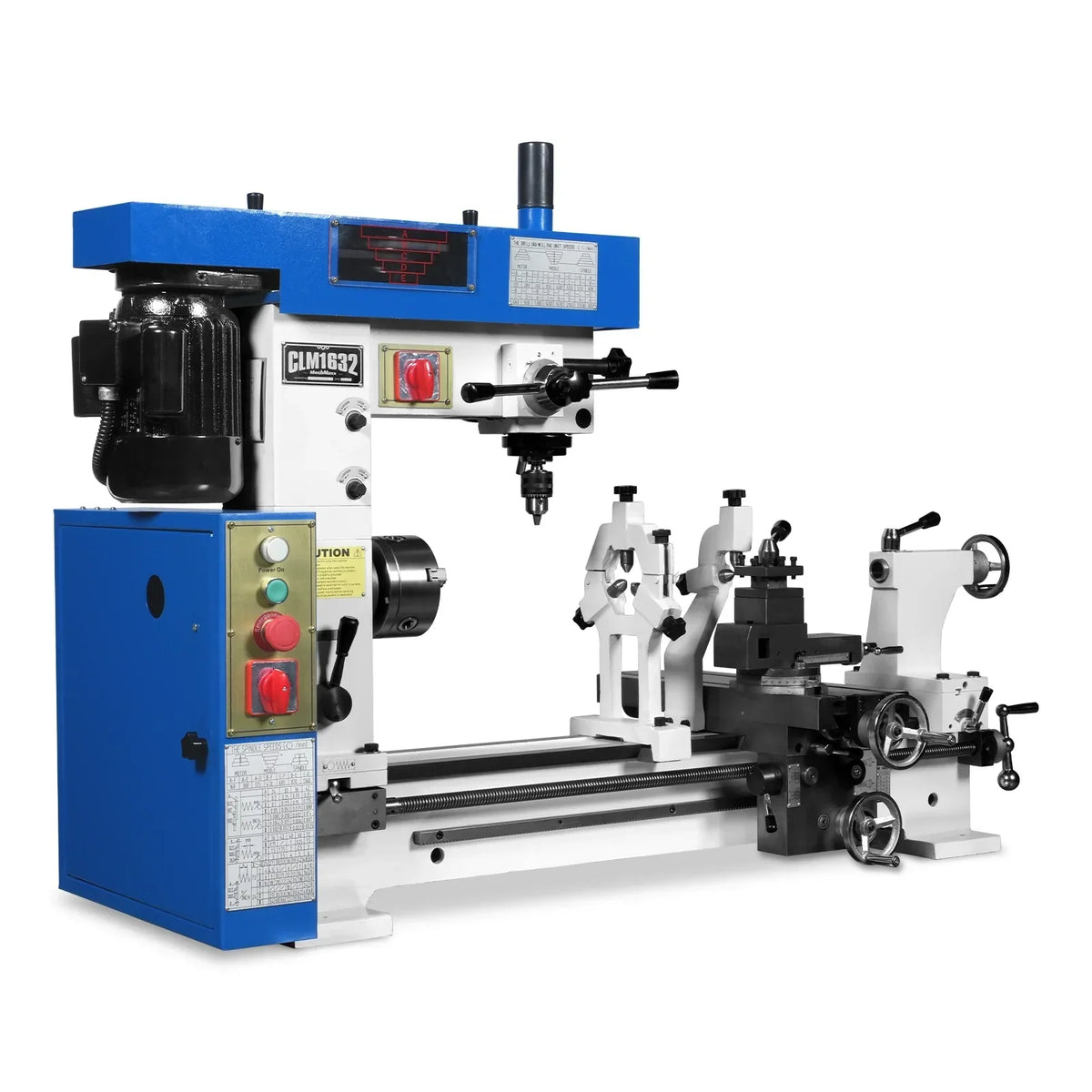

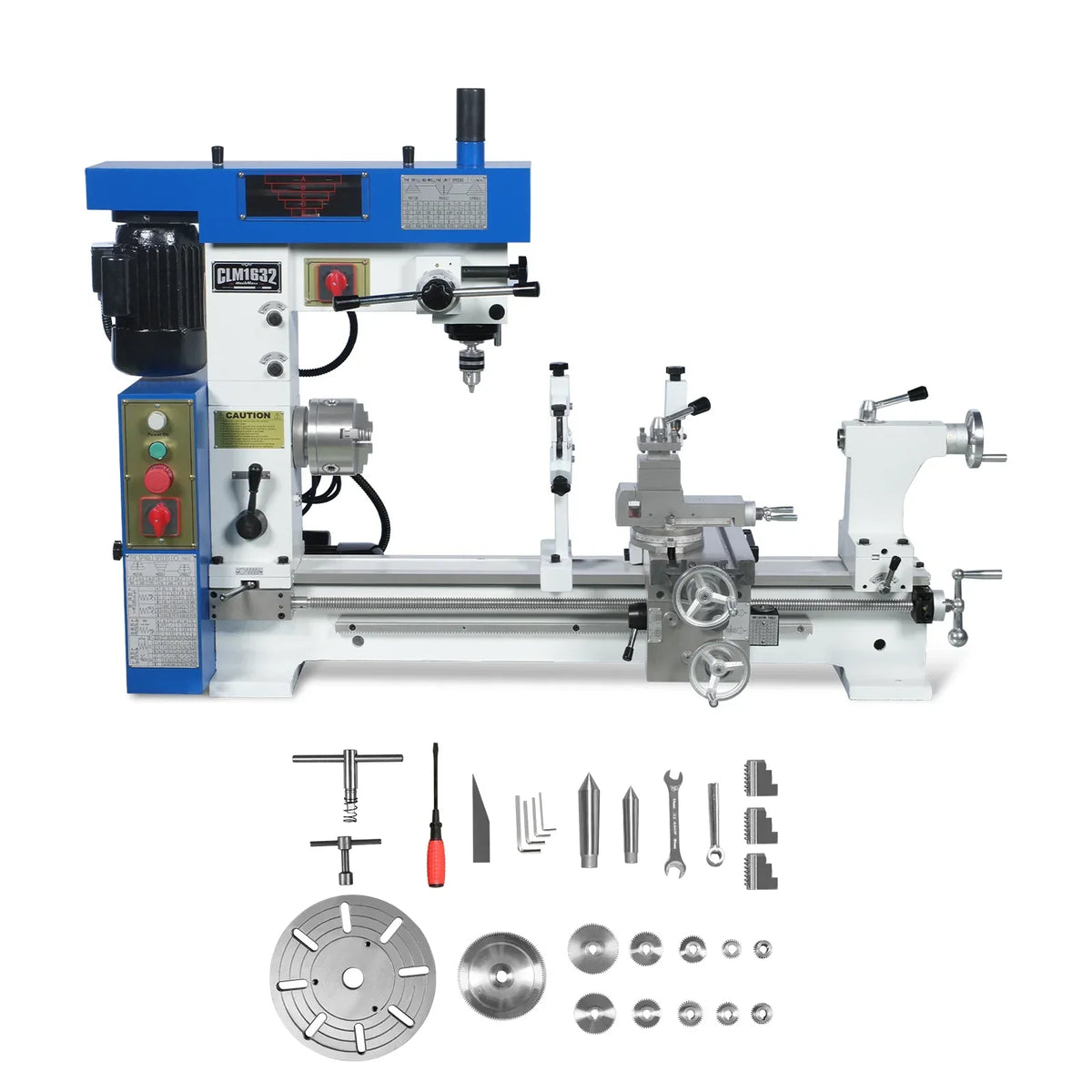

1 HP 16''x32'' Multi-Function Metal Lathe Milling Machine Head for Metalworking – Lathe, Drilling, and Milling Operations with Powerful Motor, Perfect for DIY, Workshops, and Professional Metalworking Projects without Stand CLM1632

1 HP 16''x32'' Multi-Function Metal Lathe Milling Machine Head for Metalworking – Lathe, Drilling, and Milling Operations with Powerful Motor, Perfect for DIY, Workshops, and Professional Metalworking Projects without Stand CLM1632

€3.499,00
€3.499,00 €3.499,00
Sale Ausverkauft
Inkl. Steuern. Versand wird beim Checkout berechnet
Lathe
Motor Power (Lathe) 1PH(750W), Single-Phase, 110V,  60HZ
Swing Over Bed 16-8/15''(420mm)
Swing Over Cross Slide 11-1/2"(120mm)
Distance Between Centers 31-1/2''(800mm)
Bed Width 5-5/16''(135mm)
Spindle Bore 1-1/10''(28mm)
Spindle Mount Flange mount
Spindle Type Integrated Spindle

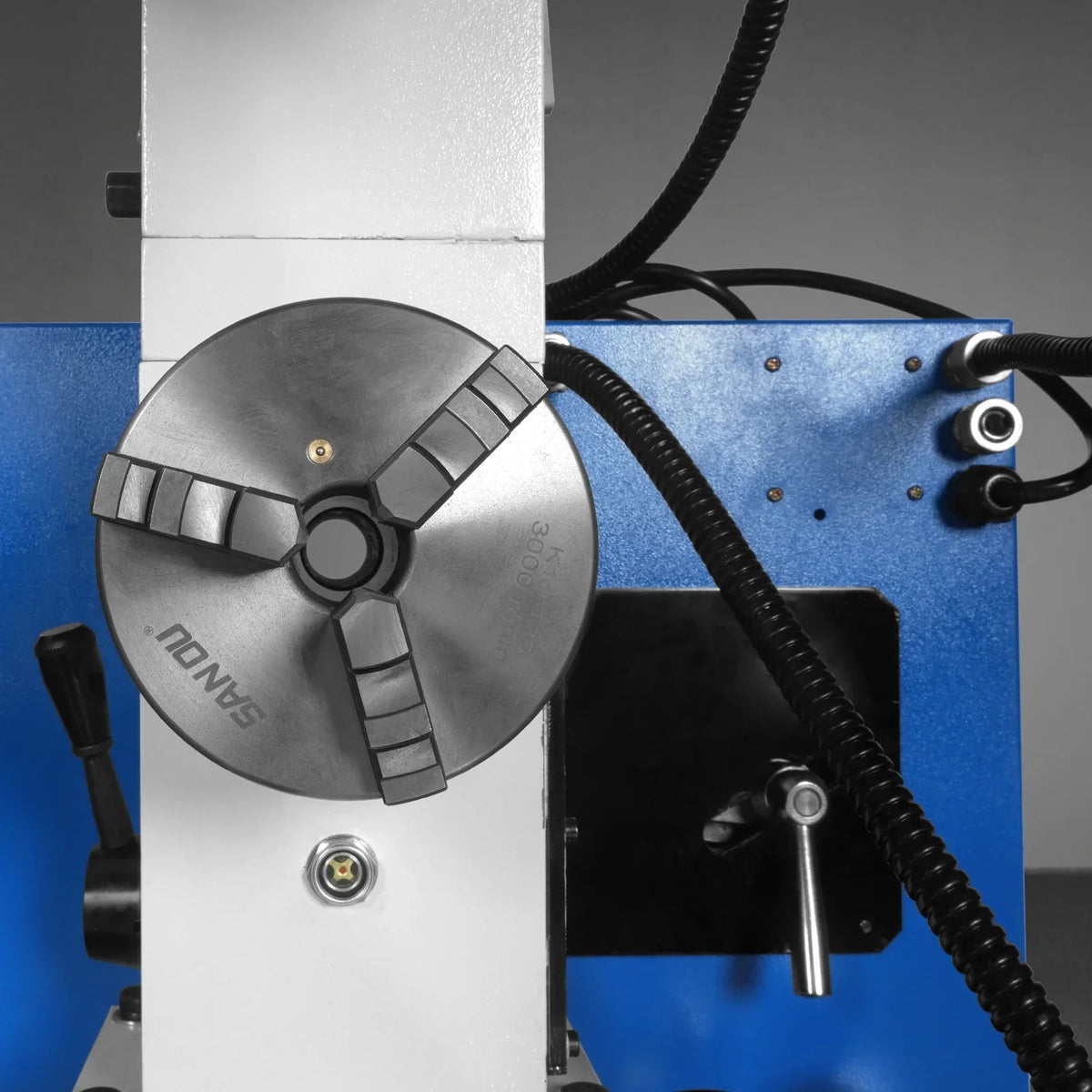

DIA of  the chuck 5''(125mm)
Spindle Taper MT4

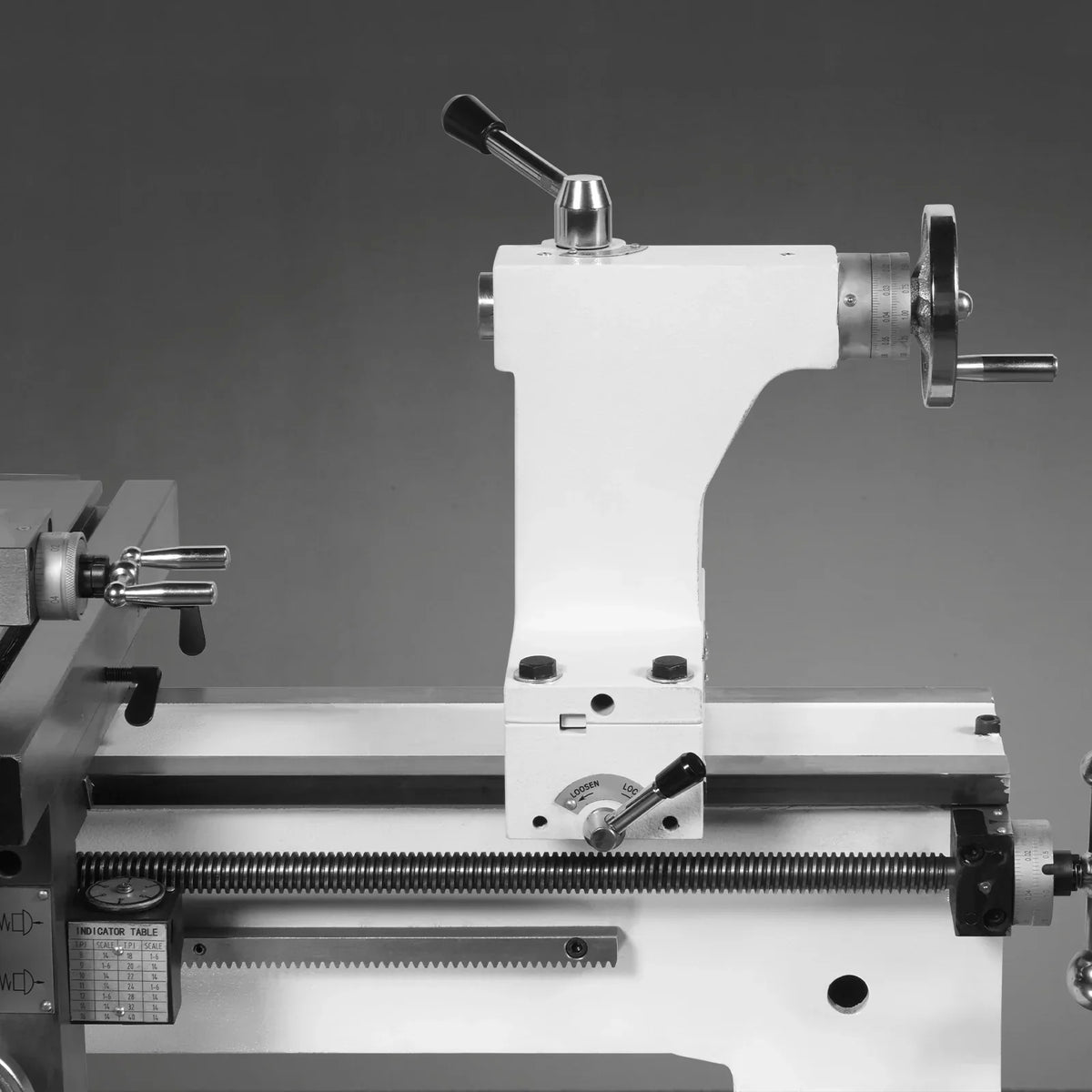

Tailstock Taper MT3
Tailstock Quill Travel 2-3/4''(70mm)
Carriage Travel 29-1/8''(740mm)
Carriage Leadscrew Diameter 25/32"(20mm)
Cross Slide Travel 7-7/8''(200mm)
Compound Slide Travel 3''(76.2mm)

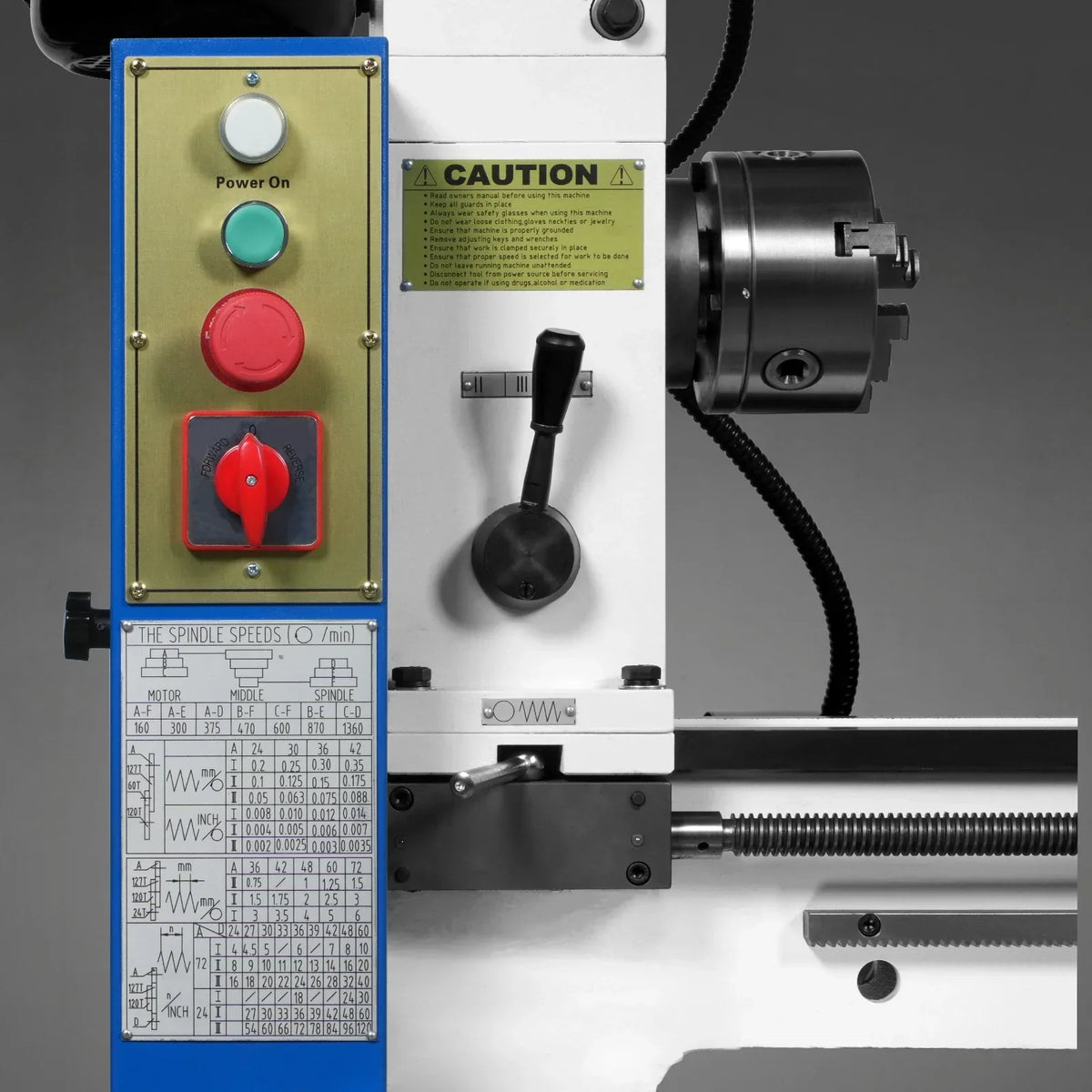

Spindle Speed Range 160-1360RPM
Number of Speed Ranges 7
Longitudinal Feed Rate 0.002''-0.014''
Transverse Feed Rate 0.002''-0.014''
Leadscrew Size & Pitch 20mm 6TPI
Threading Capacity – Inch 4-120TPI
Threading Capacity – Metric 0.2-6mm
Thread Dial Indicator YES
Maximum Tool Bit Size 1/2''x1/2''(12x12mm)
Drill/Mill
Motor Power (Mill Head) 1PH(750W)

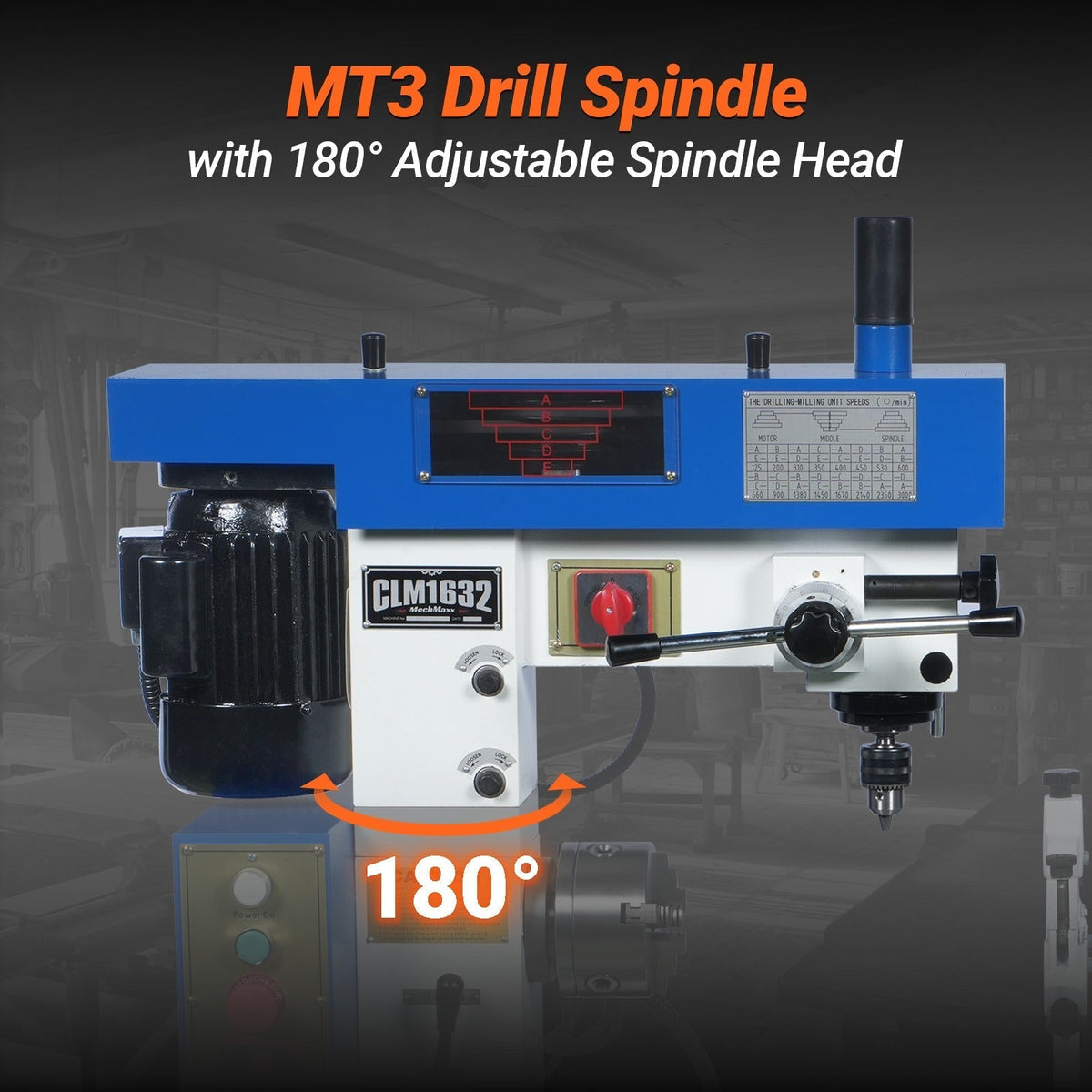

Mill Taper MT3

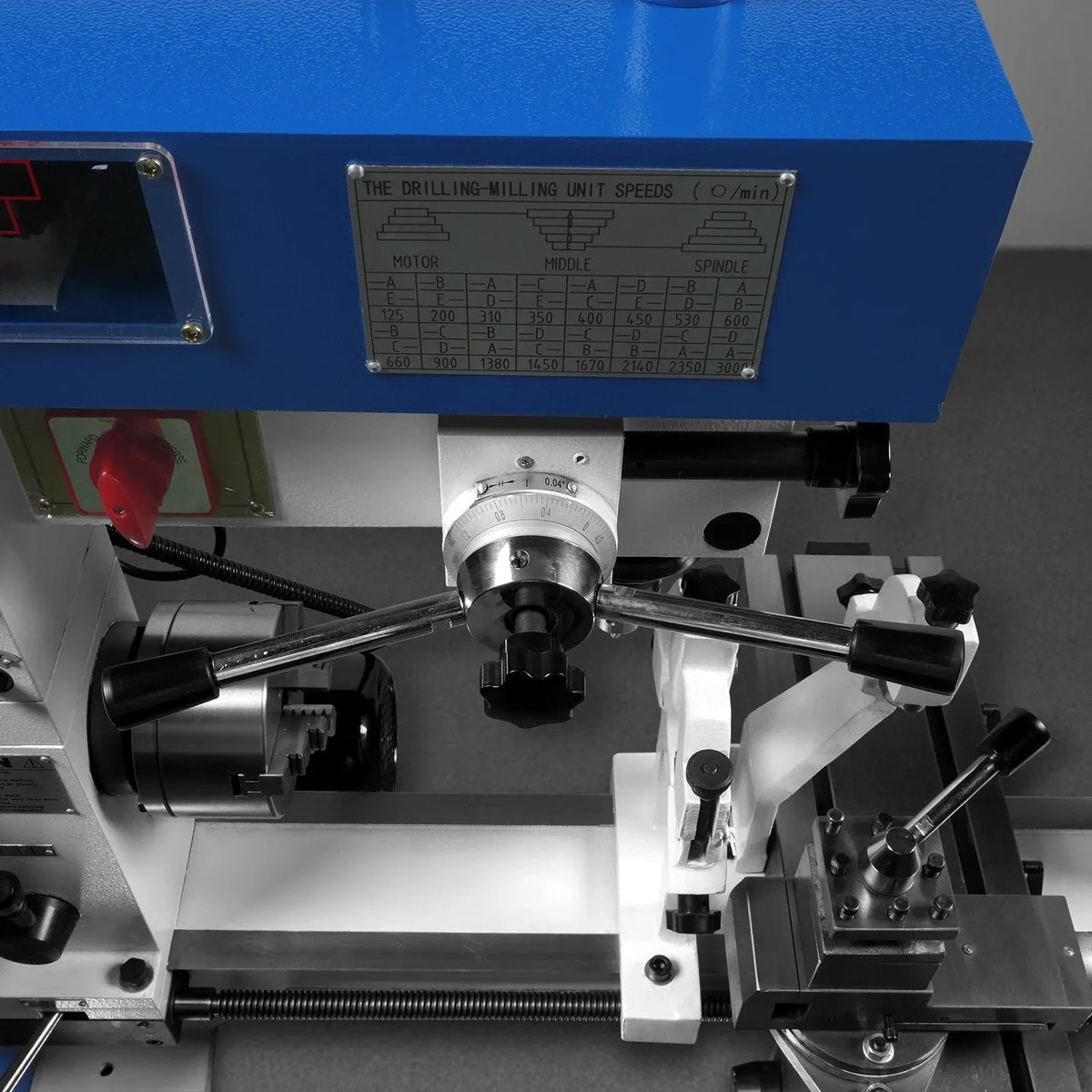

Spindle Speed Range 120, 200, 310, 350, 400, 450, 530, 600, 660, 900, 1380, 1450, 1670, 2140, 2350, 3000 RPM
Number of Speed Steps 16
Spindle Travel  4-5/16"(110mm)
Drawbar Thread Size 3/8''(9.52mm)
Drawbar Length 13''(330mm)
Drawbar Thread Pitch 16TPI
Drill Capacity 7/8''(22mm)
End Milling Capacity 1-1/8"(28mm)
Face Milling Capacity 3-5/32''(80mm)
Vertical Travel (Z-Axis) /
Distance: Spindle to Table 14-1/2''(370mm)
Distance: Spindle to Center Line 6-1/8''(156mm)
Headstock Height 3-1/8''(79.4mm)
Head Tilt Angle 0°
Swivel angle of the headstock 360°

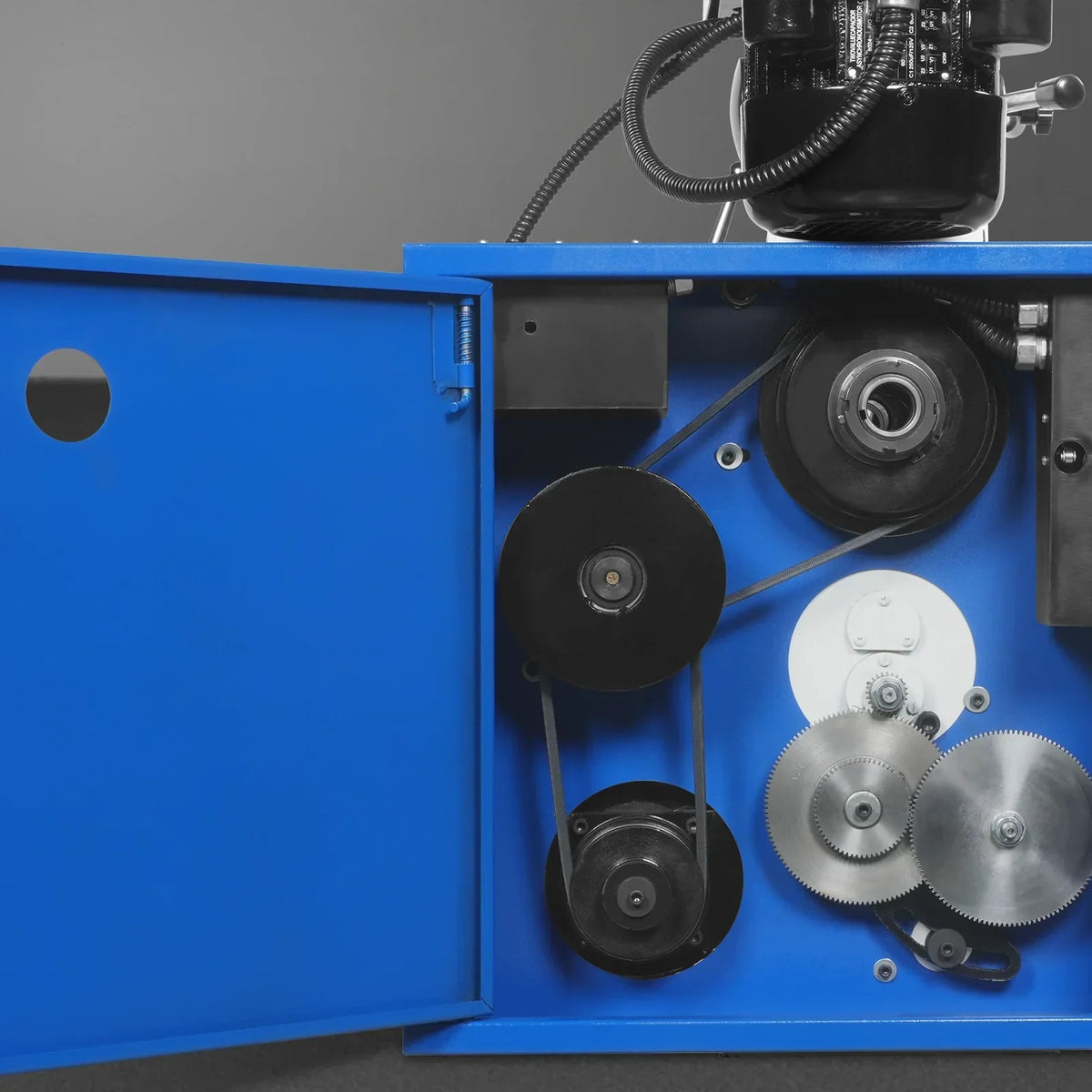

Drive Type Belt-driven AC Motor
Overall Dimensions 57''x23''x45''(1440x580x1140mm)
N.W/G.W 595/653lbs(270/296kg)

WARNING: This product can expose you to chemicals including engine exhaust (including diesel engine exhaust when equipped),lead and lead compounds, mineral oils, soot, phthalates, and carbon monoxide which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.
Certain specification(s) are based on engineering calculations and are not actual measurements. Specification(s) are provided for comparison purposes only and are subject to change without notice. Specification(s)  for your individual equipment will vary based on normal variations in design, manufacturing, operating conditions, and other factors.
